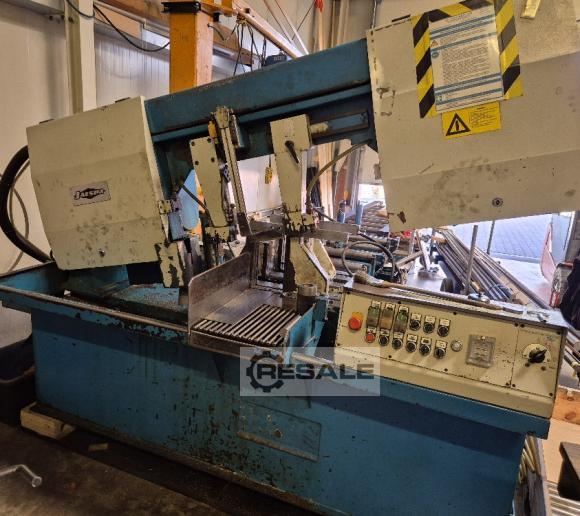

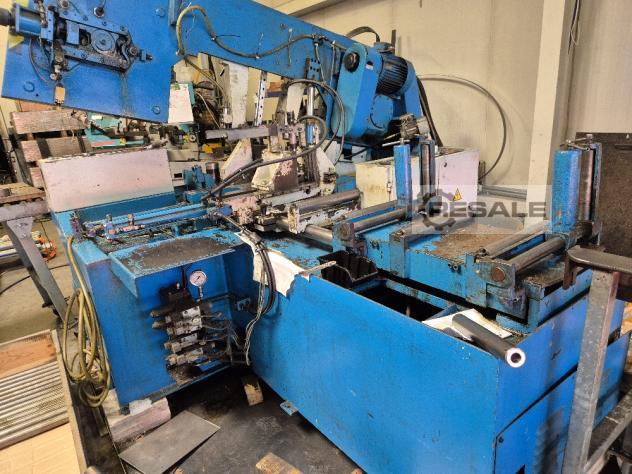

Horizontal saw with position control Cutting area round: 320 mm Rectangle cutting area: 320 x 320 mm Band saw dimensions: 5250/5350 x 32 x 1.1 mm Belt speed: 15 - 110 m/min Saw drive: 380 V, 4 kW Weight: 2200 kg  ...

• more information

- Minimum quantity spraying device (option) - Roller conveyor 400mm with intermediate plates and machined surfaces (option) for measuring stop - Additional support leg (option) - Attachment kit for fixed connection (option) - Measuring track with magnetic reading strip (option) - Stop, hand-operated, roller guide and digital display (option) - Saw blade dimensions: 3100 x 27 mm - Cutting range at 90 degrees around 250 mm - Cutting range at 90 degrees square 220 mm - Cutting area at 90 degrees rectangular 275 x 180 mm - Cutting range at 45 degrees around 200 mm - Cutting range at 45 degrees square 180 mm - Cutting area at 45 degrees rectangular 190 x 130 mm - Cutting range at 3 ...

- High-performance automatic band saw, heavy, hydraulically production band saw - Parallel sawing feed system in profile guide notes - Mitsubishi NC program control E1032 for preselection of 90 sets, a respective quantity and a corresponding Section length - PLC control Mitsubishi - With Siko incremental encoder - Material feed with ball screw 950 mm in one stroke, any section length from 3 mm - 9999 mm - Hydraulic material clamping with long-stroke cylinder, opening from both sides - Material clamping with double vice in front of and behind the saw blade - Remnant length in automatic mode: 90 mm - Max. section length in car operation: unlimited - Material support height  ...

Offer 24149 Specifications: - Cutting range at 90° around 320 mm - flat 300 x 270 mm - Material replenishment stroke up to 500 mm - Unlimited multi-stroke - Remnant length in automatic mode 125 mm - Saw blade dimensions 3900 x 27 x 0.9 mm - Cutting speed 17 to 106 m/min - hydr. Lifting – lowering the saw frame - Upper stroke limit of the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - hydr. Material vise -Conveyor - Saw blade cleaning brush - Coolant device - Drive 400 V / 2.2 kW - Space requirement approx. W 2300 x H 1700 x D 2600 mm - Weight approx. 1700 kg - Roller conveyor 2000 mm

Semi-automatic, double-sided mitre band saw with turntable Swivel bracket design, mitre angle: 30°-90°-45° Material tension: hydraulic, saw bracket feed: hydraulic, Lifting bracket: hydraulic, speed: 37 / 74 m/min, belt dimensions: 3100 x 27 mm, 45°: round 240, square 240, rectangle 260x220 mm, 30°: round 190, square 180, rectangle 200x100 mm, saw feed infinitely adjustable via fine throttle, hydraulic material tension, opens and closes automatically, quick-release vise, can be used to the right or left of the belt, Ball-bearing turntable with grid and quick clamp for holding the saw frame, Particularly easy swivelling of the bracket, Large doors for easy belt change from the fron ...

Band saw Jespa 340/630 HAP column guided Band saw Jespa Semi-automatic Type 340/630 HAP Column-guided Built in 2009 Saw blade length 5.150mm  ...

• more information

roll diameter:420 mm throat:400 mm workpiece height:325 mm table surface area:615 x 615 mm table swivelabel +/-:10/45 ° table - inclinable:+/- 20 ° cutting speed:20 - 2500 m/min total power requirement:2 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,95 x 0,65 x 1,83 m  ...

• more information

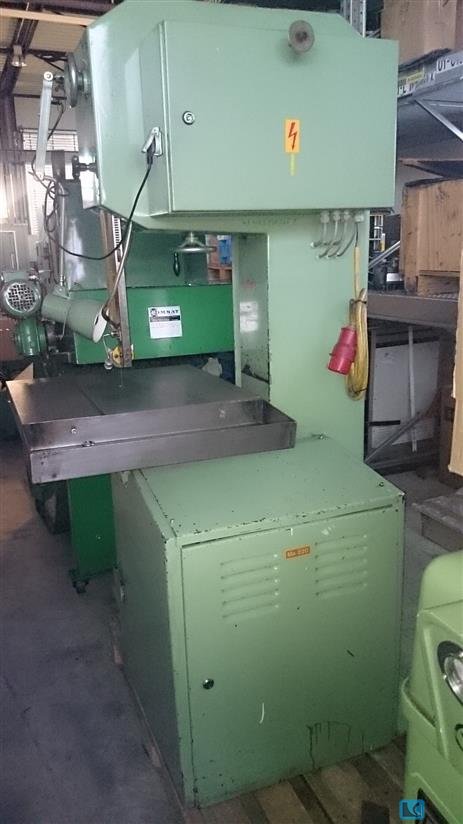

Band saw JAESPA AS8 Blade length 5300 - 5500 mm Width 34 mm 16 A 380 V Length 1.50 m Width 1 m Height 2.50 m Tiltable table Speed indicator  ...

• more information

Offer 23402 Specifications: - Roll diameter 420 mm - Projection 400 mm - Max. passage height 325 mm - Table size 600 x 600 mm - Table tiltable left / right 10° / 45 ° - Table height from the floor approx. 1030 mm - Saw blade length 3450 - 3640 mm - Bandwidth max. 25 mm - Infinitely variable belt speed 15 - 1500 m/min - Drive 400 V / 1.5 kW - Weight approx. 500 kg - Space requirement approx. W 800 x H 1850 x D 1000 mm - With: - Saw blade welder IDEAL -Lighting

Semi-automatic, double-sided vertical - mitre band saw Miter angle: 30°-90°-30° Material tension: hydraulic Saw bracket feed: hydraulic Lifting strap: back/hydraulic Speed: 15-100 m/min Strap dimensions: 4730 x 34 mm 45°: Round 330, Square 330, Rectangle 420x330 mm 30°: Round 240, Square 240, Rectangle 420x240 mm Angle +/- 30 (60) degrees, Saw feed hydraulic, Material tension hydraulic to the left and right of the saw blade, Stirrup guide on backlash-free and low-maintenance guide systems, Automatic adjustment of the stirrup feed stroke to the material diameter, Automatic angle positioning via Wago control with preset counter for any angle from -30 (60) to +30 (60) deg ...
