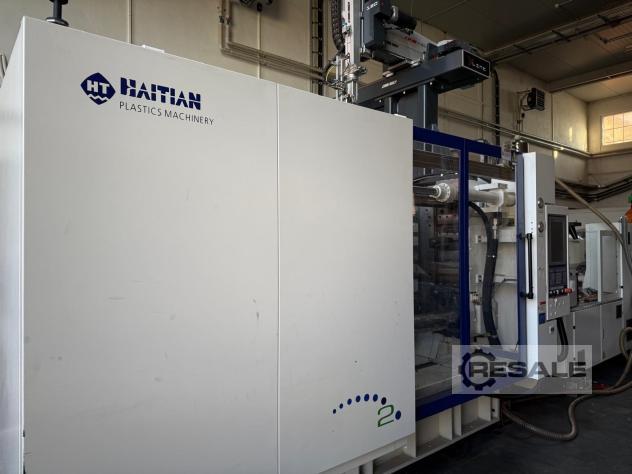

Injection molding machine over 5000 KN HAITIAN JUPITER 2 Plus 5500-2850

Clamping force: 5500 kN Injection shot weight in Polysterol: 1127 g/PS Screw diameter: 70 mm Screw diameter: 70 mm
Injection weight in polystyrene: 1127 g
Clamping force: 5500 kN
Screw diameter: 70 mm
Stroke volume: 1239 cm³
Injection weight in polystyrene: 1127 g/hp
Injection pressure: 1,990 bar
Clamping force: 550 t
Lights Tie bar spacing H x V: 920 x 830 mm
Tool installation height - min.: 350 mm
Opening distance: 750/1300 mm

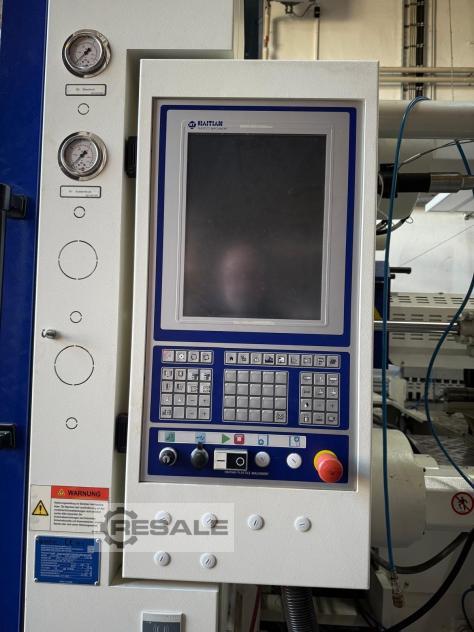

Microprocessor control: KEBA 2880
Screen text: German
Instruction manual: German
FHK interface for robots: Euromap 67
Core pull: 4x
Without material C6244652 hopper / without C6244652 water battery: -/-
Pump drive power: 55+4 kW
Total connected load: 95.4 kW
Total weight: 21,000 kg
Total size: 7.5 x 2.5 x 2.6 m

Payment terms: 100 % before taking over the machine, purely net
seller offer No. resale 30011
