Modello
(Fabbricante: ALFA LAVAL)
Usata AMENDUNI linea completa di produzione dell'olio 20 qlhSpecifiche tecniche e dati sulle prestazioniQuesta linea completa di olio d'oliva a ciclo continuo è progettata per un'estrazione efficiente e ad alta produttività con movimentazione, frantumazione, malax, separazione e decantazione integrate. Prodotta da AMENDUNI, fornisce una piattaforma robusta per ambienti di imballaggio industriale di seconda mano e trasformazione alimentare, supportando un'integrazione fluida con le operazioni di imbottigliamento a valle e di imballaggio industriale per oli commestibili. Modalità operativa: Linea di estrazione dell'olio d'oliva a ciclo continuo Produttore: AMENDUNIYear:
La macchina si presenta in ottime condizioni. Può arrivare a 9 sacchi al minuto con latte da 3 litri a 25 litri
General SKU284Y445 LocationBarneveld MakeAlfa Laval TypeLabstak M20 Main Features MaterialStainless steel Specified Features - Miscellaneous filter Filtercheck Filter surface2,14 m² MaterialStainless steel 1.4552, Stainless steel 1.4301 (304), Stainless steel 1.4306 (304L) With jacketcheck General No.7764 Year of construction2005 Mounted on wheelscheck Floor space1,30x0,80 m Total height1,63 m Weight480 Extra Specificationsmax. capacity filter: 0,275 l.This filter system includes, among other things: An Enerpac hydraulic hand pump for hydraulically closing the stack filter. A plunger fluid pump equipped with a 3.0 kW, 400 V motor. An Alfa Laval heat exchanger, Type 107151Miscellaneous filtersAlfa LavalFilters > Miscellaneous filtersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for ...
General SKU255Y256 MakeAlfa Laval TypeBTPX-205 SGD-34-50 No.4026244 Year of constructionunknown Main Features MaterialStainless steel Capacity1200 Ltr./Hr. Motor6.5 KW Specified Features - Separator Separatorcheck Capacity1,2 m³/h Motor6,5kW, 380/660V, 2900rpm Max. rotor speedBowl speed 9631 rpm. Self-dischargingcheck InletDia. 45 mm Liquid outletDia. 70 mm Solids outletcheck MaterialStainless steel 1.4306 (304L), Stainless steel 1.4462 (318LN) With jacketcheck General LocationBarneveld Mounted on mild steel framecheck With switchgear(as is) Weight2100 kg Extra Specificationsdensity of sediment/ feed, max: 1302/1100 m³/hcomes with centrifugal pump and vessel:pump:brand:Alfa lavaltype: GM-1A/65motor: 0,55kW, 400VVessel:brand: Bucocapacity: 50 l.pressure: 2 bar.temperature: 120°Cyear: 1986New arrivalsSeparatorsAlfa LavalNew arrivalsCentrifuges > SeparatorsBran ...

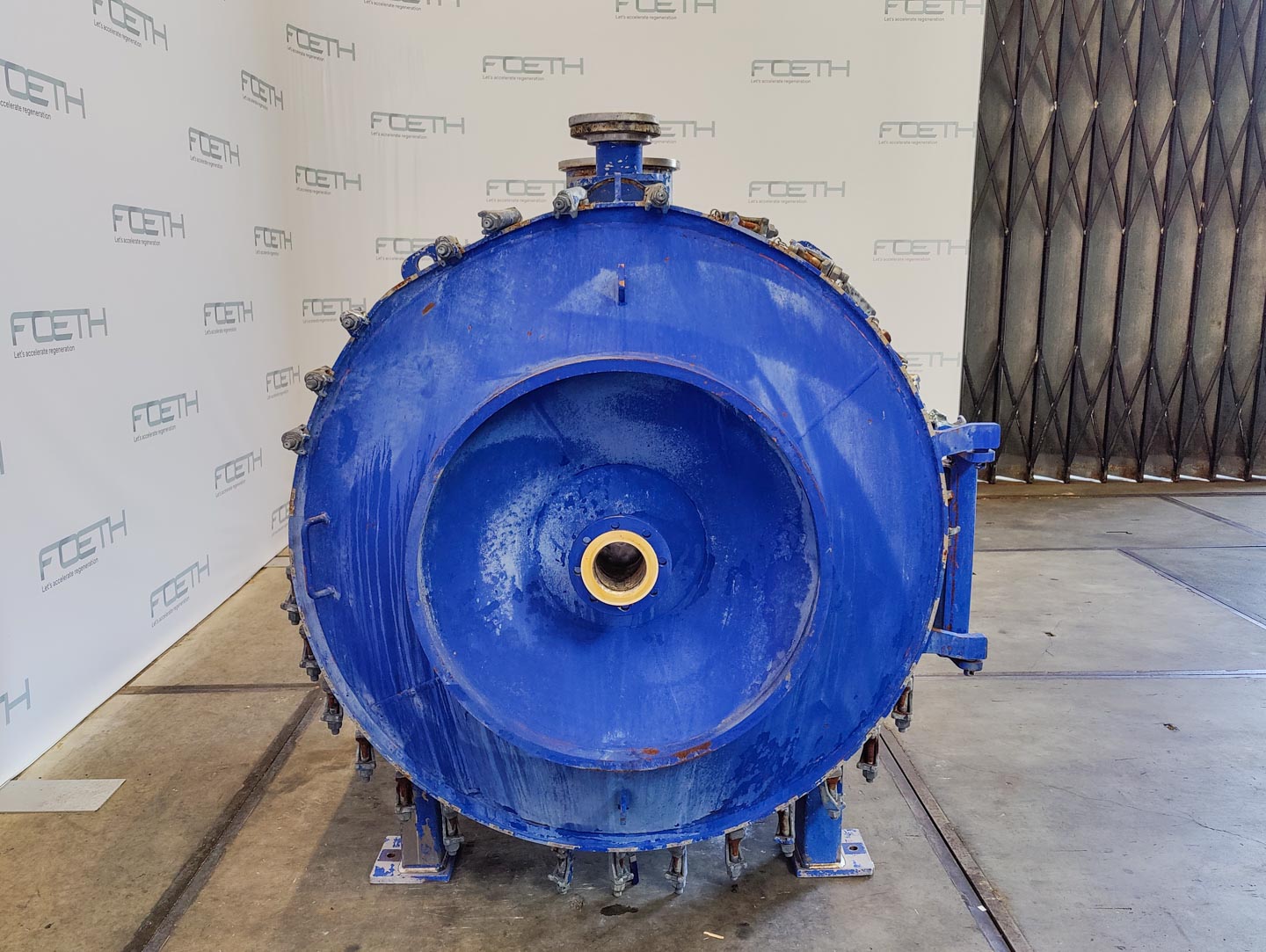

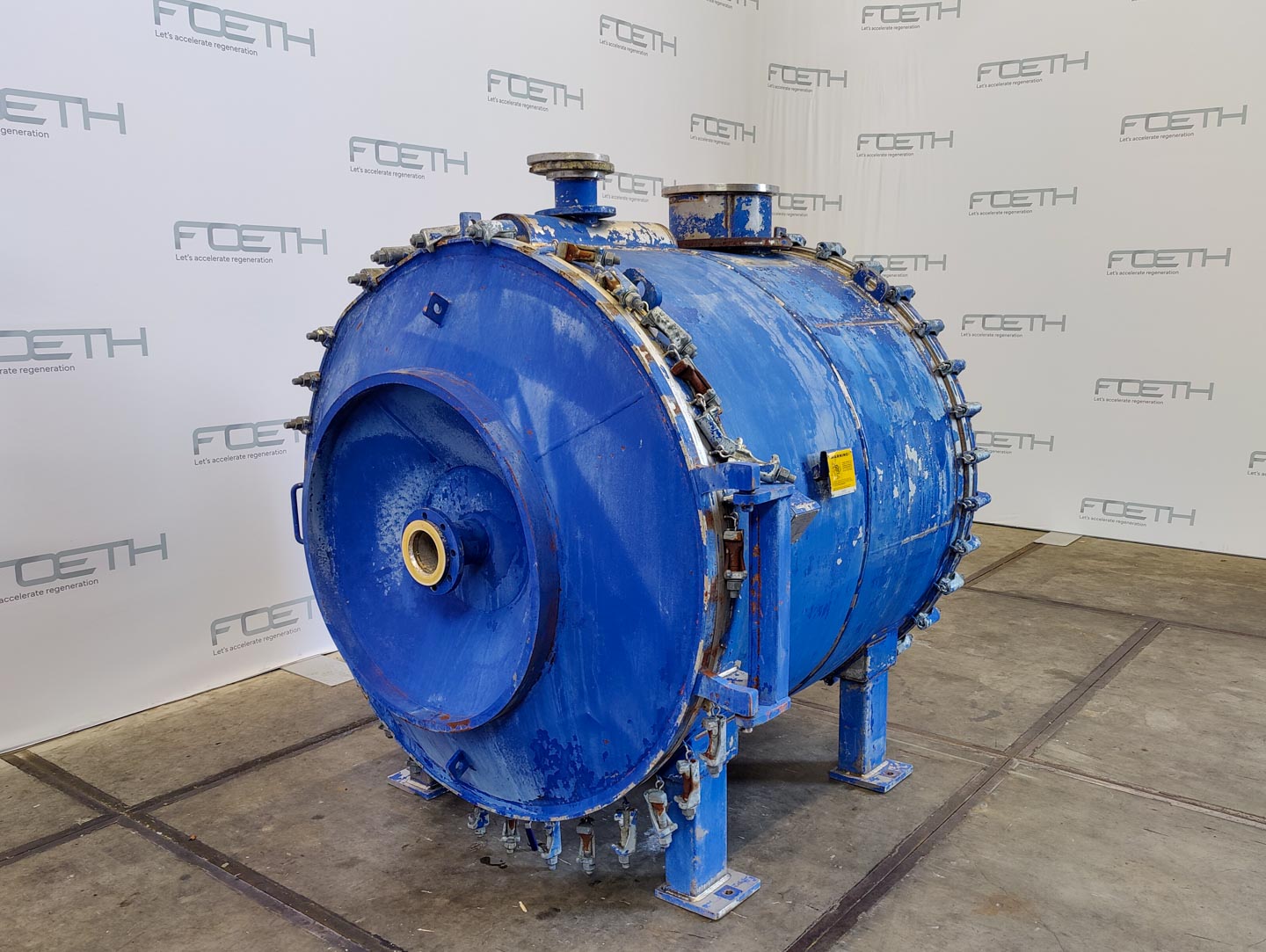

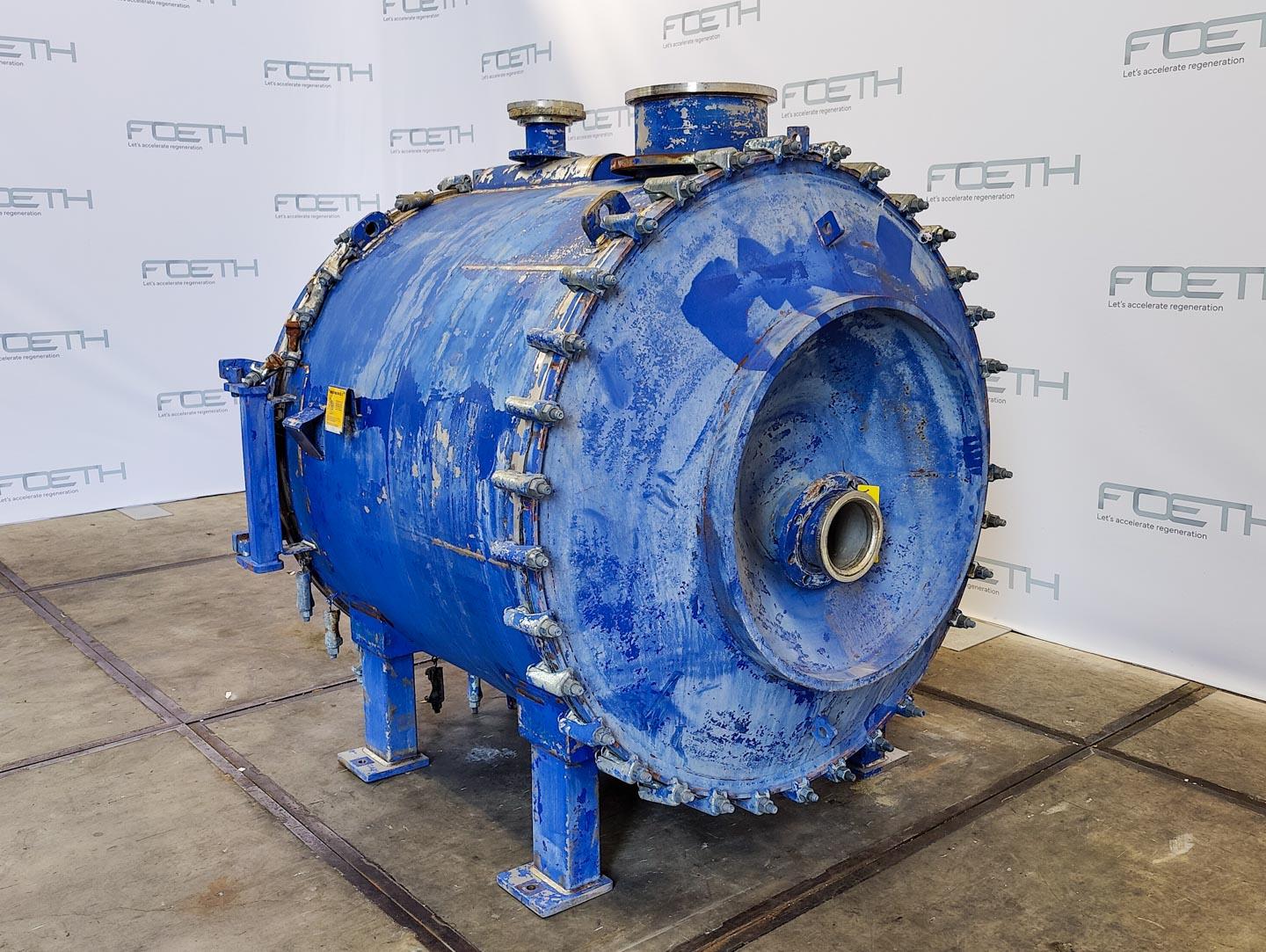

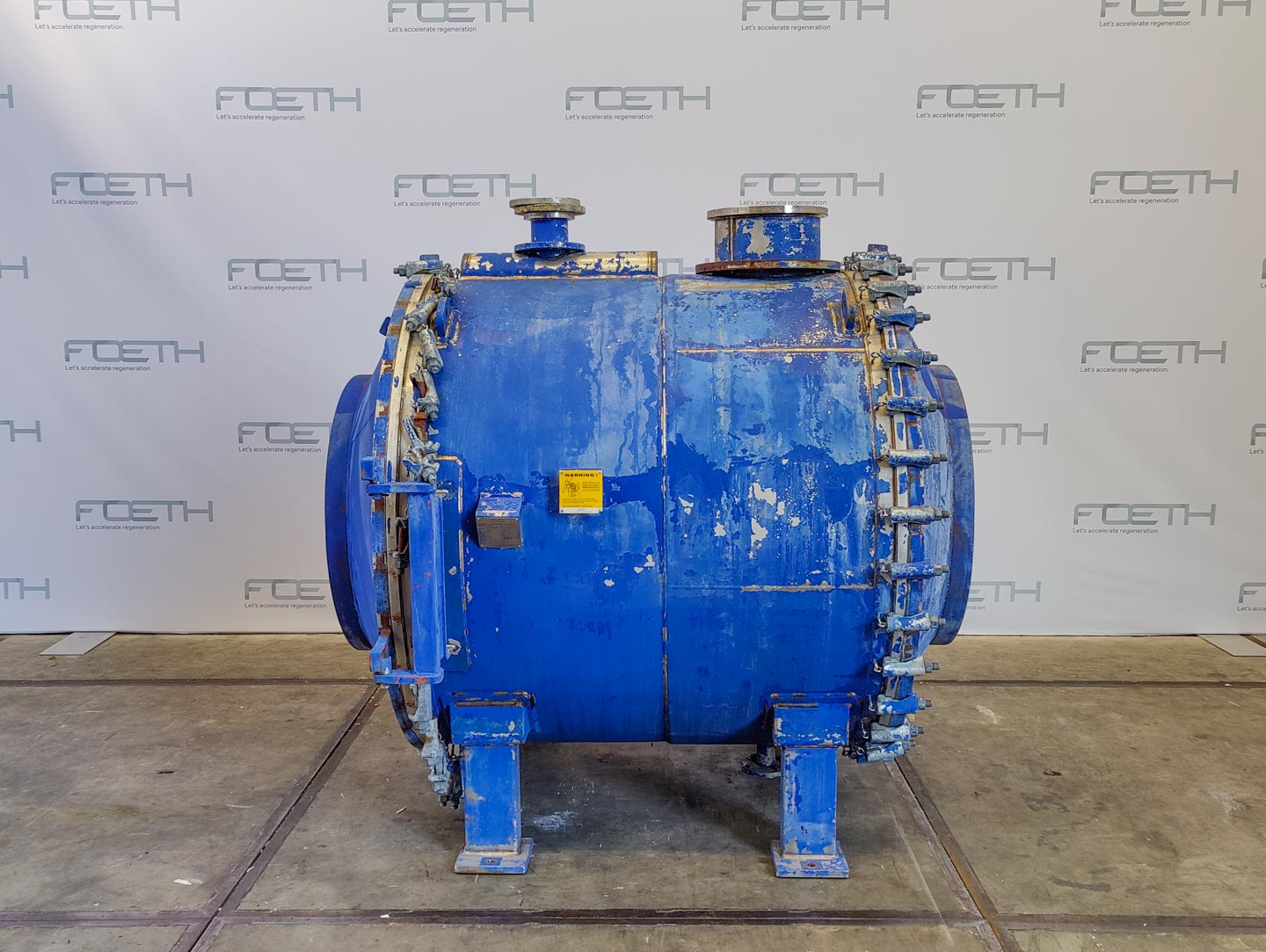

General SKU212U086 LocationBarneveld CEcheck MakeAlfa Laval Type3H-C-1T Pressure Vacuum possiblecheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface98 m2 Specified Features - Shell and tube heat exchanger Heat exchanger:spiral: Horizontalcheck Heating surface98 m² Tube capacity705 Ltr. Number of tubes:1 Wall thickness tubes2 mm Max. temperature0/100 °C Shell capacity1255 Ltr. Wall thickness shell2 mm Max. temperature0/100 °C Shell connectionsDN250, DN100 Cover connectionsDN100 (2x) Capacity830.8 kW MaterialStainless steel 1.4404 With jacketcheck General No.21965 Year of construction2002 Mounted on legscheck Floorspace1,85x1,3 m Total height1,85 m Weight4100 kgShell and tube heat exchangersOils & fa ...
General SKU020A140 MakeAlfa Laval TypeContherm 6x4 No.HC-288 Year of constructionunknown Mounted on framecheck Main Features MaterialStainless steel Motor4 KW Surface0.4 m2 Specified Features - Scraped surface heat exchanger Scraped surface heat exchanger(1x) Heating surface0,37 M2 (4 Square Feet) Cylinder sizesdia. 152mm (6 Inch) With jacketcheck Motor4,0 KW, 380 Volt With variable speed drivecheck MaterialStainless steel With jacketcheck General LocationBarneveld Floorspace1,2x0,9 M Total height1,8 M Technical specs Extra informationcylinder size: 152 mmDiscountScraped surface heat exchangersAlfa LavalDiscountHeat exchangers > Scraped surface heat exchangersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect t ...
General SKU034G143 MakeAlfa Laval TypeContherm 6x3 No.HC-4844 NCC + HC-1802 NCC Year of construction1992 / 1982 Mounted on framecheck Material Product contact materialStainless steel 1.4301 (304) Pressure Working pressure20 Bar Working pressure jacket17.2 Bar Main Features MaterialStainless steel Motor15 KW Surface0.6 m2 Specified Features - Scraped surface heat exchanger Scraped surface heat exchanger(1x) Heating surface0,279 m2 each With jacketcheck Rotor can be cooled/heatedcheck Motor2x 7,5 kW (400 V, 1450 rpm) Speed177 rpm MaterialStainless steel 1.4301 (304) With jacketcheck General LocationBarneveld With switchcheck Floorspace1,3 x 1,0 m Total height2,0 m Weight650 kg Technical specs Extra informationworking pressure 20 bar (300 PSI) / 31 bar (450 PSI): jacket working pressure 15,5 to 17,2 barDiscountNew arrivalsScraped surface heat exchangersAlfa ...
General SKULY003 MakeAlfa Laval TypeAlfaFlash MVR system No.DE21-1026 Main Features MaterialStainless steel Motor110 KW Surface1.1 m2 Specified Features - Film evaporator Max. temperature110 °C With variable speed drivecheck With condensercheck MaterialStainless steel 1.4401 (316), Titanium Information Year of construction2021 With switchgearcheck Extra SpecificationsThis machine (Elemetal Zinc Sulphate MVR System) is an evaporation/crystallization unit that concentrates zinc sulphate solution past saturation so zinc precipitates as ZnSO₄·1H₂O crystals. The crystals are then separated from the mother liquor in a decanter centrifuge, producing a solids cake for downstream drying and clean condensate that can be reused. : The complete plant/module consists of (main machines/equipment): Feed section: feed pump and feed preheater: Feed to the module: 1065 kg/h, 50° ...
General SKU289P535 LocationBarneveld MakeAlfa Laval LKM TypeLKH 30/220 SSS Main Features MaterialStainless steel Motor11 KW Specified Features - Centrifugal Pump Pump:Centrifugal pump: Number of pumps:1 Capacityunknown With motor11 kW InletDN65 OutletDN50 With jacketcheck Centrifugal Pumps MaterialStainless steel General Mach.No.30-06657 Year of construction1995 Floorspace0,9x0,6 M Total height0,6 M Weight100 KG Extra SpecificationsCECentrifugal PumpsAlfa LavalPumps > Centrifugal PumpsBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
General SKU213T152 MakeAlfa Laval TypeCHPX510TGD-15CGRX No.4131842 Year of construction2005 LocationBarneveld Main Features MaterialStainless steel Capacity20000 Ltr./Hr. Motor18 KW Specified Features - Separator Separatorcheck Capacity20000 Ltr./h Suitable formax. 1100 kg/m3 Motor18 kW, 400 volt (Ex) Max. rotor speed6240 rpm Mounted on stainl. steel platecheck MaterialStainless steel With jacketcheck General Mounted on mild steel platecheck Floorspace1,5x0,8 m Total height1,8 m Weight1840 kg CEcheck ATEX designedcheck Extra SpecificationsInside drum diameter: 438 mmProces temp.: 0/100 °C.Seperator tooling in boxMax 60 discharges of solids per hour, 6-8 ltr discharge volume.SeparatorsAlfa LavalCentrifuges > SeparatorsBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shippin ...
General SKU252T386 LocationBarneveld MakeAlfa Laval TypeAVNX 4030 AT Main Features MaterialStainless steel Motor18.5 KW Specified Features - Decanter Decantercheck Screw length1485 mm Inletdia. 55 mm Liquid outletdia. 210 Solids outlet286x468 mm Motor18,5 kW Max. rotor speed4000 rpm MaterialStainless steel 1.4306 (304L), Stainless steel 1.4408 With jacketcheck General No.511.5024 Year of construction2001 With switchgearcheck Floorspace2,5x0,9 m Total height1,3 m Weight1400 kg Extra Specificationsbowl material: SS 1.4408hood and bottom piece material: SS 1.4306DecantersAlfa LavalCentrifuges > DecantersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in ...
General SKULT016 LocationSpain CEcheck Main Features MaterialStainless steel Motor15 KW Specified Features - Decanter Decantercheck 3-Phase decantercheck Screw diameter280 mm Screw length1260 mm Motor15 kW Max. rotor speed4400 rpm MaterialStainless steel Information MakeAlfa Laval TypeAvocado oil line - 3 phase Extra Specificationswith: - 3x termo-blender Alfa Laval :ATMOSPHERA® Round Malaxer, 650 Ltr. each. - :Centrifugal Separator, Alfa Laval UVPX 507, throughhput capacity: 2,7 m³/h, feed temp.: max 100 °C, operating liquid density: max. 110 kg/m³, discharge volume: 7,5 Ltr., motor: 5,5 kW - Reception and washer, 1500 kg per hour - Stoner, pulper, 1500 kg of raw fruits, 1000 kg of pulp in exit - 2x :Screw pump, 1,5KW with speed variator - 2x :Screw conveyor, 5 m long, 2,2 kW - Tank for decantation 200 Ltr. - Tank for finished oil 60 Ltr. - :Thermal unit to h ...
General SKU210T078 MakeAlfa Laval TypeSharples NX A4230 No.A91-115381 A Mounted on framecheck Main Features MaterialStainless steel Motor30 KW Specified Features - Decanter Decantercheck Screw length1250 mm InletDN80 Liquid outletDN150 Solids outlet500x300 mm Motor30 kW (400 V) Hydraulic drivecheck With hydraulic unitcheck Motor0,22 kW (400 V) Max. rotor speed3150 rpm MaterialStainless steel 1.4552 With jacketcheck General LocationBarneveld Floorspace2,9x1,9 m Total height2,9 m Weight2700 kgDecantersAlfa LavalCentrifuges > DecantersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
General SKU390X1059 MakeAlfa Laval LocationBarneveld CEcheck TypeCB300-64H Pressure Working pressure25 Bar Main Features MaterialStainless steel Surface5 m2 Size length985 mm Sizes width365 mm Specified Features - Plate heat exchanger Plate heat exchangerscheck Heating surface5 m² Capacity17,87 / 22,08 l. Number of platens40 Plate sizes365 x 985 mm ConnectionsDN100 &: DN65 Max. temperature—160 / 225 °C MaterialStainless steel 1.4404 (316L) With jacketcheck General No.18306251 Year of construction2008 Mounted on framecheck Floorspace0,60x0,43 m Total height1,50 m Weight135 kg Extra SpecificationsPressure S3S4=-1/25-33 bar, test pressure 47 bar, S1S2=-1/16-16 bar, test pressure 29 barPlate heat exchangersAlfa LavalHeat exchangers > Plate heat exchangersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced pr ...
General SKU279X358 LocationBarneveld MakeAlfa Laval TypeIV Pressure Vacuum possiblecheck Working pressure shell6.5 Bar Vacuum possible shellcheck Working pressure tubes6.5 Bar Main Features Shell (Material)Mild steel Tube (Material)Stainless steel Surface3 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface3 m2 Tube capacity16 l. Max. temperature130°C Shell connectionsDN40 Cover connectionsDN40 MaterialStainless steel 1.4404 (316L) With jacketcheck General No.18892 Year of construction1991 Mounted on legscheck Floorspace0,80 x 0,65 m Total height1,50 mShell and tube heat exchangersAlfa LavalHeat exchangers > Shell and tube heat exchangersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worl ...
General SKU403S966 LocationBarneveld MakeAlfa Laval (SE) TypeTL10-BFG Pressure Working pressure7 Bar Main Features MaterialStainless steel Surface40 m2 Size length1500 mm Sizes width375 mm Specified Features - Plate heat exchanger Plate heat exchangerscheck Heating surface40 m2 Capacity36,6 ltr / 37,5 ltr Number of platens81 Plate sizes375x1500mm ConnectionsDN100 (4x) Max. temperature100 degr. C MaterialStainless steel 1.4401 (316) With jacketcheck General No.30110-16415 Year of construction2017 Floorspace1,2x0,5 M Total height2 M Weight900 Kg Extra Specificationsincluding 1 spare end plate and 3 spare intermediate plates.material sealing: EPDMUNUSEDPlate heat exchangersAlfa LavalHeat exchangers > Plate heat exchangersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shippi ...
General SKU336W851 MakeAlfa Laval LocationBarneveld CEcheck TypeM10-Mbase Pressure Working pressure10 Bar Main Features MaterialStainless steel Surface38 m2 Size length1960 mm Sizes width520 mm Specified Features - Plate heat exchanger Plate heat exchangerscheck Heating surface38 m2 Capacity87,0 l Number of platens200 Plate sizes400 x 900 mm Connectionsø 100 mm Max. temperature-3°C/120°C Information No.30110-06881 Year of construction2018 Mounted on legscheck Floorspace0,55 x 2,00 m Total height1,25 m Weight860 kgPlate heat exchangersAlfa LavalHeat exchangers > Plate heat exchangersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for ...
General SKU407S976 MakeAlfa Laval TypeAVNX 4055 No.501.9364 Year of construction1996 Mounted on framecheck Main Features MaterialStainless steel Motor30 KW Specified Features - Decanter Decantercheck Screw diameterdia. 353 / 202 mm Screw length1400 mm Inletdia. 46 mm Liquid outletdia. 22 mm Solids outletdia. 140 mm Motor30 kW 400/690 Volt Max. rotor speed3250 rpm MaterialStainless steel With jacketcheck General LocationBarneveld Floorspace1x3,5 m Total height1,4 m Weight2200 kg CEcheckDecantersAlfa LavalCentrifuges > DecantersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
General SKU242X187 MakeAlfa Laval TypeNX912B-11G No.5123849 Year of construction2012 Mounted on framecheck Main Features MaterialStainless steel Motor15 KW Specified Features - Decanter Decantercheck 2-Phase decantercheck Screw diameter275 mm Screw length1260 mm Inletcheck Liquid outletcheck Solids outletcheck Motor15 kW, 380/660 volt, 2940 rpm Max. rotor speed4400 rpm MaterialStainless steel 1.4404 (316L) With jacketcheck General LocationBarneveld Floorspace2,60x0,80 m Total height0,92 m Weight1500 kg CEcheck Extra SpecificationsMax solids 3,0 kg/dm3, work temperature 0°C-100°CDecantersAlfa LavalCentrifuges > DecantersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherl ...
General SKU210T077 LocationBarneveld MakeAlfa Laval Main Features MaterialStainless steel Motor30 KW Specified Features - Decanter Decantercheck Screw length1250 mm InletDN80 Liquid outletDN150 Solids outlet500x300 mm Motor30 kW (400 V) Hydraulic drivecheck With hydraulic unitcheck Motor0,22 kW (400 V) Max. rotor speed3150 rpm MaterialStainless steel 1.4552 With jacketcheck General TypeSharples NX A4230 No.A91-115381 B Mounted on framecheck Floorspace2,9x1,9 m Total height2,9 m Weight2700 kgDecantersAlfa LavalCentrifuges > DecantersBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
General SKU225T219 MakeAlfa Laval LocationBarneveld TypeTV Main Features MaterialStainless steel Volume400 Ltr. Motor0.55 KW Specified Features - Stirring vessel Closed stirring vesselcheck Capacity400Ltr. Vessel sizesDia:1000x1200mm Conical bottomcheck Dished top sidecheck With covercheck ManholeDia: 420mm Top connectionsDia: 50mm (3x) OutletDia: 80mm With paddle stirrercheck Motor0.55kW, 220/380Volt, 1380rpm Speed mixing shaft102rpm MaterialStainless steel 1.4301 (304), Stainless steel 1.4571 (316Ti) With jacketcheck General No.PH 139576 Year of construction1982 Mounted on legscheck Floorspace1,3x1,2m Total height1,8m Weight350kgStirring vesselsAlfa LavalStirring vessels > Stirring vesselsBrand > Alfa Laval What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worl ...
Produttore: Alfa Laval Fluido: Acqua glicole 70/30% Temperatura del fluido: Ingresso 90º C. Uscita 70º C. Capacità di raffreddamento: 1500kW Temperatura dell'aria: 35º C. (ingresso) Ventilatori: 8 pezzi, 2,8kW, 400V, 50Hz, 3 fili, ventilatori EC Controllo della velocità Terminale: Ingresso 2xDN100, Uscita 2xDN100 Dimensioni: LxPxH = 80.500x2400x1500mm Peso: 2200kg Livello di pressione sonora: 63 dB(A) a 10 m di distanza, Anno di produzione: 2021 Condizione: Molto buono, perdite e ventole testate.
Pompa centrifuga Alfa-Laval completamente revisionata YOM 1999 18,5 KW 2920 giri/min.
Pompa liquidatrice Alfa-Laval. MR200. 7,5 KW. Completamente testato, ottime condizioni
Condensatore raffreddato ad aria Alfa Laval BCD E905BD P SW CBP usato. Completo di 10 ventole Ziehl-Abegg progettate per 60ºC, 50/60 Hz - 0,68 kW - 570 RPM - diametro 910 mm. Capacità a delta 598,8 kW e 169.200 m³/h. Capacità a Y 519,5 kW e 135.400 m³/h. Indicazioni: Il nostro magazzino interno n. 12244 Marchio Alfa Laval Tipo BCD E905BD P SW CBP Tipo di prodotto condensatore raffreddato ad aria kW 598,8 (Freon) Numero di ventilatori 10 RPM dei ventilatori 570 Portata d'aria in m³/h 169.200 diametro ventilatori 910 mm Superficie (m2) 2.286 Volume tubo 200,5 dm³ Dimensioni 9230x2300x1400 mm Peso 1.662 kg Osservazioni | anno sociale 2016 Importo in magazzino 1
Sfiato ad alto vuoto ALFA-LAVAL DD500LC per prodotti viscosi. Capacità fino a 6000 lt/h. Dotato di condensatore interno e controller a piana meccanica.
1 di sacchetto-in-box usato, fare Alfa Laval, digitare Piccolo, semi-automatico, nuovo 2011. Con connessione all'azoto. Utilizzato per il riempimento di succo di mela e vino in sacchetti da 2 e 3 litri con tappi Vitop.
Te Koop: Alfa Laval Manifold. Tipo: DN 100 met 3 aansluitingen Voor meer informatie kunt U bellen di mailen wh.derikx@gmail.com Tel. De nu kopen prijs è 21% excl. comunque
ALFA-LAVAL LKH 80/245 FSS 75kW pompa centrifuga igienica. Capacità: 280 m3/st, 5 bar. Motore elettrico: 75kW. proviene da un sistema TETRAPAK Alcross Bactocatch. Costruito nel 2008. in ottime condizioni.
