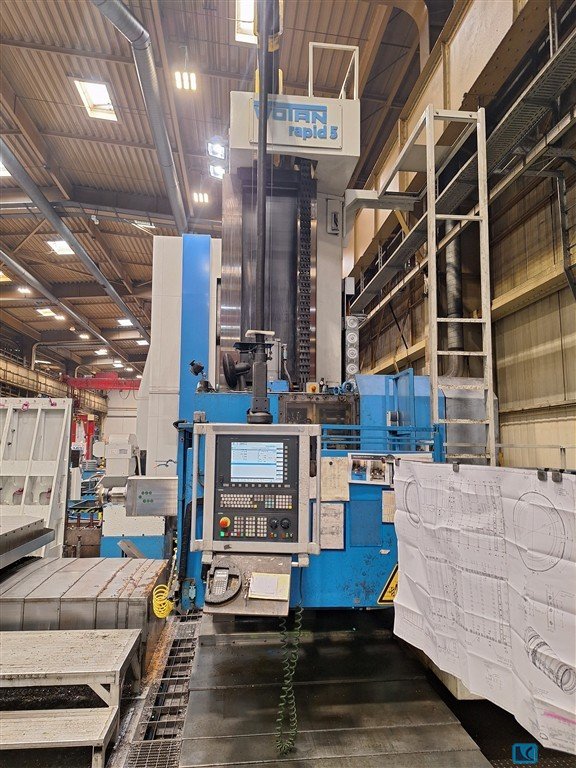

Tipo di macchina: alesatrice per lamiere CNC Prepara WOTAN Tipo Rapid 5C Anno di costruzione 2004 Tipo di controllo numerico HEIDENHAIN iTNC 530 Diametro mandrino 160 mm X-off (mm) 10.000 Y-off (mm) 3.800 Z-off (mm) 700 W-way 700 mm Portautensili Iso 50 Velocità da (giri/min) 1,25 a 1250 Velocità di avanzamento (mm/giro) 1 - 5000 mm/min Corsa rapida 5 mtr/min. Potenza totale (KW) 120 /mandrino 83 Lunghezza (mm) 14.500 Larghezza (mm) 3.850 Altezza (mm) 7.360 Peso 62.300 kg Informazione - 2004 completamente revisionato e convertito in CNC da Dorries Scharmann Comando HEIDENHAIN iTNC 530 - 5 diverse teste di fresatura angolari - Cuscinetto idrostatico del mandrino - Guide aerostatiche - Dispositivo refrigerante -Trasportatore -Radiatore dell'olio
spindle diameter: 160 mm x-travel: 10.000 mm y-travel: 3.000 mm Control: total power requirement: 120/63 spindel kW weight of the machine ca.: 63 t dimensions of the machine ca.: 15x3.85x7.36 m Stocknumber 1210057 Type of machine CNC Floortype boring machine Make WOTAN Type Rapid 5C Build in 2004 Type of control HEIDENHAIN iTNC 530 Spindle diameter 160 mm X-stroke (mm) 10.000 Y-stroke (mm) 3.800 Z-stroke (mm) 700 W-stroke 700 mm Tool Taper Iso 50 Speeds (Rpm) 1,25 - 1250 Feeds (mm/R) 1 - 5000 mm/min Rapid feeds 5 mtr/min. Total Power (KW) 120 /spindel 83 Lenght (mm) 14.500 Width (mm) 3.850 Height (mm) 7.360 Weight 62.300 kg Additional information completely overhould in 2004 and retrofitted by Dorries Scharmann with CNC control HEIDENHAIN iTNC 530 - 4 different angular milling heads - hydrostatic spindle bearing - aerostatic guideways - coolant device - chip conveyo ...
INUTILIZZATO: Testa di fronte di una borsista orizzontale Wotan BF 160.
OFFRIAMO UNA SPLENDIDA E ECCELLENTE CONDIZIONE WOTAN CNC RAPID 1 CON UN'ENORME QUANTITÀ DI OLTRE 400 UTENSILI, PER UN LAVORO SPECIALE. ORARIO DI LAVORO: ACCENSIONE: 13692 ESECUZIONE DEL PROGRAMMA: 4650 CORSA MANDRINO: 4690 TEMPO DELL'ASSE: 4568 TEMPO IDRAULICO: 12702 LA MACCHINA HA I CONTROLLI HEIDENHAIN 530 DETTAGLI TECNICI: VELOCITÀ DEL MANDRINO : 6,3-1600 U/Min MOVIMENTO MANDRINO : ASSE Y : 1250 mm MOVIMENTO MANDRINO DI FORATURA: ASSE Z: 600 mm L : 1000 mm X : 2000 mm B: 360.000 GRADI DIAMETRO MANDRINO: 105mm PORTAUTENSILI: ISO 50 SENZA CAMBIO UTENSILE SERRAGGIO: IDRAULICO CARICO MASSIMO TAVOLA: 6000 KG TAVOLO: 1120 X 1400 DADO -BILD 7 ; 22 ore su 7 INDICIZZAZIONE 4 X 90 GRADI PESO TOTALE: 16000 KG DIMENSIONI DELLA MACCHINA: LUNGHEZZA 4800 X BREIT 4665 X ALTEZZA 4200
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways
spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply
spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment
spindle diameter: 120 mm x-travel: 1800 mm y-travel: 1300 mm z-travel: 1500 mm taper ISO: 50 Table dimensions: 1120x1400 mm number of spindle speeds: 0-1.000 total power requirement: 13,2 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm spindle taper ISO: SK50 number of spindle speeds: Max. 2000 min-1 bore spindle stroke: . mm main drive motor: . kW turning speeds: . U/min Feed: . mm/min Control: Heidenhain type: iTNC 430 T-slot - width: . mm T-slot - distance: . mm table surface area: 1000x1000 mm Table load: 4000 kg total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Machine number: 62099 The machine table can be rotated continuously via fixed control. Tool magazine has 40 positions. Conversion from Bosch NC System 5 to Heidenhain iTNC 430 approx. 2000 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage ...
Dati tecnici: 2011 completamente revisionato con nuove unità SIEMENS, nuove bilance HEIDENHAIN Caricamento massimo tabella: 25 per. Distanza slot: 180 mm Spostamento tabella: 1000 mm Tabella Rotazione asse B: 360o Area di serraggio: 1600 x 2500 mm Numero di scanalature: 9
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides
spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ
Sliding support, linear drive, clamping plate, unit carrier, milled surface, welding table, welding table -Spare part of: a Wotan table boring machine -compatible with: clamping plate ID 21339 -Width at the top: 80 mm -Width at the bottom: 270 mm -Length: 2200 mm -Height: 215 mm -Number: 2x available -Price: complete for both -Transport dimensions: 2200/600 / H300 mm -Weight: 556 kg
Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate -T-slot plate comes from: a WOTAN drilling machine -compatible with: Linear actuator ID 22786 -Travel: 1110 mm -Clamping plate: 1000 x 1260 mm (rotatable) -Plate is: Solid -Groove width: 21 mm -Dimensions: 2470/1070/H885 mm -Weight: 2200 kg
Diametro del pezzo con o senza supporto stabili: 400mm/250mm, lunghezza massima del pezzo: 750mm, carico di testa del mandrino: 400kg, diametro interno di rettificatura: 350mm, profondità di rettifica: 500mm, corsa X/Z: 300mm/1000mm, velocità di rotazione massima: 15m/min, sistema di controllo: Siemens Sinumerik. Documentazione disponibile. L'ispezione in loco è possibile.
È disponibile una macinatrice interna a rulli Wotan. Diametro del pezzo: 1200mm, diametro esterno massimo: 1000mm, diametro massimo dell'alesaggio: 900mm, corsa X/Z: 370mm/800mm, rotazione: 15, corsa del tavolo: 500mm, profondità di levigatura: 250mm, velocità: 220rpm. Dimensioni della macchina X/Y/Z: circa 5000mm/3000mm/2200mm, peso: circa 8500kg. Documentazione vorhanden. È possibile un'ispezione in loco.
spindle diameter: 130 mm x-travel: 6000 mm y-travel: 2500 mm z-travel: 800 mm w- away: 600 mm rapid traverse: 10 m/min spindle speed:: 1600 UPM chip conveyor: vorne control: Seit 1998 Heidenhain Plate area: 6000x4000 mm power capacity: 45 kW The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
diametro del mandrino: 105 mm x-corsa: 1250 mm y-corsa: 1000 mm z-corsa: 600 mm lunghezza tavola: 1100 mm larghezza tavola: 900 mm adattatore utensile: 50 ISO / MK potenza totale richiesta: kW peso della macchina ca.: t Fresa da tavolo CNC, ricondizionata 2002, BOSCH CC 300
spindle diameter: 130 mm x-travel: 7700 mm y-travel: 1500 mm Control: Siemens type: Sinumerik 840 C spindle taper ISO: 130 turning speeds: 1490 U/min power capacity: 45 kW chip conveyor: Angle head: Angle head: Plate area: 9000x6000 mm workpiece weight: 100 t One direction thrust bearing: total power requirement: kW dimensions of the machine ca.: m Panel is optional and we charged extra The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Borer orizzontale Wotan B105Y Mandrino: 120 mm Viaggi: -X: 3000 mm -Y: 1450 mm - : 1280 mm tavolo: -1400 x 3000 mm -Parte rotante: 1130 x 1500 mm (ruotata manualmente a qualsiasi grado) -Carico massimo: 7 tn Peso macchina: circa 25 ton
