TSUGAMI macchina utilizzata in vendita

Gebr. Centro di tornitura/fresatura corto lungo CNC con asse B Ore di esercizio: 7200 Controllo: Fanuc 31i-A Lunghezza di lavorazione: max. 250 mm Numero di assi controllati: 7 assi e max. 5 assi contemporaneamente Asse B: 0-130 liberamente programmabile Distanza tra le aste: da 3 mm a max. 20 millimetri Potenza di azionamento mandrino principale: 3,7 kW Potenza di azionamento contromandrino: 2,2 kW Velocità del mandrino principale: 10.000 giri/min Velocità contromandrino: 10.000 giri/min Asse C: mandrino principale e contromandrino Numero di travi lineari: 2 pezzi Numero totale di utensili: 35 pezzi Dimensioni (LxPxH) in mm: 2.110x1.200x1.885 Peso: 3.300 kg Conversione da tornitura lunga a corta Stazioni di foratura profonda Mandrino ad alta velocità NAKANISHI Slitta posteriore con asse Y Foratura trasversale posteriore Trasportatore Impianto antincendio Carica ...

Key data: 3200 mm, 12 mm, 170 mm

TSUGAMI BO12 (BE) SVOLTA SVIZZERA, 5 assi C+Y/12mm/ Caricatore FMB / SPINTORE AUTOMATICO CNC, Unità di controllo: FANUC LB1 Dettagli tecnici INTERASSE BARRA da 3 mm a 12 mm, NUMERO DI ASSI CONTROLLATI 5 unità. (X – Z1 – Z2 – C – Y) Asse C Asse y Velocità avanzamento mandrino: 0 - 12.0000 giri/min FMB Minimag 3200 / Alimentazione / azionamento barra da 3 metri, fabbricazione tedesca. Peso totale della macchina con conducente = 4.500 kg

Istruzioni per l'uso BS18DE(S)-III CNC Drehautomat Anzahl Achsen: 6 Anzahl Spindeln: 2 Hauptspindel, Durchlass: 18 mm Larghezza totale: 210 mm Drehzahl: 10'000 U/Min C-Achse: 1° Dimensioni: 18 mm Drehzahl: 8'000 U/Min Werkzeughalter: Siehe Foto Dimensioni: 195 x 125 x 220 cm Gewicht: circa 2200 kg Für die Richtigkeit, Vollständigkeit und Aktualität der Angaben wird keine Gewähr übernommen.

TSUGAMI BS12-III CNC Langdrehautomat TECHNISCHE DATEN Drehdurchmesser: 3-12 mm Dimensioni: 170 mm Max. Bohrungsdurchmesser: 7 mm Max. Innengewindedurchmesser: M6 Drehzahl: 12'000 U/Min Drehzahl, Gegenspindel: 6'000 U/Min Anzahl Achsen: 6 Dimensioni: circa 190 x 130 x 220 mm Peso: 2200 kg Für die Richtigkeit, Vollständigkeit und Aktualität der Angaben wird keine Gewähr übernommen.

Key data: 260 mm, 400 mm

Dettagli della macchina N. di magazzino 1105-03932 Tipo di macchina Tornio CNC - Tipo a letto inclinato Marca TSUGAMI Tipo MO8 DE Anno di costruzione 2017 Tipo di controllo CNC Luogo di stoccaggio FRANCIA Paese di origine GIAPPONE Tempi di consegna IMMEDIATAMENTE Base merci franco magazzino HAGUENAU FRANCIA Dettagli tecnici diametro tornibile 260 mm lunghezza di tornitura 400 mm controllo FANUC Oi TD Foro mandrino: 66 mm Gamma di velocità di rotazione - mandrino 4500 rpm Campo di alimentazione - Torretta / Stepless 1 - 12000 mm/min Traversata rapida 24/27 m/min Registrazione diretta dei coni degli utensili potenza totale richiesta 30 kW Peso della macchina circa 5,6 t dimensioni della macchina circa 2500 C 1850 X 1750 mm Informazioni complementari CNC FANUC ASSE C E STRUMENTI DI FALCIATURA MOLTO BELLI Tailstol Convoglio di chip torretta 12 posizioni

Tornio CNC a 7 assi con asse B continuo (0-135°) - Iemca Boss 338-HD/32 barfeed - 60 bar alta pressione - Trasportatore trucioli - Controllo Fanuc 31i-B5 - in ottime condizioni

The four-axis horizontal machining center is designed for milling, boring, hole drilling and threading in the manufacture of complex parts from various metals and alloys in batch production. The machine is equipped with an automatic tool changer with a magazine for 62 positions, an automatic pallet changer Partially disassembled.

Tsugami B0326E-II Swiss Type Lathe With Bar Feeder 8 axis 32 mm diameter Machine is in very good condition

This TSUGAMI B0205E-II Swiss Type Turning Machine was made in 2013. It is equipped with a Fanuc Series 0i-TD control unit and has 5 axis. The machine has a spindle speed of 200-10000 rpm.

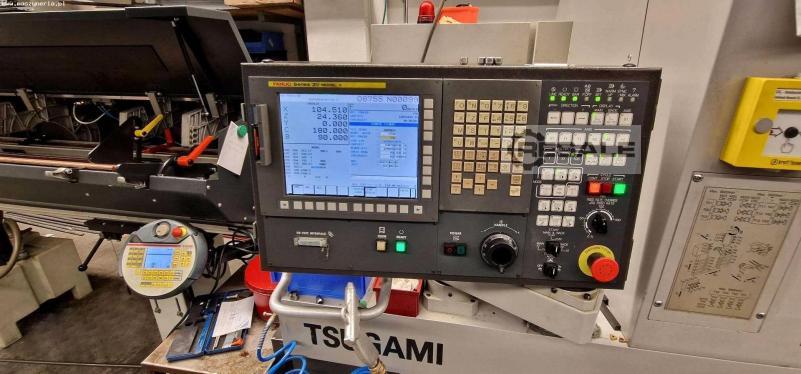

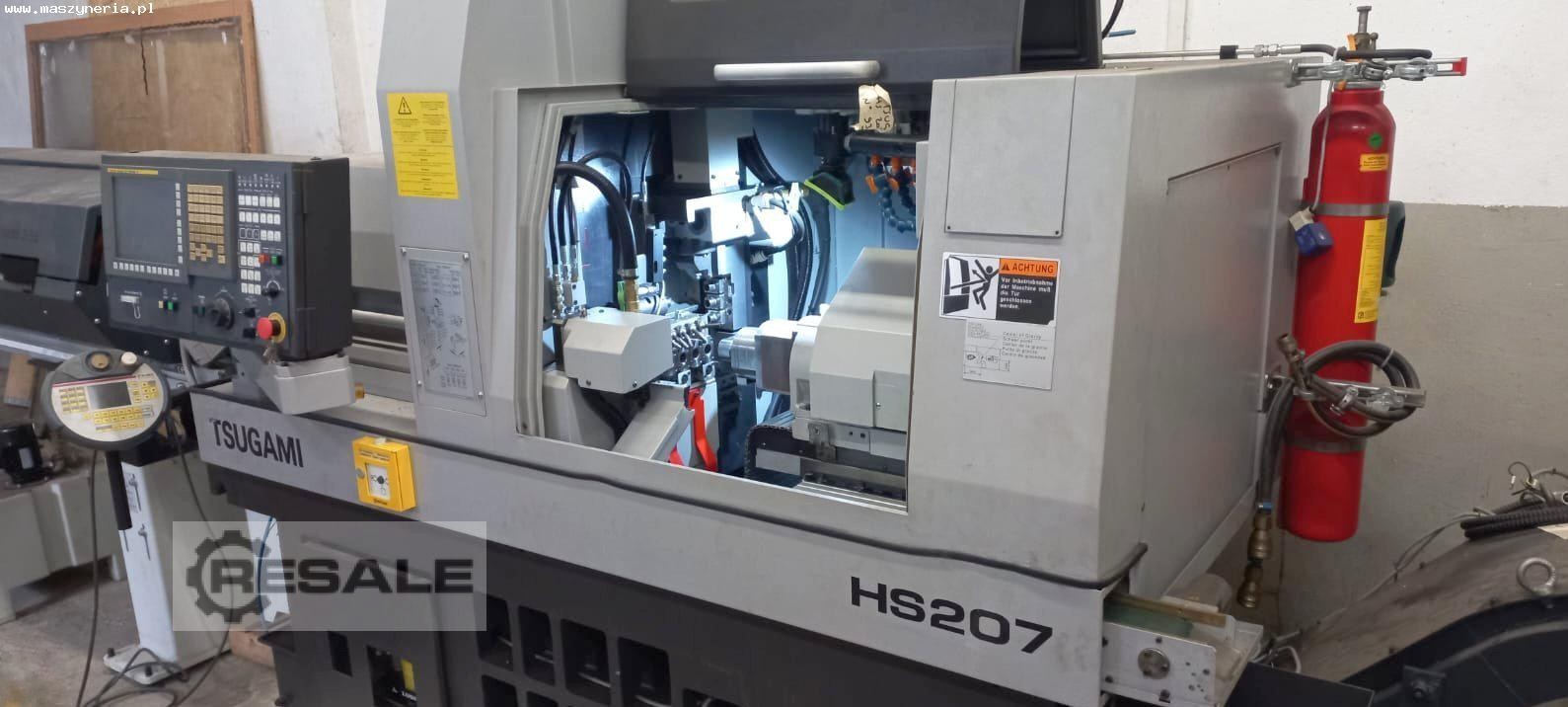

This Tsugami HS207 Lathe was manufactured in the year 2011 in Japan and has 1663 production hours. It is equipped with a Fanuc Series 31i- MODEL A control unit and has 7 axis. The machine has a spindle speed of 200-10000 rpm.

complete with TOP AUTOMAZIONI RES 442 bar loader BAR DIAMETER 38 mm No. of axles 6 Guide bush yes Convertible operation without guide bush YES Maximum stroke 320 mm Maximum stroke without guide bushing 70 mm/2.75 Tool positions (std/max) 29/42 Driven tool positions (std/max) 15/26 FANUC 32i-B control Main spindle speed 200 – 6,000 rpm Secondary spindle speed 200 – 7,000 rpm Live tool speed 6,000 rpm Main spindle motor 7.5 / 11 kW Weight 4,850 kg Dimensions: W x D x H 2,240 x 1,515 x 2,050 mm 88″x60″x81�

This TSUGAMI B0326E-II Lathe was manufactured in the year 2016. It is equipped with a Fanuc Series 32-i Model B control unit and has 8 axis. The machine has a spindle speed of 200-8000 rpm. Machine on hours are at 9,815h and cutting time hours 8,750h (see control unit panel in image gallery).

Control Fanuc Oi-tf With Manual Guide Maximum Cutting Diameter 280 Mm Bar Capacity 65 Mm Distance Between Spindles 400 Mm Spindle Motor Power 7,5/11kw Spindle Nose A2-6 Spindle Speed 4500 Rpm Sub Spindle Bore 59 Mm Sub Spindle Max Speed 4500 Rpm Turret Positions 12 Station Tool Size 25 X 25 Mm Milling Rpm 5000 Rapid Feedrates Xzya: 24x27x12x30 M/min C Axis 0.001 Degree X Axis Travel 221 Mm Y Axis Travel +50/-50 Mm Z Axis Travel 400 Mm Machine Dimensions 2470 X 1850 X 1930 Mm Machine Weight 5600 Kg Chip Convoyer Tool Probe With Bar Feeder Lns Qls80 S2 Cutting Time 4638 Hours

Tsugami B0326E-II CNC Swiss Type Lathe Machine has been installed in the factory in 2019! Bought brand new! Additional features which were added to the machine Main Side Left side ER16 3 x and ER20 1 x live tool slots available Main Side Right Side ER16 3 live tool slots available Chip Conveyor (Domestic) Opposite mirror 2 Extra Live Holder Slots Available Automatic fire extinguishing system available

Working hours : 2700 (June 2022) Fedek bar feeder Machine has been only used in Ar-Ge department Machine is like new

turning diameter: 280 mm turning length: 380 mm control: FANUC Oi TD Spindle Bore:: 65 mm turning speed range - spindle: 4500 U/min feed range - turret / stepless: 1 - 12000 mm/min rapid traverse: 24/27 m/min : 1 Stück : 12 Stationen tool taper: Direktaufnahme spindle motor: 7,5 / 11 kW x-axis: 260 mm z-axis: 400 mm tailstock quill taper MT: 4 tailstock quill stroke: 100 mm spindle nose: A2-6 spindle bore: 73 mm total power requirement: 30 kVA weight of the machine ca.: 5,5 t dimensions of the machine ca.: 2300 x 1850 x 1750 mm Multifunction lathe equipped with 3 axes - CNC control Fanuc CN Oi-TD with Turn Mate - C-axis - Tool turret 12 positions - Rotating tool speed 5000 rpm, 3.7 kW - Tailstock with hydraulic counter-tip CM4 - Chip conveyor - Collet device - Coolant system - CE The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle passage: 12 mm Control: Fanuc type: LB 2 bar loader: FMB total power requirement: kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Turning diameter: 0 mm Turning length: 0 mm Turret positions: 0 Positions ATC: 0   Number controlled axis: 0   CNC Brand: 0 CNC Model: 0 Control: FANUC 31i-B5 Operating hours: 11500 Technical data Number of axis total: 6 Number of milling heads: 1 Number of turning spindles: 2 Spindle nose: JIS A2-6 Maximum turning length: 580 mm Max. turning diameter: 220 mm Bar passage: 65 mm Turret carriage: Longitudinal travel (Z-axis): 580 mm Transversal strocke (X axis): 430 mm Transversal travel (y-axis): 130 mm Tool changer: (number of tools): 60 C axis (spindle,resolution): 0.001 ° Spindle speeds: stepless up to: 5000 rpm Spindle power: 11 / 5.5 kW Back spindle: Spindle positioning increment: 0.001 ° max. speed: 5000 rpm Back spindle stroke: 750 mm Power of back spindle: 11 / 5.5 kW Milling spindle: Milling cutter speeds: 20000 rpm Drive milling spindle: 11 / 5.5 kW B axis swivelling range ...
