Operating hours: 31,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 16 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 12 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Year of manufacture: 2012 | According to the manufacturer, the ELITE 112 series is designed for machining thin bars and, depending on the version, covers a range from 0.8 to 12.7 mm. | The machine can be viewed by appointment. | We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!
year of manufacture 2016 | CNC control: FANUC 32i-B | Operating hours: on request | Technical specifications | 10.4 color LCD monitor / MDI | MAIN SPINDLE | Bar capacity / turning diameter: 20 mm | Max. spindle bore diameter: 24 mm | Max. spindle speed: 10,000 rpm | Max. power: 3.7 kW | C-axis with 0.001° resolution | Z1 stroke: 210 mm | Collet type: 145E / F25 | Synchronized rotating guide bushing unit, type T223 | COUNTER SPINDLE | Max. spindle speed: 8,000 rpm | Max. power: 2.2 kW | Max. pick-off diameter: 20 mm | Max. part length (ejection forward): 70 mm | C-axis with 0.001° resolution | Z2 stroke: 210 mm | TOOLING CAPACITY | 5 turning tool stations 12 × 12 mm (Arno IK system) | Cross machining unit: 5 driven drilling/milling spindles | ? 2 × ER16 + 3 × ER11 modular, power 1.1 kW | Front drilling unit: 5 fixed drilling quills, Ø 22 mm | Counter spindle cross slide: 2 fixed too ...
Year of manufacture: 2018 | Operating hours: 47548 | Machining time: 31241 | Status: October 2025 | Control: Fanuc 30i B | Maximum flexibility of the MULTISPRINT thanks to its modularity and Y-axes in every position | Use of driven tools on all spindle positions | Y-axis on all spindle positions as standard | SWISSTYPEkit for short and long turning up to 170 mm length | Chuck or bar machining: bars from 4 to ø 36 mm, chuck components up to ø 50 mm Double rear and off-center machining | Machine type: Multi-spindle automatic lathe | SWISSTYPE machining: up to 170 mm turning length | Control: FANUC Series 30i | Maximum flexibility thanks to modularity and Y-axes on all spindle positions | Use of driven tools on all spindle positions | Machining: Bars from Ø 4 - 36 mm, chuck parts up to Ø 50 mm | Double rear and off-center machining possible | Performance data | Feature Value | Max. work ...
used) | Very well maintained machine directly from the user | Machine has only run with oil | Operating hours around 18.000 hours | Standard accessories machine | . Synchronously driven guide bush | . C-axis on main and pick-up spindle | . Workpiece conveyor belt | . Collet sleeve main spindle F37 (673-53) | . Collet sleeve pick-up spindle F37 (673-73) | . 3-spindle cross drilling unit | . 4-station tool holder 16x16mm | . Pick-up spindle with pick-up capacity 32mm | . Part blow-out device to the front | . Parts ejector, parts ejection guard , | . Cut-off steel breakage protection | . Separate cooling oil tank with level and flow monitoring | . Automatic central lubrication unit with oil level monitoring | . Leveling bolts and plates, tool box | . Interface for bar feeder | . Interface RS232C | FMB loading magazine Turbo 3-26 year 2004 | Fire extinguishing system Kraft & Bauer / GUT Feue ...

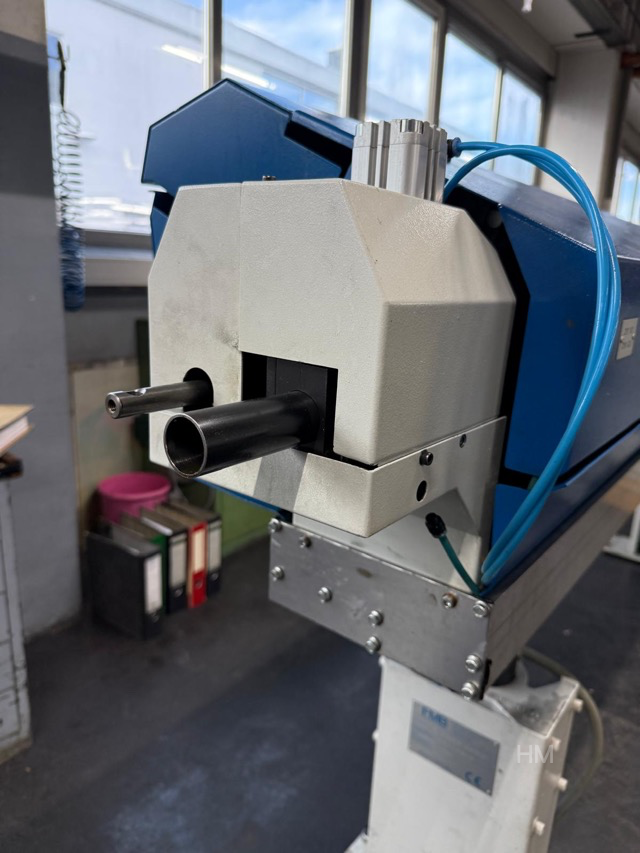

Year of manufacture 2011 | Working range (diameter) Ø 6 mm to Ø 42 mm | Max. bar length 3,000 mm | Guide principle Hydrobaric (full oil bath) | Feed drive Hydraulic | Oil capacity approx. 150-170 litres (HLP 46 or equivalent) | Total length of the magazine approx. 4,850 mm | Weight (empty) approx. 650 kg | The machine can be viewed in operation by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
used) | Very well maintained machine directly from the user | Machine has only run with oil | Operating hours around 78,000 hours | FANUC 16i-T control with 9 axes, | 9 axes (X / C1 / Y / E / B / A / X / C2), | Bar Ø max. 20 mm | Turning length max. 205 mm / 195mm, | Main spindle, max. speed 10,000 rpm, C-axis, | Counter spindle with collet chuck, max. speed 10,000 rpm, C-axis, | 4-fold tool holder | 3 cross drilling units | Turret with 8 stations | Various additional tool holders, quills, | parts conveyor belt | Tank capacity 170L | Machine coolant: oil | Loading magazine FMB Turbo 3-26 /3200/A / from Ø3- Ø26 mm Year of construction 1999 | Fire extinguishing system Kraft & Bauer / GUT fire protection | Mayfran chip conveyor | The machine can be inspected by appointment. | Changes and errors in the technical data and information as well as prior sale reserved!
Operating hours: 43,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 12 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 10 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Machine dimensions: approx. 1995 x 920 x 1700 mm | Machine weight: approx. 2100 kg | Bar feeder dimensions: approx. 4400 x 890 x 1800 mm | Bar feeder weight: approx. 1800 kg | Peripheral equipment & accessories dimensions: | approx. 1900 x 700 x 800 mm, weight approx. 200 kg | approx. 1200 x 800 x 1000 mm, weight approx. 200 kg | The machine can be inspected under power by appointment. | Specifications and details subject to change and error. Prior sale reserved!
Year of manufacture: 12/2020 | Operating hours: approx. 17,265 | Serial no.: 8794_463 | Internal no.: 231023 | CNC control: FANUC 0i-TD with 7 axes | C-axis on main and sub spindle | Convertible from sliding headstock to fixed headstock turning | Main and sub spindle collet type: E145 | Synchronized driven guide bush unit | Guide bush type: T223 | HFT (High-Frequency Turning) eliminates chip problems | CE declaration of conformity | Bar feeder FMB micromag 20 / 3200 A | Serial no.: 31-320684 R1845925 | Hinged belt conveyor MAYFRAN type MT 10 | Fire extinguishing system Kraft & Bauer with CO2 container (6 kg) | High pressure unit SFB-200eco | Serial no.: 12631 | Machine dimensions: approx. 2070 x 1177 x 1760 mm | Machine weight: approx. 1,800 kg | Bar feeder dimensions: approx. 5015 x 720 x 1700 mm | Bar feeder weight: approx. 600 kg | High-pressure unit dimensions: approx. 1500 x 500 x 1 ...

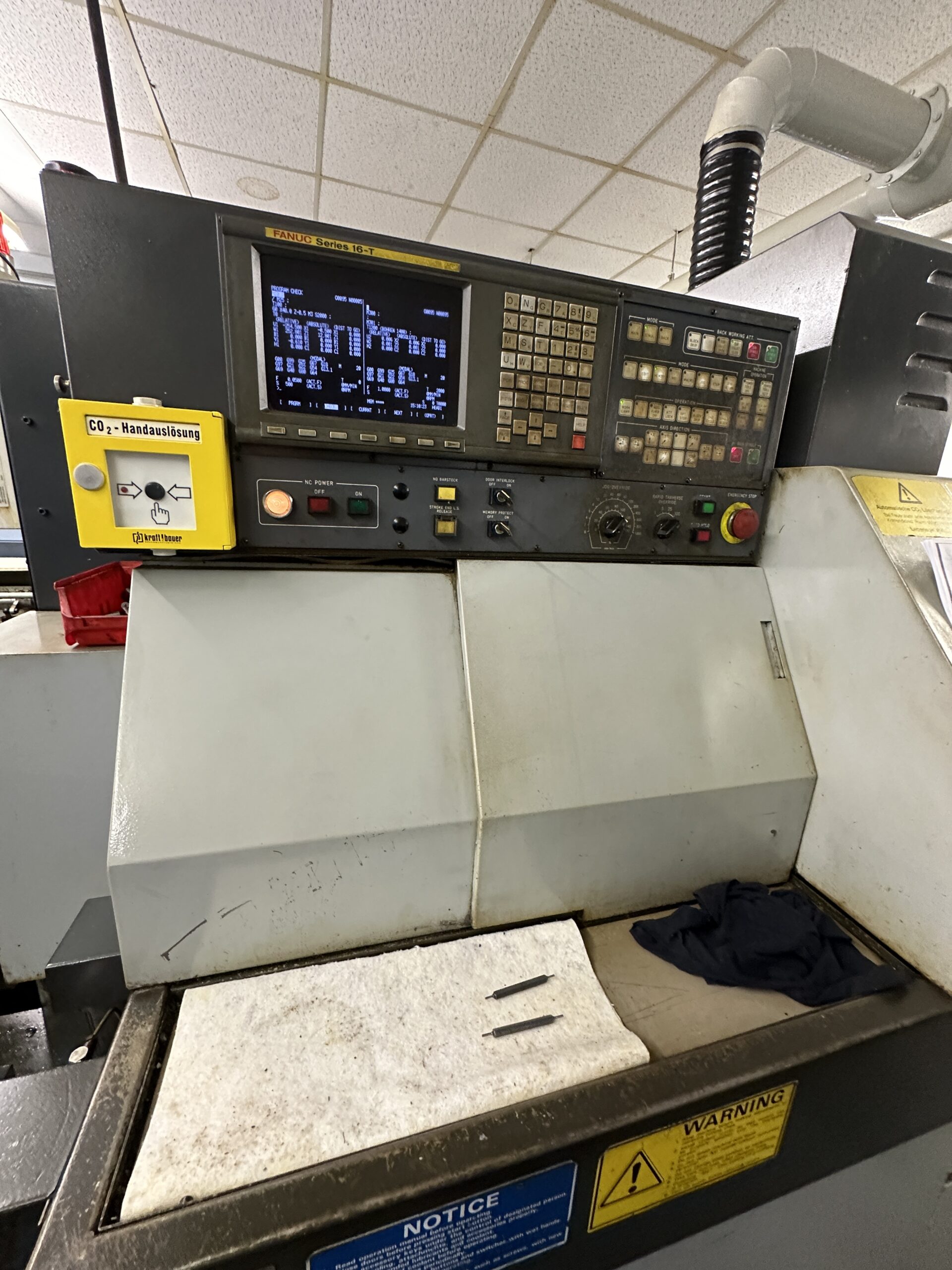

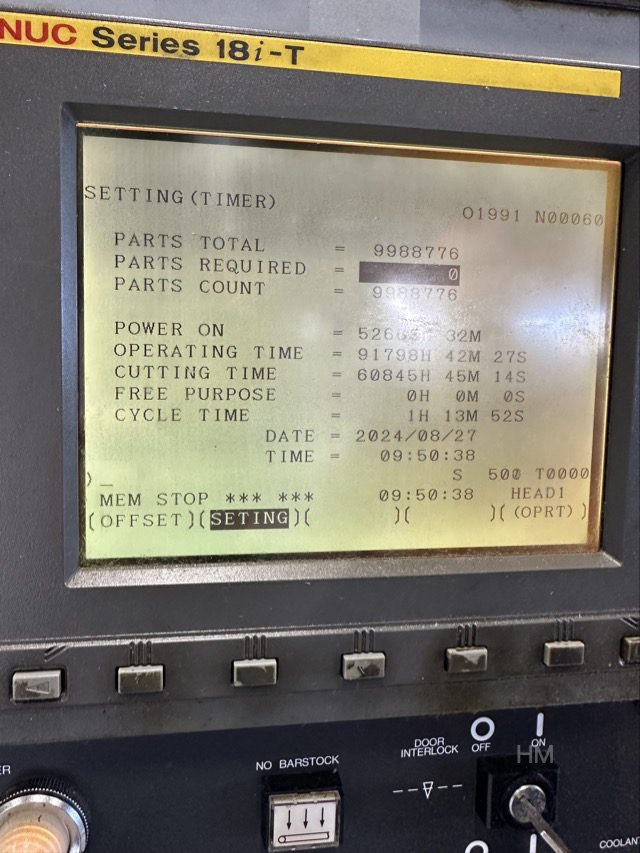

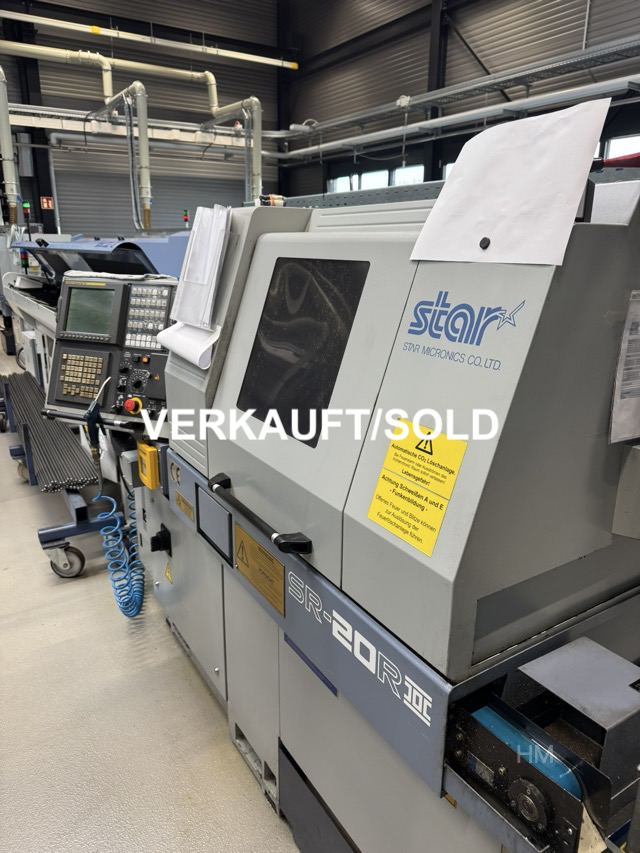

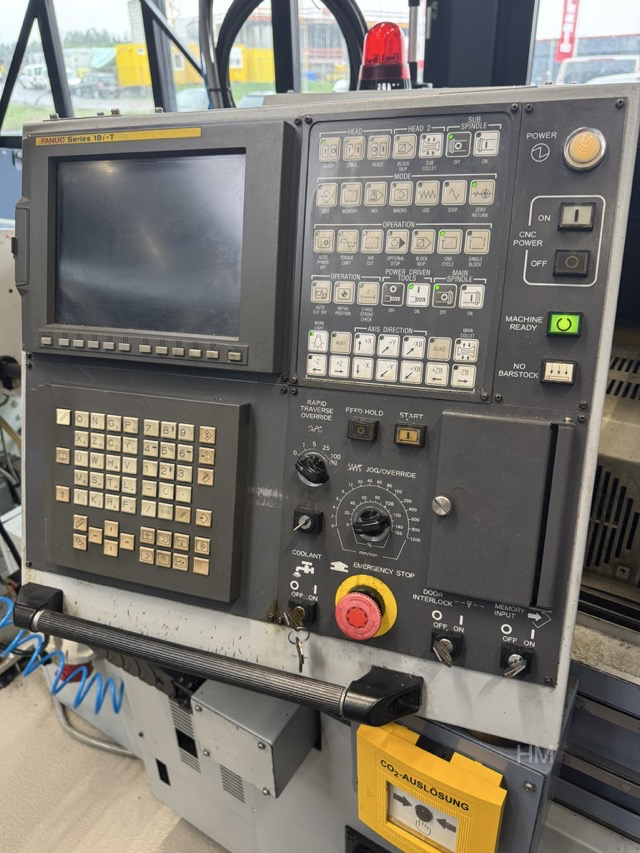

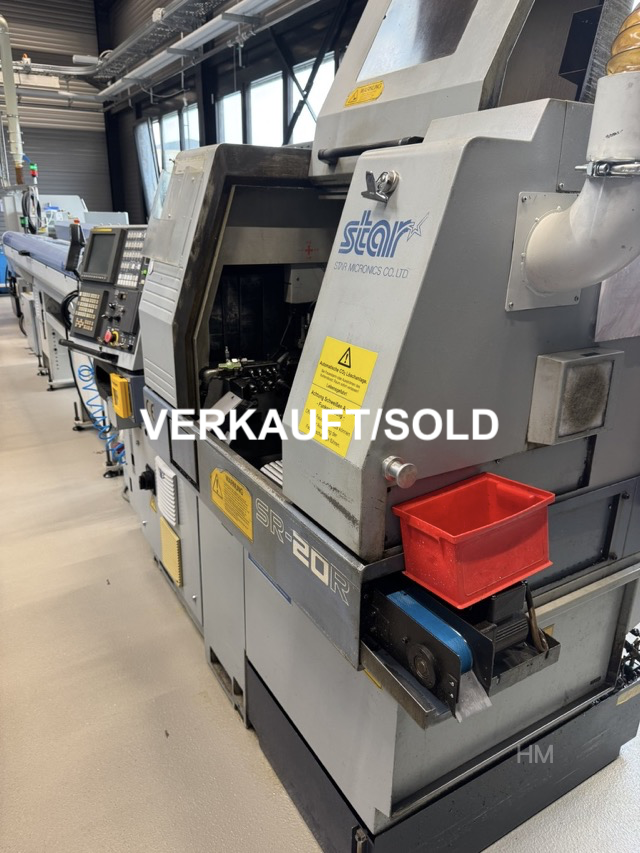

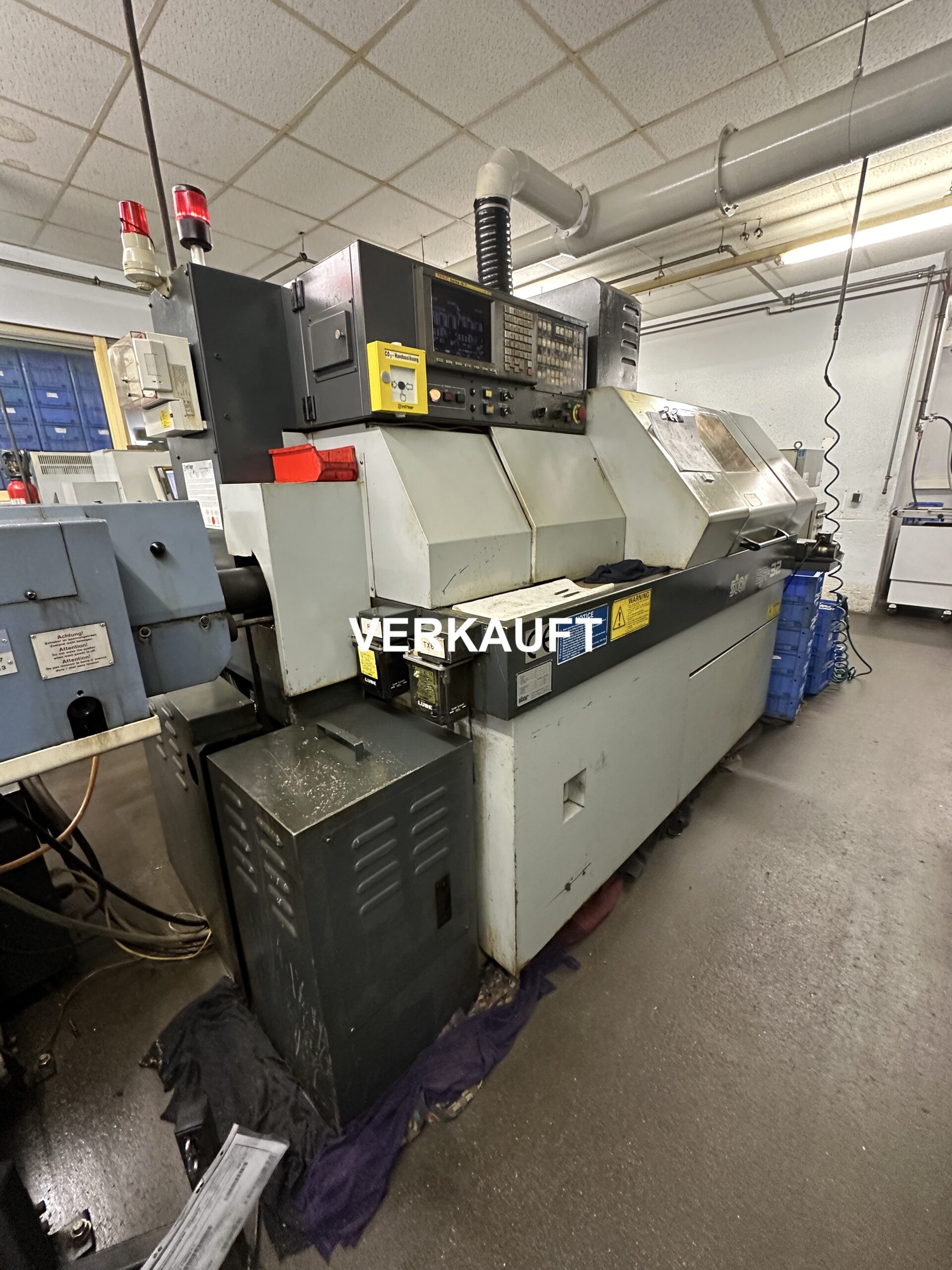

used CNC sliding headstock lathe STAR SR20R, year 2001 | control, make Fanuc, series 18i-T, | 7 axes (X/Z/Y/C1/X1/Z1(C2), | bar-Ø max. 20 mm, | turning length max. 205 mm, | main spindle, speed max. 10.000 rpm, C-axis 0,001 degree, | counter spindle with collet, speed max. 8.000 rpm, C-axis, | tool holder for a total of 19 tools (linear tool holder, front attachment, rear machining), | parts conveyor belt, | standard guide bush unit | loading magazine FMB turbo 3-26/3200 / A /, year 2001 | Machine coolant: oil. | Extinguishing system Kraft & Bauer | The machine can be inspected under power by appointment. | Changes and errors in the technical data and information as well as | subject to prior sale!
Year of manufacture 1989 | Working range (diameter) Ø 6 mm to Ø 42 mm | Max. bar length 4,000 mm (Type 4.4) | Guide principle Hydrobaric (full oil bath) | Feed drive Hydraulic | Oil capacity approx. 150-170 litres (HLP 46 or equivalent) | Total length of the magazine approx. 4,850 mm | Weight (empty) approx. 650 kg | The machine can be viewed in operation by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!

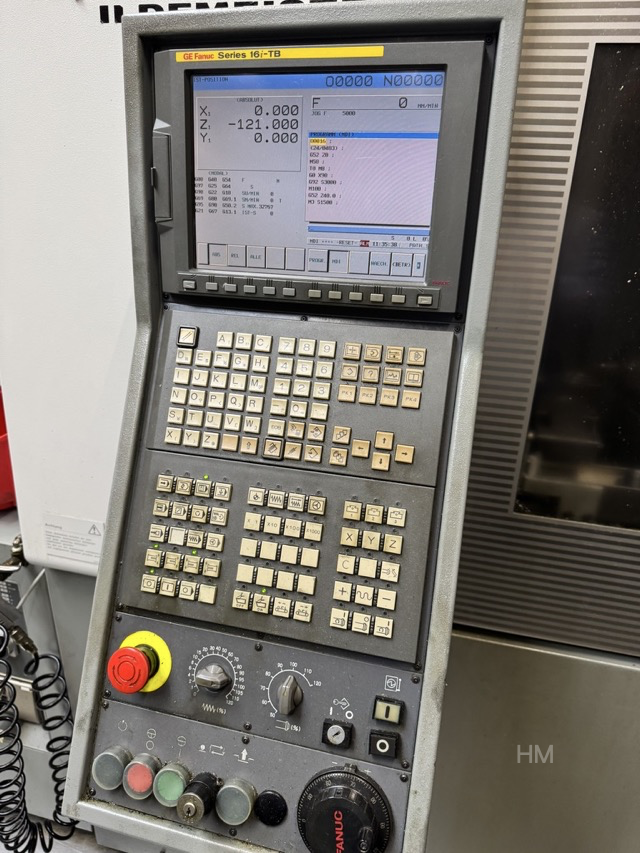

Year of manufacture: 2004 | Control system: Fanuc 16i-TB | Technical specifications | MAIN SPINDLE | - Max. bar diameter: 12 (15) [mm] | - Travel: 120 [mm] | - Spindle speed: 12,000 [rpm] | - Spindle drive power: 3.7 [kW] | - Torque: 6 Nm | COUNTER SPINDLE | - Max. bar diameter: 12 (15) [mm] | - Spindle speed: 12,000 [rpm] | - Spindle drive power: 3.7 [kW] | - Torque: 6 Nm | Powered tools: | Tool drive power: 1.1 kW | Max. speed: 6,000 rpm | Tools: | Number of tools: up to 20 (some of which are driven). | Driven tools: 4-6, for milling, drilling and threading operations. | Tool holder: ER collets or similar systems. | Rear machining: 4 stations | IEMCA Smart 316 / 32L bar feeder | Year of manufacture: 2006 | Bar diameter: 5-32 [mm] | Bar length: 3200 [mm] | Small fire extinguishing system / Kraft und Bauer fire extinguishing systems | Operating manual | Parts separator | Chip flushing sy ...

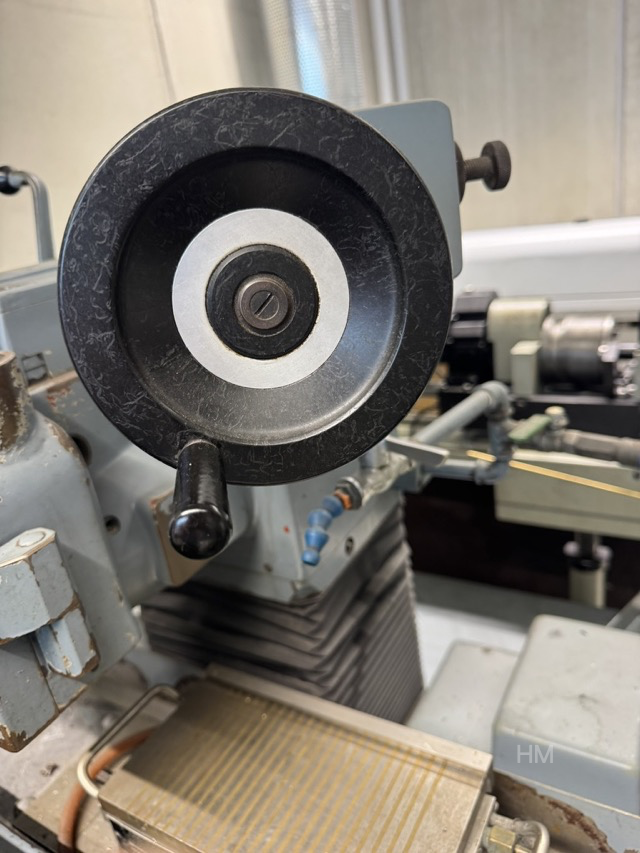

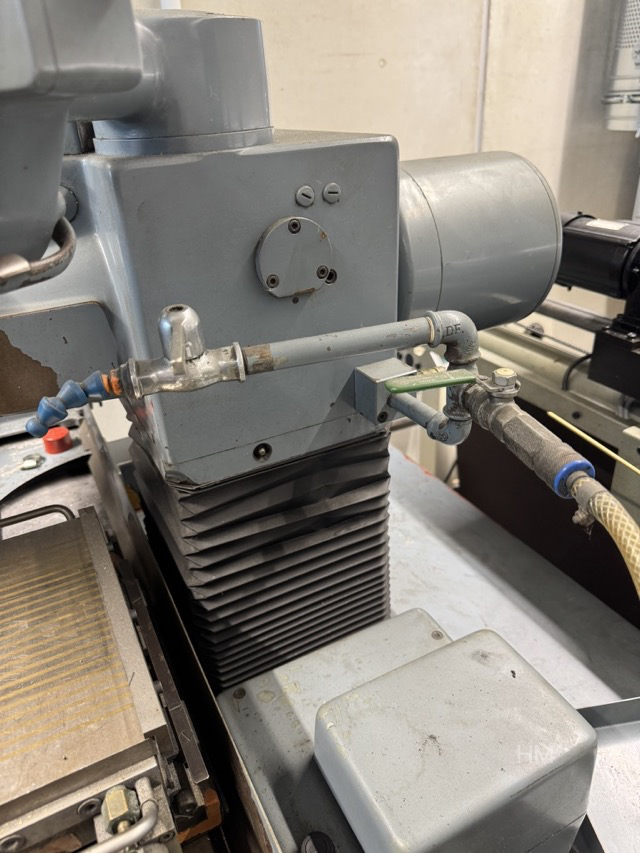

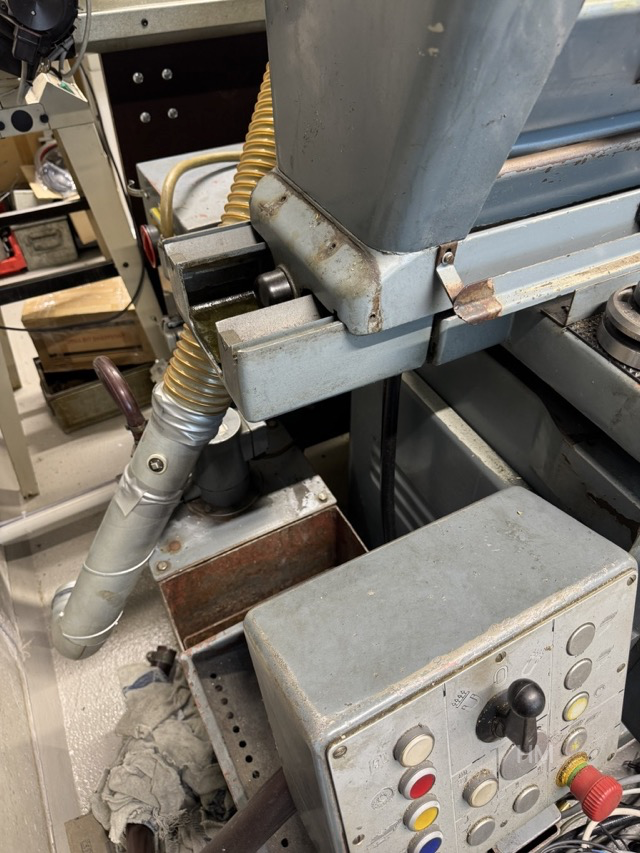

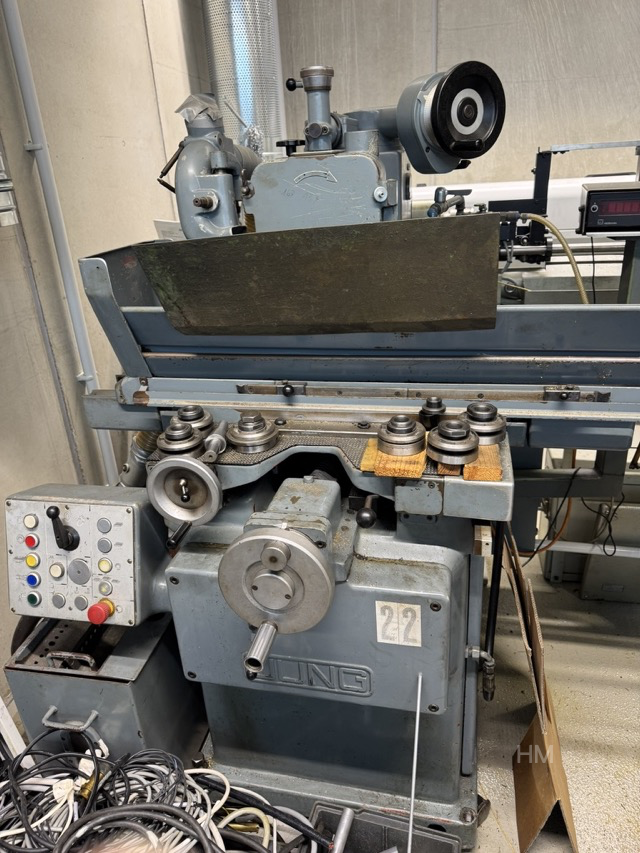

used Jung HF 40 surface grinder, built in 1977, is for sale. It is a robust, heavy-duty model. | Technical specifications: | Type: hydraulic | Table size: 400 x 150 mm | Grinding length: 400 mm | Grinding width: 150 mm | Grinding wheel diameter: 200 mm | Grinding wheel width: 16 mm | Spindle speed: approx. 2,800 rpm | Table speed: infinitely variable 2-20 m/min | Automatic vertical feed: 0.002-0.013 mm | Machine weight: approx. 900 kg | Machine dimensions: approx. 1,300 x 1,200 x 1,500 mm | The machine can be viewed by appointment. | We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

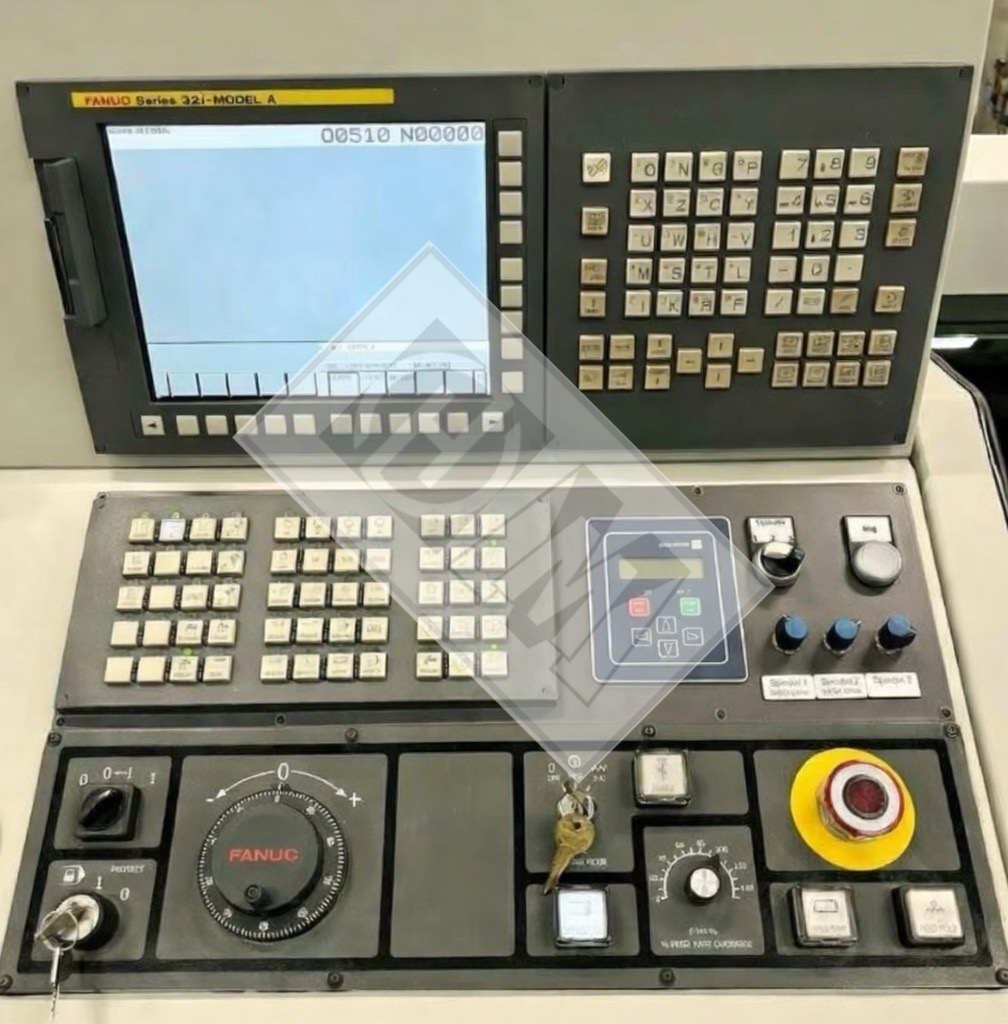

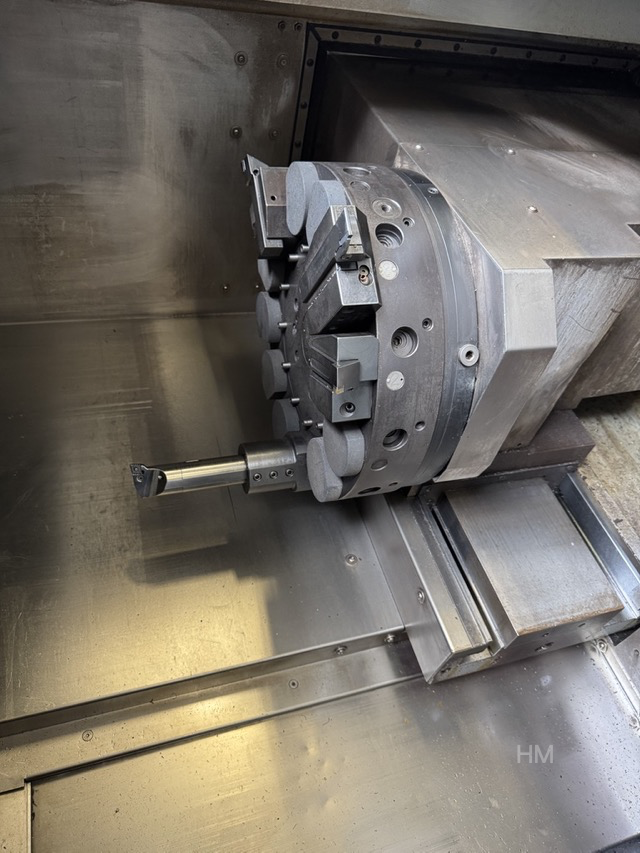

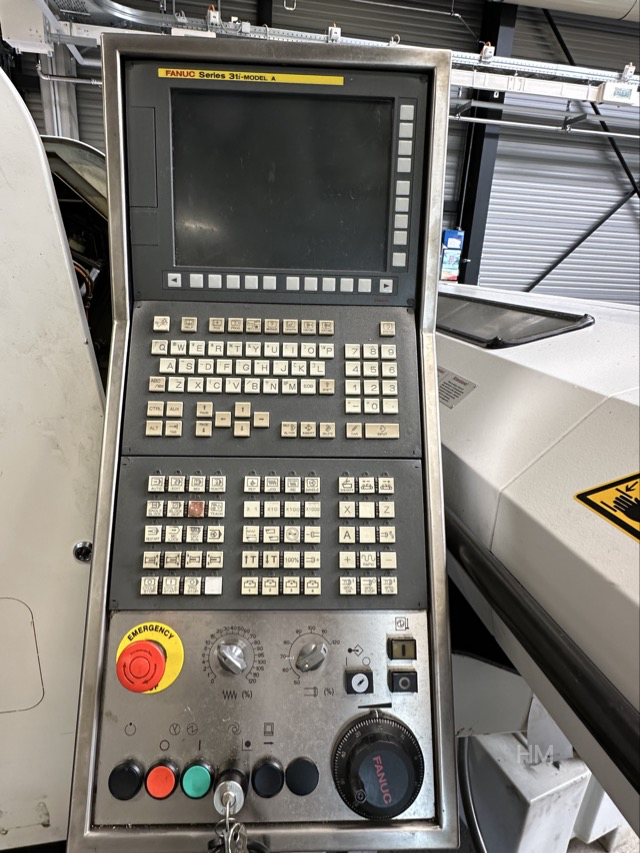

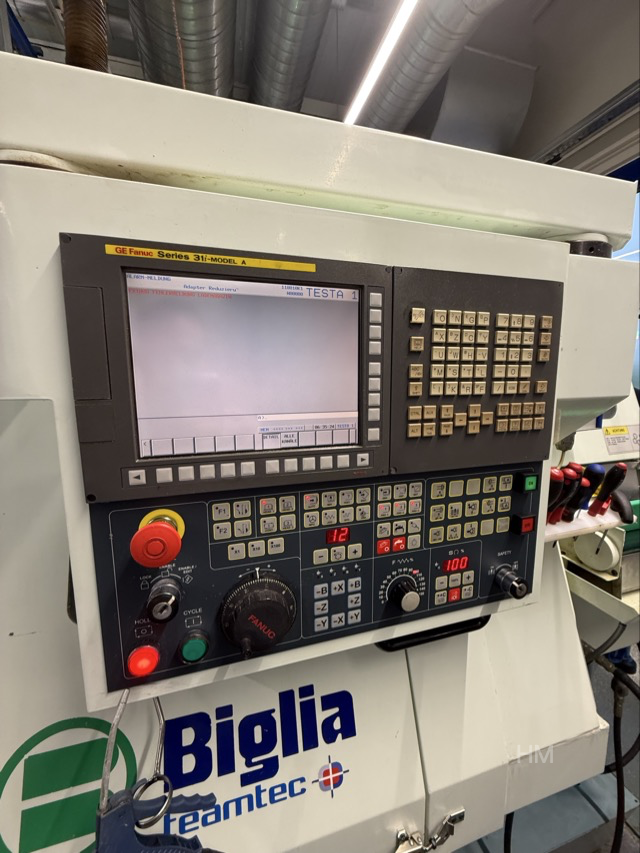

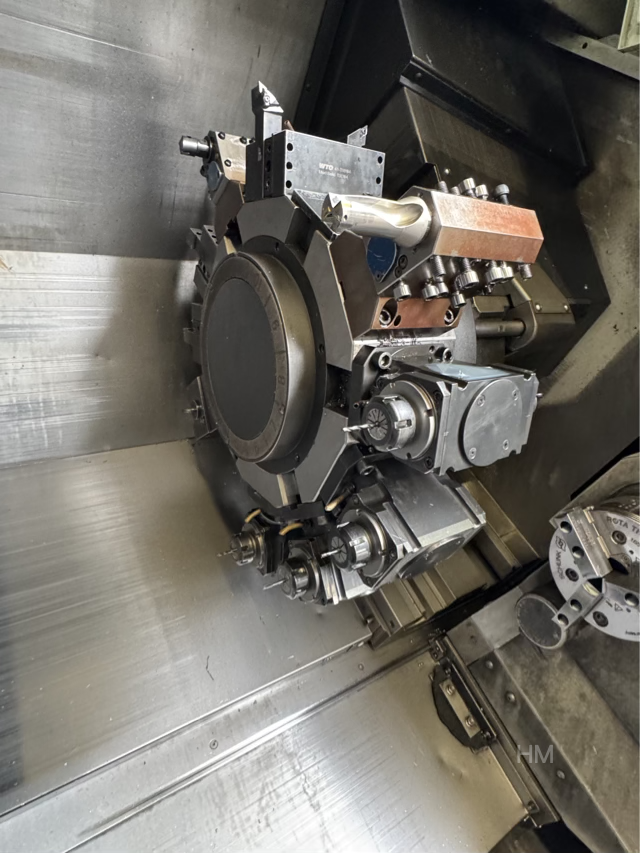

Year of manufacture: 2011 | Machine operating hours: 56,000 hrs | Machine automatic cycle hours: 48,000 hrs | FANUC 31i CNC control - Model A, 7-axis | Technical data | - Number of axes: 7 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 60 [mm] | - Spindle speed: 5000 [rpm] | - Spindle drive power: 7.5 [kW] | COUNTER SPINDLE (on the turret) | - Max. bar diameter: 42/ (60) [mm] | - Spindle speed: 5000 [rpm] | - Spindle drive power: 3.7 [kW] | Powered tools (turret): | Tool drive power: 3.7 kW | Max. speed: 6,000 rpm | Rear-end machining: | 4 fixed tool stations | Up to 14 tools / capacity possible | Bar loading magazine FMB Turbo 5-55 / 3200 / A | Year of manufacture: 2008 | Bar diameter: 5 - 55 [mm] | Bar length: 3,200 [mm] | Chip conveyor | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior ...

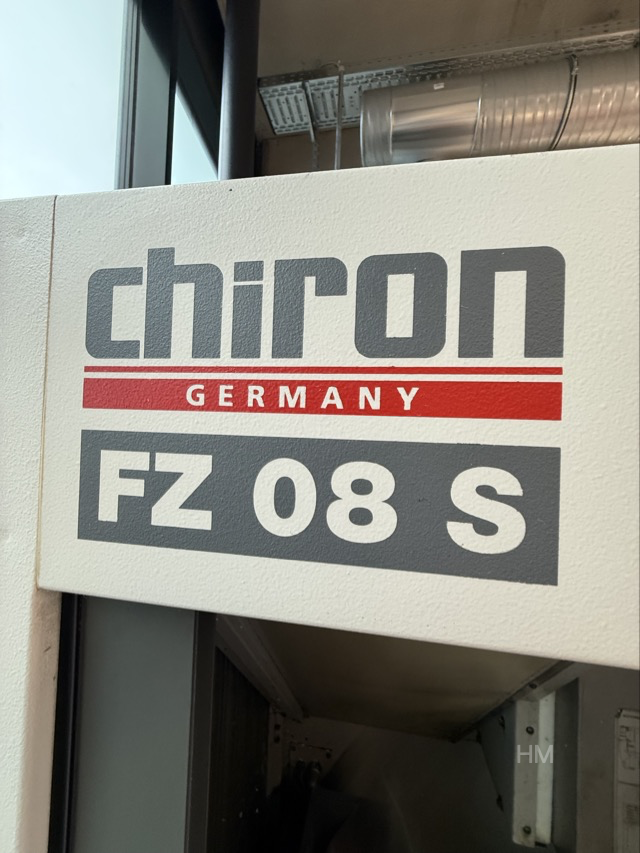

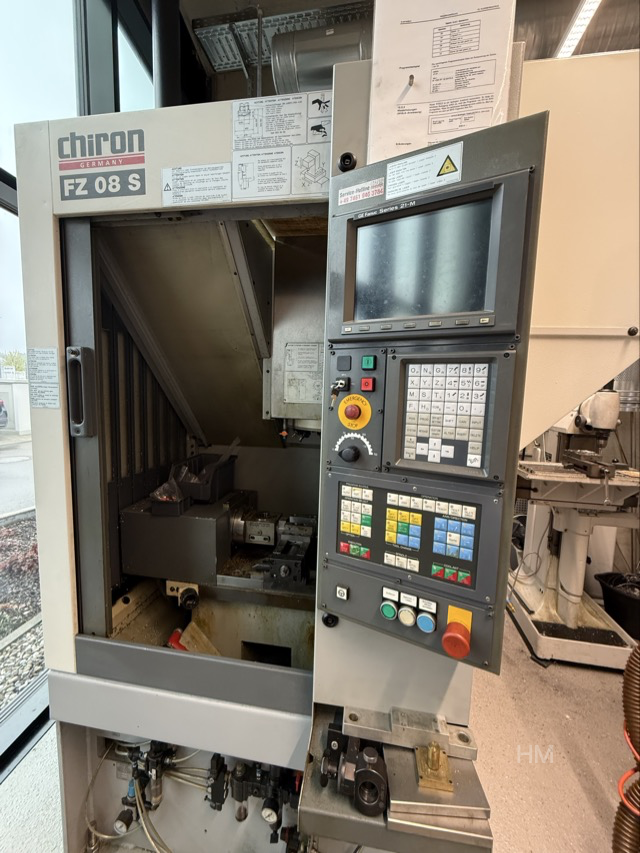

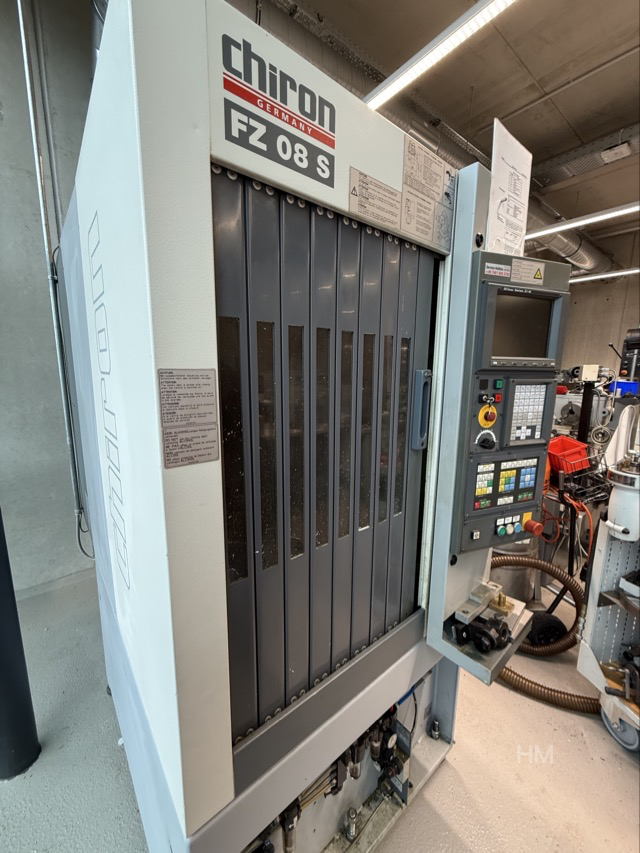

Year of manufacture: 2004 - major overhaul by manufacturer CHIRON in 2013 | The machine underwent a complete factory overhaul by CHIRON in 2013. | Operating hours: approx. 80,374 h | Spindle replacement: March 2021 - spindle hours: approx. 8,000 h | Last maintenance performed: January 2024 | Technical Specifications: | Control: Siemens 840D (PCU50, NCU572.4) | NC swivel head | High-speed package: Motor spindle up to 12,000 rpm, 140 Nm | Travels: X 6,000 mm / Y 630 mm / Z 550 mm | Rapid traverse in X / Y / Z: 60 m/min | Chip-to-chip time: 3.0 sec (3.3 sec DIN) vertical / 4.7 sec (5.0 sec DIN) horizontal | Production package: | Scraper belt conveyor, discharge height 1,050 mm | Preparation for internal coolant supply (IKZ) | Vacuum rotary filter KNOLL VRF250 (for steel, cast iron, aluminum, plastic, brass) | High pressure 70 bar with HP pump and variable valve | Automatic loading doors | C ...
Machine dimensions 2400x1205x1700 mm | Machine weight 2200 kg | FMB IEMCA BOSS 332E loading magazine | Fire extinguishing system | The machine can be viewed by appointment. | We reserve the right to make changes to the technical data and specifications, and to sell the item in the meantime.

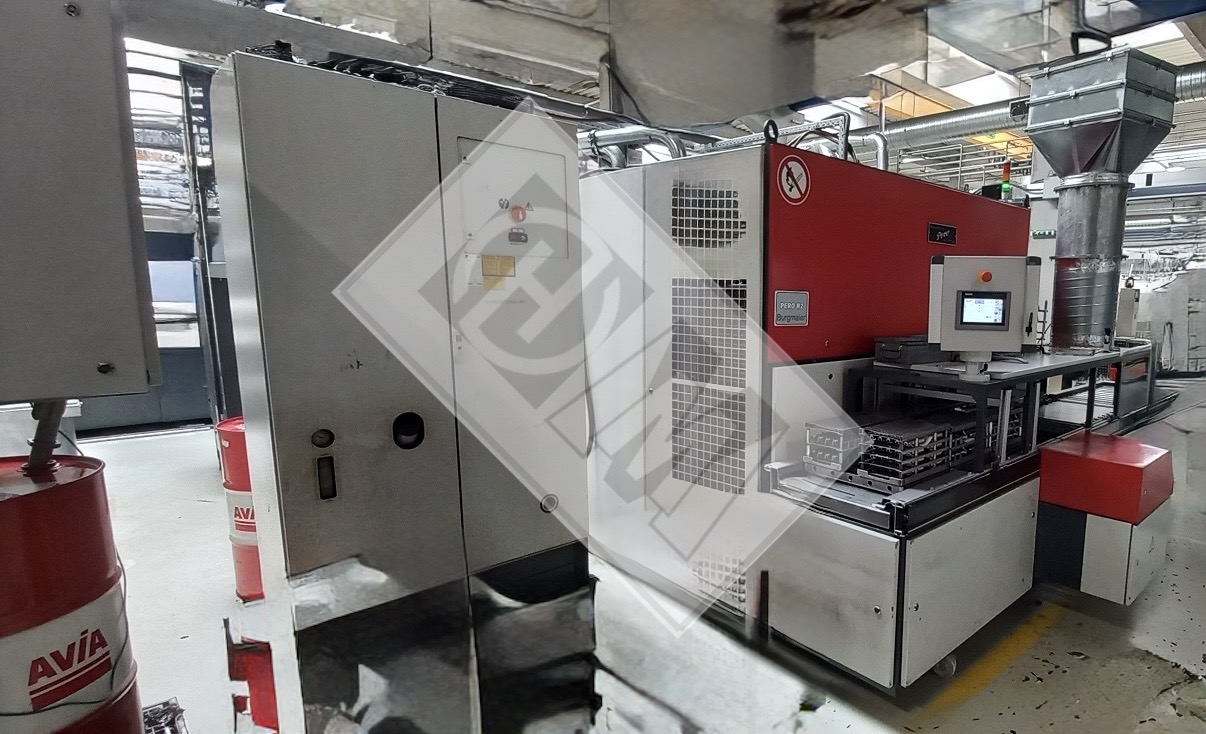

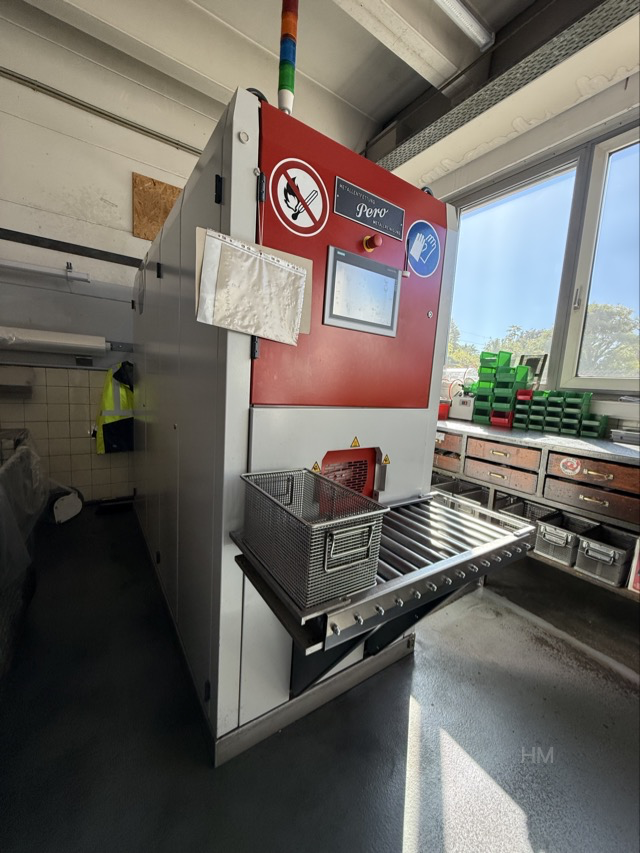

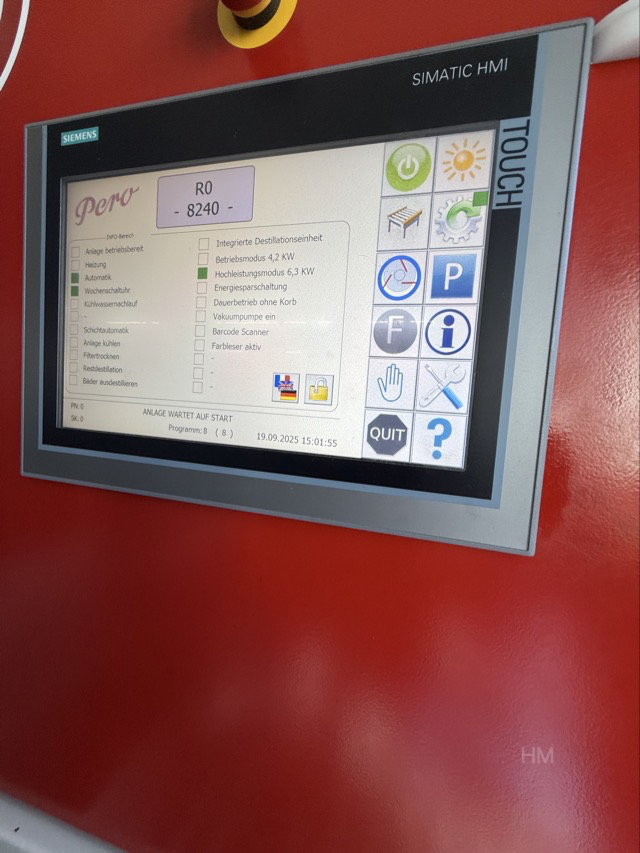

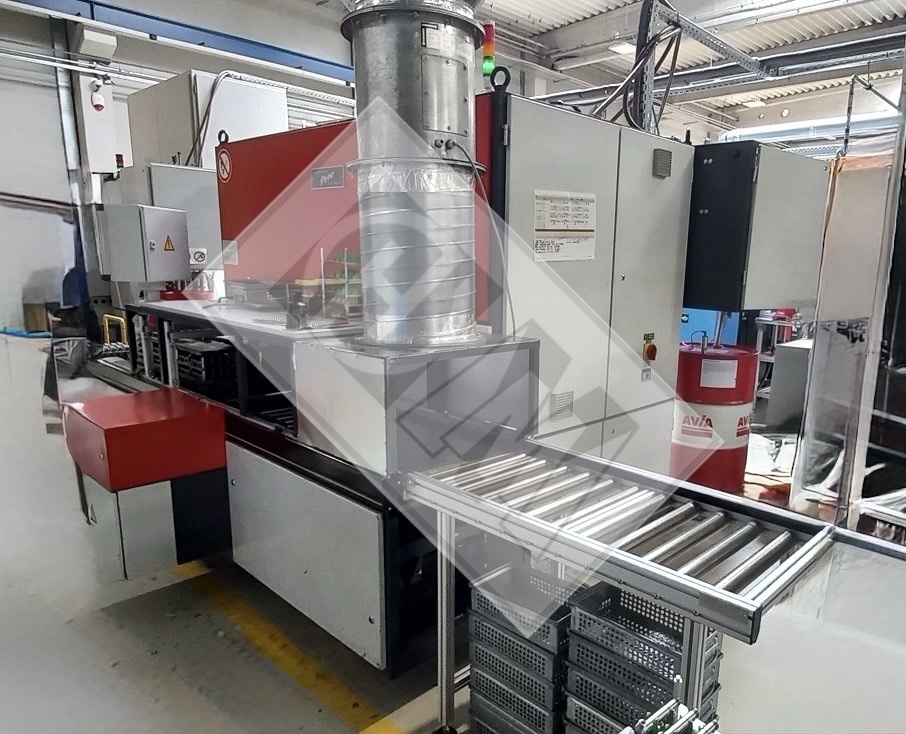

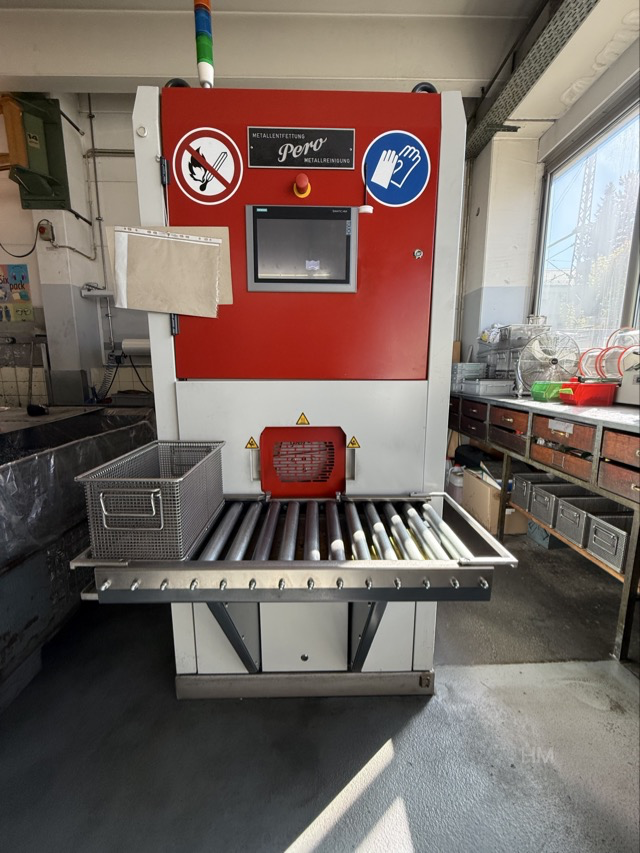

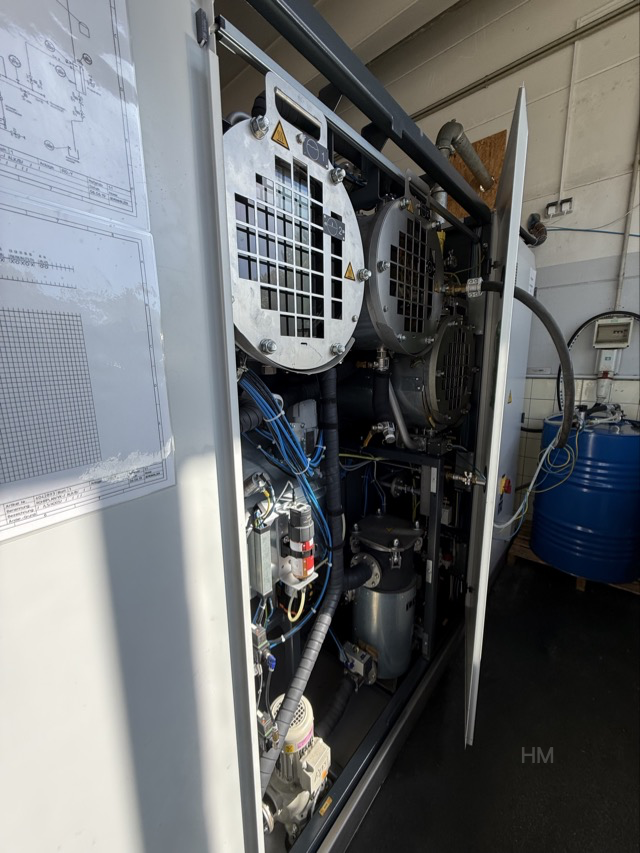

Year of manufacture: 10 / 2017 | Machine type: Cleaning system / Degreasing unit | Process: Solvent cleaning (e.g. modified alcohols or hydrocarbons) | Technical data (typical for this series): | Cleaning system: Closed-loop system, fully automatic | Working chamber dimensions: approx. 530 × 320 × 200 mm | Maximum batch weight: approx. 50 - 80 kg | Solvent: Modified alcohol (hydrocarbon-based) | Drying: Vacuum drying | Control system: PLC control with touch panel | Equipment: Integrated distillation unit, filtration system, oil separator | Power consumption: approx. 10 - 15 kW | Vacuum pump: Integrated | Condition: Very good, well-maintained condition - from ongoing production | Special features: | Energy-efficient cleaning system with closed solvent circuit | Excellent cleaning quality with minimal solvent consumption | Ideal for precision engineering and metal-cutting industries | Th ...
