Year of manufacture: 2022 | Including accessories | Subject to prior sale. Errors and changes in technical data reserved.

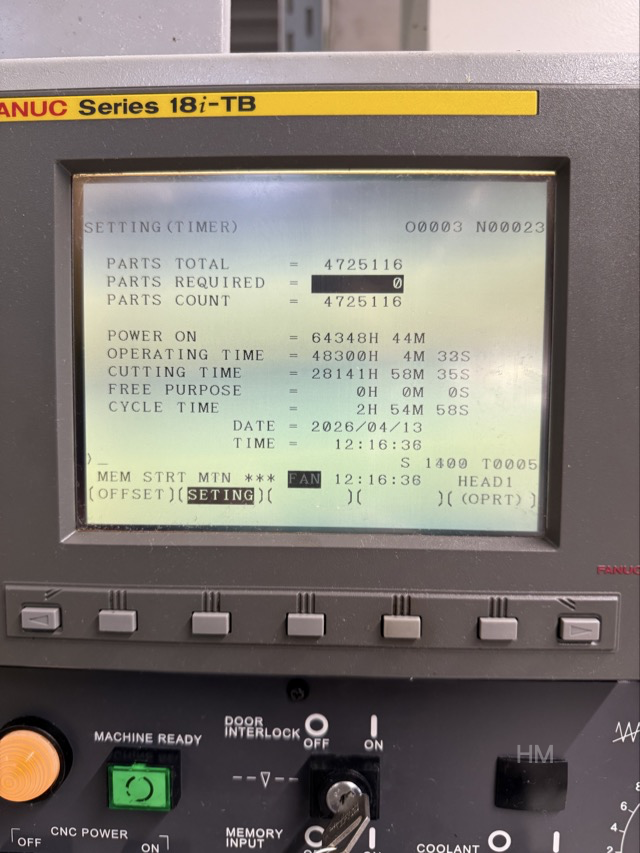

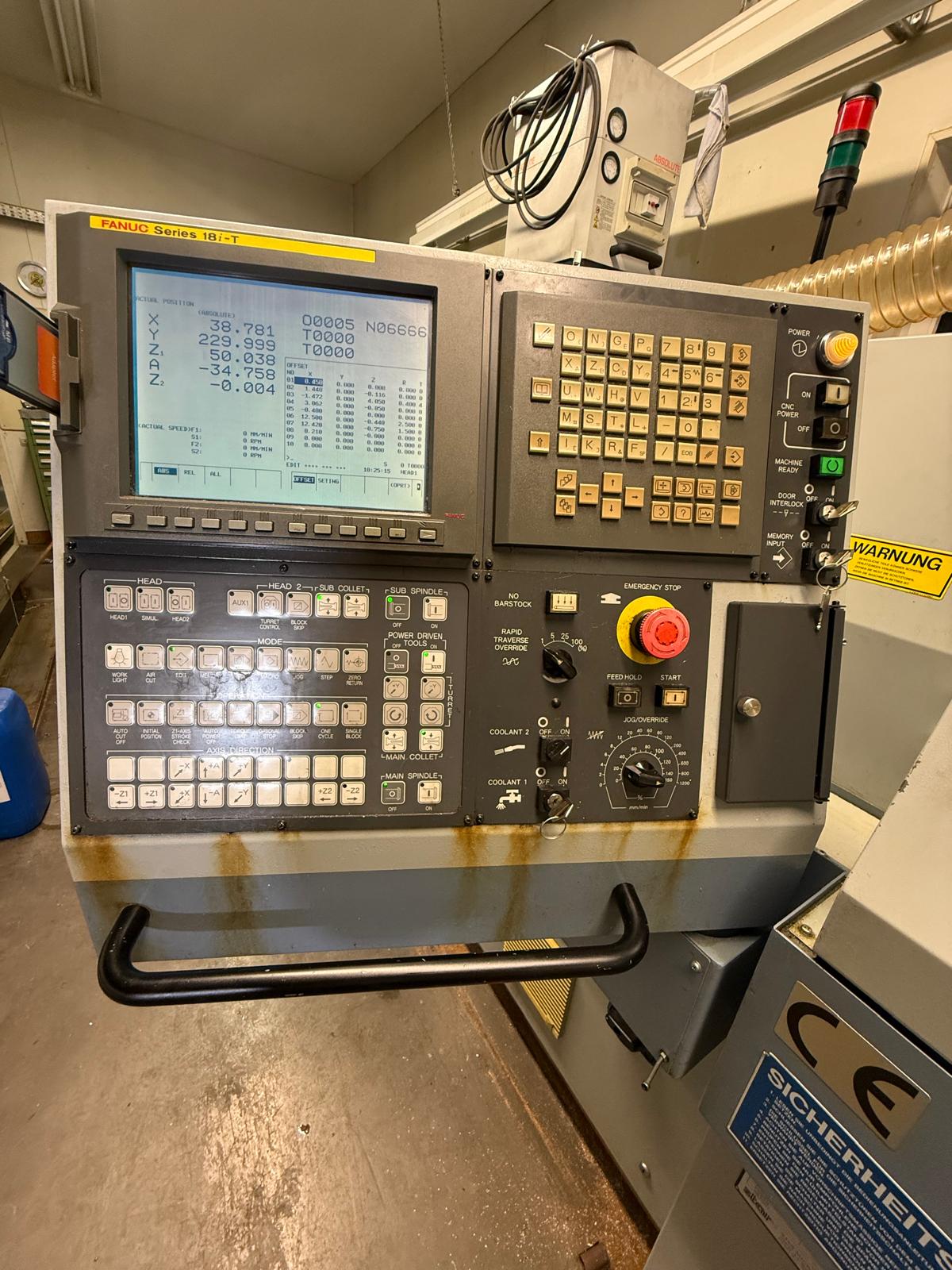

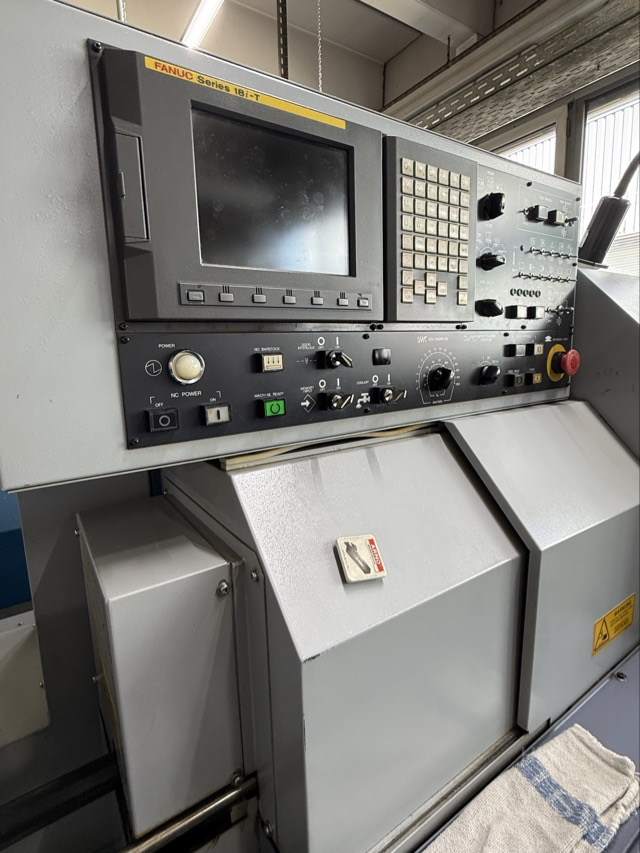

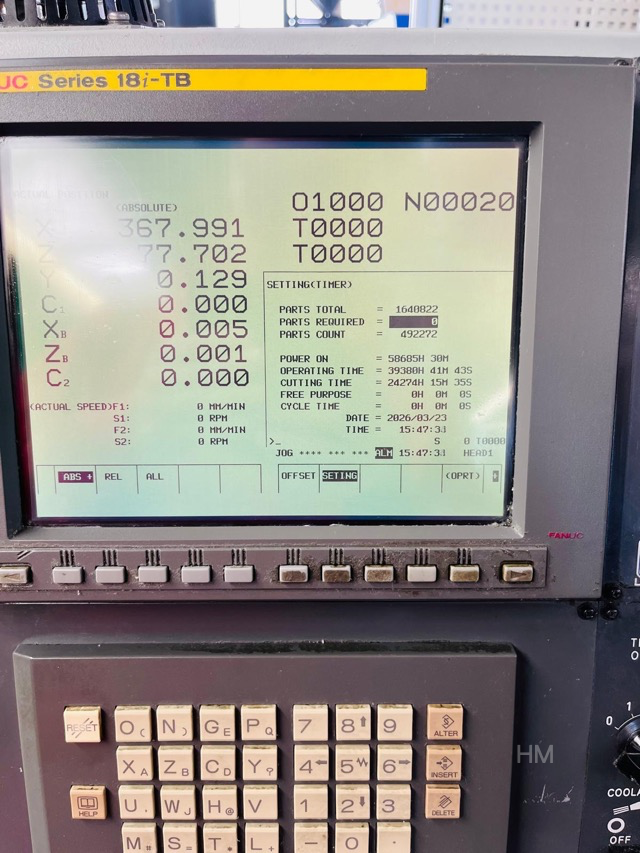

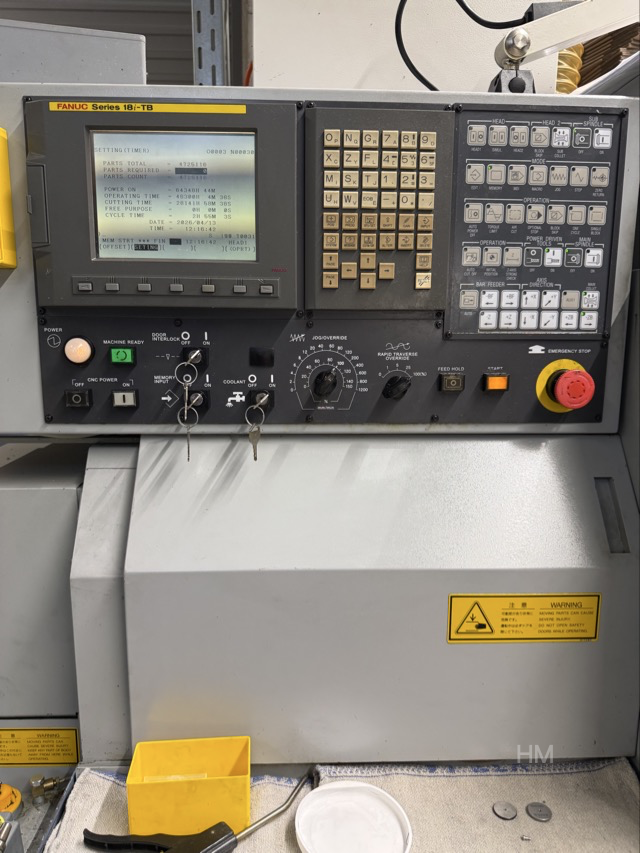

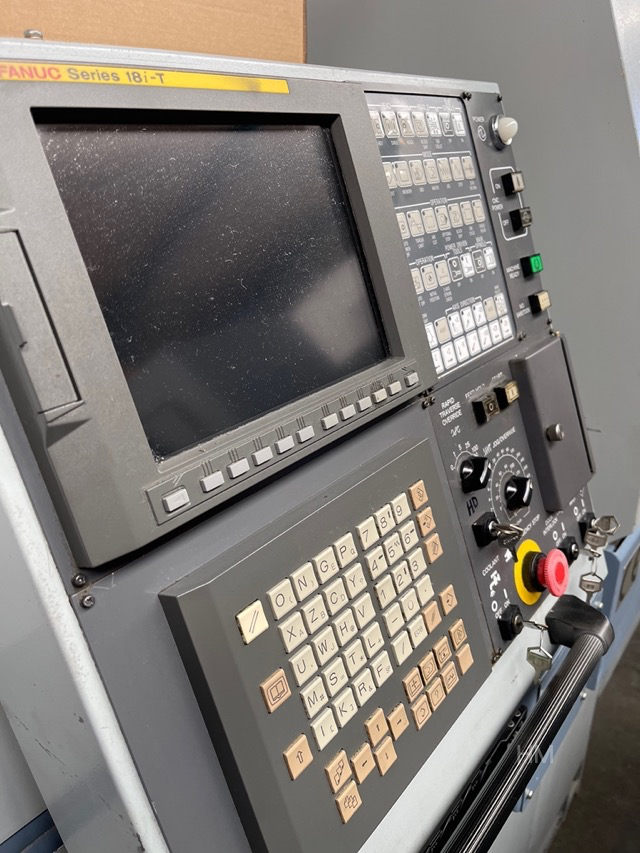

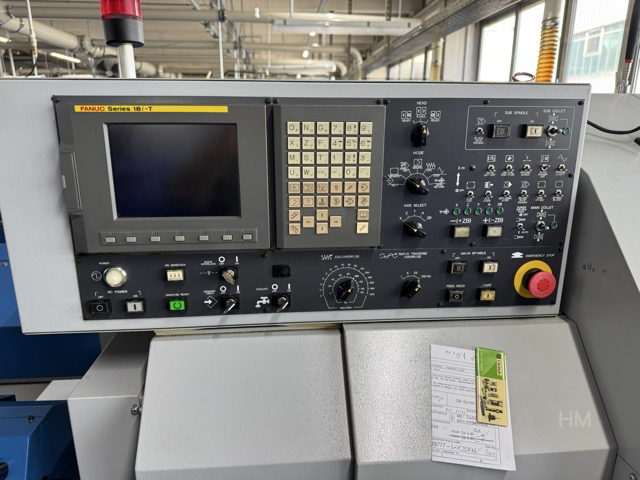

Year of manufacture: 12_2006 | Control system: Fanuc 18i-TB | Technical specifications | Max. turning diameter: Ø 20 mm (optional up to Ø 22 mm) | Turning length: 205 mm | Main spindle: | - Speed: up to approx. 10,000-12,000 rpm | - Power: approx. 3.7-5.5 kW | - C-axis for contour machining | Counter spindle: | - Speed: up to approx. 6,000-8,000 rpm | - C-axis | Axes (travel ranges): | - X1 / Z1 / Y1 (main machining): X1 approx. 265 mm / Z1 approx. 205 mm / Y1 ± 20 mm | - X2 / Z2 (counter spindle): similar to main axis, exact values depend on machine | - Rapid traverse: approx. 24-30 m/min | Machine dimensions: 2,400 × 1,205 × 1,700 mm | Machine weight: approx. 2,200 kg | Bar loading magazine: FMB TURBO 3-26/3200 | Chip conveyor | Viewing: The machine can be viewed on site by appointment. | Note: Subject to changes and errors in the technical data, and prior sale!

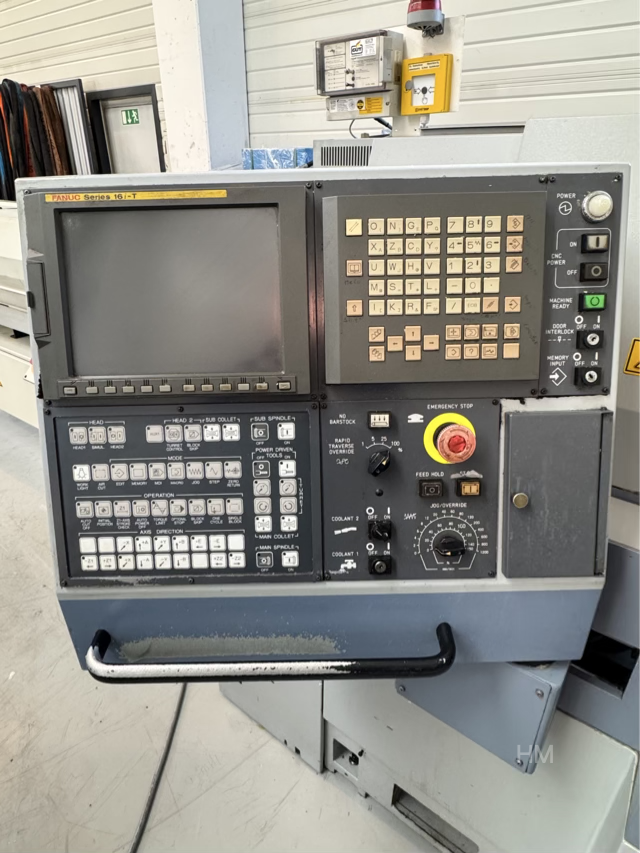

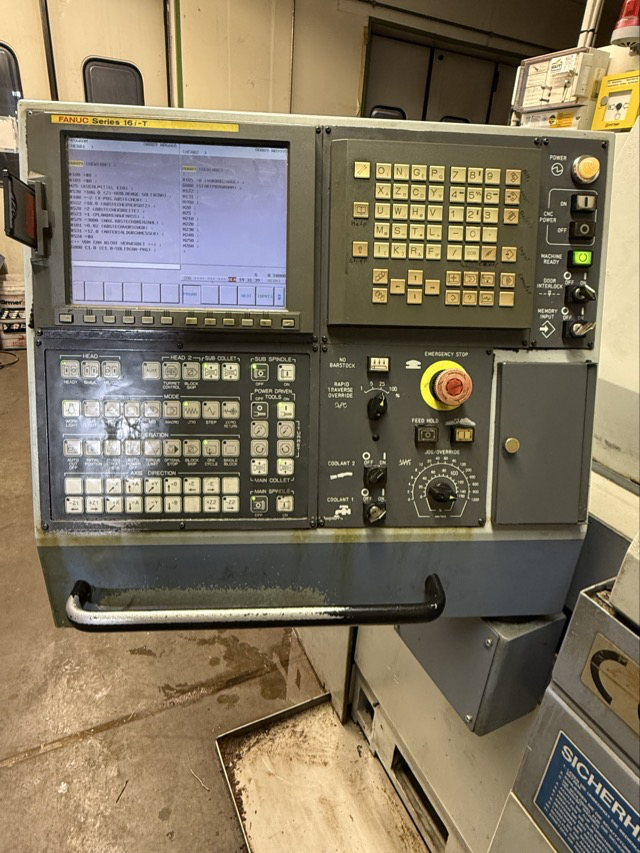

used) | Very well maintained machine directly from the user | Machine has only run with oil | Operating hours around 69500 | FANUC 16i-T control with 9 axes | 9 axes (X / C1 / Y / E / B / A / X / C2) | Bar Ø max. 20 mm | Turning length max. 205 mm / 195mm | Main spindle, max. speed 10,000 rpm, C-axis | Counter spindle with collet chuck, max. speed 10,000 rpm, C-axis | 4-fold tool holder | 3 cross drilling units | Turret with 8 stations | Various additional tool holders, quills | parts conveyor belt | Machine coolant: oil | Loading magazine FMB Turbo 3-26 /3200/A / from Ø3- Ø26 mm | The machine can be inspected by appointment. | Changes and errors in the technical data and information as well as prior sale reserved!

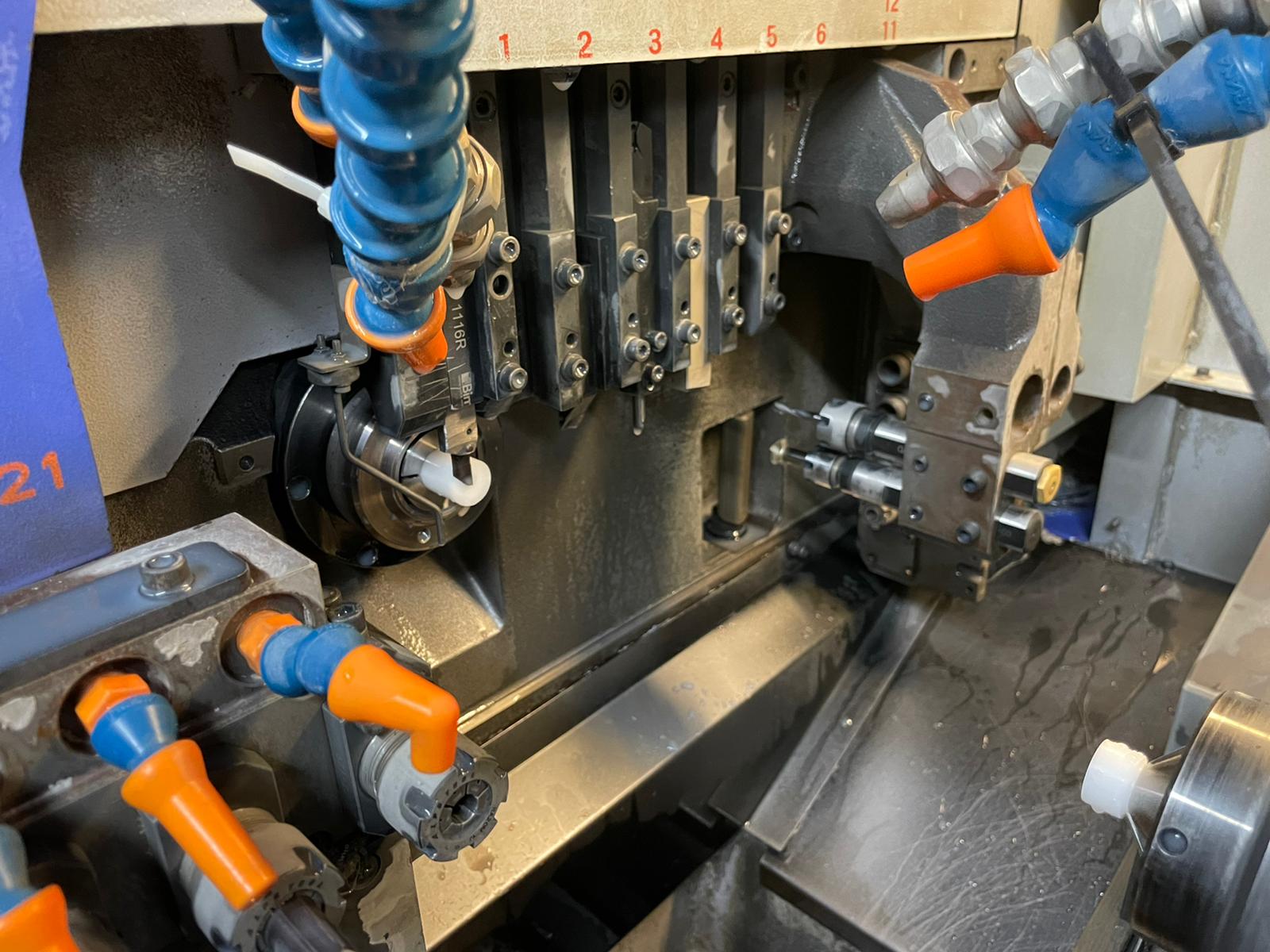

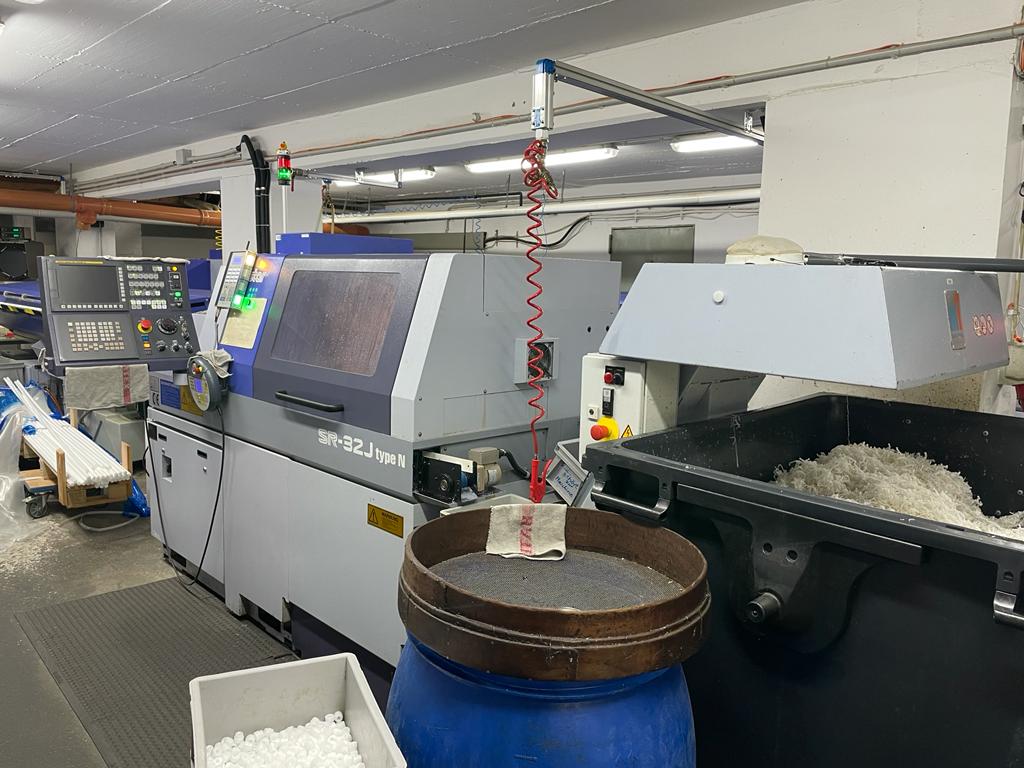

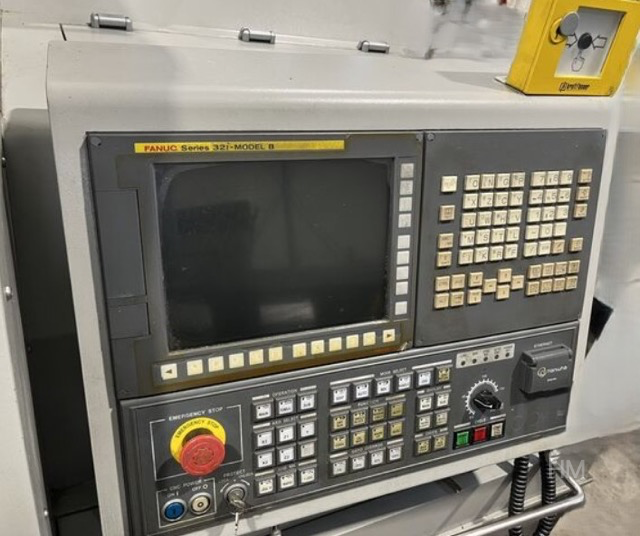

Used CNC Swiss type lathe STAR SR32-JN New, year 2015 | control, make Fanuc, series 32i-B, | 7 axes (X/Z/Y/C1/X1/Z1/C2, | bar-Ø max. 32 mm, | turning length max. 80 mm, | main spindle, speed max. 7.000 rpm, C-axis 0,001 degree, | backspindle Ø max. 32 mm, | speed max. 7.000 rpm, C-axis, | tool holder for a total of 23 tools (linear tool holder, front attachment, rear machining), | parts conveyor belt, | Mayfran chip conveyor, | Service-Set Emulsionspackage | barloader magazine FMB turbo 3-36/3200 / A /accesories to support | turning without guide bush. | Use of coolant in the machine: emulsion | The machine can be inspected under power by appointment. | Changes and errors in the technical data and information and subject to prior sale!
used) | Very well maintained machine directly from the user | Machine has only run with oil | Operating hours around | FANUC 16i-T control with 9 axes | 9 axes (X / C1 / Y / E / B / A / X / C2) | Bar Ø max. 20 mm | Turning length max. 205 mm / 195mm | Main spindle, max. speed 10,000 rpm, C-axis | Counter spindle with collet chuck, max. speed 10,000 rpm, C-axis | 4-fold tool holder | 3 cross drilling units | Turret with 8 stations | Various additional tool holders, quills | parts conveyor belt | Machine coolant: oil | Loading magazine FMB Turbo 3-26 /3200/A / from Ø3- Ø26 mm | The machine can be inspected by appointment. | Changes and errors in the technical data and information as well as prior sale reserved!

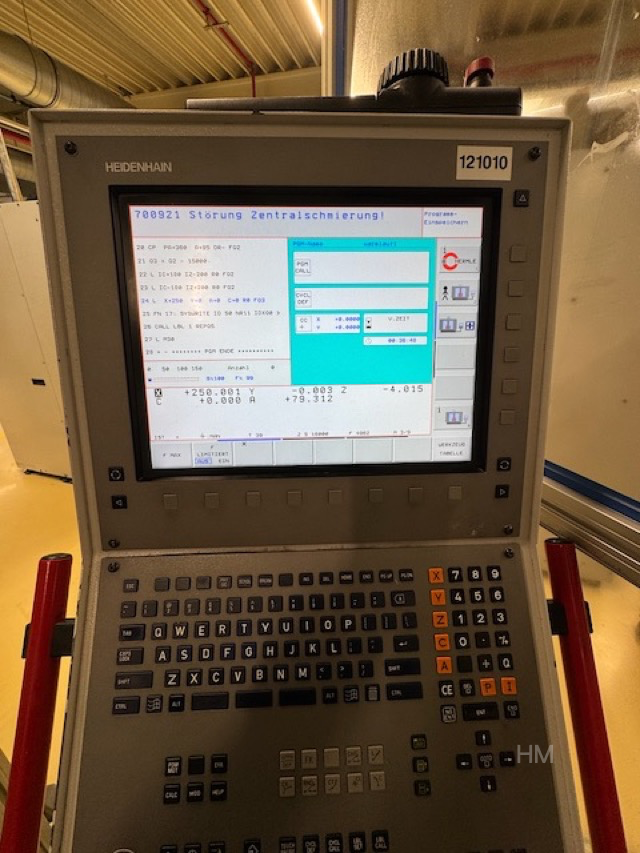

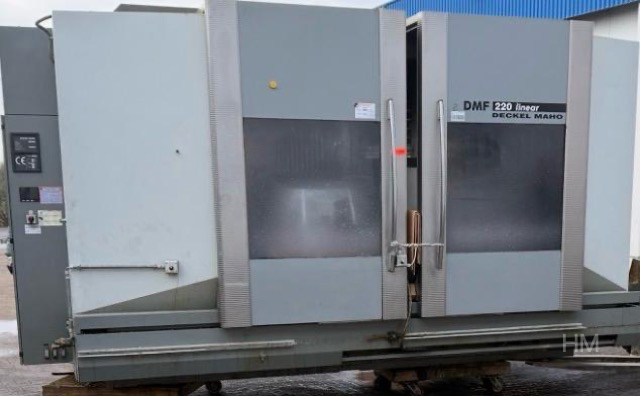

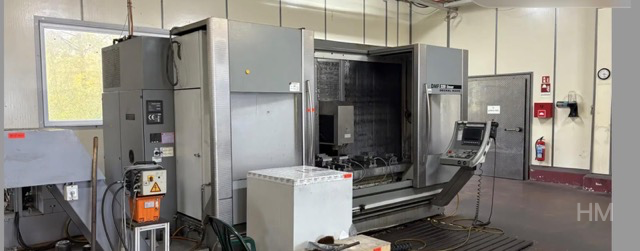

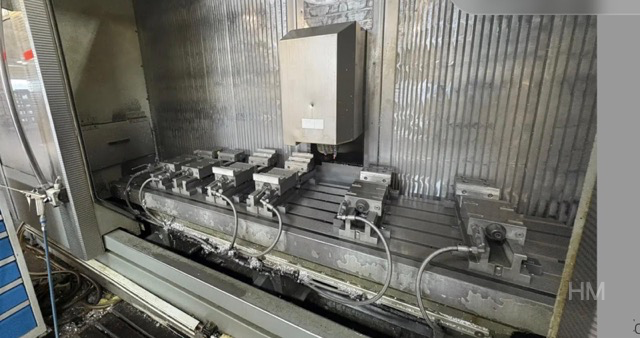

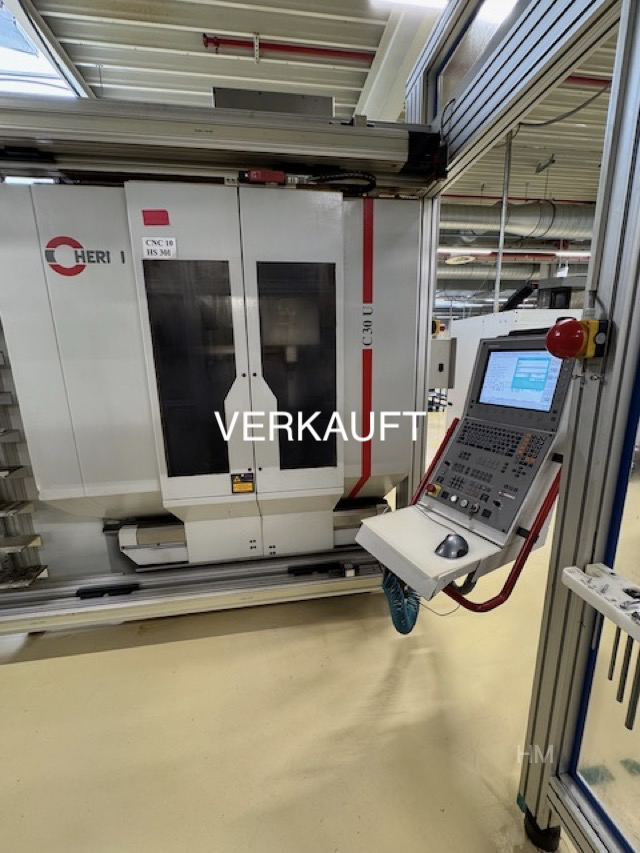

Year of manufacture: 2004. | Control: Heidenhain iTNC 530. | Technical data: | Travel distance X: 2,500 mm. | Travel distance Y: 920 mm. | Travel distance Z: 820 mm. | B-axis: x/- 105° | Work table: 3100 x 900 mm | Spindle exception: HSK 63 | Spindle speeds: 20 - 18,000 rpm | Tool changer: 30 pcs. | Equipped with: | - Chip conveyor | - Cooling via spindle 40 bar | - Operating instructions | Country of origin: Germany | Motor power: 35 KW | Machine LxWxH: 6000 x 3800 x 2950 mm | Machine weight: 25,000 kg | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!

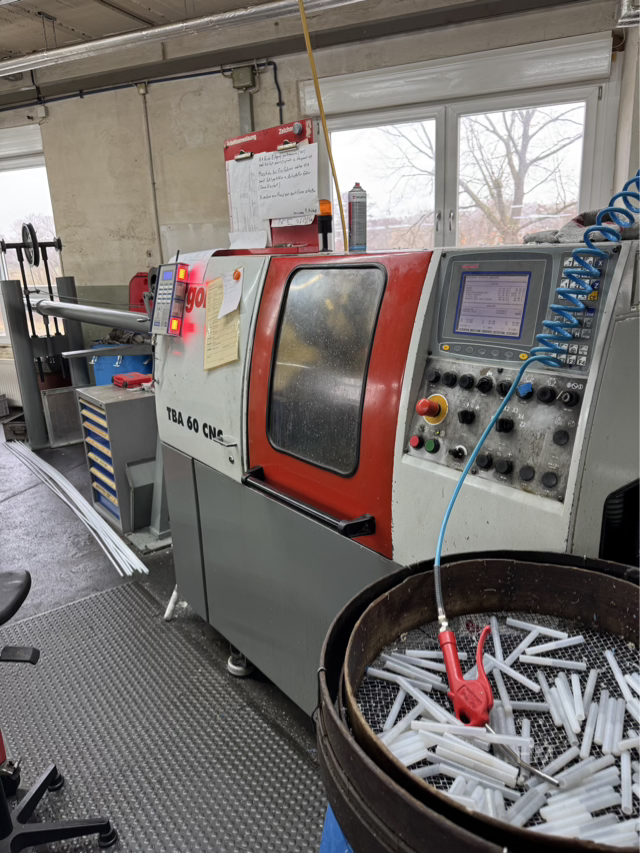

Year of manufacture: 2005 | Machine type: CNC multi-slide automatic lathe | Control: CNC (Fanuc-based control) | Working range | Max. round bar capacity: 60 mm | Max. turning length: 100 mm | Spindle | Spindle power: 7.5 kW | Max. spindle speed: up to 3,150 rpm | Tool system | Servo-driven 6-station star turret | Turret change time: approx. 0.3-0.4 s | Multi-slide concept with: | Front horizontal slide (X1/Z1) | Rear horizontal slide (X2) | Two vertical slides (X3/X4) () | Travel distances | Horizontal slide travel distance: 45 mm | Vertical slide travel distance: 45 mm | Machine data | Machine weight: 2,000 kg | Equipment | Single bar feed | Multi-carriage turning system for high productivity | Coolant device | Chip disposal / chip tray | The machine can be viewed under power by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!

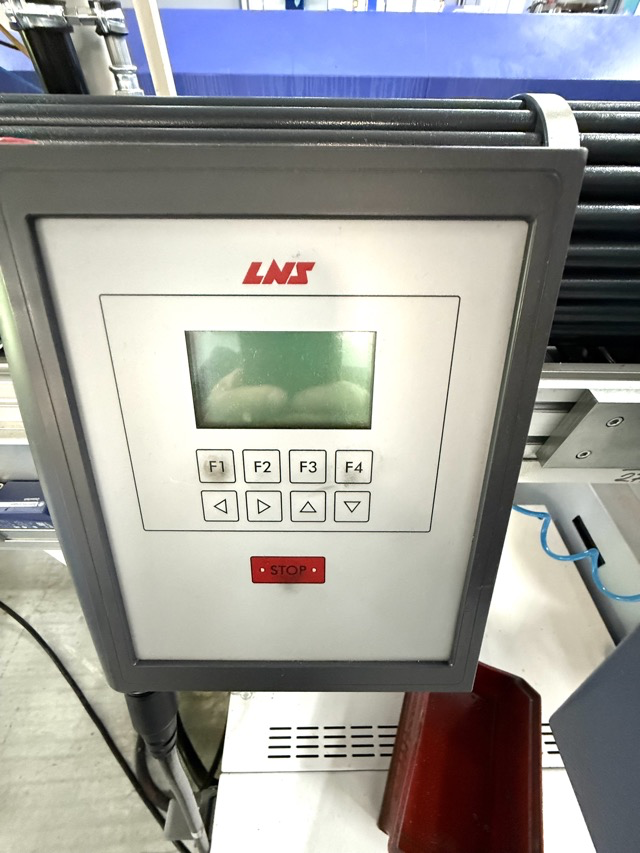

Used Haas ST-20SS (Super Speed) CNC turning centre, built in 2010, | including LNS Super Hydrobar 6.50 HS 4.6, built in 2011. | Technical details: | 15-inch colour LCD monitor, user-friendly HAAS control | Max. turning diameter: up to 254 mm | Max. turning length: 533 mm. | Spindle: | Main spindle bearing defective! | Speed: max. 5,000 rpm. | Drive power: 22.4 kW (30 hp) high-performance vector drive. | Spindle nose: A2-6. | Spindle bore: 88.9 mm | Tool turret: | 24-station hybrid turret | Rapid traverse: | 24.0 m/min (X-axis) | 30.5 m/min (Z-axis). | Equipment: | automatic tool presetting system (Auto Probe Arm) | Unit for driven tools | LNS Super Hydrobar 6.50 HS 4.6 (built in 2011) | for bar diameters from approx. 5 mm to 50 mm (expandable to 65/68 mm within the HS series, depending on the model). | The machine can be viewed under power by appointment. | Subject to changes and errors ...

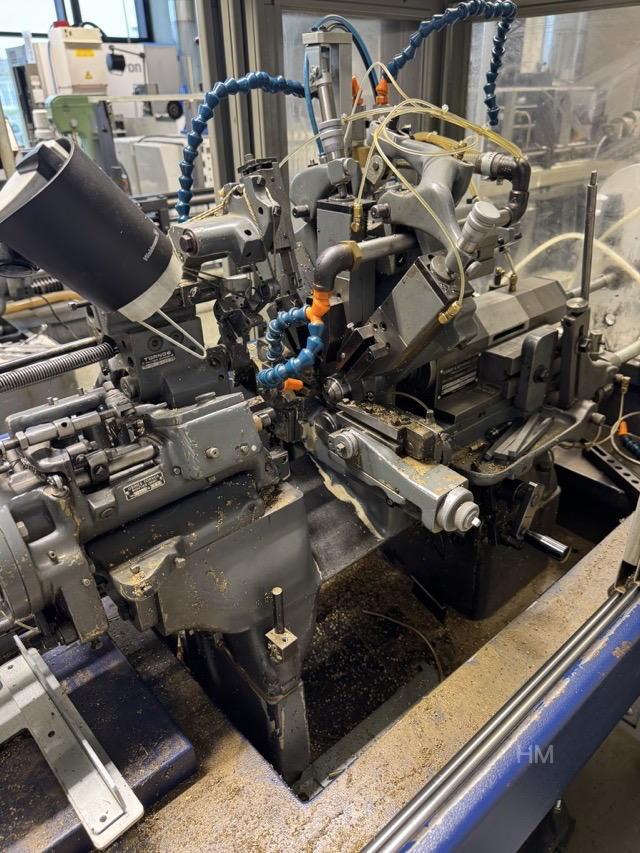

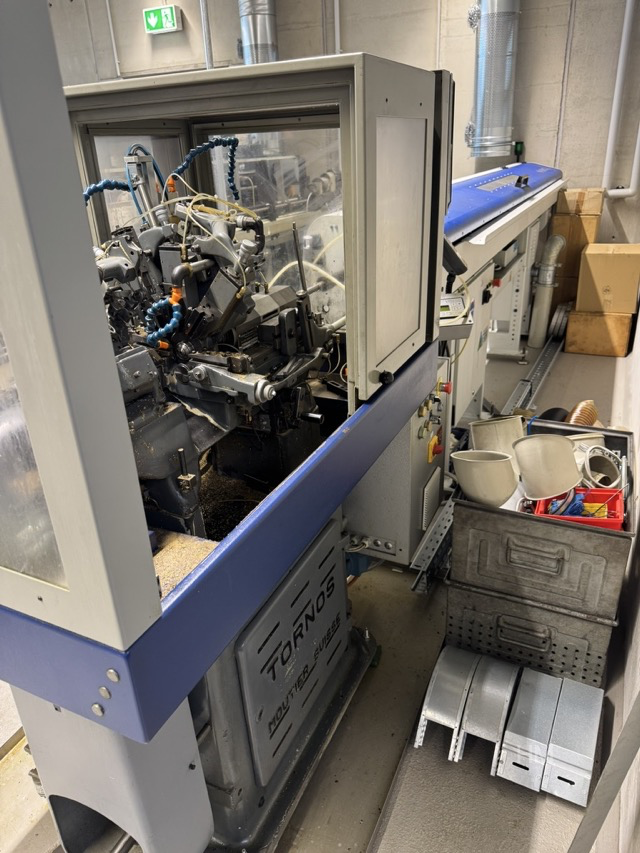

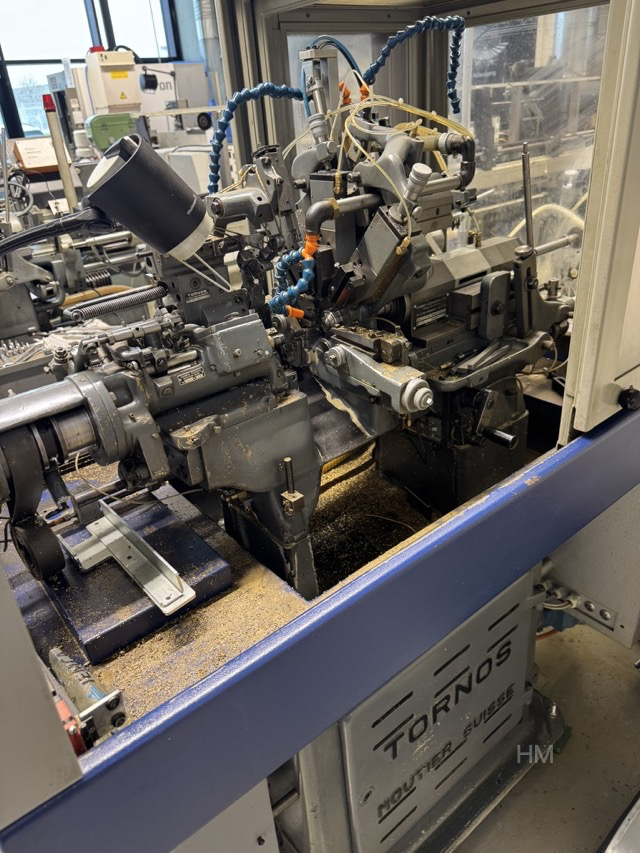

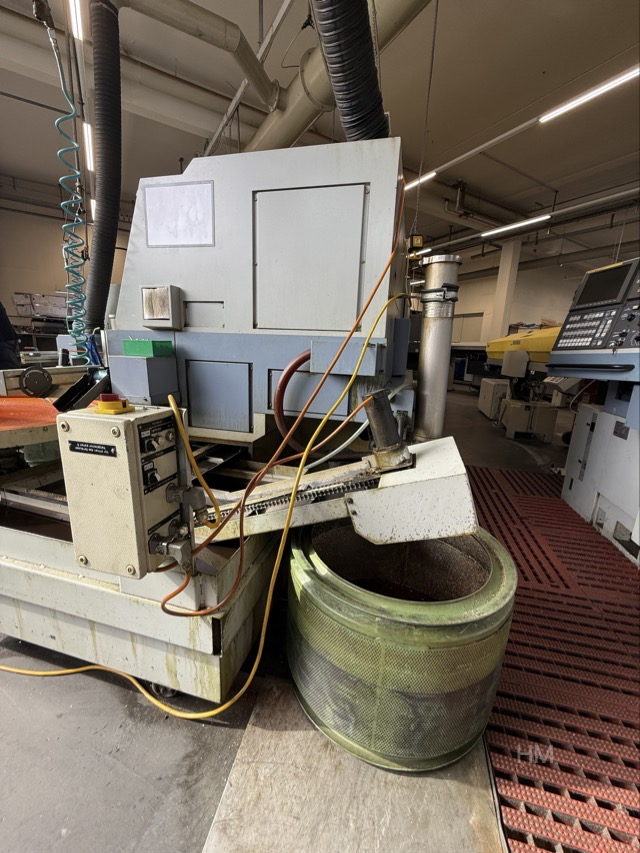

used TORNOS R10 sliding headstock automatic lathe, manufactured in 1987 and fitted with a BARBOY Type 29-AA-1 bar feeder, is for sale. | Technical specifications TORNOS R10: | Machine type: Sliding headstock automatic lathe | Max. material diameter: 10 mm | Spindle bore: 13 mm | Max. thread diameter: M8 | Max. turning length with flat cam: 70 mm | Max. turning length with bell cam: 100 mm | Number of turning tools: 5 | Spindle speeds: 20 speeds from 1,050 to 8,000 rpm | Electrical connection: 50 Hz / 3 x 380 V | Machine weight: approx. 860 kg | Dimensions: approx. 1,500 x 750 x 1,450 mm | Technical data for BARBOY Type 29-AA-1 bar feeder: | Manufacturer: BARBOY | Type: 29-AA-1 | Equipment type: Bar feeder | Feeder length: 3,000 mm | The machine can be viewed by appointment. | We reserve the right to make changes and corrections to the technical data and specifications, and to sell the it ...
Year of manufacture: 2023 | Features/highlights | Horizontal CNC lathe | Powerful main spindle | Robust machine construction for high dimensional accuracy | Tool turret with fast indexing | Compact design, low space requirement | User-friendly CNC control | High reliability and low maintenance | Technical data | Max. turning diameter: approx. 300 mm | Max. turning length: approx. 300 mm | Spindle bore: approx. Ø 52 mm | Main spindle speed: up to approx. 4,500 rpm | Tool turret: 12 stations | Control: FANUC CNC | Machine weight: approx. 2,200 kg | Machine fully functional, both electrically and mechanically | Complete technical documentation available | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
used) | Very well maintained machine directly from the user | Machine has only run with oil | Operating hours around 78,000 hours | FANUC 16i-T control with 9 axes, | 9 axes (X / C1 / Y / E / B / A / X / C2), | Bar Ø max. 20 mm | Turning length max. 205 mm / 195mm, | Main spindle, max. speed 10,000 rpm, C-axis, | Counter spindle with collet chuck, max. speed 10,000 rpm, C-axis, | 4-fold tool holder | 3 cross drilling units | Turret with 8 stations | Various additional tool holders, quills, | parts conveyor belt | Tank capacity 170L | Machine coolant: oil | Loading magazine FMB Turbo 3-26 /3200/A / from Ø3- Ø26 mm Year of construction 1999 | Fire extinguishing system Kraft & Bauer / GUT fire protection | Mayfran chip conveyor | The machine can be inspected by appointment. | Changes and errors in the technical data and information as well as prior sale reserved!
used: oil | Weight: 6.25 tonnes | Dimensions: (LxWxH) 3477x1860x1865 mm | The machine can be viewed under power by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!

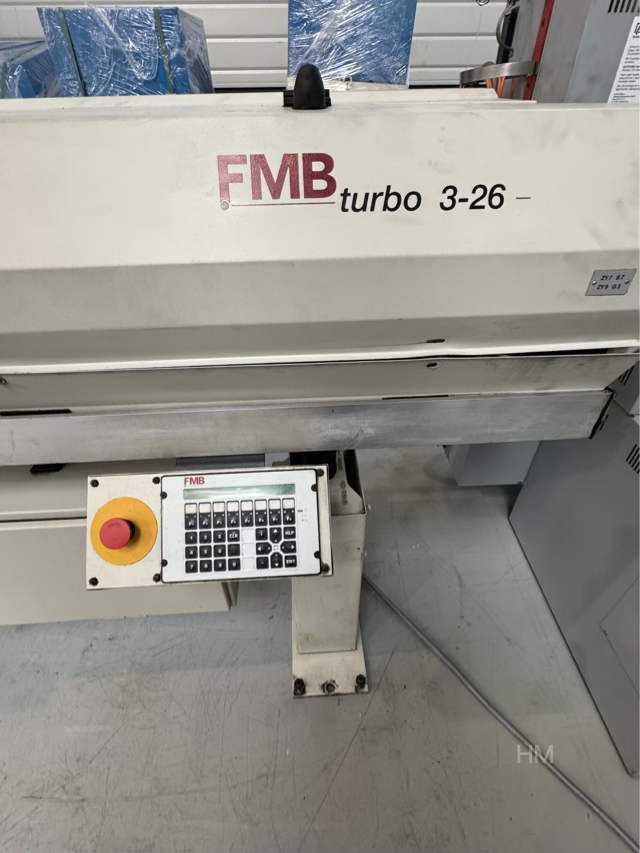

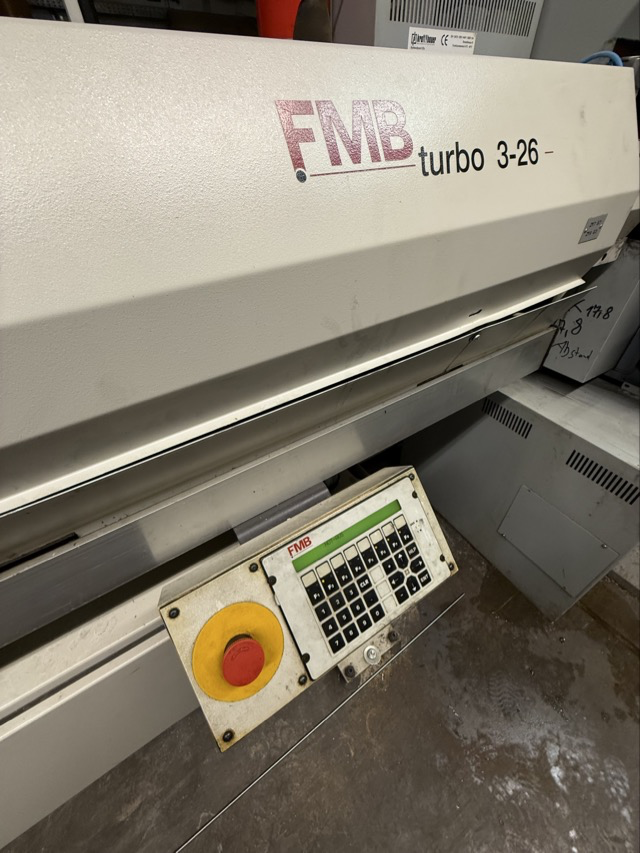

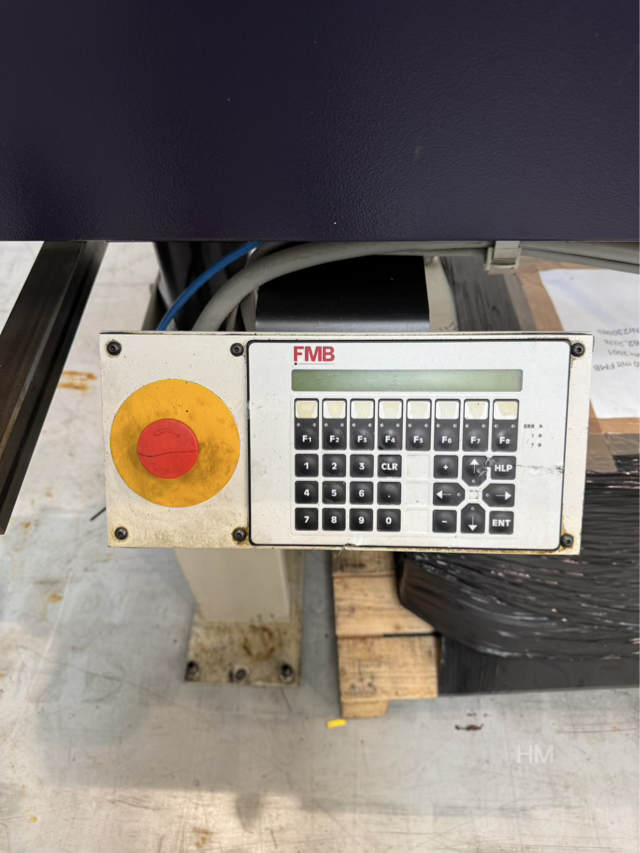

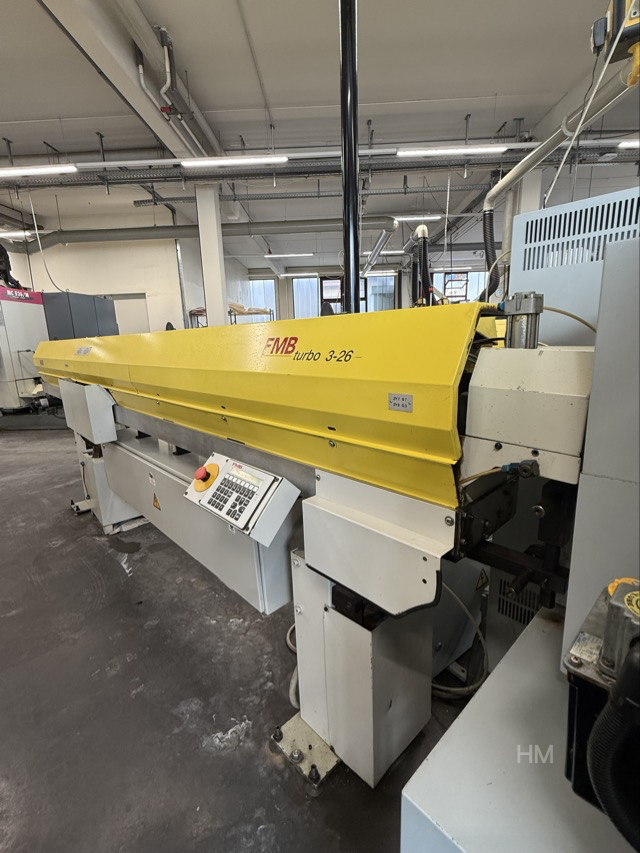

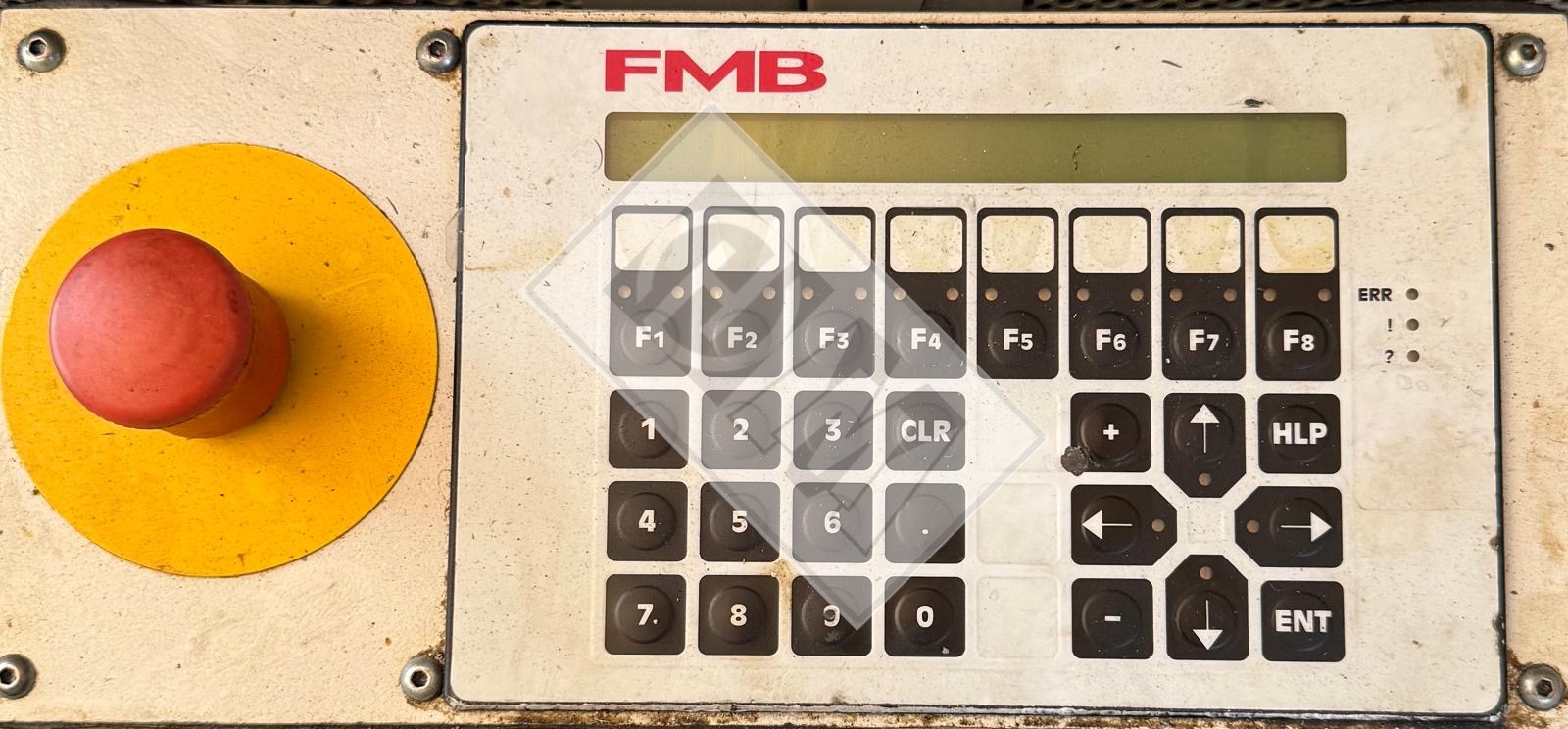

Year of Manufacture: 2013 | Control: Fanuc 32i A | Operational Status: Fully operational | Operating Hours: approx. 60,000 hours | Technical Data | Spindle Bore: Ø 27 mm | Spindle Nose: A2-5 | Chuck Capacity: max. 80 mm | Maximum Spindle Speed: 6,000 rpm | X-Axis Travel: 607 mm | Z-Axis Travel: 286 mm | Coolant System | Loading and Unloading System: FMB MH5LS-SP / 5 workpiece pallets, double gripper | Accessories / Tools / Manuals | Machine Dimensions and Weight | Machine Dimensions: approx. 1850 × 1750 × 1750 mm | Machine Weight: approx. 2100 kg | Loading/Unloading System Dimensions and Weight | Dimensions: approx. 1900 × 950 × 2000 mm | Weight: approx. 1000 kg | Coolant System Dimensions and Weight | Dimensions: approx. 1500 × 800 × 1100 mm | Weight: approx. 250 kg | The machine is fully operational and in good used condition. | For further information or to arrange a live demon ...

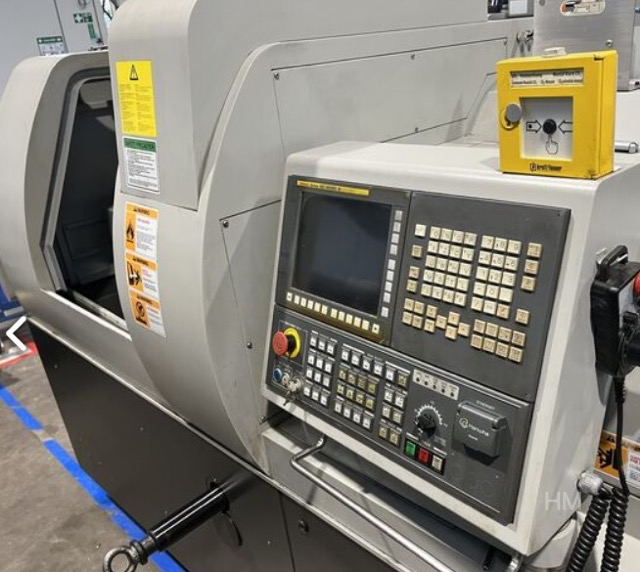

Year of manufacture: 08_2022 | Fanuc control of the 0i series | Hanwha CNC Swiss Type Lathe XD10 Y2 with Fanuc Control of the 0i Series | The Hanwha CNC Swiss type lathe XD10 Y2 is a high-precision Swiss type automatic lathe with integrated Fanuc control of the 0i series, designed for machining small diameters in series production. It features a main spindle, sub-spindle, extensive tooling equipment, and accessories for efficient manufacturing processes. | Main Spindle | Maximum turning diameter: 10 mm | Maximum spindle bore diameter: 15 mm | Maximum speed: 15,000 rpm | Maximum power: 3.7 kW (Built-in Motor) | Z1 travel: 155 mm | Synchronous rotating guide bushing unit: Type F853 | Collet: Type 120E | Sub-Spindle | Maximum speed: 10,000 rpm | Maximum power: 1.1 kW | C-axis: Resolution 0.001° | Maximum pick-up diameter: 10 mm | Z2 travel: 180 mm | Collet: Type 120E | Tool Slide X1, Y1: | ...
Machine dimensions (LxWxH): 2540x1450x1850 [mm] | Machine weight : 1750 [kg] | Loading magazine dimensions (LxWxH): 3900x900x1450 [mm] | Machine weight : 850 [kg] | The machine can be inspected by appointment. | Subject to changes and errors in the technical data and information as well as prior sale!

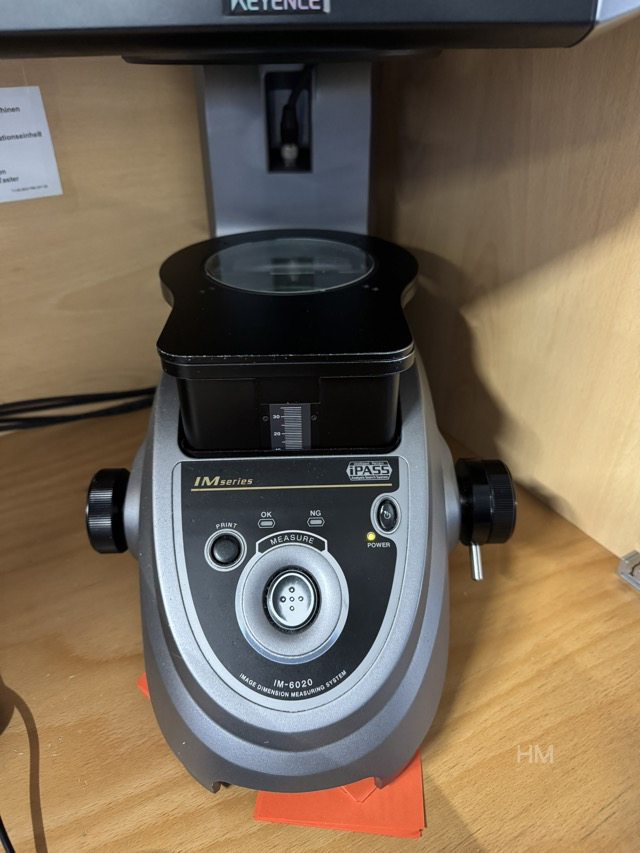

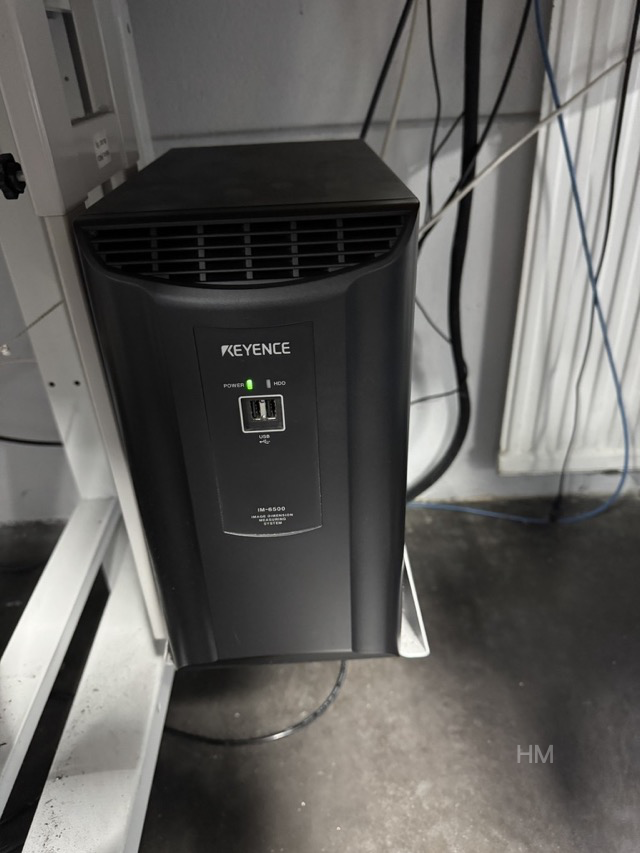

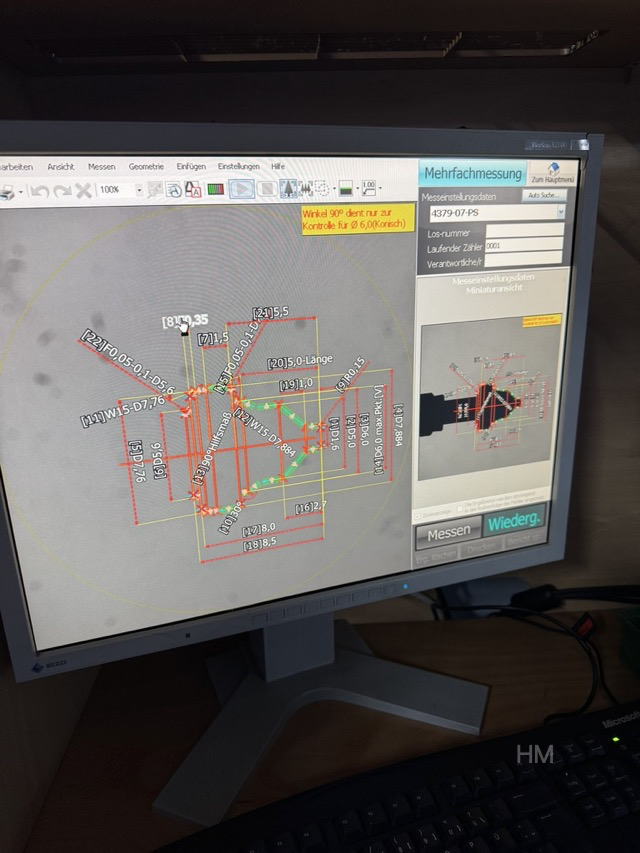

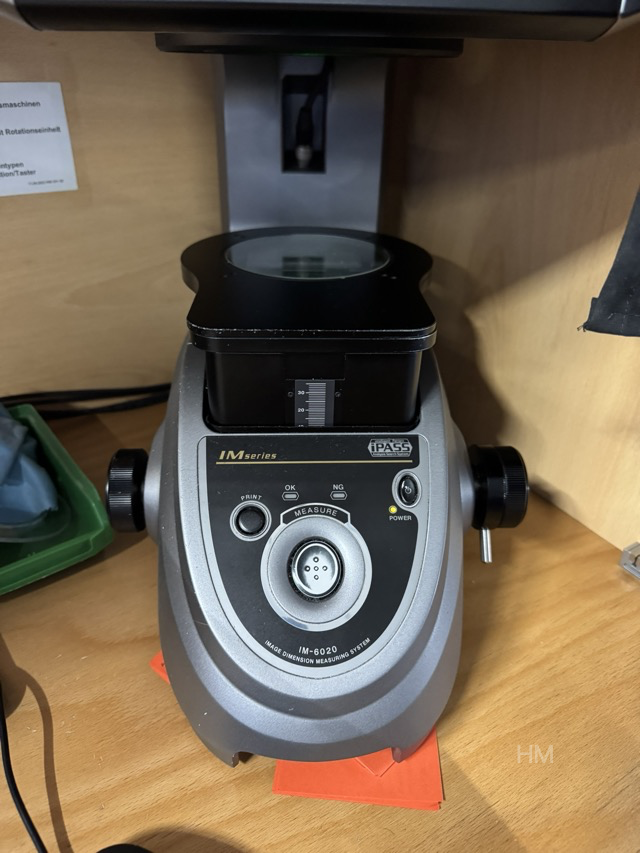

Year of manufacture: 09/2012 | Measuring method: Optical / non-contact | Measuring range (X/Y): approx. 200 × 200 mm | Measuring range (Z): Height measurement via autofocus | Measuring accuracy: up to approx. ±2 µm (depending on measurement conditions) | Repeatability: very high, operator-independent | Camera: high-resolution CCD camera | Illumination: reflected light / transmitted light / contour illumination | Measuring functions: | Length, angle, radius and diameter measurement | Contour and shape measurement | Comparative measurement (OK/NOK) | Automatic dimension recognition | Software: KEYENCE IM software for fast programme creation | Measuring time: a few seconds per component (even with multiple features) | Condition: | Used | Well maintained | Fully functional | Ready for immediate use | Machine dimensions: approx. 900 x 500 x 1500 [mm] | Machine weight: approx. 32 [kg] | The ...

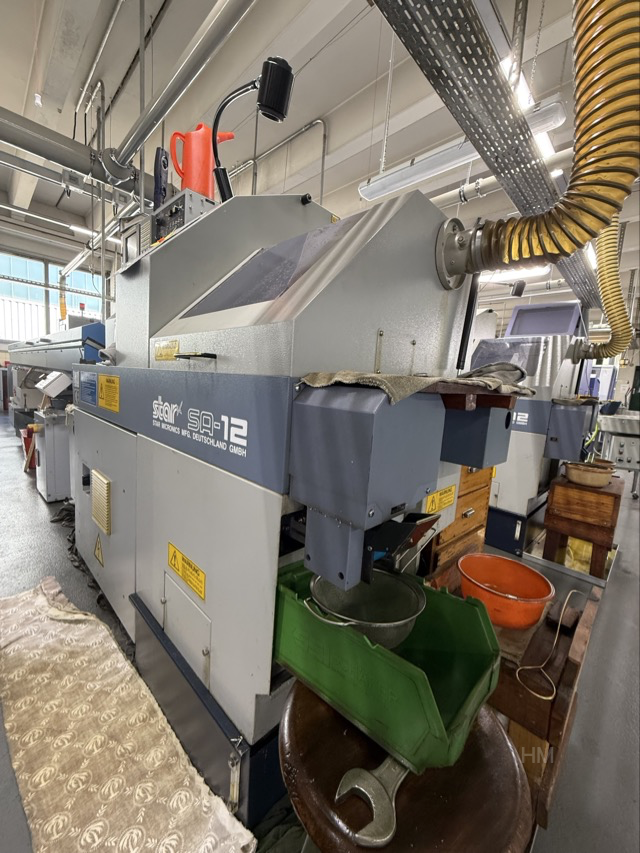

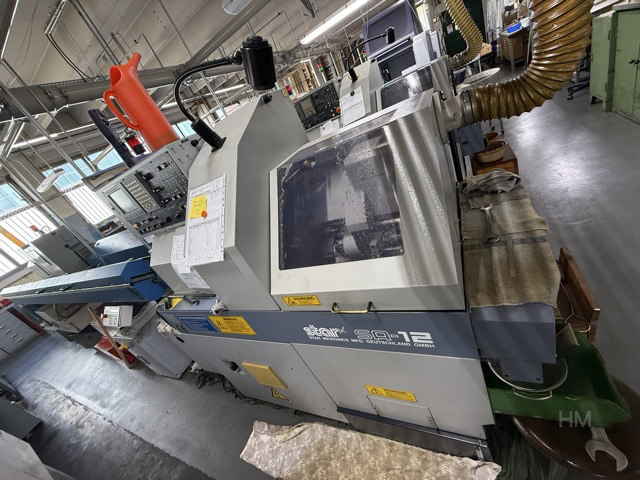

Operating hours: 44,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 12 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 10 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Operating hours: 42,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 12 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 10 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Operating hours: 60,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 12 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 10 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Operating hours: 47,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 12 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 10 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!

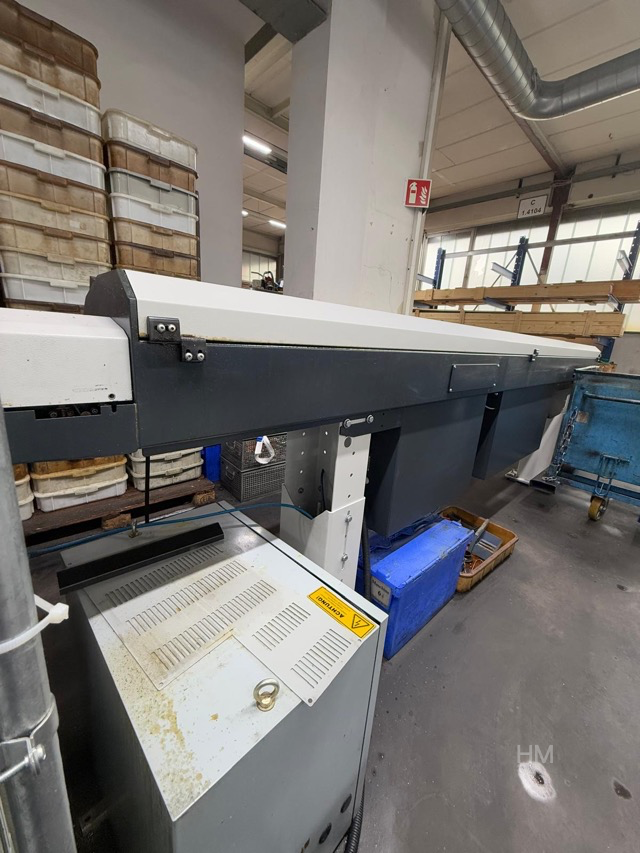

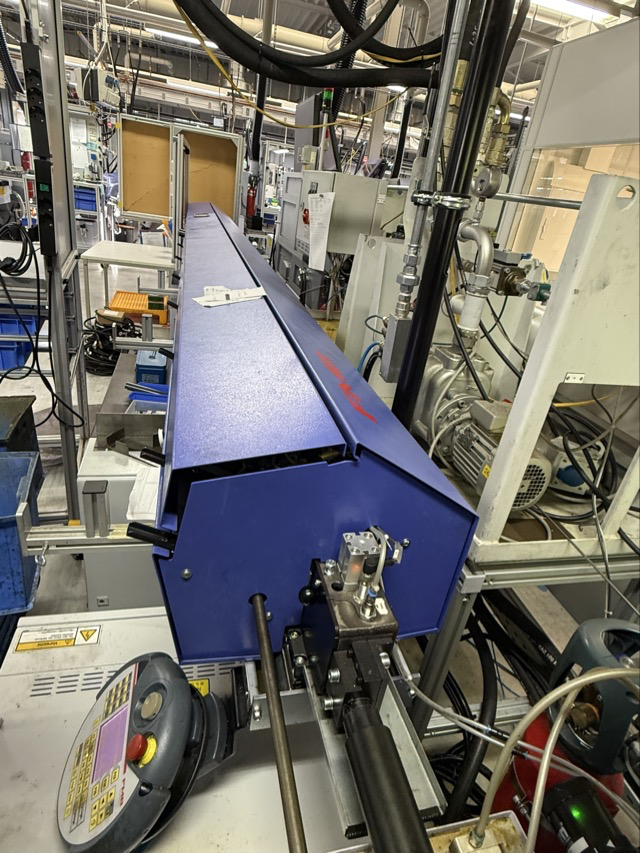

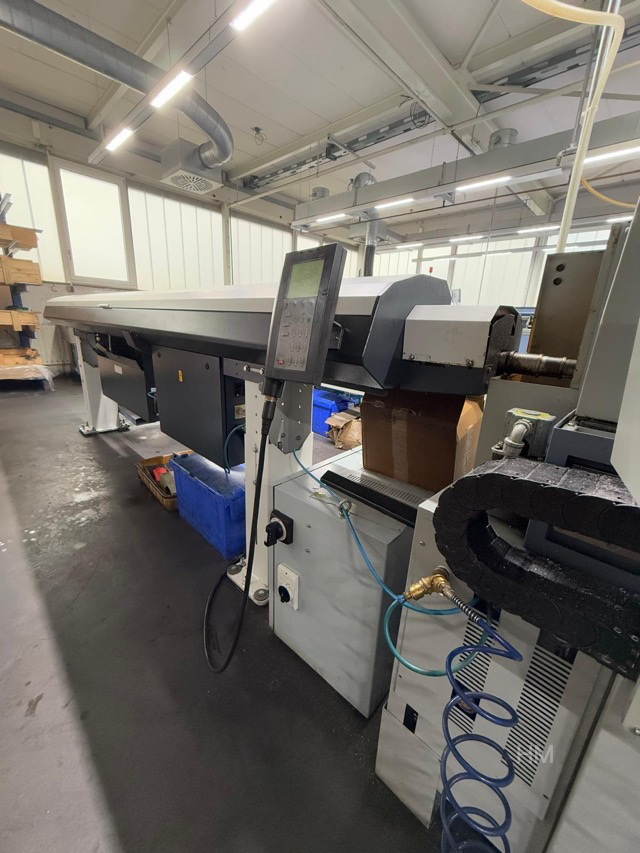

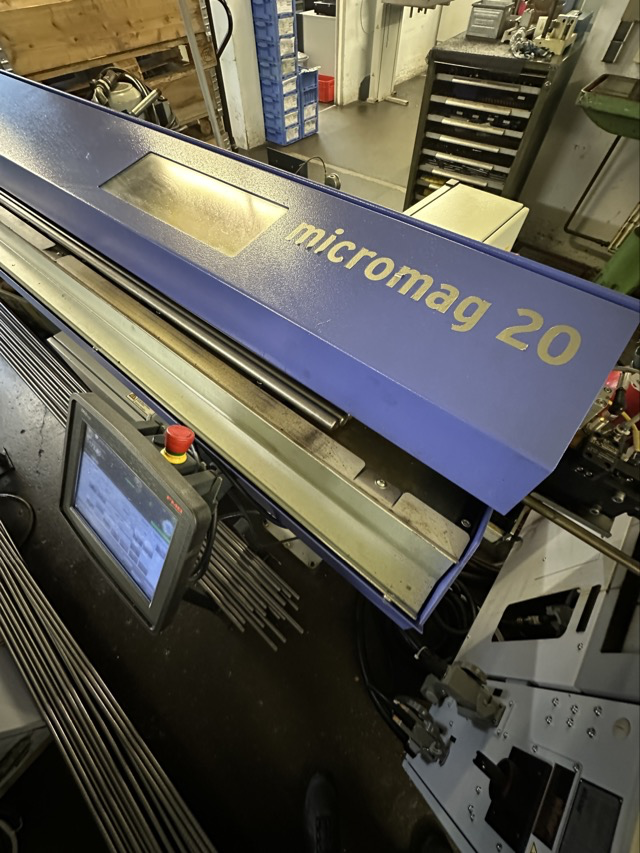

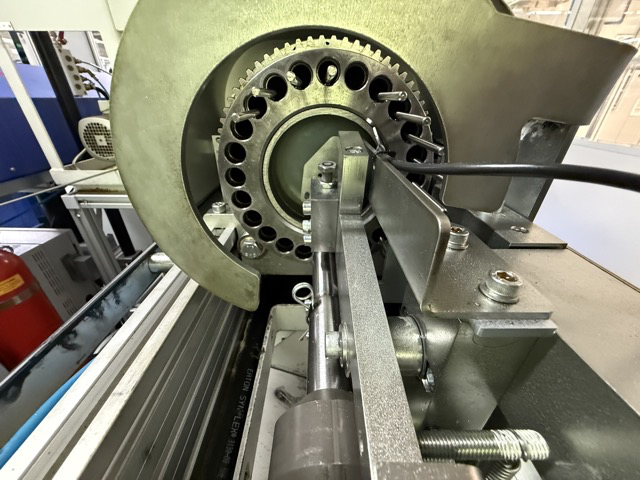

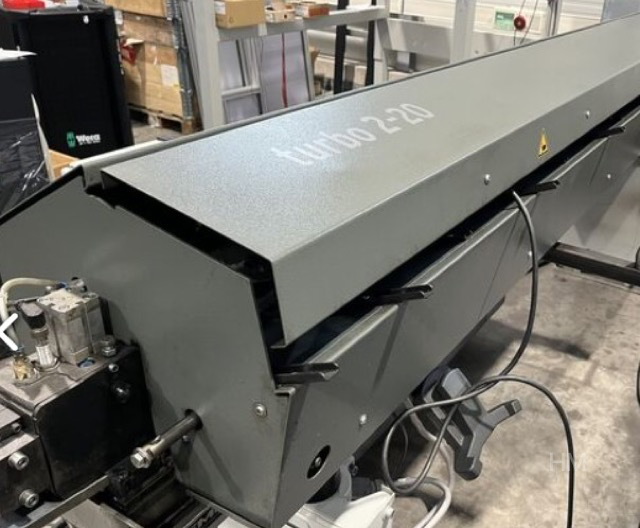

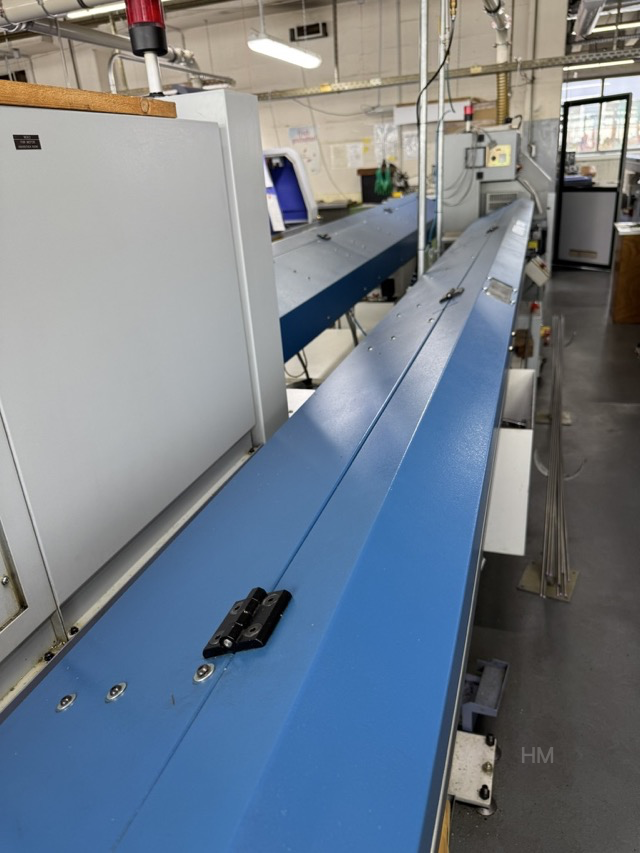

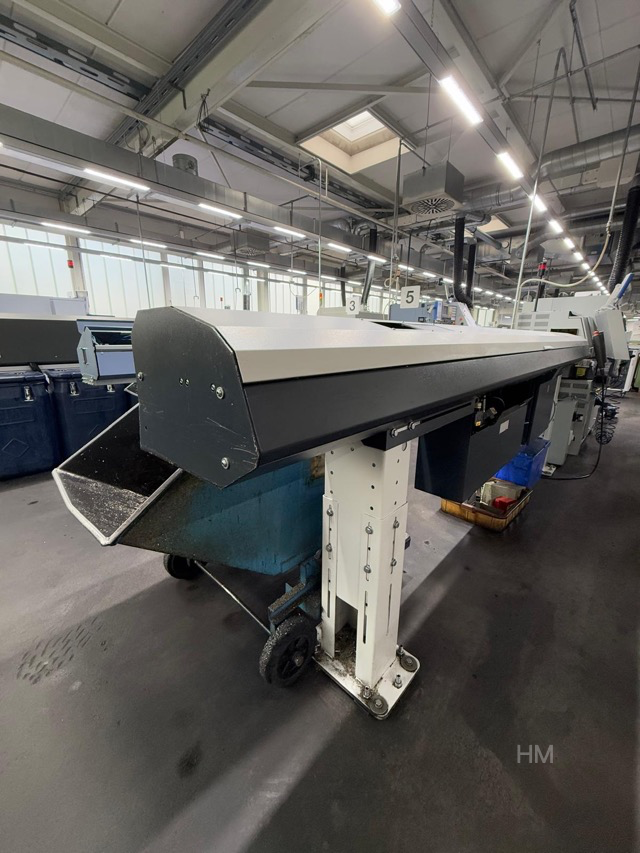

Year of manufacture: 2007 | Type: Bar loading magazine | Easy changeover of the guide channel in less than approx. 2 minutes. | Complete changeover of the guide elements possible in less than approx. 8 minutes. | Technical details: | Diameter range: 2 mm to 20 mm | Channel Ø 22 mm | Maximum bar length: 3,000 mm | Installation dimensions / dimensions (L x W x H): 3,970 x 480 x 1,250 mm | Weight: approx. 850 kg | Condition: fully functional | The machine can be viewed in operation by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale! | Translated with DeepL.com (free version)
Machine dimensions: approx. 1995 x 920 x 1700 mm | Machine weight: approx. 2100 kg | Bar feeder dimensions: approx. 4200 x 890 x 1800 mm | Bar feeder weight: approx. 1800 kg | Peripheral equipment & accessories dimensions: | approx. 1900 x 700 x 800 mm, weight approx. 200 kg | approx. 1200 x 800 x 1000 mm, weight approx. 200 kg | The machine can be inspected under power by appointment. | Specifications and details subject to change and error. Prior sale reserved!

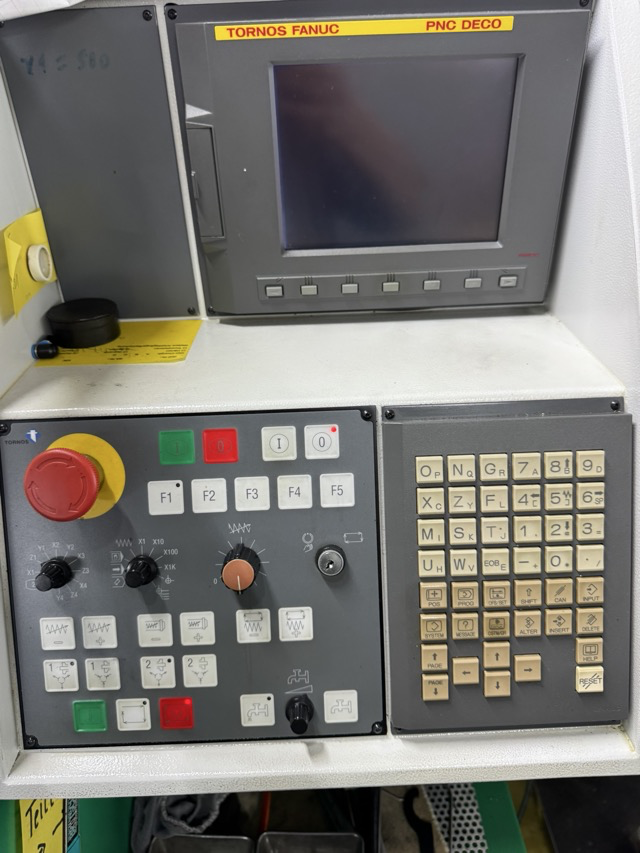

Operating hours: 46,000 | Number of PNC axes: 9 | Number of spindles for driven tools: 3 | MAIN SPINDLE | Max. bar diameter: 10 [mm] | Max. spindle speed: 16,000 [rpm] | C1 axis: 0.001 [degrees] | COUNTER SPINDLE | Max. bar diameter: 10 [mm] | Max. spindle speed: 12,000 [rpm] | C4 axis: 0.001 [degrees] | Oil basin | Chip collection basin | Parts removal | Parts ejector | Coolant tank | Extensive tool holder package | LNS Tryton SST-5 loading magazine, 3200 with hybrid drum | The machine can be viewed under power by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Operating hours: 29,000 | Number of PNC axes: 9 | Number of spindles for driven tools: 3 | MAIN SPINDLE | Max. bar diameter: 10 [mm] | Max. spindle speed: 16,000 [rpm] | C1 axis: 0.001 [degrees] | COUNTER SPINDLE | Max. bar diameter: 10 [mm] | Max. spindle speed: 12,000 [rpm] | C4 axis: 0.001 [degrees] | Oil basin | Chip collection basin | Parts removal | Parts ejector | Coolant tank | Extensive tool holder package | LNS Tryton 112 loading magazine, 3200 with hybrid drum | The machine can be viewed under power by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
Year of Manufacture: 2017 | Control System: Fanuc 32i-B | Operational Status: Fully operational | Operating Hours: approx. ___ hours | Technical Data | Spindle Bore: Ø 42 mm | Travel and Feed Data: | X-Axis Travel: approx. 90 mm | Z-Axis Travel: approx. 280 mm | Rapid Feed X: approx. 27 m/min | Rapid Feed Z: approx. 36 m/min | Upper Turret (Main Tool Carrier): | Number of Stations: 8 (1 synchronizable) | Tool Holder: VDI 25 | Supports driven tools | Lower Turret: | Number of Stations: 6 | Non-driven | Rear Side: | 5 stations for back-side operations | Simultaneous Machining: Up to 3 tools simultaneously | Coolant System & Chip Conveyor | Bar Feeder: IRCO ILS MUK 7012-II, Year 2015 | Accessories / Tools / Manuals | Machine Dimensions & Weight | Machine: approx. 2830 × 1500 × 2200 mm, Weight: approx. 3500 kg | Coolant System & Chip Conveyor: approx. 1600 × 1250 × 1780 mm, Weight: appr ...
Operating hours: 31,000 | Technical data | - Number of axes: 5 | - Number of spindles: 2 | MAIN SPINDLE | - Max. bar diameter: 16 [mm] | - Z-axis travel: 140 [mm] | - Spindle speed: 8000 [rpm] | - Spindle drive power: 2.2 [kW] | - Number of tool positions: 13 | COUNTER SPINDLE | - Max. bar diameter: 12 [mm] | - Spindle speed: 8000 [rpm] | - Number of tool positions: 4 | FMB Minimag bar loading magazine | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!
