Incl. HEIDENHAIN PGM 246 112 05 digital display, FORKARDT F250 3-jaw chuck, 6 quick couplers WITHOUT turning chisel
Technical data Manufacturer: FMS Drehtechnik Schaffhausen AG, Switzerland Type: NDL-40/130 Machine Type: CNC Lathe Year of Make: 2003 Control: Siemens SINUMERIK Machine No.: 16212-51 Turning length: 1500 mm Turning diameter: 400 mm Swing diameter over bed: 630 mm Swing diameter over face slide: 410 mm Speed range: 40 – 3200 rpm Main drive: 68 kW Spindle bore: 90 mm Hydr. Clamping Cylinder Passage: 86 mm Tailstock: MK5, quill stroke 120 mm Rapid traverse: 16,000 mm/min Coolant tank: 400 l Dimensions (L x W x H): approx. 5350 x 2270 x 2670 mm Machine weight: approx. 14,000 kg Configuration Siemens SINUMERIK CNC control Heidenhain Digital Display Hydraulic clamping system Tool turret Coolant system Chip conveyor Hydraulic power unit Various clamping devices and tool holders Extensive technical documentation available Machine dismantled in the production environment Included : Manufact ...
WITHOUT tools and clamping devices Gearbox defective, the small feed gears can no longer be shifted Output via goods elevator
Machine body 1 Basic machine: VLC 200 GT (Siemens) Serial Number: 114718 Hours read: 6512 Additional equipment and expansion stages 18 kW main spindle, 3000 1/min Tool carrier unit 12 × D40 mm DIN 69880 2 motor grinding spindles type 140/45.000 Oil air lubrication device for max. 2 grinding spindles Dressing unit with sensors Workpiece transport system O-version Pallet fixing device 21 workpiece carriers for O-band Blowing off the workpiece and clamping device Hinged belt chip conveyor Emulsion mist extraction Coolant supply 8 bar (100 l) Paper belt filter with cooling unit Magnetic pre-separator Interface Paper Belt Filter Workpiece Measurement PROFINET interface Siemens HT8 hand-operated handset with handwheel Connection kit Siemens HTx Machine body 2 Basic machine: VLC 200 GT (Siemens) Serial Number: 114719 Hours read: 6179 Additional equipment and expansion stages 18 kW main spin ...

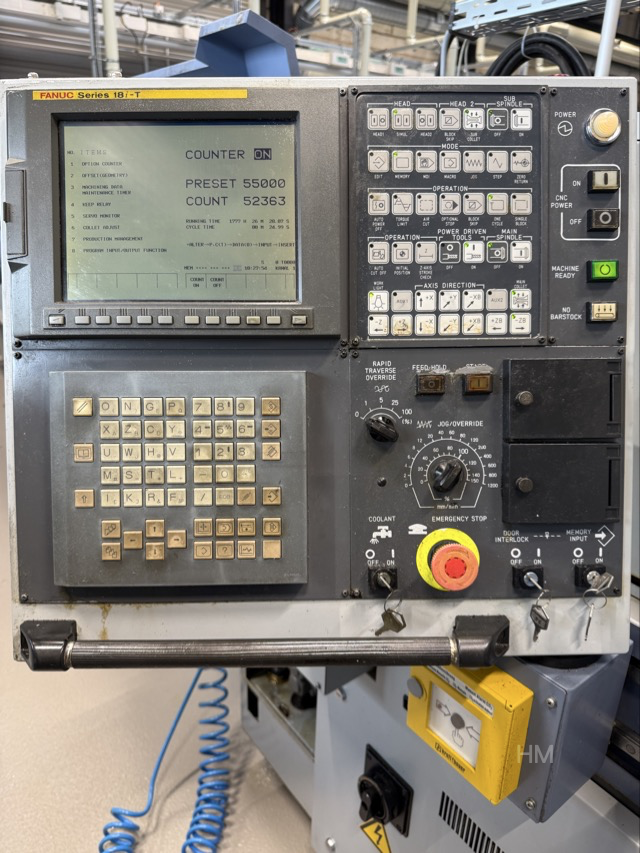

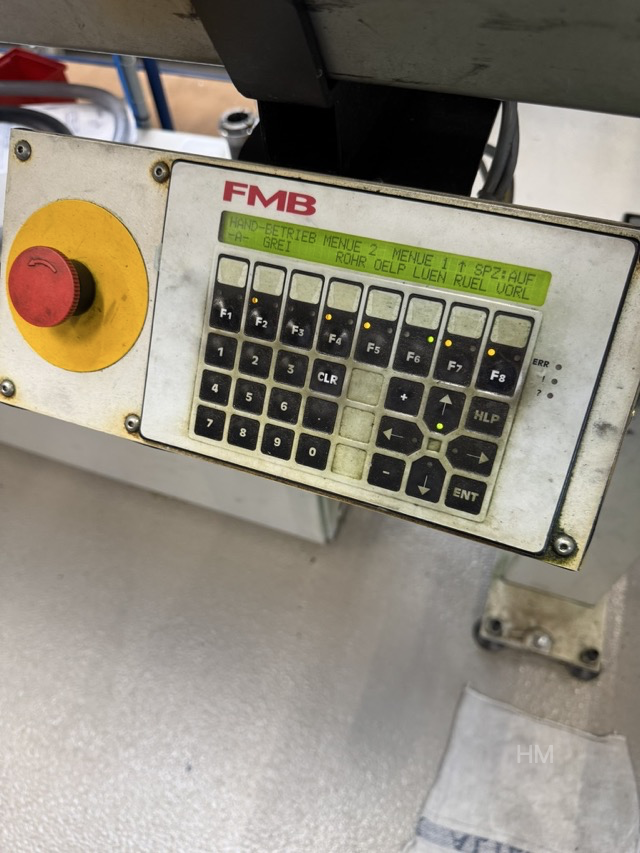

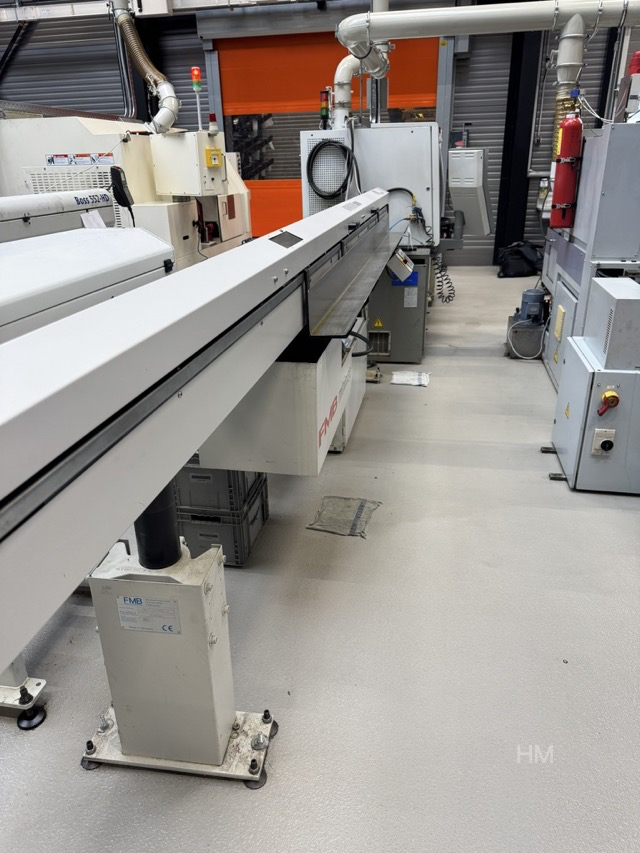

Production 1 CNC lathe Maier MLK32 D-5 2009 Control, Fabr. Maier/Fanuc, separate cooling /Lubricant preparation, Fabr. Knoll, type KF110, Belt filter, CO2 extinguishing system, Fabr. Kraft + Bauer, Bar Feeder, Fabr. FMB, Type Turbo 3-36, Ser.-Nr. 261209, L 4,200 mm, Accessories: Bar table, Sheet Steel Cabinet Control GE Fanuc 7 axes (X1,Z1,Y1,C1 X2,Z2,C2) All items are sold without tools or tool holders. If required, these can be purchased separately. Photos showing tools are for illustrative purposes only and are not part of the scope of delivery.
JÄGER UMA 17 lead and pull spindle lathe, collet chuck, turret stop, coolant device.
The range of application of this machine is in the single part and Small batch production from the simplest to the most complicated contours. It is characterized by: --> Ease of use <-- - All controls are ergonomically convenient and outside the chip area - The slides can be moved with handwheels, in addition to the Travel distance per handwheel rotation can be changed by the operator - Feed rate and speed or cutting speed can be adjusted during the editing can be changed using the correction switches. --> Precision <-- - Bed slide guides with adjustable wedge strips guarantee a long Long-term accuracy --> Workspace <-- - Wide speed range at high power, with and without gearbox - High feed forces allow the use of modern tool systems - Large rapid traverses minimize non-productive times. - 1x Tailstock - 1x bezel - Jaws for lathe chuck
The Doosan Puma VT1100 is a powerful CNC vertical turning center designed for the economical machining of large workpieces. Its stable machine construction with a vertical main spindle ensures high process reliability and optimal chip removal. The machine is suitable for machining flanges, rings, housings, and other heavy, rotationally symmetrical components.The working area includes a maximum turning diameter of 1,100 mm, a maximum turning height of approximately 1,000 mm, and a maximum workpiece weight of approximately 2,000 kg.Spindle: Vertical main spindle, spindle motor 45 kW, hydraulic chuck, hydraulic workpiece clamping, 12-position tool turretTravel paths: X-axis approximately 650 mm, Z-axis approximately 800 mmWorkpiece data: Max. workpiece diameter: 1,100 mm, max. workpiece height: approximately 1,000 mm, max. workpiece weight: approximately 2,000 kg.Equipment: hydraulic chuck, ...
CNC çevrim kontrollü torna VDF sunulmaktadır. Yatak üzerindeki maksimum salınım çapı: 420mm, maksimum salınım çapı: 235mm, maksimum dönüş uzunluğu: 1000mm, ana mil çapı: 51mm, maksimum mil hızı: 3000rpm, motor gücü: 11kW, alet boyutu X/Y: yaklaşık 25mm/25mm, hızlı dönüş X/Z: 5m/deq/10m/dakika, kuyruk kalem çapı: 70mm, kuyruk kalem vuruşu: 110mm, kuyruk kısmı konikliği: MT4, dişlik eğimi aralığı: 0.1mm-2000mm, kontrol: Siemens Sinumerik, ağırlık: yaklaşık 3000kg, makine boyutları X/Y/Z: yaklaşık 3400mm/2000mm/1800-2200mm. Muayene randevu ile yapılabilir.
CNC torna Okuma LB 3000 EX MC 500 Kontrol: OSP-P200L Yapım Yılı: 2008 Dahili makine hayır. 69 Turlama uzunluğu: 500 mm Turlama çapı: 340 mm Yatak üzerindeki salınım çapı 530 mm Hız: 4.200 rpm. Tool tarret 12 yer (sürülmeli) C ekseni 0.001 derece Ekipman: - One touch IGF - Yonga konveyörleri - Touchsetter - 3 çeneli çakan Kitagawa B-210 - NC kuyruk kısmı
An unused Traub CNC twin-spindle turning and milling center with peripheral equipment is available. Spindle types 1/2: D76/D76, max. turning length: 900mm, max. workpiece diameter: 76mm, number of tool carriers: 3, control system: Traub TX8i-s V8. Main spindle bore: 76mm, taper size: 6, hollow clamping cylinder: D76/20, indexing: 2.5°, clamping pressure range: 8bar-75bar. Counter spindle bore: 76mm, taper size: 6, hollow clamping cylinder: D76/20, indexing: 2.5°, clamping pressure range: 8bar-75bar. Upper tool carrier: axes: X/Y/Z, stations: 12. Lower left tool carrier: axes: X/Y/Z, stations: 12. Lower right tool carrier: axes: X/Y/Z, stations: 12. Including Isi Elbaron RON4DHEC mist extraction and filtration system, custom-built circulation conveyor, Bürener hinged belt chip conveyor, Bürener Eco-Fluid coolant system (600l), cooling unit, coolant chiller, Traub WH workpiece handling ...
A factory-reconditioned CNC counter-spindle lathe from Traub, overhauled in 2018, including a bar feeder, is available. Main spindle bore: 36mm, speed: 6300rpm, counter spindle bore: 32mm, speed: 6300rpm, Z4 travel: 250mm, rapid traverse Z4: 30m/min, max. workpiece length: 200mm, max. workpiece diameter: 32mm, control system: Traub/Index TX8i, operating hours: approx. 147000h. Upper tool carrier: X2 travel: 50mm, Y2 travel: +/-20mm, Z2 travel: 100mm, rapid traverse X2/Y2/Z2: 15m/min, tool stations: 12, speed: 6000rpm. Front tool carrier: tool stations: 5, X3 travel: 370mm, Z3 travel: 250mm, rapid traverse X3/Z3: 30m/min, max. tool diameter: 40mm, speed: 6000rpm. Rear tool carrier: X4 travel: 73mm, Y4 travel: +/-150mm, tool stations: 5, rapid traverse X4/Y4: 15m/min, tool diameter: 40mm, speed: 6000rpm. Including Resy compact belt filter, Knoll 240S-1/100 hinge-belt conveyor, travelling w ...
Two identical Index CNC lathes including peripheral equipment and accessories are available. Main spindle: D90/Size 8, max. main spindle bore: 90mm, max. workpiece diameter: 340mm, max. workpiece length: 450mm, max. workpiece weight: 100kg, speed: 4200rpm, power: 35.5kW, torque: 550Nm, front bearing diameter: 140mm, clamping stroke: 32mm, clamping pressure: 80bar, travel X/Z: 1500mm/340mm, rapid traverse: 30m/min, feed force: 8kN, tool stations 1/2: 10/10, mounting plate dimensions X/Y: 300mm/490mm. Including coolant system, tool holders, clamping equipment and angle toolholders. Documentation available. An on-site inspection is possible. Expected to be available from autumn 2026. Individual sale possible.
PITTLER PV 1250 / 2-2P CNC-Drehbearbeitungszentrum mit Siemens SINUMERIK 840D sl Steuerung. Leistungsstarke Vertikaldrehmaschine für die Komplettbearbeitung großer rotationssymmetrischer Werkstücke bis Ø 1.250 mm. Ausgestattet mit zwei 12-fach-Revolvern, zwei Werkzeugmagazinen, Späneförderern, Kühlschmierstoff-Filteranlage, Emulsionsnebelabsaugung sowie Werkstückmesstaster. Die Maschine überzeugt durch hohe Stabilität, Präzision und Produktivität und eignet sich ideal für den Einsatz im Maschinenbau, der Energie- und Antriebstechnik sowie der Großteilbearbeitung.Spindeln: 2 Stück MotorspindelnSpindelleistung: 52 kW (pro Spindel)Max. Spindeldrehzahl: 500 U/minMax. Drehmoment: 12.000 Nm (40% ED)Verfahrwege (X/Z): 1.620 mm / 1.000 mmWerkzeugrevolver: 2 × 12-fach VDI-60Angetriebene Werkzeuge: bis 5.000 U/minMax. Drehdurchmesser: ca. 1.200 mmMax. Umlaufdurchmesser: 1.380–1.4 ...
Key data: 400 mm, 250 mm
Bu makine müşteri adına satılmaktadır. Teknik veriler: Üretici: Spinner Tip: TC300-52 SMMCY Yapım Yılı: 2010 Kontrol: Siemens 840D SL Seyahat Oranı: X1 180 mm X2 110 mm Z 450 mm Y +40/-40 mm Turlama uzunluğu: 400 mm Turlama çapı: 250/200 mm Salın çapı: 400 mm Çalışma Spindle 1 Hız: 5.000 rpm. Tork: 96/121 Nm Güç: 15/19 kW Bar Geçişi: 52 mm Çalışma mili 2 Hız: 7.000 rpm. Tork: 38 Nm Güç: 6 kW Araç kulesi 1 ve 2 İstasyon sayısı: 12x Kayıt: VDI 25 Maksimum hız AGW: 6.000 rpm/ Güç: 8/2.6 kW Boyutlar ve ağırlık Boyutlar: 2.200 x 2.000 x 2.000 mm Ağırlık: yaklaşık 4.600 kg Durum Durum: Kullanıldı Diğer ekipman ve aksesuarlar şunları içeriyordu: Parça Konveyör Bandı Yüksek Basınçlı Pompa Çip konveyörü Bar besleyiciler için arayüz Alt mil ve ana mil üzerinde 3 çeneli çak
A defective spare parts donor of a Hitachi Seiki lathe including an IEMCA bar feeder is available. 1) CNC lathe Hitachi Seiki GT 20 S II, travel X/Z: 200mm/400mm, max. turning diameter: 210mm, max. swing diameter over bed: 380mm, max. bar diameter: 51mm, spindle bore: 59mm, speed: 5000rpm, tool stations: 10, rapid traverse: 20m/min. Machine dimensions X/Y/Z: approx. 2350mm/1950mm/1850mm, weight: approx. 4100kg. The capacitors for the power connection are defective. 2) Hydraulic bar feeder IEMCA TAL/AUTO 65/32, max. bar diameter: 65mm, max. bar length: 3200mm, machine dimensions X/Y/Z: approx. 4200mm/800mm/1200mm, weight: approx. 800kg. The lathe is sold exclusively as a defective spare parts donor. An on-site inspection is possible.
Key data: 250 mm, 400 mm
Teknik veriler: Üretici: Spinner Tip: TC300-52 SMMCY Yapım Yılı: 2012 Kontrol: Siemens 840D SL Seyahat Oranı: X1 180 mm X2 110 mm Z 450 mm Y +40/-40 mm Turlama uzunluğu: 400 mm Turlama çapı: 250/200 mm Salın çapı: 400 mm Açılma saatleri: (Bilgi sonrasında verilecek) Çalışma Spindle 1 Hız: 5.000 rpm. Tork: 96/121 Nm Güç: 15/19 kW Bar Geçişi: 52 mm Çalışma mili 2 Hız: 7.000 rpm. Tork: 38 Nm Güç: 6 kW Araç kulesi 1 ve 2 İstasyon sayısı: 12x Kayıt: VDI 25 Maksimum hız AGW: 6.000 rpm/ Güç: 8/2.6 kW Boyutlar ve ağırlık Boyutlar: 2.200 x 2.000 x 2.000 mm Ağırlık: yaklaşık 4.600 kg Durum Durum: Kullanıldı Fonksiyonel: Test edilmiş ve tam işlevsel Diğer ekipman ve aksesuarlar şunları içeriyordu: Parça Konveyör Bandı Yüksek Basınçlı Pompa Çip konveyörü Bar besleyiciler için arayüz Alt mil ...
Bu Pinacho STH 400-105×3000 2017 yılında üretilmiştir. 400 mm yatak salıncağına ve 3000 mm merkezler arasındaki mesafeye sahip sağlam yatay bir torna makinesi. Yüksek torklu mil ve hassas ağır hizmet dönüşü için CNC kontrollü besleme özelliğine sahiptir. Miller, borular ve flanşların işlenmesi için idealdir. Bu Pinacho STH 400-105×3000 yatay torna makinesini satın alma fırsatını düşünün. Daha fazla bilgi için bizimle iletişime geçin.
Ref.nr. 00914 Satılıkta, kanıtlanmış OKUMA OSP-U10L kontrolcüsüne sahip bir OKUMA Soarer L270E CNC çakma torna makinesi bulunmaktadır. Makine çok yönlü ve uygundur Bireysel parça ve seri üretimde torna işlemleri, sağlam tasarımı ve OKUMA kontrol sisteminin yüksek güvenilirliğiyle etkileyicidir. Makine Ama mil geri verilmeli. Üretici: Okuma Model Soarer L270E Üretim yılı 2001 Teknik veriler: Kontrol: OSP-U10L Turlama uzunluğu: 500 mm Yatak üzerindeki çevre çapı: 530 mm Tasarım: CNC çakan torna makinesi Durum: Makine fonksiyonu Tamir gerektiren mil rulmanı / değiştirilmelidir Durum tamam
