Kaplama presleri LANGZAUNER LZT 120-SF

ahşap çalışma makineleri / kaplama makineleri / Kaplama presleri

Üretici: LANGZAUNER

model:LZT 120-SF

Makine türü: Kaplama presleri

madde-No: 168968829

miktar: 1

tarih: 01.04.2026

Üretim yılı: 1991

yer: Land-de Almanya 85416 Oberhummel

fiyat: 19,900 EUR

Stoktaki makine:evet

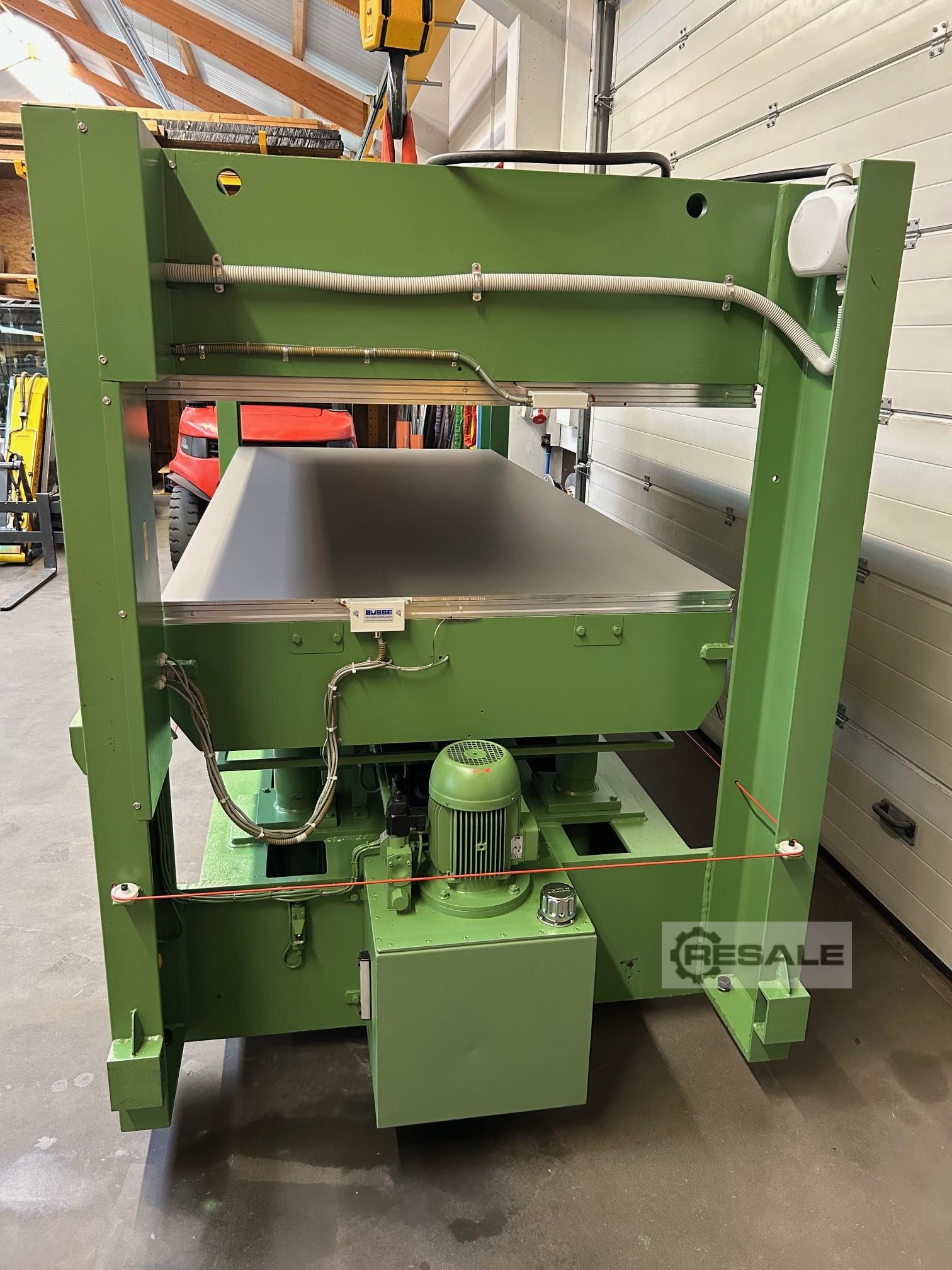

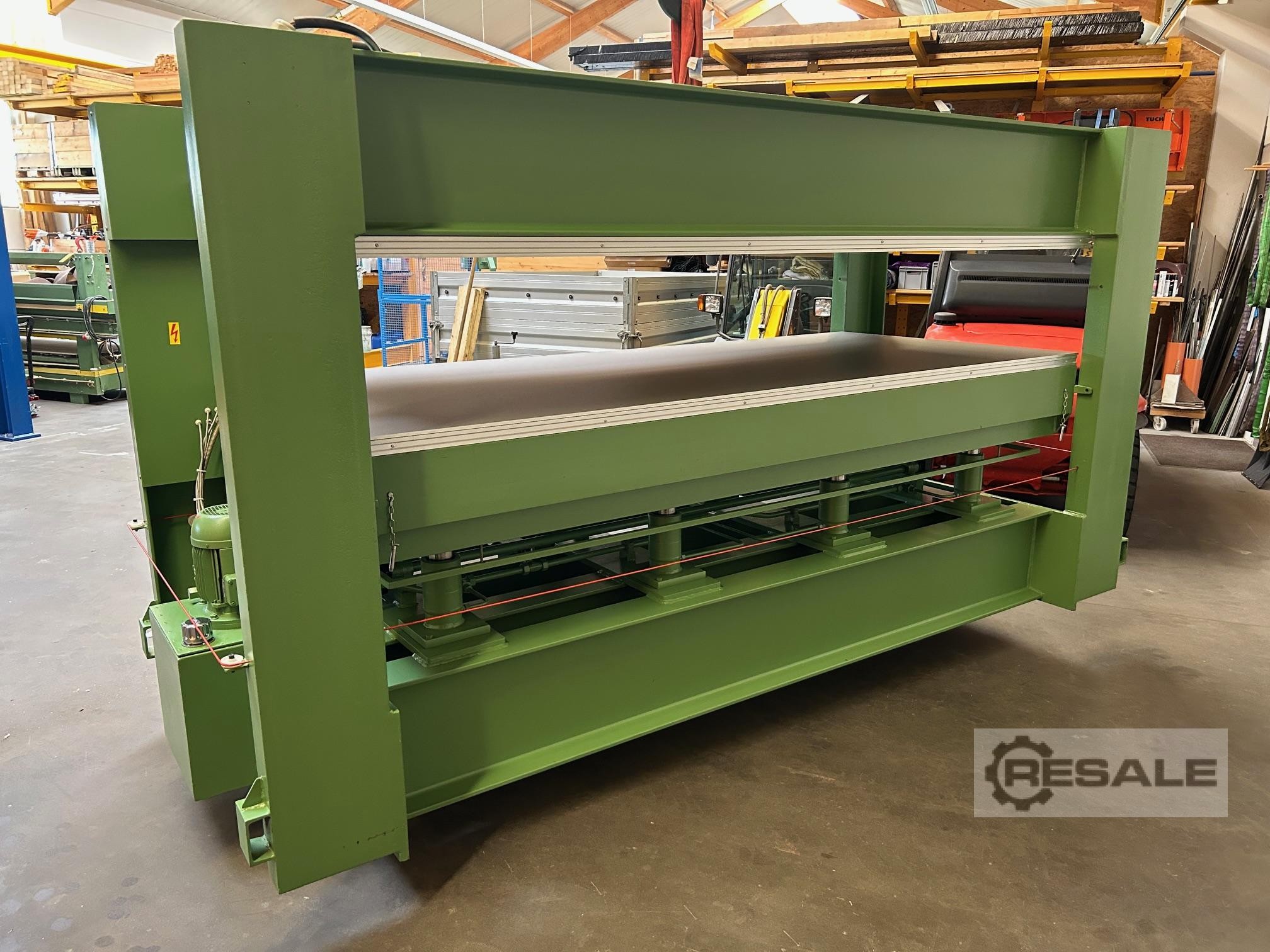

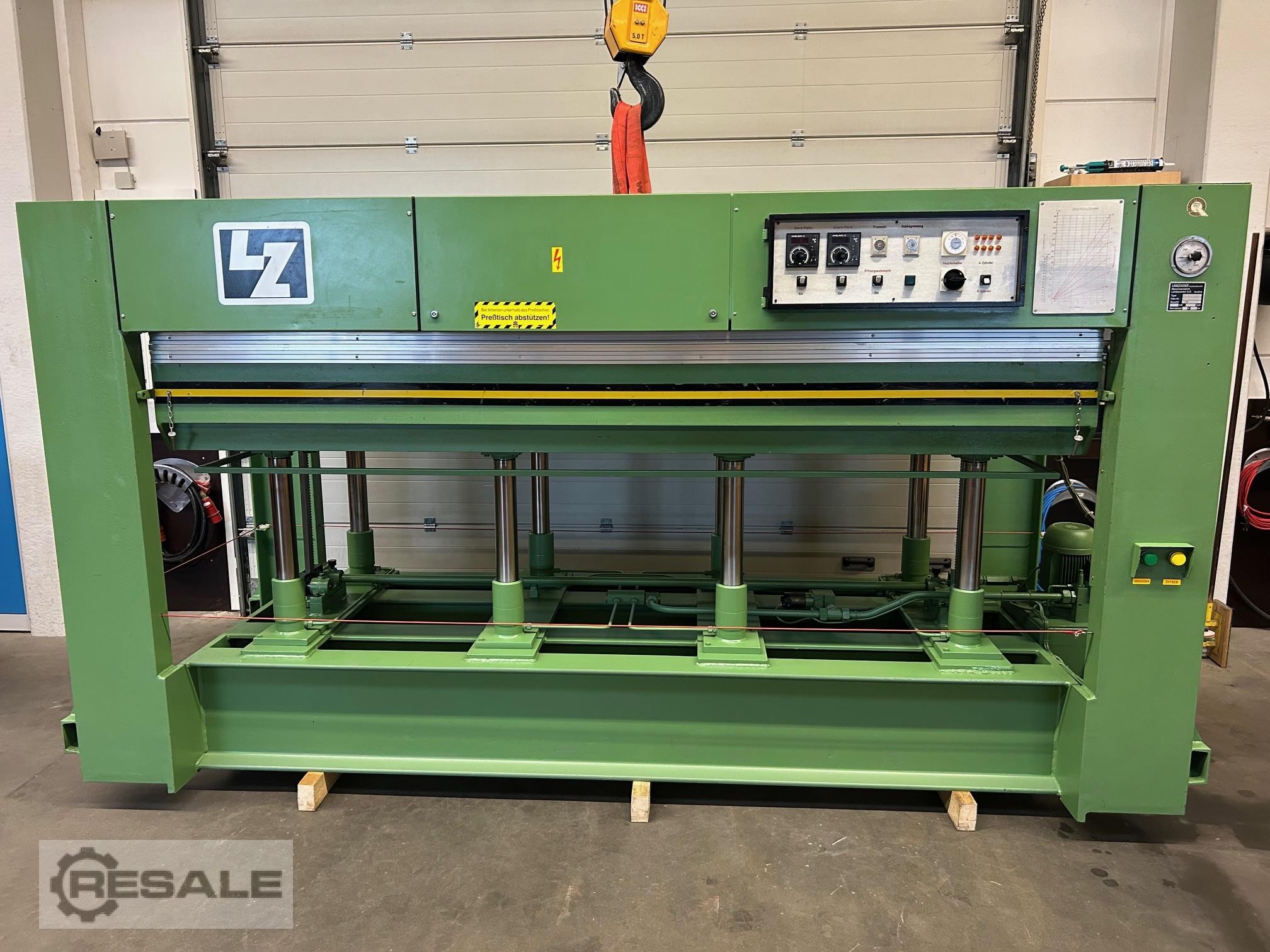

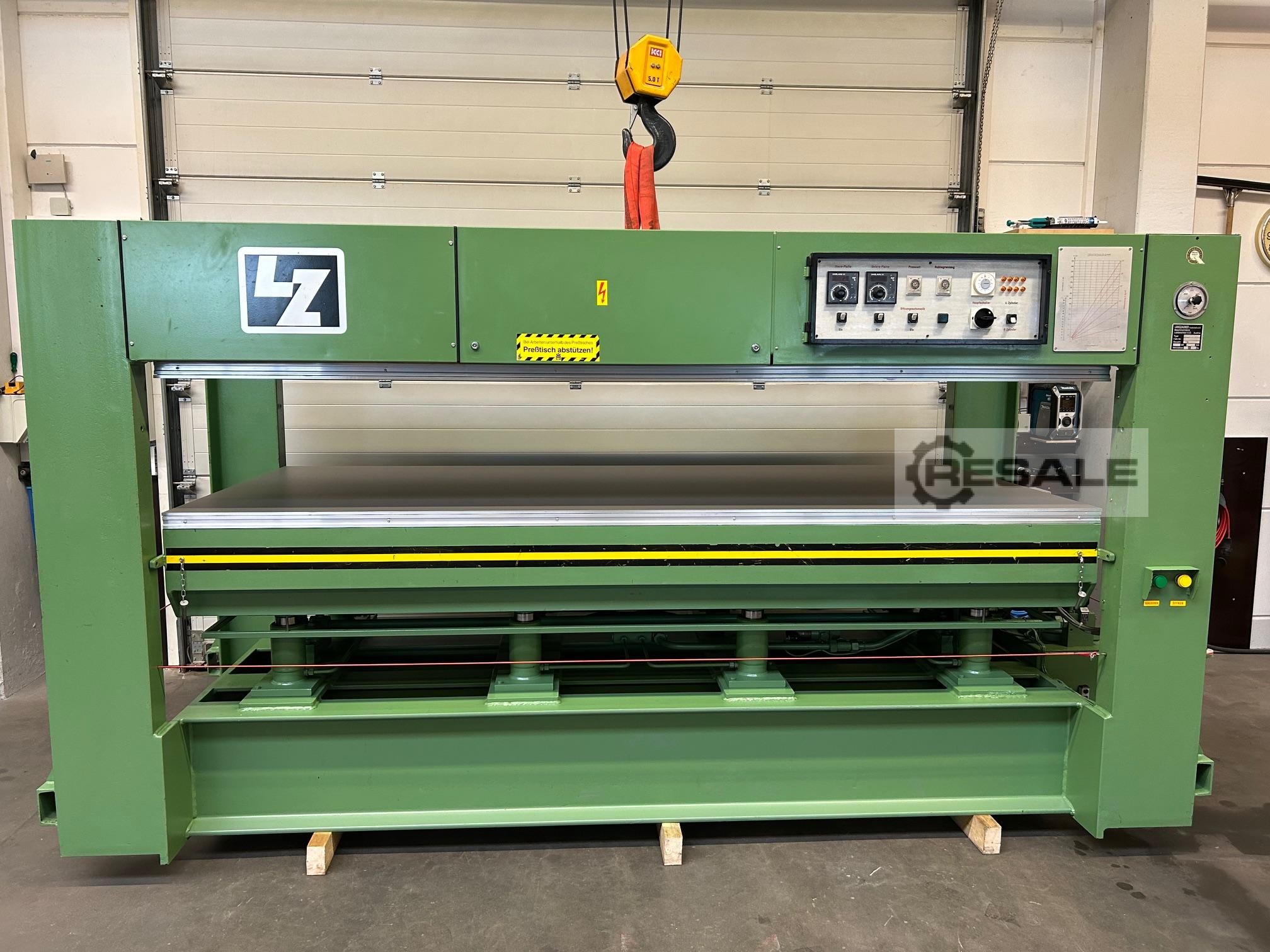

gebr. Veneer press with brand new heating plates!
Pressing area: 300 x 130 cm

LONG FENCE LZT 120-SF
YOC 1991
ges. Connected load: 26.5 kW (rated current: 42.0 A)
Pressing area: 300 x 130 cm

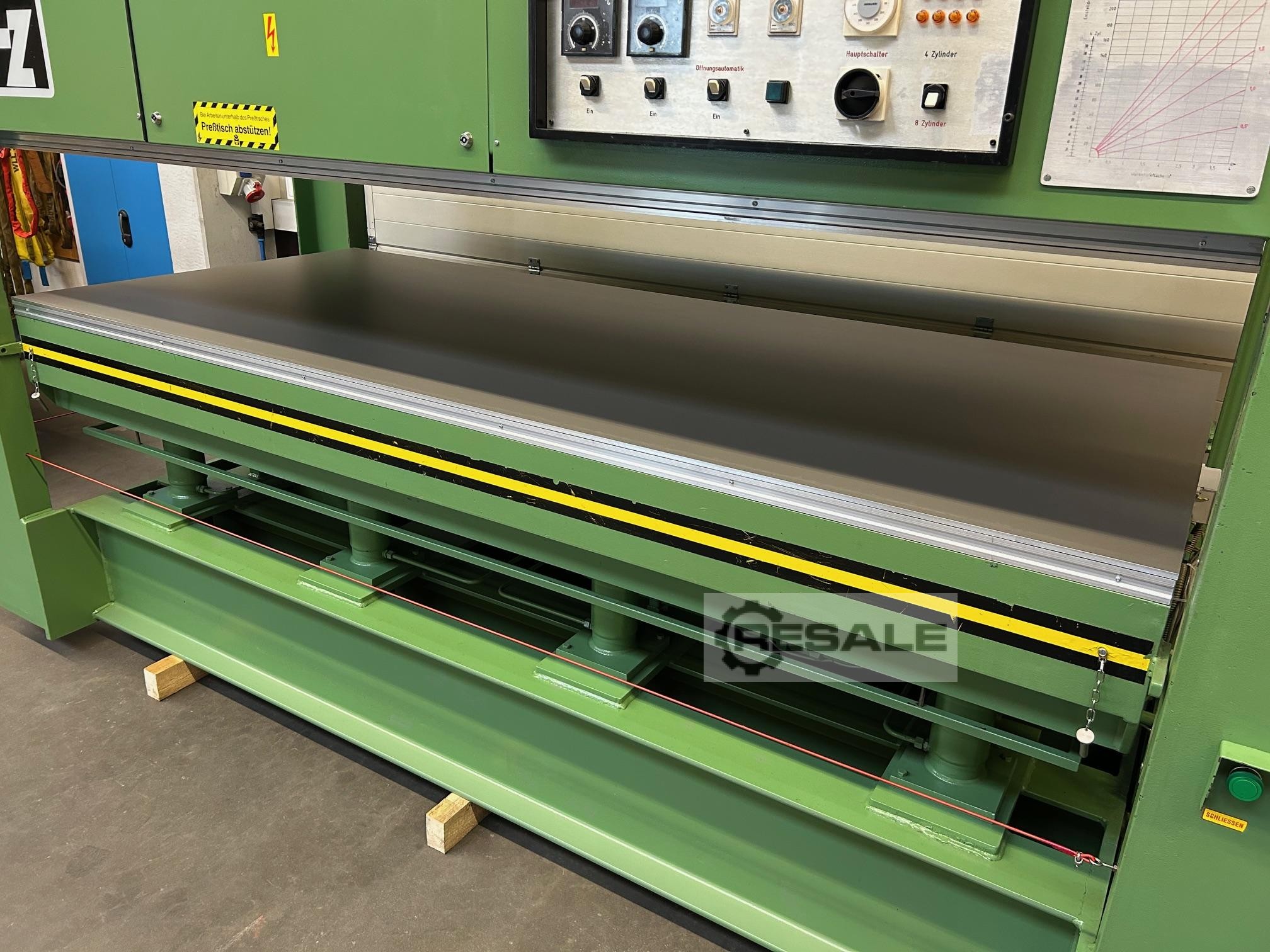

Electric heating plates aluminium (new)
Surface finish: Anodized C-32
Operating temperature: max. 120°C
Power per heating plate: 12,700 W
Opening width: 400 mm

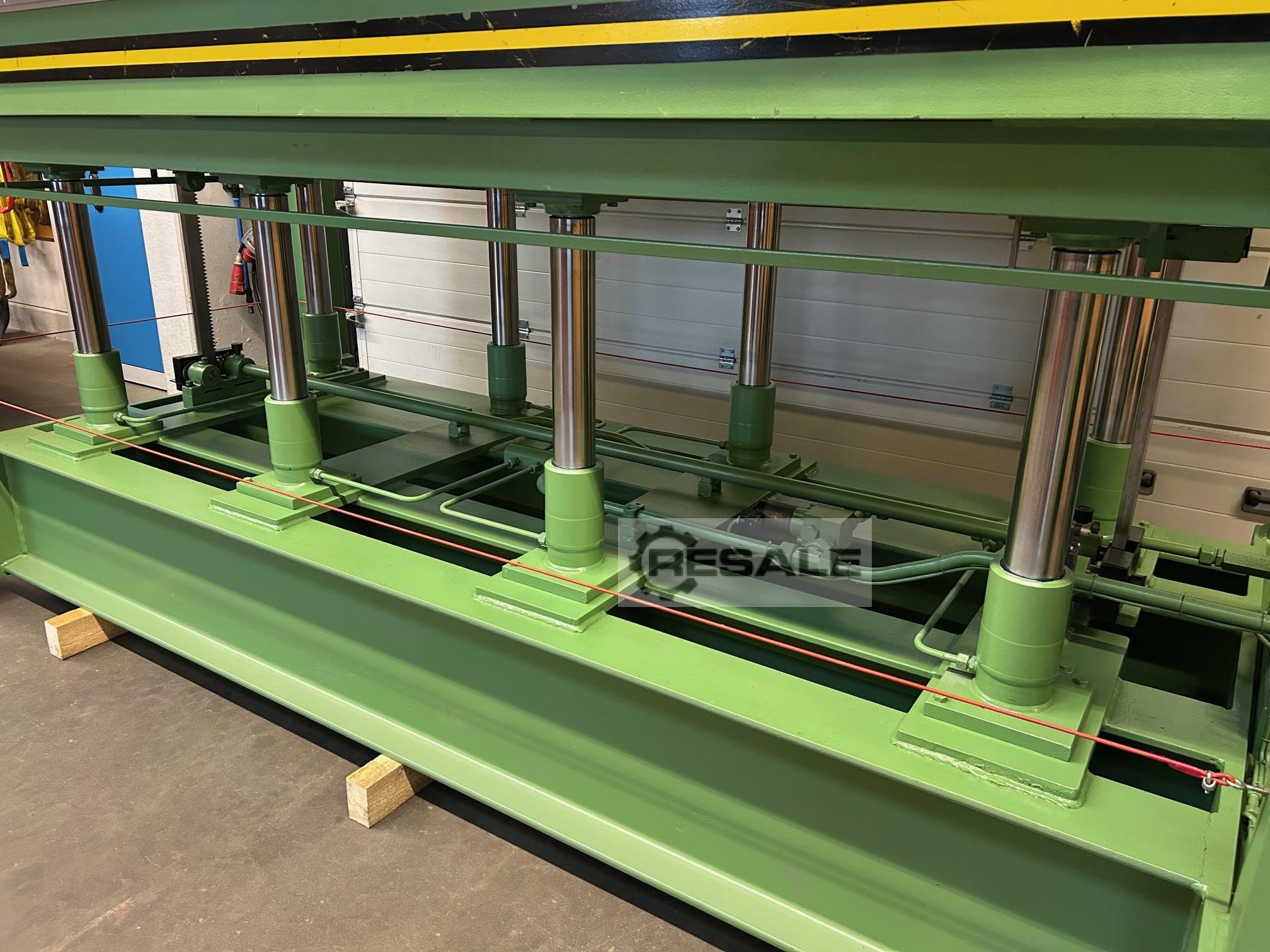

8 hydraulic cylinders each with a diameter of 80 mm
all 8 cylinders newly sealed (new gasket set)
Hydraulic oil renewed

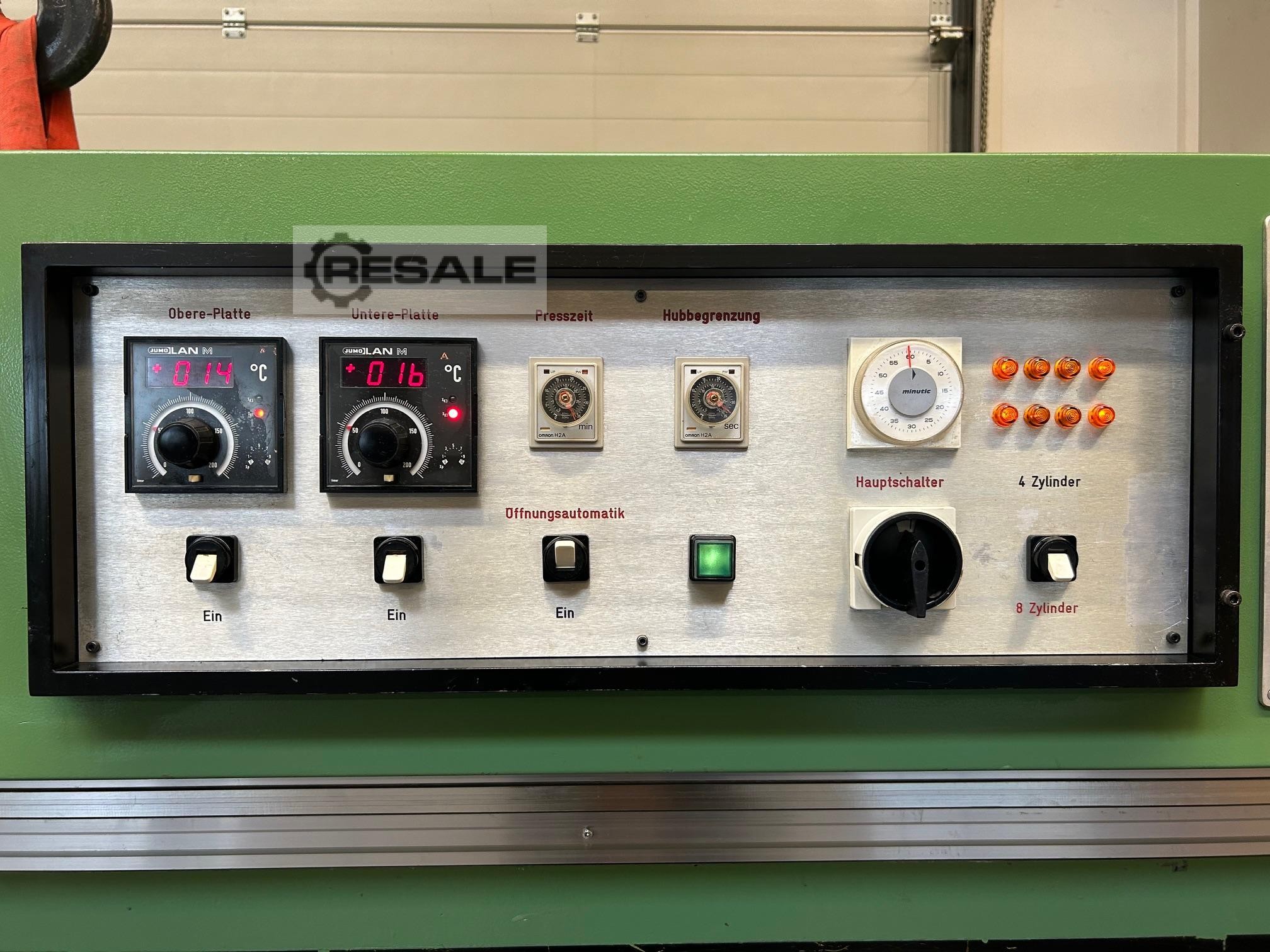

Cylinder preselection: Switching from 4 to 8 cylinders possible
Total pressing force: 120 t
Spec. Pressure: 3.0 kp/cm² (at 80%: 3.8 kp/cm²)

Circumferential safety ripcord

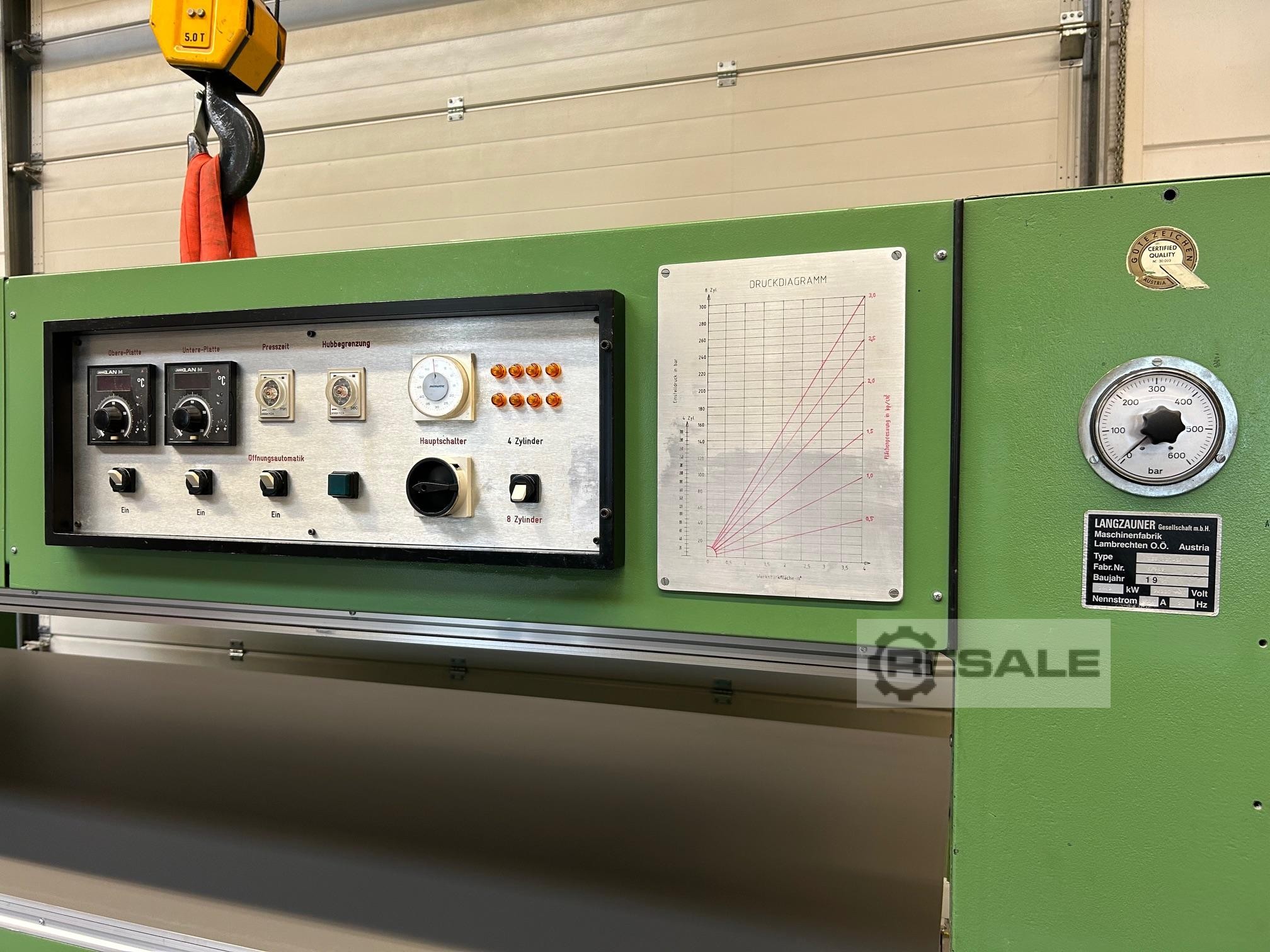

Automatic opening (time-controlled)
Stroke limitation (timed)

External dimensions: approx. 376 x 154 x 195 (WxDxH)
Weight: 6.1 t
Bu makineyi Facebook'ta paylaşın:

soruşturma

Makine satıcısı mı?

Lütfen isteğe bağlı olarak havale edin

Aranıyor soruşturması mı gönderelim?

Sana kopyalamak mı?

Save input data

gebr. Veneer press with brand new heating plates!
Pressing area: 300 x 130 cm

LONG FENCE LZT 120-SF
YOC 1991
ges. Connected load: 26.5 kW (rated current: 42.0 A)
Pressing area: 300 x 130 cm
Electric heating plates aluminium (new)
Surface finish: Anodized C-32
Operating temperature: max. 120°C
Power per heating plate: 12,700 W
Opening width: 400 mm

8 hydraulic cylinders each with a diameter of 80 mm
all 8 cylinders newly sealed (new gasket set)
Hydraulic oil renewed
Cylinder preselection: Switching from 4 to 8 cylinders possible
Total pressing force: 120 t
Spec. Pressure: 3.0 kp/cm² (at 80%: 3.8 kp/cm²)

Circumferential safety ripcord
Automatic opening (time-controlled)
Stroke limitation (timed)

External dimensions: approx. 376 x 154 x 195 (WxDxH)
Weight: 6.1 t
seller offer No. resale 168968829
