SUNNEN ML2000, Honing Diameter Range:, - Manual Stroking: 1.5 mm to 165 mm, - Power Stroking: 1.5 mm to 102 mm, Spindle Speed:, - Infinitely variable from 200 to 3,000 RPM, Stroke Rate:, - 60 to 350 strokes per minute, Automatic Sizing Range:, - 3 mm to 51 mm, Oil Tank Capacity:, - 106 liters, Pneumatic Requirements:, - 5.5 bar, Machine Dimensions:, - Length: 1,600 mm, - Width: 1,220 mm, - Height: 1,900 mm, Weight:, - Approximately 725 kg
Levigatrice Sunnen 1804, manuale sotto tensione La macchina può essere vista in funzione nel nostro magazzino di Gussago BS. Prove possibili Mimu Machine Tools, Diametro di levigatura (min-max): 1.5-120, Lunghezza di levigatura (max): 250
Levigatrice, SUNNEN ML3500, (come ml5000 ml2000 ec3500 ml 5000 ml 2000), questa macchina è attualmente in fase di retrofit elettronico completo (Siemens), Touch screen. Possibilità di interfaccia con il caricatore
circuito stampato, Sunnen ML3500 - ML5000 - ML2000, modello PED 2202, funzionante, Contattaci per info
Sunnen 1804 Levigatrice, manuale in ottime condizioni La macchina è in funzione nel nostro magazzino di Gussago BS. Prove possibili Mimu Machine Tools, diametro di levigatura (min-max): 1.5-120, lunghezza di levigatura (max): 250
Single pass - progressive honing machine, SUNNEN MHS 840 (like VSS 84), overhaul and electronic retrofit (see video and photos), 4 heads, 8-station rotary table This machine can be inspected under power in our warehouse Test run possible M i m u Machine Tools Gussago BS Italy, Single-pass honing is a type of honing process used for finishing internal cylindrical surfaces, where a tool with a fixed set of abrasive stones passes through the bore only once to achieve the desired surface finish and dimensional accuracy. In this process, the tool is typically designed with a specific shape and size, allowing for precise material removal in a single stroke
Levigatrice, SUNNEN EC3500, (come ml3500 ml5000 ml2000), questa macchina è attualmente in fase di retrofit elettronico completo (Siemens / Telemecanique), Touch screen. Possibilità di interfaccia con il caricatore
Macchina Hoehn - Rettificatrice a croce Sunnen ML 3500 (simile a ML5000) completo di serbatoio esterno con filtro in carta e separatore magnetico La macchina è nel nostro magazzino di Gussago BS, energizzata Esecuzione del test possibile Mimu Macchine Utensili Italia
honing diameter:51 mm stroke:300 mm spindle speeds::600 - 3000 U/min feed range:1500 - 5000 mm/min spindle drive:1,1 kW weight of the machine ca.:0,8 t total power requirement:4 kW dimensions of the machine ca.:1,1 x 1,9 x 1,5 m
workpiece diameter: 660 mm workpiece length: 8000 mm honing/re-bore length: 7600 mm internal diameter: 50,8 - 609,6 mm stroke length max.: 7600 mm spindle motor: 29,8 kW spindle turning speed range: 0 - 300 U/min Lifting capacity: 13,5 kW stroke speed: 0 - 30,5 m/min workpiece weight: 8000 kg control: Siemens Simatic total power requirement: - kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 18,7 x 1,5 x 1,5 m Universal horizontal. Honing Machine / Long Stroke Cross Grinding Machine with servo drive and electrical feed system - Siemens Simatic (Touch) - Coolant system with paper band filter - steady rest The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
CONTROLS electronic controls WORKING RANGE -HONING- stroke max.: 170 mm stroke min.: 6 mm stroke rate (max.): 500 /min stroke rate (min.): 60 /min WORKING RANGE -INTERNAL HONING- Spindle speed from: 200 /min .. to: 3000 /min ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 1200 mm space requirements -front/back-: 1600 mm total height: 1900 mm total weight approx.: 750 kg including partial equipment
Numero inv. : 8364 Tipo: MBB-1660 Produttore: Sunnen Creato: 2022 Parametri: Gamma di lunghezza: max. 400 mm Gamma di diametri: 1,5-165 mm Altezza della macchina: 1600 mm Lunghezza della macchina: 1524 mm Larghezza della macchina: 762 mm
A vertical cross grinding machine Sunnen is available. Bore diameter range: 3mm-65mm, max. workpiece length: 250mm, working area dimensions X/Y/Z: 150mm/150mm/150mm, slide speed range: 0.001mm-0.8mm/s, stroke rate range: 30-400, spindle speed: 4000rpm, feed force: 3800N, grinding oil tank volume: 280l. Machine dimensions X/Y/Z: approx. 2150mm/2200mm/2900mm, weight: approx. 2200kg, operating hours: approx. 5000h. Including indexing table and grinding oil tank with magnetic separator and filter. Documentation available. An on-site inspection is possible.

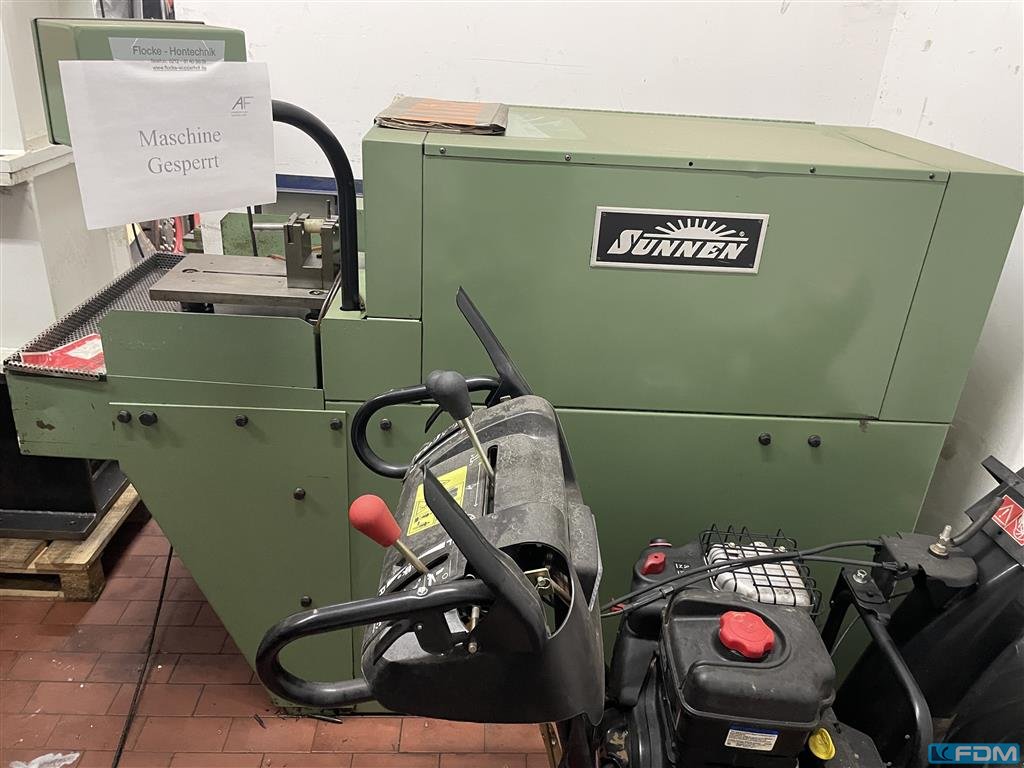

honing diameter: 165 mm stroke: 120 mm centre height: 100 mm total power requirement: 1,5 kW weight of the machine ca.: 1 t dimensions of the machine ca.: m We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : SUNNEN (USA) Horizontal Automatic Honing Machine model MBC 1804 G year Serial no 1K1-190075 _____________________________________________________________ Honing range – Ø with gauge control 1,5 – 51 mm with automatic stroke 1,5 – 95 mm with manual stroke 1,5 – 165 mm Workpiece honing length max. approx. 400 mm Workpiece honing lengthe with gauge control 254 mm 12 spindle speeds 200 – 2.500 rpm 5 stroke rates 80 – 310 stroke/min Length range of automatic stroke 6 – 120 mm Power of spindle 0,75 kW - 380 V - 50 Hz Total drive appro. 1,5 kW - 380 V - 50 Hz Accessories / Special Feature ...
