turning diameter:1600 mm turning length:6200 mm spindle bore:130 mm turning speed range:5 - 710 U/min turning diameter over bed slide:1250 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus, diameter 630 mm 3 x fixed liners (1200 / 570 / 400 mm) Coolant system and chip conveyor Miscellaneous accessories
turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden
turning diameter:1600 mm turning length:6200 mm turning diameter over bed slide:1250 Turning rate:5 - 710 U/min. total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus Dia. 630 mm 3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyor diverse accessories
turning diameter: 570 mm turning length: 1000 mm control: MANUALplus 620 swing diameter over face slide: 340 mm spindle bore: 93 mm spindle turning speed range: 1 - 3000 U/min transmission ratio: 2 rapid power traverse in X-and Z direction: 7 / 10 m/min max. workpiece weight -without tailstock: 500 kg max. workpiece weight between centres: 1000 kg workpiece weight in steadies max.: 1250 kg main drive motor: (100/60% ED) 20 / 25 kW Dimensions (LxWxH): 2,94 x 2,20 x 1,96 m max. torque on the spindle: ca. 1400 Nm weight of the machine ca.: 3,4 t HEIDENHAIN MANUALplus 620 control system - Control system expansion for ICP and DIN programs, incl. thread repair Automatic 8-station SAUTER turret with driven stations, VDI shank D=30 mm, mounted in front of the turning center (limits achievable turning diameter and tailstock operations, reduces turning length) 2-speed planetary gearbox, automat ...
turning diameter: 570 mm turning length: 2000 mm control: Heidenhain TURN PLUS centre height: 265 mm rapid travel - longitudinal/face: 10/7 m/min spindle turning speed range: 1-2500 U/min total power requirement: kW weight of the machine ca.: 3,6 t dimensions of the machine ca.: 5,5 x 2 x 2 m Equipment: Heidenhain TURN PLUS CNC control 3-jaw manual chuck Multifix tool holder 3 steady rests The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 1600 mm turning length: 6200 mm control: Siemens type: Sinumerik turning diameter over slide rest: 1300 mm transmission ratio: . 3-jaw chuck: Schunk Rota Plus 3-jaw-chuck diameter: 630 mm bed width: 750 mm live tooling: steady: 1200 mm steady: 670 mm steady: 408 mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your busines ...
turning diameter: 1010 mm turning length: 6000 mm control: Siemens type: Sinumerik 840D turning diameter over slide rest: 650 mm 3-jaw chuck: Schunk Rota Plus 3-jaw-chuck diameter: 500 mm bed width: 750 mm steady: 820 mm Rotating speeds: 1100 U/min length of gap: 500 mm steady: 450 mm spindle passage: 104 mm workpiece weight: 7000 kg main drive: 52 kW turning speeds: 5-900 U/min total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessorie ...
turning diameter: 1010 mm turning length: 6000 mm control: Siemens type: Sinumerik 840D turning diameter over slide rest: 650 mm 3-jaw chuck: Schunk Rota Plus 3-jaw-chuck diameter: 500 mm bed width: 750 mm steady: 450 mm Rotating speeds: 1100 U/min length of gap: 500 mm steady: 450 mm spindle passage: 104 mm workpiece weight: 7000 kg main drive: 52 kW turning speeds: 5-900 U/min live tooling: total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items ...
Lunghezza di rotazione: 1500 mm. Passaggi di grande giro sul letto: 490 mm. Diametro di rotazione sul carrello frontale: 280 mm: Corrente manuale Heidenhain Gamma di velocità - fino a: 3000 U/minuto diametro: 65 mm Cilindrata: 65 mm Potenza - Potenza del pezzo: 12/16 (100/60%) kWweight della macchina ca.: 3,5 tAttrezzature/Accessori: - Supporto stabile - Mandrino - Portautensili - Punte - Portautensili - Punte - Porta-punti Multifix I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.
Horizontal turning machine manufactured in 2006. This SEIGER SLZ 500E features a center distance of 1500 mm and is equipped with Siemens / Heidenhain cycle control for enhanced precision. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ 500E machine we have for sale. Contact us for further details.
Horizontal turning machine manufactured in 1999. This SEIGER SLZ570x2000 features a swing over bed of 570 mm and a turning length of 2000 mm. It is equipped with a Siemens SINUMERIK ManualTurn control unit and offers a spindle speed range of 1-3000 rpm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ570x2000 machine we have for sale. Contact us for further details.
Horizontal turning machine manufactured in 2014. This SEIGER SLZ 500E features a center distance of 1500 mm and a swing diameter over the bed of 500 mm. It is equipped with a powerful main drive of 20/25 kW and a maximum spindle torque of approximately 1400 Nm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ 500E machine we have for sale. Contact us for further details regarding this machine.

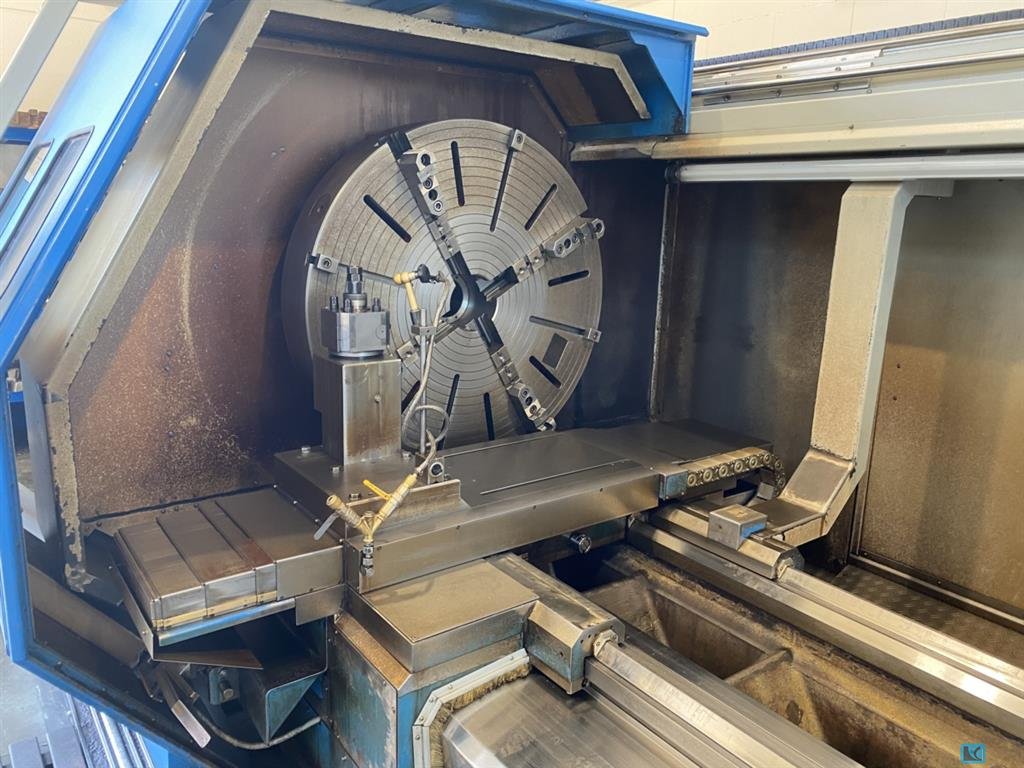

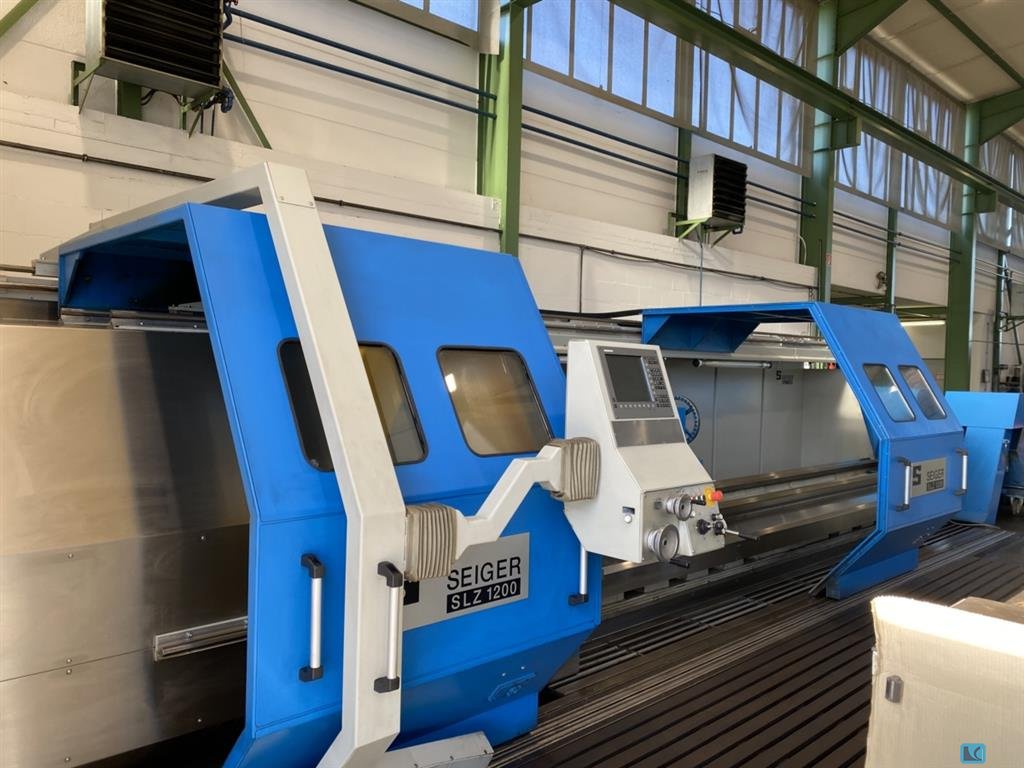

Heavy Duty Lathe Seiger SLZ 1200 x 3000 with Siemens Sinumerik 810D Cycle Control (Teach-In) The heavy duty lathe Seiger SLZ 1200 x 3000 is equipped with a Siemens Sinumerik 810D cycle control (Teach-In). The machine was most recently used as a faceplate and frontal lathe and therefore operated without a tailstock and without steady rests . However, the machine can still be structurally equipped with appropriate steady rests or a tailstock and used for classic center work. Configuration with AC main drive, large faceplate, hydraulic unit, separate control cabinet, and 2 chip conveyors . Working Area Distance between centers: 3,000 mm Swing diameter over bed: 1,200 mm Swing diameter over cross slide: 850 mm Cross slide travel: 620 mm Bed width: 750 mm Spindle Spindle nose: DIN 55027 size 11 Spindle diameter front bearing: 190 mm Spindle bore: 104 mm Speed range: 5 – 900 ...
Descrizione Tornio Seiger SLZ 800E x 4000 Dettagli Macchina. 4443 Anno di costruzione 2008 Controllo del ciclo Siemens Supporto per mandrini secondo DIN 55027 dimensione 11 Alesaggio del mandrino 130 mm Diametro del mandrino nel cuscinetto anteriore 170 mm Rastrellazione del fuso 1:20 Potenza di trasmissione 20/28 kW Commutazione della velocità del mandrino principale pollice: 9-1.800 min-1 Passo di commutazione della velocità principale del mandrino pollice 9-400 min-1 Coppia massima: 3.200 Nm Larghezza centrale 4.000 mm Circolazione sopra il letto 810 mm Circolazione sopra il veglione frontale 540 mm Larghezza del letto 480 mm Dimensioni della macchina 2.000+larghezza centrale x 2.750 x 2.000 mm Masse consentite tra i punti senza fissare il bastone 2.000 kg Masse consentite tra i punti con una leva di regolazione 2.200 kg ...
Key data: 1010 mm, 3000 mm
Tornio a ciclo Seiger SLZ 1000 Anno di costruzione 2009 Tornio a ciclo Seiger SLZ 1000 Anno di costruzione 2009 Larghezza centrale 3000 mm Circolazione sopra il letto 1010 Circolazione tramite slitta frontale 650 Azionamento al 100% ED 37KW a 60/ ED 52KW Coppia massima circa 9000 NM Velocità 5-900 giri/min X Forza di avanzamento max 240000N Z Forza di avanzamento max 16000N Controllo Heidenhain Rotazione manuale con piastra frontale e lunetta L'offerta è rivolta esclusivamente ai commercianti ai sensi del §14 BGB
Lunghezza di tornitura: 2000 mm: 980507 asse x: 7000 mmAsse z: 10000 mm: 65 mmpotenza totale richiesta: 15 kWpeso della macchina ca.: 3,5 tI dati di questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.
Key data: 800 mm, 4000 mm
Descrizione Tornio a ciclo Seiger SLZ 800E con unità di fresatura Dettagli Macchina n. 4443 Anno di costruzione 2008 Controllo Siemens Sinumerik Diametro tornibile 800 mm Lunghezza di tornitura 4.000 mm Piastra frontale 800 mm, 4 griffe Piastra frontale 500 mm, 4 griffe Mandrino a 3 griffe 400 mm Lynette fino a 450 mm (2 diverse) Accessori vari set di ganasce utensile motorizzato Dimensioni del pezzo consentite: tra le punte senza bastone di regolazione 2.000 kg con stick di regolazione 2.200 kg con due set da 2.500 kg volare nel frontalino 750 kg Dimensioni della macchina incl. rivestimento 2.000 mm + Punta larga x 2.750 mm x 2.000 mm incl. documentazione
turning diameter: 570 mm turning length: 2000 mm control: total power requirement: 15 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
