Capacità: 50 tono Estensione: 225 mm Corsa: 320 p/min Dimensioni del tavolo: 500 x 800 mm
Key data: 250 t
Pressa idraulica SCHULER Pressione 250 tonnellate
pressure:125 t stroke:25 fix mm no. of strokes:70 - 700 /min distance between columns:1150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:1150 x 1000 mm hole in the table:900 x 220 mm side window:650 mm ram surface:990 x 850 mm ram adjustment:60 mm material width:250 mm material thickness:2,5 mm power requirement:46,5 kW weight:29,5 t roll feed:mechanical, Schuler, WK 8-250
material width:320 mm coil weight:2,6 t material thickness:0,5 - 2,0 mm coil internal diameter:400 - 510 mm coil external diameter:1200 mm no. of straightening rolls:7 straightening roll diameter:50 mm number of draw-in rolls:2 band speed:0 - 30 m/min power capacity:1,5 kW weight:1,5 t
nominal force:100 t stroke:320 mm no. of strokes:35 /min distance between columns:360 / 250 mm Distance table/ram, max. stroke up, adjustment up:500 mm table surface area:320 x 450 mm table height over floor:660 mm ram surface:250 x 280 mm spindle diameter:125 mm power capacity:3,0 kW weight:4,5 t Dimensions (WxDxH):2,0 x 1,6 x 3,1 m
pressure:40 t throat:220 mm stroke:8 / 88 mm table pass:ø- abgesetzt 225/200 mm ram head dimension:400 x 250 mm distance table/ram:228 mm stroke adjustable from - to:30 - 140 mm ram adjustment:63 mm thickness of bolster:80 mm no. of strokes:70 Hub/min total power requirement:5,5 kW weight of the machine ca.:2600 kg dimensions of the machine ca.:1100 x 1300 x 2300 mm Documents:vorhanden
pressure:063 t throat:450 mm stroke:8 - 100 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:720 x 800 mm hole in the table:280/250 mm table height over floor:800 mm passage to the back:290 mm ram surface:450 x 280 mm ram adjustment:63 mm power requirement:7,5 kW weight:4,7 t dimensions (WxDxH):1,3 x 2,0 x 2,65 m clutch:pneumatisch overload protection in ram:mechanisch
pressure:100 t throat:315 mm stroke:30 - 160 mm no. of strokes:40 /min distance table/ram, max. stroke up, adjustment up:460 mm table surface area:910 x 680 mm Hole in the table:400 mm table height over floor:800 mm passage to the back:400 mm ram surface:630 x 400 mm ram adjustment:80 mm power requirement:7,5 kW weight:7,5 t dimensions (WxDxH):1,7 x 2,0 x 3,0 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical ram counterbalance:pneumatic
pressure:3500 t stroke:900 mm Distance table / ram, stroke down:1000 mm distance table / ram, stroke up:1900 mm table surface area:3150 x 2150 mm ram surface:3150 x 2150 mm Total Weight of Tool max.:30,0 t Weight of Tool Top Part max.:20,0 t speed down:400 mm/s working speed:0,9 - 9,2 mm/s Hydraulic Operating Pressure:280 bar oil volume:5500 l rated current:760 A voltage:400 V frequency:50 Hz power requirement:425 kW weight:231,0 t
Pressure:080 t throat:280 mm stroke:20 - 120 mm no. of strokes:42 - 125 /min distance table/ram, max. stroke up, adjustment up:510 mm table surface area:700 x 560 mm hole in the table:280 mm table height over floor:800 mm passage to the back:320 mm ram surface:560 x 350 mm ram adjustment:72 mm Weight:5,2 t Dimensions (WxDxH):1,6 x 1,6 x 2,6 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical

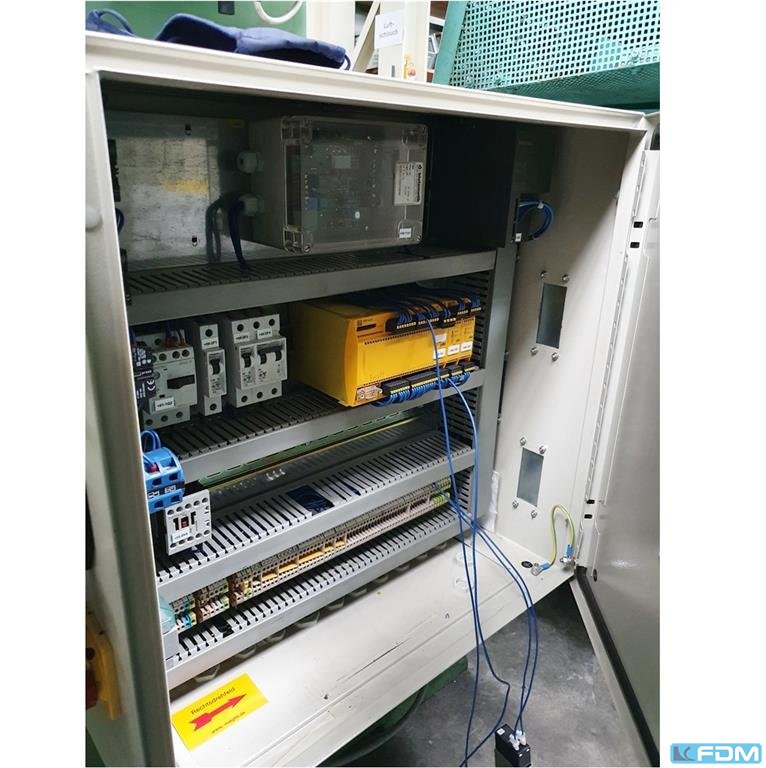

pressure:025 t throat:200 mm stroke:8 - 80 mm no. of strokes:60 - 180 /min distance table/ram, max. stroke up, adjustment up:330 mm table surface area:560 x 400 mm hole in the table:150 mm table height over floor:800 mm passage to the back:240 mm ram surface:355 x 220 mm ram adjustment:50 mm weight:3,0 t dimensions (WxDxH):1,0 x 1,4 x 2,2 m infinitely variable drive:Stöber overload protection in ram:mechanical NEW electrical controls:Pilz
pressure:025 t throat:200 mm stroke:8 - 80 mm no. of strokes:180 /min distance table/ram, max. stroke up, adjustment up:330 mm table surface area:550 x 400 mm hole in the table:60 mm table height over floor:800 mm passage to the back:200 mm ram surface:355 x 220 mm ram adjustment:50 mm power requirement:2,7 kW weight:2,5 t dimensions (WxDxH):1,2 x 1,8 x 2,4 m overload protection in ram:mechanical
Pressure:250 t stroke:30 mm no. of strokes:60 - 500 /min Distance between columns:1500 mm distance table/ram, max. stroke up, adjustment up:390 mm table surface area:1580 x 1100 mm hole in the table:1270 x 300 mm table height over floor:1470 mm side window:600 mm ram surface:1500 x 900 mm ram adjustment:100 mm material width:500 mm material thickness:0,5 - 1,5 mm coil weight:6,5 t coil internal diameter:420 - 560 mm coil external diameter:1500 mm power capacity:45,0 kW Weight:44,0 t Dimensions (WxDxH):3,3 x 1,8 x 4,5 m clutch:pneumatisch ram adjustment:motorisch double decoiler:LH 2-1,5-500 straightening machine:R 500 roll feed:mechanisch; Schuler, WK 8-500
pressure:160 t throat:400 mm stroke:30 - 200 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:600 mm table surface area:1000 x 770 mm table height over floor:810 mm hole in the table:360 mm Passage to the back:450 mm ram surface:710 x 450 mm ram adjustment:110 mm power requirement:15,0 kW weight:10,5 t Dimensions (WxDxH):1,7 x 2,0 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic
pressure:063 t throat:250 mm stroke:8 - 100 mm Stroke rate:60 - 160 / min Distance table/ram, max. stroke up, adjustment up:415 mm Table surface area:710 x 500 mm Hole in the table:250 / 280 mm Table height above floor:800 mm Passage to the back:290 mm Ram surface:450 x 280 mm Ram adjustment:63 mm Weight:4,3 t Dimensions (WxDxH):1,5 x 1,7 x 2,7 m infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
pressure:063 t throat:250 mm stroke:8 - 100 mm Stroke rate:47 - 140 / min Distance table/ram, max. stroke up, adjustment up:415 mm Table surface area:710 x 480 mm Hole in the table:280 / 250 mm Table height above floor:800 mm Passage to the back:290 mm Ram surface:450 x 280 mm Ram adjustment:63 mm Weight:4,0 t Dimensions (WxDxH):1,5 x 1,6 x 2,7 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
material width: 650 mm coil weight: 15 t material thickness: 16 mm The year of construction is estimated, the system is as good as new The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 1.000 t nominal power: 10.000 kN stroke length max.: 1.650 mm working feed: 62 mm/sec weight of tools max.: 40.000 kg voltage: 400 V total power requirement: 420 kW weight of the machine ca.: 254 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 600 t ram surface: 3600 x 2500 mm stroke: 350 mm Control: Siemens S 7 no. of strokes: 11 - 44 Hub/min table surface area: 3600 x 2500 mm ram adjustment: 400 mm material width: 500 - 1950 mm material thickness: 0,6 - 2,5 mm mm coil weight: 35 t coil external diameter: 900 - 1900 mm coil internal diameter: 610 mm no. of straightening rolls: 13 straightening roll diameter: 50 mm Stack height: 400 mm stations: 2 total power requirement: kW weight of the machine ca.: 390 t dimensions of the machine ca.: m with reel, Rstraight out Unit, (conveyor system Schleicher) and stacking unit(NSM) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 25 t throat: 200 mm stroke: 8 - 80 mm no. of strokes: 180 Hub/min distance table/ram: 330 mm table surface area: 550 x 400 mm hole in the table: 60 mm table height over floor: 800 mm table height over floor: 800 mm passage to the back: 200 mm ram surface: 355 x 220 mm ram adjustment: 50 mm power capacity: 2,5 kW total power requirement: kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 1,2 x 1,8 x 2,4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 5 mm plate thickness: 1000 mm distance between columns: mm total power requirement: 4 kW weight of the machine ca.: 2,8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 40 t throat: 220 mm stroke: 8-88 mm stroke - stepless adjustable: 30-140 mm ram adjustment: 63 mm weight of the machine ca.: 2600 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Pressione totale: 250 tonnellate Corsa del carrello: 70 / 250 mm Regolazione del carrello: 160 mm Espulsore nel ram: 20 tonnellate Corsa dell'espulsione nel ram: 10 mm Altezza di chiusura (corsa verso il basso, regolazione verso l'alto): 520 mm Apertura laterale libera F-B: 1,300 mm Superficie del tavolo: 1,600 x 1,600 mm Superficie del carrello: 1,600 x 1,600 mm Numero di corse: 0 - 50 s.p.m. Potenza richiesta: 33 kW Altezza sopra il pavimento approssimativa: 5.500 mm Peso della macchina approssimativa: 58 tonnellate Alimentatore a rullo Larghezza materiale: 1250 mm Spessore materiale: 0,3 - 1,6 mm Controllo: Siemens S7
Spessore della piastra: 4,0 mmDiametro del rullo: ca. 120 mm: 450 mm, Potenza totale: kWweight della macchina: ca.: 0,48 tDimensioni della macchina ca.: 1,3 x 0,8 x 1,8 mm. I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.
Pressione totale: 800 tonnellate Corsa del carrello: 700 mm Regolazione del carrello: 600 mm Altezza di chiusura (corsa in basso, regolazione verso l'alto): 1500 mm Apertura frontale libera da L a destra: 3800 mm Apertura laterale libera F-B: 1450 x 1100 mm Superficie del tavolo: 3500 x 1900 mm Superficie di slitta: 3500 x 1900 mm Capacità di cuscinetto sul tavolo: 150 tonnellate Corsa del cuscinetto del die: 250 mm Superficie del pad del cuscinetto del die: 2780 x 1570 mm Numero di corse: 7 - 18 s.p.m. Potenza richiesta: 120 kW Altezza sul pavimento approssimativa: 9510 mm Peso della macchina approssimativa: 260 tonnellate
Pressione: 200 Tnominal Potenza: 2000 kNstroke Lunghezza massima: 1700 mm Alimentazione operativa: 50 mm/sec Peso degli utensili max.: 50000 kgTensione: 400 V Dimensione della tavola: 4.800 x 2.400 mm Potenza totale: 99 kWweight della macchina ca.: 113 TDimensioni della macchina ca.: Mpassage Larghezza: mmstroke: mm I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.
Pressione totale: 600 ton Corsa del pistone: 762 mm Regolazione della slitta: 406 mm Altezza di chiusura (corsa verso il basso, regolazione verso l'alto): 1322 mm Apertura frontale libera da sinistra a destra: 3700 mm Superficie del tavolo: 3350 x 2134 mm Area della slitta: 3350 x 2134 mm Capacità del cuscino dello stampo nel tavolo: 180 ton Corsa del cuscino dello stampo: 305 mm Espulsore nel pistone: 60 ton Corsa dell'espulsore nel pistone: 230 mm Numero di corse: 16 s.p.m. Potenza richiesta: 90 kW Peso della macchina circa: 185 ton
CONTROLS PLC SIEMENS SIMATIC HMI PRESS FORCES total force (nominal): 250 to PRESS TABLE table surface (left-right): 1950 mm table surface (front-back): 1000 mm SLIDE table surface (left-right): 1950 mm table surface (front-back): 800 mm stroke: 30 mm SLIDE (MECHAN. PRESS) slide adjustment: 100 mm variable speed: yes stroke rate (min.): 80 /min stroke rate (max.): 400 /min main drive power: 51 kW TOOL ASSEMBLY DIMENSIONS shut height (stroke down, adjustment up), BDC: 550 mm STRIP-FEEDER feeder type: roll feeder DIMENSIONS / WEIGHTS total weight approx.: 48000 kg ATTACHMENTS (PRESSES) decoiler: yes leveller unit: yes strip feeder: yes Strip Feed Unit Manufacturer: Kohler Maschinenbau Type: KRS 18.260/19-2000.2H-BF1 Serial number: 40 871 Year of manufacture: 2006 Connected load: 15.5 kW Decoiler Manufacturer: Kohler ...
A Schuler C-frame eccentric press is offered. Press force: 80t, throat depth: 280mm, adjustable stroke range: 20mm-160mm, max. stroke rate: 125strokes/min, table area X/Y: 700mm/560mm, slide area X/Y: 560mm/350mm, slide adjustment: 72mm, max. distance between table and slide: 510mm. Machine weight: approx. 4800kg. Inspection possible by appointment.

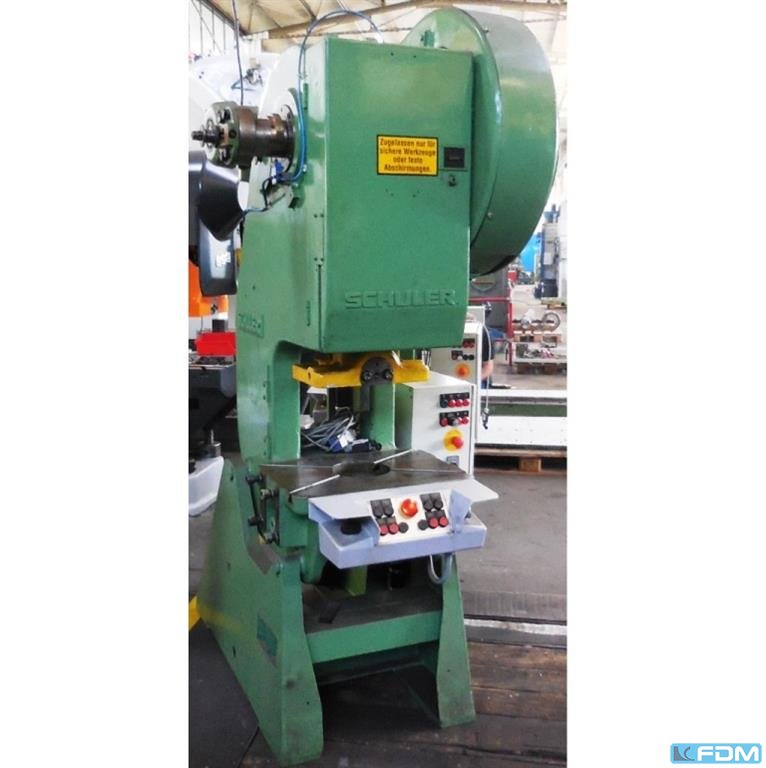

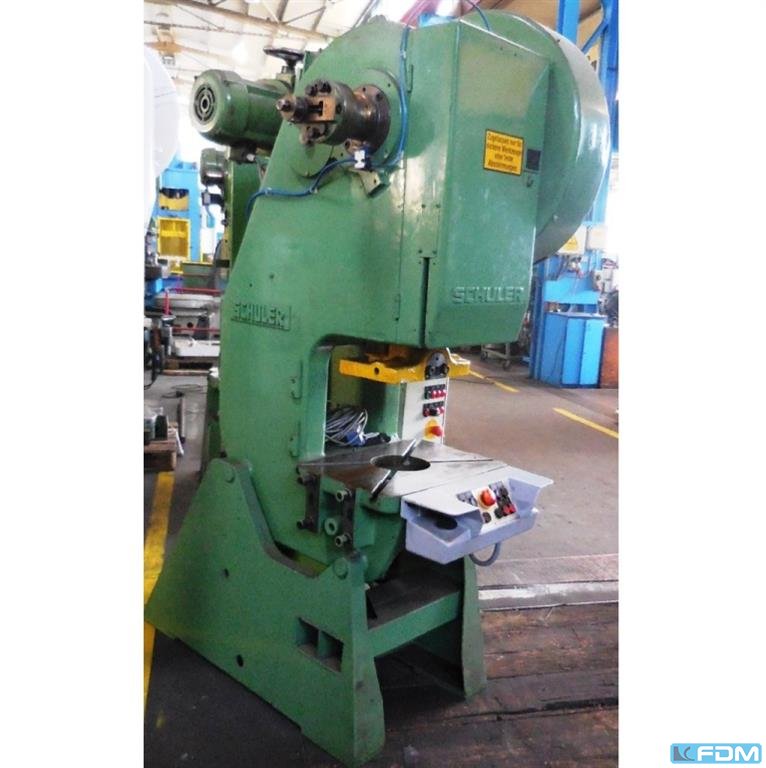

Offered for sale is a Schuler C-frame eccentric press. Press force: 40t, throat depth: 220mm, stroke range: 8mm-88mm, max. stroke rate: 160strokes/min, table area X/Y: approx. 630mm/430mm. Machine weight: approx. 2300kg. Inspection by prior arrangement is possible.
