REISHAUER macchina utilizzata in vendita

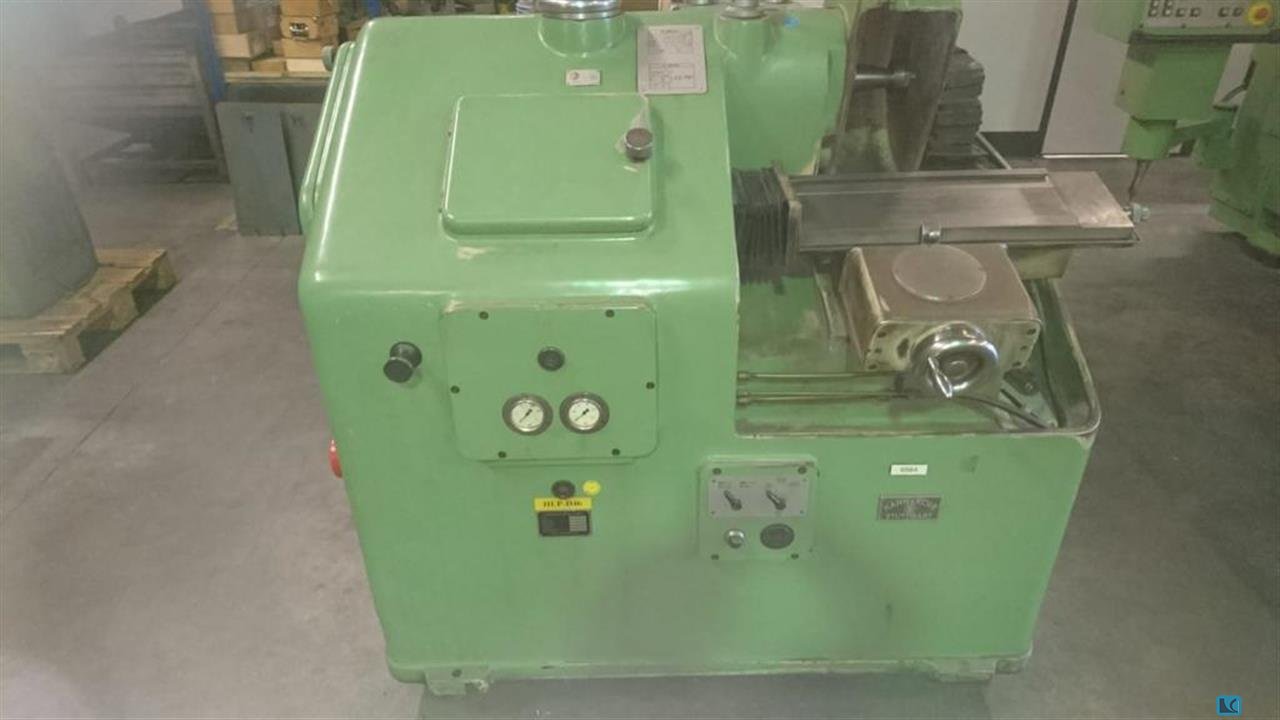

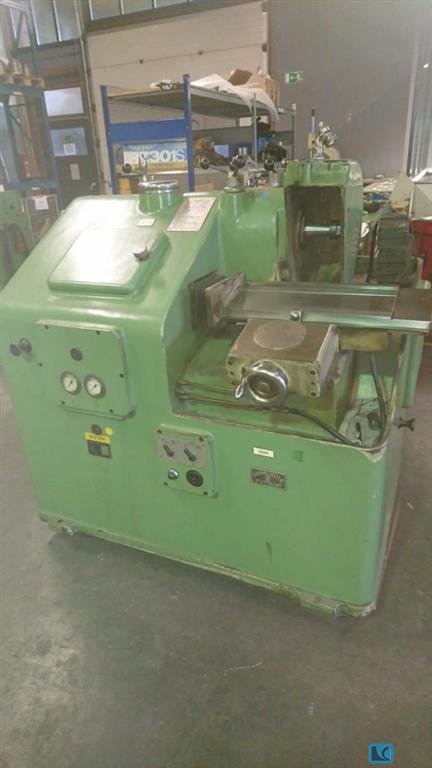

Smerigliatrice per ingranaggi REISHAUER OZA con cambio ingranaggi.

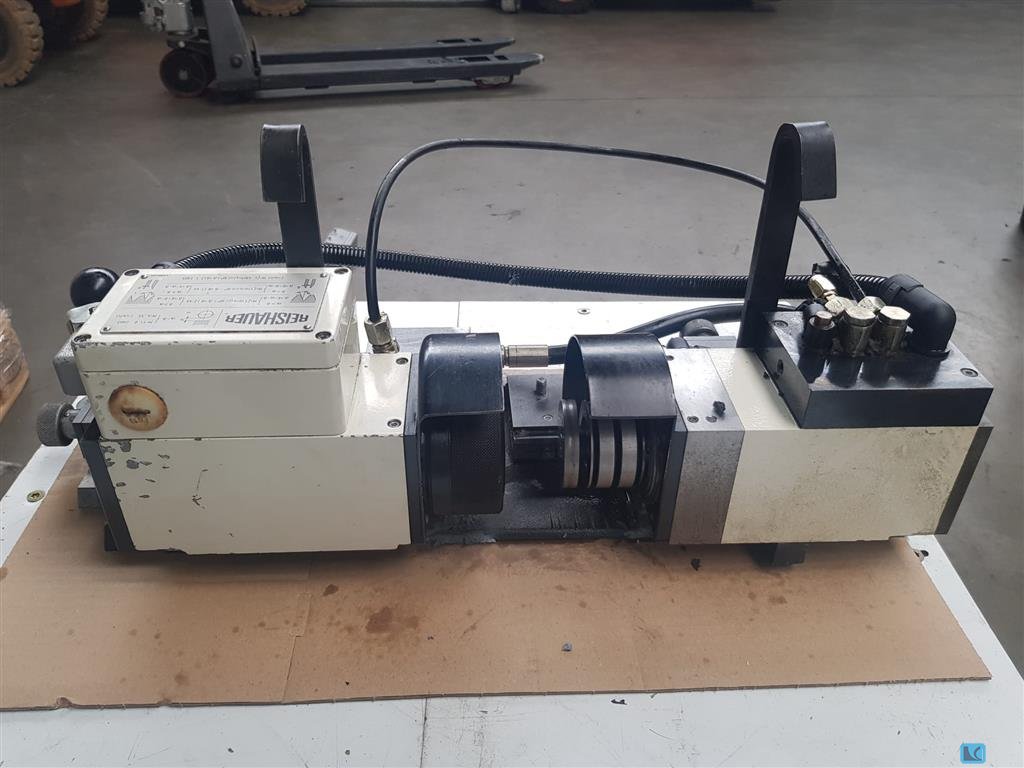

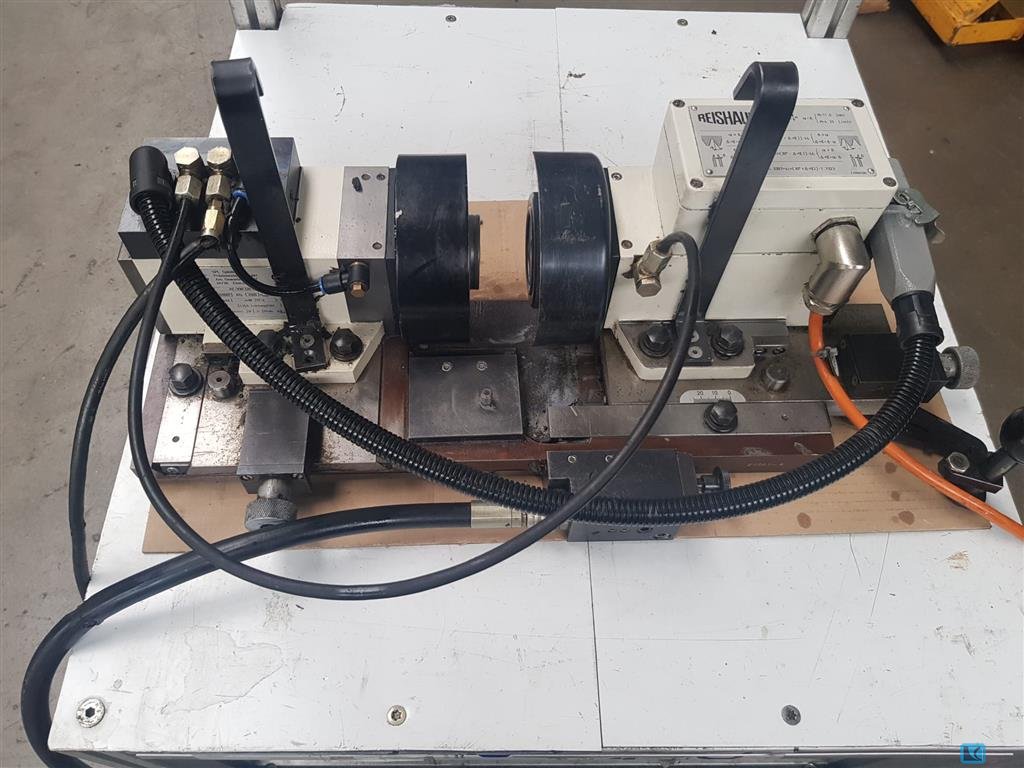

grinding wheel diameter:400 mm total power requirement:3 kW weight of the machine ca.:1,5 t dimensions of the machine ca.:1,5 x 1,4 x 1,3 m Dressing Grinder for gears REISHAUER AM max. width of grinding wheel 104 mm max. dia. of grinding wheel 400 mm max. module 7 min. module 0,5 pressure angle 10 - 30 ° grinding worm dia. 270 - 400 mm width of grinding worm 62/84/104 mm grinding worm turning speeds: at profiling 18/35/70 U/min electrics - voltage/frequency 380 / 50 V/Hz long. movement of crowning device 156 mm

max. wheel diameter:150 mm max. module:3 min. module:1 weight of the machine ca.:7,2 t dimensions of the machine ca.:2,44 x 1,43 x 2,46 m grinding wheel diameter:206-275 mm Betriebsstunden: 99.235 Incl. automatic loading system Felsomat, without filter No Twist Control Grinding Option

max. wheel diameter:150 mm max. module:3 min. module:1 weight of the machine ca.:7,2 t dimensions of the machine ca.:2,44 x 1,43 x 2,46 m grinding wheel diameter:206-275 mm Working hours 98.780 Incl. automatic loading system Felsomat No Twist Control Grinding Option

max. wheel diameter:400 mm max. module:10 min. module:0,3 weight of the machine ca.:11,5 t dimensions of the machine ca.:3,3 x 2,75 x 2,8 m max. number of teeth:999 min. number of teeth:5 Width of teeth:0-300 mm pressure angle max.:30 pressure angle min.:14 workpiece weight max.:300 kg worm grinding diameter:300...205 mm width of grinding worm:125+0,7 / -0,5 mm boring diameter:160 H7 mm with loading device FELSOMAT Type: FZ250 Year of construction: 2002 No tail stock

Description: serial number: 75041 control: SIEMENS Sinumerik 840D working hours: approx. 74676 hrs.  , travels: X-axis: ,490 mm Y-axis: 220 mm Z-axis: 300 mm  , rotary and swivel axes: A1-axis (grinding head): rotation angle: +/- 48° rotational speed: 28°/s B1-axis (grinding spindle): power: 10 kW max. rotational speed: 4010 rpm C-axis (workpiece spindle): torque: 180 mm rotational speed: 0 - 480 rpm C1-axis (tool carrier): swivel angle: 30°  , rapid traverse: X-axis: 15 m/min. Y-axis: 5 m/min. Z-axis: 5 m/min  , workpiece diameter: 5 - 400 mm total power requirement: 42 kVA  , please also have a look at the PDF documents of this machine control: SIEMENS Sinumerik 840D, Approx. Onsite Dimension. (l x w x h): 3,500 x 3,500 x 2,700 mm, grinding head swivellable +/-: +45/-45 °, x-motion: 490 mm, y-motion ...

Description: serial number: 76220 control: SIEMENS Sinumerik 840D HMI working hours: approx. 36527 hrs.  , travels: X-axis (grinding worm feed): ,195 mm Y-axis (shift feed): 160 mm Z-axis (grinding feed): 100 mm  , rotary and swivel axes: B-axis (grinding spindle): power: 10 kW max. rotational speed: 5555 rpm C1 and C2-axis (workpiece spindle): torque: 25/70 mm rotational speed: 0 - 1000 rpm C4-axis (turn dressing device): swivel angle: 30° max. rotational speed: 5 rpm  , auxiliary axes: A-axis (bevel angle adjustment): rotation angle: +/- 40° rotational speed: 28°/s C3-axis (turn turret): swivel angle: 225° rotational speed: 50 rpm  , rapid traverse: X-axis: 15 m/min. Y-axis: 5 m/min. Z-axis: 5 m/min  , workpiece diameter: 10 - 145 mm number of teeth: 5 - 150 max. shaft length: 350 mm module rang ...

max. wheel diameter: 400 mm gear width: 300 mm max. module: 8 min. module: 0,3 control: Sinumerik 840 D number of teeth: 5 - 999 pressure angle: 14 - 30 ° helix angle: -45 / +45 ° workpiece weight: max. 300 kg x-axis: 490 mm rapid traverse X-axis: 15 m/min y-axis: 220 mm rapid traverse Y-axis: 5 m/min z-axis: 300 mm rapid traverse Z-axis: 5 m/min grinding wheel diameter: 205 - 300 mm grinding wheel width: max. 125 mm boring diameter: 160 H7 mm number of starts: 1 - 5 weight of the machine ca.: 12,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. wheel diameter : 400 mm Gear width : 0 - 300 mm Max. module : 8 Min. module : 0,3 Number of teeth : 5 - 999 Tooth width (Z1- grinding slide travel) : 0 - 300 mm Centre distance : 60 - 700 mm Max. helix angle : +/- 45 ° Workpiece weight max : 300 kg Tip circle diameter : 10 - 400 mm Root circle diameter : 10 - 400 mm Equipment/Accessories : CNC : Siemens 840D Pallet conveyor : Coolant/filter device Novotecnic : CNC dressing device REISHAUER :

Minimal diameter of the gear wheel : 350 mm Maximum diameter of the gear wheel : 280 mm Max. thread diameter : 200 mm Min. thread diameter : 3 mm Max. length : 700 mm

Description: Change gear set for Reishauer UL 1800, , in a wooden box Approx. Onsite Dimension. (l x w x h): 800 x 600 x 400 mm, weight approx.: 125 kg

Description: Change gear set for Reishauer UL 1800, , in a wooden box Approx. Onsite Dimension. (l x w x h): 950 x 600 x 450 mm, weight approx.: 175 kg

Max. wheel diameter : 300 mm Gear width : 180 mm Max. module : 5 Min. module : 0,5 Max. table load : 50 kg Number of teeth : 7-256 Max. helix angle : +/-45° Max. diameter of grinding wheel : 350 mm Turning speeds : 1100-1900 U/min

For sale lot of machines, main for thread grinding, and gear grinding, also horizontal pfauter, best price for bundle. Reishauer NRK Reishauer US x2 Klingelnberg HNC 35K Wmw hinterdrehmachine x2 Reinecker hinterdrehmachine Kapp grinding Wmw niles 35/20-29 Horizontal Pfauter Lindner grinding x2 Klingelnberg gear test machines

Max. wheel diameter : 300 mm Gear width : 180 mm Max. module : 5 Min. module : 0,5 Max. table load : 50 kg Number of teeth : 7-256 Max. helix angle : +/-45° Max. diameter of grinding wheel : 350 mm Turning speeds : 1100-1900 U/min

Max. grinding length : 450 mm Max.clamping length : 700 mm Thread diameter : 3–200 mm Thread pitch : 0,40–80 mm Max. angle pitch : -25º / +25º Grinding wheel diameter : 275-350 mm Grinding wheel width : 8-40 mm Grinding wheel bore : 160 mm Grinding wheel speed : 1550-1900 rpm Weight approx : 3500 kg

diametro massimo della ruota: --- mm larghezza dell'ingranaggio: --- mm modulo massimo: --- modulo minimo: --- Controllo: --- potenza totale richiesta: --- kW peso della macchina ca.: 5,0 t dimensioni della macchina ca.: --- m

max. diametro della ruota: 400 mm larghezza dell'ingranaggio: 250 mm max. modulo: 8 min. modulo: 0,5 diametro del cerchio della radice: 10 mm numero di denti: 5 - 999 angolo elicoidale massimo: +/- 45 peso: 12,5 t controllo: Siemens 840 D La macchina è in ottime condizioni, rapporti di prova disponibili. CNC Siemens 840 D

Wedge bar chucks, power chucks, three-jaw chucks, three-jaw lathe chucks -Chuck size: Ø 290 mm -recess recess: Ø 268 mm -Hole circle: Ø 168 mm -Through hole: Ø 70 mm -Weight: 43.5 kg

max diameter of the tooth heads wheel: 300 mm minimum diameter of the bottom of the grooves: 10 mm max number of teeth: 130 min. number of teeth: 12 (10) max module: 5 max angle of teeth inclination: 45 degrees sled stroke: 180 mm max object weight: 60 kg max diameter of grinding wheel: 350 mm min. grinding wheel diameter: 270 mm grinding wheel width: 62/84 mm grinding wheel hole: 160 mm

Manufacturer: Reishauer AG : Switzerland in working condition... sample grinding can be done on request. Specifications: Max impeller diameter: 300 mm Gear width: 170 mm / / Module:-Min: 0.5 -Max: 5 Clamping length max: 420 mm Tooth angle Max: 45 grad Number of teeth: 12 -Min: 12 // -Max: 130 Contour slide: 200 mm Helical lead -Min: 200 mm -Max: 6000 mm Max diameter of grinding wheel: 350 mm Max wheel grinding width: 84 mm Vudg7ohvx Total power requirement: 9 kW Dimensions 2500 x 2000 x 2300 mm Total weight: 4600 kg

Reishauer AZA Gear Grinder The machine is in very good condition with complete equipment. It is connected to electricity and can be seen in operation. Complete documentation.

workpiece diameter: 460 mm threading length: 900 mm thread pitch: 100 mm total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Diametro di taglio: 0 mm Conditura di rettifica: 0 mm Peso del pezzo: 0 kg CNC Marca: 0 CNC Modello: 0 Dati Max. lunghezza di rettifica: 450 mm Max. lunghezza di serraggio: 1055 mm Max. diametro del pezzo: 250 mm Diametro del battistrada: min.: 2 mm max: 250 mm Essile del pezzo: 45 mm Peso del pezzo sui centri max.: 200 kg Tassaggio del battistrada: min.: 0.3 mm max: 100 mm .Max. angolo di passo +: 40 T. max. angolo -: 40 max. modulo: 10 Museogrinding: Diametro: min.: 280 mm max: 350 mm Larghezza: min.: 3.5 mm max: 40 mm Foro: 40 mm Resola di ariga: numero (gradini): 6 da: 1700 rpm fine a: 2540 rpm Te velocità della testa del mandrino del pezzo di lavoro: numero (gradini): 27 da: 0.4 rpm fino a: 160 rpm Voltage 50 Hz 3x: 380 Volt Motore mandrino a pompaggio: 4.4 kW Potenza totale richiesta: 15 kVA Peso della macchina circa: 4700 kg Super dimensioni generali macchina: Lunghezza: 3300 m ...

: Reishauer DS / zum läppen peso della macchina ca.: 200 kg :

workpiece diameter: 240 mm centre distance: 0 mm honing length max.: 500 mm max. module: 5 total power requirement: 12 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 0 mm gear width: 120 mm max. module: 3 min. module: 1 total power requirement: 20 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: m : : : : : : 5 machines in stock, YOM: between 1986 and 1990 Gear Æ, min./max. 55 / 120 mm Gear Æ for shaft-formed parts 80 mm Module (pitch 25.4 - 8.5) 1 - 3 No. of teeth, min./max. 13 / 80 Pressure angle 14 - 30 ° Helix angle, max. 40 ° Workpiece clamping length 145 - 420 mm Grinding worm Æ 300 - 400 mm Grinding worm width 25 - 40 mm Grinding worm speeds, infinitely variable (35 m/s) 1,650 rpm Feed range 0.4 - 4 mm/rev Total electrical load 20 kW - 380 V - 50 Hz Weight 7,500 kg Accessories / Special Features REISHAUE ...

cambio bullone ingranaggio

mandrino di rettifica usato con segni di usura.

max. wheel diameter: 330 mm gear width: 180 mm max. module: 7 min. module: 0,5 total power requirement: 12 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
