La punzonatrice RASKIN RT 64-2, prodotta in Svizzera nel 1981, è progettata per la punzonatura precisa di fori in pezzi realizzati ad esempio in acciaio inossidabile, con una forza di 30 tonnellate. Parametri tecnici della punzonatrice RASKIN RT 64-2 - forza massima di pressatura: 30 t - Controllo CNC - numero di colpi: 400/min - alimentazione della macchina RT 64: 3x 380 V; 50 Hz

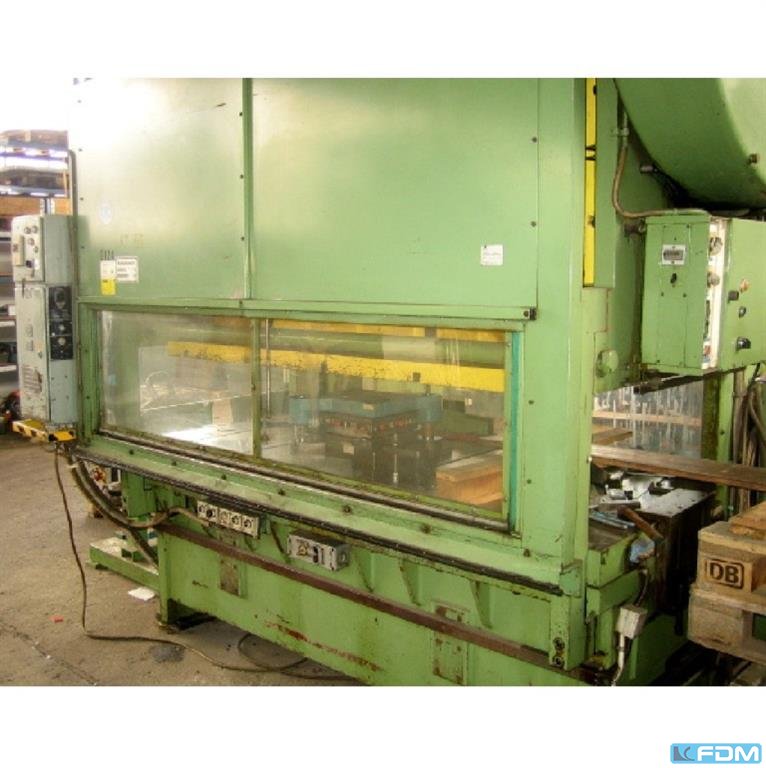

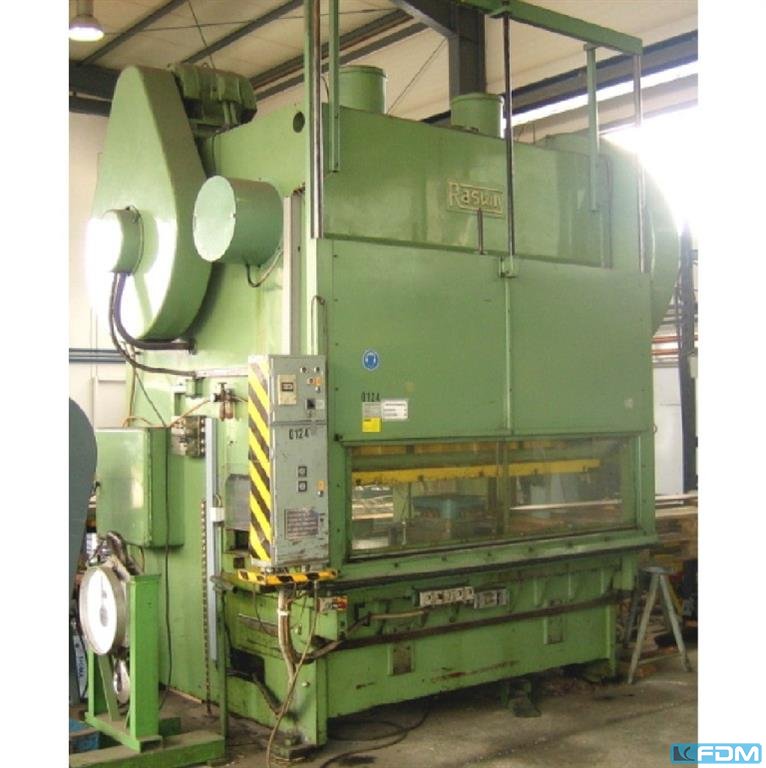

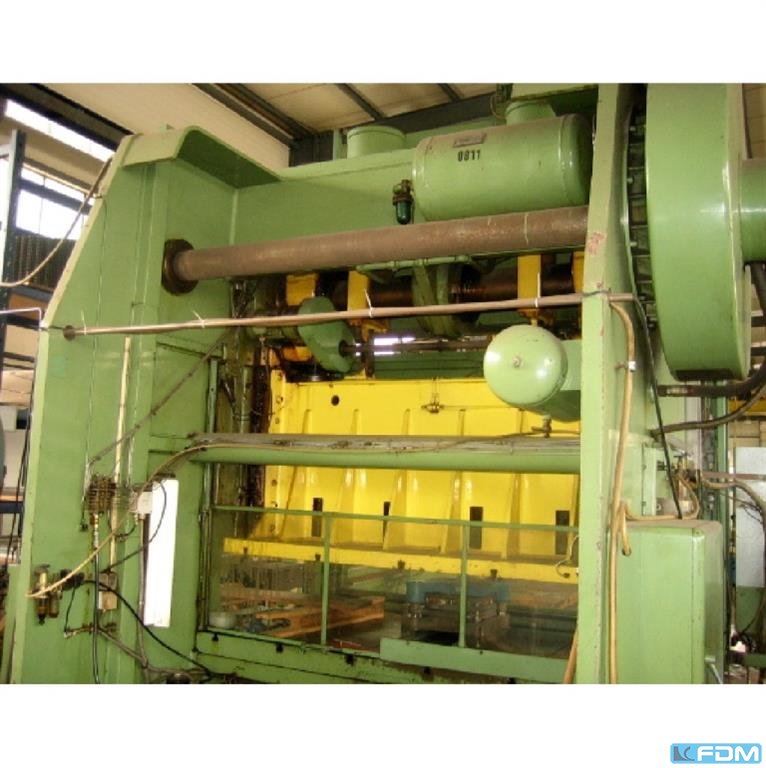

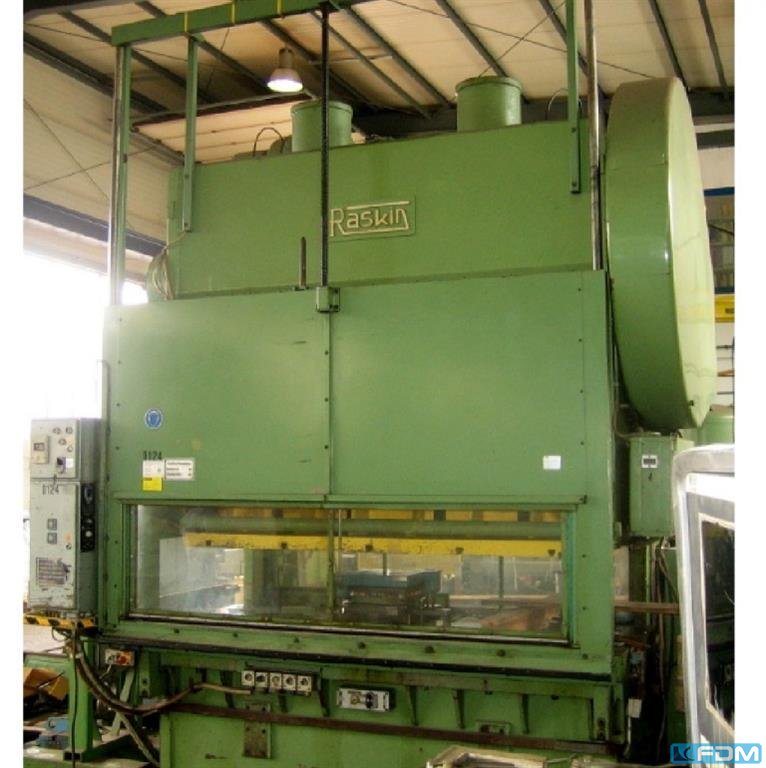

pressure:150 t throat:450 mm stroke:115 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:400 mm table surface area:2250 x 1090 mm table height over floor:900 mm passage to the back:1900 mm ram surface:1900 x 900 mm ram adjustment:100 mm power requirement:16,0 kW weight:19,5 t Dimensions (WxDxH):3,0 x 2,3 x 3,9 m
Raskin raskinCapacità: 50 ton Area del tavolo: 420 x 360 mm
Punching units, punching unit, punching bracket, punching tool, non-driven clinking and shearing units, forming bracket -Manufacturer: Raskin, punching bracket type 15 BL 245 with punching tool -Throat: 210 mm -Punching capacity: 3mm -Matrix: Ø 34 mm -Punching tool: Ø 10 mm -Dimensions: 320/45/H150 mm -Weight: 6.8 kg
Punching units, punching unit, punching bracket, punching tool, non-driven clinking and shearing units, forming bracket -Manufacturer: Raskin, punching bracket type 25 BL 260 with punching tool -Throat: 210 mm -Punching capacity: 3mm -Matrix: Ø 42 mm -Punching tool: Ø 18 mm -Dimensions: 330/60/H150 mm -Weight: 9.4 kg
Punching units, punching unit, punching bracket, punching tool, non-driven clinking and shearing units, forming bracket -Manufacturer: Raskin, punching bracket type 25 BL 160 -Throw: 110 mm -Punching capacity: 3mm -Matrix: Ø 43 mm -Dimensions: 225/60/H150 mm -Weight: 6.6 kg
Punching units, punching unit, punching bracket, punching tool, non-driven notching and shearing units, forming bracket, for notching machine, sheet metal notching machine, notching shear, corner notching machine, corner shear, corner shear -Manufacturer: Raskin, punching unit type 125 NIA 111.163.0 -Punching capacity: 3mm -Dimensions: see photos -Dimensions: 270/200/H150 mm -Weight: 30.5kg
