usato
RETTIFICATRICE CILINDRICA Condizione Usato - Totalmente ricondizionata Stato Eccellente Tipo di controllo Siemens Sinumerik 840C Distanza tra i centri 700 mm Altezza centri 185 mm Diametro max. pezzo rotante Ø 360 mm Corsa max. tavola 820 mm Velocità traslazione tavola (Z) 0-10 m/min Corsa max. testa porta-mola 500 mm Velocità traslazione testa porta-mola (X) 0-10 m/min Dimensioni max. mola sx 508x203x76 mm Dimensioni max. mola a sfacciare dx 450x127x50 mm Potenza motore mola 10 Cv Velocità mandrino testa porta-pezzo 0-600 giri/min Velocità mandrino mola 0-2.880 giri/min Cono interno mandrino testa porta-pezzo ISO 50 Cono interno contropunta Morse 4
usato
X-travel: 2500mm, y-travel: 970mm, z-travel: 1000mm, table dimensions: 2920x920mm, connected load: 52kVA, controls: HEIDENHAIN iTNC 530, weight: 15t.
usato

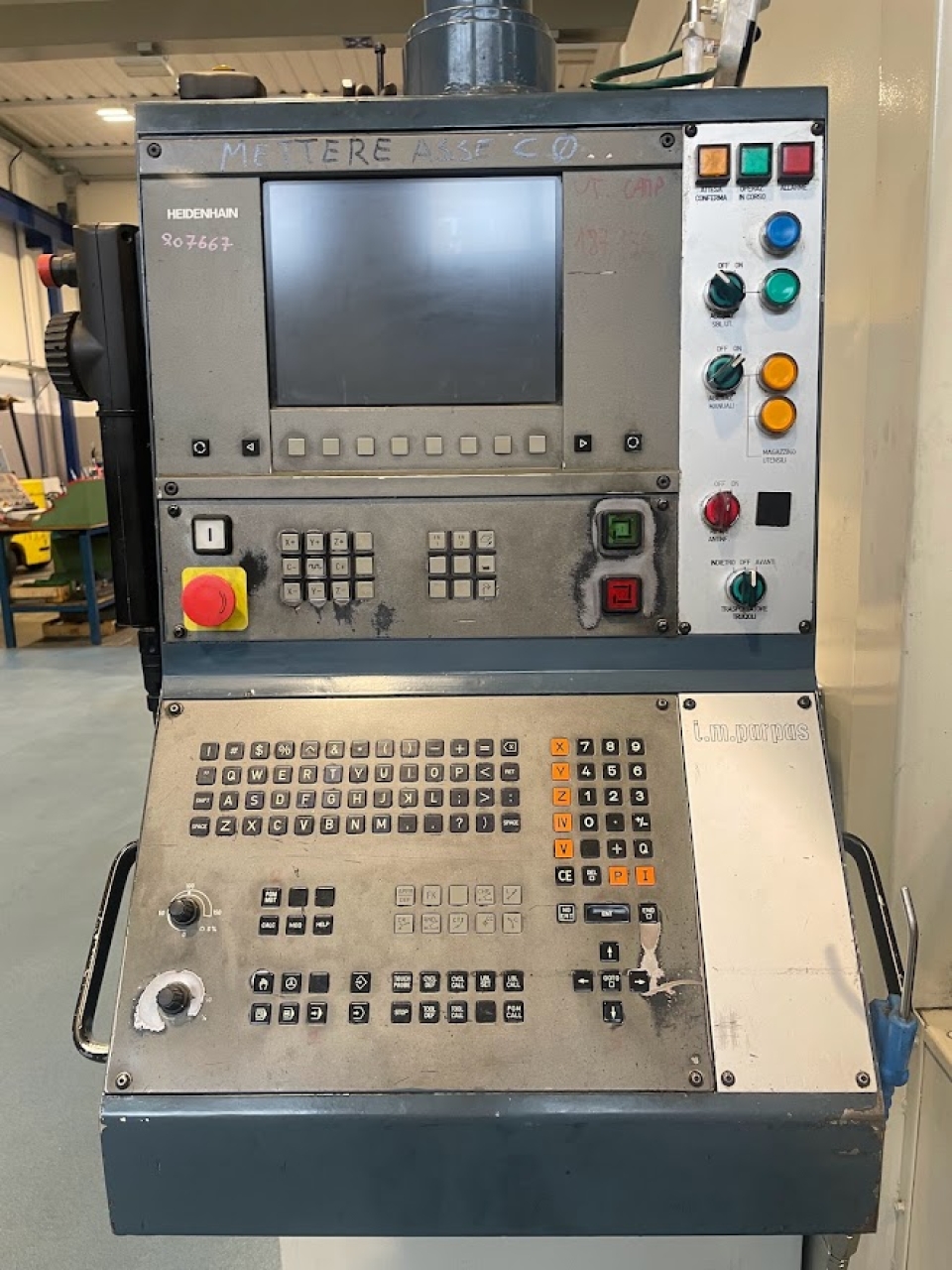

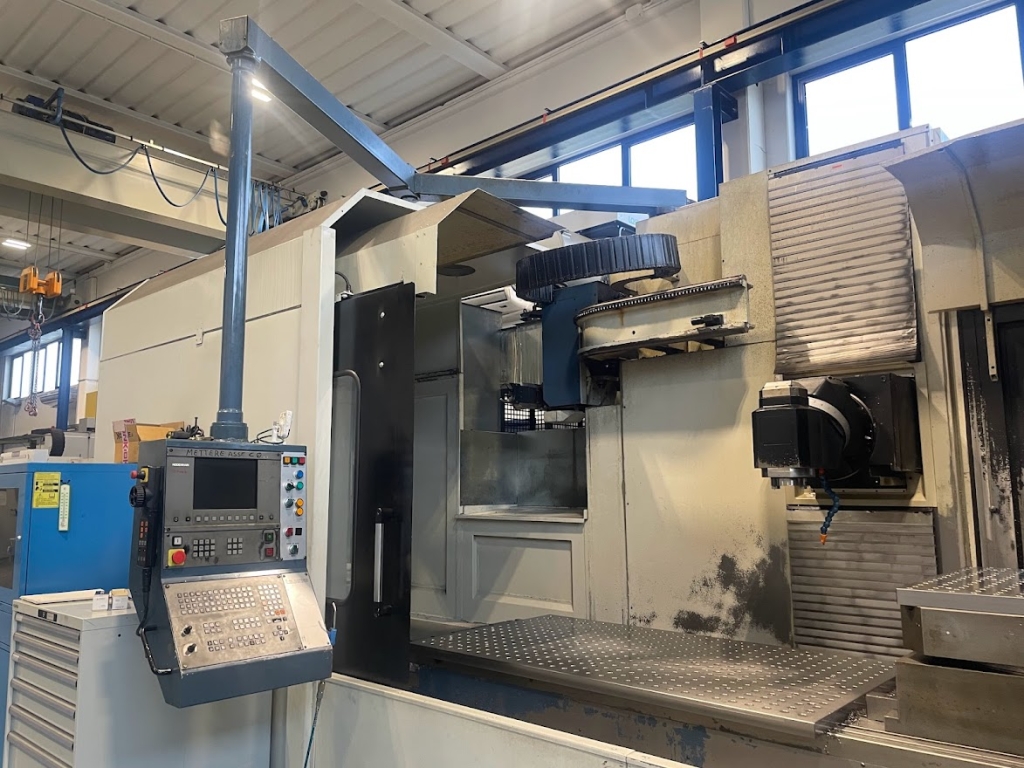

x-travel:2000 mm y-travel:1000 mm z-travel:1050 mm table clamping surface::2.400 x 1.000 mm control:HEIDENHAIN TNC 426 CB turning speeds:20 - 5000 1/min tool taper:SK 50 spindle:22 kW total power requirement:50 kVA weight of the machine ca.:10 t dimensions of the machine ca.:5 x 3 x 3 m CNC universal bed milling machine, direct measuring system, coolant device, cover chip conveyer head is swivelling automaticaly horizontal / vertical head is swivelling semiautomaticaly 2,5 degrees over inching head is swivelling manually on the 5 th axis with display on screen approx. 59.250 h hours "machine on", approx. 9.656 h hours "programm on"
usato

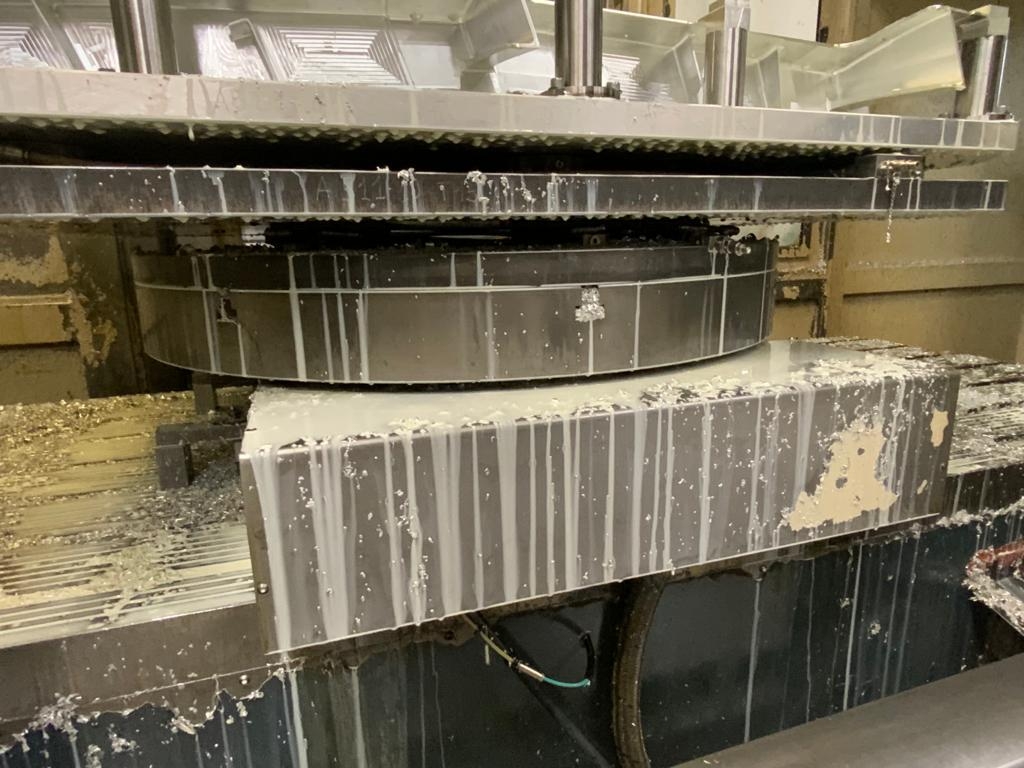

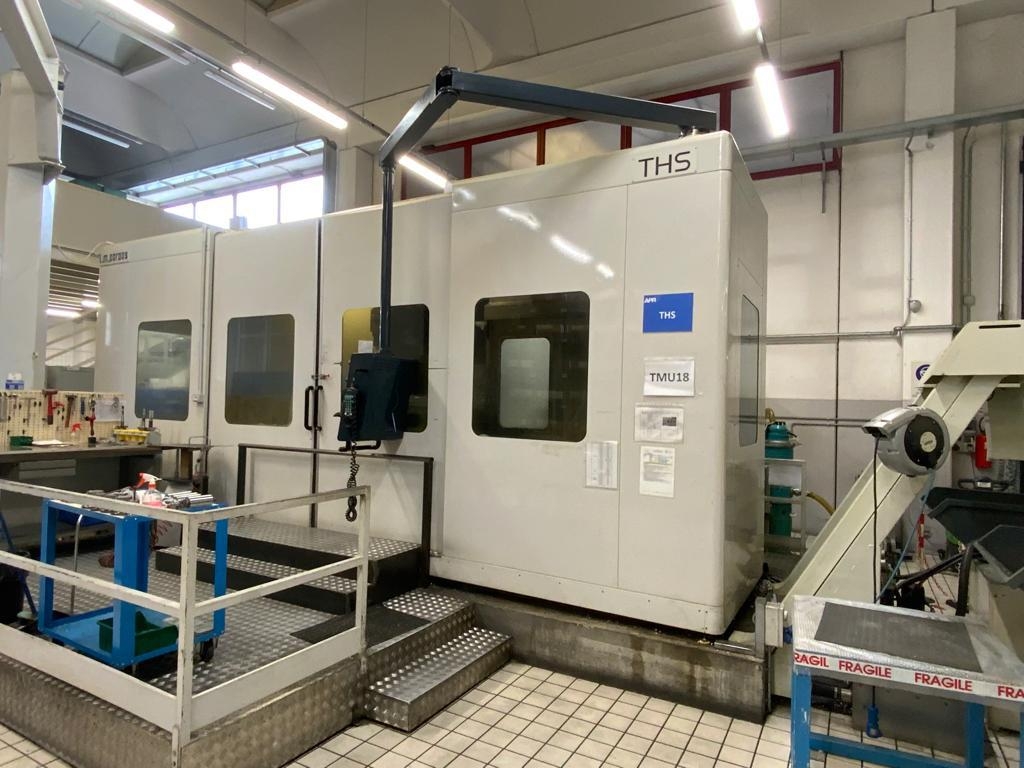

Number three pallets of size 1250 mm by 1000 mm. PALLETS are set up with FCS drilling directly on the work surface. Axis travels: X 2500 mm, Y 1200 mm, Z 1200 mm Maximum workpiece size machinable on the five axes diameter 1480 mm 20,000-rpm spindle, recently replaced, current working hours 5,000. 120-place tool magazine Machine availability to be agreed upon
usato
x-travel: 3500 mm y-travel: 1083 mm z-travel: 1074 mm control: HEIDENHAIN iTNC 530 HSCI clamping table: - surface area: 4.000 x 1.000 mm Thread bore with fitting: - Feeds: - X-, Y- and Z-axis, stepless: 2 - 30.000 mm/min rapid travel x/y/z: 30 m/min Max. feed force of axis: 10.000 N 2-axis Milling Head: - 2-axis milling head TUB-E92 with power on: - Torque-Motors for 5-axis-simultaneos processing: - capacity at 100% load: 29 kW Speed stepless: 2- 30.000 max. torque: 92 Nm Max. torque: 60 min-1 tool taper: HSK 62A-DIN 69893 automatic tool changer ATC: - Tool places: 30 diameter of tools max.: 90 mm workpiece length: 320 mm weight of tools max.: 8 kg changing positions: vertikal electrical supply data: - capacity: 120 A voltage: 400 V operating frequency: 50 Hz total power requirement: 29 kW weight of the machine ca.: 28 t dimensions of the machine ca.: 8,3 x 6,7 x 3,6 m GEquipment • Ma ...
usato
x-travel: 3500 mm y-travel: 1083 mm z-travel: 1074 mm control: HEIDENHAIN iTNC 530 HSCI clamping table: - surface area: 4.000 x 1.000 mm Thread bore with fitting: - Feeds: - X-, Y- and Z-axis, stepless: 2 - 30.000 mm/min rapid travel x/y/z: 30 m/min Max. feed force of axis: 10.000 N 2-axis Milling Head: - 2-axis milling head TUB-E92 with power on: - Torque-Motors for 5-axis-simultaneos processing: - capacity at 100% load: 29 kW Speed stepless: 2- 30.000 max. torque: 92 Nm Max. torque: 60 min-1 tool taper: HSK 62A-DIN 69893 automatic tool changer ATC: - Tool places: 30 diameter of tools max.: 90 mm workpiece length: 320 mm weight of tools max.: 8 kg changing positions: vertikal electrical supply data: - capacity: 120 A voltage: 400 V operating frequency: 50 Hz total power requirement: 29 kW weight of the machine ca.: 28 t dimensions of the machine ca.: 8,3 x 6,7 x 3,6 m Guides, drive and ...
usato
Rettificatrice stilo PARPAS Tipo AU Fabr. n. 854/36 Data di costruzione 1971 Diametro mola 100 mm Velocità mandrino rettifica circa 3500 giri/min. Potenza motore circa 0,55 kW Collegamento rete 380 Volt, 50 Hz - Supporto per pinze (sistema DECKEL con S20x2) - Pinza 15,0 mm- Comò diamanto per mola lato terminale mola Requisiti di spazio L x P x H 700 x 350 x 450 mm Peso circa 80 kg buone condizioni; usato
