nuova
Centro di lavoro CNC per tornitura e fresatura NILES SIMMONS Tipo di macchina N 50 MC x 6000 Anno di costruzione 2009. Mai usato. Sistema di controllo Siemens Sinumerik 840 D Mandrino pezzo: B20 Diametro foro mandrino: 225 mm Diametro mandrino nel cuscinetto anteriore: 360 mm Oscillazione su slitta trasversale: 1250 mm Diametro di taglio sul letto: 1300 mm Altezza di lavoro: 1700 mm Lunghezza di tornitura 6000 mm Azionamento mandrino 78 / 87 kW
usato
Altezza punte: 160 mm Larghezza punte: 880 mm Foro mandrino: 48 Larghezza letto: 312 mm Velocità: 45 - 2000 min-1 Potenza motore: 5,5 kW Supporto contropunta: MK 4 Corsa penna: 140 mm Peso, circa: 1500 kg Dimensioni (LxPxA), circa: 2250 x 1030 x 1650 mm Attrezzatura: - Display digitale a 3 assi, marchio: Sino, nuovo - Mandrino tornio a 3 griffe - Pulsante di arresto di emergenza - Supporto a sgancio rapido System Multifix - Luce della macchina - Fermata letto - Dispositivo refrigerante - Punta rotante del grano - Scarpe della macchina - Pannello posteriore paraspruzzi -Istruzioni
usato
Turning length: 300mm, turning diameter over bed: 200mm, control: Siemens Sinumerik, with documentation, cooling lubricant system and chip conveyor, the machine has only rarely been in operation for approx. 2.5 years, an on-site inspection is possible.
usato
Including accessories, without tailstock.
usato
turning diameter:810/680 mm turning length:2.500 mm centre distance:3.040 mm swing diameter over bed slide:530 mm spindle bore:145 mm turning speed range:10 - 2.000 1/min spindle drive:76 / 63 kW turret (x-stations):12 Pos. tool taper:VDI 60 Torque:1150 / 4005 Nm rapid travel range:X12 / Z12 m/min max. workpiece weight between centers:4.000 kg max. workpiece weight -without tailstock:630 kg total power requirement:140 kVA weight of the machine ca.:17,6 t dimensions of the machine ca.:7,7 x 2,85 x 2,7 m CNC-lathe with tailstock - live tools 12 / 8 kW (85 / 105Nm), - spindle 2,5° indexing, - steady 50 -200mm, - hydr. 3-jaw-chuck, - chipconveyor, coolant device, - tailstock, tailstock quill: - MT 5, - dia. 160mm, - stroke 285mm,
usato

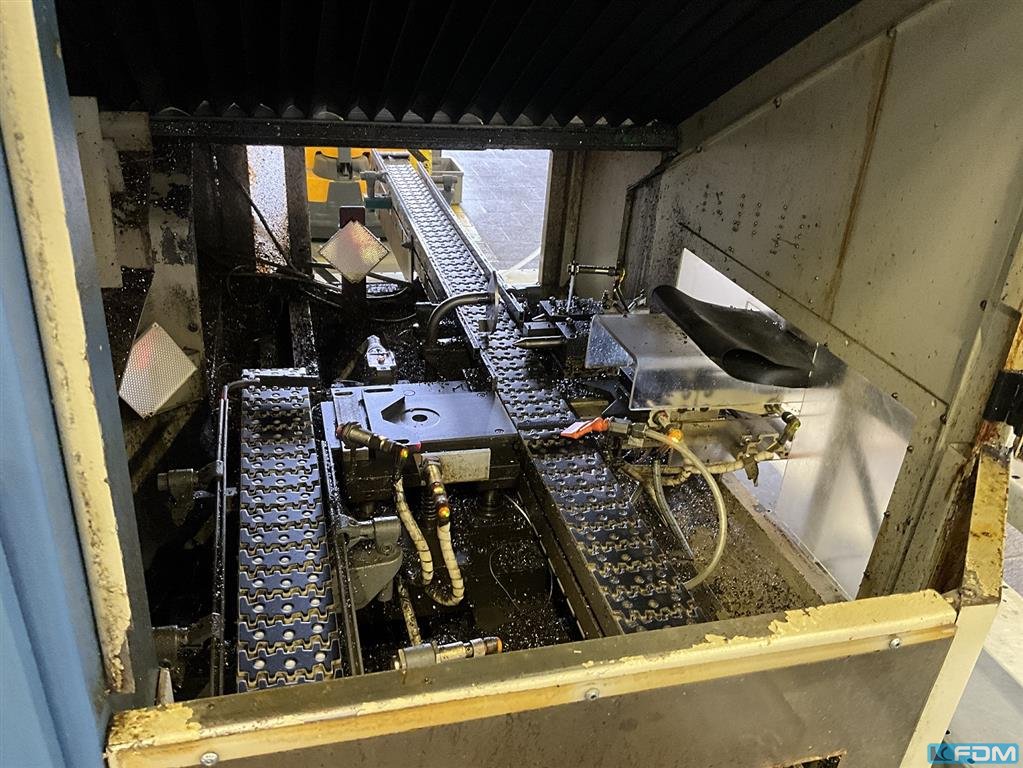

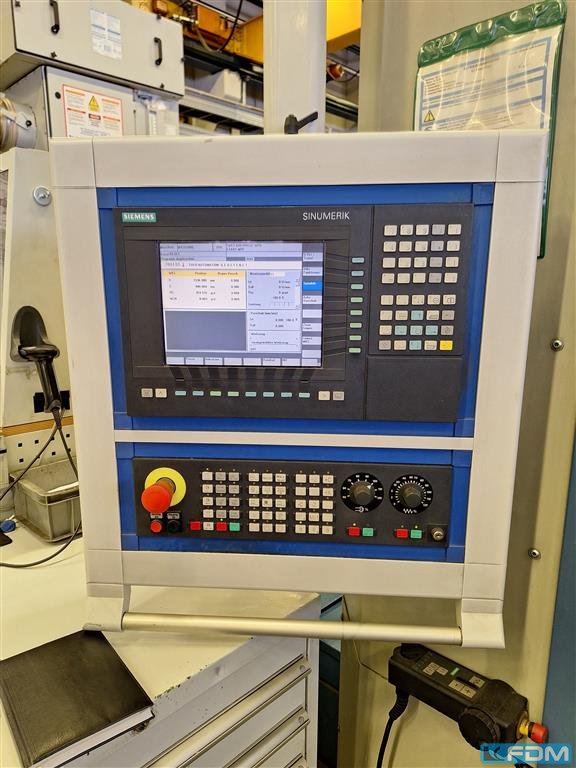

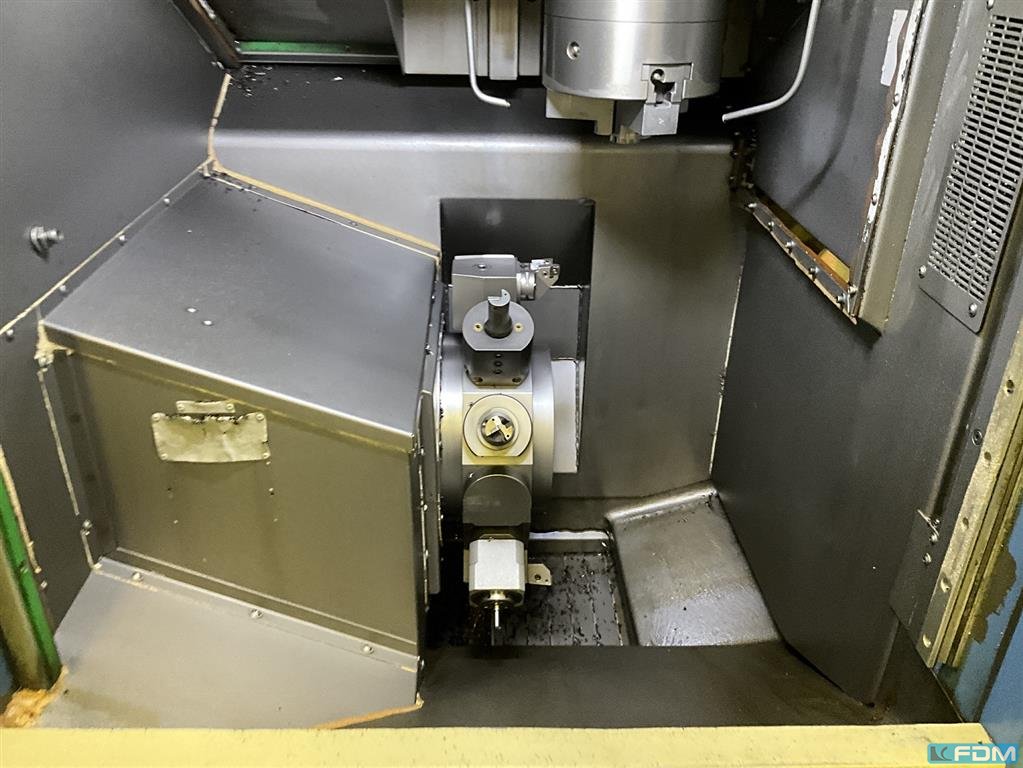

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories
