Venditore: Innovac GmbH
Nominal force: 3150kN, table dimensions: 2500x1600mm, stroke speed: 20-80/min, ram stroke: 280mm, ram adjustment: 90mm, weight: 68t, with Transfer and Sheet Metal System Dreher.
pressure:160 t distance between columns:1360 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:950 mm side window:640 mm ram surface:1300 x 900 mm power requirement:45,0 kW weight:16,0 t Dimensions (WxDxH):2,5 x 2,1 x 4,1 m cutting impact cushioning:hydraulic
sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...
pressure:160 t distance between columns:1340 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:930 mm side window:600 mm ram surface:1300 x 900 mm speed down:367 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:15,0 t Dimensions (WxDxH):2,5 x 2,2 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

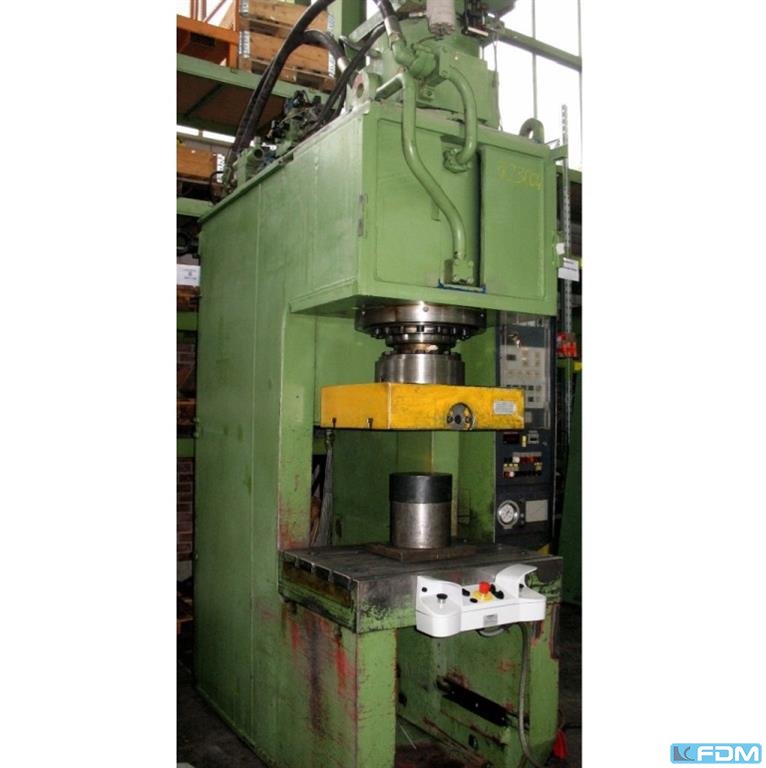

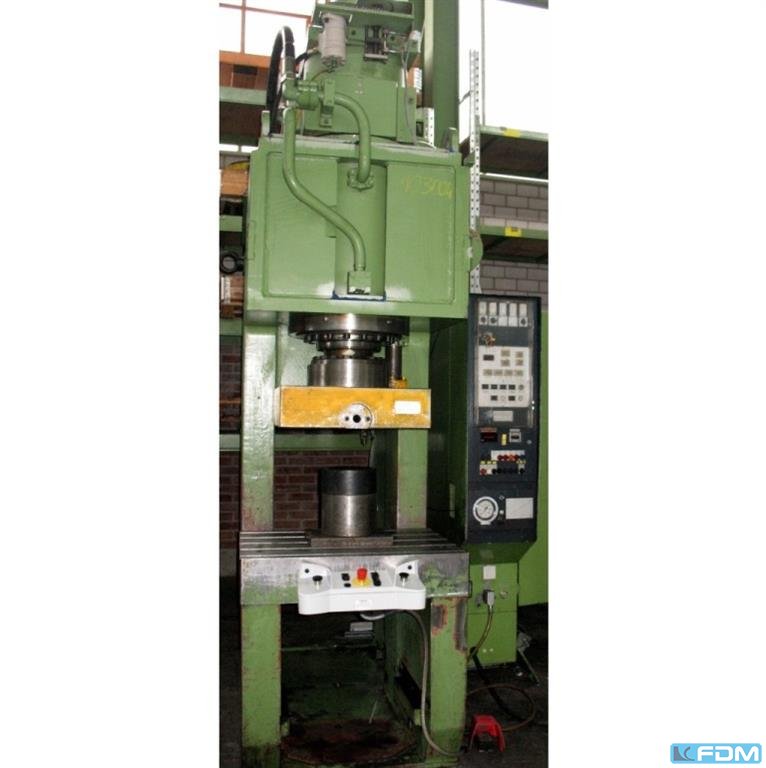

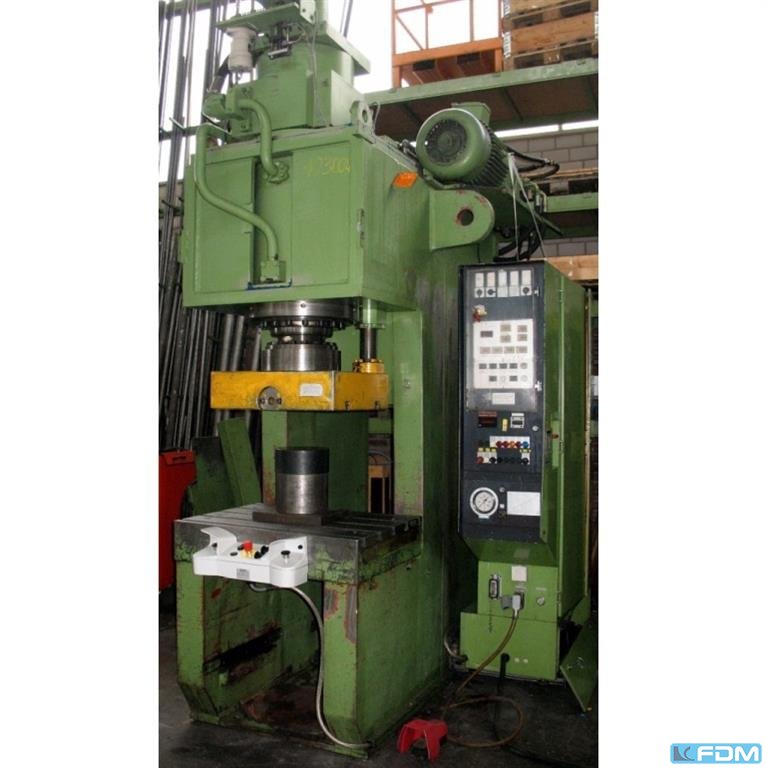

pressure:160 t throat:360 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:920 x 700 mm Hole in the table:150 mm table height over floor:960 mm passage to the back:590 mm ram surface:620 x 560 mm speed down:390 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:16,0 t dimensions (WxDxH):1,6 x 2,5 x 3,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanisch
Venditore: AS Maschinenhandel
pressione: 63 t distanza tra le colonne: 0 mm ictus: 160 mm superficie abitabile: 630 x 500 mm dayligth: 400 mm poteno di potenza totale: kW peso della macchina ca.: 5 t dimensioni della macchina ca.: m
