Doppia torretta e doppio mandrino Controllore fanuc 31iA Diametro foro mandrino principale 51 mm Lunghezza massima di taglio 125 mm Naso mandrino A2-6 Velocità mandrino 5000rpm Corsa asse B 635mm Corsa asse X 190mm Corsa asse X2 175mm Corsa asse Y +/-40mm Corsa asse Z 500mm Corsa asse Z2 500mm
usato
TORNIO DA BARRA MIYANO BNJ 42S :::SPECIFICHE TECNICHE::: Modello CNC: Fanuc - Versione del CNC: 18iT - Potenza mandrino principale: 11Kw - Passaggio barra mandrino principale: 42mm Numero Giri mandrino principale: 5000 - Numero Torrette Porta utensili: 2 - Numero posti utensili prima torretta: 8 - Numero Motorizzati prima torretta: 8 Corsa Asse X prima torretta: 142mm Corsa Asse Z prima torretta: 250mm Numero posti utensili seconda torretta: 3 Numero posti utensili fissi seconda torretta: 3 Contromandrino: si Numero Giri contromandrino: 5000 Potenza contro mandrino: 5,5Kw Passaggio barra: 42mm Corsa Z contromandrino : 250mm Modello e marca caricatore di barre: LNS Hydrobar Mini Sprint Evacuatore truciolo: a tappeto Numero portautensili motorizzati in dotazione: 2 :::DIMENSIONI E PESO::: Lunghezza: 2700mm Larghezza: 1450mm Altezza: 17 ...
usato
Torretta principale di 12 stazioni (6 sono guidate) - 6 stazioni sottotorretta - LNS sprint 552 barfeed nuovo nel 2010 - Fanuc 21TB di controllo.
usato
Numero di Stock: 3782 TORNIO CNC Produttore: MIYANO, Tipo: BNE-51S N° macchina: 98BX510077, Anno di costruzione: 1998 Indicazioni: Max. diametro oscillazione 51 mm Potenza motore principale 11/7.5 kw Gamma di velocità mandrino principale 4000 rpm Foro passante tubo trafilatore 51 mm Ø. Movimento asse X 150 mm X2 Movimento Frassino 115 mm Movimento cenere Z 380 mm Movimento Z 2 assi 125 mm Torretta utensile 1 con 12 stazioni Torretta delle stazioni motorizzate 1 6 pezzi. Torretta utensile 2 con 10 stazioni Torretta delle stazioni motorizzate 2 5 pezzi Contromandrino Contromandrino motore 5.5/3.7 Kw Max. mandrino a pinza 41 mm/dia Controllo FANUC 18T Fabr. Accessoristica: Caricabatterie Kama B4265 fabr. Lunghezza: 2600 mm + caricatori, altezza: 1950 mm, larghezza: 2560 mm, peso: 6300 kg
usato
Alimentazione Lns Sprint S2 - Fanuc 18-T Control
usato
This MIYANO BNE 51S Lathe was manufactured in the year 1999 and has 16102 production hours. It is equipped with a Fanuc 18T control unit and has 7 axis. The machine has a spindle speed of 54 - 4000 rpm.
usato

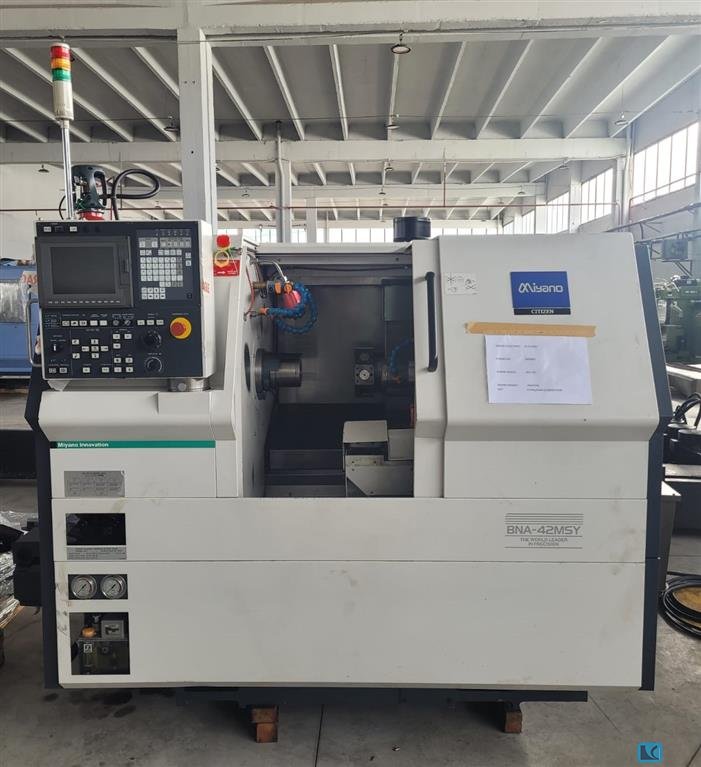

This Miyano BNA-42MSY2 Lathe was manufactured in the year 2017. It is equipped with a Mitsubishi M730VS control unit. The machine has a spindle speed of 6000 rpm.
usato
Miyano cnc lathe. Lathe with 2 spindles and motorized tools. Year-1995 Main spindle bar pitch diameter- 42 Sub-spindle collet (35 max) Revolutions -5000rpm Motorized collet -Max 12 Max. turning diameter- 114 S INCLUDES - Coolant tank: 160-Pieces collector-Pieces conveyor belt-LNS bar loader -I also delivered a new servo amplifier that I had for safety (A06b-6089-H206) valued at more than 1500 -And the Encoder of the main spindle bought new (more than 700) The price can be negotiated a little
usato
Macchina ad alta precisione
usato
Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0 Positions APC: 0 CNC Brand: 0 CNC Model: 0 Control: YASNAC Operating hours: 1270 Technical data Number of axis total: 5 Table length: 610 mm Table width: 380 mm Longitudinal travel (X-axis): 350 mm Transversal travel (y axis): 300 mm Vertical travel (z axis): 250 mm Tool magazine number of tools: 15 Spindle nose: BT: 30 Distance spindle nose to table: 250 - 500 mm Spindle speeds: stepless from: 100 rpm up to: 16000 rpm Voltage 50 Hz 3x: 380 Volt Spindle power: 5.5 kW Total power required: 14 kW Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1950 mm Width: 1500 mm Height: 2050 mm Various accessories: Dividing attachment 4th and 5th axis: NIKKEN Oil mist extractor: ELBARON Interface serial port RS 232
usato
Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0 Positions APC: 0 CNC Brand: 0 CNC Model: 0 Control: YASNAC Operating hours: 1446 Technical data Number of axis total: 5 Table length: 610 mm Table width: 380 mm Longitudinal travel (X-axis): 350 mm Transversal travel (y axis): 300 mm Vertical travel (z axis): 250 mm Tool magazine number of tools: 15 Spindle nose: BT: 30 Distance spindle nose to table: 250 - 500 mm Spindle speeds: stepless from: 100 rpm up to: 16000 rpm Voltage 50 Hz 3x: 380 Volt Spindle power: 5.5 kW Total power required: 14 kW Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1950 mm Width: 1500 mm Height: 2050 mm Various accessories: Tool setter Dividing attachment 4th and 5th axis: NIKKEN Oil mist extractor: ELBARON Interface serial port RS 232
