usato
Centro di lavoro verticale rapido KOVOSVIT MAS MCV 1016
usato
Key data: 1016 mm, 610 mm, 660 mm
Controllo Heidenhain ... TNC 530 La superficie del tavolo di serraggio ... 1300 x 600 millimetri L'asse X ... 1016 millimetri Asse Y ... 610 millimetri L'asse Z ... 660 millimetri Velocità del mandrino ... 0-8000/min. assi controllati ... 3 IKZ Certificazione ISO 40 L x P x A ... 3080 x 2700 x 2800 millimetri Peso della macchina ... 5500kg In funzione dal 2007. Tastatore per pezzi Heidenhain Walter a 4 assi (diametro mandrino 315mm) 2023 nuovo mandrino nuove viti a ricircolo di sfere negli assi X e Y nuova copertina La macchina è in buone condizioni, è possibile eseguire il test sotto l'elettricità.
usato
Key data: 1016 mm, 610 mm, 710 mm
centro di lavoro CNC MAS MCV 1000 Anno di costruzione: 1998 Produttore: Kovosvit MAS Tipo: MCV 1000 Sistema di controllo: Heidenhain 426/430 Dimensioni del piano di serraggio della tavola mm 1300x600 Riduttori finali: X. 1016 millimetri Y: 610 mm Z: 710 mm Carico massimo della tavola: 700 kg Cono del mandrino? ISO 40 (SK40) Velocità massima del mandrino: 8.000 giri/min Numero di posti in magazzino: 20 Potenza del motore elettrico principale: 25 kW Dimensioni: Lunghezza: 3080 mm Larghezza: 2700 mm Altezza: 2940 mm Peso della macchina: 5500 kg Accessoristica: Raffreddamento-Esterno Andare in bicicletta Documentazione 19.000 ore di lavoro Mandrino sostituito nel 2021 La macchina è in buone condizioni tecniche, perfettamente funzionante.
usato
Controllo Heidenhain ... TNC 530 La superficie del tavolo di serraggio ... 1300 x 600 millimetri L'asse X ... 1016 millimetri Asse Y ... 610 millimetri L'asse Z ... 710 millimetri Velocità del mandrino ... 0-10000/min. assi controllati ... 3 IKZ ... 20bar Certificazione ISO 40 Slot per caricatori ... 24 Peso della macchina ... 5500kg La macchina è in buone condizioni, è possibile eseguire il test sotto l'elettricità.
usato
Key data: 750 mm, 500 mm, 550 mm
centro di lavoro CNC MASS MCV 750 Centro di lavoro verticale MAS MCV 750 Produttore: KOVOSVIT MAS Modello: 750 Anno di costruzione: 2003 Peso 4.000 kg HEIDENHAIN TNC 530 Control Cambio utensile 20 posizioni X/Y/Z - 750/500/550 mm Area massima del tavolo: 1000 x 500 mm Carico massimo del tavolo: 400 kg Velocità massima del mandrino: 10.000 min-1 Accessoristica: Raffreddamento Raffreddamento centralizzato Trasportatore Macchina conservata!
usato
Controllo Heidenhain ... Pilota CNC Diametro di tornitura ... 600 millimetri Lunghezza di tornitura ... 700 millimetri letto inclinato Asse Y ... 100 millimetri Foro mandrino ... 77 millimetri Velocità mandrino... 0-5000 giri/min L x L x H ... 3590x2160x2050millimetro Peso macchina ... 5500kg La macchina è in buone condizioni, possibile testare sotto elettricità.
usato
Controllo Heidenhain ... Manuale Plus M Diametro di tornitura... 500 millimetri Lunghezza di rotazione ... 1500 millimetri Foro mandrino ... 83 millimetri Torretta Velocità mandrino ... 0-3000 giri/min. Peso della macchina ... 3200kg L x L x A ... 2538x3238x1920 millimetri Potenza del motore principale ... 17kW peso del pezzo ... 1000kg La macchina è in buone condizioni, possibile testare sotto potenza.
usato

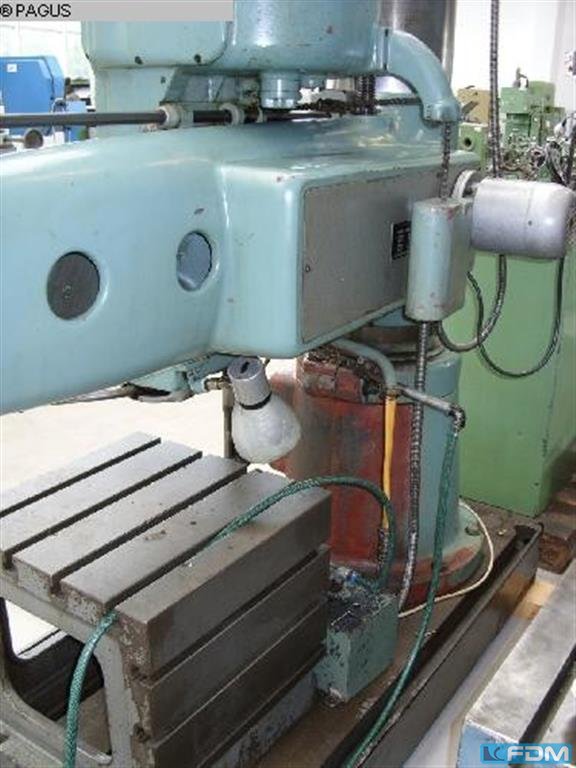

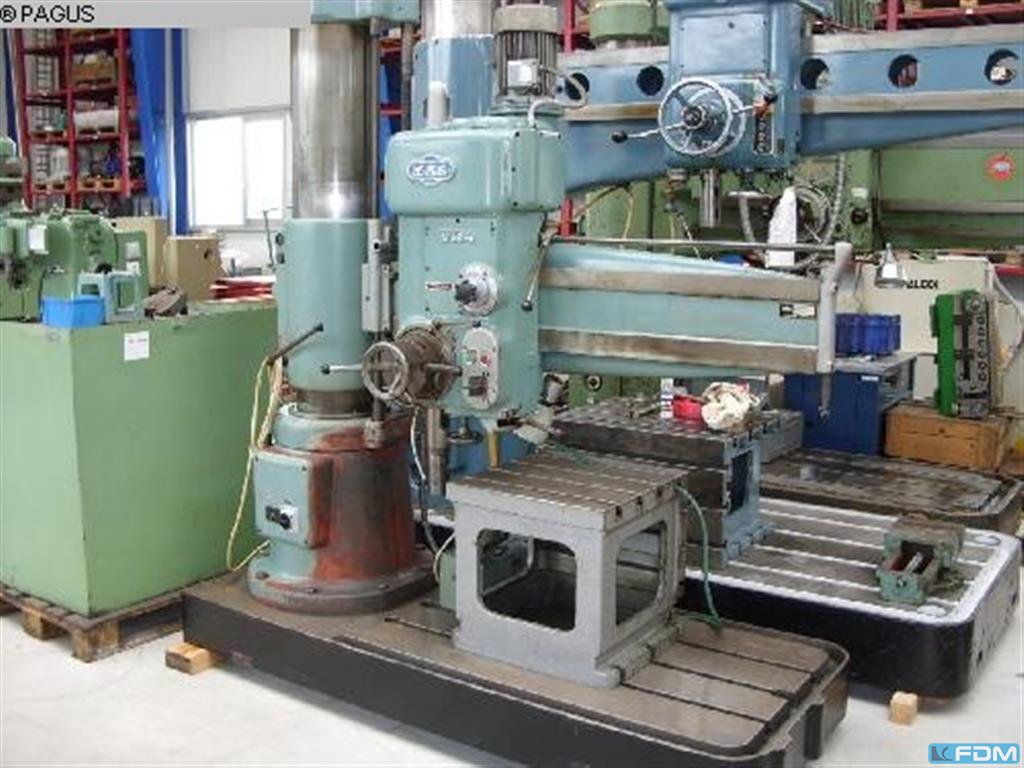

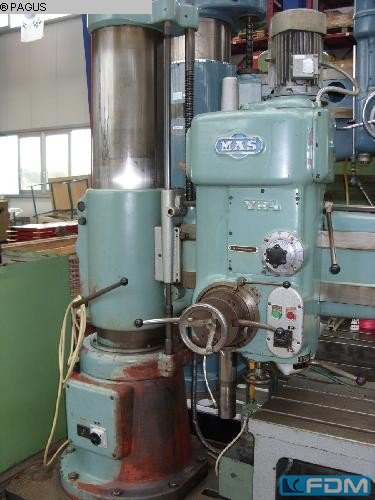

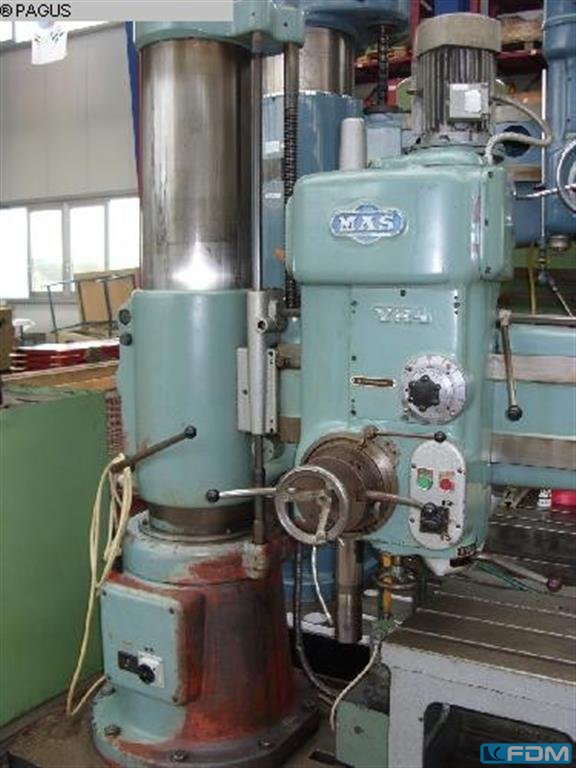

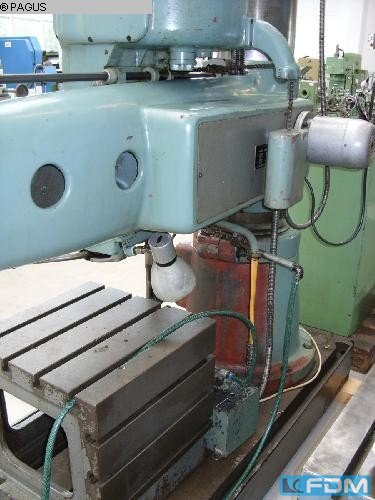

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm
usato
bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm
usato
Weight 4 000 Kg HEIDENHAIN iTNC 530 control system Tool exchange 24 positions Hours worked 9500 X/Y/Z - 754/500/550 mm Max. table area: 1000 x 500 mm Max. table load: 400 Kg Max. spindle speed: 10 000 min-1 Accessories: Cooling Workpiece probe The machine is in excellent technical condition, connected, possibility of testing.
usato
Machine in good technical condition, possibility of testing after agreement. RS Heidenhain 246255, weight 2151 kg, chuck, collet clamping + set of collets. Purchased new glass that will only be replaced.
usato
The machine is in good technical condition. Table clamping area 1500x670 X-axis travel - 1270 mm Y-axis travel - 610 mm Z-axis travel - 720 mm Hedennain TNC 430 control system Spindle speed 10-8000 / min Number of controlled axes: 3 Central cooling Central cooling pressure 10 bar Spindle taper ISO 50 Tool magazine Number of positions in the tool magazine 30 Dimensions lxwxh - 5000x3600x3330 m Machine weight 11000 kg The accessories of the purchase item consist of: -workpiece probe: m & h inprocess messtechnik -clamps SK50 - 25 pcs. Year of production / SO / GO: - / - / 2001
usato
Machine in good technical condition, possibility of testing after agreement. Control system FAGOR year of manufacture 1997 Accessories: rotating knife head + additional dovetails behind the knife head for additional equipment (another knife holder or Morse taper drill equipment).
usato
The machine is in good technical condition. Circulating diameter above the bed 500 mm Circulating diameter above the support 350 mm Distance between points 1500 mm Spindle bore 82 mm Spindle speed - range 0 - 3000 rpm Working feed - range 0 - 2000 mm/min Rapid feed 7500 mm/min Max. workpiece weight 600 kg Total machine input 30 kVA kW Without additional accessories, clamping - Multifix. Dimensions of the machine LxWxH 3130 x 1560 x 1845 mm Machine weight 2600 kg Upon prior agreement, the possibility of inspection while in operation.
usato
5-axis pallet machining center MCV 630 V - 5x r.s. Heidenhan iTNC 530 2 x pallet Chip conveyor Tool magazine 24 positions Cone in spindle ISO 50 Central cooling Belt filtration Tool and workpiece probe Flushing the front telescope Axis travel: Axis x . 700 mm y-axis . 820 mm Axis from . 550 mm Rapid traverse x,y,z, 60 m.min-1 Total max. input power of the machine 85 kVA Installation space 4,200 x 3,600 mm Machine height 2,950 mm Machine weight 18,000 kg
usato
Year of Production/SO/GO: 2001/-/2022 The machine is in good technical condition, inspection possible upon agreement. The machine is after the total G.O. in 2022 complete replacement of ball screw, linears and cleaning of rulers. Control system: Heidenhain TNC 420. Speed range: 20 - 13,000 rpm Travels in the axes: X: 750 mm Y: 500 mm Z: 500 mm Table dimensions: 750 x 500 mm Machine weight: 4000 kg Machine dimensions: 3700 x 2200 x 2735 mm. Equipment: Electrospindle according to G.O. in 2022, chip conveyor, internal cooling - water, central lubrication.
usato
This Kovosvit MAS Numeric A26 CNC Lathe was manufactured in the year 2001. The machine has a spindle speed of 50-7000 rpm.
usato
5000 hours of program operation, in excellent condition, without breakdowns, Regular maintenance inspection is possible
