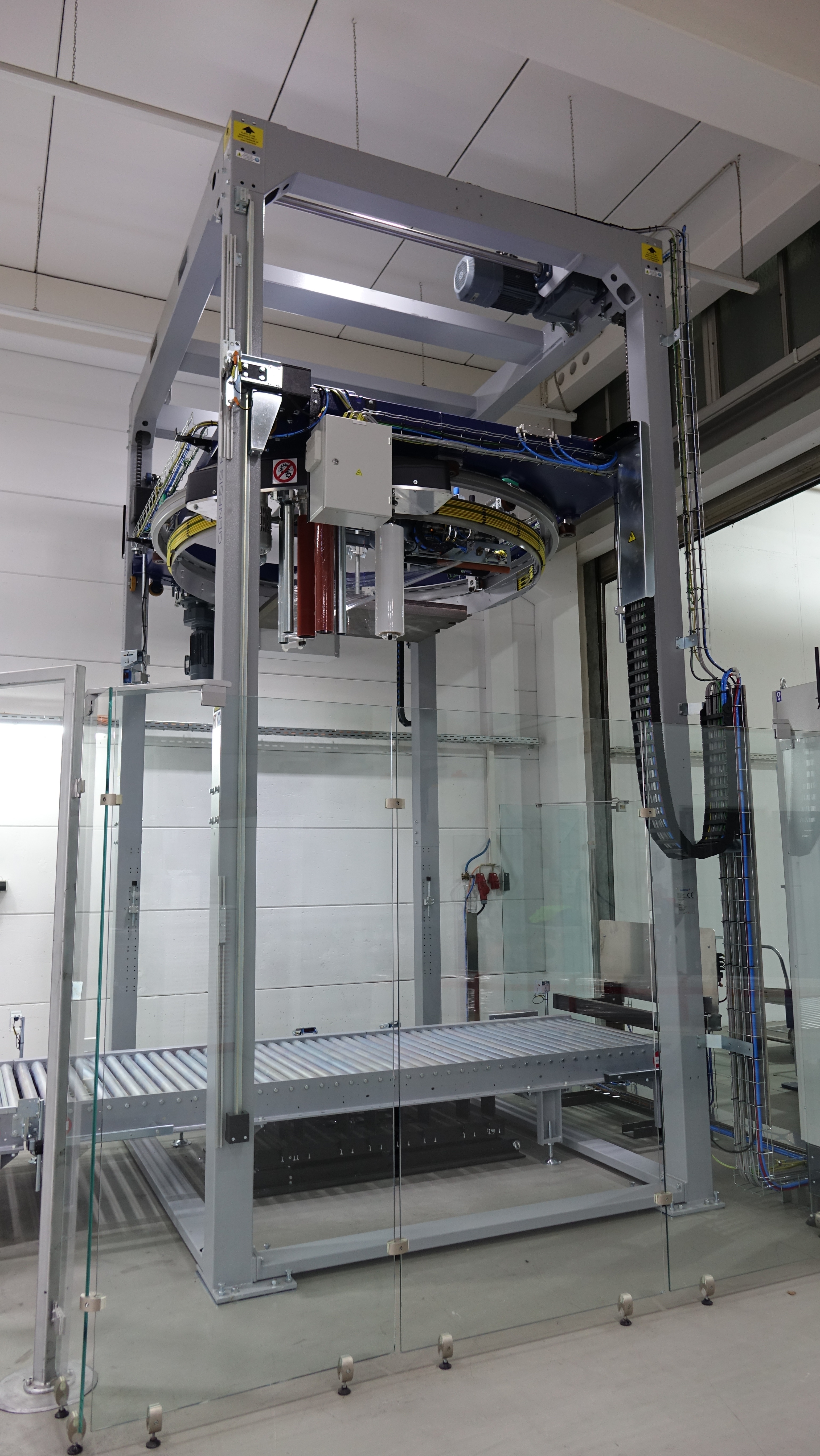

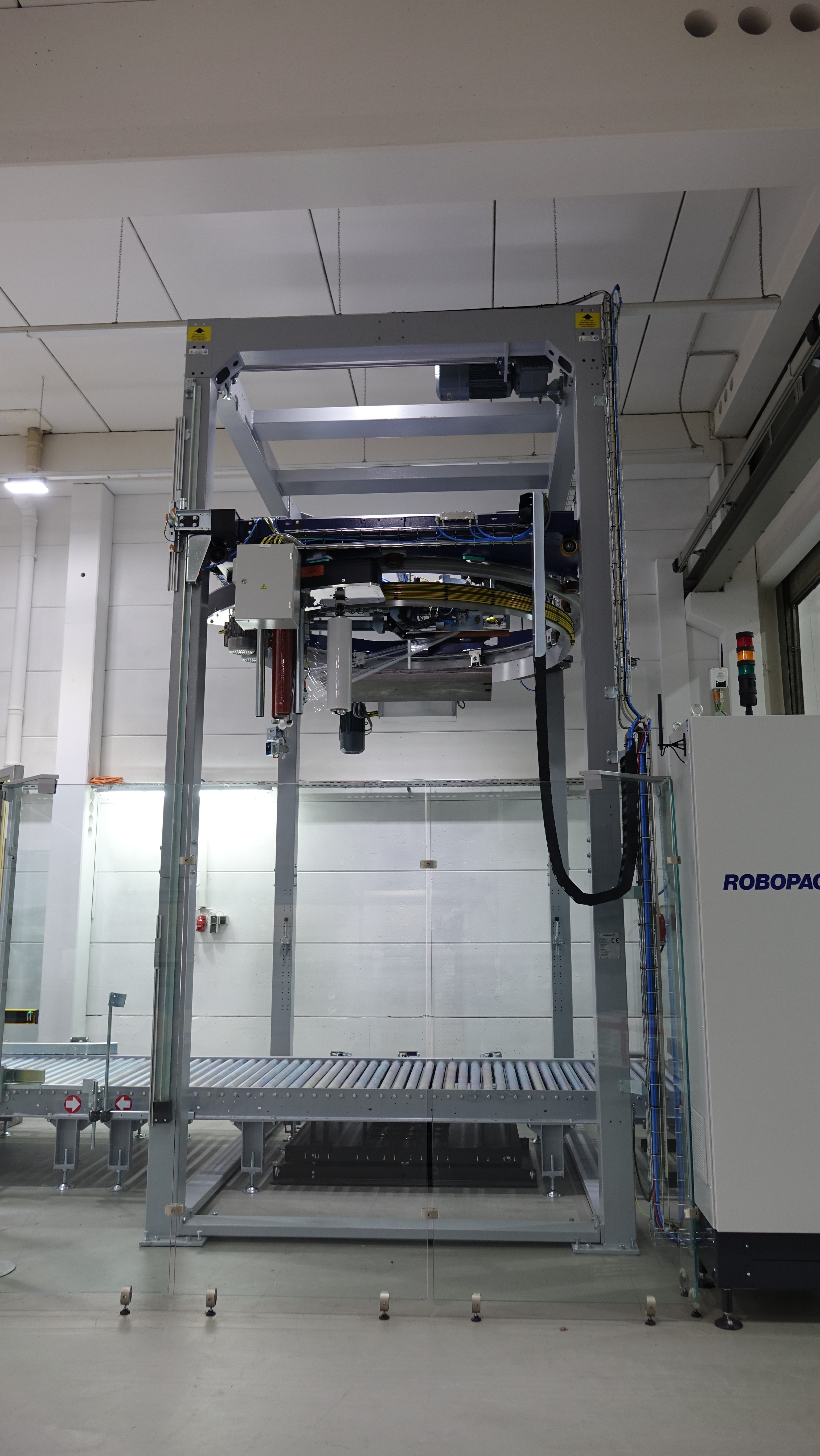

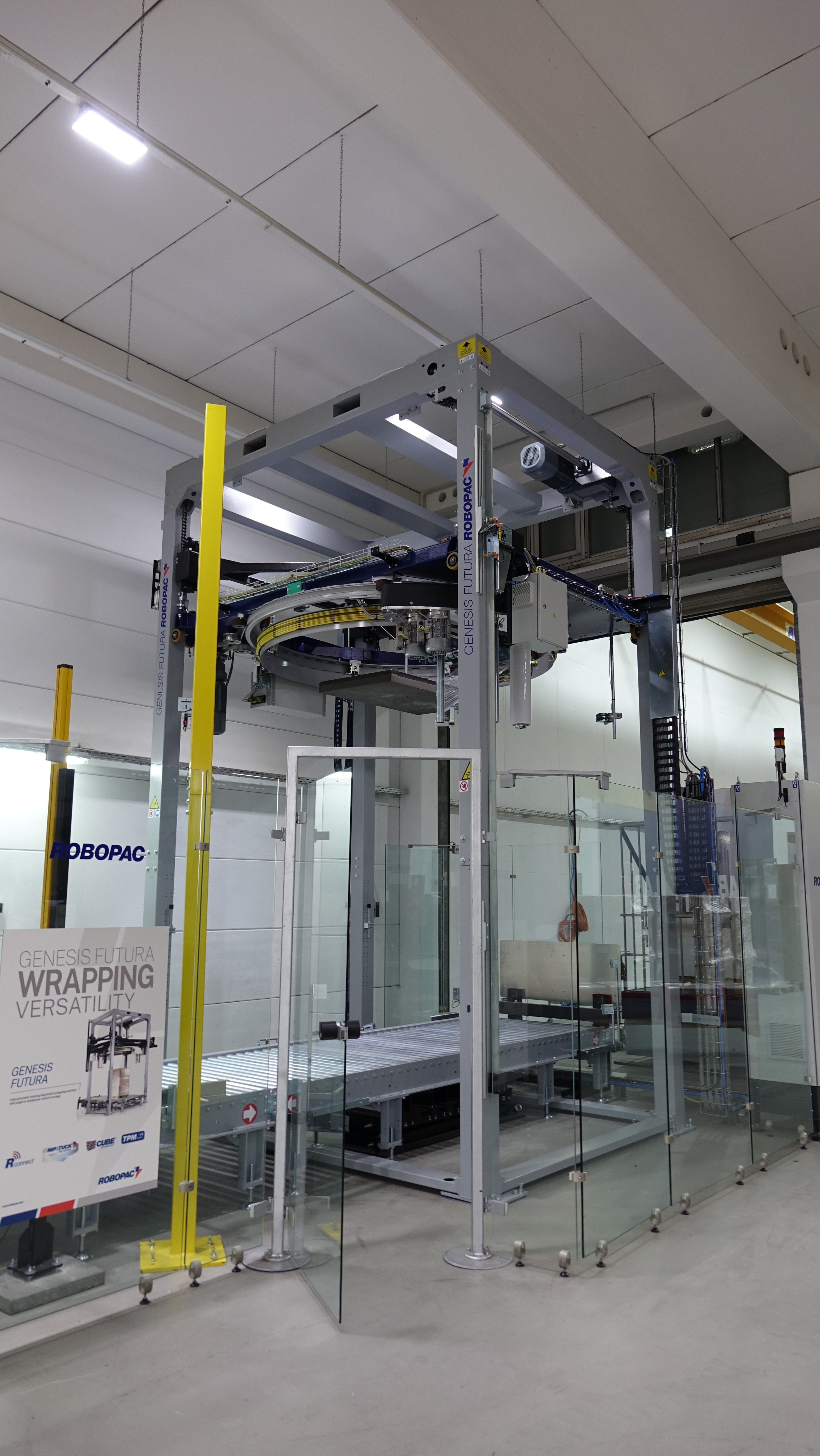

Overview This Robopac Genesis Futura HS is an automatic rotating-ring
stretch wrapper for pallet loads, built in 2023. It has less than 500
operating hours and is technically close to new. The rotating ring
carries the pre-stretch carriage around the stationary pallet, which
allows high throughput without moving the load: up to 92 pallets per
hour at 13 wraps and 1,000 mm load height, 77 pallets per hour at 17
wraps and 1,600 mm, 70 pallets per hour at 19 wraps and 2,000 mm. The
machine is delivered as a stand-alone unit with integrated roller
conveyor and is prepared for line integration over Ethernet TCP/IP.
Technical data Manufacturer: Robopac Model: Genesis Futura HS Year of
manufacture: 2023 Machine type: automatic rotating-ring stretch
wrapper (pallet winder) Operating hours: less than 500 h Capacity: up
to 92 pallets/h (13 wraps, H 1,000 mm), 77 pallets/h (17 wraps, H
1,600 mm), 70 pallets/h (19 wraps, H 2,000 mm) Pallet size: 800 x
1,200 mm Load height: 1,000 mm min. - 2,000 mm max. (incl. pallet)
Load weight: 100 - 1,200 kg Conveyor height: approx. 550 mm, conveyor
speed 15 m/min Machine height: approx. 4,862 mm; required hall height
from 7,000 mm Pre-stretch: SCV-B carriage, electronically adjustable
150 - 400 % Stretch film: LDPE / LLDPE, 17 - 23 µm, roll width 500
mm, max. roll diameter 250 mm, core 76 mm, max. roll weight 20 kg
Control: Siemens SIMATIC S7-1200 PLC with Siemens TP700 7 colour touch
panel Wrapping programs: 15 (expandable to 64), 12 control steps per
recipe, 4 password-protected access levels Power supply: 400 V / 50
Hz, TN-S, control voltage 24 VDC Compressed air: 6 bar, dry and
oil-free Documentation and HMI languages: German / English Equipment
High-speed rotating ring, power transfer to the pre-stretch carriage
via sliding contacts, Wi-Fi command communication Integrated roller
conveyor with pneumatic pallet lifting station (SMC PL-D) Automatic
film clamping, cutting and wide-band sealing unit Fixed vertical
hold-down (top press unit) for load stabilisation during wrapping
Roping device for gathering the film web from below Photocell for
automatic pallet-height reading, plus a pre-scan photocell with 3,800
mm reflector mast for maximum output Inverter-controlled IE3 motors,
SEW geared motors IP55, FESTO pneumatic components, SICK photocells
Siemens Scalance S615 VPN / firewall router and Scalance XB005
Ethernet switch, TCP/IP signal exchange with upstream and downstream
machines Safety system with Reer Safegate SMPO 1803 light curtain,
fenced enclosure and dynamic fall protection on the ring Separate

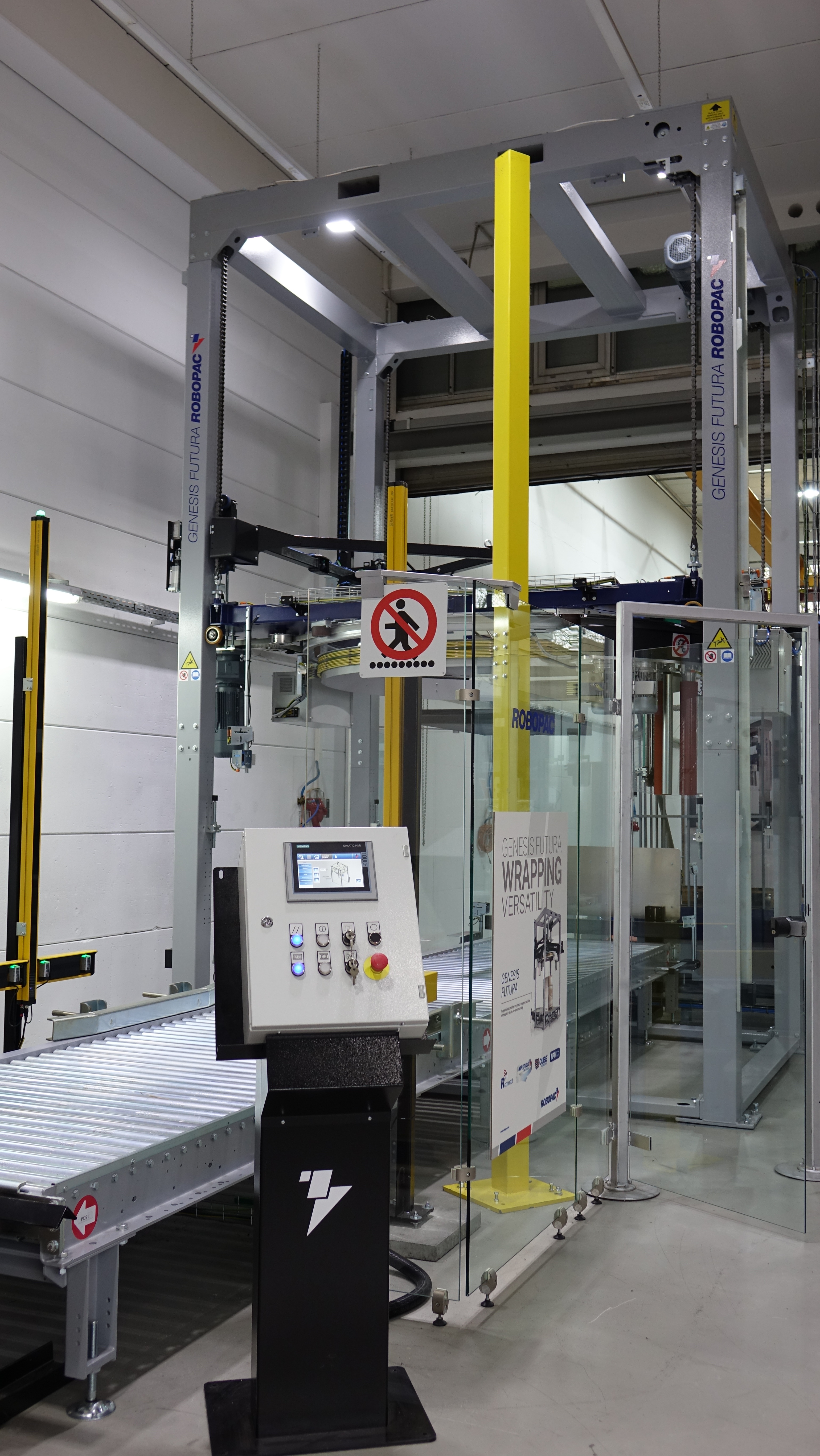

operator panel independent of the main switch cabinet, plus remote
control unit with emergency stop R-Connect remote monitoring hardware
with cloud portal access for production data and teleservice TPM
package (centralised lubrication points, maintenance intervals on the
display) and integrated HMI troubleshooting Complete documentation on
USB stick and in print: operating and maintenance manual, wiring and
pneumatic diagrams, spare parts catalogue, layout Condition Used -
almost as new. Less than 500 operating hours, no visible production
wear. The machine is still installed and under power and can be
inspected in operation on request. Sold without warranty. Availability
Immediately. Location: Germany. The machine is handed over dismantled
and packed (EXW).
