Banco di misura per coordinate

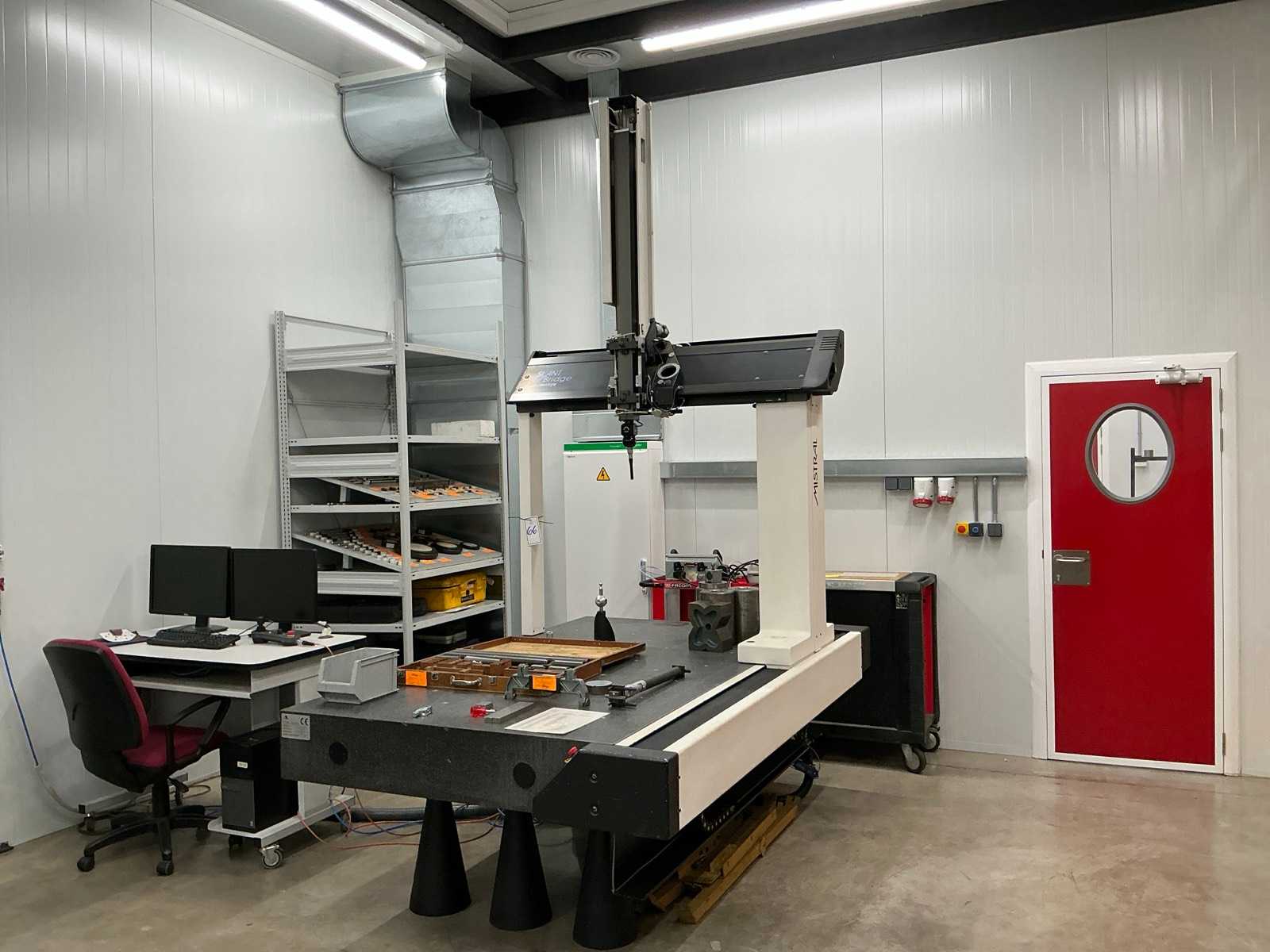

Description: Composed of: - Machine body dimensions 2015x1700x2843 mm - Desk with pc, monitor, HP printer , - External unit ZEISS ACCURA MASS/B, 1600 VA - ZEISS control console - ZEISS calibration sphere - Exchange magazine with Contact Probing System heads and 1 Optical Probing System head - Complete with user and installation manuals , - Complete with instruction manual for CALYPSO software - Various boxes and packaging for component storage  , NOT INCLUDED, EXCLUDED FROM SALE, VISUAL MICROSCOPEz-motion: 700 mm, x-motion: 900 mm, y-motion: 1,200 mm, control: PC, software: CALYPSO, table surface area l x w : 1500x1150 mm, daylight: 1,100 mm, weight approx.: 3,500 kg, Approx. Onsite Dimension. (l x w x h): 1,700 x 2,015 x 2,843 mm

Ref. -No.: 10157Manufacturer: CARL ZEISSYear of construction: 1997Type of control: HP 9000 Serie 700Control: Betriebsystem HP-UX.9.05Storage location: HalberstadtCountry of origin: DeutschlandTurntable: 1000x2100 mmMachine weight: 4.800 kgMachine Height: 3050 mmTable height above the floor: 850 mmX-Axis: 850 mmY-Axis: 1800 mmZ-Axis: 600 mmFurther information:Three coordinate measuring machineMicrocomputer controlX-axis as a longitudinally movable portal Y-axis cross slide in the portal Z-axis as measuring head quill (vertical) Passage between the portal approx. 1,000 / 1080 mmPassage in height approx. 750 mm

Lunghezza della tavola: 5.900 mmLarghezza della tavola: 3.640 mmCorsa X: 2.500 mmCorsa Y: 5.000 mmCorsa Z: 1.500 mmPeso della macchina ca.: 870 kgDimensioni della macchina ca.: 5.900 X 3.640 X 4.555 mm

Description: serial number: 068422 MPEp=1,5 um (micrometer), MPEe=1,5+3L/1000 3D measuring , travels: X-axis: 1320 mm Y-axis: 970 mm Z-axis: 970 mm max. table load: 800 kg  , transport dimensions: main machine: 3300 x 2000 x 2900 mm, weight 4000kg footers: 1200 x 800 x 500 mm, weight 150 kg control unit: 1500 x 800 x 1200 mm, weight 200 kg x-motion: 1,320 mm, y-motion: 970 mm, z-motion: 970 mm, control: DEA, software: DEA, weight approx.: 4,000 kg, Approx. Onsite Dimension. (l x w x h): 3,300 x 2,000 x 2,900 mm

Description: Coordinate measuring machine Serial number: GLCI000195 Measuring range (X/Y/Z): 900 x 1500 x 800 mm Marble dimensions: 2300 x 1000 mm RENISHAW PH10MQ measuring head PC-DMIS software Accessories included  ,Without dongle!z-motion: 800 mm, x-motion: 900 mm, y-motion: 1,500 mm, software: PC-DMIS, table surface area l x w : 2300 x 1000 mm, weight approx.: 4,500 kg, Approx. Onsite Dimension. (l x w x h): 2,800 x 1,800 x 3,000 mm

La macchina di misura a coordinate DEA GLOBAL S 07.05.05 è stata prodotta in Italia nel 2004. La macchina esegue misurazioni rapide e altamente accurate di pezzi con forme complesse utilizzando il metodo a contatto o senza contatto, rappresentato come un insieme di punti di coordinate. L'eccellente qualità e precisione del processo è garantita grazie al montaggio nella macchina DEA GLOBAL S 07 05 05 CMM di una testa di misura RENISHAW PH10MQ indicizzabile con sonda di scansione RENISHAW SP25M, che esegue misure negli assi X,Y,Z con avanzamenti di 700 mm (asse X), 500 mm (asse Y) e 500 mm (asse Z). La macchina di misura DEA GLOBAL Status 07.05.05 è inoltre dotata del software metrologico altamente avanzato PC-DMIS 2019 R1, che esegue misurazioni geometriche dettagliate. Specifiche tecniche della macchina di misura DEA GLOBAL S 07.05.05 - errore massimo ammissibile della misurazion ...

La macchina di misura a coordinate DEA SCIROCCO 151310 costruita nel 1997 in Italia, viene utilizzata per effettuare misurazioni rapide e altamente accurate di pezzi con forme complesse. Le quote del pezzo misurato vengono rilevate dalla testa di misura e quindi rappresentate come un insieme di punti di coordinate su un percorso di contatto o senza contatto. La misura viene eseguita in assi con avanzamenti di 1500 mm (asse X), 1300 mm (asse Y) e 1000 mm (asse Z) con una velocità massima fino a 2 m/min. Il peso totale della macchina di misura è di 3500 kg. Dati tecnici della macchina di misura DEA SCIROCCO 151310 - campo di misura sull'asse X/Y/Z: 1500/1300/1000 mm - errore massimo ammissibile della misurazione della lunghezza MPEe: 5 + 6L/1000 μm - limite massimo ammissibile di ripetibilità MPLR0: 2 μm - Velocità massima di misura: 2 m/min - Risoluzione di misurazione: 0,5  ...

Controllo UCC lite-2 Gamma di misura 700 x 450 x 350 mm Teste di misura (MH20i, PH1, PH6) Varie sonde di misurazione

Asse X: 600 mm Asse Y: 300 mm Asse Z: 200 mmCapacità di carico del tavolo: 25 kg potenza totale richiesta: kWpeso della macchina ca.: 200 kgDimensioni della macchina ca.: 1.0x0,9x0,6 mIl modello è l'XM nella versione da tavolo scorrevole. Le misurazioni vengono effettuate tramite una telecamera a infrarossi, che ha 7 segni sul pulsante manuale e 6 segni sul tavolo. Il dispositivo è stato appena utilizzato ed è in condizioni nuove.

Description: The used PMM-F is specially designed for testing medium-sized components and gears. This 3D measuring machine has an overhead design and serves as a coordinate measuring machine, gear measuring centre, form tester and roughness measuring machine. Area of application: Inspection of medium-sized components and gears Design: Overhead design Functions: Coordinate measuring machine, gear measuring centre, form tester, roughness measuring machine Measuring range: approx. 3,000 x 2,000 x 1,600 mm Resolution: 5 nm Equipment: Various measuring probes Accessories: Work table, mobile container, chair Control desk: Equipped with a Dell PC The PMM-F offers a precise and versatile solution for measuring and testing components and gears in medium dimensions.z-motion: 1,000 mm, x-motion: 3,000 mm, y-motion: 2,000 mm, table surface area l x w : 3000x2000 mm, weight approx.: 32,000 kg, Appr ...

x-travel: 1000 mmy-travel: 3000 mmz-travel: 2000 mmOverall size: 4,5 x 4 x 5,2 mmachine weight ab.: 8,5 t3D measuring machine, Leitz/Hexagon, type PMMF1600 / M00-211-300,Equipment/ Accessories: - div. probes- div. accessories- overhead design,- used as a coordinate measuring machine,- gear measuring center,- form tester,- roughness measuring device,- measuring range approx. 3,000 x 2,000 x 1,600 mm,- resolution 5 nm,- control panel, PC, Dell, Intel Core i5 processor, 2 20 monitors Dell,The PMM-F is specially designed for the inspection of medium-sized components and gears. This 3D measuring machine is designed in an overheadconstruction and serves as a coordinate measuring machine,gear measuring center, form tester and roughness measuring device.Area of application: Inspection of medium-sized components and gearsDesign: Overhead designFunctions: Coordinate measuring machine, gear measuri ...

x-travel: 1000 mmy-travel: 3000 mmz-travel: 2000 mmweight: 8,5 tDimensions (HxWxD): 4,5x4x5,2 mm3D measuring machine, Leitz/Hexagon, type PMMF1600 / M00-211-300,- Overhead design, - Used as a coordinate measuring machine, - Gear measuring centre, - form tester,- roughness measuring device,- Measuring range approx. 3,000 x 2,000 x 1,600 mm,- resolution 5 nm, - Control desk, PC, Dell, Intel Core i5 processor, 2 20 monitors, DellThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Campo di misura X 500,Y700,Z400 mm Testa di misura Renishaw MH 20i Software MCosmos-2 v4.2.R1

N. Inv. : 7182 Tipo: Crysta Plus M544 Produttore: Mitutoyo Creato: 2012 Parametri: Dimensioni del tavolo: 860 x 638 mm Asse X: 505 mm Asse Y: 405 mm Asse Z: 405 mm Peso massimo del pezzo: 180 kg Dimensioni macchina: 2185 x 1082 x 1078 mm Peso della macchina: 440 kg

Description: measurement range: X-axis: 700 mm Y-axis: 700 mm Z-axis: 600 mm max. ,acceleration for each axis: 1.333 mm/s2 max. ,measurement speed: 8 mm/s measurement resolution: 0.1 µm work table dimensions (length x width): 860 x 1420 mm max. ,permissible length measurement error MPEE0: 1.7+3 L/1000 µm measurement error of the shape of a single MPEPFTU measuring pin: 1.7 µm max. ,permissible measurement error of MPETHP scanning: 2.3 µm (50 s) travel speed: driving mode: 0-80 mm/s slow mode: 0-3 mm/s measurement mode: 0.05 mm/s CNC mode: 8-300 mm/s max. ,detail weight: 800 kg max. ,detail height: 800 mm z-motion: 600 mm, x-motion: 700 mm, y-motion: 700 mm, table surface area l x w : 860 x 1420 mm, weight approx.: 1,700 kg, Approx. Onsite Dimension. (l x w x h): 1,500 x 1,800 x 2,800 mm

Description: few hours of operation  , measuring range:  ,X axis 500 mm  ,Y axis 400 mm  ,Z axis 400 mm ,  , resolution: 0.0005 mm accuracy (20 °c) ISO 10360-2 , temperature compensation function: Standard , length standard: Linear encoder guide method: Air bearing on each axis , clamping on each axis: One-touch air clamp fine feed of each axis: continuous fine feed over the entire measuring range on each axis table dimension:  ,764 x 875 mm , material: Granite ,  , workpiece: , maximum height: 595 mm maximum mass: 180 kg  , Z-axis balancing method: Counterweight (adjustable by 1.5 kg) , air supply , pressure: 0.35MPa (air source: 0.5-0.9MPa) , consumption (under normal conditions): 50 l/min (air source: 100 l/min) ,  , please also have look at pdf file of this machine z-motion: 400 mm, x-mo ...

Description: Serial number: 48120321 Incl. PC system, keyboard, mouse and 21.5' LCD monitor Software: MCOSMOS, parts manager GEOPAK manual Incl. MH20i manually indexed sample head Incl. ceramic calibration sphere Incl. starter kit: steel pins with ruby: dia 1 x 10 mm, dia 2 x 20 mm, 3 x 20 mm, 4 x 20 mm and 2 extensions: 10 mm and 20 mm for changing Panel dimensions: approx. 1200 x 840 mm Travel distance X: approx. 600 mm Travel Y: approx. 550 mm Z travel: approx. 400 mmweight approx.: 1,000 kg, Approx. Onsite Dimension. (l x w x h): 1,300 x 1,150 x 2,200 mm

Description: serial number 0265501 measuring range X x Y x Z : 200 x 200 x 200 mm resolution: 0.1µm accuracy: X, Y : (1.5+3L/1000) Z (image): (3+4L/1000) repeatability Z: S=0.4 µm drive speed: 300mm/s table glass size: 329x271 mm max work mass: 15 kg technical attributes setting measure approx (l x w x h) 700 x 800 x 1000 mm z-motion: 200 mm, x-motion: 200 mm, y-motion: 200 mm, table surface area l x w : 329x271 mm, weight approx.: 250 kg, Approx. Onsite Dimension. (l x w x h): 700 x 800 x 1,000 mm

Description: Serial number: 9906116120 Without computer and license z-motion: 200 mm, x-motion: 400 mm, y-motion: 200 mm, weight approx.: 750 kg, Approx. Onsite Dimension. (l x w x h): 1,100 x 900 x 2,000 mm

Numero di assi : 6 Lunghezza di misura : 1.2 m Software : PCDMIS PRO

Macchina di misura a coordinate STIEFELMAYER - No 1 1 braccio tipo C100 413514 Corsa longitudinale del braccio: 1250 mm Corsa braccio in altezza: 1500 mm Comando elettronico GRUNDIG Dimensioni marmo: 3000 x 1500 x 350 mm Altezza piedini: 600 mm (con 6 piedi) Peso: circa 4 T 2 stesse macchine disponibili

Description: MPEp=4um, MPEe= 1.5+3L/1000 3D Measuring travels: X-axis: 458 mm Y-axis: 508 mm Z-axis: 406 mm max. table load: 227 kg table dimensions: 750 ,x 560 mm column height: 2362 mm granite countertop artificial stone base  , transport dimensions: 1200 x 1200 x 1600 mm, weight 200 kg 1200 x 1200 x 800 mm, weight 200 kg 400 x 400 x 400 mm, weight 10 kg x-motion: 458 mm, y-motion: 508 mm, z-motion: 406 mm, software: BROWN & SHARPE METROLOGY, table surface area l x w : 750 x 560 mm, weight approx.: 410 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 2,450 x 1,600 mm

Description: travels: X-axis: 350 mm Y-axis: 300 mm resolution: ,0.0005 mm repeatability: (2s) 0.002 mm  , export not possiblex-motion: 350 mm, y-motion: 300 mm, weight approx.: 850 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 2,000 mm

n° 5104: 1 gebr. Macchina di misura a coordinate / CMM - Dispositivo hobbista / vettore ET - Fabr. WENZEL / NUMEREX, Tipo 1318-10 Mnl, Bauj. 1987 Arb.-Ber.: 330 x 440 x 180 mm, Altro: Spazio richiesto circa 1 x 1 x 1,5 m Peso approssimativo 300 kg

x-travel: 3000 mmy-travel: 2000 mmz-travel: 1000 mmControl: total power requirement: 3 kWweight of the machine ca.: tdimensions of the machine ca.: mmeasuring machineLeitz 30 20 10Year of construction 1990Traverse paths / measuring rangeX 3000mmY 2000mmZ 1000 mmLength 4915mmWidth 3760mmHeight 4062mmportal passage2380x1915mmmeasurement accuracy±0.003mmMaximum workpiece weight:24,000kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensioni tavola 2500x1500 mm X Corsa 1200 mm Corsa Y 1800 mm Corsa Z 1000 mm Testa di misura VAST XT

Campo di misura 1000,1200,600 mm Testa di misura tipo VAST XXT Software CALYPSO 2017 Versione 6.4.02

Controllo UMess-300 / Software versione 5.10 Max. distanza percorsa asse X/Y/Z 850/1200/600mm Sonda di commutazione / Autom. Cambio pulsante Accessoristica: Cornice a pulsante con 5 posizioni dei pulsanti

Description: Including measuring probes, operation, calculatorz-motion: 700 mm, x-motion: 1,000 mm, y-motion: 700 mm, weight approx.: 3,000 kg, Approx. Onsite Dimension. (l x w x h): 1,400 x 1,400 x 2,700 mm

X-Travel: 1800 mm Y-travel: 1200 mm Z-travel: 1500 mm

Description: Travel distances: X: 3406 mm Y: 815 mm Z: 1049 mm Table dimensions: 4000 x 2000 mm The machine is equipped with a digital display from the manufacturer 3D-LASERTEC The machine has been serviced annually and is still in a very accurate measuring range Attention: the articles on the measuring plate are not included in the scope of deliveryweight approx.: 8,000 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 2,700 x 2,400 mm
