usato
Sistema di controllo Rexroth 200 BTV30 Diametro di circolazione sopra il letto: 160 mm Diametro di circolazione sopra il carrello frontale 250 mm Diametro mandrino 160 mm Lunghezza tornibile 300 mm Velocità mandrino 8000 min-1 Revolver a 12 velocità con attacco Concorrenza. Nastro trasportatore per pezzi Trasportatore Portautensili vari
usato
N. 3701: 1 gebr. Fresatrice verticale consol Fabr. HESSAPP, tipo HC 50 et, Bauj. 1981 con controllo percorso Heidenhain TNC 135 / Indramat Arb.-Ber.: 600 x 350 x 500 mm, potenza di trasmissione: 2,3 kW Accessori: Superficie del tavolo 1180 x 330 mm Altro: Gamma di velocità 70 - 6000 giri/min
usato
Rotation diameter: 450mm, control: GE Fanuc Series 21i-TB, weight: 13.5t, operating hours: 80,305h, available from 1st quarter 2024.
usato

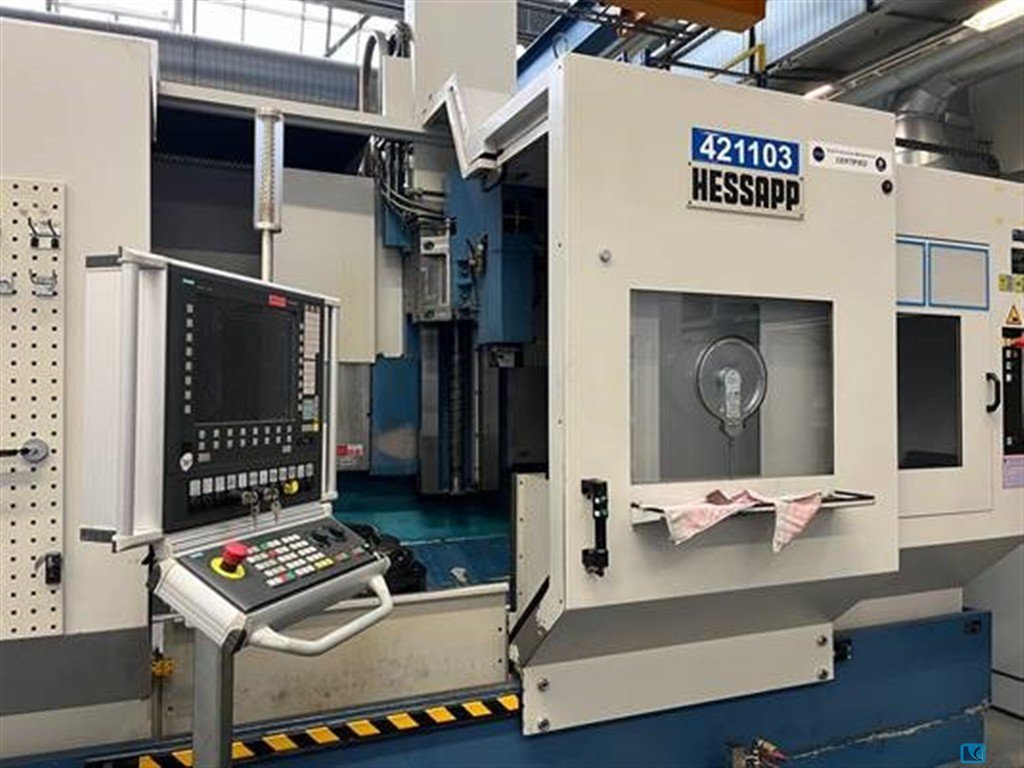

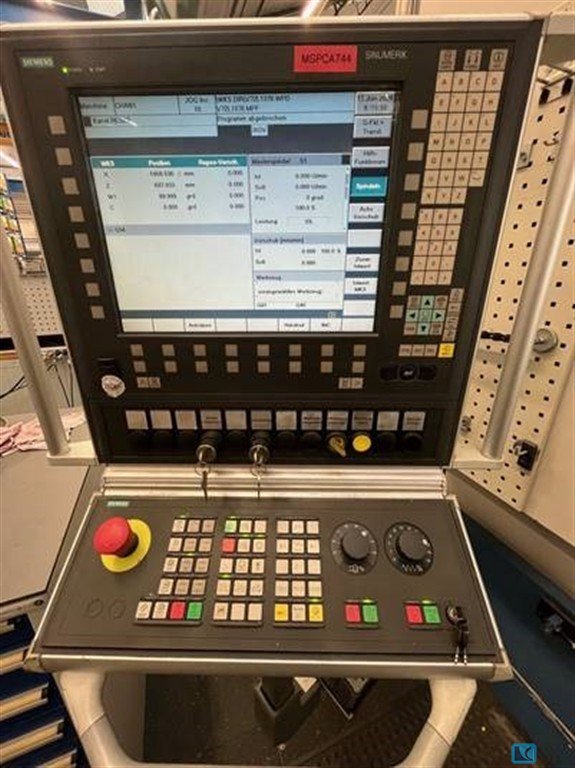

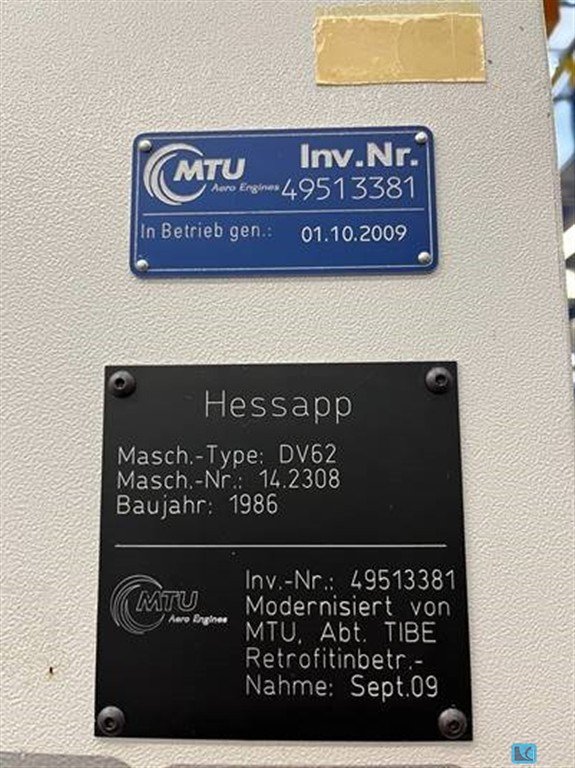

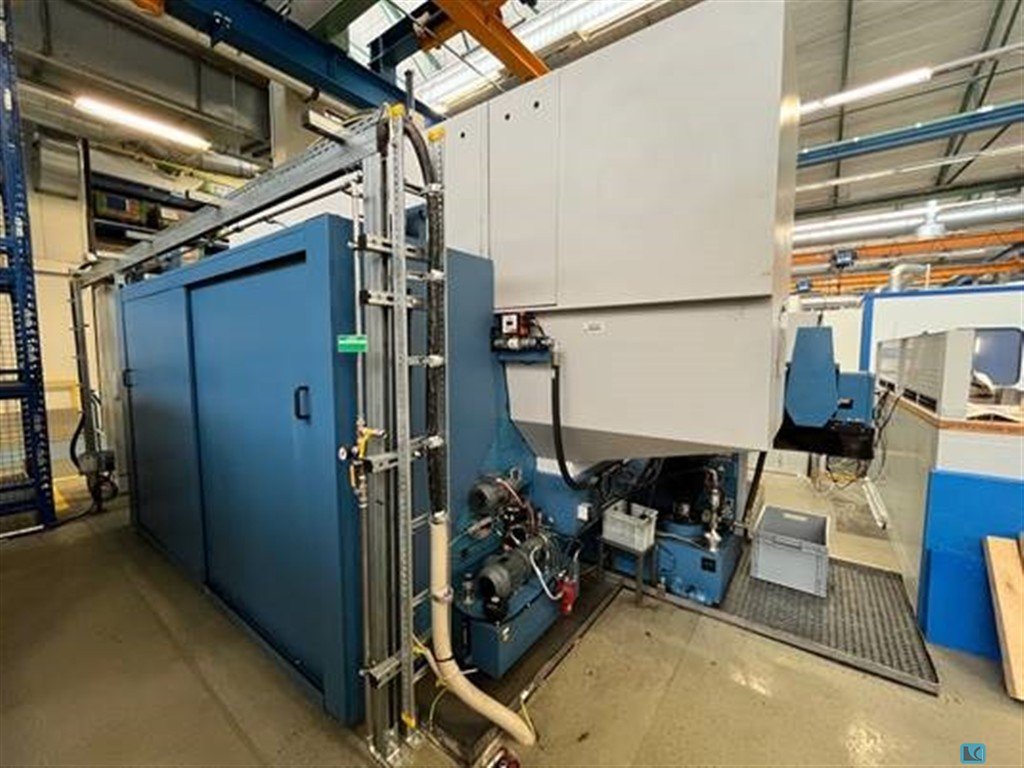

turning diameter:300 mm total power requirement:2 x 160 kW weight of the machine ca.:2 x 18 t swing dia.:350 mm stroke of vertical slide:250 mm stroke of the horizontal slide:280 mm spindle diameter in front bearing:140 mm spindle turning speed range:80-1120-2800 U/min Available from 01.08.2024 Flexible rotating cells DV-32-2 In day frame construction consisting of: 2 CNC vertical lathes each with: 1 main spindle and 1 cross slide with CNC Sinumerik 3T suitable for synchronous or asynchronous machining processes With integrated loading and measuring automation
usato
turning diameter:300 mm turning height:300 mm total power requirement:70 kW weight of the machine ca.:11,5 t
usato
Turret milling machine Brand: HESSAPP (Made in Germany) Model: HC-50et Year: 1970 Description: - Table length: 1180x330mm - Spindle turning speeds: 70 - 6000rpm - X axis travel length: 600mm - Y axis travel length: 350mm - Z axis travel length: 500mm
usato
diametro di tornitura: 450 mm diametro di rotazione: 510 mm altezza di tornitura: 450 mm Controllo: FANUC 21i-TB potenza totale richiesta: 40 kW peso della macchina ca.: 13,5 t dimensioni della macchina ca.: LTH 6,2 x 2,7 x 3,2 m incl. magazzino incl. convogliatore di trucioli incl. utensili motorizzati
usato
turning diameter: 200 mm swing diameter: 250 mm turning height: 350 mm control: Siemens Sinumerik 840 D spindle diameter in front bearing: 100 mm feed range: 0,1 - 20000 mm/min rapid traverse: 20 m/min stroke of vertical slide: 300 mm spindle head DIN 55026 - Size: A 6 : 50 - 6500 1/min Speed range drive tool: 0 - 3000 1/min total power requirement: 40 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 4,5 x 4,0 x 3,5 m equipped with: - CNC Control Siemens 840 D - Tool turret for 12 tools VDI 40 - driven tools on station 1/4/7/10 - conveyor belt - no coolant system (machines was added to a centrelized coolant system) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
usato
turning diameter: 200 mm swing diameter: 250 mm turning height: 350 mm control: Siemens Sinumerik 840 C spindle diameter in front bearing: 100 mm feed range: 0,1 - 20000 mm/min rapid traverse: 20 m/min stroke of vertical slide: 300 mm spindle head DIN 55026 - Size: A 6 : 50 - 6500 1/min Speed range drive tool: 0 - 3000 1/min total power requirement: 40 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 4,5 x 4,0 x 3,5 m equipped with: - CNC Control Siemens 840 D - Tool turret for 12 tools VDI 40 - driven tools on station 1/4/7/10 - conveyor belt - no coolant system (machines was added to a centrelized coolant system) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
