GILDEMEISTER macchina utilizzata in vendita

turning diameter:700/410 mm turning length:800 mm speeds spindle 1:5000 1/min speeds spindle 2:6000 1/min Main spindle capacity:32/25 kW hollow clamping cylinder:77 mm y-Axis min./max.:+/- 100 mm tool magazin::48 Pos tool taper:HSK 63 milling head speed:12.000 1/min milling spindle drive:22,5 / 19 kW total power requirement:74 kVA dimensions of the machine ca.:6,50 x 2,68 x 2,00 m sub spindle power:14,5 / 12,5 kW CNC - Turnmill with B-axis (torque-motor) and subspindle, 5-axis simultaneously machining, alternating speed, MPC 1.0, 3-D touchprobe BLUM TC62, Main spindle ISM 76, C axis and brake Subspindle ISM 52, C axis and brake Partly hollow clamping device for subspindle ( D = 52 ), Differential pressure device for main- and subspindle coolant device 8/20bar, 20/25 l/min, paperfilter, coolant through subspindle, Chip conveyer, Chuck flushing device (main- and subspindle), oilmist suctio ...

swing diameter:320 mm control:840 D SIEMENS turning speeds:5000 1/min spindle drive:20 / 27 kW chucking diameter:250 mm travel -x axis:650 mm travel -z axis:300 mm turret head:12 Pos. tool holder:VDI 40 toolpiece turning speed range:4000 1/min work piece power:max. 11,7 kW weight of the machine ca.:8 t CNC vertical lathe, live tools, C-axis, high pressure pump 20 bar, 500l, filter, flush gun, 3-jaw chuc, EWAB loading station right, chipconveyor, approx. 23.500h "machine on", approx. 8.000h "spindle on"

tool taper: 40 shaft cross cut:40 appr. 40 pieces axial driven tool taper with various cutters Used with Gildemeister GDM CNC lathe Sale as complete package or single, min. 5 pieces Price offered for complete package

Swing over bed/ plane: 600/ 420mm, max. turning length: 829mm, quill stroke: 120mm, weight: 9.6t, including chip conveyor, machine needs overhauling.

The deep drilling machine B3N 800 can be seen live by appointment. The machine worked until 10/2023. The technical condition corresponds to the age of the machine. The basic bed of the machine is composed of 4 parts. The total area needed to store the machinery and filtration is 25 x 3.5 m. The length of the machine itself without filtration is 22.5 m.

Description: CNC control SIEMENS 840 D Turning length (max.) 330 mm Swing diameter (max.) 200 mm Center width 800 mm X-axis 1100 mm Z axis 300 mm Maximum partial weight 20 kg Spindle bore 56 mm Number of revolvers 12 Number of tools 8 Spindle speeds 7000 rpm Spindle motor power 11 kW weight approx.: 3,000 kg, Approx. Onsite Dimension. (l x w x h): 1,600 x 1,700 x 1,600 mm

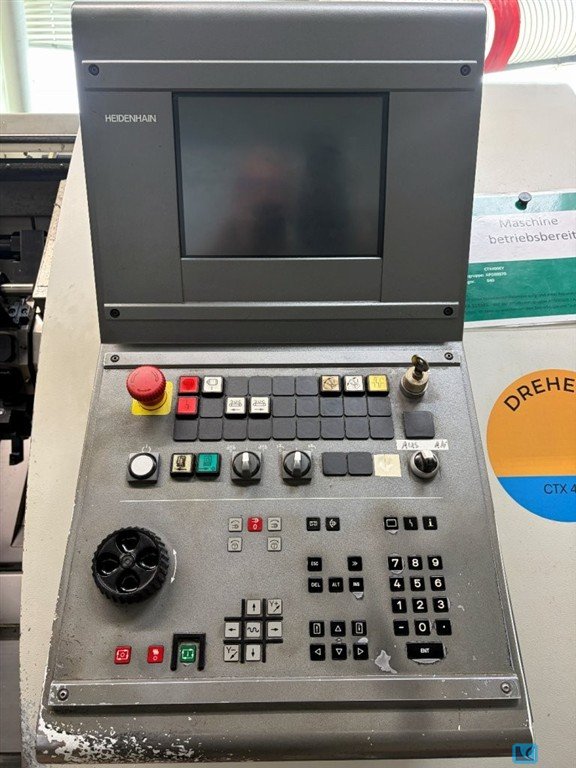

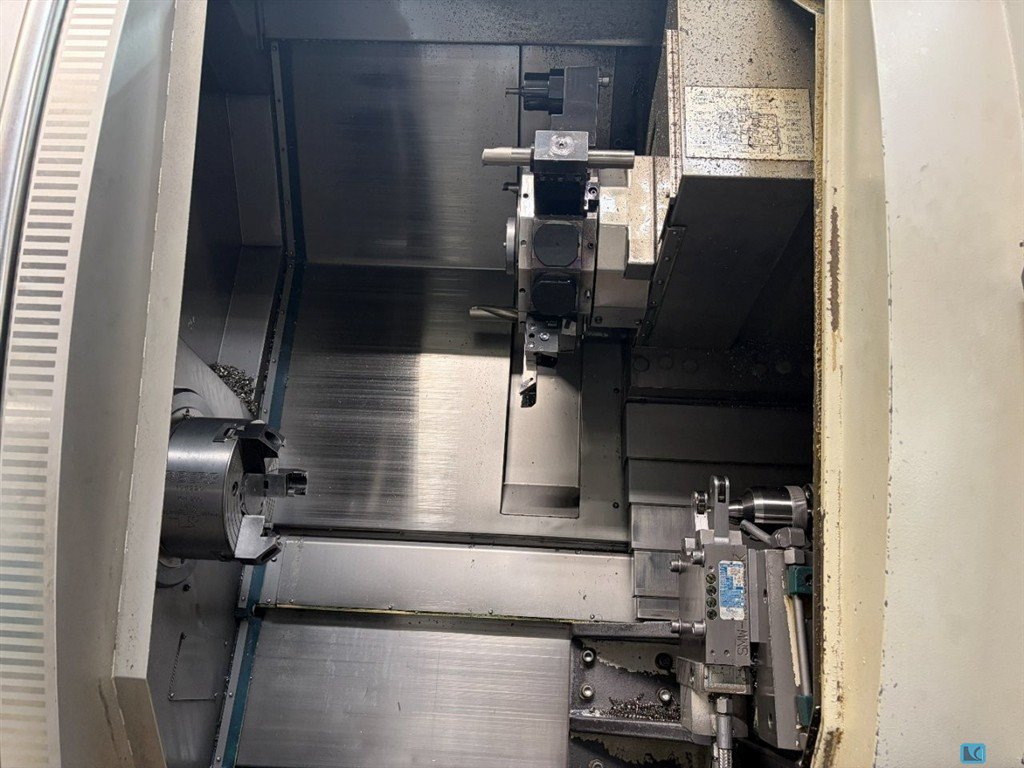

Description: 1 used CNC turning and milling center Make: Gildemeister, model: CTX 420 V 3 with Heidenhain 4290 iT, built in 2004, turning diameter 565 mm Turning length 625 mm X-travel 260 mm Speed ​​range - main spindle 25 - 5000 rpm Drive power - main spindle 25 kW max. torque 270 Nm Spindle nose  ,170h5 Bar diameter 65 mm C-axis 0.001° turret stations 12 pos. Tool holder VDI 40 Powered tool stations 12 pos. Speed ​​driven tools 4500 rpm Drive power for powered tools 12 kW Tailstock holder MK 4, Rapid traverse X / Z 60 / 45 m/min Space requirement approx. with bar loader 7495 x 2484 x 1885 mm Accesories: Bar loader 3200 mm Iemca Master 880 MP-E chip conveyor Parts catcher Conveyor belt Measuring arm C axis driven tools collet chuck Tool package documentation data backup very well maintained machine control: Heidenhain 4290 iT, Approx. Onsite Dimension. (l x w x h): 7,500 x ...

Description: 1 used cycle lathe Make: Gildemeister Model: N.E.F. 320 K, built in 2004 Condition: very good Siemens control (touch) Swing diameter 320 mm Turning length 750 mm Speed ​​3500 rpm Drive power 9 kW Bar diameter 50 mm Tool holder Multifix size. b Tailstock mount MK 4 Rapid traverse X / Z 8 / 10 m/min Accesories: 3 jaw chuck Forkardt 200 Tool package documentation Drehlänge: 750 mm, control: Siemens (Touch), turning speed range: 3,500 rpm, Approx. Onsite Dimension. (l x w x h): 2,500 x 1,500 x 1,600 mm, weight approx.: 2,500 kg

Description: 1 used CNC lathe make: Gildemeister, model: CT 40, built in 1987 EPL 2 control Switch-on hours: 2250 hours. max. turning diameter 400 mm Turning length 600 mm Spindle holder 140h5 Spindle bore 72 mm Drive power 11 kW Speed ​​range continuously variable 20-4000 min Z rapid traverse/feed speed 10/5 m/min. X rapid traverse/feed speed 10/5 m/min. Recording VDI 30 Number of tool locations 12 Accesories: Manual chuck documentation Data backup. turning diameter: 400 mm, Drehlänge: 600 mm, Read off operating hours: 2,250 h, control: EPL 2, toolchanger positions: 12, spindle bore: 72 mm, turning speed range: 20-4000 rpm, weight approx.: 3,400 kg, Approx. Onsite Dimension. (l x w x h): 3,300 x 1,780 x 1,800 mm

greates pass round over bed: 500 mm swing diameter over bed slide: 285 mm turning length: 1500 mm control: HEIDENHAIN control: MANUAL PLUS centre height: 250 mm centre distance: 1500 mm spindle bore: 70 mm spindle turning speed range: 8 - 2800 U/min spindle head: DIN 55027 Gr. 8 spindle drive: 11 kW max. torque on the spindle: 1050 Nm feed power X/Z axis: 5000 / 10.000 N rapid traverse X-axis: 6 m/min rapid traverse Z-axis: 8 m/min tailstock quill diameter: 80 mm tailstock quill stroke: 180 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,1 t dimensions of machine L x W x H: 3,30 x 1,92 x 1,93 m Accessories: 3-jaw chuck FORKARDT 250 mmø, 3-jaw chuck FORKARDT 315 mmø, face plate 500 mmø, combined changing tool post SANDVIK- COROMANT for inserts MULTIFIX C and CAPTO C 5, various inserts MUTLIFIX C and CAPTO C 5, 2 solid steadies,  ...

turning diameter: max. 42 mm turning length: ca. 120 mm control: 160i Fanuc Main spindle:: max. usable bar diameter: 42 mm Max. speed main spindle: 6.500 min/-1 power capacity - main spindel: 5,5 kW C-Axis: 360 ° Subspindle:: max. usable bar diameter: 42 mm Max. Speed Subspindle: 6.500 min/-1 power capacity - Sub spindle: 3,7 kW C-Axis: 360 ° slide I:: x-axis: 65 mm y-axis: 350 mm z-axis: 120 mm rapid traverse: 30 m/min Accelaration: 5/10 m/s² feed power: max. 350 daN Tool Slide I:: number of toolpositions: 13 ((6+3)+4) pos. Number of fixed tools: 6+3 pos. Number of driven toolspositions: 4 pos. collets: ESX 20 slide II:: x-axis: 265 mm z-axis: 320 mm rapid traverse: X: 18 / Z: 30 m/min Accelaration: 5 m/s² feed power: max. 350 daN Slide Y2:: y-axis: 326 mm rapid traverse: 30 m/min Accelaration: 5 m/s² feed power: max. 350 daN Tool Slide II:: number of toolpositions: 11 ((4+3 ...

turning diameter: 200 mm turning length: 400 mm control: FANUC, 0i-TC swing diameter: 330 mm spindle bore: 68 mm x-travel: 160 mm z-travel: 450 mm spindle turning speed range: 5000 U/min C-axis resolution: 0,001 ° tool turret: 1 x 12 Pos number of driven tool stations: 6 tool taper: VDI 30 speed of driven tools: 4500 U/min total power requirement: 16,5 kW weight of the machine ca.: 3,2 t Accessories: hydr. 3-jaw chuck 200 mmø, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 7-axis Gildemeister TWIN 65 lathe was manufactured in 2004. It is equipped with a Sinumerik 840D control system and features both a main and counter spindle with speeds up to 5000 rpm. The primary spindle drive offers a robust 35 kW of power, while the counter spindle delivers 26 kW, accommodating a rotation working range of Ø 250 mm for the main and Ø 120 mm for the counter spindle. Additionally, this lathe includes a bar feeder with a maximum diameter capacity of 62 mm. The Gildemeister TWIN 65 machine we have for sale is ideal for efficient, high-precision manufacturing. Reach out for more information about this lathe.

: 2 diametro di tornitura: max. 250 mm torrette di pedaggio: 2 x 12 controllo: Fanuc 16 T cono utensile: HSK 63 : 04800000181 frequenza: 50 Hz ampere: 168 A

control: 840 C control: 2x 840 D : Kühlmittelsystem chip conveyor: ja kW generator - rated current: 95,00 A connected load: 65,00 kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 8-axis lathe, manufactured in 2008, the DMG Gildemeister Sprint 50 Linear, features a Fanuc 300I control system, 3 turrets, a sub-spindle, and comes with a diverse set of tool holders: 4x Z driven, 3x X driven, and 3x adjustable/X driven. Including 74687 operational hours and 45426 production hours, it also comes with a box of electrical/spare parts and a bar loader from IEMCA (Boss 552-HD). Consider the opportunity the DMG Gildemeister Sprint 50 Linear lathe we have for sale represents. Contact us for further details.

turning diameter: 650 mm turning length: 2097 mm control: Heidenhain TurnPlus total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Heidenhain TurnPlus cnc control 3-jaw chuck diameter 400mm turret with 12 tools (VDI50) C-axis driven tools steady rest tail stock chip conveyor Technische Daten / technical details: Längsweg Z / travel longitudinal Z 2097 mm Umlaufdurchmesser über Bett / turning diameter over bed 650 mm Umlaufdurchmesser über Schlitten / turning diameter over sledge 480 mm Planweg / cross travel 320 mm Drehzahlbereich (2-stufig) / spindle speed range (2-steps) 4-3050 UpM / rpm Anzahl Revolverwerkzeugplätze / number of places in revolver 12 fach / fold Wkzaufnahme / tool taper VDI 50 Spindelbohrung / spindle hole 107 mm Reitstockaufnahme / tail stock taper MK 5 Antriebsleistung Spindel / drive capacity spindle 27  ...

Maximum diameter 25 mm Number of tools 6 Type of CNC Siemens 840D Spindle speed 6000 rpm Spindle power9.1 kW Weight 7500 kg COMPLETE WITH BAR LOADER IEMCA SIR 25 YEAR 2005

turning diameter: 210 mm turning length: 300 mm control: Siemens 840 D Shop Turn swing dia.: 330 mm spindle passage: 51 mm spindle speed:: 6000 U/min spindle motor: 10/7,5 kW max. torque on the spindle: 115/86 Nm no. of tools in turret 1: 12 VDI 30 driven stations: 12 VDI 30 speed of driven tools: 5000 U/min drive milling spindle: 3,7 kW rapid traverse: 20/30 m/min tail stock: MK 3 range L-W-H: 6,0x 1,75 x 1,7 m weight of the machine ca.: 3,5 t CNC lathe with driven tools and barfeeder - collet chuck E 173 - chipconveyor - Siemens Shop Turn - dialog programming Shop Turn - parts catcher - short bar magazine IEMCA KID 70 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. turning diameter: 33 mm max. turning speeds: 8.000 U/min Number of axles: 8 St. turning speed rotating tools: 6.000 U/min control: FANUC Dimensions (L x W x H): 4.020 x 1.850 x 1.925 mm machine weight ab.: 4.200 kg CNC Turning- and Milling Center | GILDEMEISTER - SPRINT 32 linear equipped with C-axis for mainspindle and counter-spindle and bar feeder Iemca Further information: - collet holder for main and pick up spindle - 5 position 16x16 toolholder for slide 1 - 3 driven tools on slide 1 with spindles ESX16 - drive for rotating tools slide 2 - 4-pos.tool holder diam.32mm for slide - 2-chip conveyor h=1100 mm - pneum. ejector and unloading system with belt -pneum. - cleaning system for counterspindle¬ - collet - Mechanical preparation for oil mist filter - electr. and software preparation for bar loader – synchronization between main and counter spindle - constant cutting spee ...

turning diameter: 200 mm turning length: 450 mm control: Fanuc Oi-TC total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Fanuc Oi-TC 3-jaw chuck C-axis driven tools 12-fold revolver (6 are driven) tail stock coolant device chip conveyor Technische Daten / technical details: Umlaufdurchmesser über Bett / rotary diameter over bed 330 mm Drehdurchmesser über Schlitten / turning diameter over sledge 260 mm max. drehbarer Durchmesser / max turnable diameter 200 mm Drehlänge / turning length 450 mm Planweg X-Achse / travel cross x-axis 160 mm Längsweg Z-Achse / travel longitudinal z-axis 450 mm Drehzahl / spindle speed 5000 UpM /rpm Spindelbohrung / spindle hole 51 mm Eilgang X, Z / rapid feed x, z 20, 30 m/min Werkzeugaufnahme / tool taper VDI 30 Antriebsleistung Spindel / drive capacity spindle 11 kW Gewicht der Ma ...

Universal CNC lathe CTX 510 ecoV63 with control system SIEMENS SINUMERIK 840D SL with Shop Turn. Turning diameter max. 465 mm Turning length max. 1,050 mm Total input 50 kVA Machine weight approx. 7.8 t Space requirement approx. 6.5 x 3.0 x 2.2 m

turning length: 1.000 mm swing diameter max. over bed cover: 600 mm swing diameter above cross guideway: 420 mm control: Eltropilot Heidenhain travel -x axis: 275 mm travel -z axis: 1.065 mm Main spindle:: turning speed range - main spindle: 16 - 3.200 min/-1 power capacity - main spindel: 27 kW max. Torque: 800 Nm spindle diameter in front bearing: 120 mm spindle bore: 85 mm chucking diameter: 260 mm spindle head: 220H5 turret:: number of toolpositions: 12 pos. Shank diameter: 40 mm turret change time: 0,8 sec. Tailstock:: diameter of quill: 100 mm quill stroke: 120 mm taper of center: MK 5 pressure center sleeve: max. 950 daN feeds:: rapid traverse: X: 10 / Z: 15 m/min Feed force: X: 500 / Z: 1.000 daN total power requirement: 52 kVA weight of the machine ca.: 7,5 t dimensions of the machine ca.: 5,5 x 2,5 x 2,1 m Documents: Chip conveyor: Coolantsystem: Tailstock: hydraulic sy ...

turning length: 600 mm max. turning diameter: 320 mm swing diameter above cross guideway: 365 mm control: CNC Pilot 4290 Heidenhain Main spindle:: turning speed range - main spindle: max. 5.000 min/-1 power capacity - main spindel: 28 / 21 kW max. Torque: 320 / 240 Nm spindle nose: 170h5 chucking diameter: 215 mm spindle diameter in front bearing: 130 mm spindle bore: 87 mm max. bar capacity: 65 mm c-axis: turret:: number of toolpositions: 12 pos. tool taper: VDI 30 Driven Tool Stations:: Number of driven toolspositions: 12 pos. tool spindle speed range: max. 4.500 min/-1 power capacity driven tool-stations: 3,1 kW max. Torque: 10 Nm axis stroke:: x-travel: 250 mm z-travel: 635 mm Tailstock:: tailstock: 580 mm taper of center: MK 4 diameter of quill: 120 mm quill stroke: 150 mm feeds:: rapid traverse: X: 24 / Z: 30 m/min total power requirement: 44 kVA weight of the machine ca.: 5 ...

Gildemeister As32 working. Machine is in operation but disconnected Used to process stainless steel and automatic steel Few spare parts available YOM 1965-1975 Manuals available

Circulating diameter above the bed: 500 mm Revolving diameter above support: 290 mm Distance between spikes: 780 mm Spindle speed - range: 500 Chuck diameter: 170 mm Max. workpiece weight: 45 kg Largest turning diameter:: 200 mm Maximum turning length: : 500 mm Number of driven tools:: 12

Circulating diameter above the bed: 600 mm Spindle drilling: 74 mm Spindle speed range: 3000 Longitudinal stroke Z:: 1250 mm Transverse stroke X:: 398 mm Max. running diameter on sleds :: 480 mm

Type: Sprint 20 linear Parameters: Manufacturer: Gildemeister Year of production / SO / GO: 2006 / - / - Description: The machine is in good technical condition. Sold including bar feeder: 3m LNS express-220 Linear axis Z1: 80mm Linear axis X1: 35mm Linear axis Y1: 240mm Linear axis X2: 230mm Max. turning diameter: 20mm Tool body diameter: 20mm Number of fixed tools for external machining: 6 Machine dimensions: 2275 x 1300 x 1760mm Machine weight: 2600kg Upon agreement, the possibility of a tour in progress.
