pressure:1000 tdistance between columns:3030 mmstroke:350 mmDistance table/ram, max. stroke up, adjustment up:1400 mmtable surface area:3000 x 2000 mmtable height over floor:430 mmside window:1450 x 1400 mmram surface:3000 x 2000 mmspeed down:300 mm/sspeed up:340 mm/sworking speed:18 - 44 mm/sreturn capacity:120 toil volume:4400 lwidth with platform:4950 mmpower capacity:2 x 90,0 + 10,0 kWweight:87,0 tDimensions (WxDxH):4,35 x 3,65 x 7,55 mheight over floor:6,05 mheight beneath floor:1,5 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
pressure:10 tdistance between columns:450 mm:1500 mmtable-size:450 x 400 mmweight of the machine ca.:470 kgdimensions of the machine ca.:1400 x 750 x 1600 mm
pressure:40 tthroat:220 mmstroke:8 / 88 mmtable pass:ø- abgesetzt 225/200 mmram head dimension:400 x 250 mmdistance table/ram:228 mmstroke adjustable from - to:30 - 140 mmram adjustment:63 mmthickness of bolster:80 mmno. of strokes:70 Hub/mintotal power requirement:5,5 kWweight of the machine ca.:2600 kgdimensions of the machine ca.:1100 x 1300 x 2300 mmDocuments:vorhanden
pressure:200 tdistance between columns:1650 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:1200 mmtable surface area:1600 x 1250 mmdie cushion capacity:80 tdie cushion stroke:300 mmdie cushion area:1300 x 900 mmtable height over floor:800 mmram surface:1600 x 1250 mmoil volume:ca. 2000 lpower capacity:43,0 kWweight:25,0 tDimensions (WxDxH):2,9 x 2,3 x 5,8 mheight beneath floor:0,85 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20
pressure:10 tstroke:400 mmtotal power requirement:1,6 kWweight of the machine ca.:1,1 tdimensions of the machine ca.:1100 x650 x 2050 mmdayligth:500 mmtable-size:400 x 450 mmDocuments:vorhanden
pressure:350 tdistance between columns:1350 mmstroke:900 mmdistance table/ram, max. stroke up, adjustment up:1300 mmtable surface area:1300 x 1000 mmpressure of drawing cushion in table:100 tstroke of drawing cushion in table:380 mmdie cushion area:350 x 285 mmcapacity of ejector in ram:25 tejector stroke in ram:200 mmtable height over floor:750 mmram surface:1300 x 1000 mmspeed down:500 mm/sspeed up:160 - 470 mm/sworking speed:16 - 44 mm/sdrawing speed:57 - 160 mm/sreturn capacity:32 toil volume:1700 lpower requirement:91,0 kWDimensions (WxDxH):3,75 x 2,8 x 7,2 mheight over floor:5,28 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick drawing cushion in table:hydraulic ejector in ram:hydraulic ram interlocking:in TDC foundation pit:necessary
pressure:250 tpassage width:1280 mmstroke:bis 500 mmtotal power requirement:47 kWweight of the machine ca.:23 tdimensions of the machine ca.:2200 x 1850 x 4600 mmtable surface area:1250 x 1000 mmdayligth:800 mmdaylight between the side columns:520 x 750 mmtable height above floor:1000 mmDocuments: vorhanden
pressure at min. stroke:3 tthroat:150 mmstroke:- 39 mmdistance table/ram, max. stroke up, adjustment up:200 mmtable surface area:280 x 380 mmpressure at min. stroke:1,5 tno. of strokes with min. stroke:- 80 /minno. of strokes with max. stroke:- 50 /minhole in the table:45 mmtable height over floor:790 mmram surface:115 x 100 mmRequired air-pressure:4 barweight:0,2 tDimensions (WxDxH):0,5 x 0,9 x 1,4 m
pressure:6,3 tthroat:170/180 mmstroke:310 mmpower capacity:3 kWdayligth:775 mmweight of the machine ca.:1,5 tclamping table:470 x 330 mmtable height over floor:800 mmC-Type1 Station
pressure:160 tthroat:360 mmstroke:500 mmtotal power requirement:17 kWweight of the machine ca.:7,2 tdimensions of the machine ca.:2,0 x 0,95 x 3,70 mtable-size:900 x 630 mmDocuments:vorhanden
pressure at min. stroke:3 tthroat:150 mmstroke:- 40 mmdistance table/ram, max. stroke up, adjustment up:200 mmtable surface area:280 x 250 mmpressure at max. stroke:1,5 tno. of strokes with min. stroke:- 80 /minno. of strokes with max. stroke:- 50 /minhole in the table:45 mmtable height over floor:810 mmram surface:115 x 100 mmRequired air-pressure:4 barweight:0,15 tDimensions (WxDxH):0,7 x 0,8 x 1,4 m
pressure:160 tthroat:360 mmstroke:500 mmDocuments:vorhanden
Pressure:063 tthroat:250 mmstroke:8 - 100 mmno. of strokes:120 /mindistance table/ram, max. stroke up, adjustment up:415 mmtable surface area:700 x 500 mmhole in the table:250 mmtable height over floor:800 mmpassage to the back:320 mmram surface:450 x 280 mmram adjustment:63 mmweight:4,5 tDimensions (WxDxH):1,6 x 2,0 x 2,8 moverload protection in ram:mechanical
pressure:160 tthroat:370 mmstroke:150 mmtotal power requirement:45 kWweight of the machine ca.:22 tdimensions of the machine ca.:2,75 x 1,85 x x 4,80 mrules for accident prevention:Vorhanden work table::1500 x 700 mmDocuments:vorhanden

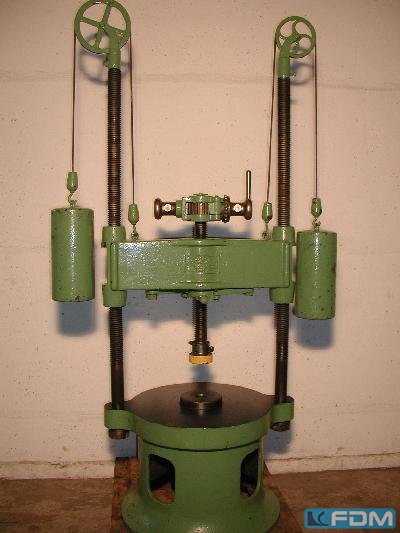

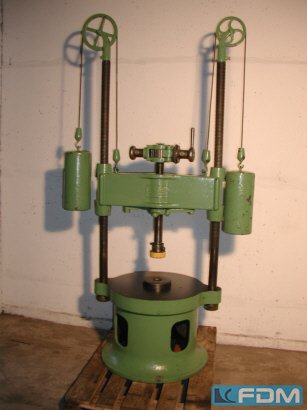

pressure:20 tStroke:230 mmtable surface area:Ø600 mmdistance table - lower edge of ram:770 mmweight:595 kg
pressure:65 tdistance between columns:930 mmstroke:1100 mmdistance table/ram, stroke up:2400 mmtable surface area:1340x700 / 930x1085 mmhole in the table:320x260 / 600x410 mmtable height over floor:850 mmside window:700 mmram surface:990 x 930 mmpower requirement:15,0 kWweight:8,0 tDimensions (WxDxH):2,8 x 2,6 x 5,2 mblank holder / ejector in ram:hydraulic side shifting device:hydraulic
Pressure:500 tdistance between columns:1550 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:900 mmtable surface area:1200 x 1300 mmpressure of drawing cushion in table:250 tstroke of drawing cushion in table:150 mmdie cushion area:950 x 950 mmtable height over floor:1245 mmside window:1250 mmram surface:1200 x 1300 mmspeed down:750 mm/sspeed up:780 mm/sworking speed:105 mm/soil volume:4000 lpower requirement:263,0 kWweight:45,0 tDimensions (WxDxH):3,3 x 3,3 x 6,1 mheight over floor:6,1 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic cutting impact cushioning:motoric adjustable
pressure:630 tplate thickness:16 mmTotal force (nominal):630 tostroke:30 - 150 mmknife-edged ring capacity:320 tNominal force:160 t:910 x 1050 mm:900 x 900 mmdayligth:410 mmram adjustment:120 mmplate width:40 - 450 mmplate thickness:0,5 - 16 mm:1 - 1000 mmtotal power requirement:100 kWweight of the machine ca.:28 tdimensions of the machine ca.:4.50x2.20x2.80 mPress Feintool + feeding unit
Pressure:315 tdistance between columns:1350 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:1000 mmtable surface area:1200 x 1300 mmtable height over floor:1245 mmside window:1250 mmram surface:1200 x 1300 mmspeed down:750 mm/sspeed up:680 mm/sworking speed:180 mm/soil volume:2000 lpower requirement:150,0 kWweight:35,0 tDimensions (WxDxH):3,3 x 3,3 x 5,5 mheight over floor:5,5 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact cushioning:motorisch verstellbar ram interlocking:hydraulisch
pressure:200 tthroat:360 mmstroke:560 mmdistance table/ram, max. stroke up, adjustment up:780 mmtable surface area:740 x 720 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:200 mmdie cushion area:530 x 530 mmtable height over floor:920 mmram surface:560 x 560 mmslide drill hole x depth:70 mmpower requirement:35,0 kWweight:10,0 tdimensions:1,3 x 2,0 x 3,4 m
pressure:160 tdistance between columns:1340 mmstroke:300 mmDistance table/ram, max. stroke up, adjustment up:620 mmtable surface area:1300 x 900 mmtable height over floor:930 mmside window:600 mmram surface:1300 x 900 mmspeed down:367 mm/sspeed up:390 mm/sworking speed:58 mm/spower requirement:30,0 kWweight:15,0 tDimensions (WxDxH):2,5 x 2,2 x 4,0 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary
pressure:063 tstroke:70 fix mmno. of strokes:15 - 60 /mindistance between columns:1340 mmwidth between oil collecting pans:1180 mmdistance table/ram, max. stroke up, adjustment up:328 mmtable surface area:1260 x 700 mmhole in the table:1000 x 100 mmtable height over floor:1000 mmcolumn travel -side:470 mmram surface:1300 x 650 mmram adjustment:100 mmpower requirement:27,5 kWweight:13,7 tDimensions (WxDxH):3,4 x 2,1 x 3,4 mclutch:pneumatic overload protection in ram:hydraulic ram counterbalance:pneumatic ram adjustment:motoric
Pressure:063 tthroat:250 mmstroke:10 - 100 mmno. of strokes:120 /mindistance table/ram, max. stroke up, adjustment up:380 mmtable surface area:700 x 500 mmhole in the table:180 x 140 mmtable height over floor:700 mmram surface:360 x 275 mmram adjustment:60 mmpower requirement:5,5 kWweight:3,8 tDimensions (WxDxH):1,9 x 1,7 x 2,4 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:hydraulic overload protection in ram:mechanical
pressure:150 tthroat:400 mmstroke:30 - 150 mmno. of strokes:50 /mindistance table/ram, max. stroke up, adjustment up:620 mmtable surface area:1000 x 750 mmhole in the table:320 x 200 mmtable height over floor:800 mmram surface:800 x 600 mmram adjustment:85 mmweight:10,0 tDimensions (WxDxH):1,4 x 2,2 x 3,1 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic ram counterbalance:pneumatic
nominal force:2500 tstroke:600 mmcycle time:13 - 18 sdistance between columns:1720 mmDistance table/ram, max. stroke up, adjustment up:2600 mmtable surface area:1720 x 1800 mmallowed max. force:4000 tblow die to die:5000 tram surface:2100 x 1320 mmcapacity of ejector in table:40 tejector stroke in table:250 mmejector surface area in table:900 x 820 mmcapacity of ejector in ram:6 tejector stroke in ram:40 mmspindle diameter:425 mmpower requirement:900,0 kWweight:335,0 tDimensions (WxDxH):3,4 x 4,6 x 9,7 mheight over floor:8,3 mfully-automated forging line:to produce axle shaft
pressure:100 tthroat:380 mmstroke:650 mmdistance table/ram, max. stroke up, adjustment up:950 mmtable surface area:800 x 700 mmhole in the table:200 mmtable height over floor:920 mmram surface:630 x 600 mmspeed down:65 mm/sspeed up:375 mm/sworking speed:17 mm/soil volume:350 lpower requirement:18,5 kWweight:9,0 tDimensions (WxDxH):1,5 x 2,5 x 4,0 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 §20
pressure:250 tdistance between columns:1125 mmstroke:250 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:1100 x 900 mmpressure of drawing cushion in table:63 tstroke of drawing cushion in table:100 mmdie cushion area:700 x 400 mmtable height over floor:960 mmside window:700 mmram surface:1080 x 900 mmoil volume:1000 lpower requirement:35,0 kWweight:23,0 tDimensions (WxDxH):2,5 x 2,3 x 4,5 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick foundation pit:not necessary
pressure:250 tthroat:450 mmstroke:36 - 126 mmno. of strokes:40 /mindistance table/ram, max. stroke up, adjustment up:525 mmtable surface area:1000 x 750 mmhole in the table:400 x 360 mmtable height over floor:1000 mmram surface:600 x 500 mmram adjustment:111 mmpower requirement:19,0 kWweight:13,5 tDimensions (WxDxH):1,3 x 3,2 x 3,35 mclutch:pneumatic overload protection in ram:mechanical ram adjustment:motoric
pressure:100 tdistance between columns:1230 mmstroke:20 - 200 mmno. of strokes:20 - 60 /mindistance table/ram, max. stroke up, adjustment up:650 mmtable surface area:1050 x 750 mmtable height over floor:760 mmside window:540 mmram surface:1000 x 750 mmram adjustment:100 mmpower requirement:18,0 kWweight:20,5 tDimensions (WxDxH):2,8 x 1,9 x 4,3 minfinitely variable drive:PIV clutch:pneumatic overload protection in ram:hydraulic ram counterbalance:pneumatic ram adjustment:motoric
pressure:160 tdistance between columns:880 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:400 mmtable surface area:830 x 1000 mmhole in the table:265 x 365 mmtable height over floor:850 mmside window:610 mmram surface:860 x 1000 mmpower requirement:55,0 kWweight:14,7 tDimensions (WxDxH):2,2 x 2,0 x 4,3 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 depth stop:motoric adjustable table:motoric foundation pit:not necessary
