ERMAK maquina usada para la venta

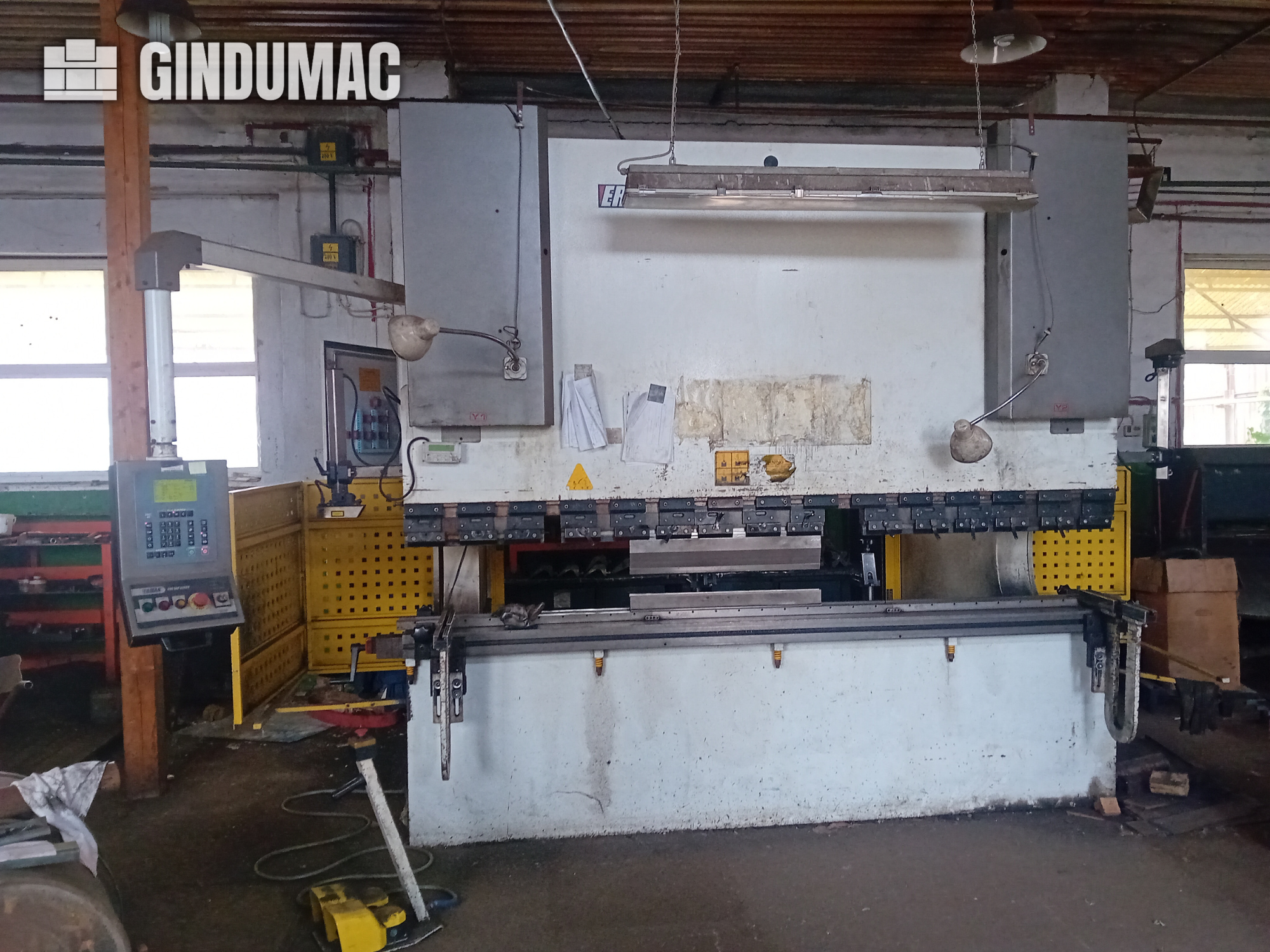

La plegadora hidráulica ERMAK HAP 2600 X 80 CNC fue fabricada en 2005 por la empresa turca ERMAKSAN MAKINA SANAYI TIC. LTD. ŞTI. La máquina, caracterizada por su alto rendimiento y robustez, realiza un doblado preciso de piezas de trabajo con una longitud máxima de 2600 mm y un espesor de 6 mm con una fuerza de 80 toneladas. Los parámetros de mecanizado en los ejes X y R se programan de forma fácil y cómoda a través del controlador CNC CYBELEC DNC 60 ubicado en un brazo móvil. La plegadora HAP 2600-80 también ofrece un alto nivel de seguridad para el operador, gracias a un botón de emergencia y cortinas de luz fabricadas por FIESSLER ELEKTRONIK para evitar la entrada no autorizada en el área de trabajo de la máquina. El peso total de la plegadora es de 5600 kg. Especificaciones técnicas de la plegadora CNC ERMAK HAP 2600 X 80 - fuerza de prensa: 80 t (800 kN) - alim ...

Las cizallas hidráulicas de guillotina ERMAK CNC HVR 3100 x 13 construidas en Turquía en 2008, están diseñadas para cortar piezas de trabajo hechas de, entre otros, acero dulce o acero inoxidable. La chapa metálica con una longitud máxima de 3100 mm y un espesor máximo de 8 mm (acero liso) o 13 mm (acero inoxidable), se sujeta durante el mecanizado mediante 14 abrazaderas hidráulicas. El ángulo de la cuchilla de corte se puede ajustar libremente en el rango de 0.5 a 2.0. El control total sobre el funcionamiento de la máquina CNC HVR 3113 está garantizado por el panel de control ubicado en el cuerpo de cizallas de guillotina con el controlador CNC CYBELEC DNC 60 instalado, lo que permite la programación de muchos procesos de mecanizado diferentes. Las cizallas de guillotina están equipadas con, entre otras, nuevas cuchillas de corte y un pedal de control, lo que hace que e ...

Control Cybelec ... DNC 60 longitud de corte ... 2600 milímetros espesor de la lámina ... 8 mm Conducir... Hidráulico L x W x H ... 3550x2020x1850m m Peso de la máquina... 6200kg Potencia del motor principal ... 15kW La máquina está en buenas condiciones, posible de probar bajo potencia.

Pressure:175 t chamfer lenght:4100 mm distance between columns:3600 mm column arm:410 mm ram stroke speed:180 mm/sec return speed:135 mm/sec working speed:10 mm/sec work stroke:275 mm oil volume:200 l dayligth:550 mm table height:900 mm table width:90 mm total power requirement:15 kW weight of the machine ca.:12000 kg dimensions of the machine ca.:5100 x 2150 x 2850 mm

sheet width:3100 mm plate thickness:6 mm distance between columns:3100 mm no. of strokes:16 - 24 Hub/min cutting angle:0,5 - 1,5 ° down holder:14 Stk. throat:350 mm table height:900 mm oil volume:150 l total power requirement:11 kW weight of the machine ca.:7060 kg dimensions of the machine ca.:4100 x 2200 x 2190 mm 1 brandnew hydraulic shear ERMAK CNC HVR 3100-134 with following equipment: - CNC controlled hydraulic blade gap adjustment system - CNC controlled cutting angle adjustment system - portable foot pedal - CNC controlled motorized backgauge system - front support arms with t-slot, ruler and flip stop - squaring arm - scales with metric and inches - cutting line illumination and shadow line - emergency stops - swing up backgauge - central lubrication system - front finger protection - rear sliding plates - front sliding plates with ball bearing on the table - 350 mm throat dept ...

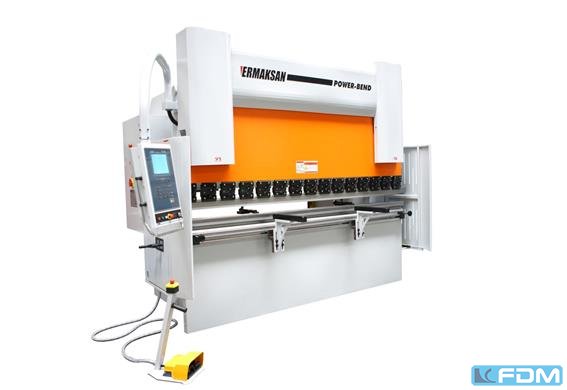

pressure:320 t chamfer lenght:4100 mm distance between columns:3600 mm column arm:410 mm ram stroke speed:140 mm/sec return speed:150 mm/sec working speed:10,5 mm/sec work stroke:375 mm dayligth:650 mm table height:900 mm table width:220 mm oil volume:400 l voltage:400 V total power requirement:30 kW weight of the machine ca.:22600 kg dimensions of the machine ca.:5350 x 2450 x 3150 mm 1 brandnew ERMAK SPEED-BEND 4.320 hydr. press brake, directly from the factory, with DELEM DA 66 T CNC control and following equipment: - controlled back gauge with R-axis X = 800 mm R = 250 mm - finger adjustment Z1 + Z2 through ball screw - 2 front support arms - controlled axis Y1-Y2-X-R-Z1-Z2 + CNC-crowning system4 - top tool - 4V universal die-block - BOSCH/HOERBIGER hydraulic system - SIEMENS electronic - SICK light barrier - FISSLER AKAS laser-light barrier - double foot switch - CE mark / conformit ...

sheet width: 2100 mm plate thickness: 6 mm rear stop: 1000 mm cutting angle: 1,2 ° down holder: 11 Stk no. of strokes: 28 Hub/min oil volume: 150 l total power requirement: 11 kW dimensions of the machine ca.: 3010 x 2100 x 1640 mm weight: 4500 kg Machine as new, first commissioned in 2020 Furnishing: - hydraulic swing cut - Shears with electric cutting gap adjustment - Touch screen controller - NC controller for backgauge preselection, cutting gap adjustment, number of pieces, cutting length and material preselection - 1 side stop - 2 front support arms - Cutting line lighting - Cutting length limitation - Foldable finger protection with limit switch - motorized back gauge, travel = 1000 mm - Ball rollers in the front support table - BOSCH/HOERBIGER hydraulic system - SIEMENS electrical system - Light barrier behind the machine - Footswitch - CE mark/declaration of conformity - Operat ...

sheet width: 3100 mm plate thickness: 6.0 mm thickness at Niro-steel: 4.0 mm down holder: 14 Stück no. of strokes: 20 Hub/min cutting angle: 1.2 ° control: CYBTOUCH 6 work height max.: 800 mm oil volume: 150 ltr. total power requirement: 11.0 kW weight: 7060 kg range L-W-H: 4000 x 2410 x 1610 mm well maintained condition () current new price approx. 42.000 euros Special price on request -------------------------------------------------- Robust electro-hydraulic CNC swing cutting shears including CYBELEC CNC touch screen control including CNC electro-hydraulic cutting gap adjustment -------------------------------------------------- Furnishing: - CNC electro-hydraulic swing cutting shear - including CYBELEC CNC touch screen controller, model CybTouch 6” - some functions of the CNC control: Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length ...

pressure: 200 t chamfer lenght: 3100 mm distance between columns: 2550 mm column arm: 400 mm ram stroke speed: 100 mm/sec return speed: 9.0 mm/sec work speed: 90.0 mm/sec work stroke: 200 mm dayligth: 447 mm table height: 900 mm table width: 240 mm oil volume: 200 ltr. voltage: 400 Volt total power requirement: 15.0 kW weight: 11600 kg Dimensions (HxWxD): 4550 x 2250 x 2850 mm current new price approx. 80.000 euros Special price on request Furnishing: - electro-hydraulic CNC press brake - CYBELEC CNC control model DNC 60 HP swiveling operation, front left numerical control Tool and product library - CNC controlled axes: Y1 - Y2 - X axis - CNC electro-motorized back gauge (X axis) with 2x manually adjustable stop fingers (R+Z axis) Travel X = 800 mm - manual table cambering, adjustment via handwheel with analogue value display - Upper tool holder with wedge crowning (AMADA) - 1x s ...

Folding length : 3100 mm 135 Ton Machine is in good working condition

ancho de la hoja: 3100 mm espesor de la placa: 8 mm voltaje: 380 V volumen de aceite: 200 l potencia total requerida: 15 kW peso de la máquina aprox.: 6600 kg dimensiones: 4025x2075x1800 mm

Ermak CNCHVR 6100 x 16 CNC Guillotine Shear Cutting length : 6100 mm Cutting : 6-10 cut per minute Machine is in good working condition

Ermak FIBERMAK Momentum GEN-3 6 Kw Fiber Laser Cutting Machine Lantek and UPS are included Machine is in very good condition

Ermak HGS 4100X6 CNC Guillotine Shear Machine is in excellent condition Cutting length : 4100 mm

Ermak Power-Bend Pro 4100x175 CNC Press Brake 175 Ton Machine is in excellent condition

Ermak CNC HAP 6100 x 600 CNC Press Brake Control Unit : Cybelec

Ermak CNC HAP 4650 CNC Press Brake 500 Ton Cybelec Control Unit Motorized Crowning Hydraulic upper tool holder

Ermak HGS 3100x6 CNC Guillotine Shear Cybelec Contron Unit Machine is in excellent condition

Machine weight: 28800 kg Max. cutting length: 6100 mm Max. metal sheet thickness: 10 mm Unloading in racks: 350 mm Maximum number of strokes per minute: 8-13 min

This ERMAK CNCHAP 3600x200 Bending machine was manufactured in the year 2005 in Turkiye. It is equipped with a CYBELEC DNC 60 control unit. The machine has a pressing force of 2000 kN and a bending length of 3600 mm.

Compressors on chiller unit are new Resinator has been renewed in 2012 ( by Ermaksan) 4000 W Power 3000 mm x 1500 mm Machine is in good condition

The machine is currently used actively. The machine can be seen in desired condition. 1500 x 3000 Bench Dimensions. 0.3mm - 12mm Black Sheet 0.01mm - 6mm Stainless Steel Sheet 0,05mm - 3mm Aluminum Sheet Brass, Bronze, Copper Cutting up to 5mm. Service is well maintained.

Ermak Fibermak Momentum Gen-3 4 KW Fiber Laser Cutting Machine 6000 mm x 2000 mm Machine is in very good condition All maintenance has been done regularly

Manufacturer Ermak Model Lasermak 6000.6x2 Year 2012 Co2 laser cutting machine 6000 x 2000 6000 kW

CO2 laser ERMAKSAN laser cutting machine Year of production 2011 4kW laser power. Working time of the laser beam 7 700 hours Linear drives Possibility of using Co2 / He / N2 gases Acceleration: up to 169m / min Positioning accuracy: +/- 0.03 mm / m Dimensions (L x W x H): 10470 x 5285 x 2430 mm Machine weight: 20 800 kg Table 3000 x 1500 Electrical demand: 50-70 kW. The laser is equipped with a Fanuc resonator (4000 W CO2-Laser GR Fanuc C4000i-B, Short Optical Path Type). The catalog laser is able to cut sheets up to 20 mm black stainless steel up to 12 mm and aluminum up to 8 mm. It has two interchangeable work tables. The device is fully functional. net price

Ermak Fibermak 4000.6x2 Fiber Laser Cutting Machine Double tables 6000 mm x 2000 mm Power : 4 KW Machine is in very good condition

Ermak Lasermak 2500.2,5 x 1,25 Laser Cutting Machine Machine did not cut anything thicker than 1 mm Maintenance has been done by Ermak Machine is in very good condition Power : 2500 W

Ermak Fibermak Momentum Gen-2 Laser Cutting Machine Power : 2 Kw 3000 mm x 1500 mm Machine is in good working condition

Ermak Lasermak 4000 3x1.5 Laser Cutting Machine Machine is in good working condition Power : 4000 W

Ermak Fibermak Momentum Gen-2 Fiber Laser Cutting Machine Working hour: 22900(December 2023) Machine is in good working condition
