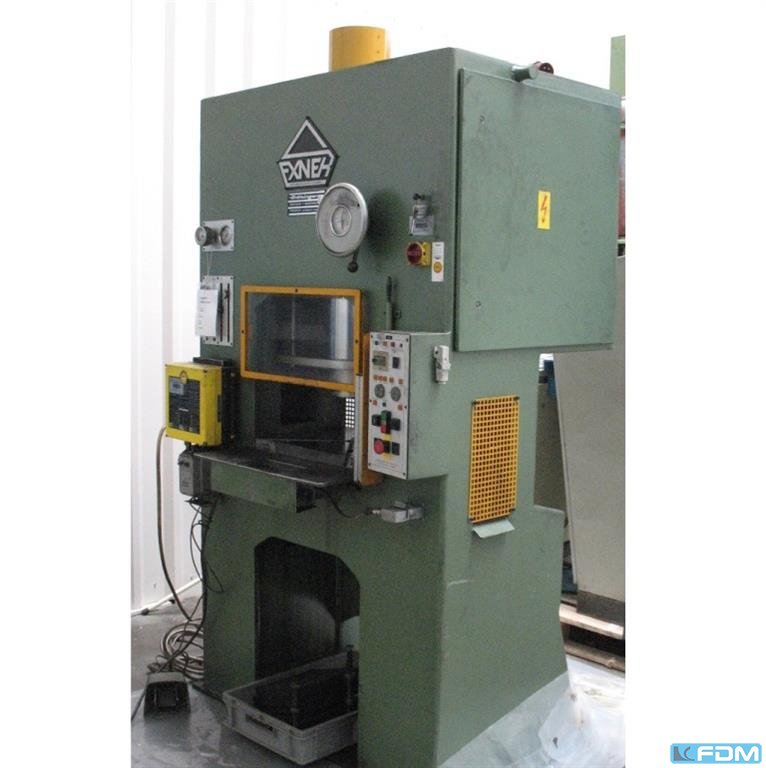

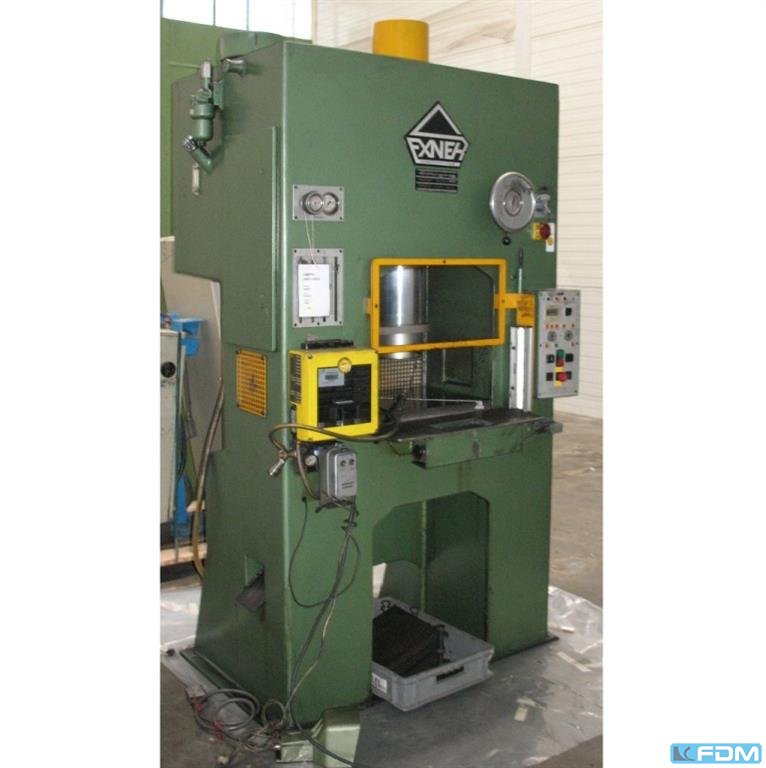

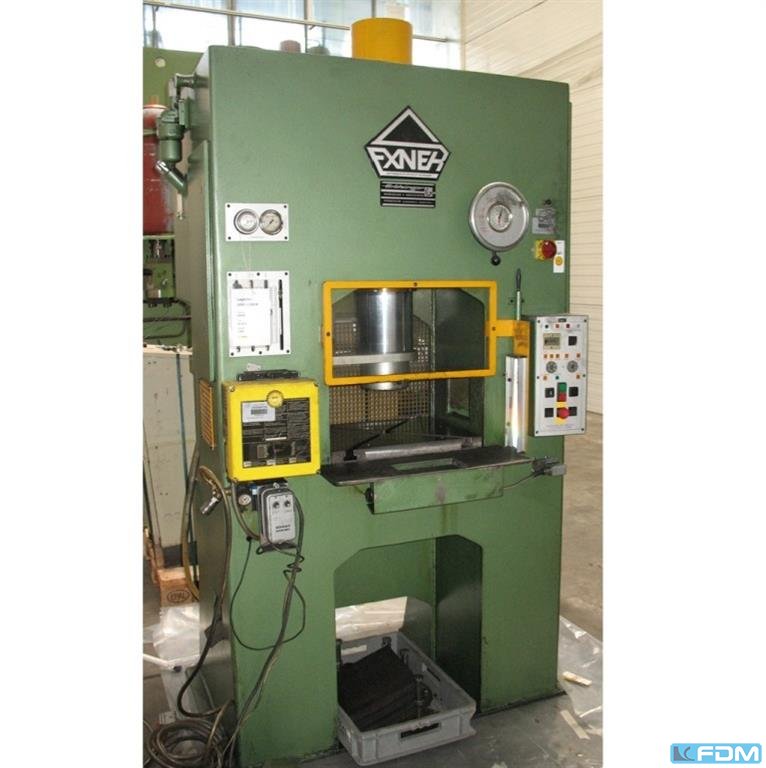

pressure:40 t distance between columns:495 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:490 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:155 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:115 l power requirement:7,5 kW weight:2,2 t dimensions (WxDxH):1,35 x 1,1 x 2,2 m depth stop:mechanisch foundation pit:nicht erforderlich
pressure:40 t distance between columns:500 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:480 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:150 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:160 l power requirement:7,5 kW weight:2,6 t dimensions (WxDxH):1,1 x 1,4 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick depth stop:mechanical foundation pit:not necessary
pressure:150 t distance between columns:300 mm stroke:180 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:570x180 / 300x410 mm table height over floor:875 mm side window:180 mm ram surface:180 mm speed down:250 mm/s speed up:160 mm/s working speed:6 - 12 mm/s oil volume:250 l power requirement:11,0 kW weight:2,4 t dimensions (WxDxH):1,3 x 1,3 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 foundation pit:nicht erforderlich
pressure: 40 t distance between columns: 495 mm stroke: 150 mm distance table/ram, max. stroke up, adjustment up: 300 mm table surface area: 490 x 400 mm hole in the table: 50 mm table height over floor: 950 mm column travel -side: 155 mm ram surface: 150 mm feed down: 480 mm/sec feed up: 480 mm/sec working feed: 20 mm/sec oil volume: 115 l power capacity: 7,5 kW weight: 2,2 t dimensions of the machine ca.: 1,35 x 1,00 x 2,21 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 100 t weight of the machine ca.: 4 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Presión: 40 Tstroke: 150 mm Número de serie: 100091 : 2 : Druck & Hub Verstellbar presión: 25 Tweight: JE 1,5 Tsafety Light Frame: ja bei beiden Los datos de este anuncio fueron creados con ModulMWS, la solución de software de LogoTech oHG.
Manufacturer: EXNER Model: PG 80 Year of Manufacture: 2014 The EXNER PG 80 is a four-column hydraulic tool testing press for testing stamping, forming, embossing, and drawing tools. It is designed for high precision and durability, with modern proportional hydraulic control and digital force display for tool setup and testing. Technical Data Press Ram - Number of press cylinders: 2 pcs - Nominal force (adjustable): 2 × 400 kN - Return force: 2 × 150 kN - Stroke: 350 mm - Ram width: 2100 mm - Ram depth: 840 mm - Guide length: 750 mm - Ram speed under load (100%): approx. 0–10 mm/s - Ram return speed: approx. 0–20 mm/s - T-slots (DIN 650): 18 mm - T-slot pitch: 150 mm Installation Space - Installation height (top to bottom): 550 mm - Table width: 2100 mm - Table depth: 840 mm - Table T-slots (DIN 650): 18 mm - T-slot pitch: 90 mm - Table passage (W×D): 1300 × 120 mm (to be ...
CONTROLS PLC SIEMENS S7 300 PRESS DESIGN drive system: hydraulic frame design: H-frame, monoblock openings in uprights: no number of suspensions: 2 slide ejectors / cushion: yes table cushion: yes opening in table: no quick die change system: yes moving bolster design: front PRESS FORCES total force (nominal): 400 to PRESS TABLE table surface (left-right): 2480 mm table surface (front-back): 1600 mm thickness of bolster plate: 200 mm height above floor level: 800 mm number of T-slots: 10 distance between T-slots: 200 mm SLIDE slide force: 400 to table surface (left-right): 2350 mm table surface (front-back): 1600 mm stroke: 630 mm SLIDE (HYDR. PRESS) approximation velocity max.: 270 mm/s working velocity min.: 32.75 mm/s working velocity max.: 100 mm/s return velocity max.: 270 mm/s ...
Está disponible una prensa de estampación Exner de cuatro columnas con electrónica renovada en 2011. Fuerza de prensa: 340 t, cilindro de presión: 1, diámetro del cilindro de presión: 380 mm, carrera de prensa: 180 mm, ajuste de carrera: 100 mm, altura de instalación: 400 mm, diámetro de prensa: 260 mm, dimensiones de la mesa X/Y: 910 mm/610 mm, dimensiones de la máquina X/Y/Z: aprox. 1300 mm/1600 mm/2950 mm, peso: aprox. 6500 kg. Es posible realizar una inspección in situ.
pressure: 200 t passage width: NA mm stroke: 180 mm table length: 690 mm table width: 530 mm distance between columns: 420 mm total power requirement: 18 kW weight of the machine ca.: t dimensions of the machine ca.: m Hydr. 4-Pillar Press for Embossing/Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Presión: 20 t Garganta: 185 mm Carrera: 100 mm Superficie de la mesa: 380 x 350 mm Luz diurna: 250 mm Altura de la mesa sobre el suelo: 840 mm Potencia total requerida: 4 kW peso de la máquina aprox.: 1,3 t
