extrusoras usadas para la venta

Key data: 30 mm, 28 , 110 U/min

Línea de filamentos usados Extrusora de un solo tornillo 30mm 28L/D Baño de agua de 2 metros Gatillo AB50 Bobinadora W250 Máquinas de PMH GmbH

Key data: 35 mm, 25 , 107 U/min

extrusora monohusillo REIFHÄUSER usada Con tamaño de tornillo: diámetro 35mm / 25 ld La extrusora está en muy buenas condiciones Tipo RT 78-1-35-25 Nuevo armario de control con motor nuevo AC -7,5kW Año de construcción 1994 Disponibilidad rápida

Key data: 50 mm, 30

Extrusora usada en buen estado Con tamaño de tornillo: diámetro 50 mm x 30v Zona de admisión y desgasificación ranurada Tipo RH 241-1-50-30v con accionamiento de corriente continua de 30,2 kW Construido en 1993 Disponibilidad inmediata sin armario de distribución Con armario de control, plazo de entrega de 4 a 6 semanas

This ROLBATCH RBSDMS-IZS-678 was made in 2016. It is equipped with a Mill PLC control unit. The machine has a maximum film thickness of 0.3-1 mm.

This twin screw extruder was manufactured in 2013. It features a robust 4m long base frame, galvanized and powder-coated for durability. The machine includes three liquid ring vacuum pumps and a motorized longitudinal adjustment of 400mm. Its equipped with a caterpillar haul-off capable of speeds from 0.7 to 14.0 m/min. Ideal for producing roller shutter profiles, the Krauss Maffei KMD 75 XS/P machine we have for sale represents a significant opportunity. Contact us for further details.

This MAS 120E Extruder machine was manufactured in the year 2015 in Austria. It has a load of 182 kVa. The machine was completely retrofitted by MAS 2019 and since then not in production, Its condition is like new.

A total of three extruders including throughput measurements (scales), as-new barrels (2018) and overhauled screws are available. Total extrusion capacity: approx. 100kg/h. 1) DC smoothbore extruder, output: 17kW, machine dimensions X/Y/Z: approx. 2300mm/600mm/1100mm. 2) DC smooth tube extruder, power: 32kW, machine dimensions X/Y/Z: approx. 3000mm/700mm/1200mm. 3) DC grooved barrel extruder, output: 49kW, machine dimensions X/Y/Z: approx. 3000mm/700mm/1200mm. On-site inspection is possible.

PET films were produced on the extruder, working width: 650-800mm, output: 600-700kg/h, with cooling spirals, new extruder screw, degassing system, other spare parts and documentation, without dosing system, an on-site inspection is possible.

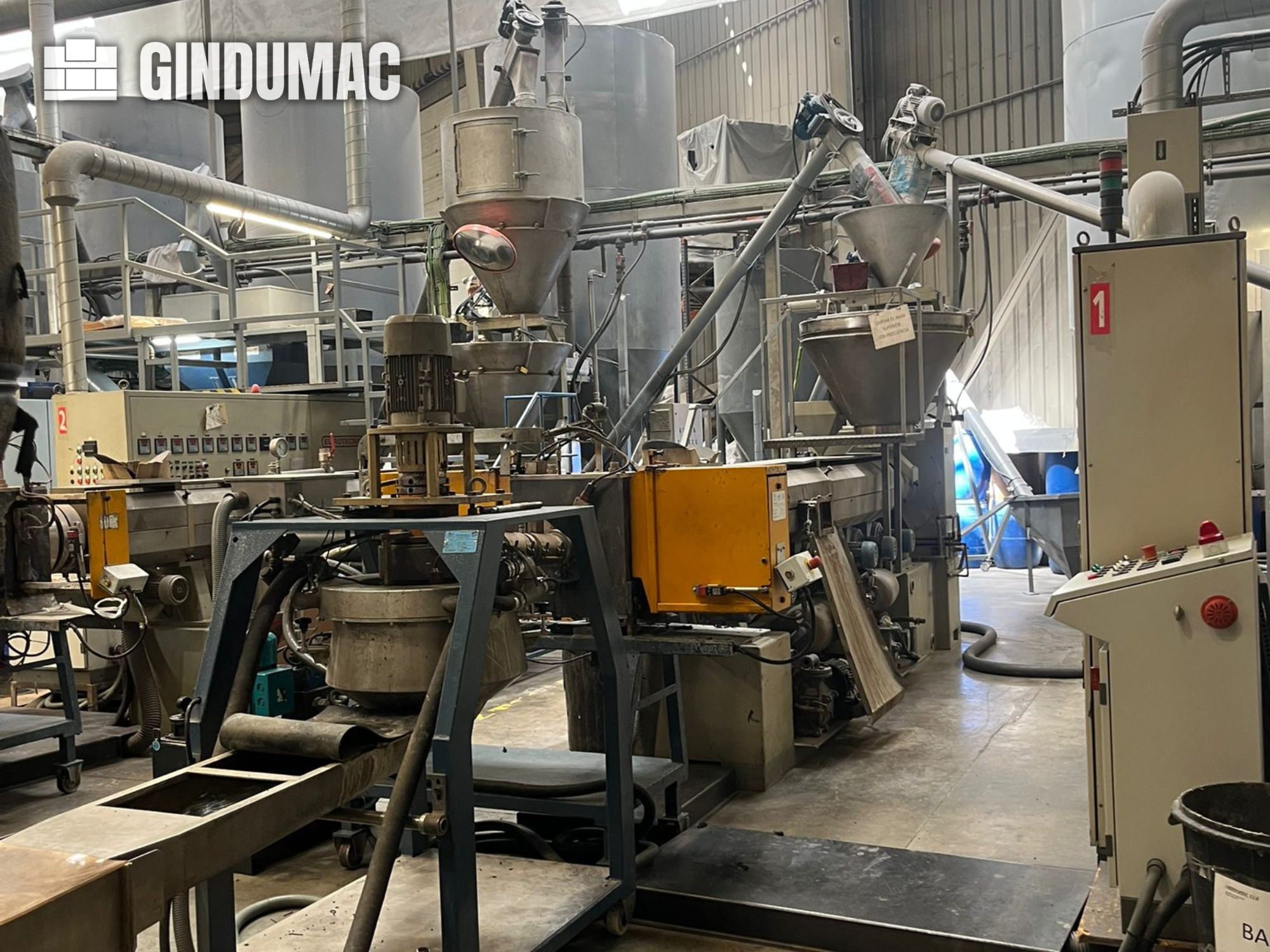

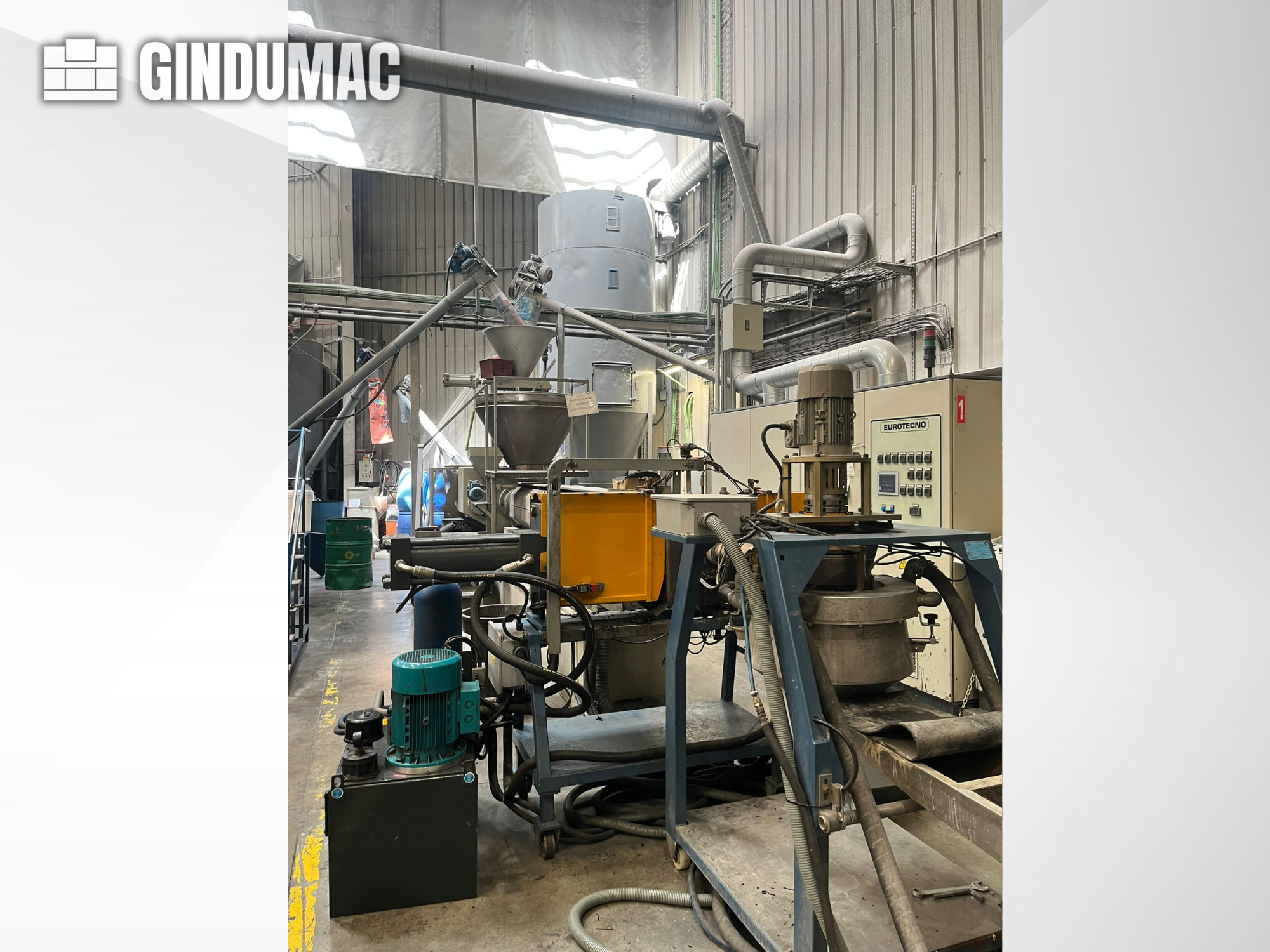

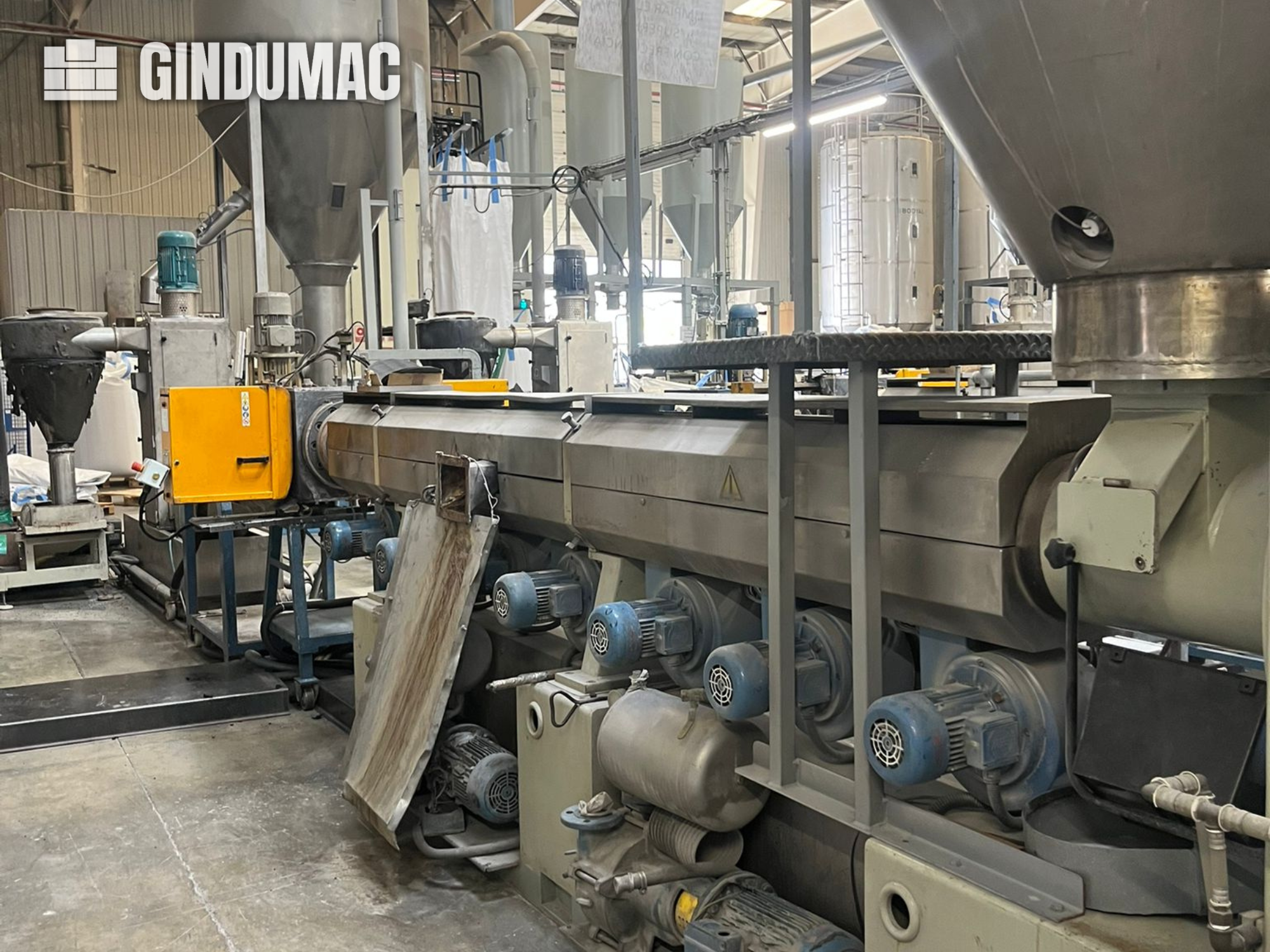

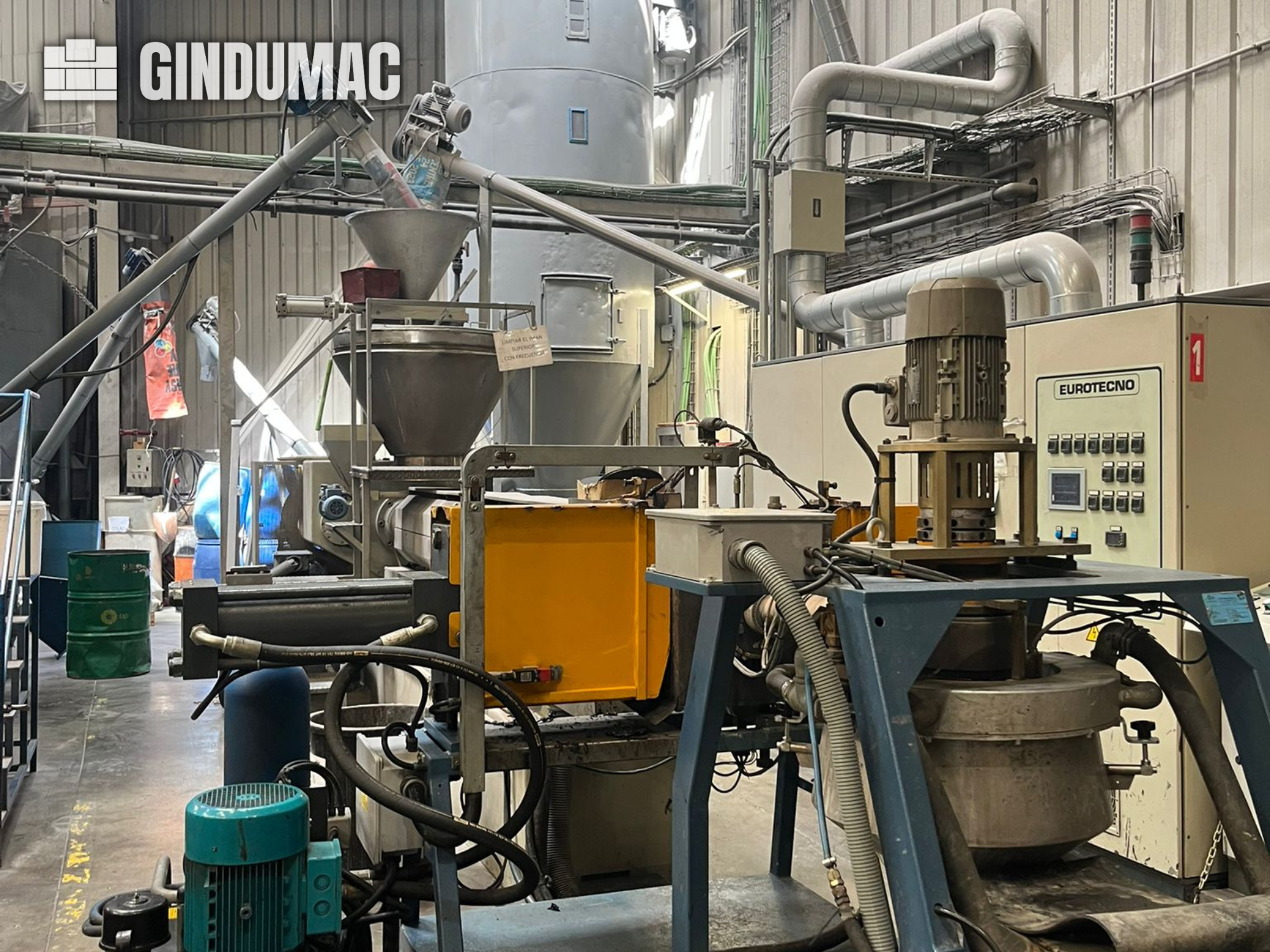

Includes (1) Single Screw Extruder PME60/35, screw diameter: 60mm, screw length: 35D with degassing vacuum pump, barrel heating zones: 7x 20kW, throughput: 60-180kg/h, power: 70kW, with integrated electrical control cabinet with temperature controllers and all connections, continuously operating screen changer type L-026 with two channels, granulating nozzle for 20 strands, stainless steel water bath with deflection rollers and cooling fan, dosing unit with hopper, (2) Double Screen 800/300 stainless steel with double screen chute, round perforation 8mm for downstream connection of a transport suction unit, monitor control, strand pelletiser GR 250, infinitely variable collection heating, single knife, inclined cut, pneumatically pressed feed roller, outlet with slide (3) Dry Air Dryer E200 with one fully insulated 1000l V2A vessel, drying throughput: 250kg/h, stationary unit, easy clean ...

Was used for PVC, PUR and TPEV, with control cabinet, used screws and one used cylinder, with documentation, was maintained regularly.

Screw diameter: 53mm, screw speed: 345rpm, heating type: electric. Including cooling and 2 pairs of screws.

Screw diameter: 58mm, power: 30.6kW, screw speed: 280rpm, conveying capacity: approx. 120kg/h, dimensions X/Y/Z: approx. 2500mm/1500mm/1500mm. Including 2x pairs of screws and a new Brabender FW 80 metering machine.

Motor power: 80kW, insertion diameter: 70mm, screw diameter: 70mm, speed: 300rpm, heating zones: 3(7kW/7kW/5kW), dimensions X/Y: approx. 5000mm/900mm, weight: approx. 5700kg. Including 2 pairs of screws, cooling roller mill MPM, year of construction: 2020.

DRY PELLETIZER FOR PVC AND COMPOUNDS Suitable for extruders with production rate up to 200 kg/h, made in sturdy steel and mounted on a frame equipped with wheels for easy disassembly, granulating chamber in horizontal axis, built in stainless steel, quick opening and visual porthole, to check the granulated material, knife-holder with fluctuating star to reduce knives consumption., self adjusting knives to nozzle by means of a slide system which keeps knives pressed on the die, reducing wear 1,5 kw drive, 3.000 rpm with extra strong bearing and long shaft, cutting die in anti-wear steel with number and Ø of holes bespoke to project. 1,0 kw Venturi blowing system + pipes and cyclone, knife mounting template, electric cabinet and touch screen control board with modem for remote assistance, 3 mt.cable machine/panel, flange built to design to fit your extruder, heated by ceramic heating ele ...

Description Twin Roll Cast Cooling Calender - Twin Cooled Cylinders, diameter 700 mm each - Cylinder length 2650mm - Eurotherm Gauging System

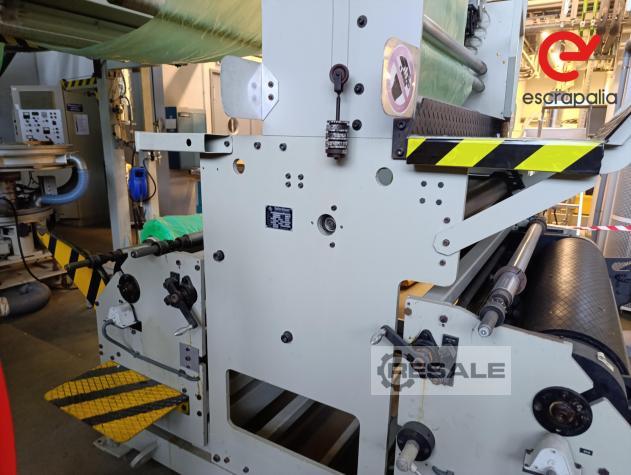

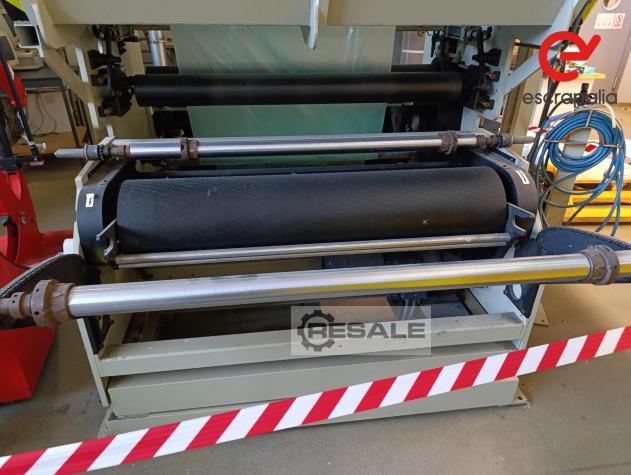

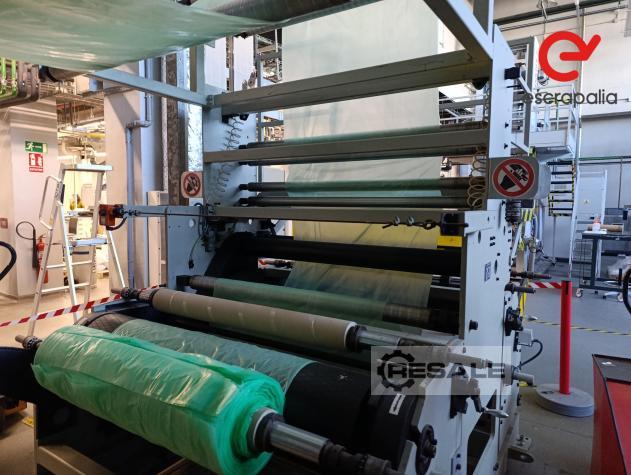

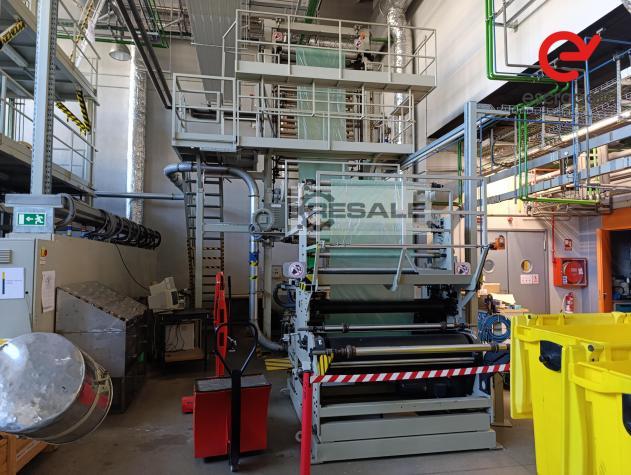

Description Single Layer Blown Film Line Material: LDPE and COMPOSTABLE Film working width: 600 / 1.600 mm. Die diametter: 100-200-300 mm. – air gap=1,4 - Blow Up Ratio (BUR) =1,5-4,5 Film thickness: 30 / 200 μ Thickness tollerance: sigma 2 ± 8% Production: 100 / 160 kg/h (with ambient temperature at 25° C) the flow rate can vary according to the thickness of the film, the width of the tube and the type of raw materials used Maximum production speed: 80 m/min Finished reels maximum diameter: 1000 mm Cardboard mandrels diameter: 3" (internal diameter) Twin winder type BA-2/1800 Line total height: 9 m

Description Single layer blown film line Extruder diameter 105 L/D 30 Extrusion head with die 500 Dosing units DS&M Still haul off Twin winder working width 2200

Description Flexo gearless printing machine 8 colors Max printing width 1260mm Max film width 1300mm Print repeat min/max 340/800mm Winder and unwinder for roll 3" Elecrtical drying Video control system 8 pumps

Description Flexo printing machine from reel to reel 6 printing colors printing width 1300mm printing length 300 - 800mm printing speed 200 m/min installed power 80 kVA

Description Corona Treatment for Cast Lines

Description Gauging Scanner for thickness

Description Mannesmann Demag hoist Max load : 200 Kg chain length: 3 m Power strip length: 6 m Power supply: 400V Power: 0.2 kW

Description Profile unloader adjustable inclination adjustable height adjustable belt speed

Description Cut off for pipes max diametere of cut 450 mm

Description Cutt off for agricultural pipes V-cut nr.2 pipes at a time cut

Description Peletizer Previero Model TA 400 NO elctrical cabinet 3 kit of used kniwes

Description conveyor profiles power engine kw 0,18 length mm 3100 width mm 70 regolabile

Description Cutting Machines B.G.Plast BG63/60 200/5034 year 1992

Description Single screw co-extruder Screw diameter 30 Effective barrel length 600 Installed power 11 kW Nr.3 heated zones

Description Complete line for WPC profiles Twinl screw extruder, screw and barrel in tungsten crbide model Cincinnati ARGOS 135 doble vented year 2008 Forced feeder L/D 37 Gravimetric dosing sistem CONPRO 5 components Working hours 40.742 Double strand calibration table GREINER get.CAL 20,3 - 6p/8z - Dual A year 2008 Double strand haul-off/saw GREINER Cob. get.COM 30/9-235-S/500 - DS year 2008 Tipping table GREINER GTT 6,00 anno 2008 Avalable spare screw and barrel
