Presión: 63 t Tamaño de la mesa: 610 x 800 mm Extensión: 350 mm Carrera: 200 mm electr. Conexión: 380 V, 15 kW Requisito de espacio: 1800 x 920 x 2440 mm Peso: 3940 kg
usado
Presión 6.3 a. ub 450 mm, extensión 200 mm, velocidad de empuje 3,5 m/min, altura de instalación 700 mm, tamaño de mesa 360 x 320 mm, altura de la mesa 750 mm, potencia total 2kW, peso. 900 kg
usado
Pressure total: 80 ton Stroke: 110 mm Daylight: 450 mm Table surface area : 650 x 520 mm Slide area: 560 x 480 mm Die cushion capacity in table: 20 ton Required power: 18,5 kW Dimensions L x W x H: 2000 x 1200 x 3000 mm Weight of machine approx.: 4,8 ton
usado
pressure:6,3 t throat:210 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:380 x 350 mm hole in the table:100 mm table height over floor:1050 mm ram surface:45 mm power requirement:4,0 kW weight:0,8 t dimensions (WxDxH):0,8 x 1,2 x 2,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
usado
Pressure:40 t throat:330 mm stroke:250 mm distance table/ram, max. stroke up, adjustment up:450 mm table surface area:800 x 500 mm hole in the table:100 mm table height over floor:900 mm ram surface:100 mm Speed down:406 mm/s Speed up:393 mm/s Working speed:14 mm/s oil volume:350 l power requirement:7,5 kW weight:4,6 t dimensions (WxDxH):1,3 x 2,3 x 3,4 m German Safety: permitted for manual loading:CE-sign depth stop:mechanical
usado
pressure:6,3 t throat:300 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:450 x 400 mm hole in the table:80 mm table height over floor:700 mm ram surface:50 mm oil volume:90 l power requirement:5,5 kW weight:1,35 t dimensions (WxDxH):1,8 x 2,0 x 2,7 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical
usado
pressure:60 t distance between columns:650 mm stroke:220 mm distance table/ram, max. stroke up, adjustment up:410 mm table surface area:600 x 525 mm pressure of drawing cushion in table:5 t stroke of drawing cushion in table:80 mm table height over floor:900 mm side window:200 mm ram surface:560 x 490 mm dimensions (WxDxH):1,9 x 1,3 x 2,7 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick FGS 600 drawing cushion in table:hydraulic foundation pit:not necessary
usado
pressure:60 t distance between columns:650 mm stroke:220 mm distance table/ram, max. stroke up, adjustment up:410 mm table surface area:600 x 525 mm hole in the table:110 mm table height over floor:900 mm side window:200 mm ram surface:560 x 490 mm power requirement:15,0 kW dimensions (WxDxH):1,9 x 1,3 x 2,7 m foundation pit:not necessary
usado
Description: Machine number 1388 Approx. Onsite Dimension. (l x w x h): 1,350 x 700 x 2,400 mm, weight approx.: 1,000 kg
usado
usado

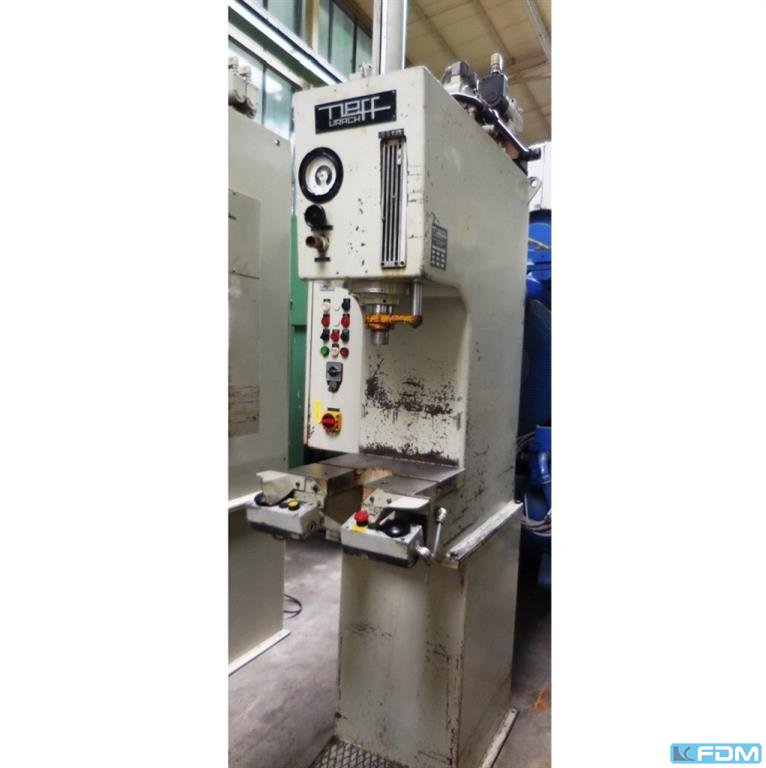

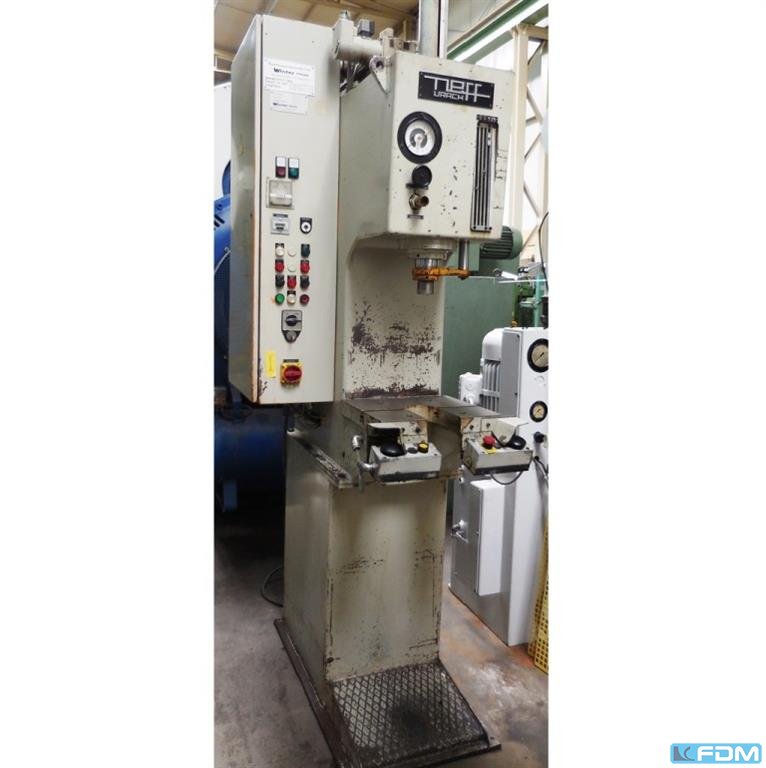

Prensa hidráulica de una sola columna hace NEFF tipo 6 SEKFabr. -No: 2634 Año 1971Max. Fuerza de prensa: 6 tTensión: 200 mmTamaño de la mesa: 400 x 600 mmAltura de instalación: 900 mmTensión de la mesa: 160 x 380 mmMedidas L x W x H: 1300 x 900 x 2400 mmCon Zweihandausrückungused, a partir de una resolución operativa, en buen estadoPrecio a petición. Entrega: ex almacén o ubicación libre de carga camión. Pago: neto en el momento de la adquisición o con cita previa. Los datos técnicos no son vinculantes. Errores exceptuados. Estaremos encantados, si le gusta nuestra oferta y siempre estamos disponibles para sus consultas. SaludosM. Máquinas herramienta WaldeckWAHO
