Build Volume 200 x 250 x 330 mm (7.9 x 9.8 x 13.0 in) Laser Type CO₂; 1 x 30 W Presicion Optics 1 F-theta-lens(es); 1 High-speed scanner(s) Scan Speed up to 5.0 m/s (16.4 ft/s) Power Supply 1 x 16 A Power Consumption max. 5.0 kW / typical 3.0 kW Machine Dimensions 1320 x 1067 x 2204 mm (52.0 x 42.0 x 86.8 in) Recommended Installation Space min. 3200 x 3500 x 3000 mm (126.0 x 137.8 x 118.1 in) Weight approx. 600 kg (1323 lbs) Software EOS SYSTEM SUITE Materials & Processes EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way for your products. Explore below which polymer materials and processes are compat ...
Build Volume 700 x 380 x 580 mm (27.6 x 15.0 x 22.8 in) Laser Type CO₂; 2 x 70 W Presicion Optics 2 F-theta-lens(es); 2 High-speed scanner(s) Scan Speed up to 10.0 m/s (32.8 ft/s) Power Supply 1 x 32 A Power Consumption max. 12.0 kW / typical 3.1 kW Machine Dimensions 2250 x 1550 x 2100 mm (88.6 x 61.0 x 82.7 in) Recommended Installation Space min. 4800 x 4800 x 3000 mm (189.0 x 189.0 x 118.1 in) Weight approx. 2300 kg (5071 lbs) Software EOS SYSTEM SUITE typical build rate for PA 2200 for 120 μm (0.00472 in) layer thickness Materials & Processes EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way ...
Manufacturer: EOS Model: M 100 Year of Manufacture: 2016 Machine Type: Laser-Sinter System / Metal 3D Printer Build platform: Diameter 100 mm x Z 95 mm Technology: DMLS Materials: CoCr, 316L, option available for Ti64 Laser: Yb-fibre laser; 200 W CE Certified: Yes Electrical Specifications: - Voltage: 230 V 1~ / N / PE or 200–240 V 2~ / PE - Full Load Current: 8 A - Net Fuse: 16 A (1~) / 15 A (2~) - Frequency: 50 / 60 Hz - Nominal Power: 1.7 kW - Short Circuit Current Rating: 5 kA Physical Specifications: - Total Weight: 570 kg Condition & Notes: - Machine is fully functioning, but currently missing a filter, which is required for operation. - Last maintenance: 17/08/2024 — the machine has not been used much since. - No accessories included with the sale. - A Concept Laser QM powder sieve can be sold separately if required. Find more here - / Contact us at -

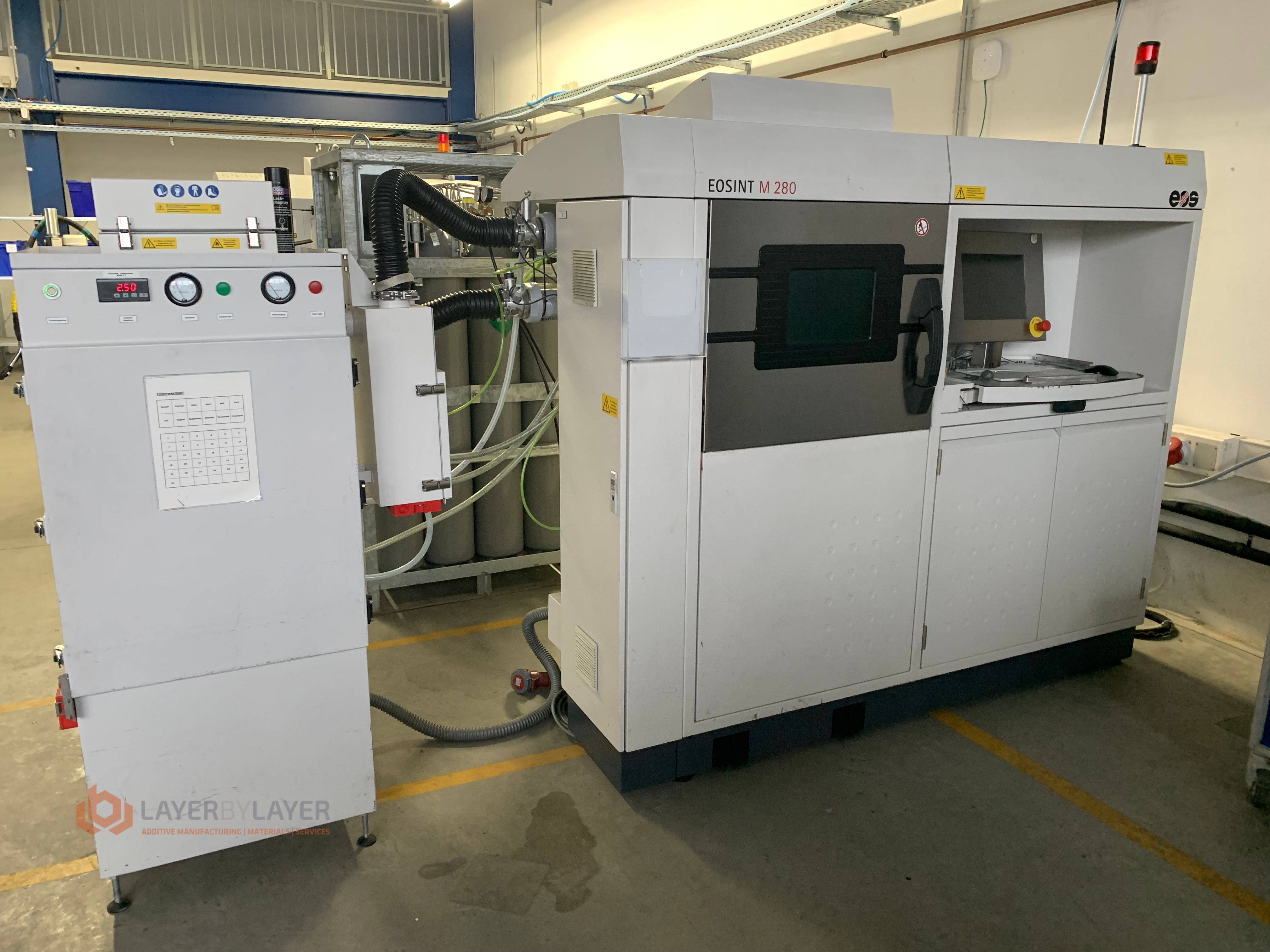

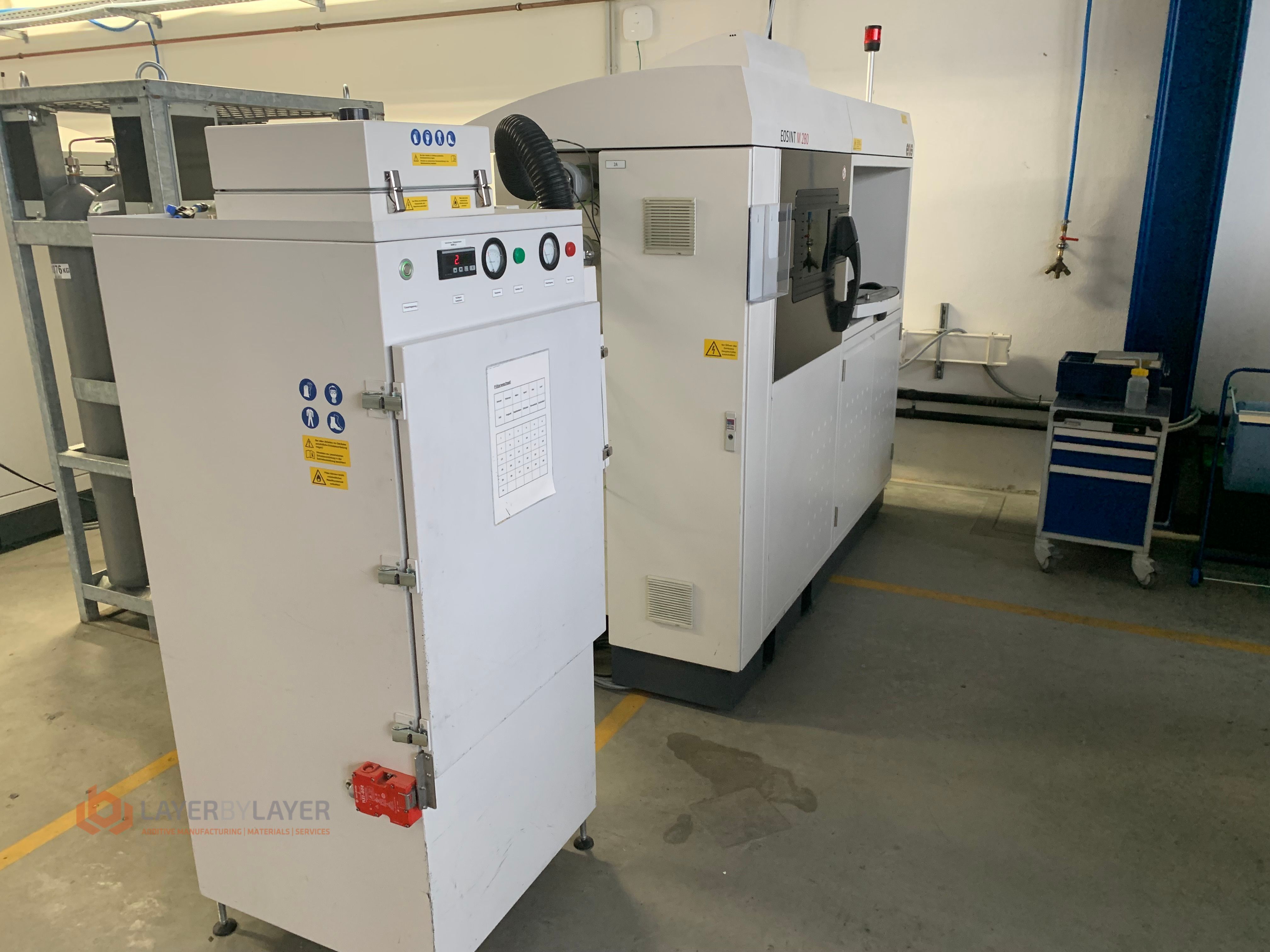

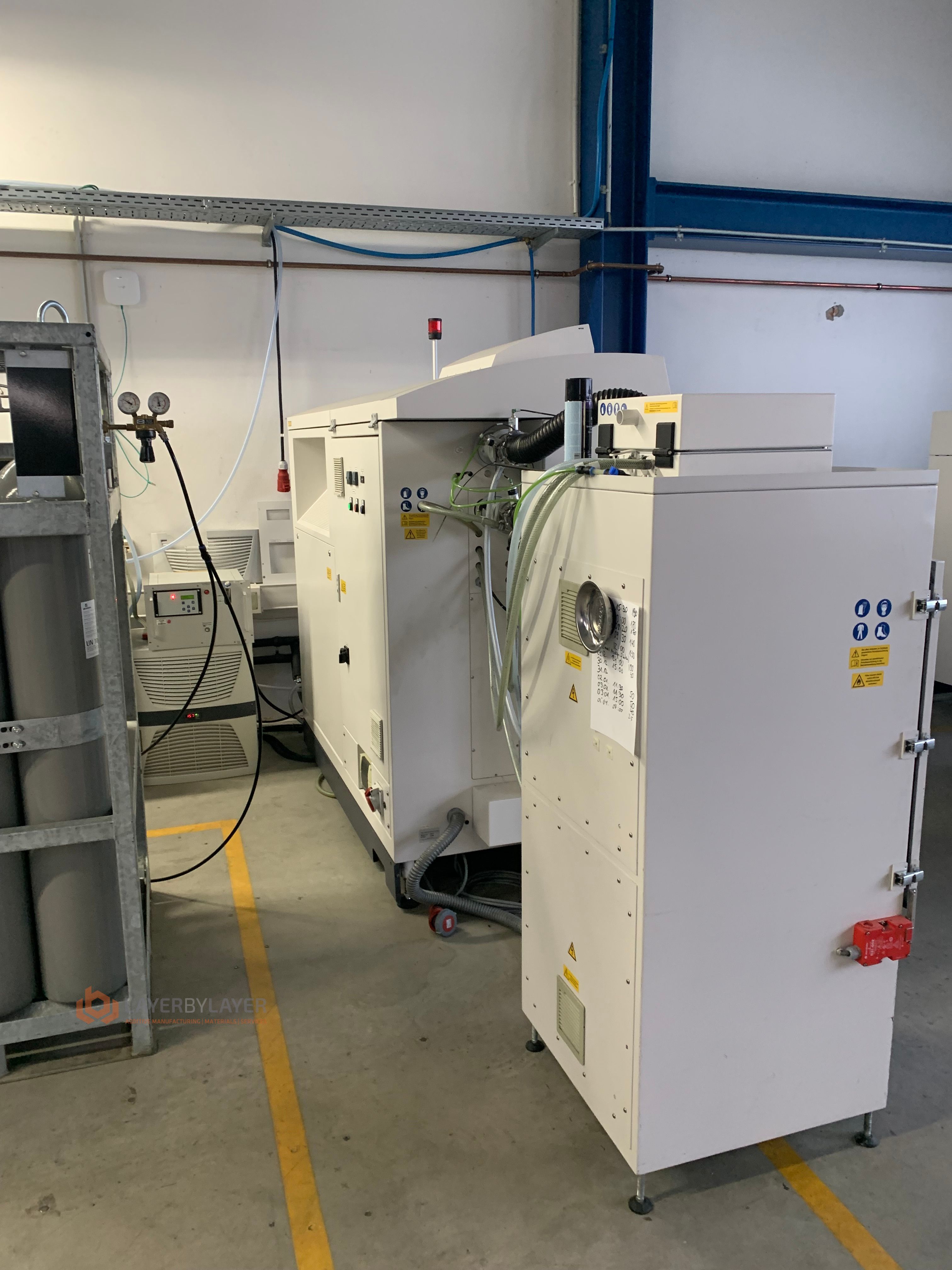

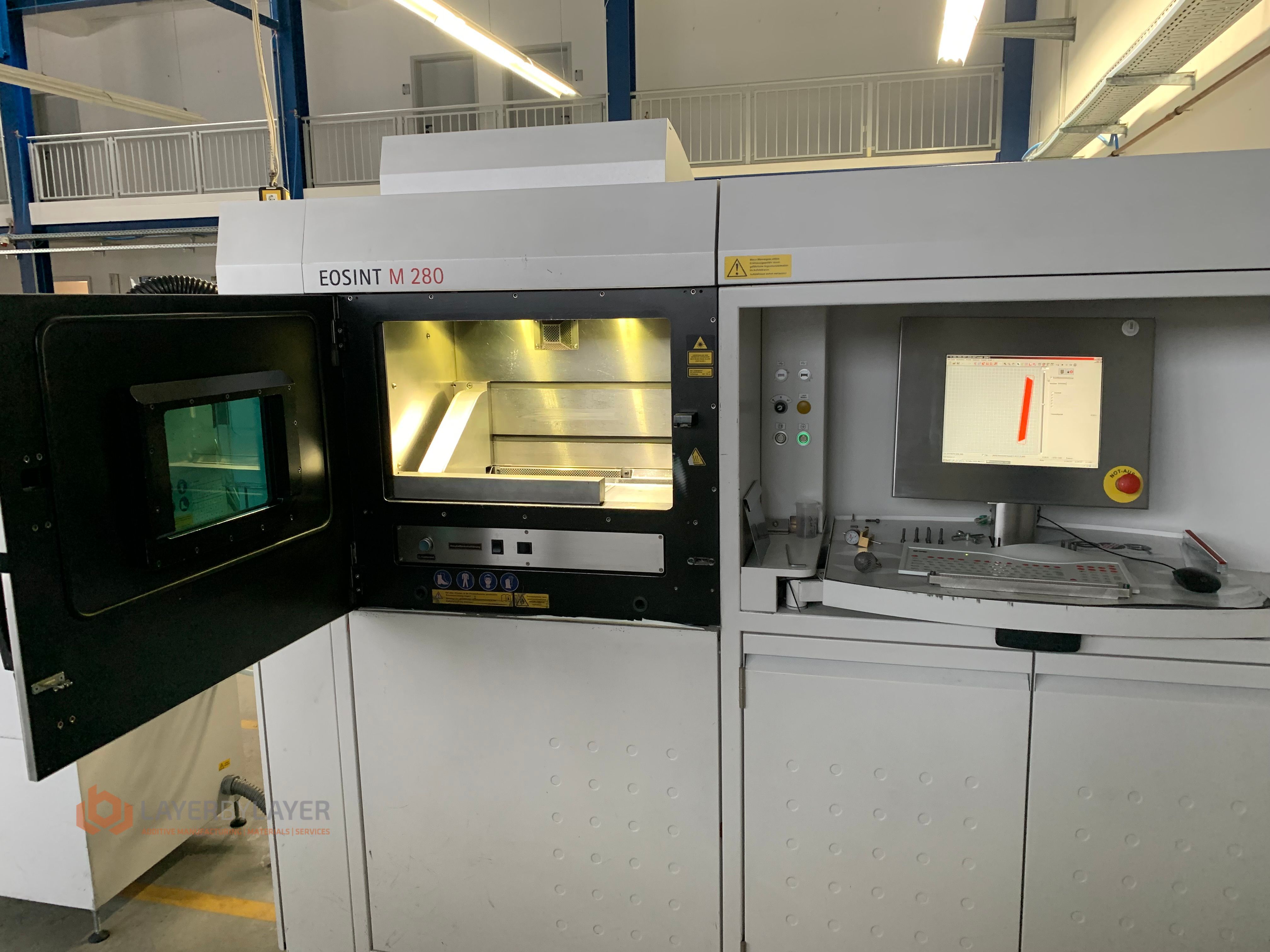

On behalf of the customer, we offer an EOS M280. The system is in good overall condition; the laser has been replaced and currently operates at 367.6W at 100% output (measurement from January 2026, Primes laser power meter). In terms of performance, only conditionally suitable for aluminum and copper materials., - Laser hours approx. 34,000 h (February 2026), - Machine hours approx. 45,700 (February 2026), - PSW version 3.7, - Machine comes with parameter editor for freely setting the parametersOther material licenses on the machine:, - GP1 Surface (20µm), - In718 40µm, - MP1 50µm, - MS1 40µm, - MS1 50µm, - GP1 Start 40µm, - 200° heating installed, - no leaks (low gas consumption and low O2 content during the process
EOS FORMIGA P100 â Professional SLS 3D printer for plastic components, For sale is a used EOS FORMIGA P100, year of construction 2012, in good and fully functional condition. The machine is ideally suited for the industrial entry into the selective laser sintering technology (SLS) and offers precise results with high material diversity. The FORMIGA P100 convinces with its reliability, compact design and its ability to accurately render fine details even in small components â perfect for Prototypes, Functional sample or Small-series parts made of polyamide (PA12) and other materials., ---------------------------------------------------------------, Special features:, - Compact size â ideal for development departments, laboratories or small production rooms, - Low powder consumption â economical for small quantities, - Precise results for delicate components, - Supports ...
Noleggio: Cassa in legno per il trasporto EOS M270/M280
The high-end PRECIOUS M 080 system from EOS was developed for the additive manufacturing of precious metal parts for the watch and jewelry industry. Designs can be realized within a few hours and without investing in tools. The system builds the parts layer by layer, melts fine metal powder with a laser and creates extremely complex shapes such as free-form surfaces, hollow shapes and moving parts., The machine offered is fully functional., - Last maintenance unknown, - Machine parameters for red, white and yellow gold, technology: DMLS (Direct Metal Laser Sintering), Construction volume: Diameter 80 x 95 mm, Dimensions machine unpacked: 800 x 950 x 2250 mm, Weight machine unpacked: 580 kg, Power connection: 200-240V, network connection: Ethernet, software: EOS RP Tools (optional), EOSPRINT, laser: Yb-Fibre Laser 100W, scanner: High-speed scanner, F-Theta lens, scanning speed: up to 7.0 ...
Eos EOSINT Qui offriamo un sistema di sinterizzazione laser in plastica Eos EOSINT. Le seguenti cose sono incluse nel sistema EOS P380 Contenitori dello spazio di installazione Contenitori per polveri Contenitore di troppopieno Refrigeratore: Termo TEK Termochiller Tipo: P411-12448-1 3DM 8 zone Riscaldamento della camera di processo 250C Ogni zona regolabile individualmente, campo di temperatura omogeneo ± 1C Kelvin 350 millimetri x 350 millimetri x 610 millimetri Sannung 3/N/PE/ 400V CA Frequenza 50 Hz Valore attuale 8 kW Fusibile 32 A Max Potenza Laser 100 W Classe laser aperta 4 Classe laser Chiusa 1 Peso 850 kg Tipo: EOSINT P 380 Condizione: usato Contenuto della confezione: (Vedi foto) (Modifiche ed errori nei dati tecnici, informazioni riservate!) Siamo lieti di rispondere a qualsiasi ulteriore domanda tu possa avere al telefono.
