Oluklu delik matkap presleri

double-sided long-hole drilling machine with automatic duty cycle, maximum working width / stroke length of oscillation 120 mm, drilling depth max. 80 mm, table inclination max. 20°, tool clamping diameter max. 13 mm, drilling diameter max. 20 mm, spindle motor power 2.24 KW / volt. 380/50 Hz, spindle speed 9,000 rpm, oscillating motor power 0.75 KW, oscillation adjustable from 120 - 240 strokes per minute, pneumatic workpiece clamping, 4 suction nozzles D=80 mm, space requirement - depth 1,000 mm, width 1,300 mm, height 1250 mm, weight 500 KG; Technically and optically in very good condition

Description: • Multi spindle slot mortiser • Serial number AC 256-T8 • 2  ,tables with dimensions 1000 x 220 mm each • Tables with adjustable height 120 mm and depth • 2 pneumatic clamp devices in each table • 5 horizontal independent oscillanting units working by 2 sides, motor power 0.50 KW-6000 rpm each • Head height adjustment 60 mm • Maximum tool diameter 16 mm • Frequency converterApprox. Onsite Dimension. (l x w x h): 1,800 x 1,650 x 1,550 mm, weight approx.: 1,300 kg

SPECIFICATIONS: Suitable for processing backrests Number of spindles: 06 Speed: 10,000 rpm variable Max. machining depth: 50 mm Bending radius of the working table min - max: 300 - 900 Pneumatic workpiece clamping

Description: Drilling and Mortising Machine Serial number 40 02 214 17 Bore depth 160 mm Spindle stroke 130 mm Bore lenght 250 mmApprox. Onsite Dimension. (l x w x h): 2,600 x 1,500 x 1,100 mm, weight approx.: 600 kg

Universally applicable frame and slotted hole drilling machine Especially for window construction and universal use through pneumatic height adjustment Double-hole drilling on two levels in one clamping operation Motor power 1.5 kW Starting the engine with a practical handle switch With two-jaw chuck 1 - 20mm from Röhm Pneumatic adjustment of the processing height, dowels on two levels without moving. The desired drilling heights can be set for each drilling level with a digital counter, and switching is then carried out pneumatically from the front Transverse adjustment 430mm, infinitely variable or in 12mm increments Maximum height adjustment approx. 100mm above table height Drilling stroke approx. 150mm 2 pneumatic workpiece clamps Grid rail for quick adjustment laterally in 12mm grid Stop for longitudinal adjustment during slotted hole milling 2 swivelling workpiece  ...

Hoffmann frame and slotted hole drilling machine Product name: Frame and slotted hole drilling machine Type: HR 150 Manufacturer: Hoffmann Bohrsysteme Machine number: 15306 Year of construction: 1996 Condition: used, revised, checked Technical details: - Machine height: 1,260 mm - Machine length: 1,100 mm - Machine depth: 1,300 mm - Workpiece support: 1,100 x 240 mm - Workpiece clamping: pneumatic via foot valve - max. clamping height: 150 mm (standard) - Stroke of the clamping cylinders: 10 mm - Drilling plane adjustment (Z-axis): 100 mm (pneumatic) - Drilling stroke (Y-axis): 150 mm - lateral adjustment range of the drilling unit (x-axis): 330 mm - Drill holder: Special chuck with 2 tool change inserts (1x M10 and 1x 1600) - Drill with centering tip: - 2 pieces 8 x 50 mm, 1 piece 12 x 80 mm, 1 piece slotted hole drill 8 x 20 mm - Drill speed: 2,850  ...

Rung and slotted hole drilling machine T 140 with angle adjustment Special drilling machine for staircase construction, window construction. Oblique dowels and picket holes can be easily realized thanks to the rotatable drilling unit. Motor pole switchable, two speeds Motor power 1.4 / 1.8 kW, 1380 / 2810rpm Starting the engine with a practical handle switch Röhm two-jaw chuck up to 20mm capacity Linear laser for exact positioning of the workpiece Drilling unit can be rotated 63 degrees to the left and right The desired drilling height can be adjusted with a hand crank and digital counter Transverse adjustment approx. 320mm, infinitely variable Maximum height adjustment approx. 60mm above table height Drilling stroke approx. 140mm 2 pneumatic workpiece clamps Chassis Pressure rubbers renewed Few paint spots repaired Dimensions approx. 1180 x 1000 x 1250mm (LxWxH), ...

HofmannLangloch drill Brand Hofmann Type LL150 Year of construction Specifications: drilling depth max. 145 mm (drill head movement) Drilling length: max. 230 mm (table movement) Vertical drilling spindell run max.135 mm Drilling: Drilling depth limitation Table: side ward movement via sep. Handle Cast iron table: solid with mechanical product clamp Height adjustment: Handwheel Motor power 1.3 kW Chuck 5 - 20 mm Condition: functionally tested

Frame and slotted hole drilling machine with pneumatic height adjustment and pneumatic feed Double-hole drilling on two levels in one clamping operation Motor power 2.2 kW With two-jaw chuck 1 - 20mm Pneumatic adjustment of the processing height, dowels on two levels without moving. Transverse adjustment approx. 280mm, infinitely variable or in 18/20/22/25mm increments Drilling stroke approx. 120mm Pneumatic drill feed can be controlled via foot pedal, spinning possible 2 pneumatic workpiece clamps Grid rail for quick adjustment laterally in the grid Stop for longitudinal adjustment during slotted hole milling Suction connection 80mm A few paint spots dabbed Very good condition, see original photos. Dimensions approx. 1000 x 850 x 1300mm (LxWxH), weight 250kg. The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstrat ...

New VDL 2D chiseling machine with the possibility of automatic drilling at distances of 25 and 32 with the possibility of tilting and turning in 2 directions. Technical parameters: Control of the machine with 1 lever Power of the main motor: 1.5 kW Tool speed: 2850 rpm Spindle diameter: 3 - 16 mm Stroke of the spindle: 180 mm Dimensions of the table: 600 x 450 mm Weight of the machine: 320 kg

Precise and heavy machine for drilling slotted holes. The maximum hole length is optional. In the standard version, it is 400 mm. The tool is fixed. The height is adjusted by raising the work table. Spindle power: 1.5 or 2.2 kW

Description: • Double automatic slot mortiser • Serial number 57/452 • Main motor power 1.50 KW • 2 oscillating heads • Tables dimensions 500 x 300 mm, tables with adjustable height and depth • Vertical adjustment of the tables approx. 100 mm • Maximum slot length approx. 100 mm • Maximum slot depth approx. 50 mmApprox. Onsite Dimension. (l x w x h): 1,450 x 1,110 x 1,350 mm, weight approx.: 500 kg

PANHANS 116 YOC 1987 Motor power: 1.5 kW Rated current: 3.5 A 2-lever operation max. drilling depth: 130 mm Height adjustment: 135 mm max. slotted hole length: 240 mm Height adjustment via handwheel Dowel pitch: 16 / 22 / 25 / 32 mm Miter ruler (adjustable) Length stop 1 eccentric Workpiece clamping Suction device: Connection 100 mm Table size: 520 x 290 mm Weight: 220 kg Dimensions (approx. dimensions): W: 90 cm D: 125 cm H: 115 cm

Table top height: 910 mm Table top size: 700 x 380 mm Max drilling depth: 145 mm Max long hole length: 240 mm Height adjustment distance 135 mm Engine power: 1.5 kW Voltage: 400 V / 50 Hz Speed: 3,000 rpm Net weight: approx. 200 kg Suction nozzle: 100 mm Dm Dowel drilling device: Pitch 16, 22, 25, 32 mm with precision grid roller Driving equipment: Yes Frame stop 90°: pluggable Two-jaw chuck: up to 20 mm clamping range Hand eccentric tensioner: 1 piece 1 Lever control: Yes Measuring clock in handwheel: Yes Miter stop: Yes, double angle adjustment stop from 22.5° to 75° infinitely adjustable

Slotted hole drilling machine with pneumatic height adjustment Duggle hole drilling on two levels in one clamping Motor power 1.5 kW With Röhm two-jaw chuck 1 - 20mm Pneumatic adjustment of the machining height by foot pedal, dowels on two levels without repositioning. Transverse adjustment approx. 240mm, infinitely variable or in 16/22/25/32mm increments Maximum height adjustment approx. 135mm Drilling stroke approx. 145mm Table size approx. 700 x 380mm pneumatic workpiece clamp Fixed stop and adjustable angle stop from +45 to -45 degrees Grid rail for quick adjustment on the side of the grid Driving equipment Extraction connection Parts repainted Pressure reducer renewed Dimensions approx. 950 x 1200 x 1300mm (LxWxH), weight 320kg. The machine can be demonstrated by appointment at our site. We only offer machines that are ready for demonstration in our warehouse ...

-) 2-jaw drill chuck 20 mm -) Dowel drilling device with 4-compartment grid 16-32-22-25 mm -) 90° frame stop pluggable -) Miter stop 45° and 22.5° pluggable -) Moving equipment -) Workpiece clamp manual 2 pieces -) Suction connection D 100 mm Optional accessory: -) Gauge in handwheel -) infinitely variable double angle miter stop -) 1 lever operation -) switchable pneumatic stroke for two planes -) Leaser on request

Number of boring spindles: 21 St.Boring depth max.: 80 mmMotor output: 2,2 kWWeight: 420 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

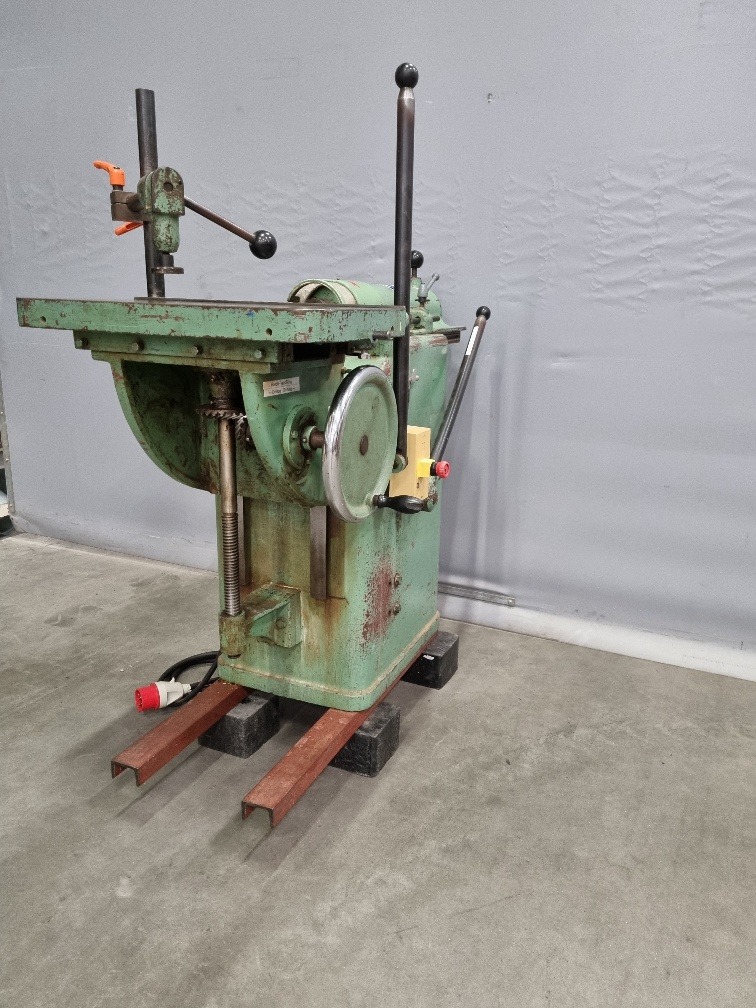

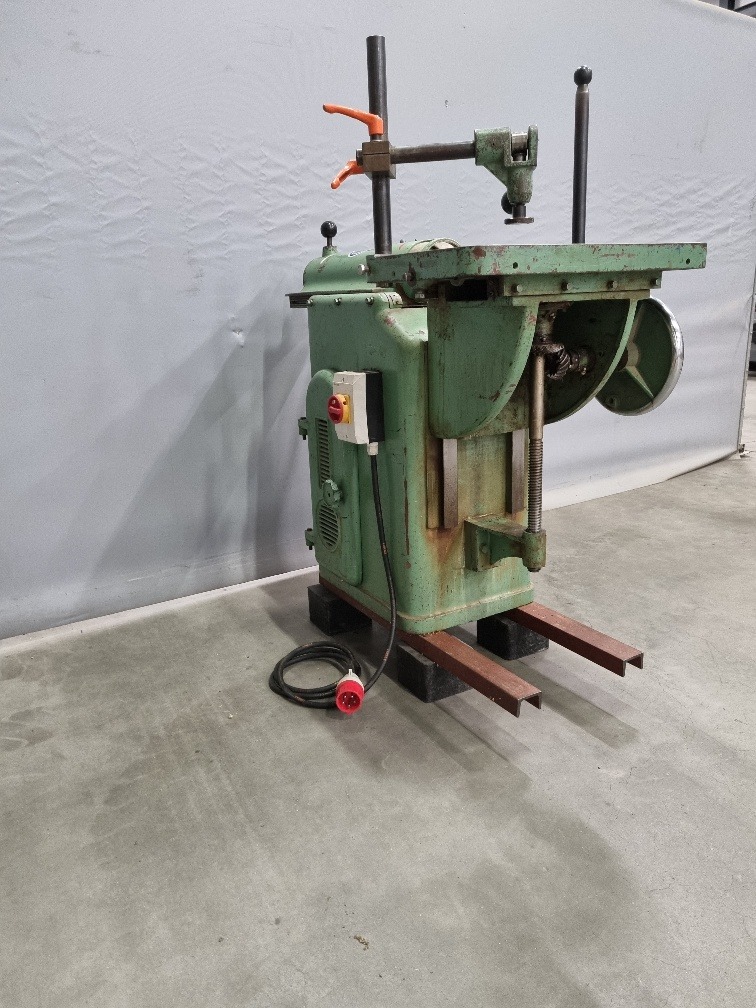

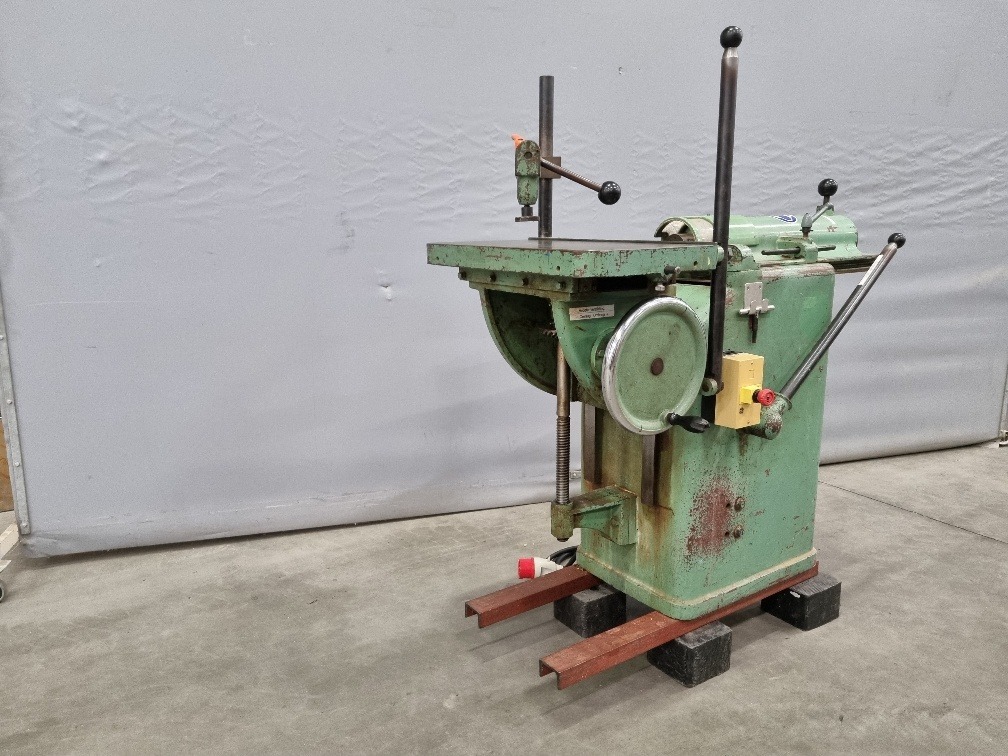

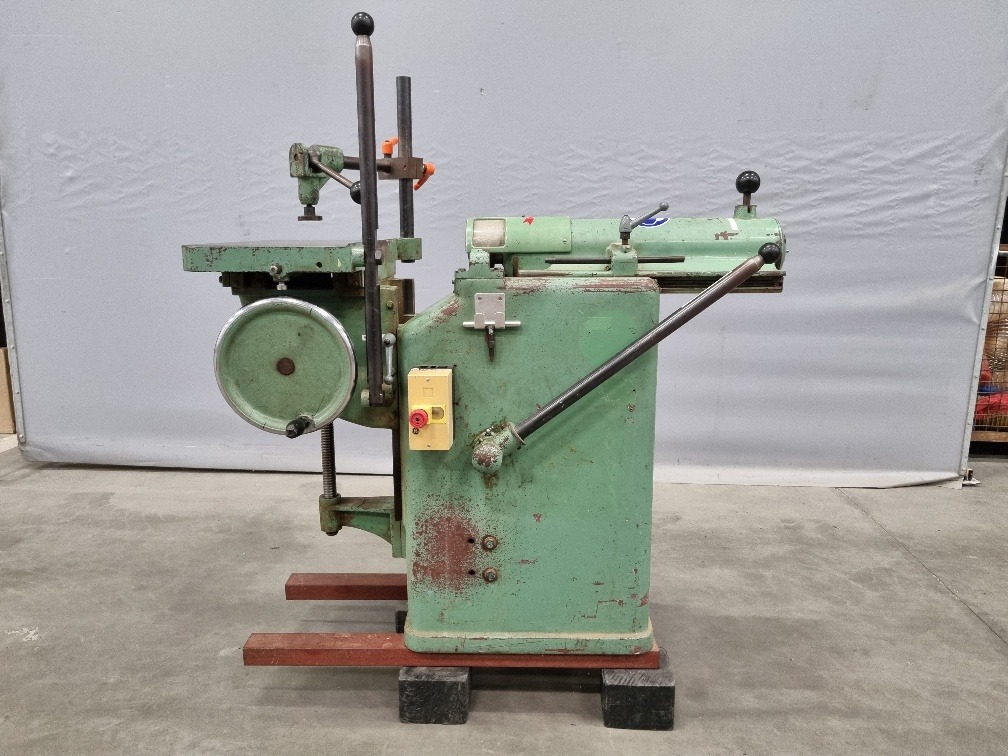

Long-hole drilling machine Height adjustment of the drilling support by hand wheel Deep movement of the drilling support by hand lever Lateral movement of the table by hand lever Table size 690 mm x 300 mm Chuck 3-16 mm Maximum drilling depth 150 mm With many drills Dimensions 1100 mm x 700 mm x H 1200 mm Weight 412 kg

WEIBERT WJ-LB2 Long-hole drilling machine WEIBERT WJ-LB2 400V 2.2 KW ( 3 hp) n=2840 min. Drilling table size 600x320mm Drilling table height 870mm Drilling depth 245mm Drilling width 205mm Height adjustment 165mm Swivel ling unit swivel -45°/90°/+45° Machine table made of GREY ING! Manual adjustment with handwheel! AGGREGAT AND TABLE FROM MACHINE GREY! G&WJ-LB2 option: Dowel drilling device available with pitch 16-22-25 and 32mm G&WJ-LB-DÜBEL
