freze makineleri ahşap çalışma kullanılmış satılık (706)

CNC unit for routing and boring Brand: Atemag Type: Function Line Soft Touch Pro With surface copying function with floating bell GX1 or GX2 or GX4 Max. drive speed 18,000 R.P.M Max. tool spindle speed 18,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 20 Nm Tool interface: modular for ER 25, ER 32, saw flange, shrink- fit chuck

CNC unit with oscillating cutter head Brand: Atemag Type: Function Line Soft Cutter Pro Max. drive speed 6.000 R.P.M Max. tool spindle speed 9.000 R.P.M. (Frequency 150Hz) Gear ratio i = 1:1,48 Torque max. 8Nm Amplitude: 4mm

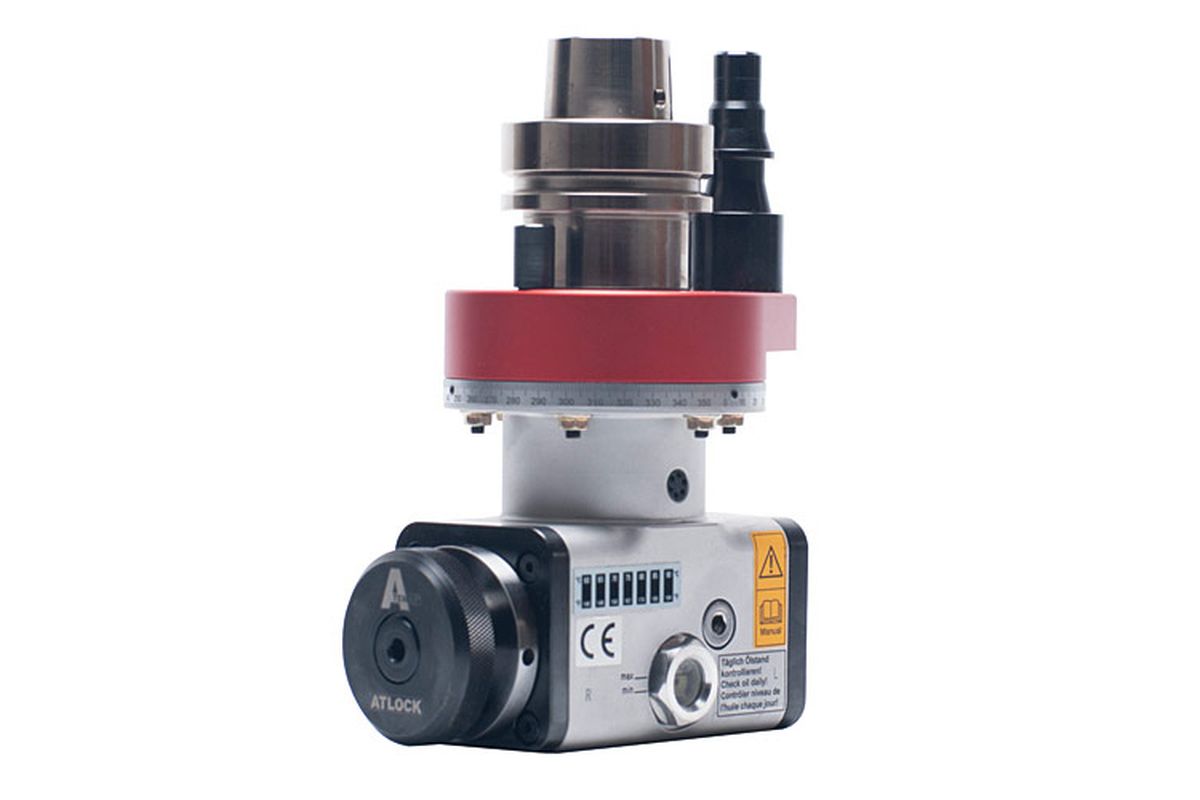

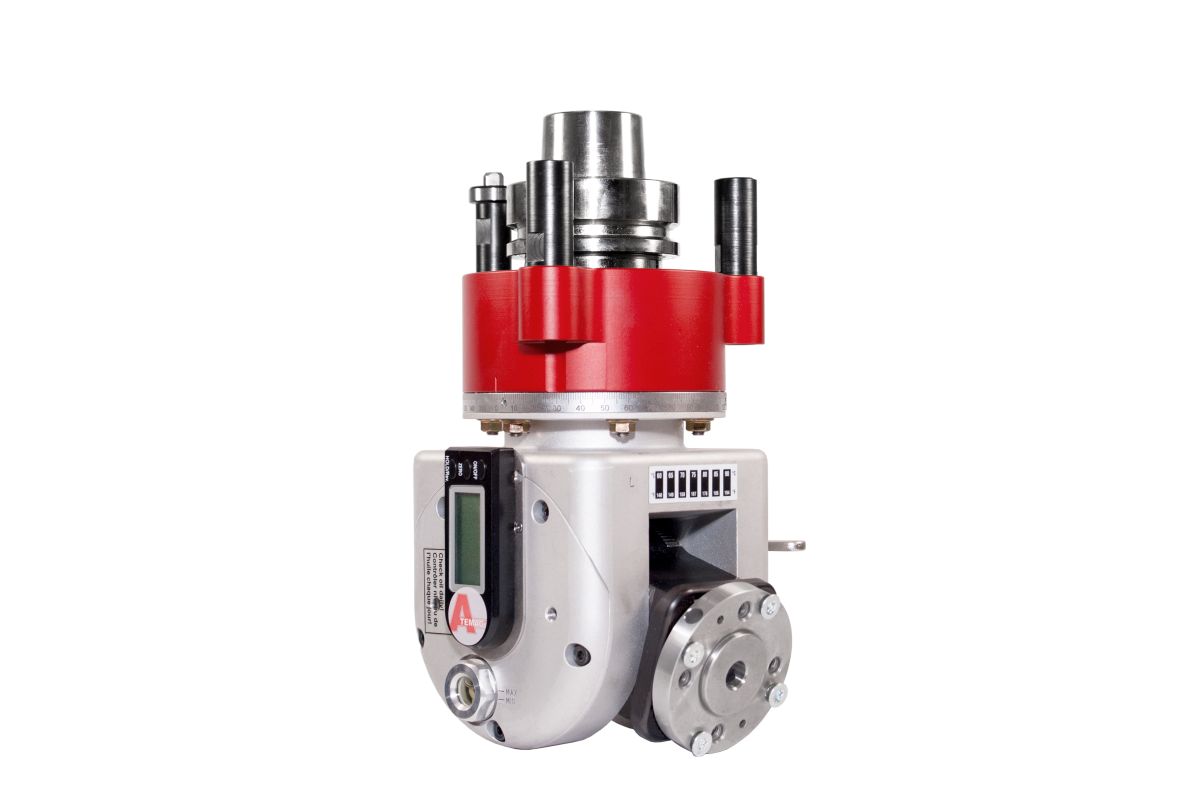

CNC unit for boring, routing and sawing Brand: Atemag Type: Ultra Line Mono With one tool interface, angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M. Gear ratio i = 1:1,5 Turning direction left/right Torque max. 22 Nm Tool interfaces: ER 25, ER 32, saw blade flange 30 mm, dia. max. 300 mm We recommend with saw blade or for heavy duty rough milling a gear reduction: Type MONO, version R Max. drive speed 12,000 R.P.M. Max. tool spindle speed 8,000 R.P.M. Gear Ratio i = 1:0,676 Torque max. 22 Nm

CNC unit for boring, routing and sawing Brand: Atemag Type: Vario Classic With one tool interface, angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M Gear ratio i = 1:1,5 Turning direction left/right Torque max. 20 Nm Tool interfaces: ER25, ER 32, saw blade flange 30 mm, sawblade dia. max. 180 mm or modular

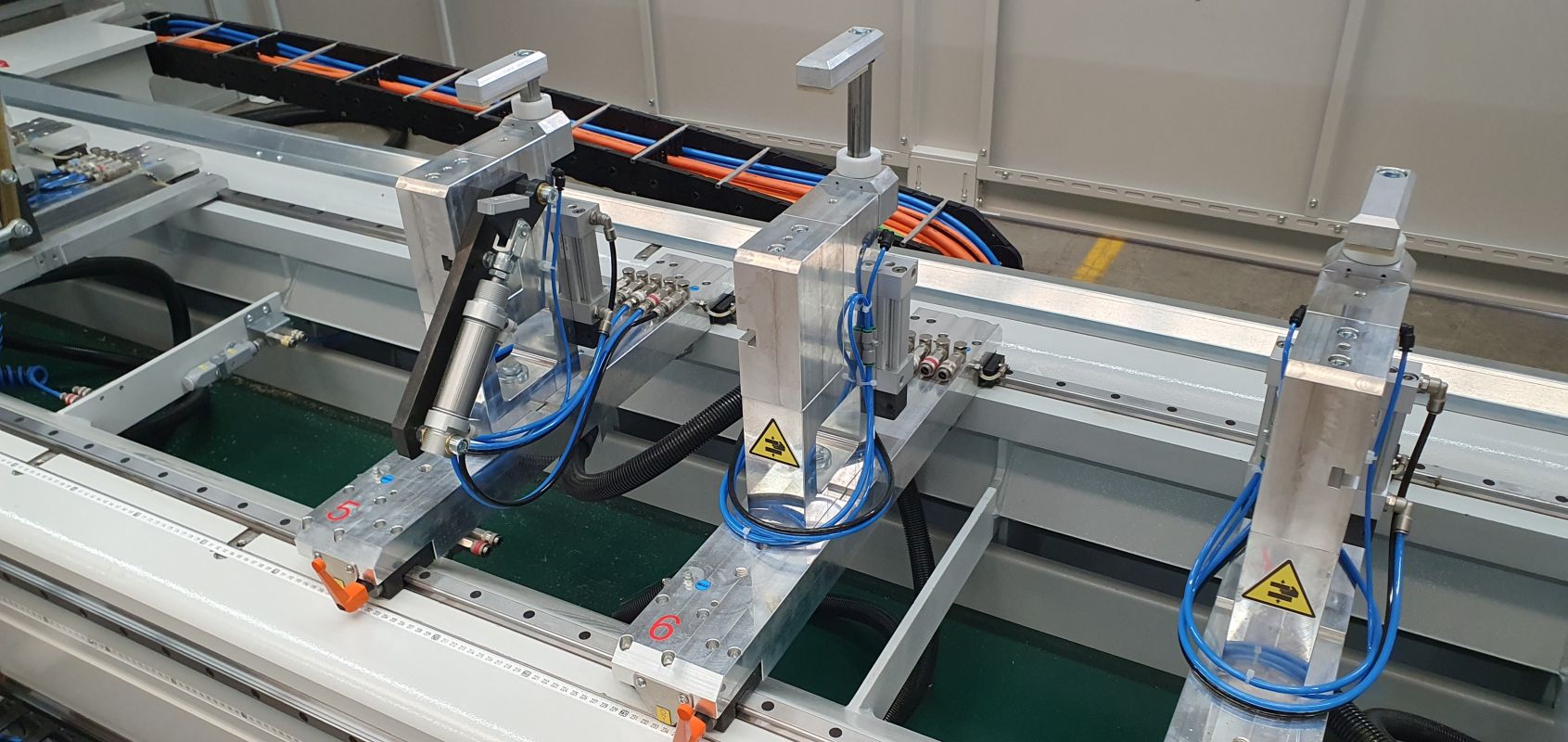

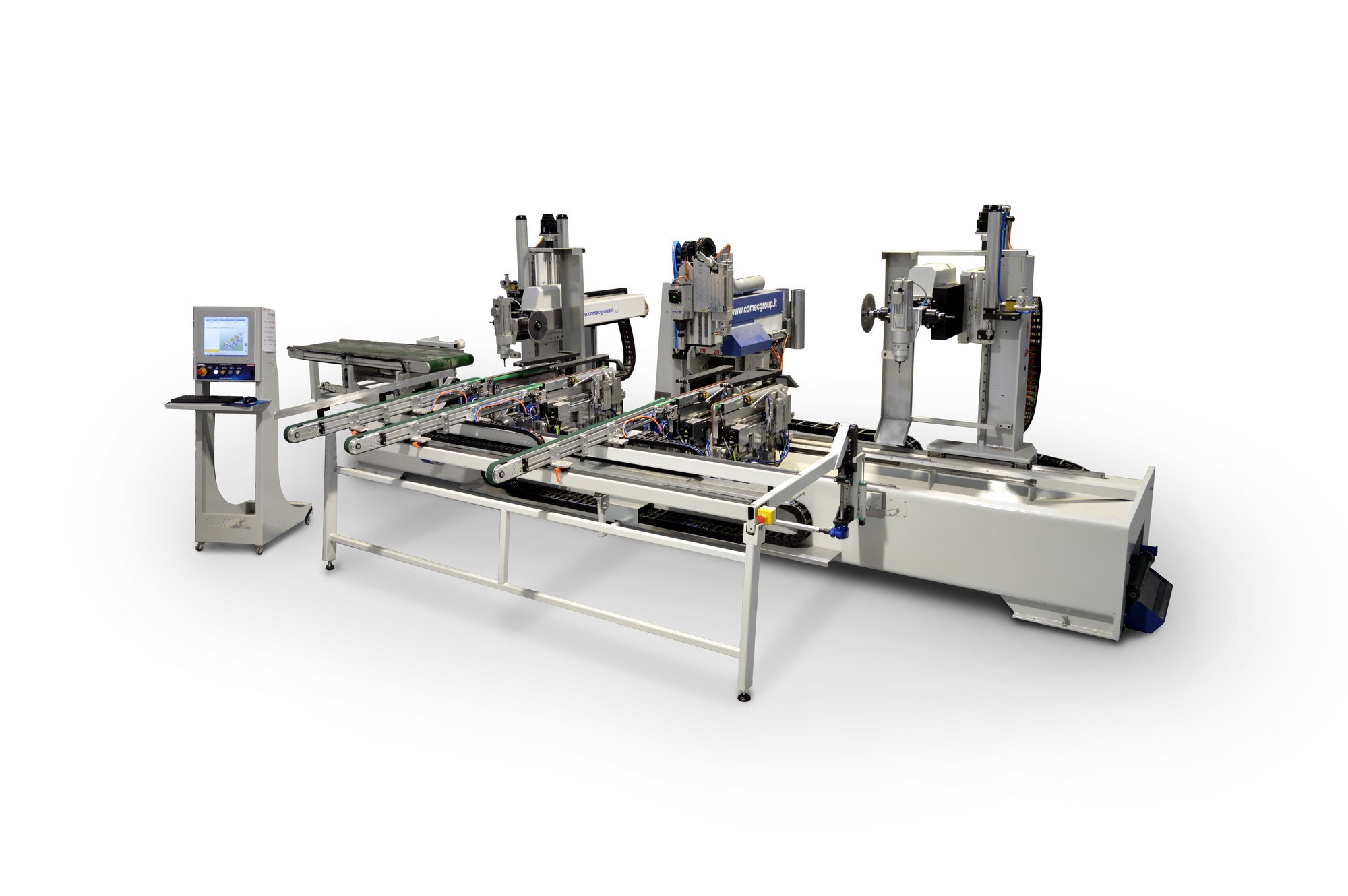

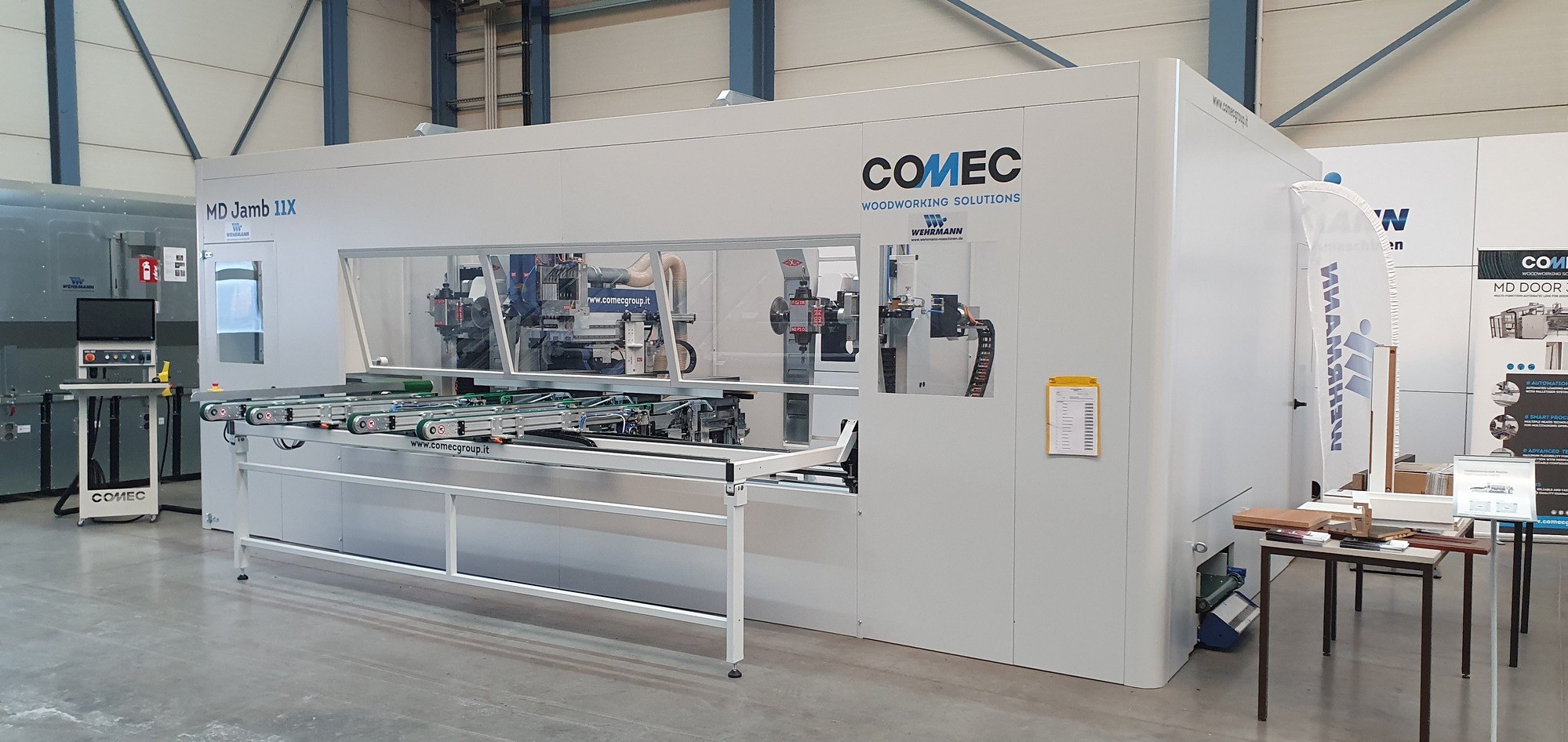

New CNC Maschine Brand: Comec type: MD JAMB CNC machining center for complete machining of a wide range of door frames. 3 machining supports for cutting to length on miters, milling for corner connectors and door lock panels. A complete door frame element with decorative cladding and rebate cladding is machined in one set-up. A complete frame can thus be machined in approx. 2.5 - 3 min. Machining equipment can be individually adapted to the customers requirements.

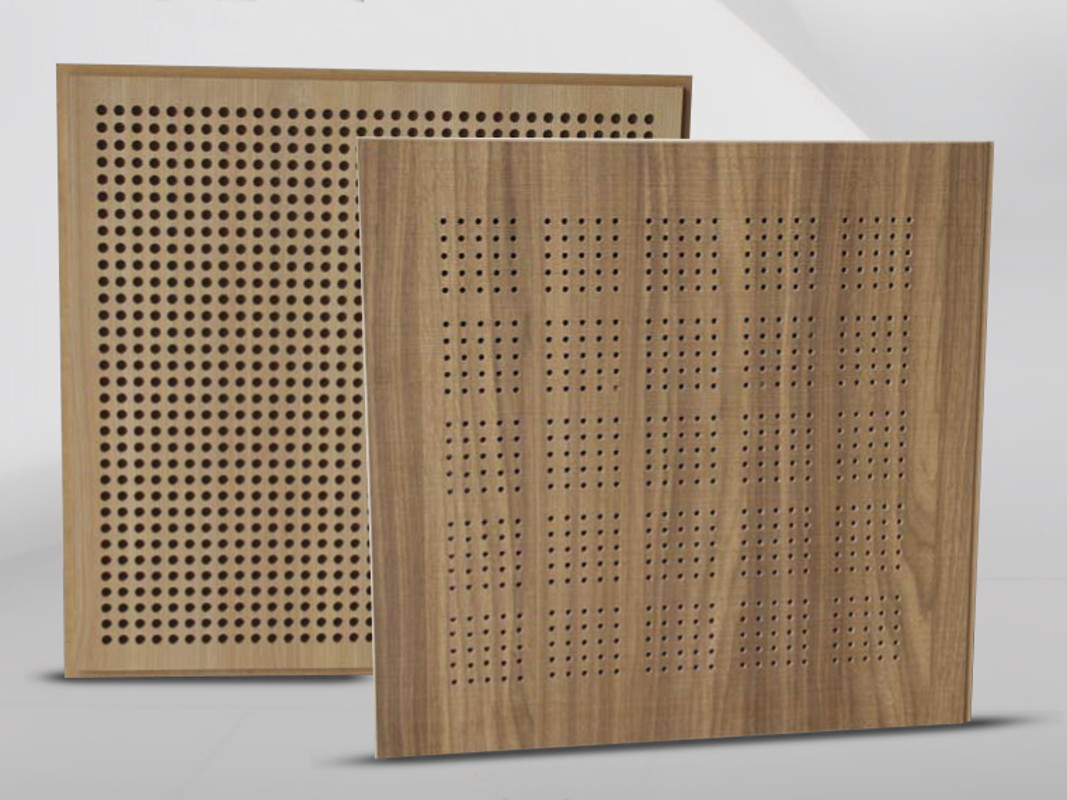

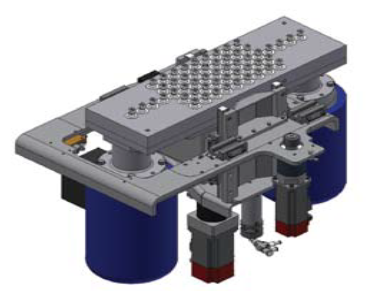

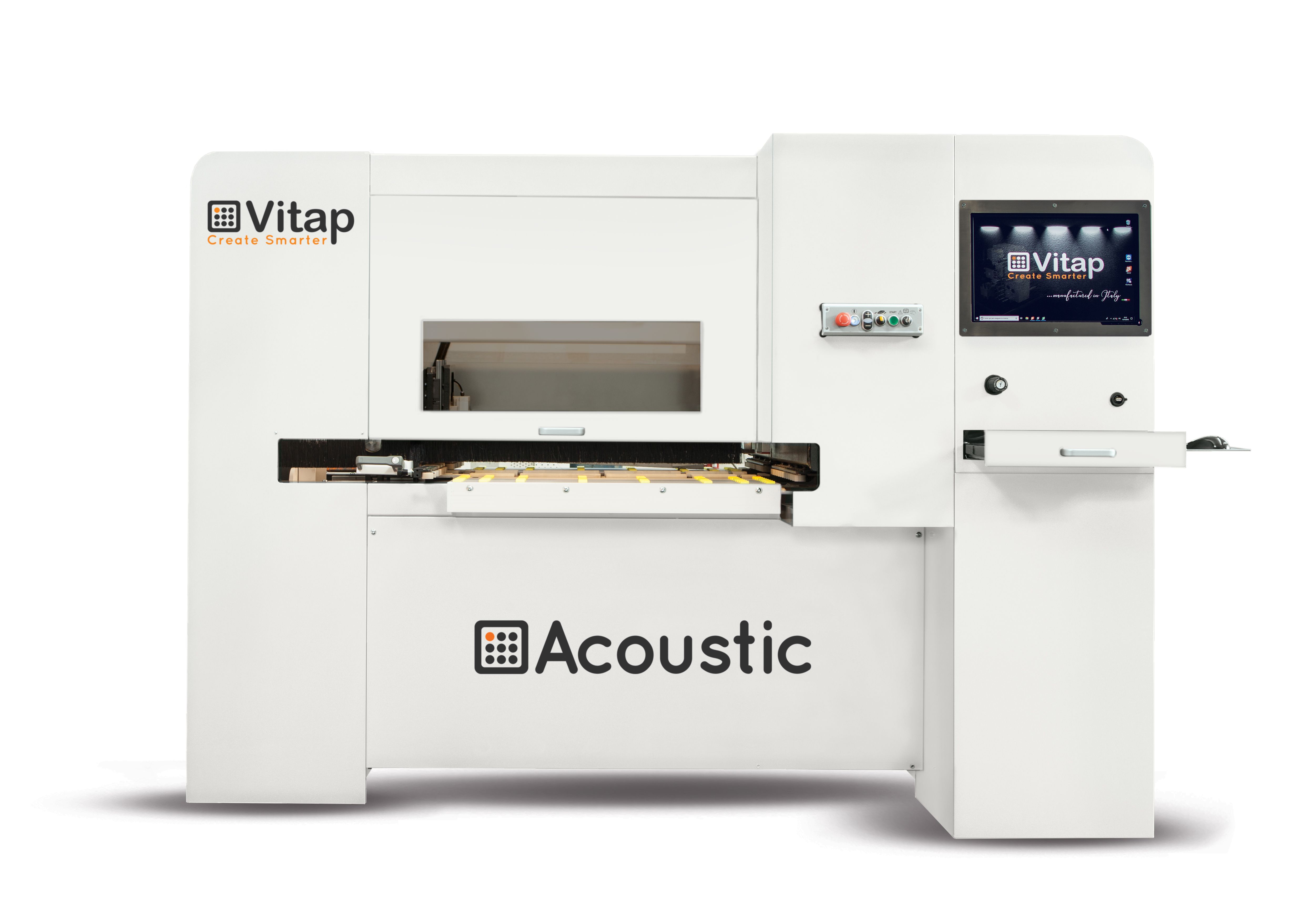

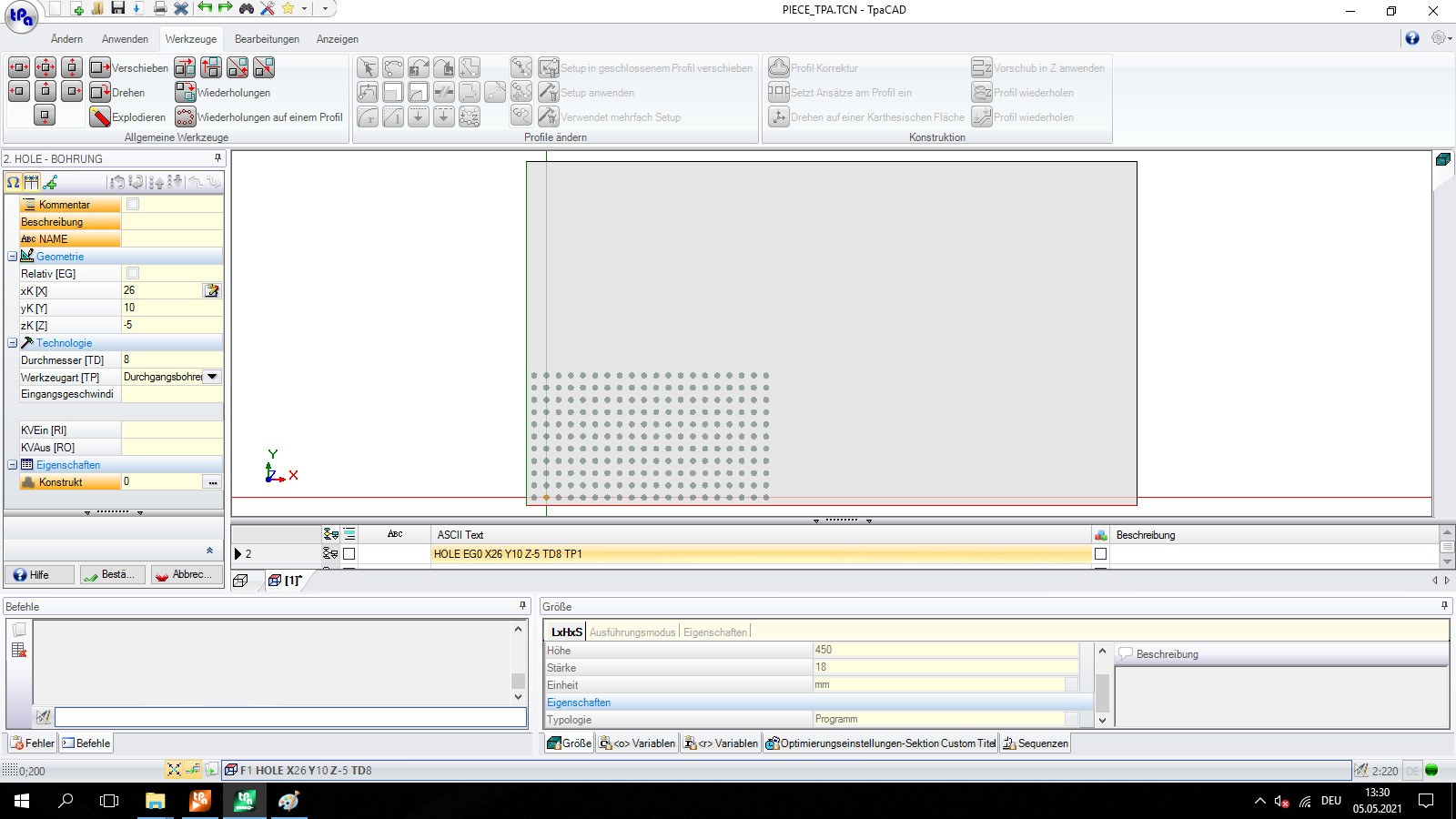

Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...

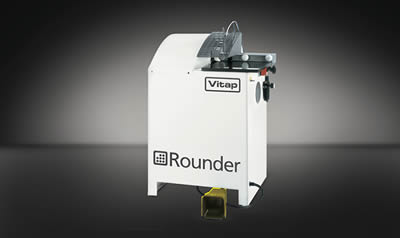

Corner rounding machine Make: VITAP Type: ROUNDER New machine Technical datas: - For corner rounder and straight corners - Standard cutters 15° R2 mm or R3 mm; - Foot pedal to start the cycle; - Movable reference with mechanical digital readout; - Complete protection with safety microswitch; - CE standards Options: CUTTER R1 MM CUTTER R2 MM CUTTER R3 MM

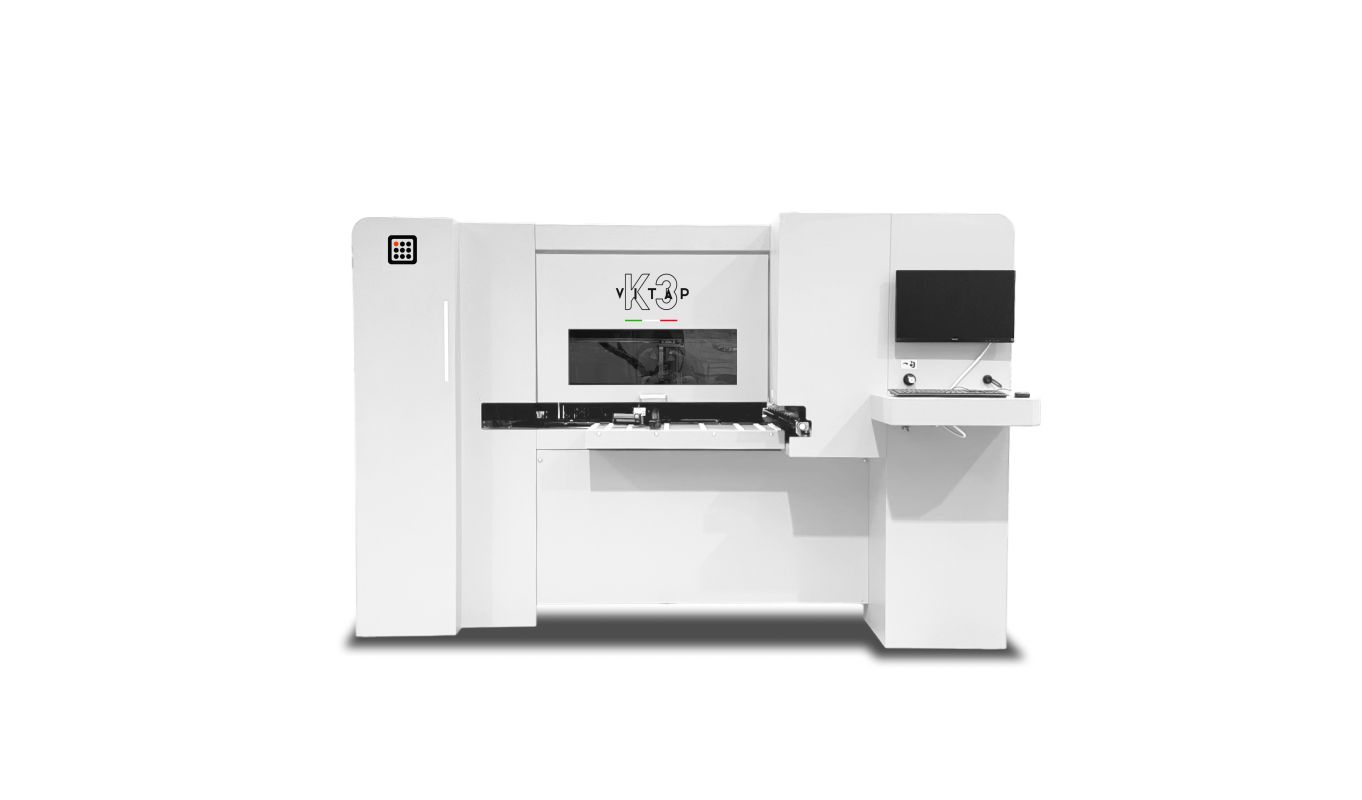

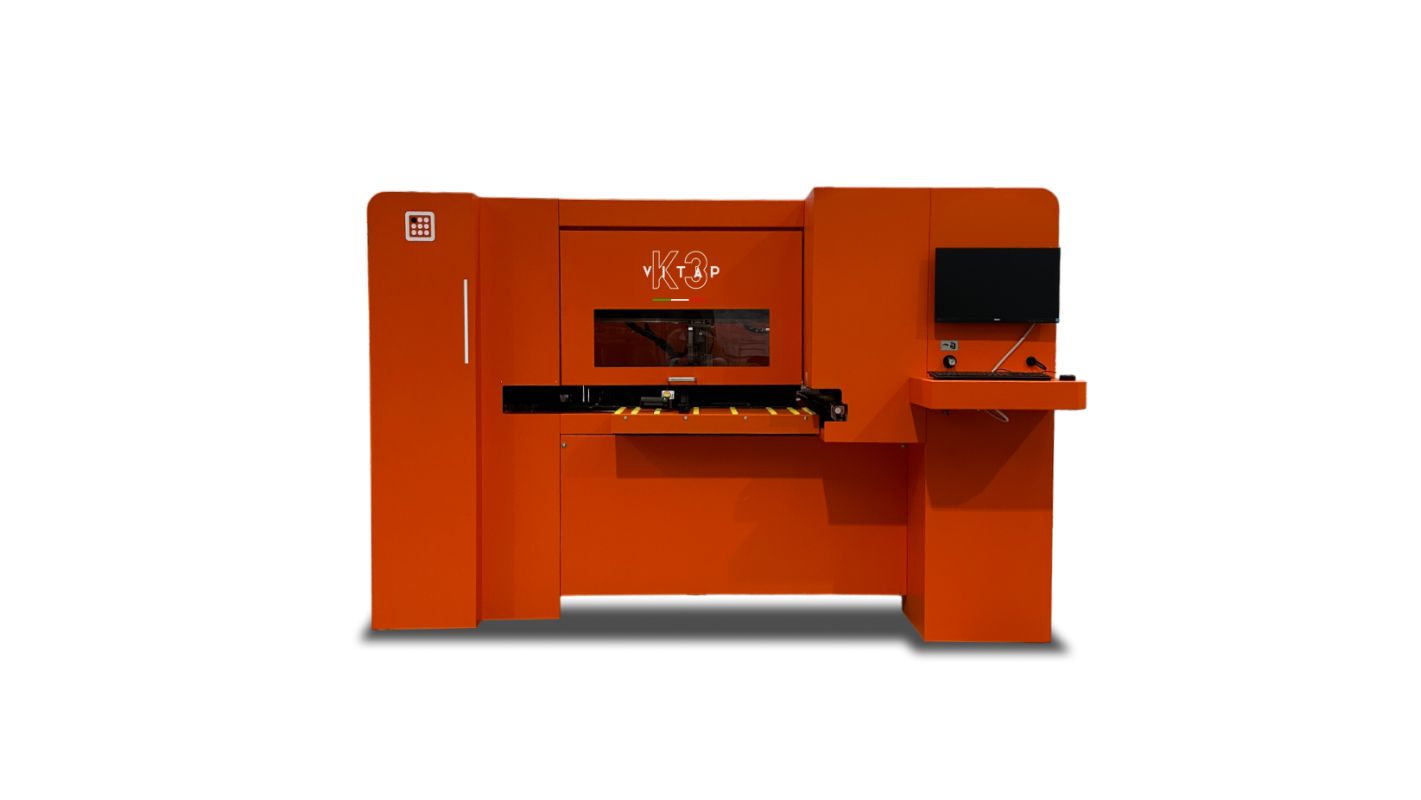

CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...

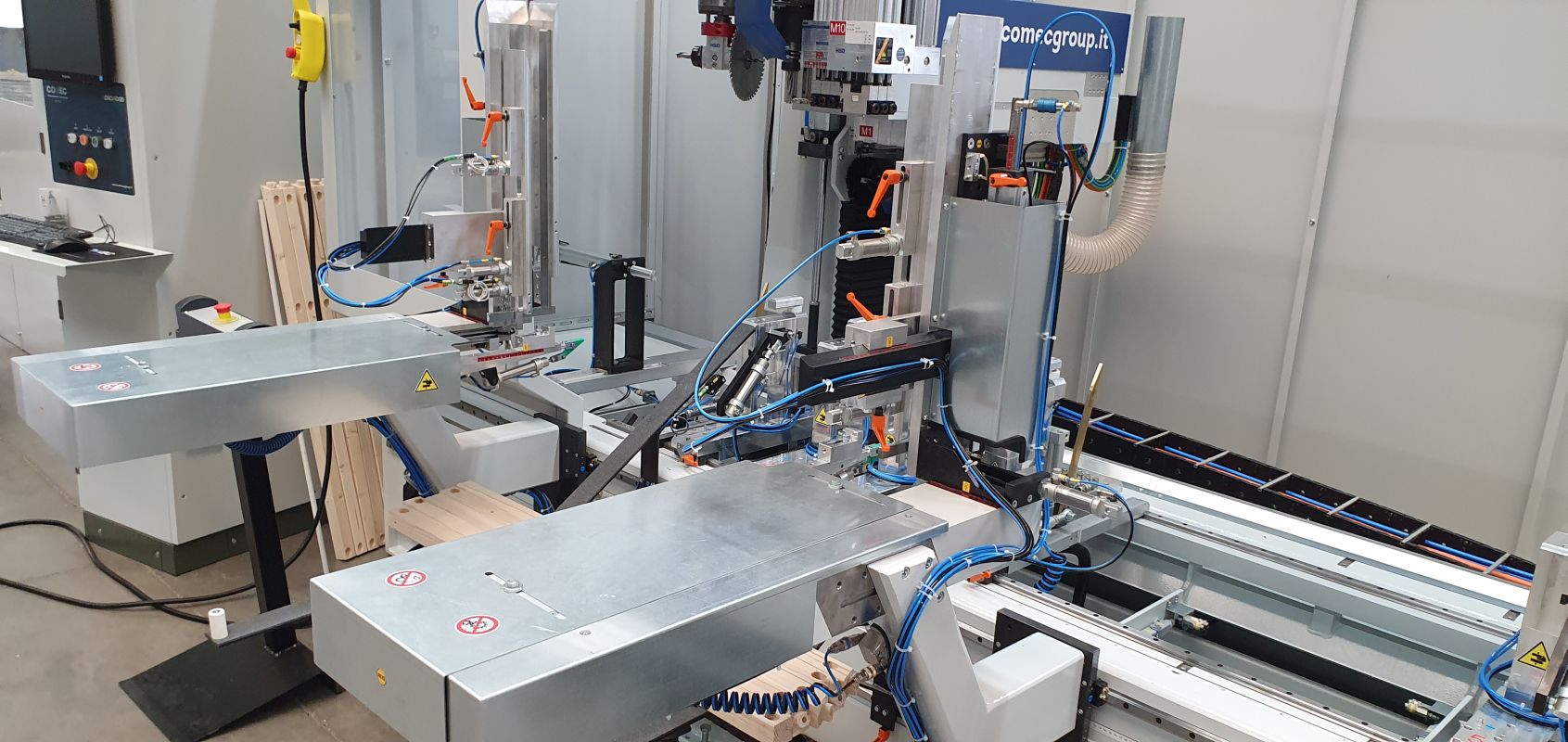

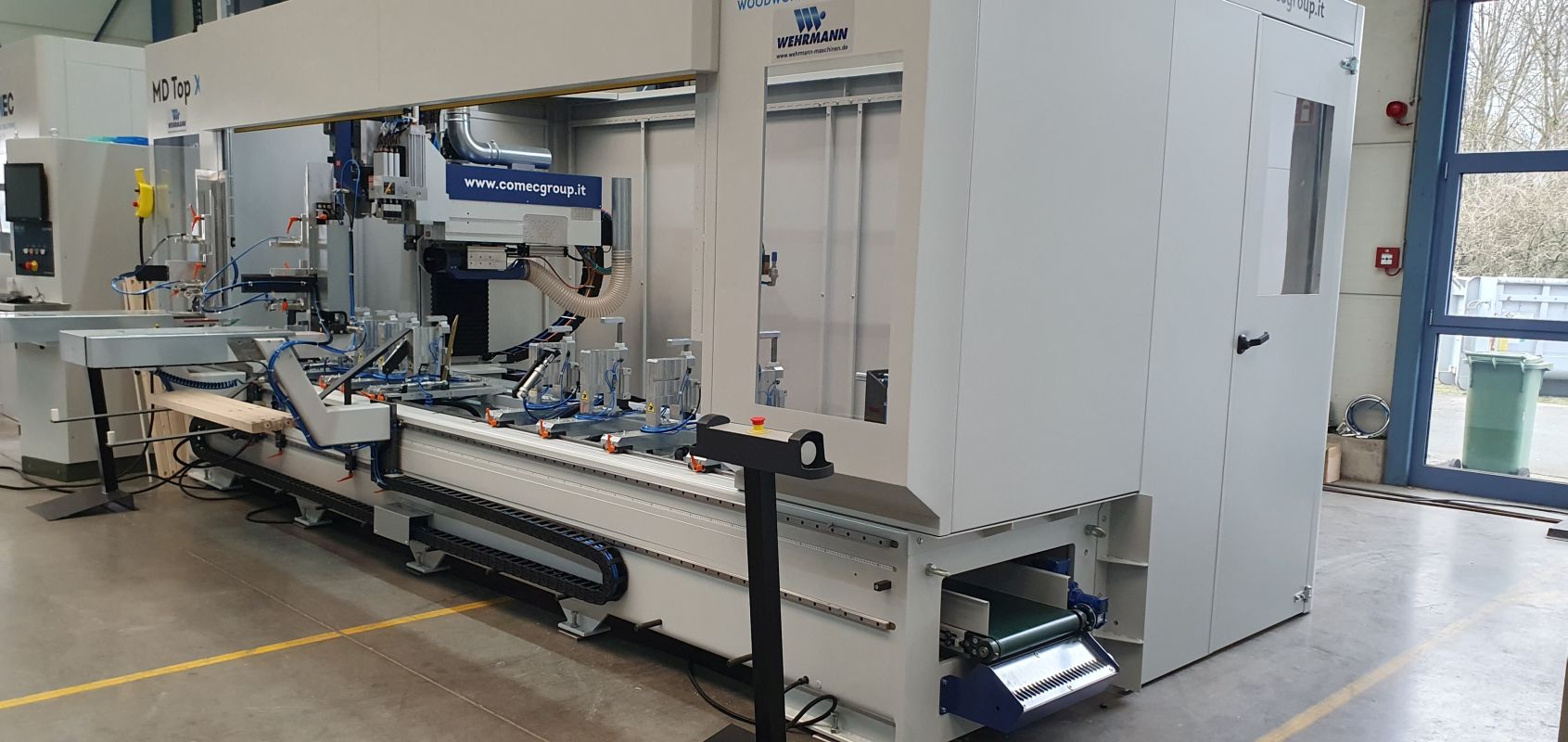

CNC - processing center Brand: COMEC Type: MD TOP The ideal CNC solution to process narrow and complicated work pieces EASY with COMEC processing length up to 2.000 mm Head configuration individually customizable for: - saw with 360° - axis - milling unit for horizontal and vertical processing - drilling head with separate jumping spindles vertical and horizontal - multiple spindle drilling heads separate jumping even horizontal - horizontal milling unit with 360° C - axis Special developed clamping table, moves automatically program controlled in X direction Furthermore, optionally available: - Automatic raw work piece feed with finished work piece return to the operator TPA control unit: CNC control with graphical user interface Parametric software with 3D modeling Necessary processing macros customized to you pre-installed

Drilling- cutting machine Brand: Comec Type: Frontal 2 CN New machine Drawer parts machining in compact design Fast set-up for the smallest possible batch sizes thanks to CNC technology - Perfect machining The FRONTAL CN is ideally equipped for the machining of drawer parts and can be optionally equipped with drilling units from above, but also laterally, e.g. for drawer side parts. The drilling units at the top are suspended at the front of the upper beam so that a grooving saw unit can be mounted at the rear, for example, for drawing in top grooves. The machines can be equipped either with manual feeding or with automatic feeding magazine, so that the machines can work in continuous operation. For larger batch sizes, the FRONTAL is also available as a BASIC machine with conventional control.

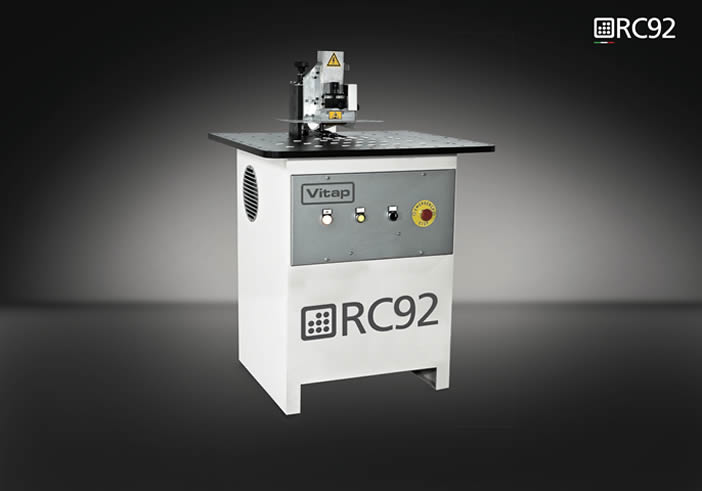

Trimming machine Make: VITAP Type: RC 92 New machine Technical data: - 2 high frequency motors HP.0,75 (Kw 0.55) each. 12000 RPM, in vertical opposite position with inverter; - 2 cutter heads with cutters one knife straight 15° the other radius 3mm; - CE standards Options (for a surcharge): - Couple of cutters (without knives) ? 274,00 - Set 8 knives 15 degrees angle and radius 2 mms. ? 122,00 - Set 8 knives 15 degrees angle and radius 3 mms. ? 122,00 - Pneumatic lifting of the upper motor ? 474,00 - Optional for panels max. high 120 mms ? 227,00

CNC unit for routing and boring Brand: Atemag Type: Function Line Soft Touch One With surface copying function with fix spindle ER25 and fix bell Max. drive speed 18,000 R.P.M. Max. tool spindle speed 18,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 10Nm Tool interface: fix ER25 Adjustment distance: 70mm

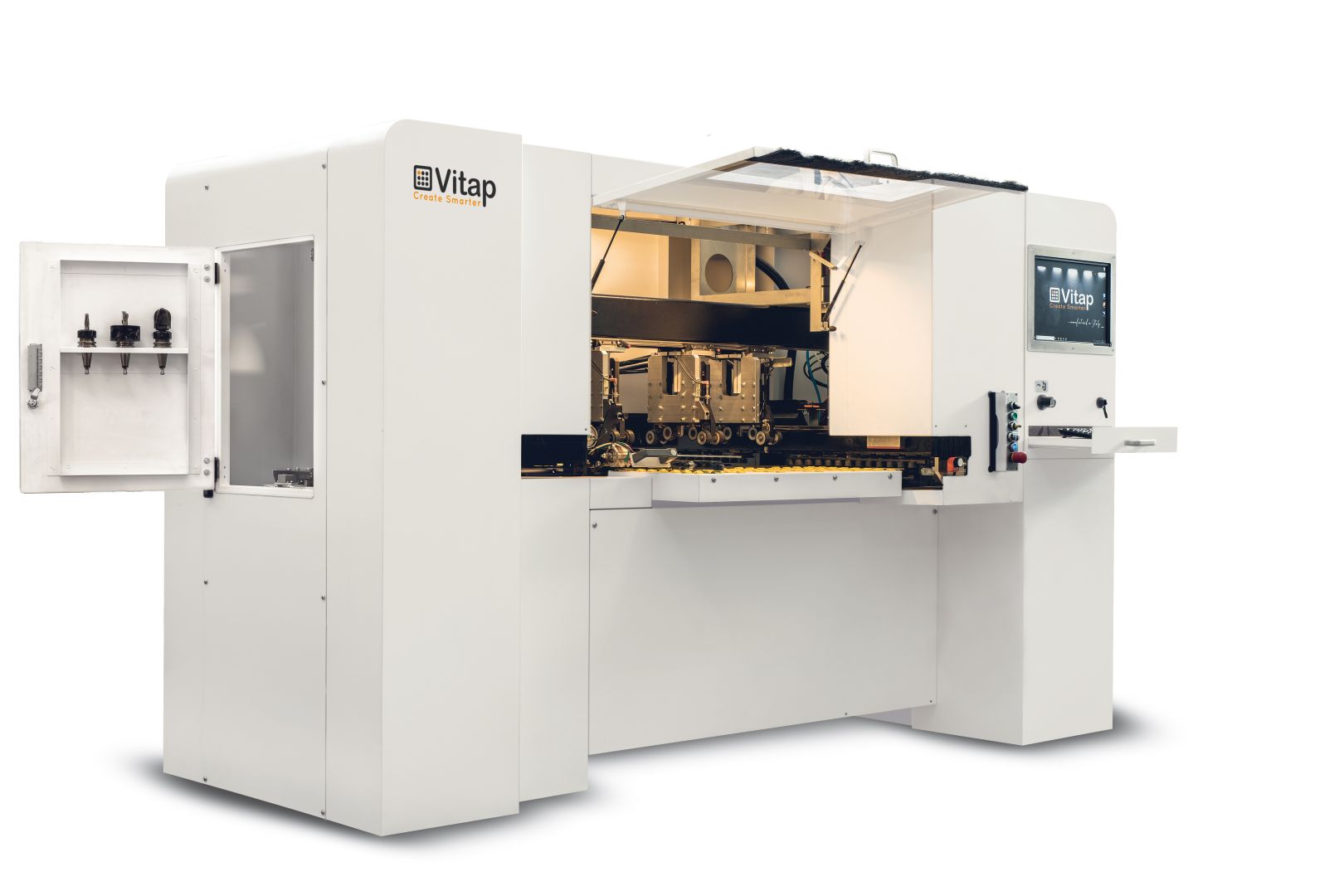

CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...

Multispindle drilling head unit for cnc working centres Make: ATEMAG Multispindle drilling head for economical drilling of numerous holes or complex hole patterns in just one machining stroke. Max. drive speed: 10.000 Rpm Max. tool spindle speed: 10.000 Rpm Gear ratio i= 1:1 Torque: max 1-5 Nm Number of tool output: on request

spindle moulder, spindle moulder, wood milling machine-Manufacturer: Martin, table milling machine type T 21 with table extension-Milling spindle: Ø 30 mm-Speeds: 3,000/4,500/6,000/9,000 rpm-Dimensions total: 1620/1060/H1120 mm-Total weight: 698 kg

Wood router bit inserts, knife inserts, form cutter inserts -Blade width: 60 mm -Blade thickness: 2 mm -For milling cutters: Ø 180 mm Price: complete -Weight: 2.3 kg

Wood router bit inserts, knife inserts, form cutter inserts -Blade width: 60 mm -Blade thickness: 2 mm -For milling cutters: Ø 180 mm Price: complete -Weight: 2.3 kg

Wood milling inserts, knife inserts, form milling inserts -Blade width: 60 mm -Blade thickness: 2 mm -For milling cutters: Ø 180 mm -Price: complete -Weight: 0.8kg

Wood milling inserts, knife inserts, form milling inserts -Blade width: 39 mm -Blade thickness: 2 mm -Radius: 7.5mm -Price: complete -Weight: 0.8kg

Wood router bit inserts, knife inserts, form cutter inserts -Blade width: 39 mm -Blade thickness: 2 mm -Radius: 15 mm -Price/Sale: complete -Weight: 0.9 kg

Wood router bit inserts, knife inserts, form cutter inserts -Blade width: 60 mm -Blade thickness: 2 mm -12x: left -11x: right Price: complete -Weight: 0.9 kg
