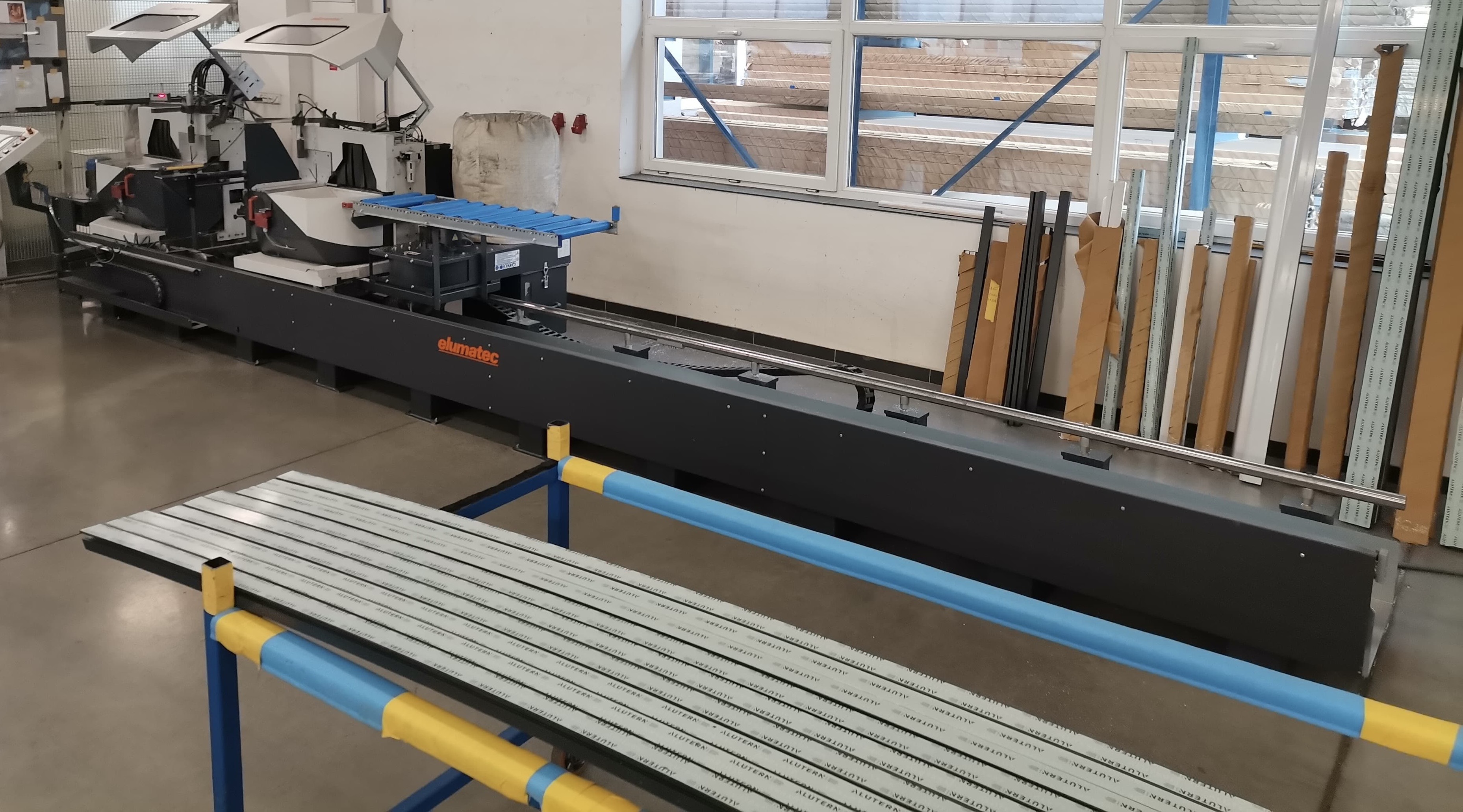

double-head mitre saw
Type: DG 104
Manufacturer: Elumatec
Year: 2018
Engine power: 2 x 1.5 kW
Voltage: 400 V, 50 Hz, 3~
Suction nozzle on the machine: 80/100 mm
Extraction nozzle: 140 mm
Suction power: 1,600 m3/h
Sawdust container: 0.08 m2
Accessories supplied with the machine:
2 branches 140/100/80 mm 300 mm - length
4 antistatic PVC hose
2 elbow 90°
2 connection socket 100 mm
Roller track 1.5 m mobile, width 400 mm
Connecting plate of the roller track
Timing device for E 580. Semi-automatic cutting progress.
Module with a light barrier for automatic cutting.
Protective fencing on the left and right
PC control E 580/1
1-axis control using the industrial PC E580/1 for positioning the
length of the cut
system for measuring absolute lengths independent of the drive
pneumatic locking in position
ergonomic layout of the operator´s control unit
industrial PC with 12" Touch Screen and Windows Embedded operating
system
PC in current specification
80 GB hard disk
4 USB connections
3 x RJ45 network connection, 10/100/1000 MBit
Software options:
software module for cutting cuts and excessive lengths
software connection to the window program
Technical data:
cut length: 6,000 mm, minimum 350 mm at 90°
range of rotation: basic position 90°, rotation up to 67.5° inwards
(22.5°)
range tilting: basic position 90°, tilting up to 45° inwards
maximum range of cut: 250 mm x 100 mm, see the cut diagram
number of revolutions of the saw blade: 2,250 1/min at 50 Hz
power: 4 kW of each motor at 400 V / 50 Hz
compressed air connection: 7 bar
air consumption: 40 l per working cycle, with a minimum amount of
lubricant of 64 l
