Maksimum İşleme Ölçüleri : 3200x1190x70 mm Min İşleme Boyutları : 200x70x8 mm Delme kafası 15 mil, X yönünde testere ünitesi içerir Lineer takım değiştiriciler 6
Dikey bağımsız iğ sayısı: 9 X eksenindeki yatay iş mili sayısı : (2+2) Y eksenindeki yatay iş mili sayısı: (1+1) N 1 testere bıçağı ünitesi: (ø 100 mm) Yönlendirici kafası 3,6 Kw ISO 30 - 12000/24000 rpm Panelin kalınlığı: 50 mm Kontrol: Tam Parametrik Panelin maksimum ağırlığı: Kg 25 Maksimum panel boyutu: X, Y 1100, Z 50 mm Minimum panel boyutu: X 270,Y 150 (70 op.), Z 12mm Kontrollü eksen sayısı: 3 Panel besleme hızı: 25m / dak İş mili hız dönüşü: 3600 rpm Testere bıçağı hız dönüşü: 7000 rpm Hava basıncı: 7 bar Toz emme çapı: ø 140 mm Egzoz havası konstrüksiyonu: (2000 mc/ora) - (30 m/s) Horiz'de maksimum sondaj derinliği. X ve Y ekseninde: 30 mm Dikey olarak maksimum delme derinliği: 45 mm Aletlerin maksimum yatay çapı: 12 mm Aletlerin maksimum dikey çapı: 35 mm Motor Gücü: 1,5 kw Maksimum hava tü ...
Makine Boyutu 2800 x 1940 x 2000mm Min. İşlenmiş panelin boyutu 200 x 35 x 8mm İşlenmiş panelin maksimum boyutu 3200 x 900 x 60mm
Çalışma alanı 2500x900x70 mm Yazılım BIESSEWORKS Makine kontrolü PC kontrolü Dönüş hızı maksimum rpm 18000 Yatay İş Mili Sayısı 10 Kanal açma mili ile
C.M.S. CNC Taret Kafası İşleme Merkezi Model TRIAX R-65 Sn 285, 1986 IBH kontrolör modus 1 (2) vakum masaları - her biri 48 "derin x 60" uzunluğunda. (1) beş istasyonlu torna bölümü. Maks.part 6,5" x 45" (2) vakum pompaları 5 hp. her biri. Toplam (30) yönlendirici. (6) istasyon tareti ve istasyon başına (5) yönlendirici. Oluşan; (2) her biri (5) yönlendirici istasyonu - 2 1/2 hp. her biri. (4) her biri (5) yönlendiriciden oluşan istasyonlar – her biri 8 hp. Düz çalışma veya oyma için masayı dijitalleştirme. İş mili işi için torna bölümü (oluk, oyma). Ünite ekstra parçalar ve çok sayıda aletle tamamlanmıştır.
x-travel: 540 mmy-travel: 635 mmz-travel: 400 mmtotal power requirement: kWweight of the machine ca.: 10,2 tdimensions of the machine ca.: 2,9 x 2,9 x 3,1 mRöders RXP 601 DSH – 5-Axis High-Precision Milling and Grinding CenterGeneral Machine DataManufacturer: Röders TEC GmbH (Germany)Machine Type: 5-Axis CNC Milling and Grinding CenterModel: RXP 601 DSHDesign: Vertical High-Speed MachineAxis System: X / Y / Z + A / CDrive System: Direct drives in all linear and rotary axesMeasuring Systems: Optical direct measuring systems in all axesThermal Management: Active temperature stabilization of all main componentsWorkspace & MechanicsX-axis travel: 540 mmY-axis travel: 635 mmZ-axis travel: 400 mmA-axis swivel range: ±115°C-axis continuous rotation (360°)Max. workpiece weight: up to 200 kgMachine weight: approx. 10,200 kgSpace requirement (L×W×H): approx. 2,950 × 2,950 × 3,100 mmSpi ...
x-travel: 1300 mmy-travel: 720 mmz-travel: 630 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Heidenhain iTNC530NC-rotary tableNC-swivel head28-fold automatic tool changerelectronical hand wheelchip conveyorcoolant through spindle Technische Daten / technical details:Verfahrweg X / X-Travel 1300 mmVerfahrweg Y / Y-Travel 720 mmVerfahrweg Z / Z-Travel 630 mmTischgröße / table size 1000x800 mmWerkzeugschaft / spindle taper HSK63 Drehzahl / spindle speed 12000 UpM /rpmAnzahl der Werkzeugplätze / tool places in ATC 28 Gewicht der Maschine ca. / weight ca. 8500 KgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -Technical data, accessories and description of the machine are not binding.The data for this ad was created with ModulMWS - the software solution of ...
functional - specifications see rating plate Auction-ID: A3-43501-10674
Pneumatic multi-axis drilling machine of the brand P. Macchine, type F01, built in 2003. This industrial drilling unit is equipped with multiple spindles (2 visible) and is suitable for drilling multiple holes simultaneously, ensuring efficient and accurate series operation. The machine works with pneumatic feed (6–7 bar) and is equipped with adjustable stops and scale for precise positioning of the workpiece. Ideal for applications in metal, aluminum and plastic processing. Technical data (according to type plate): • Power: 0.75 kW • Power supply: 230–400 V (3-phase) • Speed: 1400 rpm • Compressed air: 6–7 bar • Air consumption: approx. 2 Nl/min In good and working condition, comes with the trolley. Auction-ID: A3-43501-34027
Model: Bosch PBH 240 RE Type: SDS-plus rotary hammer Power: 600 W Impact force: 2.7 joules Impact rate: 0–5,800 beats/min Speed: up to 800 rpm Weight: approx. 2.5 kg Functions: drilling, hammer drilling, chiseling Special features: SDS-plus tool holder Clockwise/counterclockwise rotation Electronic speed control Depth stop Additional handle Case for transport Weight incl. packaging approx. 4kg Auction-ID: A1-45208-1036
A deposit of €250.00 is required in order to bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Max tool diameter 100 mm Max tool length 300 mm Max tool weight 10 kg Cutting speed 5000 mm/min Fast feed speed 15000 mm/min Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-5
Please note! Additional costs will be charged for loading the machine (with our forklift). The buyer must provide the necessary securing materials such as stop wood, pallets and lashing straps to secure the load correctly for transport. Auction-ID: A1-44766-5
A deposit of €180.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-4
A deposit of €3500.00 is required in order to place a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. B-axis travel -120 +90 C-axis travel +/- 360 X-Y-Z axis speed 30 mm/min C-axis speed 10800 deg/min 30-position tool changer Max tool diameter 90-130 mm Max tool length 300 mm X-axis positioning accuracy 0.016 mm Positioning accuracy Y/Z axis 0.012 mm B/C axis positioning accuracy 14 s X-axis repeatability 0.009 mm Y/Z axis repeatability 0.007 mm Repeatability of B/C axes 8 s Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-10
Machine is disassembled into dimensions of truck, mega trailer needed for transport. 13 Loading Meter Machine pick-up by appointment, loading not possible on pick-up days Auction-ID: A1-44905-108

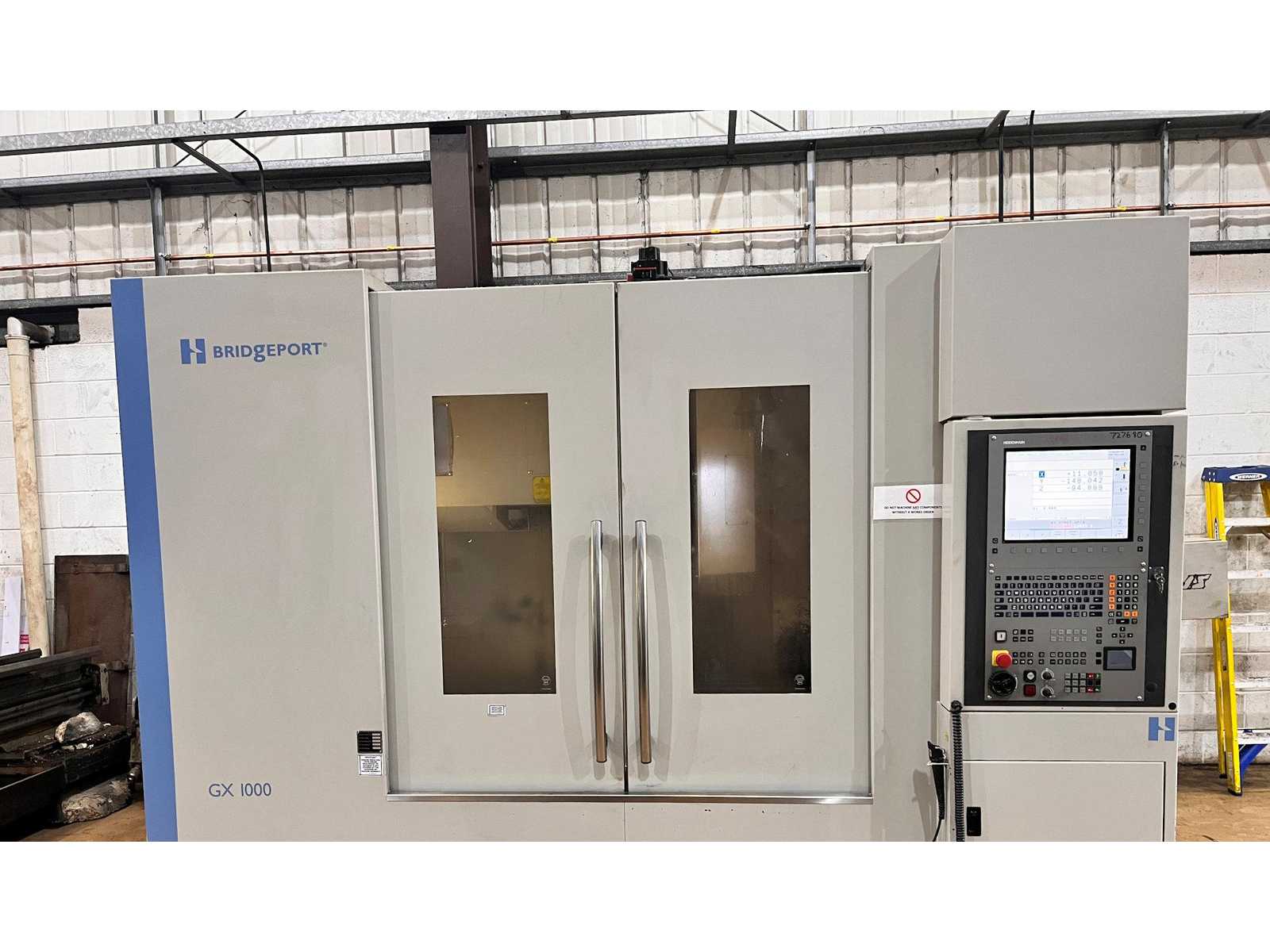

GX- Performance VMCs Dr HeidenHain iTNC530 with HR 410 Handwheel Coolant system Rigid sructure and superior reliability Central lubrication Specifications Displacement X - axis 800 mm Displacement Y - axis 540 mm Displacement Z - Axis 540 mm Table length 900 mm Table width 540 mm Table load 700 Power supply X-axis 36000 mm/min. Nutrition Y-axis 36000 mm/min. Z-axis power supply 36000 mm/min. Spindle holder 40 ISO/Bt/Mk Power at the pivot 13 KW Touring - Range 8000 Rpm Tool Changer 20 Number of steered axles 3 Chip conveyor Yes Cooling system Yes Auction-ID: A1-44905-196
In order to submit a bid on this lot, a deposit of €1300.00 is required. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-9
A deposit of €450.00 is required in order to place a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Max tool diameter 100 mm Max tool length 300 mm Max tool weight 10 kg Cutting speed 5000 mm/min Fast feed speed 15000 mm/min Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-6
A deposit of €300.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Positioning accuracy +/- 10 Repeatability +/- 5 24-position tool changer Max tool diameter 75 mm Max tool length 250 mm Max tool weight 6 kg Work tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-7
A deposit of €1500.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Rotary table diameter 700 mm 24-position tool changer Cutting speed 15000 mm/min Fast feed speed 30000 mm/min Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-8
A deposit of €5500.00 is required in order to place a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Fast feed speed 42 m/min Cutting speed 1-8000 mm/min 30-position tool changer Max tool diameter 80-125 mm Max tool weight 8 kg X-axis positioning accuracy 0.015 mm Positioning accuracy Y/Z axes 0.010 mm X-axis repeatability 0.006 mm Y/Z axis repeatability 0.004 mm Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-11

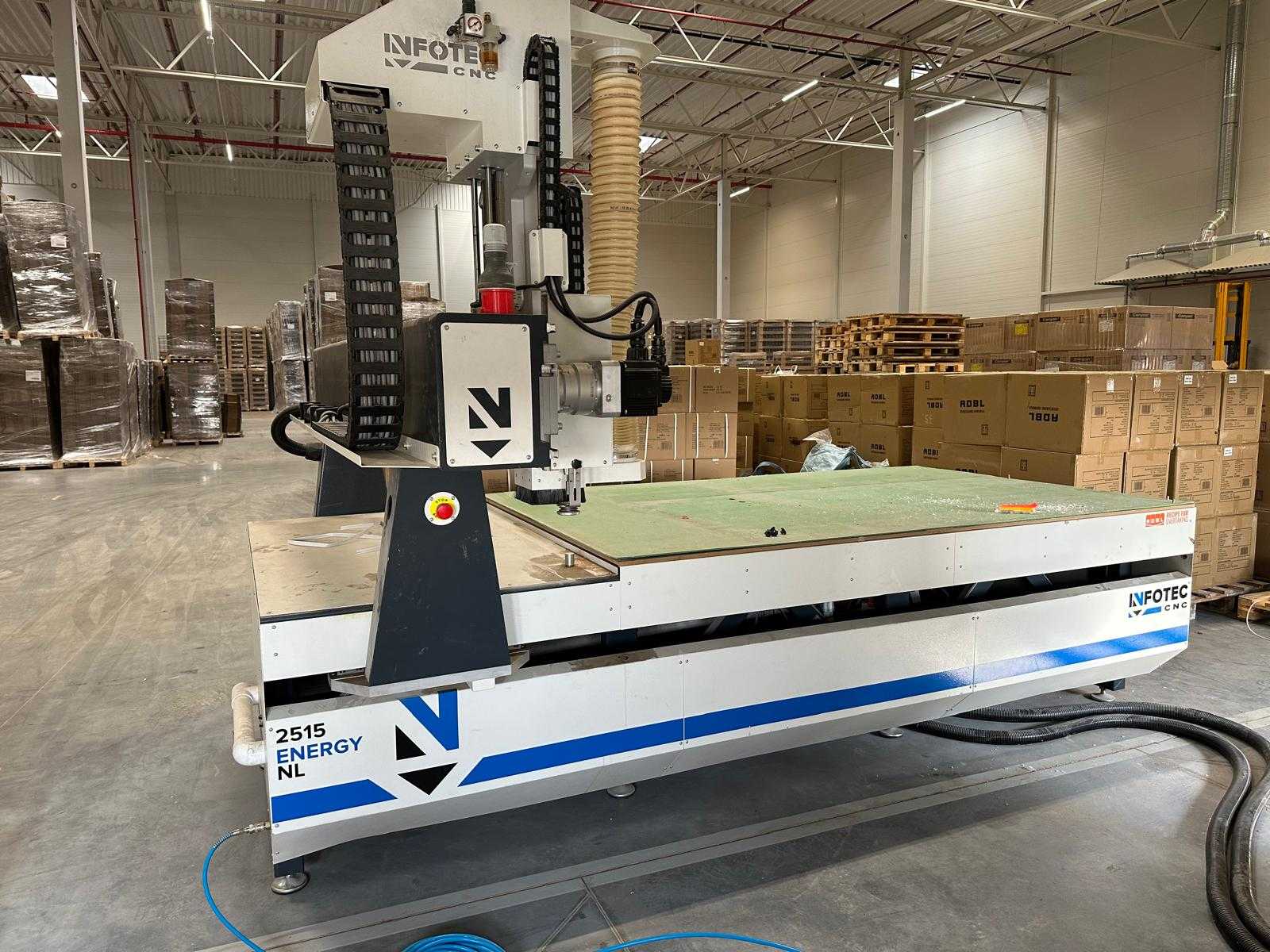

CNC control, processing materials: wood, wood-based materials, plastics, aluminum, etc., cutting area (L x W): 2500 x 1500 mm, maximum free feed rate: 400 mm/s, maximum working feed rate: 300 mm/s, working head stroke: 250 mm, brushless HSD spindle with automatic tool change (ATC), spindle drive power: 8.5 kW, tool holder: HSK F63 ER32, programming resolution: 0.025 mm, positioning resolution: 0.03 mm, AC servomotors, USB port Dimensions approx.:3000x2000x2000mm Weight approx.: 2200kg Auction-ID: A7-40551-23
axis stroke (X,Y,Z): unbegrenzt x 1000 x 60 mmNumber of spindle head vertical: 10 St.Number of spindles head horizontal: 6 St.Number of tools: St.Dust suction hood: 150 mmNumber of milling agregates: 1 St.working dimensions: mmYear: Boring power: 1,7 mmSpeed of boring spindles: 4000 U/min.Speed: U/min.Required air-pressure: 8 barDiameter of the saw arbor: mmtotal power requirement: kwWeight: 1300 kgDimensions (L/W/H): 1990 x 2410 x 1510 mmMotor output: kWCapacity: kg/hSawing unit: Sawblade tiltable: °Saw blade diameter: mmControl: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel (diameter): 6 mmtotal power requirement: 1 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Machine No. 0-250-04-3897, workpiece length approx. 200 - 2500 mm, workpiece width approx. 70 - 850 mm, workpiece thickness approx. 12 - 60 mm, drilling gearbox vertical V13 High Speed, grooving saw X-direction, drilling gear horizontal 4x X-direction and 2x Y-direction, milling spindle ETP with motor approx. 5 KW and speed 6000 - 18000 rpm., control Power Control PC85 with WoodWOP 5.0 (The article is in condition as existing and unchecked. The dismantling and loading costs are binding and the item is sold without contents/material!) The machine has already been dismantled. No forklift available! The machine is handed over from the ramp. Auction-ID: A7-44876-16

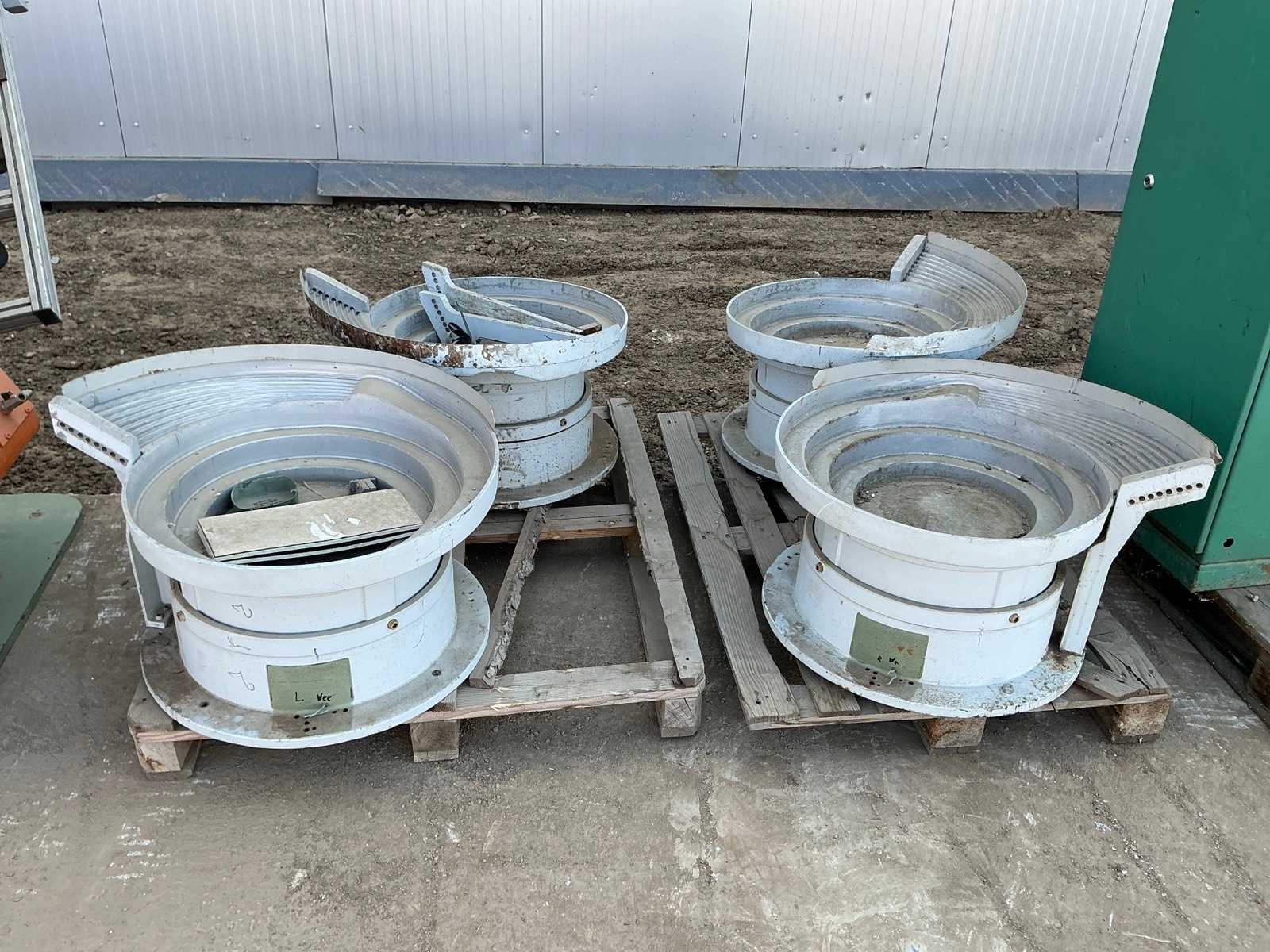

System: Automatic parts feedingFeeder type: Vibratory bowlElectrical supply: 220 †230V 1F 50 Hz Auction-ID: A7-44526-8
