SMEC Q 4200 ist ein Bearbeitungszenter mit hoher Präzision, hoher Genauigkeit und Zuverlässigkeit. Tisch 650×420 mm, max. Werkstückgewicht 250 kg; Verfahrwege X 530 mm, Y 420 mm, Z 350 mm. Spindel BT30 bis 12.000 t/min, Drehmoment 35 Nm; Magazin 28 Plätze, Werkzeug-Ø 80 mm (150 mm bei freien Nachbarplätzen), Werkzeuglänge 250 mm, Werkzeuggewicht 3 kg, Wechselzeit 1,6 s; Vorschübe 1–30 m/min je Achse, Eilgang 48 m/min; Abstand Spindelnase–Tisch 150–500 mm; Leistung 35 kVA; Maschinengewicht ~3900 kg. Ermöglicht enge Toleranzen; typische Branchen: Automotive, Luftfahrt, Medizintechnik, Uhrenbau, Werkzeugbau Technische Daten ohne Gewähr

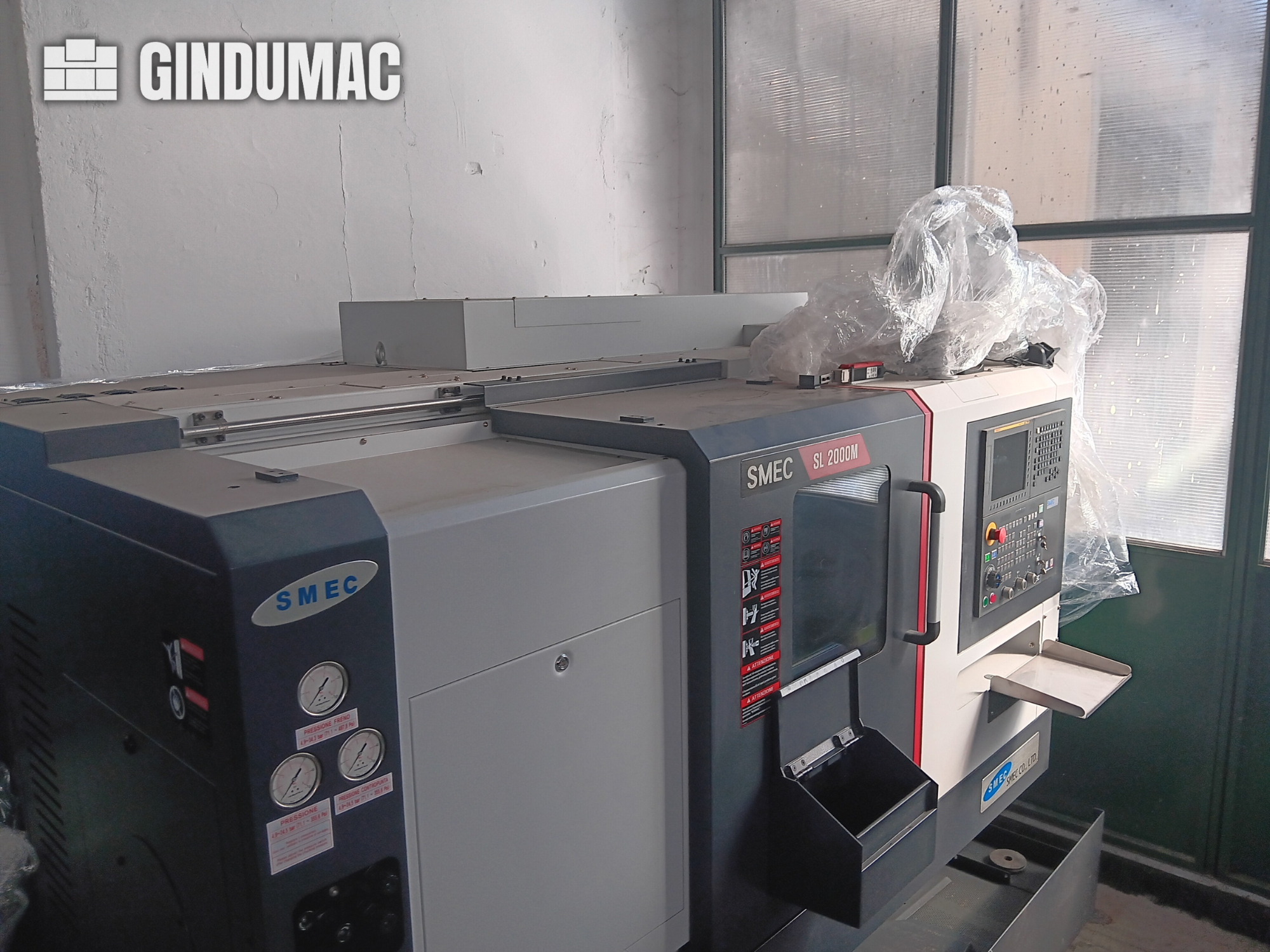

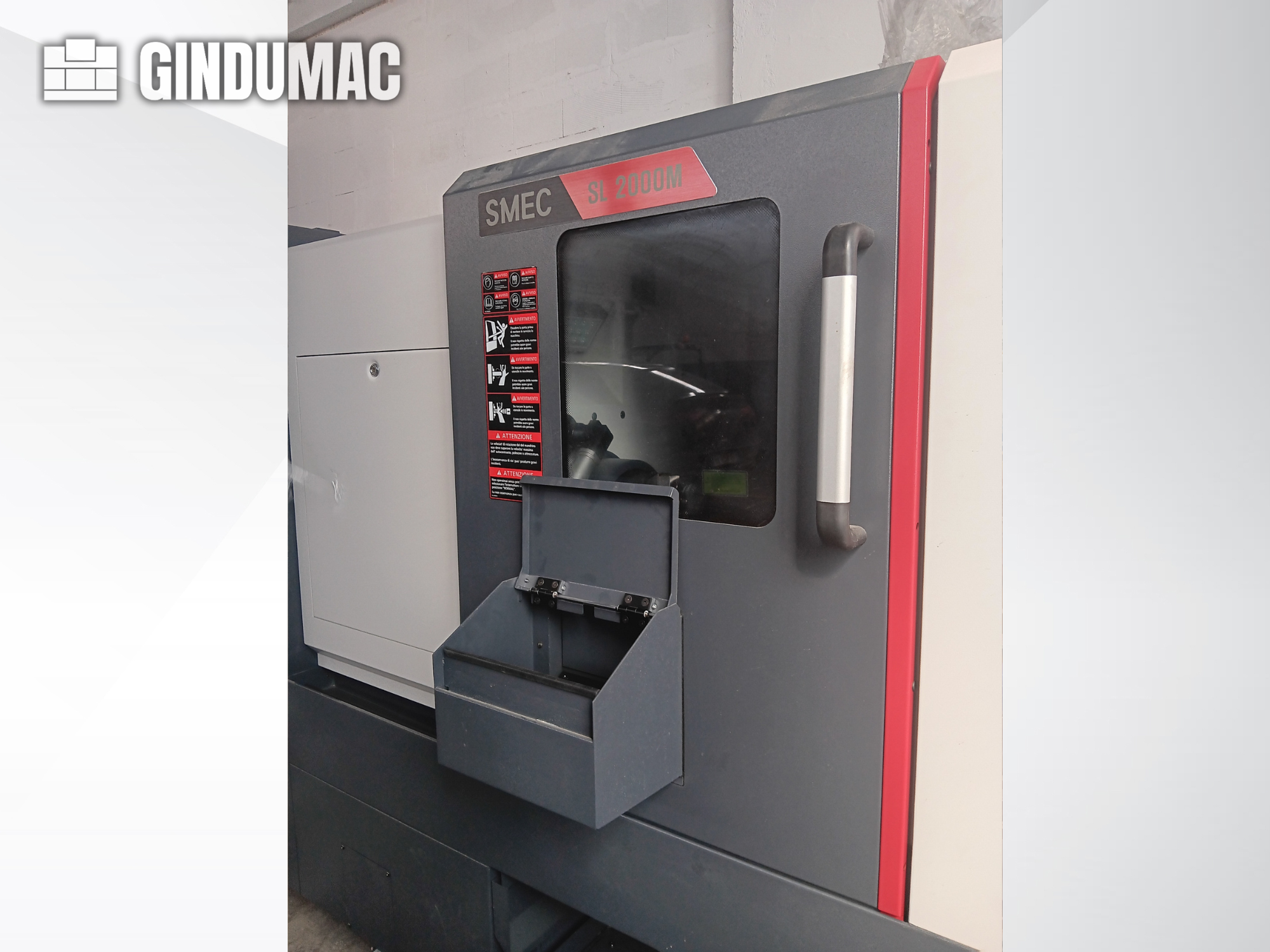

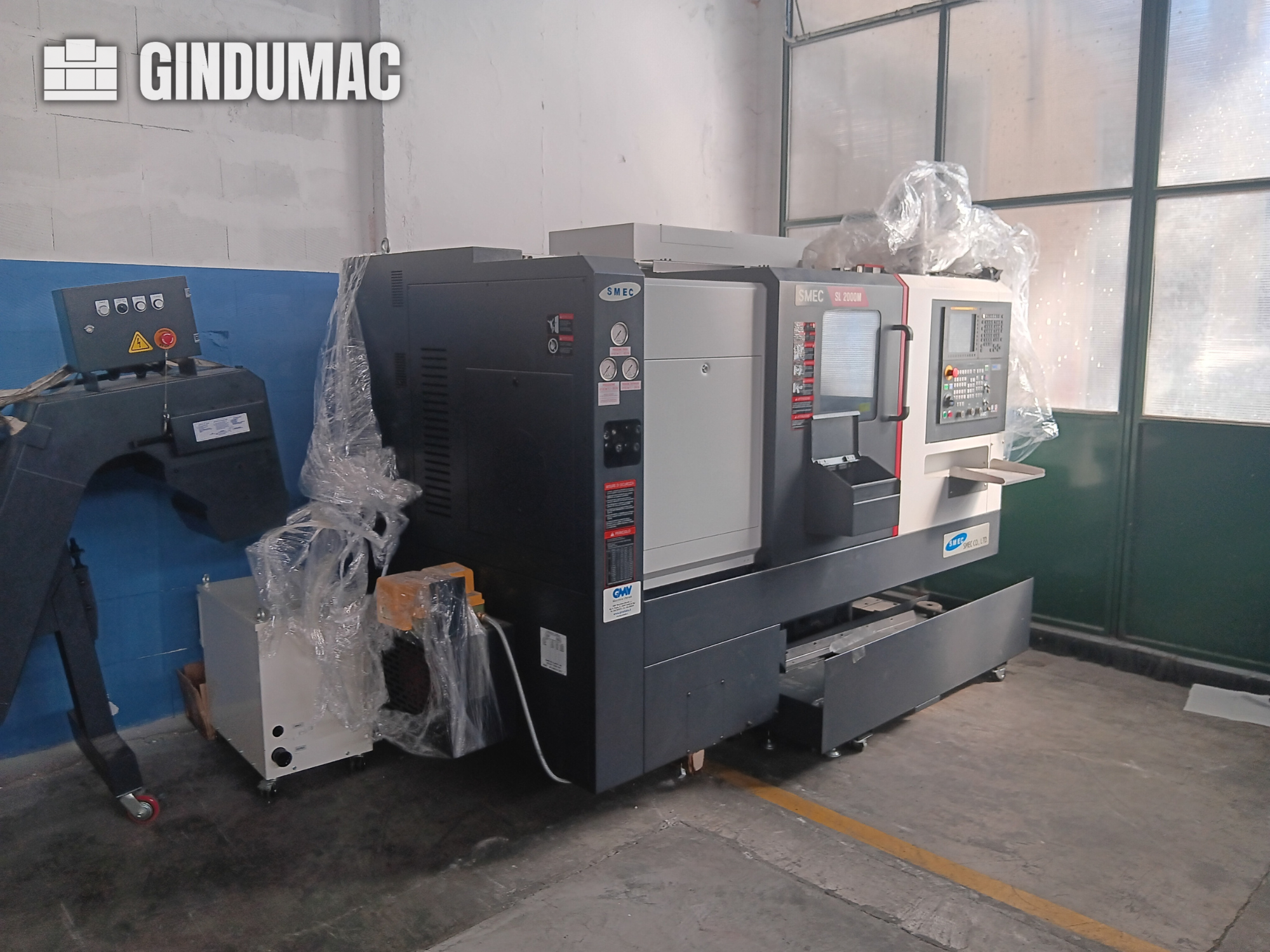

This 6-axis SMEC SL2000SY was manufactured in 2022. It features a maximum turning diameter of 395 mm and a maximum machining length of 450 mm. The machine is equipped with a Siemens SINUMERIK 828D control system and a tool turret capacity of 12 stations. If you are looking to get high-quality turning capabilities, consider the SMEC SL2000SY horizontal turning machine we have for sale. Contact us for further details.
This 3-axis SMEC MCV 5500 was manufactured in 2022. It features an X-axis travel of 1050 mm, Y-axis travel of 550 mm, and Z-axis travel of 520 mm. The machine includes a robust table size of 1200 x 540 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the SMEC MCV 5500 vertical machining centre we have for sale. Contact us for further details.
Key data: 395 mm, 450 mm
Centro di rotazione CNC a 6 assi Controllo: SIEMENS Sinumerik 828D inclusi OPERATE + PPU290 Guide piatte su tutti gli assi Principale e sub-fuso Velocità massima: 6.000 1/min Torretta a 12 stazioni (tutte motorizzate) Velocità degli attrezzi: 5.000 1/min Asse Y Asse B Corsa: X= 235, Z= 580, Y= +- 52,5, W= 580 mm Passaggio a barre: 67 mm Incluso il pacchetto degli strumenti Nizzolo trasportatore a trucioli
Escursione dell'asse X: 1.050 mm Escursione dell'asse Y: 550 mm Asse Z di corsa: 520 mm Velocità del mandrino (max.): 12.000 giri/min Altezza totale: 2.778 mm Larghezza totale: 2.977 mm Lunghezza totale: 3.635 mm Peso totale: 6.700 kg Peso del pezzo (max.): 800 kg - Controllo: SIEMENS 828 D inclusi OPERATE e ShopMill - Numero di slot per caricatori: 30 - Portautensili: BBT 40 - Raffreddamento interno: 20 bar - Peso utensile: massimo 8 kg - Tempo di cambio strumento: 3 s - Tempo chip-to-chip: 5,5 s - Sonda Blum ZX-Speed IR - Sonda touch 3-D Blum TC-52 LF
SMEC NS 2000 MYear of manuf. : 2022 Control : Siemens SINUMERIK 828D Turning diam. : 288 mmTurning length : 243 mm____________Description:Main spindleTechnology:Belt-driven spindleSpeed:4,500 rpmPower (max.):20 kWBar capacity:67 mmWorkpiece clamping:3-jaw chuck, Samchully MH-208BV1Tool holder:Technology:12-station turretTool holder:BMT45Tool drive:5,000 rpmTravel in X/Y/Z:175/-/350TailstockTechnology:Manual adjustmentTubus stroke:80 mmTubus diameter:65 mmMount:MT4Features/Accessories:Chip Management:Chip ConveyorCoolant Management:IKZ Pump with Oil Skimmer and High Pressure, 10 barAutomation:PreparedFinished Parts Removal:Parts Catcher with Collection Box
SMEC SL 3000 BLMYear of manuf. : 2023 Control : Siemens 828D - ShopTurn Turning diam. : 405 mmTurning length : 956 mm____________Description:Main Spindle:Technology:Belt-driven spindleSpeed (max.):3,000 rpmPower (max.):26 kWBar capacity:91 mmWorkpiece clamping:3-jaw chuck, SAMCHULLY HS-12Tool holder:Technology:12-station turretTool holder:BMT65Tool drive:5,000 rpmTravel in X/Y/Z:215/-/560Main Spindle:Technology:Trailed tailstockStroke:100 mmQuill diameter:110 mmTaper:MT5Main Spindle:Chip Management:Chip ConveyorCoolant Management:IKZ Pump with Oil Skimmer and High Pressure, 10 barTool Measurement:Automatic Measuring ArmAutomation:PreparedFinished Part Removal:Part Catcher with Collection BoxSetup Mode:Electronic Handwheel
