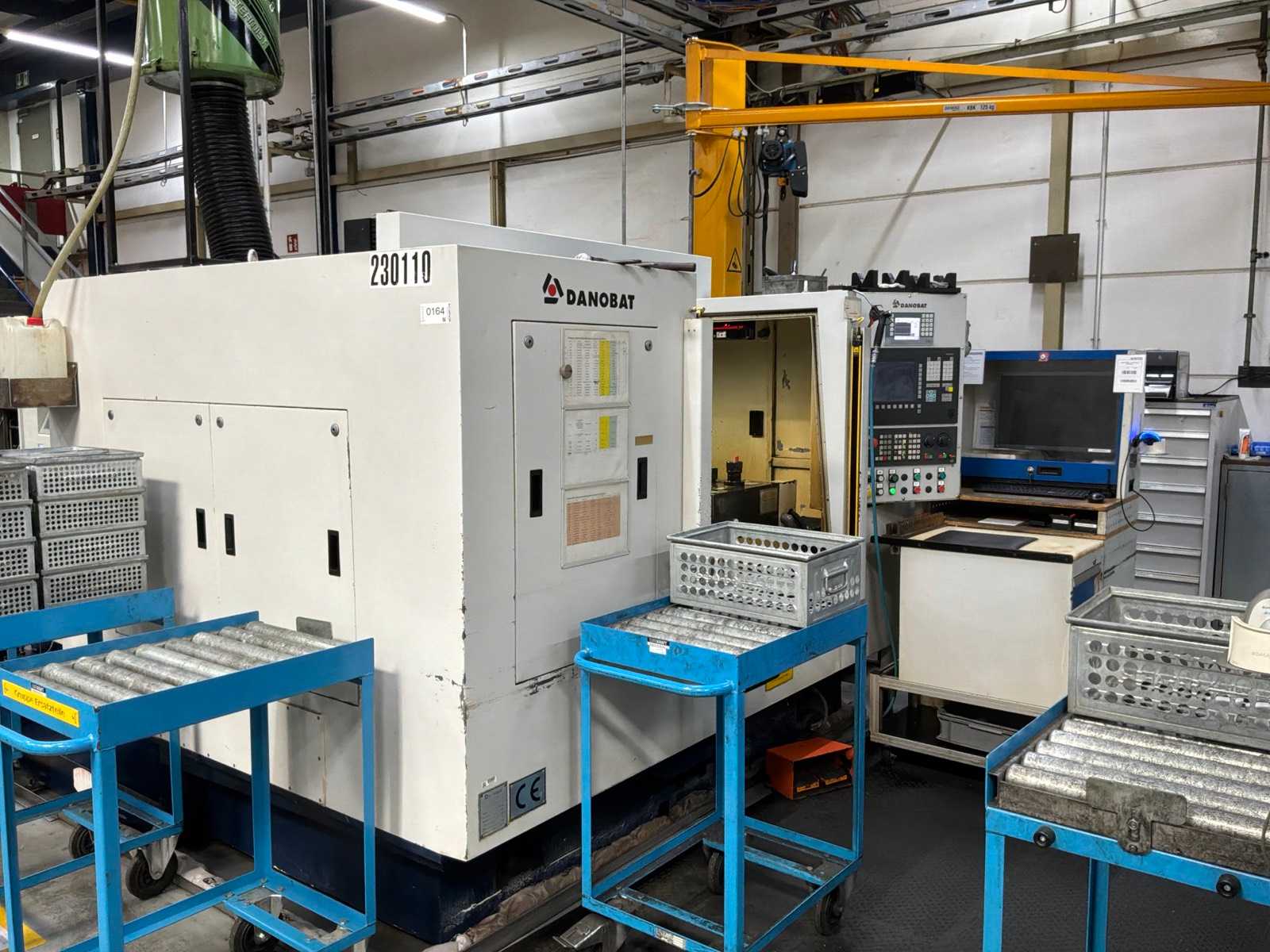

Danobat RTM-2500 CNC X600 Moedor de superfície CNC Comprimento de moagem: 100" Largura de moagem: 28" Dimensão do comprimento da tabela: 98.43" Dimensão da largura da tabela: 19.690" -Rebolo- Diâmetro da roda de moagem: 20" Largura da roda de moagem: 4" Furo da roda de moagem: 8" -Cabeça da roda- Ajuste de ângulo: 0 DEG Motor da cabeça da roda: 20 HP Velocidade da cabeça da roda: 1.200 RPM -EQUIPADO COM- Fagor 8055 Controle CNC Transportador de limalha magnética
Moedor cilíndrico (ROLL) CNC Minakuchi NWT-300, fuso I.D., Fanuc O-GC, 30HP, Novo 1990 Capacidade total da máquina: 32inch x 120inch Balanço: 32inch Distância entre centros: 120inch Balanço máximo sobre a mesa: 32inch Diâmetro máximo de moagem: 30inch Peso máximo da peça de trabalho: 20000 LBS. Estimativa em 32inch x 120inch Rebolo: 24inch x 1.968inch x 10inch Largura máxima da roda de moagem: 1.968inch Velocidade do eixo: 1410/1530 RPM Motor da roda do eixo: 30 HP Peso da máquina: 30000 Lbs. Aproximadamente Equipado com: Controle: Fanuc Series O-GC (os parâmetros precisam ser recarregados) Roda de mão remota Fanuc Funções de controle da máquina: Interruptores On/Off de refrigerante, MODO: Off/Auto/Jog/Handle/Zero, Over Ride: 0-150%, Botões: PRC, HIX, Spindle Inching, OTR on/off Switch, Cycle Start, Spindle Off, RT, Return, Feed Hold, Grind Off, ZRN ...
Moedor cilíndrico de naxos CNC Ano: 1987/2013 Max. Balanço: 630mm Max. Cabeça de trabalho à distância face ao tailstock face: 4850mm Máx. viagem para eixo Z: 5000mm Máx. Distância de moagem para a roda principal: 4520mm X eixo infeed viajar para ambos os headstocks: 720mm Aproximadamente, peso entre centros: 4000kg Requisitos de energia: 460/3/60 Esta máquina foi completamente refabricada às novas especificações em 2013 e instalada em 2014. Foi despojado até à fundição nua, cabeças de mesa/base/roda/cabeça de trabalho e cauda e os segundos eixos z foram ajustados e rescrapados. Foram adicionados novos armários elétricos com novas cablagens à máquina e novos componentes, linhas hidráulicas, linhas de ar e novos porta-cabos. Novos motores Marathon 60HP para ambas as cabeças de roda moedora. (As unidades no armário estão definidas para 40 Cv) Os eixos ...
WALDRICH SEIGEN WST IV H80 X 12000 MOEDORA DE ROLOS ANO: 1981 / INSTALADO 1982 DIÂMETRO MÁXIMO DE MOAGEM: 78" (1981,2 mm) COM RODA DE 32" (812,8 mm) DE DIÂMETRO DISTÂNCIA ENTRE CENTROS: 472,40" (12000mm) PESO MÁXIMO DA PEÇA DE TRABALHO: 176000 lbs. (80t) RODA OD MÁXIMO: 32,00" LARGURA DA RODA MÁXIMA: 4.00" ID DA RODA: 12.00" POTÊNCIA DO EIXO DA RODA: 27 - 59/59 CV ARMÁRIO DE RODAS: ROLO MONTADO NA CAMA VIAGEM DE CABEÇA DE RODA: 25.60" VIAGEM À MESA: (VIAGEM DE CABEÇA DE RODA) 488,40"( 12405 mm) VELOCIDADE DA MESA: (VELOCIDADE DA CABEÇA DE RODA) 157,5 in/min (4000 mm/min) VELOCIDADE DO FUSO DA RODA: 450 - 1800 RPM Variável Infinita POTÊNCIA DE CABEÇA DE TRABALHO: 1.9 - 59/59 CV VELOCIDADE DA CABEÇA DE TRABALHO: .5 - 300 RPM CAMINHOS: FERRO FUNDIDO HIDROSTÁTICO COMPLETO TRANSPORTADOR DE LAMAS: NENHUM COOLANT: SIM SISTEMA DE FILTRAção: COMBINA ...
grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min
grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm

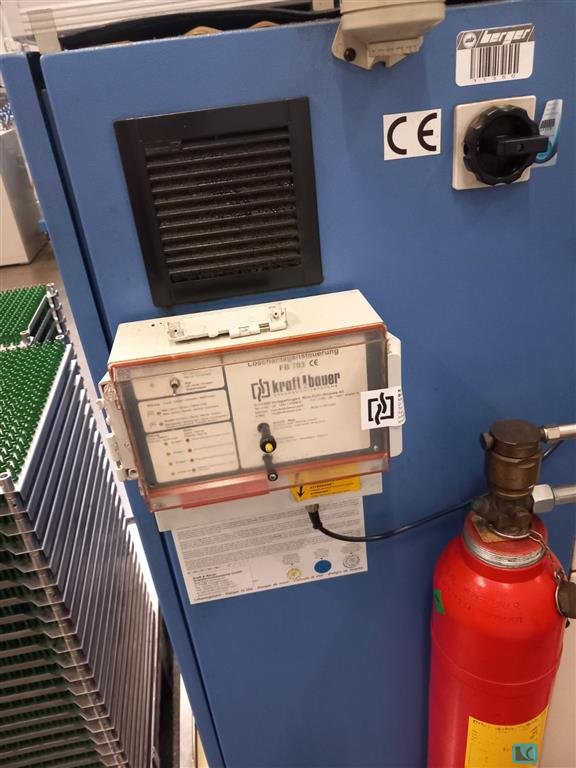

grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

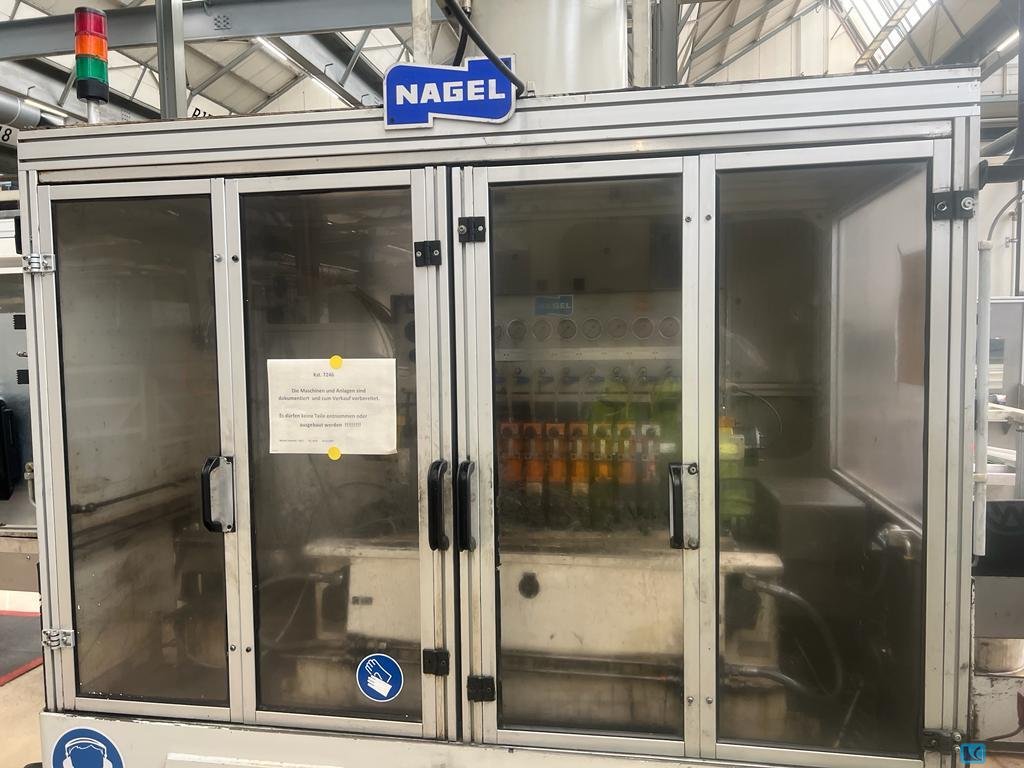

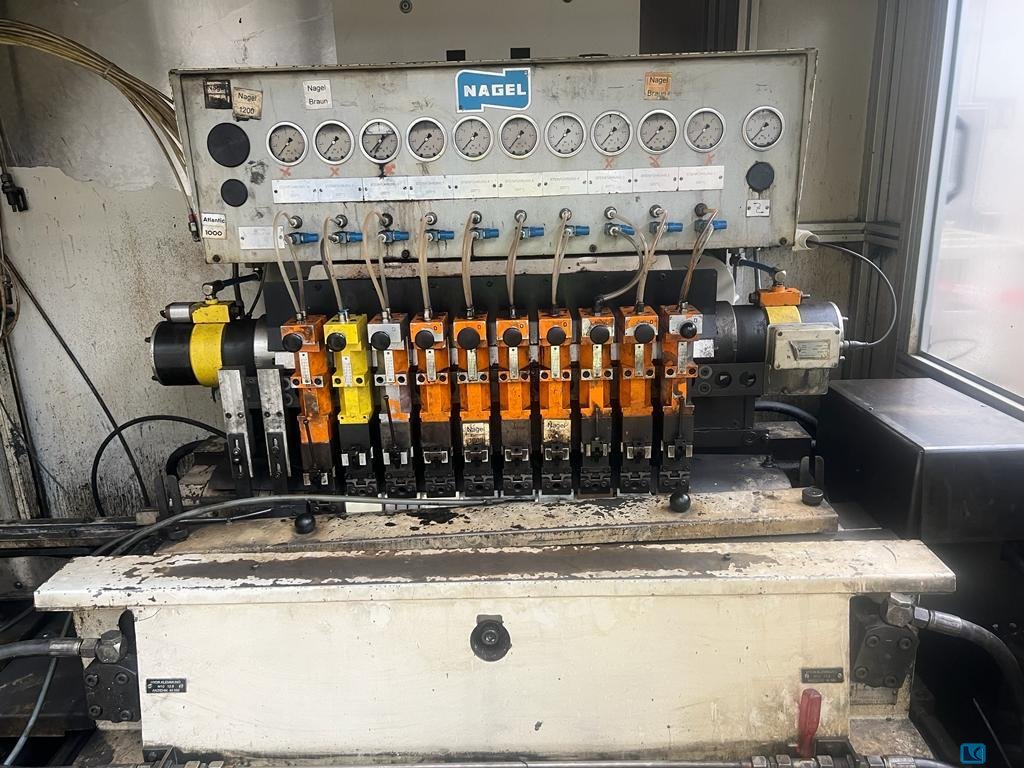

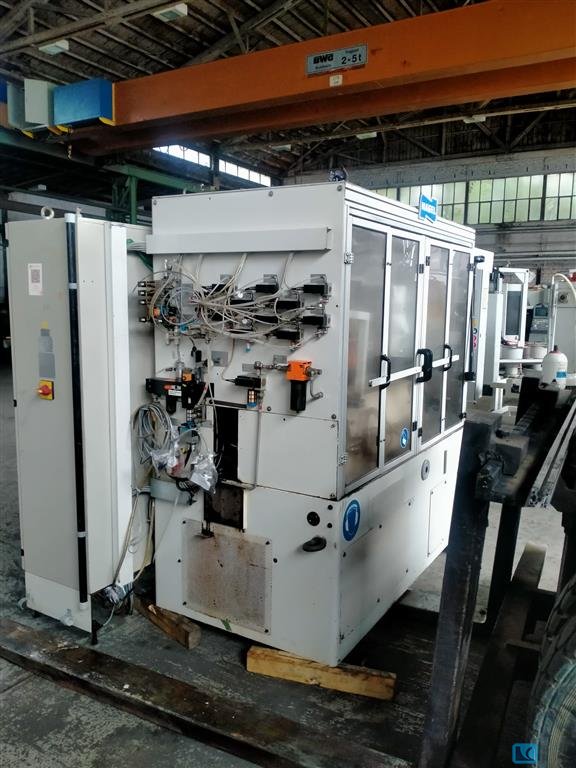

workpiece diameter:26 mmswing diameter:- mmworkpiece length:66 mmtotal power requirement:12 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,14 x 1,69 x 2,2 mThe machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone.1. Feed Roller2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel:Dia: approximately 120 mmL: app. 880 mm
grinding diameter:300 mmgrinding length:540 mmcentre height:175 mmtotal power requirement:20 kVAcentre distance:1000 mm
grinding diameter:50 mmgrinding length:100 mmcentre height:100 mmcentre distance:200 mm
internal diameter:140 mmtotal power requirement:5,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:2,8 x 2,5 mmax. workpiece weight:15 kgclamping dia. max.:140 mmclamping length:250 mmmax. bore diameter to be ground:0,8-90 mmmin./max. hole to grind:160 mmcentre height:90 mmworkpiece spindle stepless:112-1000 U/min
dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

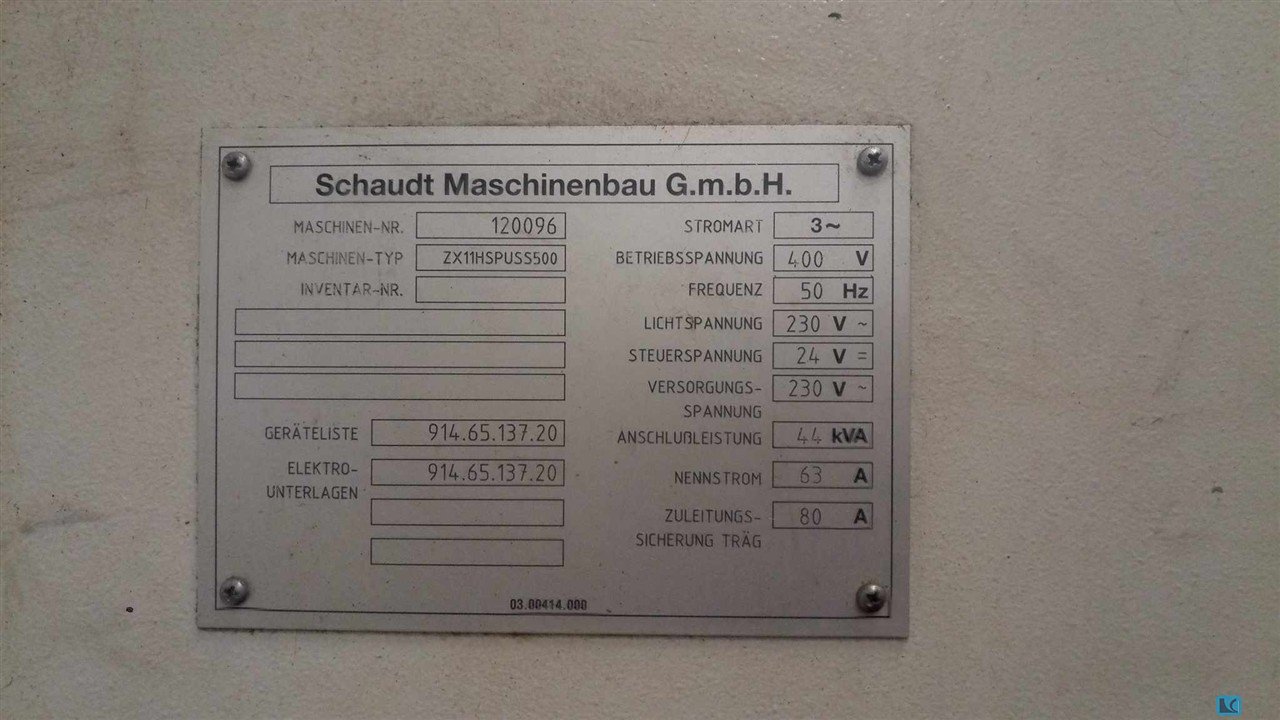

grinding diameter:5-55 mmgrinding length:500 mmtotal power requirement:44 kW-- Intended use and general information --Fully automated external and surface grinding of synchronous ringsCentre height: 200 mmGrinding length: 500 mmGrinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mmDrive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µmWorkpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-DMachine weight: 7,000 kgCentre height: 200 mmGrinding length: 500 mm
grinding diameter:200 mmgrinding length:320 mmtotal power requirement:3,5 kWweight of the machine ca.:9 tspace required L x W X H:5,28 x 4,5 x 2,4 mmax. wheel dia.:200 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm

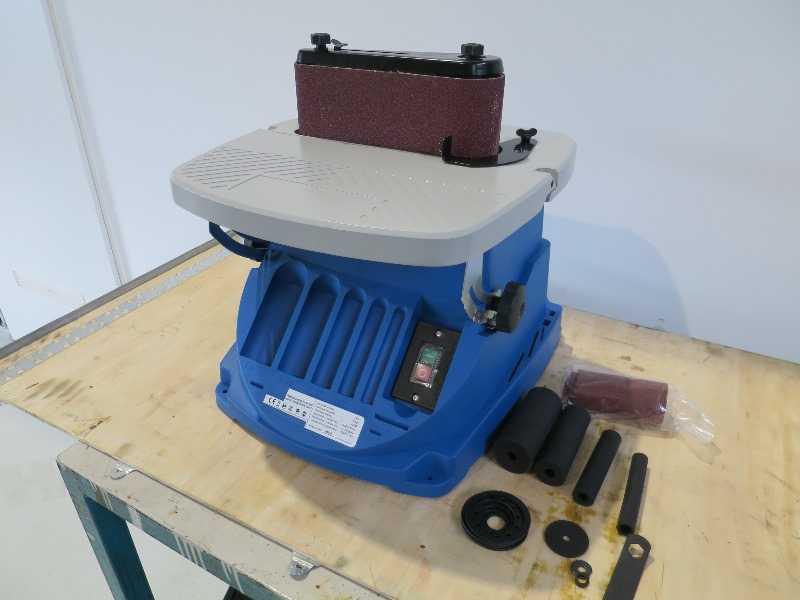

max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm
no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg
no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg
working width:1400 mmWorkpiece thickness max.: 80 mmwork height max.:1000 mmFeed speed:4m/min I Stufe, 8 II Stuf m/min.Required air-pressure:max. 5 barvoltage:50 Hz, 380 Vworkpiece length:320 mmworkpiece thickness min.:1 mmweight of the machine ca.:3500 kgDocuments:vorhanden
workpiece length:350 mmwork piece width:150 mmdiameter:Tellerradius 200 mmtool taper:M32 x 1,5 spindle diameter:32 mmgrinding width:max.450 mmturning speeds:3385 U/minwork table::Höhe 1000 mmworkpiece height max.:100 mmtotal power requirement:1,1 kWweight of the machine ca.:300 kgdimensions of the machine ca.:700 x 800 x 1170 mm
table diameter:520 x 22 mmtable - swivable:45 Gradtotal power requirement:1,6 kWweight of the machine ca.:130 kgdimensions of the machine ca.:520 x 520 x 1200 mmmit SchleifzylinderZubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von SchleifmittelnØ 50, 70 , 90, 120 mm x 223 mmneuer Motor
sanding belt length:max. 470 mmworkpiece dia.:600 mmtable - swivable:0 - 6 Gradtaper:Reitstock Morse 2 turning speed range::1260 - 3100 U/mintable movement:längs 470 mmtool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kWweight of the machine ca.:950 kgdimensions of the machine ca.:1100 x 1100 x 1500 mmDocuments:vorhanden
max. grinding diameter:50 mmgrinding length:250 mmworkpiece length:300 mmtotal power requirement:0,7 kWweight of the machine ca.:330 kgdimensions of the machine ca.:1000 x 1000 x 1400 mm
grinding length:600 mmgrinding width:250 mmworkpiece height:380 mm:Sinumerik max. dia. of grinding wheel:300 mmweight:4000 kgtotal power requirement:12,5 kWgrinding wheels:Ø 400 mmmax. width of grinding wheel:100 mmgrinding wheel hole diameter:127 mmturning speeds:470 - 12030 1/minx-axis:600 mmy-axis:300 mmz-axis:250 mmgrinding range:450 x 200 mmdistance spindle nose and table:500 mmtable load:250 kgdimensions of the machine ca.:2600 x 2100 x 2400 mmswitchgear cabinet:1300 x 800 x 2000 mmhydraulical unit::450 x 350 x 500 mmDocuments:vorhanden
grinding length:1250 mmgrinding width:400 mmworkpiece height:550 mmworkpiece weight:750 kgtable-size:1720 x 400 mmmagnetic clamping plate:1250 x 400 mmdist. center of grinding spindle - table:750 mmturning speed range - grinding wheel:3000 U/minLength movement of the table:1300 mmgrinding wheel size:Ø 400 x 50 x 127 mmswitchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 Vtable load:max. 1100 total power requirement:13,8 kWweight of the machine ca.:6000 kgdimensions of the machine ca.:5000 x 3400 x 2400 mmDocuments:inkl.
internal diameter:315 mmgrinding depth:315 mmswing diameter:420 mmnumber of spindle speeds:32 - 360 U-minwheel box:-drehzahl 100 - 8000 U/minface diameter:500 mmtotal power requirement:12 kWweight of the machine ca.:5900 kgdimensions of the machine ca.:3400 x 1750 x 2000 mm

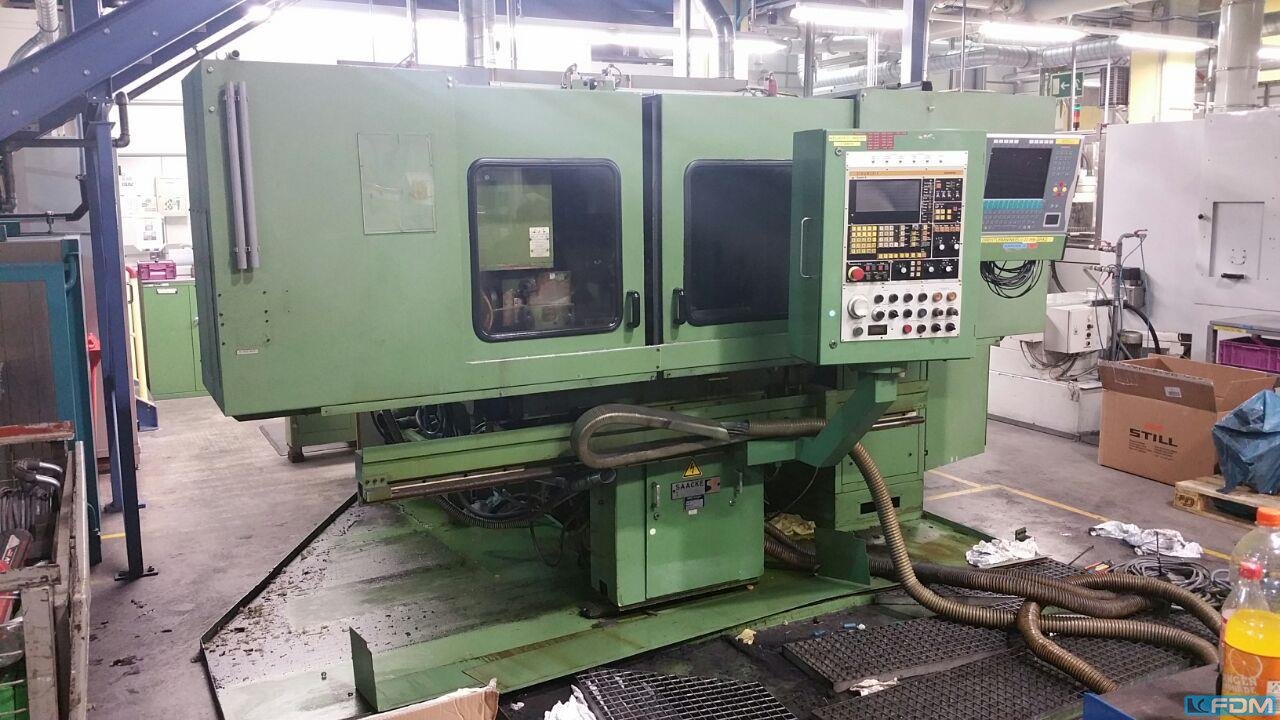

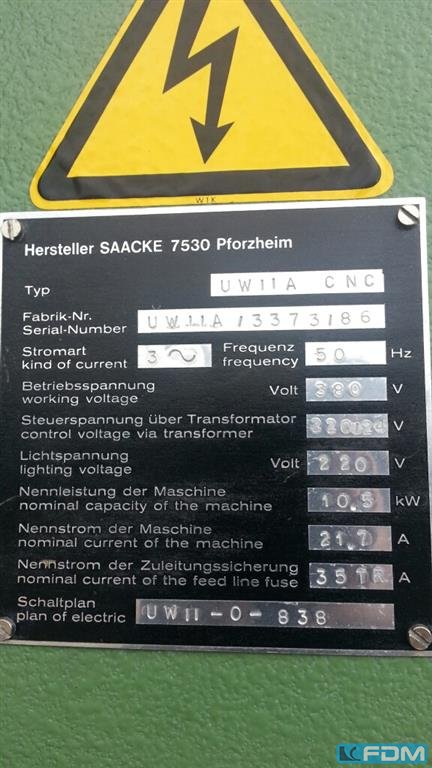

total power requirement:10,5 kWweight of the machine ca.:4800 kgdimensions of the machine ca.:3000 x 2100 x 2000 mmcentre distance:1200 mmHeight of centres:200 mmgrinding-table stroke max.:X -Achse 1000 mmtable-size:2060 x350 mmz-axis:Querhub 250 mmFeed speed:0,005 - 5 m/min.grinding head - swivable:360 °taper ISO:50 control:Sinumerik System 8 Documents:vorhanden
grinding length:1000 mmgrinding width:250 mmworkpiece height:400 mmtotal power requirement:12 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3.300 x 1.800 x 2.300 mmhydraulic power unit:400 x1000 x 1500 mmcontrol cabinet:2 Stück, 1000 x 1400 x 1500 mm
grinding length:150 mmtotal power requirement:3 x 380 /220 Vweight of the machine ca.:2100 kgdimensions of the machine ca.:1200 x 1700 x 2000 mmgrinding wheel diameter:280 - 350 mmgrinding wheel width max.:20 mmworkpiece diameter:65 - 120 mmworkpiece turning speeds:1,5 -20 U/minDocuments:vorhanden

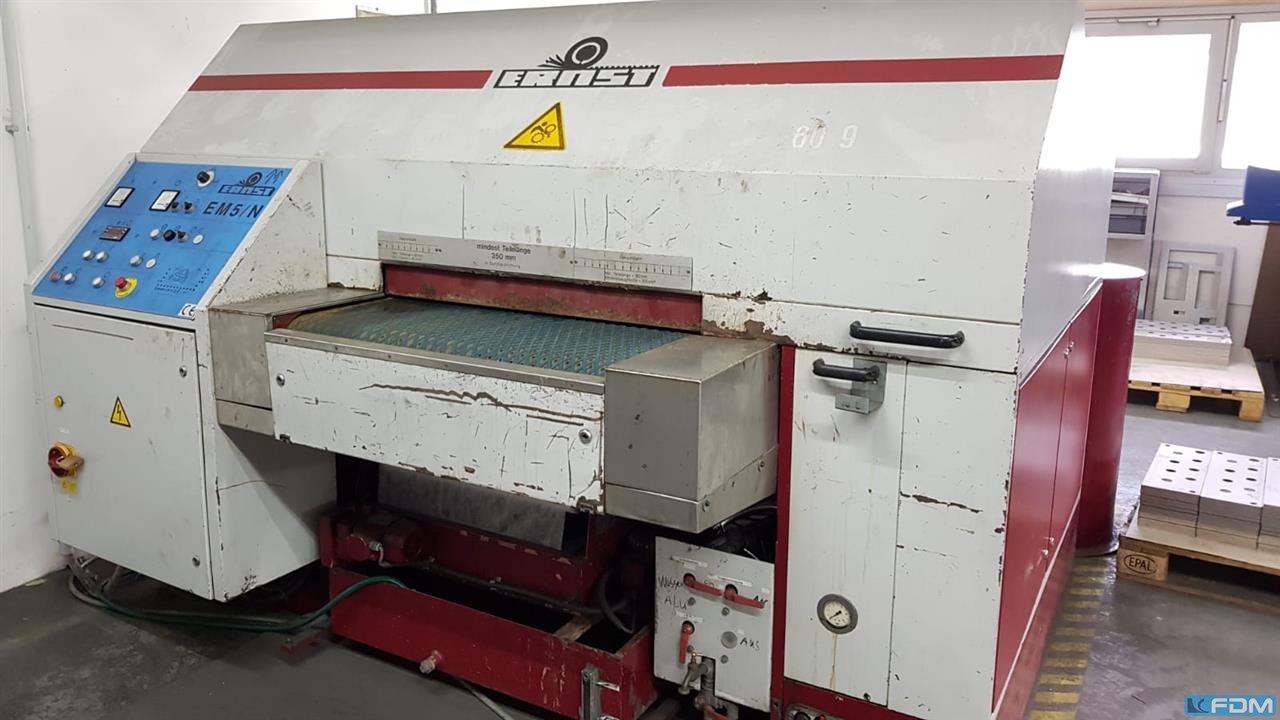

working width:880 mmworkpiece height:1- 70 mmwork height max.:1000 mmFeed speed:4- 8 m/min.voltage:50 Hz, 400 Vweight of the machine ca.:2.800 kgdimensions of the machine ca.:2500 x 1715 x1675 mmwidth:min. 350 mmSanding cylinder diameter:420 mmelectr. connected load:20 KWRequired air-pressure:1 x R3/ 8 " pressure:5 bartank:des Bandfilter ca.200 lautomatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mmaccessories::9 Bänder Documents:vorhanden
