Modelo
(Fabricante: DECKEL)

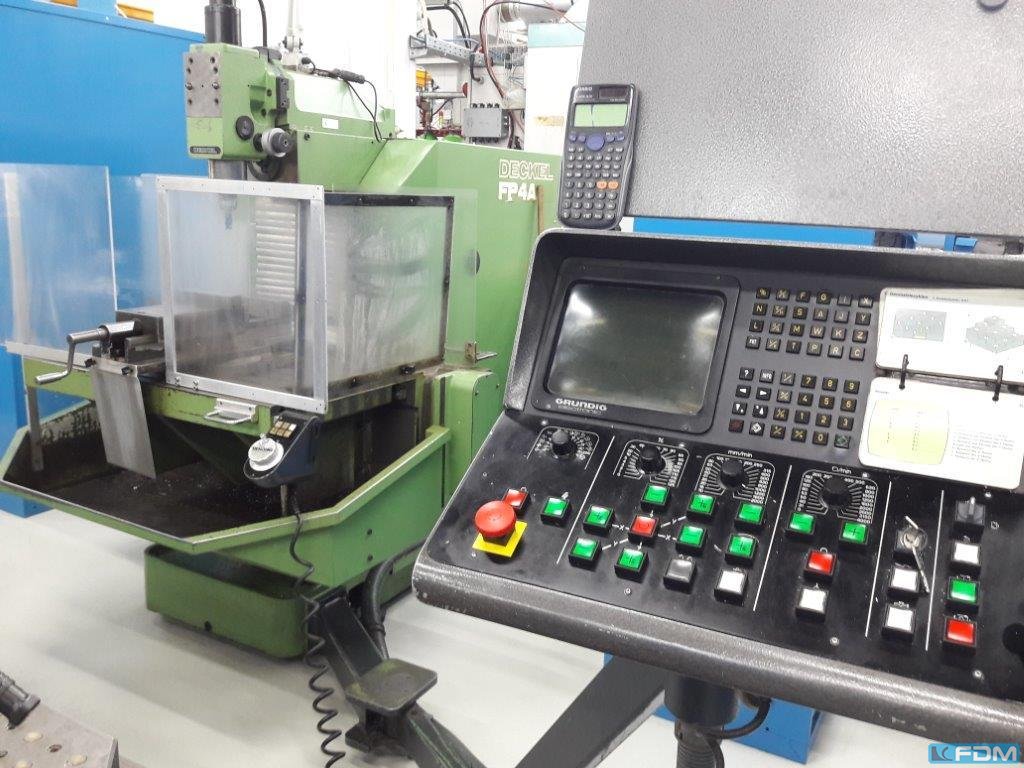

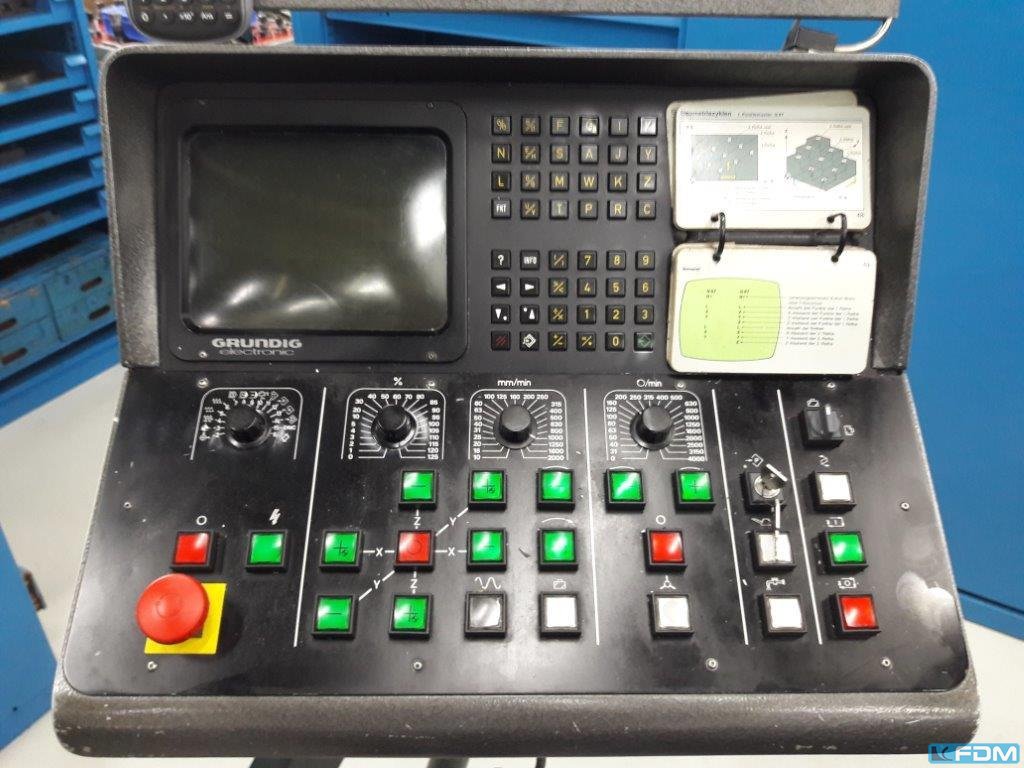

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden
x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020
x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:12.000 1/min tool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fach size of pallet:630 x 630mm mm spindle:52 kW / 430Nm total power requirement:87 kVA weight of the machine ca.:15 t dimensions for transport:4,6 x 2,95 x 2,7 m horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours
x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm
x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)
x-travel:2600 mm y-travel:1100 mm z-travel:900 mm table surface area:3200 x 1100 mm rotary table diameter:1050 mm table load:1,2 t control:Heidenhain iTNC 530 ergoline 19" turning speeds:20 - 10.000 1/min taper ISO:SK 50 max. torque on the spindle:288 / 187 Nm tool change unit:60 Pos. rapid traverse:40 m/min spindle:44 / 32 kW weight of the machine ca.:25 t dimensions of the machine ca.:6,70 x 3,40 x 2,95 m 5-axis universal machining center, rigid table with integrated NC-rotary table left side and B-axis in milling head, direct measuring system, internal Coolant 40 bar, coolant tank 600 l, Swarf Conveyer Rotoclear airblast through spindle, 3D Touch probe HEIDENHAIN TS 649, mode 4, prepared for 3D quick set (software yes, hardware no), new milling spindle in 2022 at 25.584h approx. 60.000 h machine ON, approx. 31.000 h Programm ON in total
x-travel:750 mm y-travel:600 mm z-travel:520 mm table surface area:D 700 x 500 mm turning speeds:30000 1/min tool taper:HSK E50 control:HEIDENHAIN iTNC 530 tool change unit:60 pos. rapid traverse:50 m/min table load capacity - central/maximum:350 kg total power requirement:50 kVA weight of the machine ca.:9 t dimensions of the machine ca.:3,2 x 2,65 x 2,8 m 5-axis simultaneously HSC-machining center, NC-round-swivelling table B-axis 180°, C-axis 360°, chip conveyor, prepared for 3D touchprobe HEIDENHAIN TS 641 (without touchprobe), mode 4, spindle chiller, no internal coolant supply, approx. 124.200 hours "machine on", approx. 60.600 hours "spindle on" in total

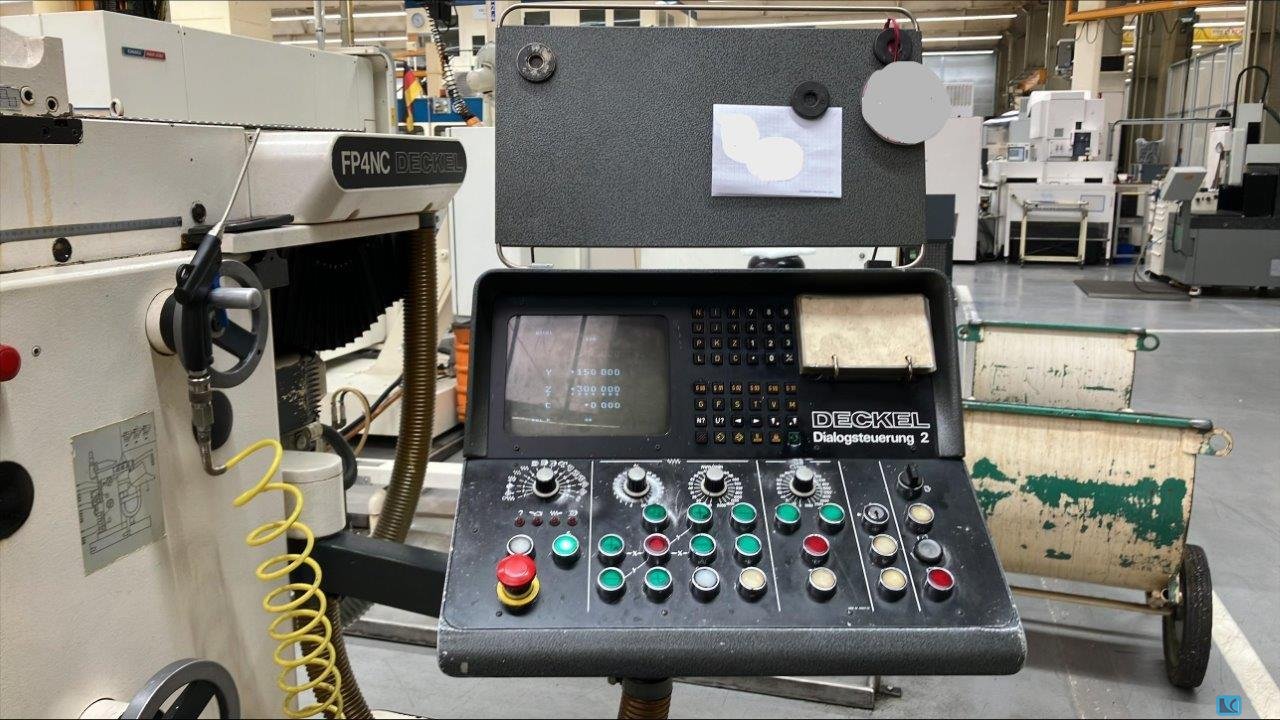

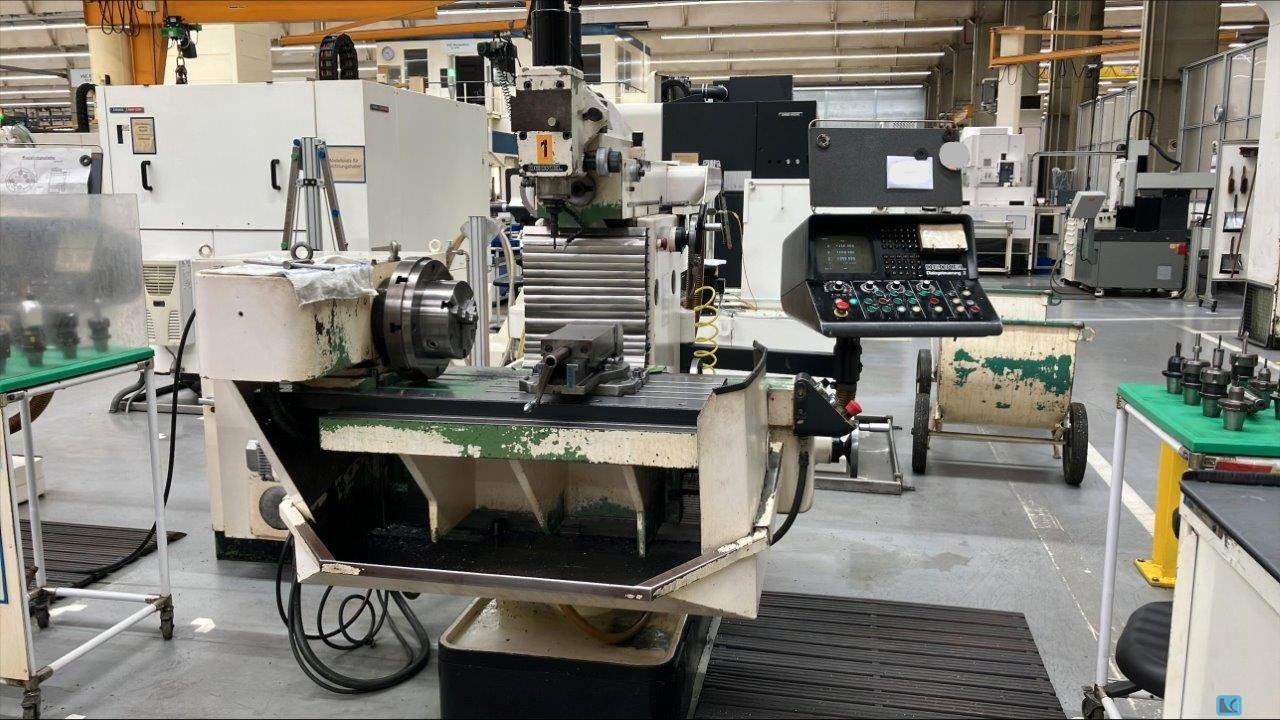

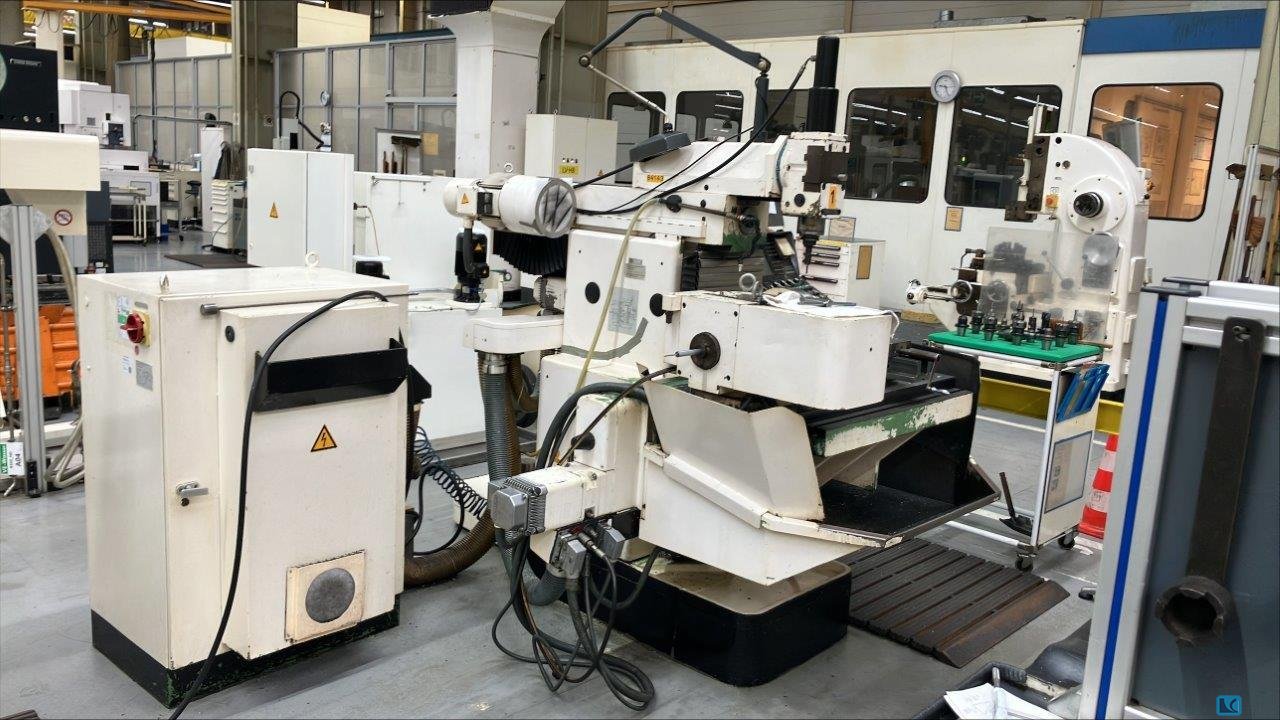

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts
x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t
x-travel: 1200 mm y-travel: 600 mm z-travel: 500 mm Control: Dialog 11 turning speed range: 0 - 6.300 U/min spindle taper ISO: 40 total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 4 x 3 x 2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
dia. of draw-in collets: - mm internal taper of cone draw-in collets: - max. radius to grind: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m Stichelschleifmaschine The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 300 mm y-travel: 160 mm z-travel: 290 mm table surface area: 600 x 210 mm tool taper: SK 40 spindle turning speed range: (16) 40 - 2000 U/min feeds -stepless-: 5 - 500 mm/min rapid traverse: 1,2 m/min spindle motor: 1,5 / 1,9 kW total power requirement: 9,5 kVA weight of the machine ca.: 830 kg dimensions of the machine ca.: 2000 x 2200 x 1655 mm The machine is in very good condition and comes from a training workshop. Equipment: 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage Fixed angle table Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm Coolant equipment Central lubrication Tailstock with counter bearing Manual The data for this ad was created with ModulMWS - the software solution o ...

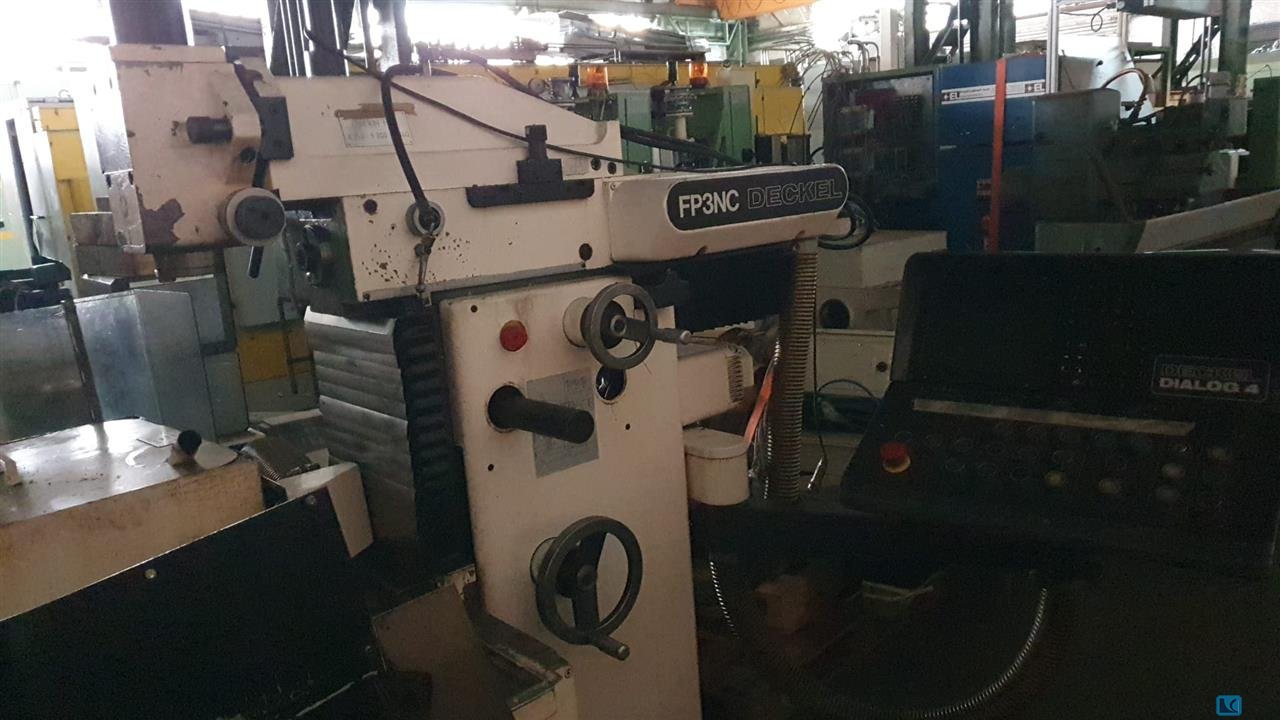

x-travel: 710 mm y-travel: 600 mm z-travel: 500 mm NC-rotary table: 630 mm spindle taper: SK 40 spindle turning speed range: 18 - 6300 U/min control: DIALOG 4 feed: 2 - 3600 mm/min rapid traverse: 6 m/min table load: max. 485 kg quill stroke: 80 mm spindle drive: 9,5 kW total power requirement: 20 kVA weight of the machine ca.: 4,6 t dimensions: 3,8 x 2,24 x 2,35 m Accessories: vertical head with hydr. tool clamping and quill retraction, electron. handwheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 485 mm y-travel: 385 mm z-travel: 380 mm table surface area: 800 x 460 mm spindle taper: SK 40 control: CONTOUR 1 spindle turning speed range: 50 - 2500 U/min feeds: 10 - 1000 mm/min rapid traverse: 2 m/min table load capacity: 600 kg quill stroke: 80 mm total power requirement: 7,5 kW weight of the machine ca.: 2,0 t dimensions: 2,4 x 1,7 x 1,98 m Acc.: vertical head with hydr. tool clamping and quill retraction, solid table, coolant - movement of X/Y/Z also possible via handwheels - The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm total power requirement: 4,4 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 222,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
surface area: 420 800 mm no. of flutes: 9 groove width: 12 / Abstand 45 mm weight of the machine ca.: 110 kg dimensions of the machine ca.: 10,50,3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: mm y-travel: mm z-travel: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 300 mm y-travel: 300 mm z-travel: 400 mm CNC-control: DIALOG 11 spindle taper ISO: 40 spindle turning speed range: 31 - 5.000 U/min table-size: 620 x 390 mm table load: 250 kg power capacity: 5,5 kW feeds -stepless-: 2 - 6.000 mm/min quill stroke: 80 mm coolant: voltage: 380 V total power requirement: 11,0 kVA weight of the machine ca.: 1,65 t dimensions of the machine ca.: 1,85 x 1,90 x 1,80 m electric cabinet: 1,35 x 0,70 x 1,70 m - Serial-No.: 2836-0175 - control: DIALOG 11 - electrical hand wheel - horizontal milling spindle - coolant equipment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 635 mm y-travel: 510 mm z-travel: 460 mm control: Siemens ergoline table surface area: 2x 790 x 560 mm number of pallets: 2 rapid traverse: 30 m/min turning speed range: 8000 U/min power capacity - milling spindle: 13 kW no. of tools in the magazine: 30 Stück tool taper: SK 40 | | weight: 5,2 t dimensions: 3,1 x 2,1 x 2,7 m vertical machining centre wit 2x palettchanger, Equipment: - 2x palettchanger - chipconveyor - internal coolant - filter system - ext. hand wheel - laser tool setter - cableless 3D probe - oil dust collector - Siemens ShopMill dialog programming - Roto Clean - signal lamp - spindle oil cooler The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 500 mm y-travel: 200 mm z-travel: 400 mm table surface area: 700 x 300 mm tool taper: SK 40 - S20 feed: 8 - 400 mm/ min rapid traverse: in X und Z 1200 mm / min turning speeds: 40 - 2000 U/min total power requirement: 2,2 kW weight of the machine ca.: 1400 kg dimensions of the machine ca.: 1500 x 1200 x 1600 mm Includes 2-axis digital display Heidenhain The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 800 mm y-travel: 300 mm z-travel: 350 mm total power requirement: 3 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 222 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
