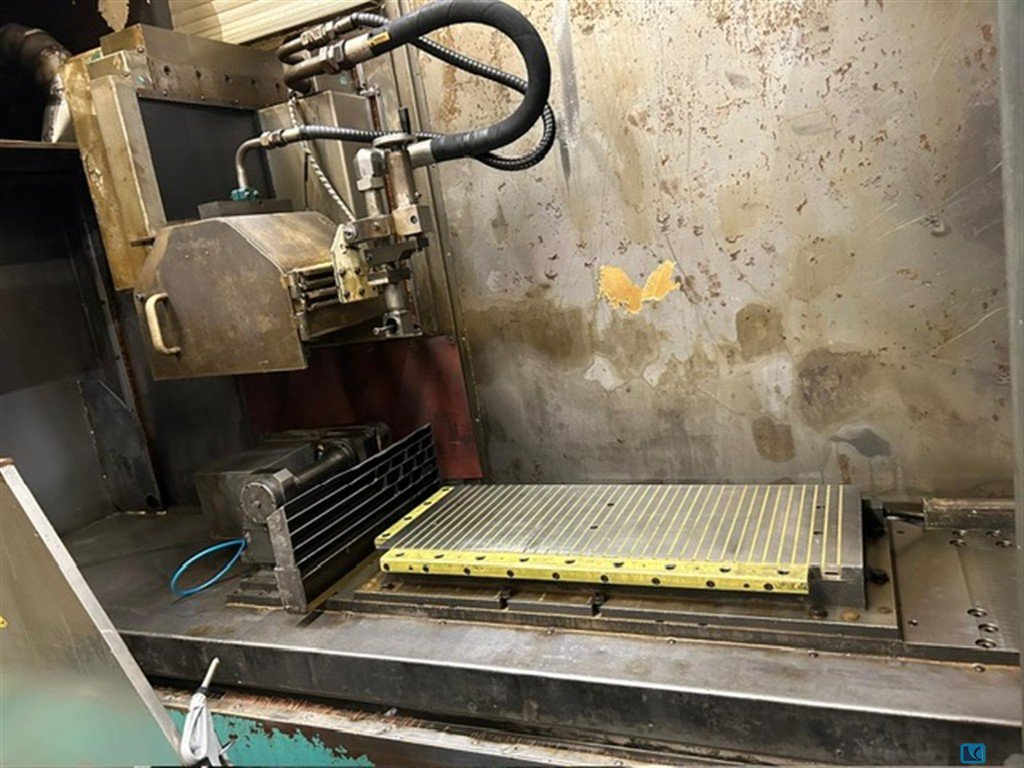

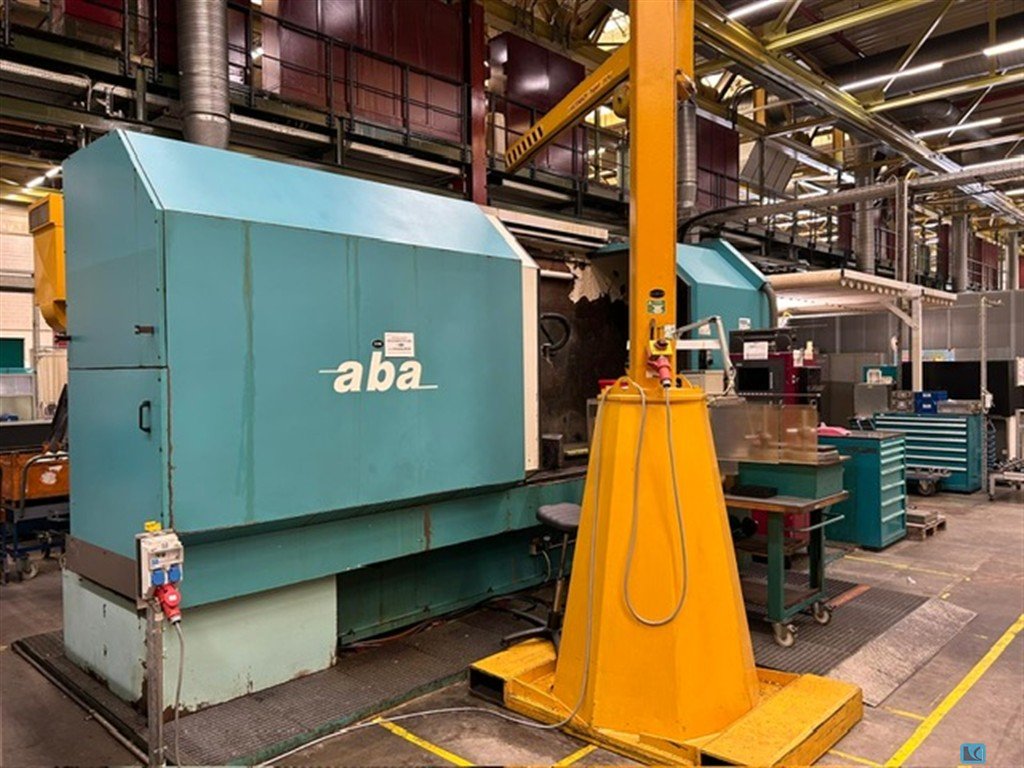

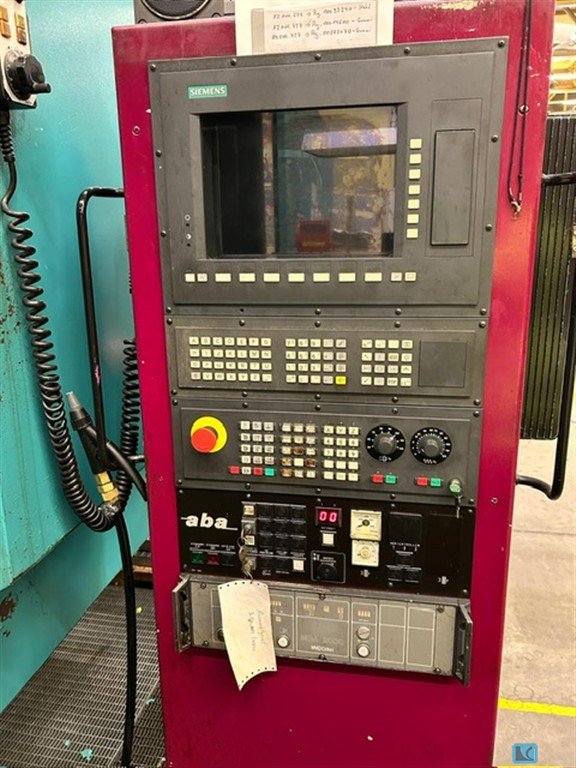

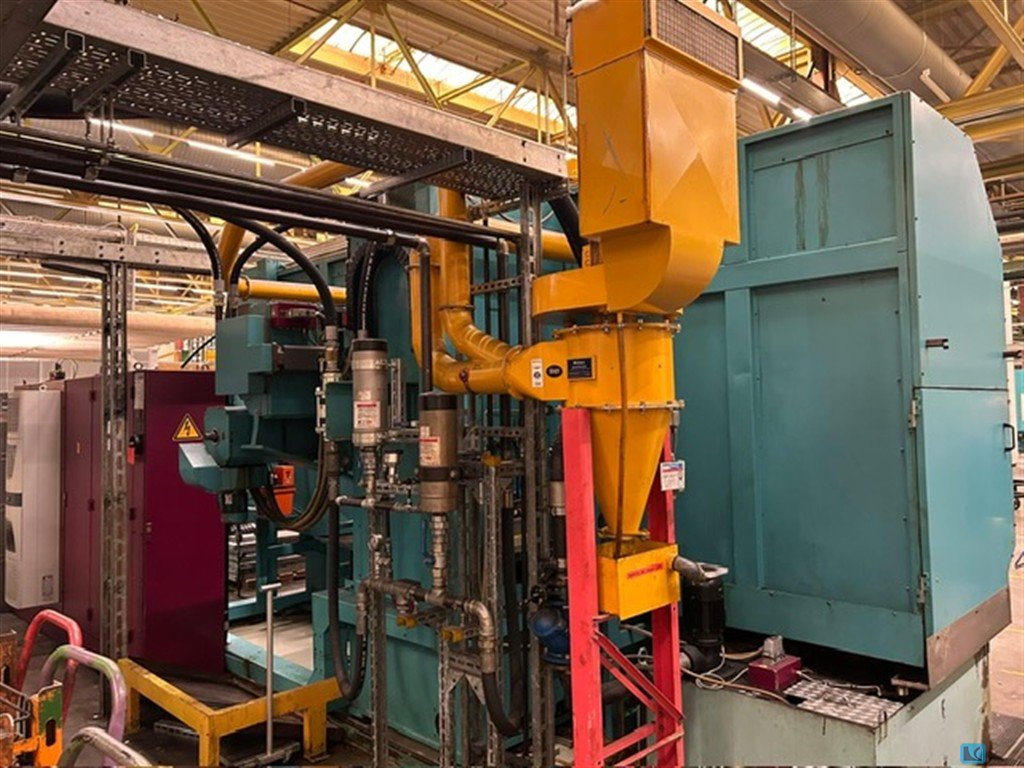

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.
grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine
grinding length: 1250 mm grinding width: 400 mm workpiece height: 550 mm table surface area: 1720 x 400 mm dimensions of grinding wheel: 400 x 50 x 127 mm table height over floor: mm : 1250 x 600 mm grinding spindle speed: 3000 U/min table load capacity: 1100 kp total power requirement: 13,8 kW weight of the machine ca.: 6,0 t dimensions of the machine ca.: 5,0 x 3,4 x 2,4 m Surface grinding machine - Magnetic grinding wheel - Coolant system - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 500 mm : breite 450 mm serial number: 386 weight of the machine ca.: 1,8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
workpiece diameter: 1000 mm workpiece weight: - kg workpiece height: - mm Control: grinding wheel motor: 11 kW total power requirement: 25 kW weight of the machine ca.: 6500 kg dimensions of the machine ca.: 4100 x 3200 x 2600 mm Machine comes from a plant closure Equipment: Coolant system 500 liters with paper belt filter 4 grinding stone (3 of them unused) Technical data: Rotary table diameter 800 mm Max. distance from rotary table to grinding spindle center 850 mm Grinding wheel diameter 400 mm Grinding wheel width 80 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length: 500 mm grinding width: 250 mm workpiece height: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length: 1000 mm grinding width: 750 mm workpiece height: 700 mm Control: SIEMENS, SIMATIC S 7-1500 table surface area: 1050 x 640 mm table height over floor: 1000 mm table speeds: 3.000 - 30.000 mm/min cross feed of table continual: 5 - 5.000 mm/min cross feed of table intermittent: 0,1 - 65,0 mm vertical adjustment, 1 graduation: 0,002 mm rapid traverse vertical: 0,25 m/min grinding spindle speed: 50 - 2.500 U/min grinding wheel size: ø 400 x 50 x ø 127 mm workpiece weight: max. 1.000 kg table load: max. 1600 kg total power requirement: 33,2 kW weight of the machine ca.: 9,3 t dimensions of machine L x W x H: 4,50 x 2,37 x 2,65 m - complete electronic / electric renewed in 2018 Accessories: magnetic plate 1000 x 650 mm, grinding wheel with flange, wheel trueing attachment, extraction The data for this ad was created with ModulMWS - the software solution of Log ...
Franzenschneidemaschine - Fray DIE Cutter ABA G100 Ano ca. 1972 - Serial-No. 5515329002 Inspeção de vídeo on-line por Skype-Video Ficaríamos muito satisfeitos com a sua visita - mais máquinas em estoque disponíveis imediatamente - Pode ser inspecionado em estoque Emskirchen / Nürnberg - Pode ser testado
comprimento de moagem: 1000 mm largura de moagem: 500 mm altura da peça: 630 mm tamanho da mesa: 1000x400 mm diâmetro da roda de moagem: 400 mm peso da máquina ca.: 5,8 t Placa magnética 1000x500mm
Jig boring mill, fine boring mill, plate boring mill, table boring mill, boring mill, milling machine, -Table dimensions: 700 x 405 mm -Travel: Z 330 mm/Y 410 mm/X 630 mm -Quill stroke: 155 mm -Recording: MK4 -Speeds: 31 - 1500 rpm -Dimensions: 1570/1800/H2600 mm -Weight: 2600 kg
Micrometer screws, micrometer screws, outside micrometers, outside micrometers -Manufacturer: aba, outside micrometer -Measuring range: 0-25 mm -Reading: 0.01 mm -locking device -Number: 2x micrometer available -Price: per piece -other sizes: also available -Case dimensions: 175/90/H30 mm -Weight: 0.6 kg/pc.
Especificações: Áreas de trabalho: Eixo X: 1870 mm Eixo Y: 400 mm Eixo Z: 560 mm Velocidade do eixo C: 3000 1/min Área de moagem, máx.: 1700 x 620 mm sem cómoda de mesa: 1500 x 620 mm Máquina de decoração, roda diamantada: ø 110 mm Diâmetro da roda de moagem: 400 mm Largura máxima: 100 mm Diâmetro da roda de retificação: 127 mm Distância do centro do eixo da mesa: 800 mm Altura da mesa: 900 mm Carga da mesa, máximo: 2200 kg Peso, aprox.: 12.000 kg Equipamento: - Control Siemens SINUMERIK 840D, painel de controlo OPO12 -Sistema - Placa de fixação eletromagnética - Encapsulamento em espaço completo -Lubrificação central - Extração por névoa - Sistema de fixação para autom. Substituição do disco - Dispositivo de líquido de arrefecimento - Refrigerador de água de arrefecimento
Área de moagem: 600 x 400 mm Tabela magnética Tanque de refrigerante vários rebolos
Máquina de moagem de superfície Aba FF450/30 BJ 1980
x-travel: 520 mm y-travel: 400 mm z-travel: 450 mm spindle taper ISO: 40 control: TNC 360 coolant tank: l total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: 2450x2300x3300 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length: 750 mm grinding width: 500 mm workpiece height: 500 mm total power requirement: 50 kW weight of the machine ca.: 5000 t Grinding length, max. 750 mm Grinding width, max. 500 mm Cross movement of grinding slide 450 mm Working height under grinding wheel, max. 500 mm Grinding wheel size Æ 400 x 100 mm Grinding wheel speeds, infinitely variable 300-3,000 rpm Table speed, hydr. 0 - 30 m/min Table speed, creep feed 0.02 - 1,000 mm/min Vertical infeed, infinitely variable 0.002 - 0.03 mm/stroke Grinding spindle drive, max. 32 kW Total electrical load, approx. 50 kW - 380 V - 50 Hz Weight approx. 5,000 kg Accessories / Special Features Creep feed: Electro-mechanical feed (but also hydraulic table movement), with digital display, programable by cam limit switches. Infinit ...
comprimento de moagem: 600 mm largura de moagem: 400 mm altura da peça: mm requisito de potência total: 11 kW peso da máquina ca.: 3,5 t dimensões da máquina ca.: m
grinding length: 1.000 mm grinding width: 600 mm workpiece height: 400 mm Control: SINUMERK 840 D Grinding Area: : grinding range: max. 1.000 x 600 mm travel cross (z-axis): 540 mm distance table surface - grinding spindle centre: max. 600 mm Travel vertical (Y-axis): 500 mm Max. working height on new grinding wheel: 400 mm workpiece table: : Electro permanent magnetic plate: 800 x 500 mm pole pitch: 18 mm clamping force in 8 levels: - Table drive (X-axis): : Incremental encoder in the longitudinal axis X axi: - table speeds: 2-35.000 mm/min Electromechanical longitudinal movement: - by means of digital servo motor,: - toothed belt and ball screw: - Preloaded precision rolling guide size 35: - Central grease lubrication: - Automatic vertical feed (Y-axis): : min. feed size: 0,001 mm measuring system: Galsmaßstab Max. distance spindle centre - table: 700 Grinding head vertical: 550 mm El ...
grinding length: 1.000 mm grinding width: 600 mm workpiece height: 400 mm control: SINUMERK 840 D Grinding Area: : grinding range: max. 1.000 x 600 mm travel cross (z-axis): 540 mm distance table surface - grinding spindle centre: max. 600 mm Travel vertical (Y-axis): 500 mm Max. working height on new grinding wheel: 400 mm workpiece table: : Electro permanent magnetic plate: 800 x 500 mm pole pitch: 18 mm clamping force in 8 levels: - Table drive (X-axis): : Incremental encoder in the longitudinal axis X axi: - table speeds: 2-35.000 mm/min Electromechanical longitudinal movement: - by means of digital servo motor,: - toothed belt and ball screw: - Preloaded precision rolling guide size 35: - Central grease lubrication: - Automatic vertical feed (Y-axis): : min. feed size: 0,001 mm measuring system: Galsmaßstab Max. distance spindle centre - table: 700 Grinding head vertical: 550 mm El ...
aba FF 625 Máquina de moagem de superfície Máquina de moagem de superfície de precisão ABA FF600/25 Comprimento de moagem 600mm Largura da sucata 250mm Ímã elétrico 600x250mm Altura da peça 400mm Extrator de diamantes Ajuste de altura digital Motor 3,27 KW 400 V 50 HZ Dispositivo de refrigeração Rebolos e flanges Peso: aprox. 1350 kg G&5020-M1768
Usado Placa de aperto eletromagnético, da máquina de moagem ABA Dados técnicos: Comprimento: 600 mm Largura: 300 mm
usava
Gr. Comprimento de moagem: 620 mm Gr. Largura de moagem: 250 mm Área de aperto de mesa: 200 x 620 mm Dimensões das rodas de moagem: 200 x 220 x 51 mm electr. Ligação: 380 V, 1/1.8 kW Requisito de espaço: 1650 x 1450 x 1800 mm Peso: 1350 kg
Máquina de moagem de superfície ABA FFV 1000/50 Curso X: 1000 mm Curso Y: 500 mm Curso Z: 400 mm Dimensões do mandril magnético: 1000 x 400 mm Passo a passo automático X / Y / Z Painel elétrico separado Tanque de lubrificante separado Grupo hidráulico separado Tensão: 380 V Comprimento: 4000 mm Profundidade: 1700 mm Altura total: 2300 mm Peso: aprox. 6 T
Máquina de Moagem de Superfícies Aba FFK Máquina de moagem de superfície manual de alta qualidade Tamanho do íman: 250 x 150 mm Dispositivo de curativo no topo do fuso Curso máximo na direção X: 390 mm Curso máximo na direção Y 180mm Altura do íman ao centro do fuso: 395 mm Grandes anéis de vernier Inclui 5 flanges com rodas de moagem Diamante ponticular para íman Está também disponível um sistema de extração de pó.
Código 61063 Descrição Máquina de moagem de superfície Fazer ABA Modelo FFU 2000/60 Série Nº. 208 125 Controlo Abamatic 3 Ano de 1986 Mesasize 2510 x 500 mm Superfície de moagem L x B x H 2000 x 600 x 700 mm Tamanho da placa magnética L x B 2000 x 500 mm Movimento da tabela de velocidade 3 - 30 m/min. Max. Mesa de distância - roda de moagem central 900 mm Medoring stone dim. Pedra x Largura x Taper 400 x 50 x 127 mm Potência spindel 26 kW Velocidade spindel 1600 - 3000 rpm Potência motora 26 kW – 380 Volt Total electr.com. 34 kW Espaço total L x W x H 7000 x 3500 x 2650 mm Peso 10500 kgs Acessos Elec. Placa magnética 2000 x 500 mm Refrigerante com filtro de papel Leitura digital Pedras de moagem, etc. Máquina de condição está em boas condições
