spindle diameter: 90 mmx-travel: 1250 mmy-travel: 1200 mmTable dimensions: 1000 x 1120 mmw-axis: 700 mmtool adaptor: ISO 40 spindle turning speed range: 28 - 1400(x18) U/minz-travel: 1600 mmtotal power requirement: 7,5 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle diameter: 125 mmspindle travel: 1130 mmcolumn travel: 6000 mmheadstock travel cross: 1700 mmcolumn travel on cross-slide: 400 mmspindle speeds: 2,24 - 450 (27x) U/minvolt: 380 Vtotal power requirement: 14 kWweight of the machine ca.: tdimensions of the machine ca.: mFacing headD.R.O.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel:760 mmy-travel:760 mmz-travel:760 mmtotal power requirement:43 kWweight of the machine ca.:11,5 tdimensions of the machine ca.:2,7 x 4,73 x 2,87 mmax. table loading capacity:500 kg
spindle diameter: 125 mmspindle travel: 1000 mmcolumn movement horizontal: 7000 mmheadstock - vertical: 2500 mm/mincross travel column: 450 mmtaper ISO: ISO 50 P.D.B. total power requirement: 25 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle diameter: 125 mmx-travel: 8000 mmy-travel: 3000 mmspindle bore: 240 mmw-axis: 1650 mmtotal power requirement: . kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

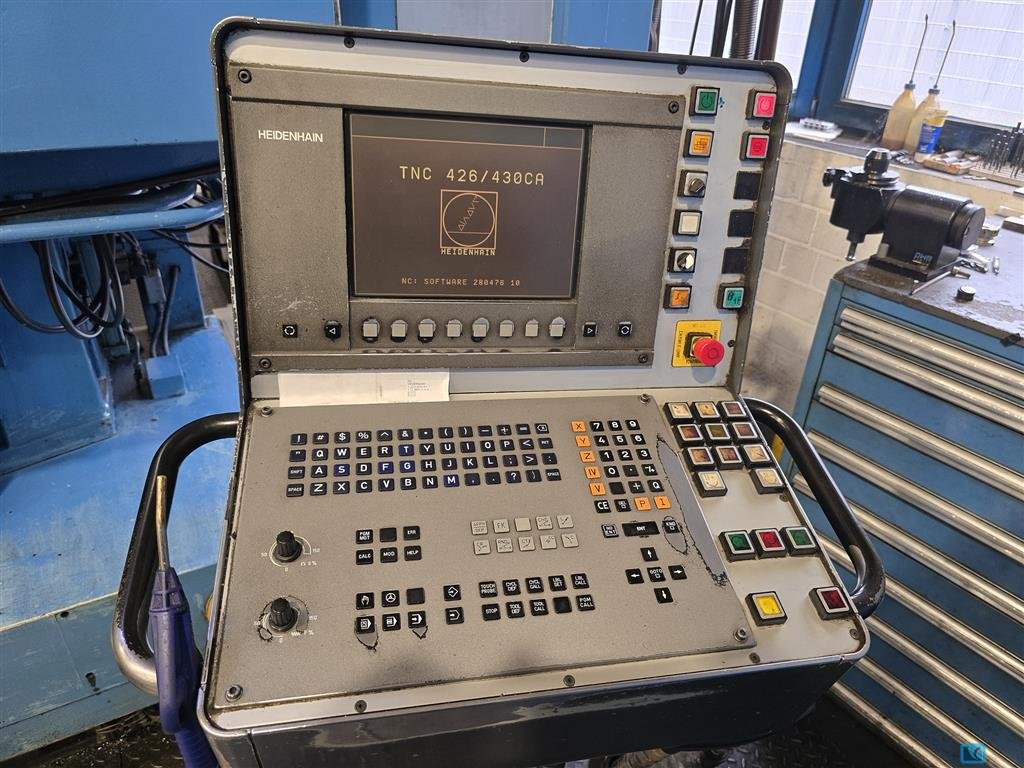

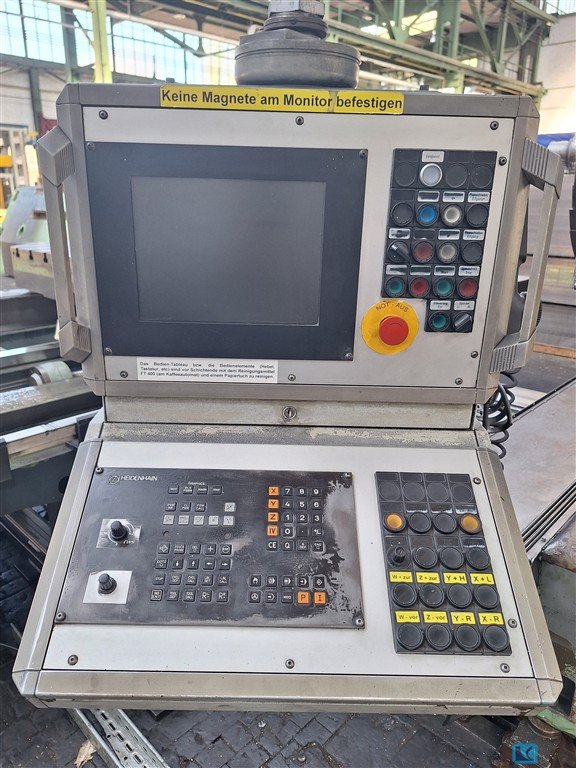

spindle diameter: 130 mmx-travel: 5000 mmy-travel: 3000 mmcontrol: Heidenhain TNC 426 taper ISO: 50 P.D.B. w-axis: 900 mmz-travel: 500 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel:750 mmy-travel:406 mmz-travel:508 mmweight of the machine ca.:4 tbore spindle turning speed range:12.000 U/minHAAS VF-2 is a 3-axis machining center designed for precision, high accuracy and reliability. Excluding tool changer!
spindle diameter: 90 mmx-travel: 1250 mmy-travel: 1120 mmz-travel: 1400 mmw-axis: 710 mmspindle turning speed range: 28 - 1400(x18) U/mintool adaptor: MT 5 Table dimensions: 1000 x 1120 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mFacing head, 3 axis digital read out,spindle support and tailstock.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle diameter: 125 mmx-travel: 2800 mmy-travel: 2000 mmz-travel: 2500 mmnumber of spindle speeds: 3,55 - 710 (27x) taper ISO: 50 voltage: 400 Vtotal power requirement: 18,5 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle diameter: 150 mmx-travel: 16000 mmy-travel: 3000 mmtaper ISO: 50 w-axis: 1200 mmspindle speed:: 2,5-1000 ram: 380x380 mmtotal power requirement: 30 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel:600 mmy-travel:410 mmz-travel:520 mmtool change unit:16 turning speeds:8000 1/mincontrol:SIEMENS 810 shopmill table surface area:840 x 420 mmrapid traverse X- and Y-axis:36 m/minrapid traverse Z-axis:20 m/mintaper ISO:SK 40 spindle drive:15 kWweight of the machine ca.:2,5 tspace requirements approx. LxWxH:2,2 x 2,3 x 2,3 mvertical machining center,el. handwheel,no chipconveyor,approx. h "machine on", approx. h "spindle on"
x-travel:960 mmy-travel:600 mmz-travel:480 mmrotary table::D 350 mmtable load:200 kgspindle turning speed range:12.000 1/mindrive capacity - spindle motor:14/10 kWcontrol:HEIDENHAIN iTNC 530 rapid traverse:32 / 32 / 24 m/minTool changer:30- fach spindle taper ISO:BT 40 weight of the machine ca.:7,4 ttotal power requirement:45 kVAdimensions of the machine ca.:3,1 x 2,3 x 3,1 m5-axis simultaneously universal-machining center,NC-rotary-swivelling table dia. 350mm,A-axis (120/-42°), C-axis 360°,Internal coolant supply, el. handwheel,chipconveyor,direct measuring system,Hour meter: approx. 9.000 h "machine on", approx. 3.500 h "spindle on"
spindle diameter:180 mmx-travel:6.000 mmy-travel:2.900 mmtotal power requirement:95 kWweight of the machine ca.:130 mit Zubehör tz-travel:1.250 Ram mmw-axis:1000 Spindel mmram stroke:1250 mmdimension of the ram:450 x 450 mmbore spindle stroke:1000 mmbore spindle turning speed range:920 1/minpowered rotary table: IOS 40 CNC 2 Achsen B u.V Rotary-table:3000 x 3500 mmRotary-table: CNC-IOS 40 NC mmstepless adjustable, relative to diameter:Index 4x 90° -360000 Winkel =0,001 Grad mmtravel - cross:Längs 1230 mmtable load of rotary table max.:40 Tonnenclamping plate:3 x 8000 x 2000 mmCNC Ram-Type Floor Boring and Milling machine,dismantled and storedThe headstock sliding guides were recoated and scraped.
x-travel:1270 mmy-travel:660 mmz-travel:610 mmtable surface area:1500 x 660 mmtable load:1,3 tcontrol:ULTIMAX 4 turning speeds:10000 1/minspindle:15 kWTool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/mintool change unit:24 Pos.total power requirement:30 kVAweight of the machine ca.:9,5 tdimensions of the machine ca.:4,8 x 4,56 x 2,95 mvertical machining center, el. handwheel,chipconveyor,
x-travel:1.500 mmy-travel:700 mmz-travel:610 mmcontrol:HEIDENHAIN iTNC 530 table-size:1.400 x 700 mmtool taper:SK 40 numbers of positions in the tool changer:48 fachspindle turning speed - stepless:15000 1/minrapid traverse:36 m/mintable load capacity:700 kgspindle drive:25 kWtotal power requirement:30 kVAweight of the machine ca.:9,1 tdimensions of the machine ca.:3,7 x 2,65 x 2,9 mvertical machining center,20 bar internal coolant supply with paper filter,3D-touchprobe,chipconveyor,el. handwheelmeter readings:approx. 43.600 h "machine on", approx. 20.000 h "spindle on",
x-travel:1250 mmy-travel:880 mmz-travel:800 mmcontrol: Heidenhain TNC 430 tool change unit:60 Pos.Tool bore:SK 50 turning speeds:8000 1/minsize of pallet:1000 x 800 mmtotal power requirement:56 kVAweight of the machine ca.:14,3 tdimensions of the machine ca.:5,5 x 3 x 3,1 m5-axis machine with controlled universal milling head (B-axis),2-palett changer incl. 2 palets, 1000 x 800 mmProduction package:- internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg),- chipconveyor (4,85 x 1,2 x 1,75m / 600kg),- ROTOCLEAR,- 3D touchprobe RENISHAW MP 10- 60 pos. ATC SK 50- el. handwheel - mech. tool-breakage control,accessories (SK 50 toolholdersapprox. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020
x-travel:700 mmy-travel:700 mmz-travel:700 mmturning speeds:18.000 1/minmax. torque on the spindle:110 / 84 Nmtool taper:SK 40 control:HEIDENHAIN iTNC 530 tool change unit:180 fachsize of pallet:500 x 500 mm mmmax. workpiece weight:600 kgspindle:34 / 28 kWrapid traverse:60 m/mintotal power requirement:68 kVAweight of the machine ca.:10,5 tdimensions of the machine ca.:9,5 x 7,5 x 3,4 mdimensions for transport:4,3 x 2,4 x 2,6 mhorizontal machining center with linear drives,,NC-roundtable,pallet pool RS 10 for totally 12 pallets,monitor for workpiece setting-up device,high pressure coolant through spindle 40bar,internal air blast supply,mode 4,hydraulic clamping 2/4 for workpiece setting-up device and working table,BLUM laser,oilmist suction,3D touch probe TS 649,tool-breackage control, mechanical,SDS spindle diagnosis system,flush gun,el. handwheel,chipconveyor,approx. 112.000 h "machine ...
x-travel:800 mmy-travel:800 mmz-travel:800 mmturning speeds:12.000 1/mintool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fachsize of pallet:630 x 630mm mmspindle:52 kW / 430Nm total power requirement:87 kVAweight of the machine ca.:15 tdimensions for transport:4,6 x 2,95 x 2,7 mhorizontal machining center,NC-round-table pallet-changer (2 pallets),Internal Coolant Supply 40 bar,prepared for Infrared Touch Probe Renishaw MP 10 without probe,tool-breakage control (mech.),MQL,airblast through spindle,oilmist suction,TRANSMIT funbction,accuracy package,mode 4,glass window right door,incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 palletsapprox. 98.500 h main switch on apprax. 45.500 Spindle hours
x-travel:800 mmy-travel:950 mmz-travel:1020 mmcontrol:HEIDENHAIN iTNC 530 table load capacity:800 kgtool taper:HSK 63 turning speeds:16.000 1/minspindle:35 / 25 kWtable-size:770 mmmax. torque on the spindle:160 / 223 Nmtool change unit:120 (2x60) Pos.weight of the machine ca.:20 tdimensions of the machine ca.:3,3 x 6,15 x 3,2 m5-axis simultaneously machining center with controlled swivel-rotary table (A/B-axis),milling head horizontal,internal coolant device (10-80bar),oilmist-suction,electromech. tool-length measuring device GROB,chipconveyor,3D touch probe,KINEMATICOPT,BLUM laser,el. handwheel,hour meter: approx. 82.000 h "machine on", approx. 48.800 h "spindle on"

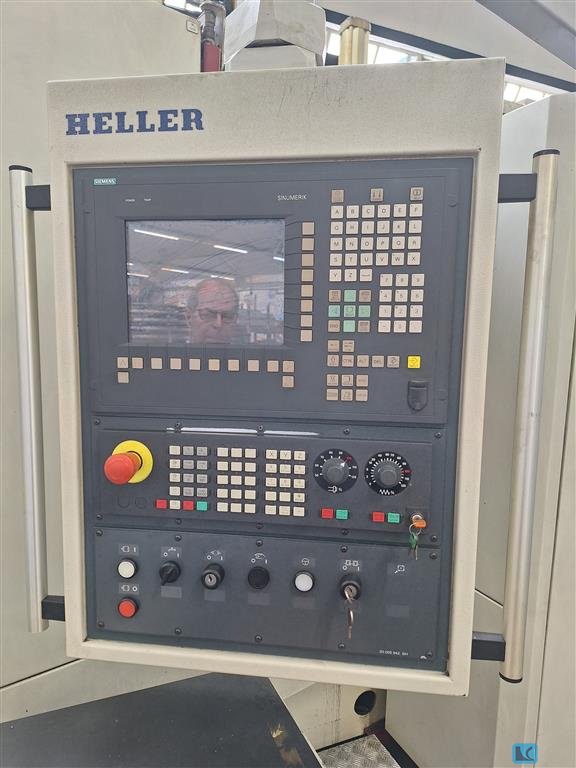

x-travel:450 mmy-travel:450 mmz-travel:450 mmweight of the machine ca.:14 tsize of pallet:320 x 320 mmnumber of spindles:2 Double spindle 4-axis machining center Horizontal4 machine platesRenishaw probeControl Siemens Sinumerik 840DWorking space (X / Y / Z): 450x450x450 mmLoad pallet / table max .: 300 kgAcceleration: 10 m / s²Rapid traverse: 60 m / minPallet size: 320 x 320 mmChip-to-chip time: 2.6 sWorkpiece height max .: 700 mmTool holder: HSK 63Tool places: 2x 60Tool spindle: 10,000 rpm, 95 NmSpeed increase to 18,000 rpmInfrared receiver for probe,Make Renishaw Vaf72a0pTool magazine with 60 placesControl panel on the workstationControl panel on the tool installation siteWorkpiece positioning stations can be rotated manuallywith hydraulic workpiece clamping 60 barPneumatic support control on the workstationAutomatic swing gateExtended coolant layer 70 bar / 1500I /VF 250 Coolant Cool ...
x-travel:700 mmy-travel:550 mmz-travel:500 mmtool taper:SK40 spindle speed max.:12.000 U/minTool changer:30 fach electronic handwheel chip conveyor
x-travel:800 mmy-travel:840 mmz-travel:865 mmtotal power requirement:24 kWweight of the machine ca.:15,5 tdimensions of the machine ca.:4 x 3 m5 axes, 1 spindle A axis -30TO + 210 DEGB axis 360 x 0.001 Axis speed: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle: 29 KW max. spindle speed = 1200 rpmmax. torque = 34.6 Nm Tools:HSK-A63 87 places in the magazine
x-travel:500 mmy-travel:400 mmz-travel:330 mmcontrol:FANUC 31i B5 tool change unit:21 fachrapid traverse in x-y-z axis:54 m/mintaper ISO:BT 30 turning speed range::10.000 1 / minspindle drive:11 / 3,7 kWmax. table load:300 kgsurface area:600x 400 mmDimensions (L/W/H):1,6 x 2,1 x 2,25 mrapid traverse:48 m/mintotal power requirement:11 kVAweight of the machine ca.:2,1 tvertical CNC-milling-drilling machining center,Infrared Touch probe,el. handwheel,autom. door on right side,no internal Coolant Supply,Approx. 65.500 hours "machine on", approx. 8.200 hours "machine run"
x-travel:800 mmy-travel:840 mmz-travel:865 mmcontrol:Siemens 840 D spindle speeds::10.000 rpmspindle drive motor:20 kWweight of the machine ca.:16 tdimensions of the machine ca.:4 x 3 m4 axes, 1 spindle A axis 360 x 0.001 Axis speeds: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle torque = 262 Nm Spindle 20KW / 10,000 rpm Tool HSK-A100 57 places in the magazine
x-travel:1.250 mmy-travel:710 mmz-travel:710 mmtable surface area:1500 x 800 mmtable load capacity:800 kgturning speeds:12000 1/minspindle drive:15 / 10 kWcontrol:MILLPLUS iT HEIDENHAINspindle taper:SK 40 tool change unit:60 Pos.capacity:44 kVAweight of the machine ca.:10,5 tdimensions of the machine ca.:3,5 x 2,65 x 2,65 m5 axis simultaneously machining center,B-axis (-120° / +30°),NC-rotary-table integrated in rigid table,direct measuring system,3D probe infrared, HEIDENHAIN TS 640,internal coolant supply 40 bar, 600l,flushgun,chipconveyor,mode 4,3D quickset software (no hardware),Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"
x-travel:700 mmy-travel:420 mmz-travel:380 mmcontrol:SIEMENS 840D sl tool change unit:15 fachtaper ISO:BBT 30 turning speed range::10.000 1 / minrapid traverse:60 m/mindiameter of tools max.:80 mmmax. tool length:250 mmmax. tool weight:3 kgfeed power:5.000 Nchange-time chip to chip:1,5 secDimensions (L/W/H):3 x 2 x 2,6 mtotal power requirement:22 kVAweight of the machine ca.:4,1 t3 axis simultaneously milling-drilling machining center,table 840 x 420mm,direct measuring system,airblast outside,NANO package (higher temperature stability),TROPICAL package (up to 50°C),PROGRESSline,BDE interface,el. handwheel,RENISHAW touch probe OMP 40-2table touch probe,prepared for handling-system incl. autom. door left site,prepared for hydr. interface,internal Coolant Supply 40bar, 400l,airblast,chipconveyor (dropping height 1.050mm,el. keysystem incl. key,Approx. machine on: 22.500h spindle on: 8.5 ...
x-travel:800 mmy-travel:800 mmz-travel:800 mmturning speeds:35-10.000 1/minspindle:37 / 30 kWmax. torque on the spindle:525 / 206 NmTool bore:BT 50 rapid traverse:60 m/mintool change unit:160 Pos.size of pallet:500 X 500 mmcontrol:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kgworkpiece height max.:1.000 mminterference area:900 mm2 pcs. horizontal machining centers (HCN 6000 + HCN 6000-II, 2008), interlinked with pallet pool (16 pallets) MAZAK FMS,2 pallet changer,chipconveyor,coolant device with internal coolant supply,accessories for both machines: 18 pallets, approx. 300pcs. toolholders, miscellaneous devices for workpiece-clamping...
x-travel:800 mmy-travel:800 mmz-travel:800 mmturning speeds:35-10.000 1/minspindle:37 / 30 kWmax. torque on the spindle:525 / 206 NmTool bore:BT 50 rapid traverse:60 m/mintool change unit:160 Pos.size of pallet:500 X 500 mmcontrol:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kgworkpiece height max.:1.000 mminterference area:900 mm2 pcs. horizontal machining centers (HCN 6000-II + HCN 6000, 2005), interlinked with pallet pool (16 pallets) MAZAK FMS,2 pallet changer,chipconveyor,coolant device with internal coolant supply,
x-travel:410 mmy-travel:610 mmz-travel:500 mmturning speeds:15000 1/mintool adaptor:SK 40 control:iTNC 530 HEIDENHAIN smart NC table::320 x 320 mmtable load:100 kgtool change unit:48 Pos.total power requirement:35 kVAweight of the machine ca.:7,4 tdimensions of the machine ca.:4,15 x 3,8 x 3,28 m5-axis simultaneously machining center,NC-round-swivelling table, C-axis 360°, B-axis +30/-120°,chipconveyor,3D touchprobe,internal coolant supply 20bar,el. handwheel,kinematicsopt,meter readings:approx. 9.600h "machine on", approx.3.500h "spindle on"
