Modelo
(Fabricante: DMG MORI)

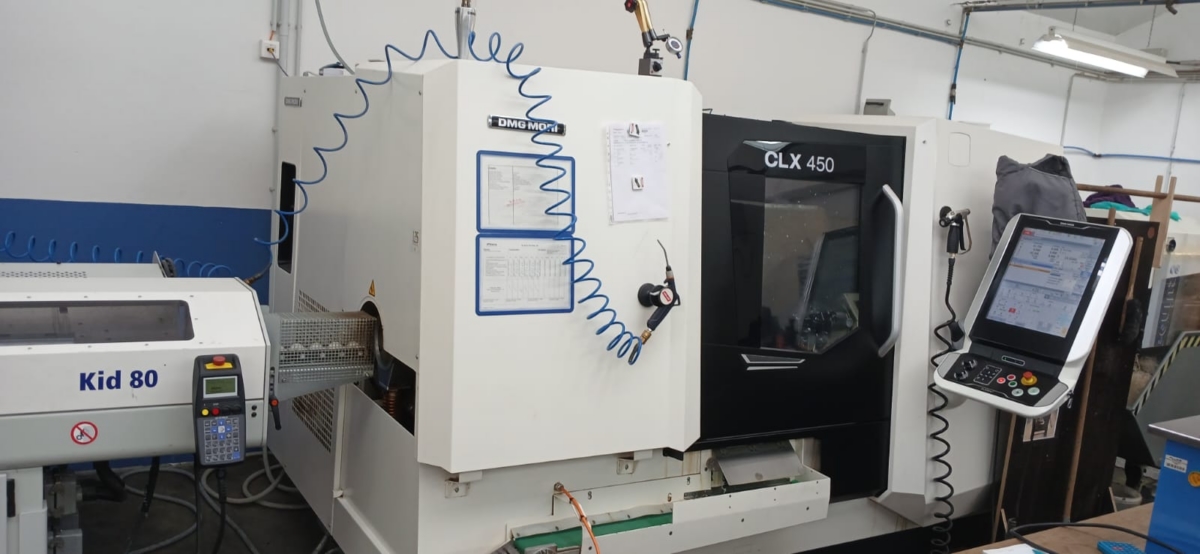

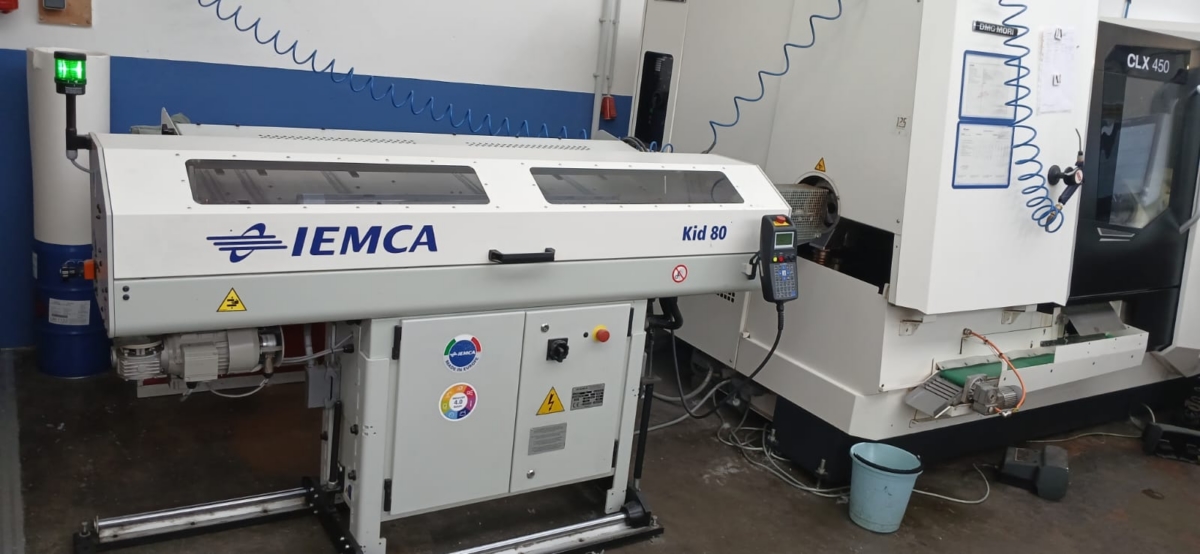

This 5-axis DMG MORI CLX 450 TC was manufactured in 2022, featuring a max. X-axis stroke of 750 mm, Y-axis stroke of 200 mm, and Z-axis stroke of 1,100 mm. It handles a max. workpiece diameter of 400 mm and length of 1,100 mm, with a bar capacity of 65 mm. Spindle speeds reach up to 5000 rpm. Weighs 9200 kg. If you are looking to get high quality turning capabilities consider the DMG MORI CLX 450 TC machine we have for sale.Contact us for more information.
CATEGORIA — 5 Eixos FABRICANTE — DMG MORI MODELO — DMU 85 MONOBLOCO NÚMERO DE STOCK — ONY100000587 ANO DO MODELO — 2013 PAINEL DE CONTROLO — SIEMENS 840 D SOLUTIONLINE CURSO DO EIXO — X 935 MM / Y 850 MM / Z 650 MM MOVIMENTOS DE EIXO ROTATIVO — A +/- 120 / C 360 VELOCIDADE DA ROTAÇÃO — 18.000 MIN/-1 CAPACIDADE DE POTÊNCIA - EIXO PRINCIPAL — 35 kW (40% ED) BINÁRIO MÁXIMO — 135 Nm (40% ED) PORTA-FERRAMENTAS — SK 40 NÚMERO DE POSIÇÕES DE FERRAMENTA — 30 ÁREA DE SUPERFÍCIE DA MESA — 1.000 X 750 MM (D 850 X 750 MM) CARGA MÁXIMA DA MESA — 1.000 KG NECESSIDADE TOTAL DE POTÊNCIA — 46 KVA PESO DA MÁQUINA — 13.500 KG DIMENSÕES DA MÁQUINA — 3,15 X 3,92 X 3,21 M
Key data: 660 mm, 983 mm
PAINEL DE CONTROLO FANUC F31-IA5 MOVIMENTO DO EIXO X 750 MM / Y ± 210 MM / MM / Z 1,220 MM MOVIMENTO DO EIXO ROTATIVO B + / - 120° / C 360 °/ 0,001 ° DIÂMETRO MÁXIMO DE ROTAÇÃO 660 MM COMPRIMENTO MÁXIMO DE VIRAGEM 983 MM SPINDLE - 1 VELOCIDADE DE CARGA DE CHUCK 3.000 MIN/-1 DIÂMETRO DO MANDRIL 12 INC / 315 MM CAPACIDADE DO BAR 90 MM VELOCIDADE DO FUSO DA FERRAMENTA (S1) 12.000 MIN/-1 PORTA-FERRAMENTAS CAPTO C6 NÚMERO DE POSIÇÃO DA FERRAMENTA 100 SPINDLE - 2 AUMENTO DE VELOCIDADE DE INTERVALO DE VELOCIDADE MÁXIMO 3.000 MIN/-1 FUSO CHUCK DIAMATER SUP 12 INC / 315 MM PESO DA MÁQUINA 22.300 KG DIMENSÕES DA MÁQUINA 5,33 X 3,27 X 2,93 M
Curso máximo do eixo X730 mm Curso máximo do eixo Y730 mm Curso máximo do eixo Z880 mm Diâmetro máximo da peça800 mm Altura máxima da peça1.000 mm Peso máximo da peça700 kg Controle & software SIEMENS
usava
Diâmetro de giro 400 mm Comprimento de giro 800 mm Velocidade do eixo 4000 rpm Com eixo C Controlador Siemens 840D
usava
Com eixos C e Y Diâmetro máximo da peça 366 mm Comprimento máximo da peça 708 mm Capacidade máxima da barra diâmetro 105 mm Curso máximo do eixo X 260 mm Curso máximo do eixo Y 120 mm Curso máximo do eixo Z 795 mm Controlador Siemens
usava
Diâmetro máximo da peça 400 mm Comprimento máximo da peça 800 mm Capacidade máxima da barra 80 mm Curso máximo do eixo X276 mm Curso máximo do eixo Z 755 mm Controlador Siemens Velocidade do eixo 4000 rpm Com eixo C
Com mesa rotativa Lehmann e unidade de refrigeração de alta pressão Curso X 700 mm Curso em Y 420 mm Curso Z 380 mm Velocidade do eixo 10.000 rpm Controlador SIEMENS 840D
This 4-axis DMG MORI NHX 8000 horizontal machining centre was manufactured in 2023. It features a Siemens S840D control with CELOS, XYZ travels of 1,400 / 1,200 / 1,350 mm, and a pallet size of 800 x 800 mm. The spindle operates at 16,000 rpm with a power of 85 kW and uses an HSK-A100 taper. Tool storage capacity is 60, and it includes a Renishaw OMP60 probe. For more information about this horizontal machining centre, please reach out to us.
This 5-axis DMG MORI DMP-70 was manufactured in 2023, featuring a Siemens 840D sl control and a BBT30 direct-drive spindle with a maximum speed of 24,000 rpm. It includes a 25-tool ATC and coolant through spindle at 40 bar. Ideal for high-speed, 5-axis machining with its integrated swivel rotary table. If you are looking to get high quality machining capabilities consider the DMG MORI DMP-70 machine we have for sale. Contact us for more information about this machine.
This 12-axis DMG MORI Multisprint 36 multi-spindle turning machine was manufactured in 2019. Ideal for complex turning operations, it offers precision and efficiency. If you are looking to get high-quality turning capabilities, consider the DMG MORI Multisprint 36 machine we have for sale. Contact us for more information.

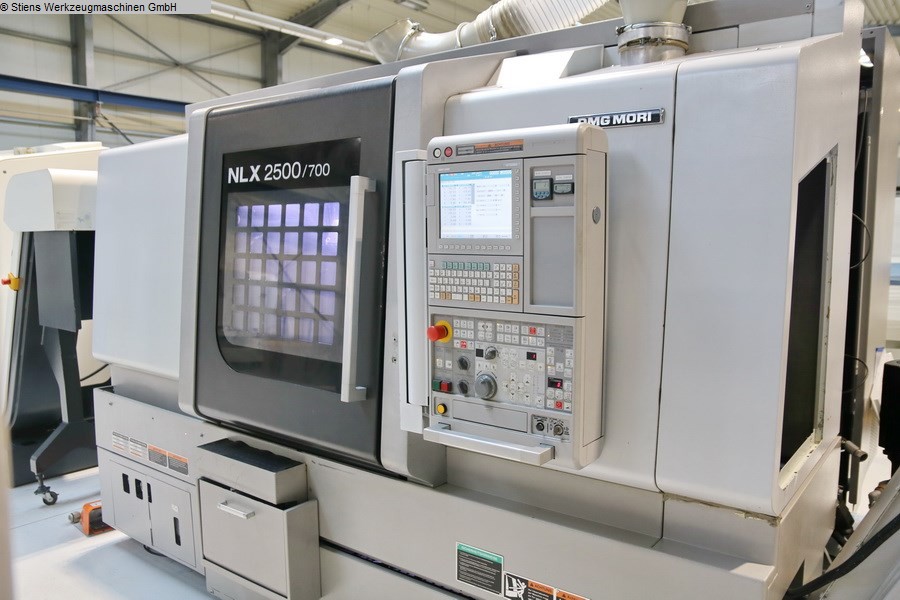

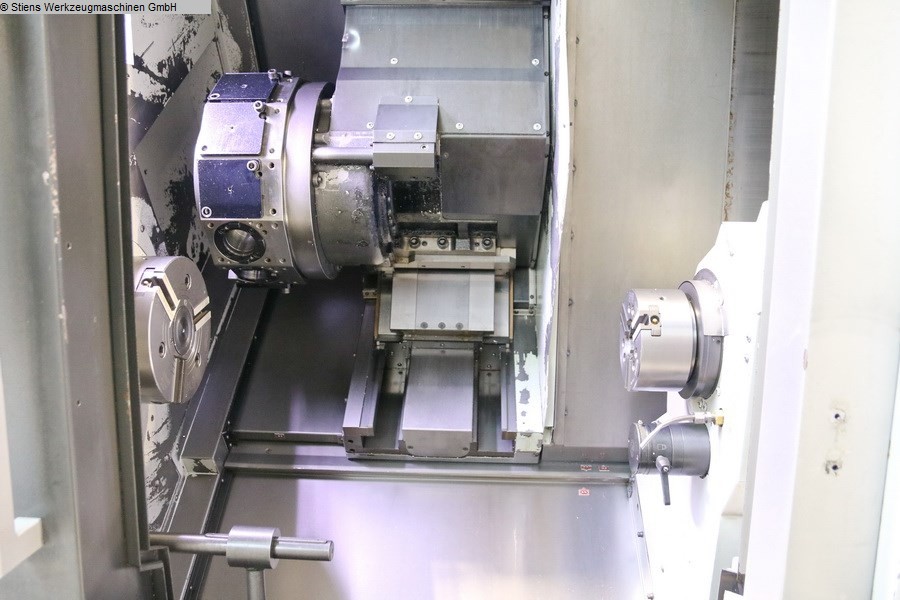

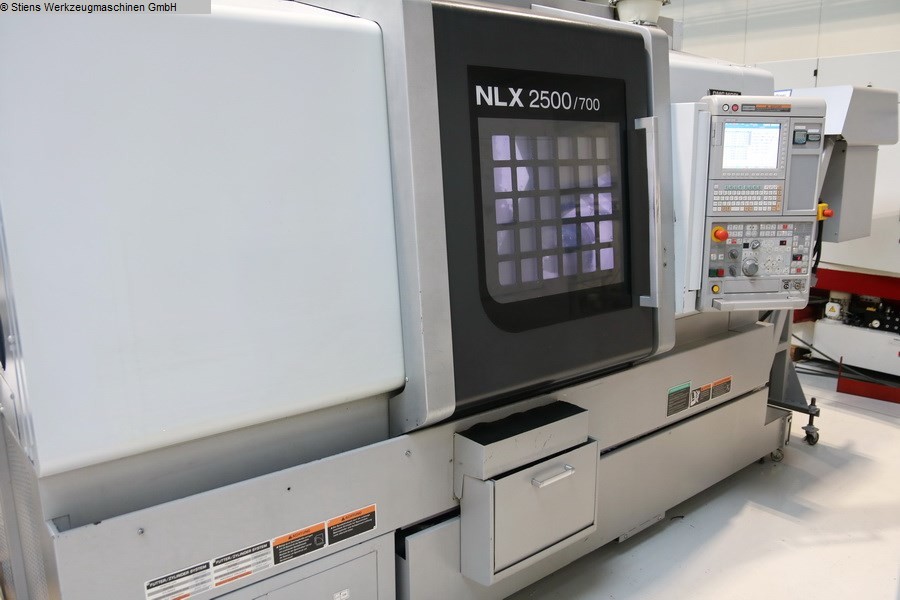

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...
turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...
x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...
x-travel: 1.135 mm y-travel: 1.050 mm z-travel: 750 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 14.000 min/-1 power capacity - main spindel: 19 kW max. Torque: 100 Nm tool taper: HSK-A 63 table surface area: 1.400 x 1.050 mm max. table load: 2.500 kg max. workpiece sizes: 1.400 x 1.240 mm max. workpiece height: 750 mm tool magazin:: number of toolpositions: 30 pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 365 / 395 mm max. tool weight: 8,0 kg change-time chip to chip: 6,1 sec feeds:: feed speeds: max. 40.000 mm/min rapid traverse: 40 m/min Accelaration: 6 m/s² Feed force ( X / Y / Z ): 14 / 20 / 14 kN total power requirement: 44 kVA weight of the machine ca.: 14,4 t dimensions of the machine ca.: 6,0 x 5,0 x 3,3 m Documents: Chip conveyor: Coolantsystem: high pressure coolan ...
x-travel: 1135 mm y-travel: 1050 mm z-travel: 710 mm 0: dia 1240 x 690 mm control: Heidenhain TNC 640 : : 15000 min/-1 : 35 kW tool taper: SK 40 work table:: table surface area: 1050 x 860 mm max. table load: 2000 kg : : 30 pos. tool taper: SK 40 change-time chip to chip: 6 sec feeds:: : 40 m/min feed speeds: 40000 mm/min total power requirement: - kW weight of the machine ca.: 18 t dimensions of the machine ca.: 5,1 x 3,99 x 3,4 m 5-Axis Machine equipped with: - CNC Control Heidenhain TNC 640 - universal Milling Head (B-Axis +30/-130°) - NC- rotary Table dia 800mm (C-Axis) - BMF coolant and filtration system. - electr. Handwheel The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm control: SlimLine Siemens Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 13 / 9 kW max. Torque: 83 / 57 Nm tool taper: SK 40 NC-Tilting round table:: table surface area: 630 x 500 mm max. table load: 200 kg Swivel range: B: -5 / +110 ° rotation range: C: 360 ° T-slots: 7x 14 x 63 mm tool magazin:: number of toolpositions: 30 pos. max. tool weight: 8,0 kg max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. workpiece length: 300 mm change-time tool to tool: 2,7 sec change-time chip to chip: 7,0 sec feeds:: rapid traverse: X/Y/Z: 30 m/min Feed force: 4,5 kN feed speeds: 1 - 30.000 mm/min total power requirement: 30 kVA weight of the machine ca.: 4,7 t dimensions of the machine ca.: 4,5 x 3,5 x 3,2 m Documents: Chip conveyor: Coolantsystem: high pressure coolan ...
x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm c-axis: 360 ° B-axis (table): -50 / + 110° mm turning speeds: 10.000 U/min spindle taper ISO: 40 DIN 69871 Control: Heidenhain TNC 620 total power requirement: 13 / 9 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 6 x 3 x 3 m Options: - 30-pocket magazine with double gripper - Production package with Internal Coolant + chip conveyor - 360 L coolant tank - Blow-off air - Coolant gun - Electronic handwheel - HEIDENHAIN TS 649 infrared probe - Direct measurement system New motor spindle in 2022 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 356 mm turning length: 510 mm control: M 730 BM total power requirement: 40 kVA weight of the machine ca.: 6,6 t dimensions of the machine ca.: m CNC control: Mitsubishi 730 BM Main spindle: Speed: 5000 rpm Power: 15/11 kW (15% duty cycle / constant) Bar diameter: 65 mm Sub spindle: Speed: 6000 rpm Power: 11/7.5 kW (25% duty cycle / constant) Turret: 12 stations Tool spindle speed: 10000 rpm Power: 5.5/3.7 kW (5 minutes / constant) Y-axis travel: +/- 50 mm Equipment: Machine with gantry loader: Left-hand installation, 14-station storage, 20-pallet workpiece storage, Double gripper conveyor 3-jaw hydraulic KITAGAWA power chuck, 210 mm diameter High/low pressure chuck system for main and counter spindles MABEO high-pressure pump with 1.5 MPa filter unit Coolant gun Coolant sprayer on the chuck for main and counter spindles Coolant sprayer for the machine bed cladding Oil ...
x-travel: 600 mm y-travel: 500 mm z-travel: 500 mm total power requirement: --- kW weight of the machine ca.: 9,6 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 500 mm turning length: 1200 mm control: Siemens 840D greates pass round over bed: 700 mm Main spindle:: turning speed range - main spindle: 20 - 5000 min/-1 power capacity - main spindel: 25 /34 kW max. Torque: Nm C-Axis: 0,0001 ° spindle diameter: 67 mm milling spindle: milling spindle motor: 13 / 22 milling head speed: 12000 U/min b-axis: +/- 110 ° axis stroke:: x-axis: 450 mm y-axis: +/- 100 mm z-axis: 1300 mm feeds:: rapid traverse ( X / Y / Z ): 60 / 22,5 / 30 m/min feed power: 5,6 / 5,6 / 7,4 kN turret:: number of toolpositions: 24 pos. tool taper: Capto max. chucking diameter: 250 mm tail stock: tailstock quill taper MT: 5 tailstock adjustment: 1200 mm total power requirement: 65 kVA weight of the machine ca.: 8 t dimensions of the machine ca.: 6 x 2,7 x 2,1 m CNC - Turning and milling centre - 5 axes simultaneous - CNC control Siemens 840D SolutionLine w ...
x-travel: 1250 mm y-travel: 1000 mm z-travel: 1000 mm spindle taper: HSK-A 100 turning speed range: 10.000 U/min spindle drive: 28 kW Torque: 1240 Nm feed range: 0 - 12.000 mm/min rapid traverse: 60 m/min table surface area: 800 x 1000 mm workpiece weight: 1500 kg Control: Siemens 840D total power requirement: 80 kW weight of the machine ca.: 21 t dimensions of the machine ca.: 5,9 x 6,5 x 3,5 m 5-axis simultaneous machine equipped with: - CNC control Siemens 840D - 6-fold pallet station - Tool changer (HSK 100) - Coolant system with IKZ 40/80bar - Probe - tool breakage control The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
CNC vertical machining center Type: ecoMill 600 V Manufacturer: DMG MORI Year: 2016 Control: Siemens SLIMline X: 600 mm Y: 560 mm Z: 510 mm Max spindle speed: 12000 rpm Table: 900 x 560 mm Max table load: 600 kg Tool magazine: 30 positions Machine weight: 5000 kg Tool and work probe Filtration Bürener Preparation for mist extraction Chip conveyor New spindle in 2025 Machine in good condition, fully functional, under power Find more here - / Contact us at -
x-travel: 400 mm y-travel: 400 mm z-travel: 375 mm total power requirement: --- kW weight of the machine ca.: 7,6 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 400 mm turning length: 1100 mm control: Siemens Sinumerik 840D SL greates pass round over bed: 500 mm Swing dia. over traverse guideway: 370 mm Main spindle:: Max. rpm: 5000 min/-1 power capacity - main spindel: 17 / 25.5 kW max. Torque: 345 Nm spindle diameter in front bearing: 130 mm spindle bore: 67 mm chucking diameter: 325 mm spindle nose: A8 axis stroke:: x-axis: 750 mm y-axis: +/- 100 mm z-axis: 1200 mm feeds:: rapid traverse: 40 / 40 / 40 m/min Tailstock:: tailstock: 1200 mm taper of center: Mk 5 tension force: max. 8 kN milling head: b-axis: +/- 120 ° tool taper: HSK A 63 tool piece magazine with: 60 spindle turning speed - stepless: 12000 U/min spindle motor: 10,5 kW max. torque on the spindle: 90 Nm total power requirement: - kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 4,6 x 2,5 x 2,82 m Equipped with: - Siemens 840D SlimLine / Cel ...
x-travel: 3.400 mm y-travel: 3.400 mm z-travel: 1.600 mm Control: CELOS 840D sl Op Siemens Main spindle:: max. spindle speed: 20 - 15.000 min/-1 power capacity - main spindel: 52 / 42 kW tool taper: HSK-A100 max. Torque: 404 / 280 Nm swivellable: B: -30° / +180 ° NC-Rotary table:: table diameter: 2.500 x 2.000 mm max. table load: 10.000 kg table speed: 5 min/-1 distance spindle center to table: hor.: 130 - 1.730 mm distance spindle center to table: vert.: 230 - 1.830 mm distance spindle nose and table: hor.: -1.500 - 1.900 mm distance spindle nose and table: vert.: -1.600 - 1.800 mm Tool-Presetter:: type: 5x Rad- / Wheel number of toolpositions: 303 pos. max. tool diameter: 110 mm max. tool-dia with free toolbox: 280 mm max. tool length: 900 mm max. tool weight: 45 kg tool changing time: 7,5 sec tool taper: HSK-A100 feeds:: rapid traverse: 60 / 30 / 40 m/min total power requirement ...

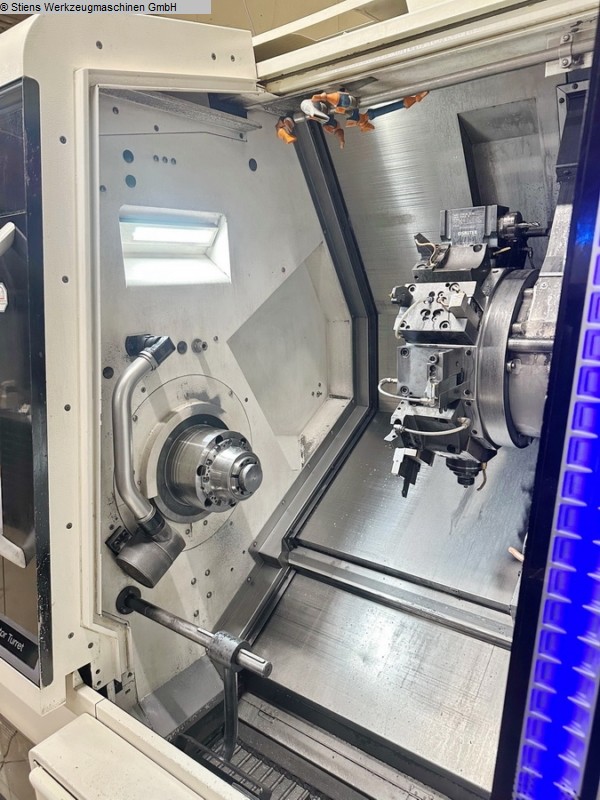

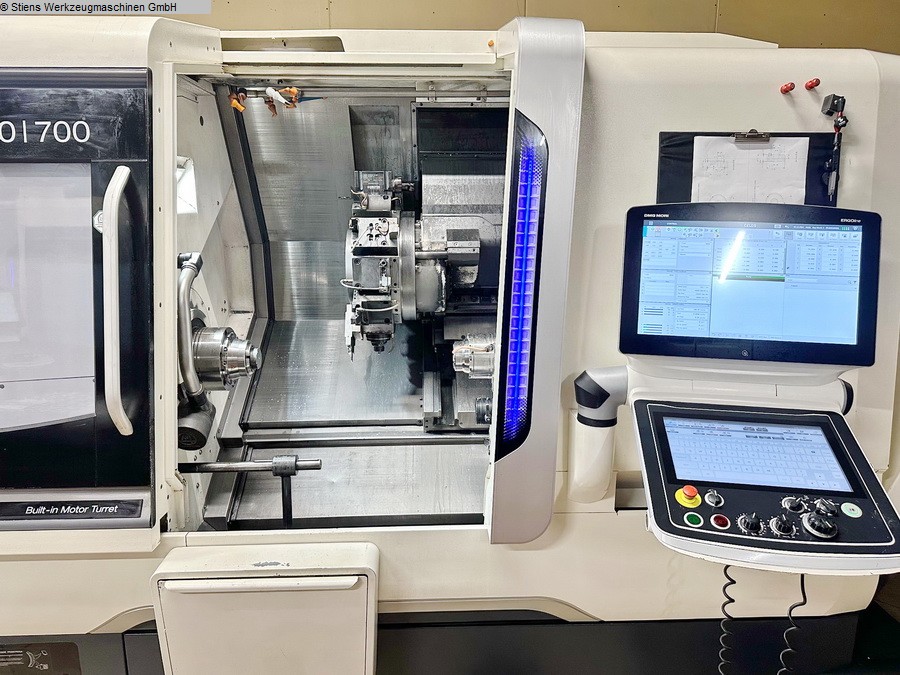

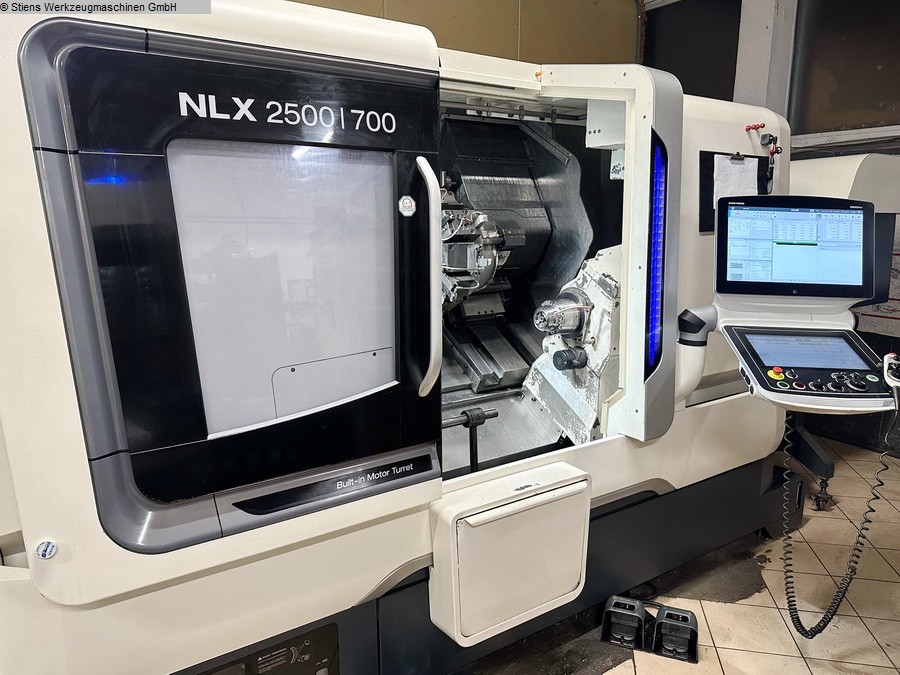

turning diameter: max. 356 mm turning length: 705 mm control: M730 UM Mapps CELOS greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bore: 80 (91) mm C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle bore: 43 mm C-Axis: 0,001 ° axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: 0,27 sec. Driven Tool Positions:: Spindle speed - driven tools: max. 10.000 min -1 power capacity - driven tools: 5,5 / 4,2 kW total power requirement: 41 kVA weight of the machine c ...
x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm Control: total power requirement: --- kW weight of the machine ca.: 4450 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-axis: 675 mm z-axis: 1530 mm y-axis: 300 mm control: CELOS ERGOline turning speed range - main spindle: 4000 min/-1 spindle passage: 91 mm spindle motor: 18,5 / 15 kW speed range - counter spindle: 4000 min/-1 : 76 tool length - max.: 400 mm tool diameter: 130 mm no. of tools in turret 1: 12 milling head speed: 12000 U/min milling spindle - taper: Capto C6 milling spindle drive: 22 kW total power requirement: 88 kVA total wight: 18,2 t dimensions of the machine ca.: - m Equipped with: - CELOS ERGOline CNC control - Main and counter spindle with 4000 rpm, 91 mm passage - Kitagawa 304 mm chuck - Milling spindle with Capto C6 and 12,000 rpm, 22 kW - 76-position tool changer - Counter spindle with tailstock function - Manual tool presetter - High-pressure coolant system / IKZ 70 bar - Coolant gun - Chip conveyor - Oil skimmer - Oil separator - Renishaw Power On: 17700h, Machining: 7200h ...
turning diameter: 500 mm turning length: 800 mm control: Siemens 840D greates pass round over bed: 700 mm Main spindle:: turning speed range - main spindle: 20 - 5.000 min/-1 power capacity - main spindel: 25 / 34 kW max. Torque: 380 Nm C-Axis: 0,01 ° max. chucking diameter: 320 mm milling spindle: milling spindle motor: 22,5 milling head speed: 12000 U/min b-axis: +/- 110 ° tail stock: axis stroke:: x-axis: 480 mm y-axis: +/- 100 mm z-axis: 845 mm feeds:: rapid traverse ( X / Y / Z ): 60 / 22,5 / 30 m/min feed power: 5,6 / 5,6 / 7,4 kN switching time: 30°: 0,4 sec turret:: number of toolpositions: 24 pos. tool taper: HSK A 63 total power requirement: - kW weight of the machine ca.: 10 t NC - turning and milling center - CNC control Siemens 840D Ergo Pro - Milling head with B-axis - Y axis - Coolant system (through Spindle) 15bar with paper band filter - chip conveyor - Tailstoc ...
