Venditore: HESSE+CO GesmbH

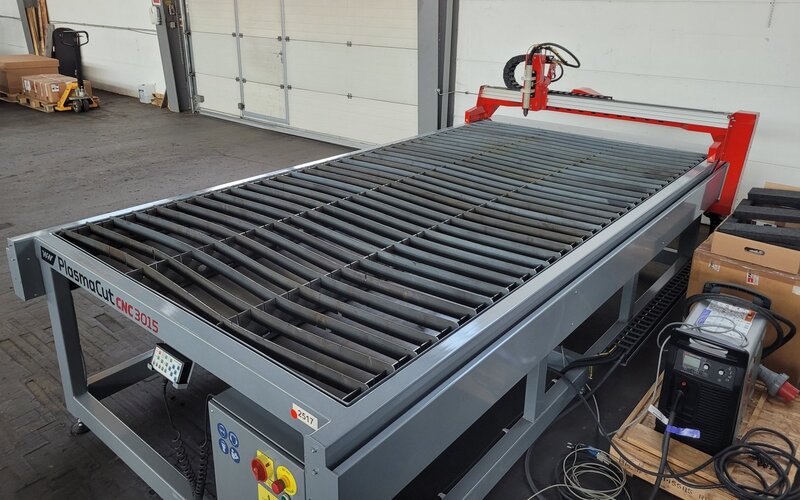

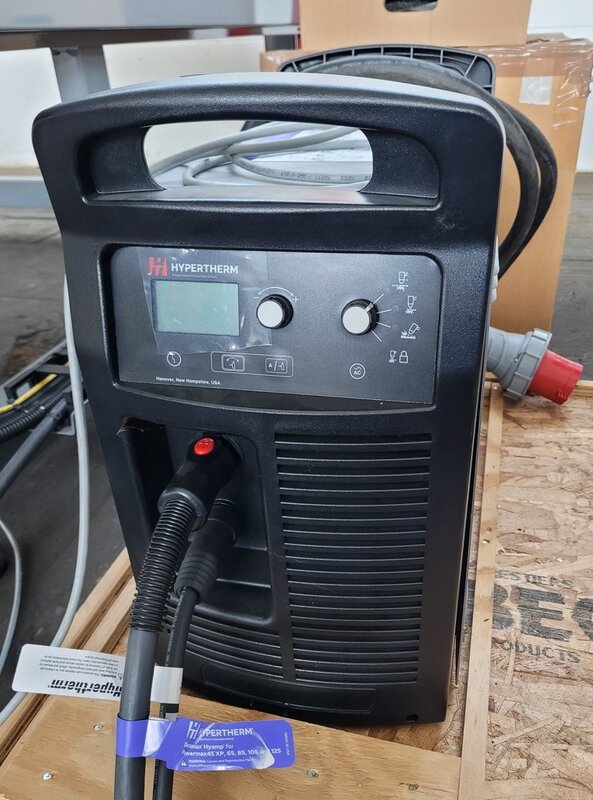

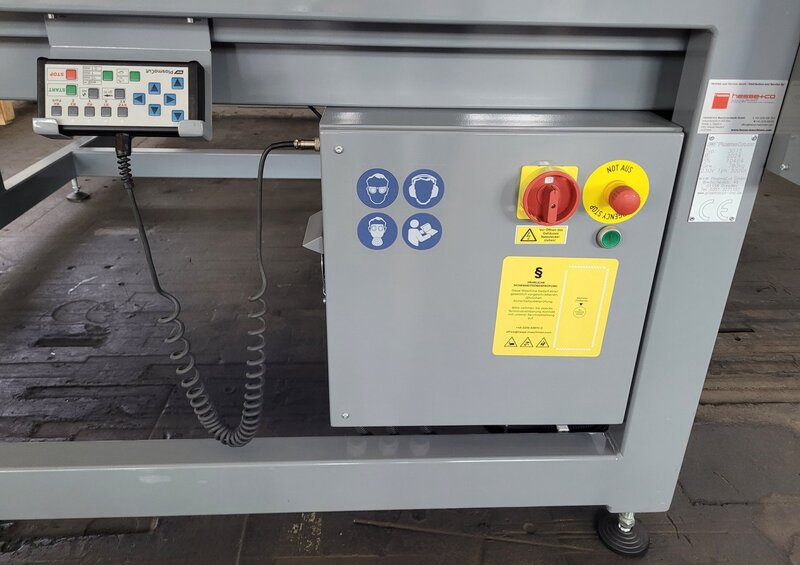

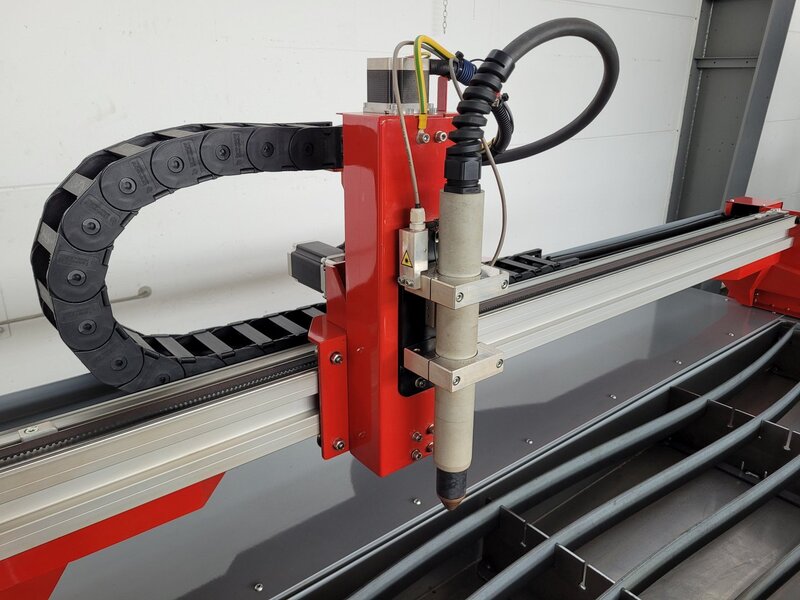

: neu : 2024 : 2517 : Juni 2024, Zwischenverkau : Deutschland : 36950 € : 750.09 € : 1500x3000 mm : Hypertherm Powermax 105 S : 22 mm : 22 mm : 50 mm : 19 mm : 105 A : 105 A : 24 m/min : 1/10 mm : 400 kg/m² : 3560 mm : 1960 mm : 1500 mm : 650 kg compressed air powered plasma sourceHYPERTHERM Powermax 105 Sync CNC-workbench software (external PC not included) adjustable rollers precision profile rail guide(HiWin) zero backlash HTD drive belt driven by step motors solid frame construction seperate renewable support grate water trough to catch flying sparks swimming burner bearing in combination with exchangeable slide screws, enables constant cutting height hand operation unit for comfortable processing and set up on the workpiece users manual in GERMAN according to CE rules INCL. FOLLOWING OPTIONS: Height adjustment by arc voltage Set-up laser Suction bridge (prepared for suction dia ...
Venditore: HESSE+CO GesmbH
: neu : ca. 12 - 14 Wochen ab Auf : Deutschland : 28370 € : 1500x3000 mm : HYPERTHERM Powermax 45 XP : 6 mm : 12 mm : 25 mm : 4 mm : 45 A : 45 A 50 % ED, 32 A 100 % A : 24 m/min : 1/10 mm : 630 l : 400 kg/m² : 3560 mm : 1960 mm : 1500 mm : 650 kg Druckluft betriebene Plasmaquelle HYPERTHERM Powermax 45 XP CNC-Workbench Software (externer PC nicht inkludiert) Einstellbare Laufrollen Präzisions-Profilschienenführung (HiWin) Spielfreier HTD-Zahnriemen Antrieb über Schrittmotoren Stabile Rahmenkonstruktion Einzeln erneuerbarer Auflagerost Wasserwanne als Funkenfang Schwimmende Brennerlagerung in Verbindung mit austauschbaren Gleitschrauben, sorgt für eine konstante Schneidhöhe Handbedienung für bequemes Verfahren und Einrichten am Werkstück Betriebsanleitung auf DEUTSCH Ausrüstung gemäß CE Vorschriften ALTERNATIVE PLASMAQUELLEN: HYPERTHERM PMX 65 Sync PMX 85 Sync PMX 105 Sync P ...
Venditore: HESSE+CO GesmbH
: neu : ca. 12 - 14 Wochen ab Auf : Deutschland : 25230 € : 1250x2500 mm : HYPERTHERM Powermax 45 XP : 6 mm : 12 mm : 25 mm : 4 mm : 45 A : 45 A 50 % ED, 32 A 100 % A : 24 m/min : 1/10 mm : 470 l : 500 kg/m² : 3060 mm : 1760 mm : 1500 mm : 500 kg compressed air powered plasma sourceHYPERTHERM Powermax 45 XP CNC-workbench software (external PC not included) adjustable rollers precision profile rail guide(HiWin) zero backlash HTD drive belt driven by step motors solid frame construction seperate renewable support grate water trough to catch flying sparks swimming burner bearing in combination with exchangeable slide screws, enables constant cutting height hand operation unit for comfortable processing and set up on the workpiece users manual in GERMAN according to CE rules ALTERNATIVE PLASMA SOURCES: HYPERTHERM PMX 65 Sync PMX 85 Sync PMX 105 Sync PMX 125 Sync plasma type comp. air co ...
Venditore: HESSE+CO GesmbH
: neu : ca. 12 - 14 Wochen ab Auf : Deutschland : 22750 € : 1000x2000 mm : HYPERTHERM Powermax 45 XP : 6 mm : 12 mm : 25 mm : 4 mm : 45 A : 45 A 50 % ED, 32 A 100 % A : 24 m/min : unter 1/10 mm : 300 l : 400 kg/m² : 2560 mm : 1460 mm : 1500 mm : 400 kg compressed air powered plasma sourceHYPERTHERM Powermax 45 XP CNC-workbench software (external PC not included) adjustable rollers precision profile rail guide(HiWin) zero backlash HTD drive belt driven by step motors solid frame construction seperate renewable support grate water trough to catch flying sparks swimming burner bearing in combination with exchangeable slide screws, enables constant cutting height hand operation unit for comfortable processing and set up on the workpiece users manual in GERMAN according to CE rules alternative plasma sources: HYPERTHERM PMX 65 Sync PMX 85 Sync PMX 105 Sync PMX 125 plasma type comp. air c ...
