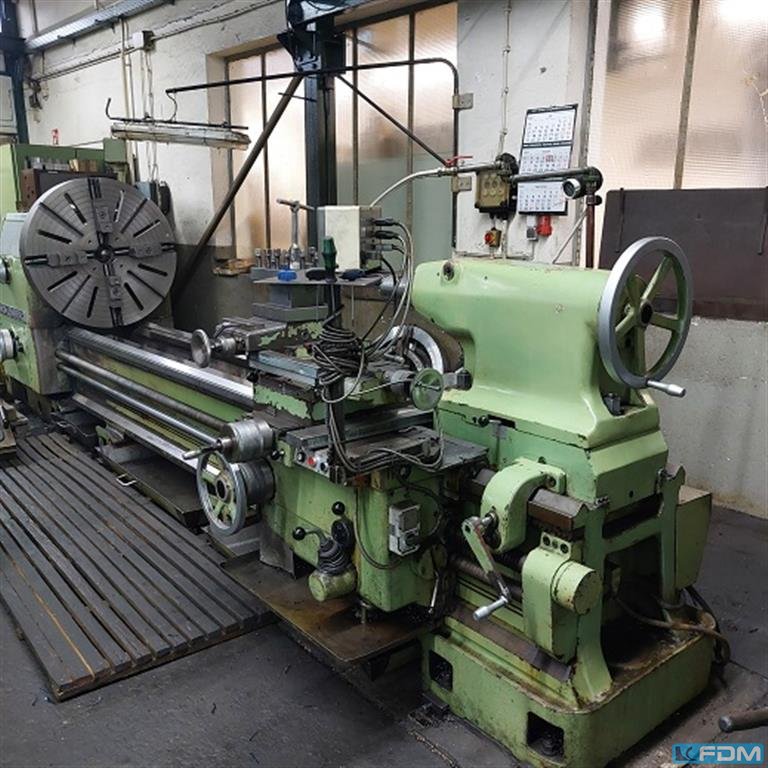

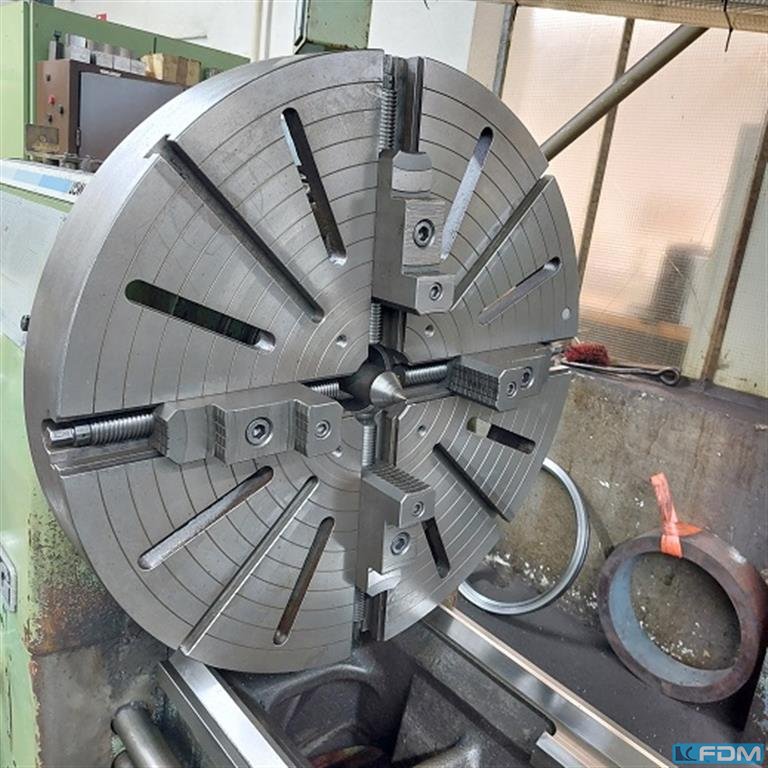

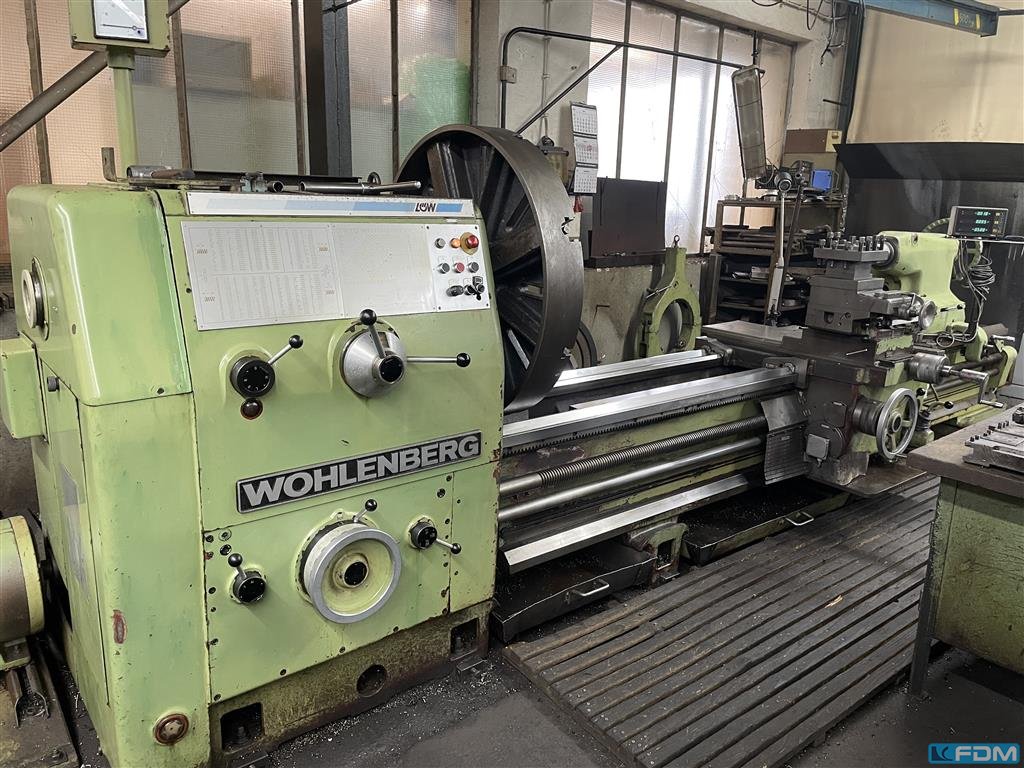

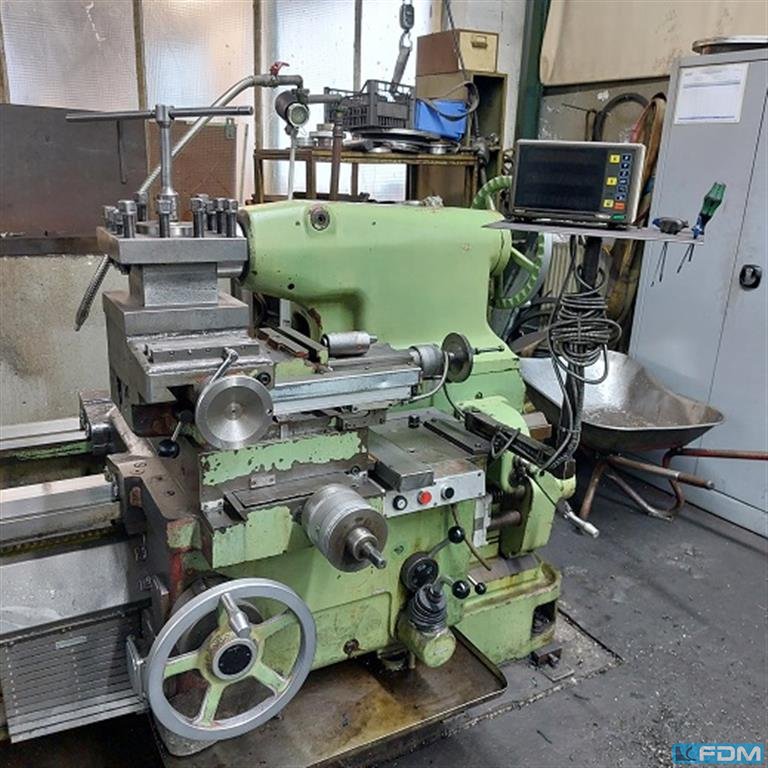

turning diameter over bed:1000 mmturning diameter over slide rest:750 mmturning length:3000 mmweight of the machine ca.:12 tdimensions of the machine ca.:6x2,5x1,8 mspindle bore:110 mmturning speed range:900 U/minYear:1986 Equipment:- Coolant device- 1 static steady rest- 1 rotating steady rest- Faceplate 1.000 mm- Digital display- Rapid traverse
faceplate diameter:1400 mmswing diameter:2000 mmturning height:1500 mmmain drive:80 kWfaceplate speeds from - to:1 - 365 U/minmilling motor:37 kWram head dimension:240 x 240 mmmax. ram stroke:1250 mmtotal power requirement:133 kVAweight of the machine ca.:50 tdimensions of the machine ca.:11 x 5 x 6,4 mMachine was overhauled in 2008 by OEMNew control CNC SIEMENS 840 Dautomatic tool changer 72-pcsC-axis with driven toolsAngle-, straight tool holders with CAPTO holder Coolant deviceChipconveyour
x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min
turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

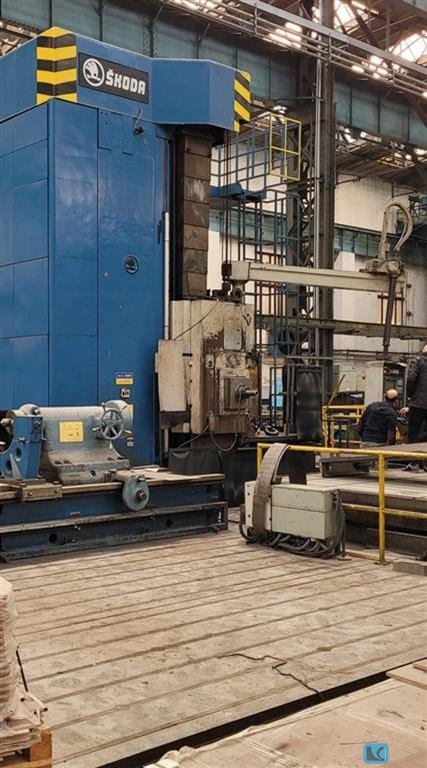

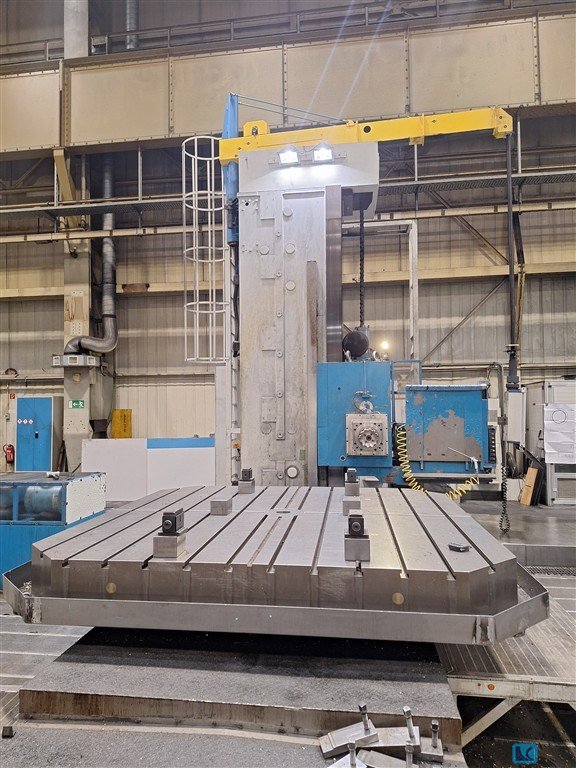

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

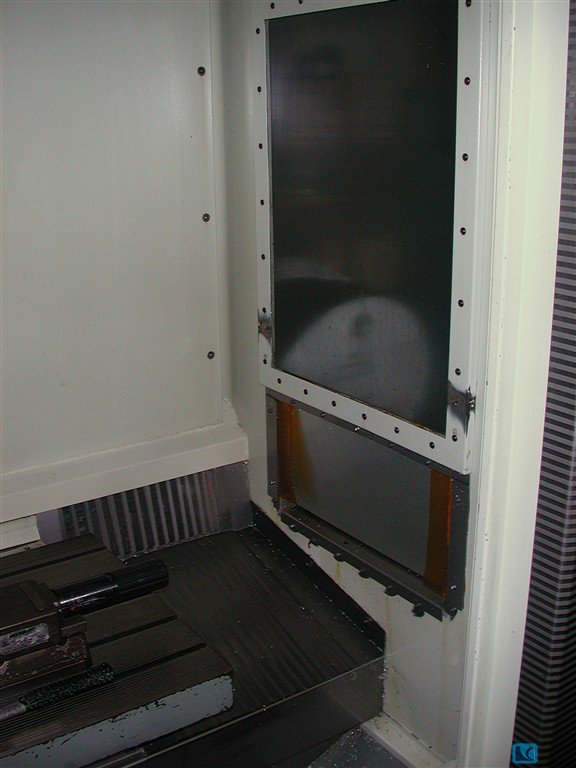

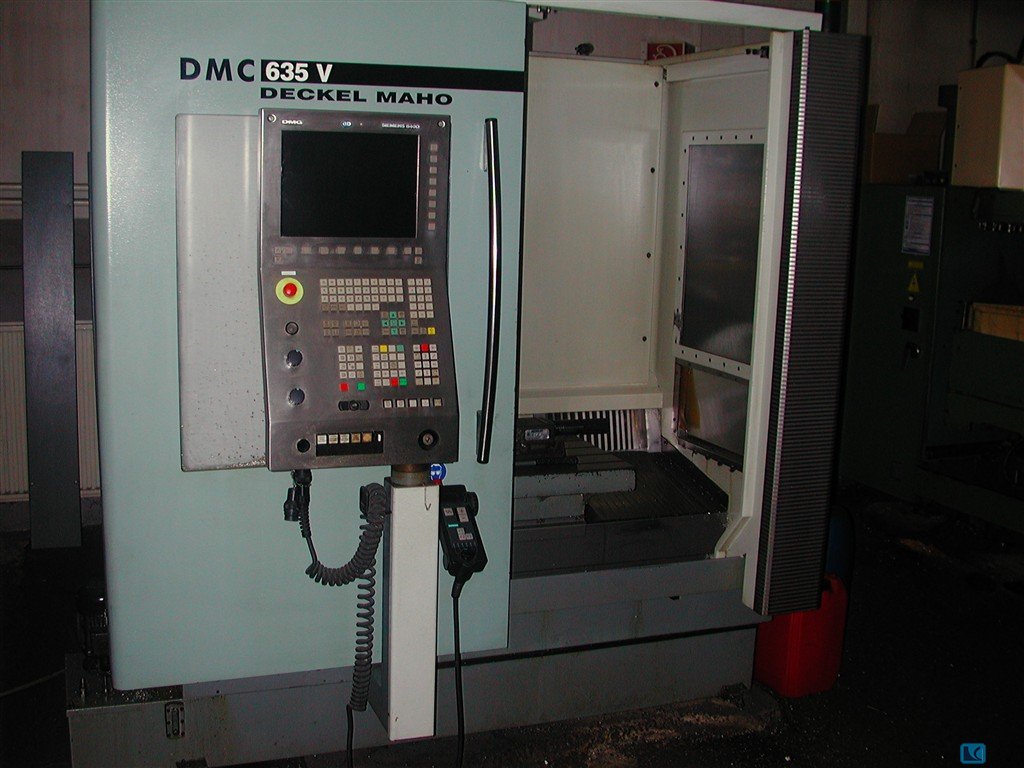

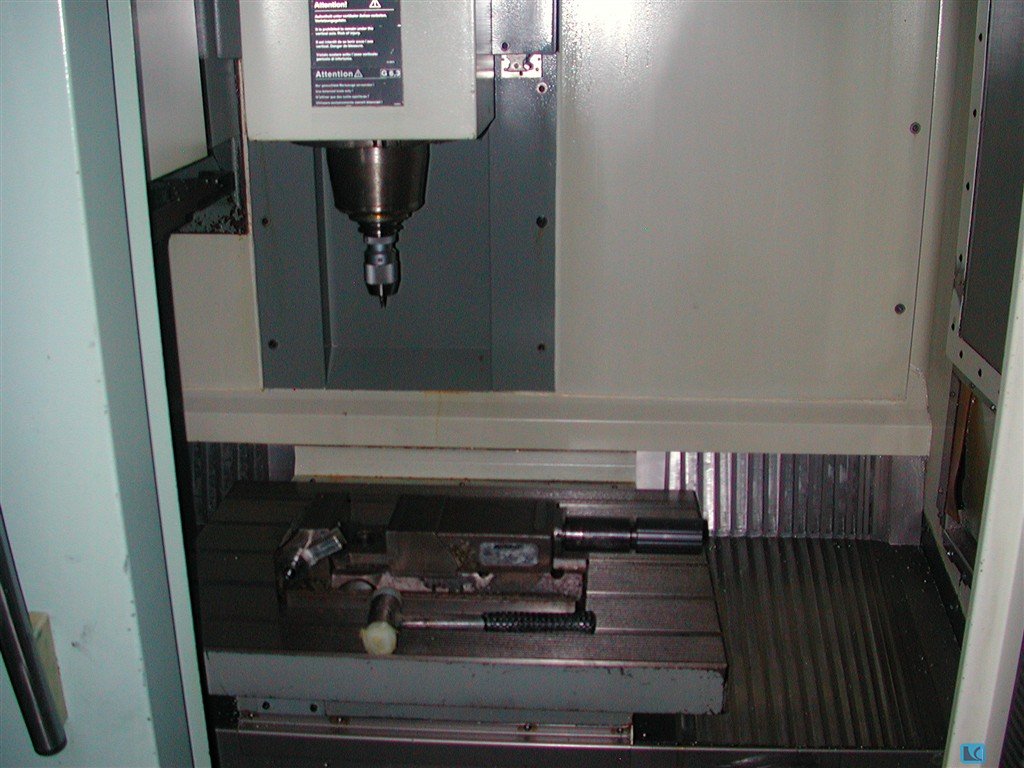

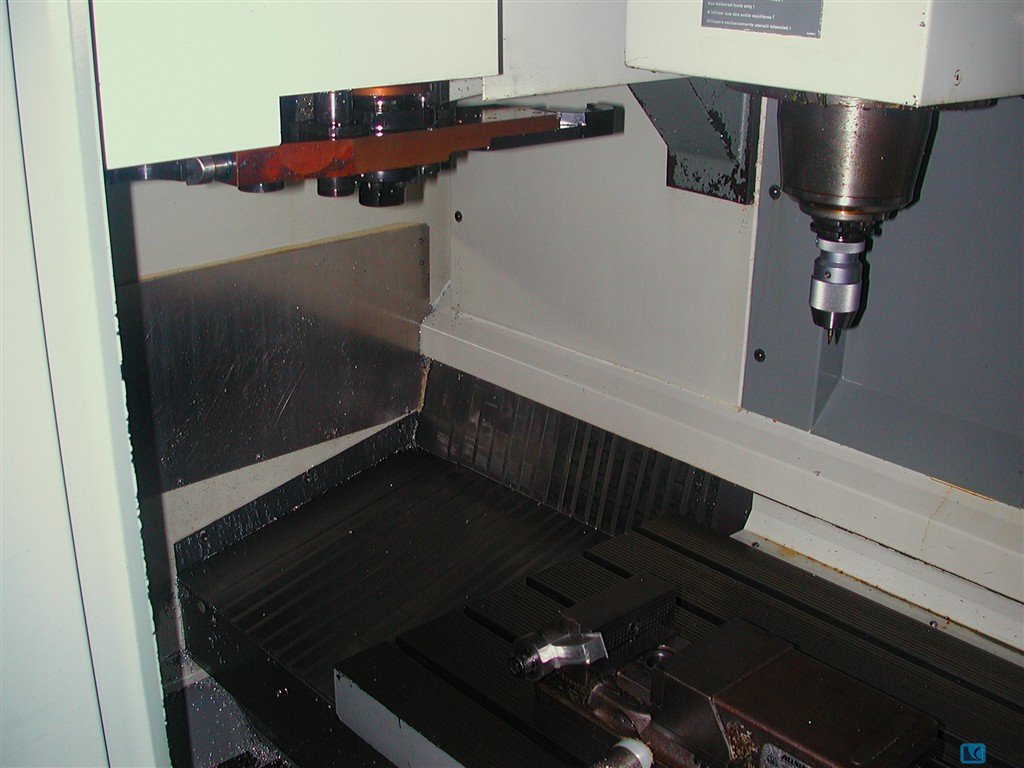

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.
x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...
bore capacity in steel (diameter):- mmthroat:- mmbore stroke:- mmx-axis:1.800 mmy-axis:1.600 mmz-axis:1.250 mmw-axis:630 mmmax. table load:5.000 kgtable length:1.400 mmtable width:1.600 mmspindle diameter:105 mmspindle turning speed range:3.300 U/minnumbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary tableChip ConveyorOil cooling unit (chiller)Touch probe Renishaw RMP60Upgrades in 2024 and 2025Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZNew linear scales Heidenhain in X and Z axis including cablingretrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axisnew TOS Varnsdorf parts for tool clamping and automatic tool changer armOverhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)New Siemens hand wheel
turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package
turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

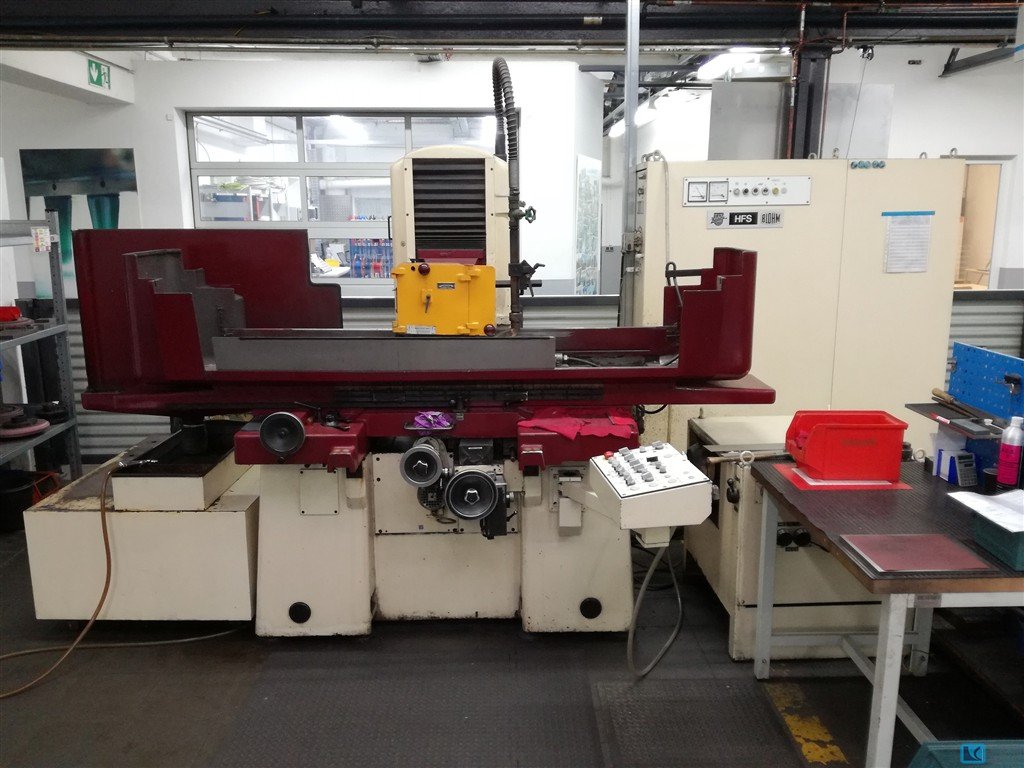

grinding length:900 mmgrinding width:400 mmworkpiece height:450/530 mmtable clamping surface LxW:1.320 x 300 mmmagnetic plate size:880 mm x 280 mm mmFinimaticCreep speedAdd-on for DiaformRectifier systemCoolant deviceInfinitely variable grinding clamping drive
spindle diameter:100 mmx-travel:1250 mmy-travel:1100 mmz-travel:950 mmspindle turning speed range:2500 U/minRotary-table:1100 x 1000 mmtable surface area:1000 x 1100 mmtool clamping:69871 DIN spindle stroke:630 mmspindle taper:SK50 total power requirement:22/34 kWmax. workpiece weight:3000 kgweight of the machine ca.:13000 kg
travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive

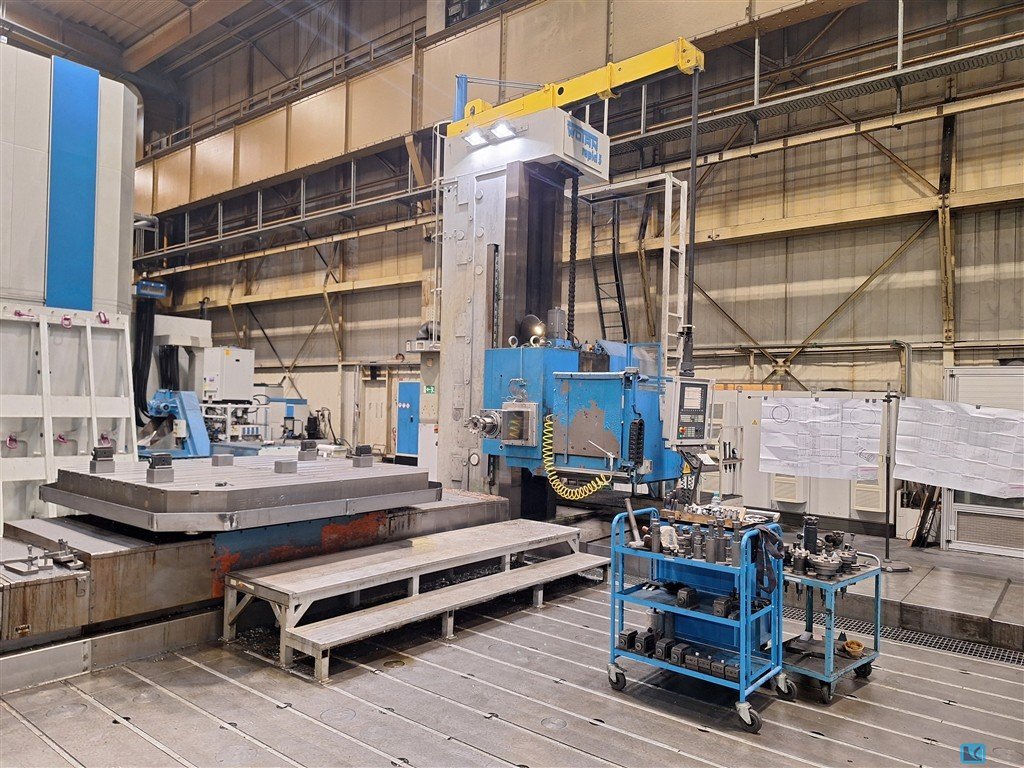

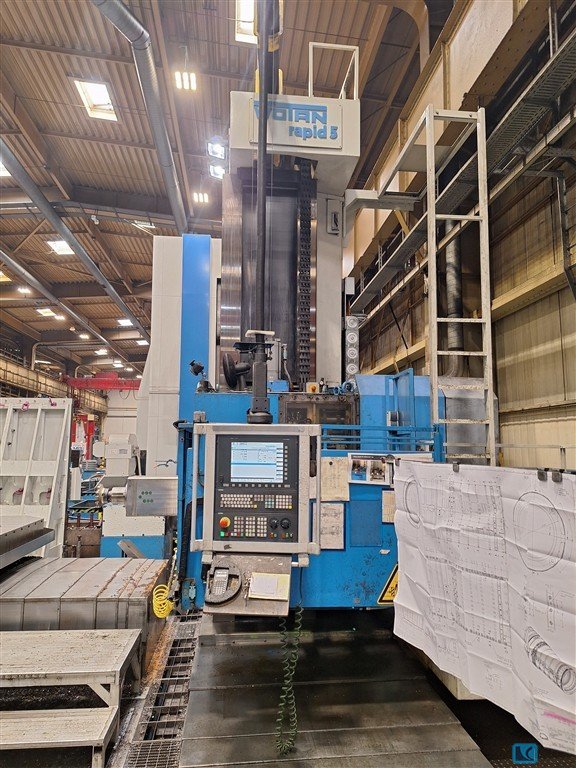

spindle diameter:180 mmx-travel:6.000 mmy-travel:2.900 mmtotal power requirement:95 kWMachine Technical Data·Machine weight: approx. 130 t including accessories·Z travel (ram): 1250 mm·W axis (spindle): 1000 mm·Sleeve extension: 1250 mm·Sleeve dimensions: 450 x 450 mm·Boring spindle stroke: 1000 mm·Boring spindle speed: 920 rpmRotary Table:·Motor driven rotary table·IOS 40·CNC control·2 axes B and V·Rotary table size: 3000 x 3500 mm·Rotary table CNC IOS 40 NCIndexing and Accuracy:·Infinitely adjustable·Diameter related·Indexing: 4 x 90 degrees up to 360000·Angular resolution: 0.001 degreesTravel Ranges:·Longitudinal cross travel: 1230 mmLoad Capacity:·Maximum rotary table load: 40 tClamping Plate:·Clamping plate: 3 x 8000 x 2000 mm
Macchina EDM a filo FANUC ROBOCUT α-1iC Anno di fabbricazione 2004 Tipo A04B-0316-B001#E5 Dati tecnici FANUC ROBOCUT α-1iC Dettagli delle specifiche Tipo di macchina: Macchina CNC a filo EDM Modello n.: ROBOCUT α-1iC Numero del tuo articolo: A04B-0316-B001#E5 Data di produzione: marzo 2004 Numero di serie: P043C1119 Controllo CNC: FANUC Serie 180is-WB Assi controllati: 5 – X, Y, Z, U, V Escursa X: 550 mm Escursa Y: 370 mm Escursa Z: circa 310–410 mm (a seconda della configurazione) Escursa U: ±60 mm / 120 mm totali Escursa V: ±60 mm / 120 mm totali Velocità di rotazione rapida X/Y/Z: 900 mm/min Velocità di rotazione rapida U/V: 450 mm/min Dimensione del tavolo: circa 780 × 600 mm Pezzo massimo approssimativamente 820 × 730 × 300 mm Peso massimo del pezzo 1.000 kg Diametro del filo 0,10–0,30 mm Filettatura automatica dei fili: Sì Conicità ma ...
370 €
