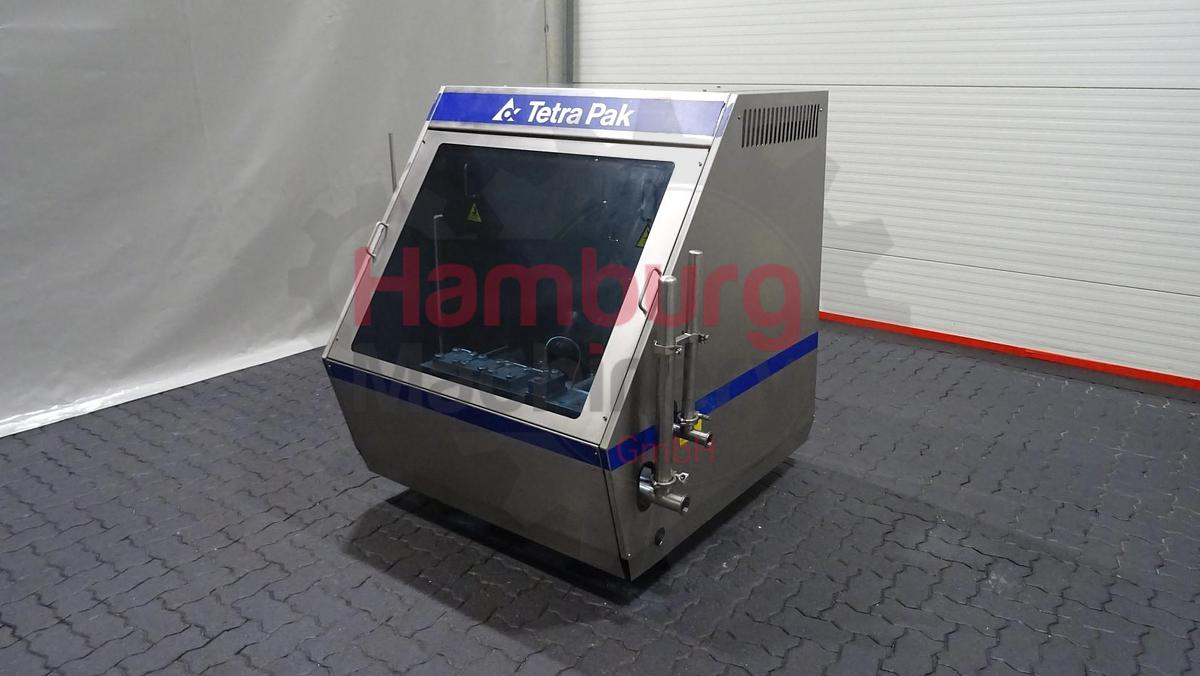

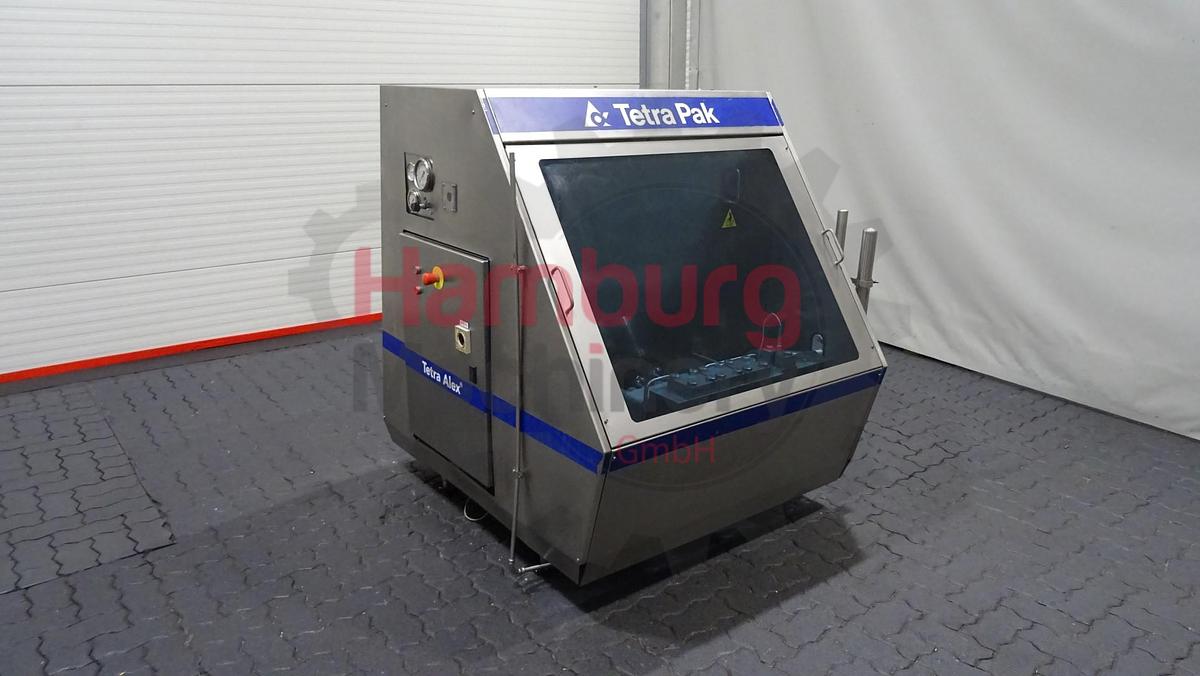

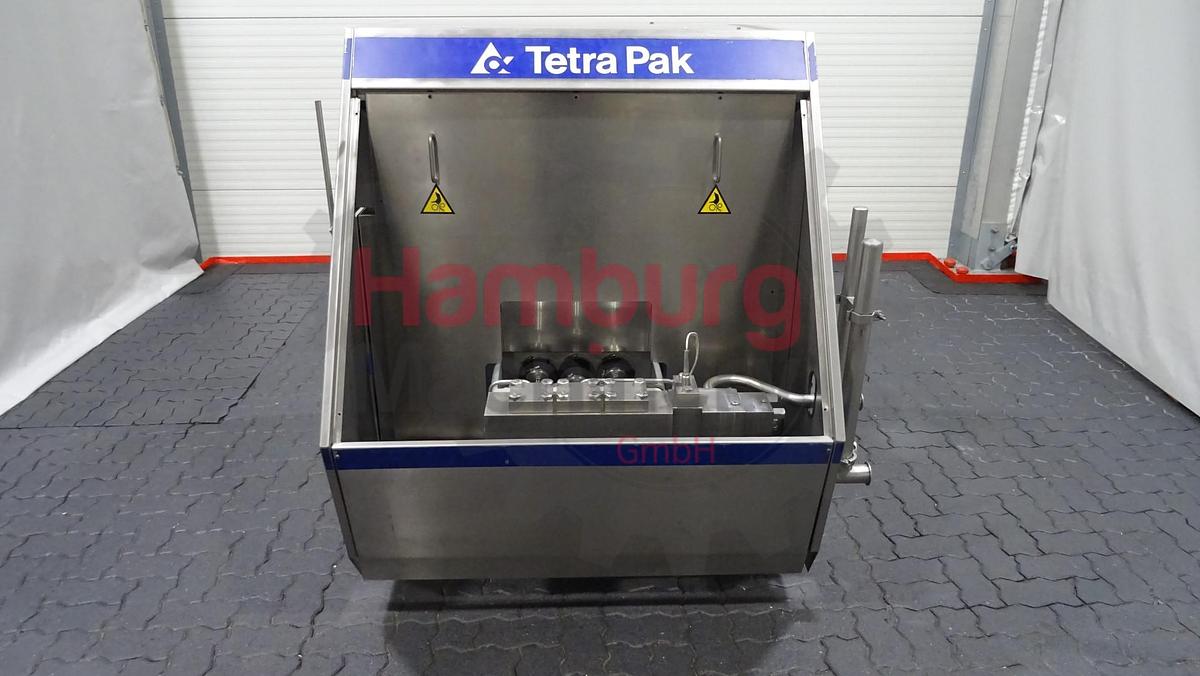

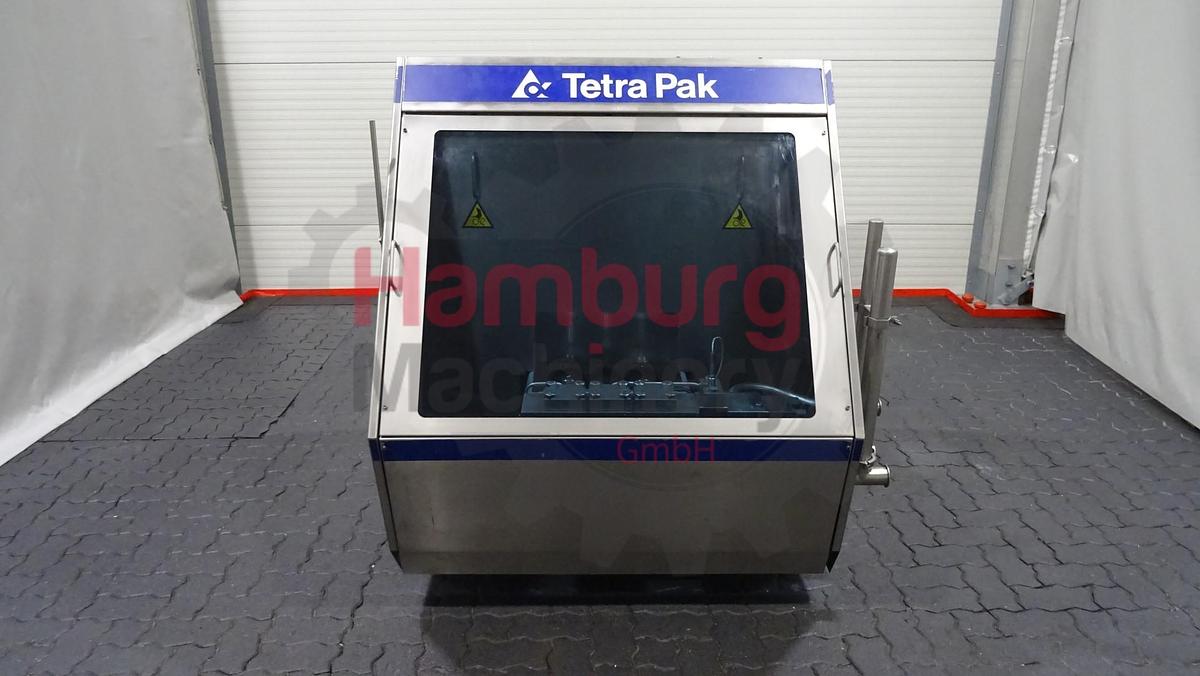

Tetra Pak Tetra Alex 2 (TA2/200BAR) high-pressure homogeniser,
designed for the homogenisation of milk, dairy products and other

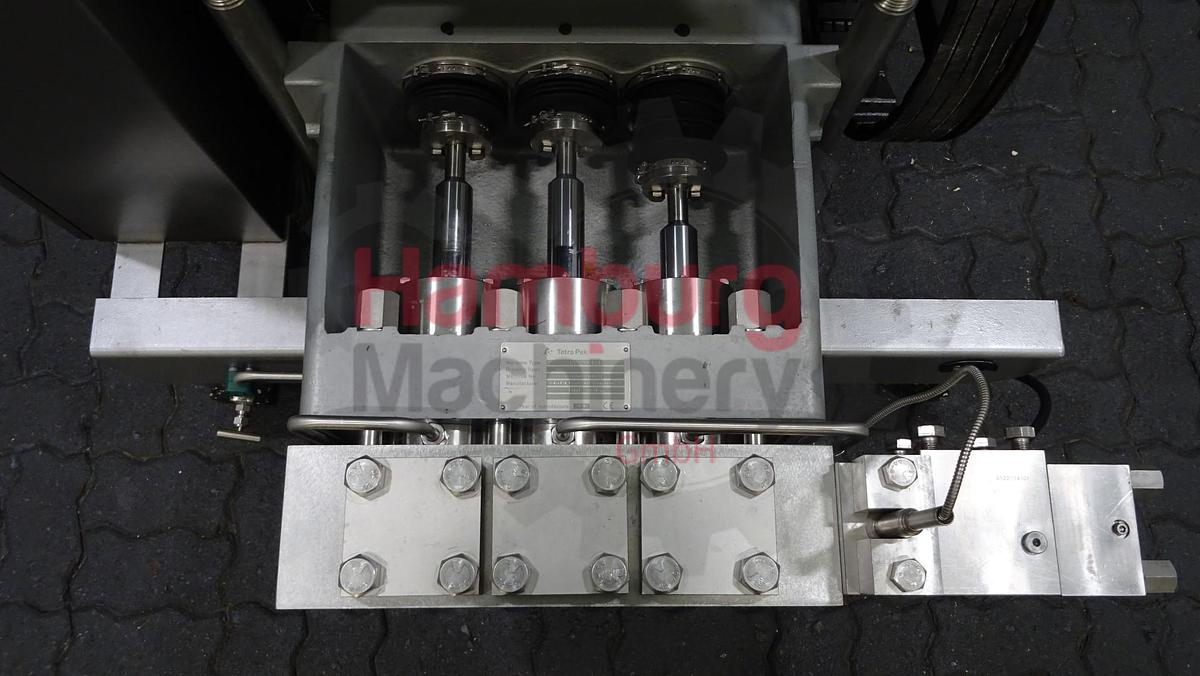

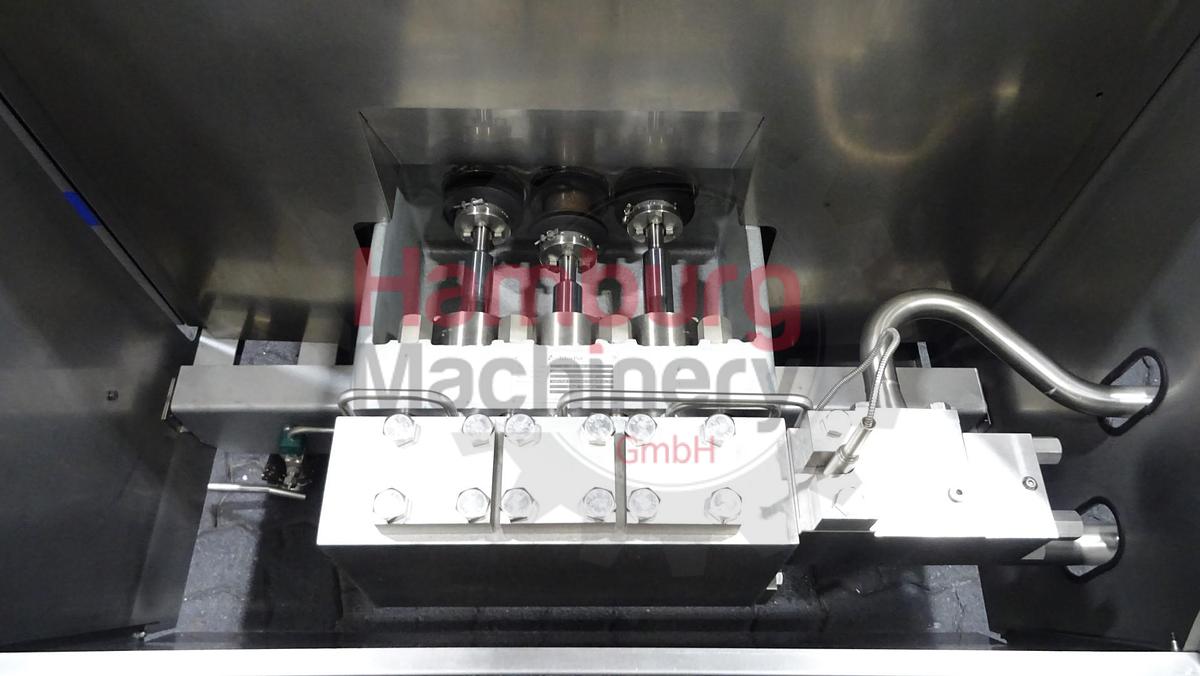

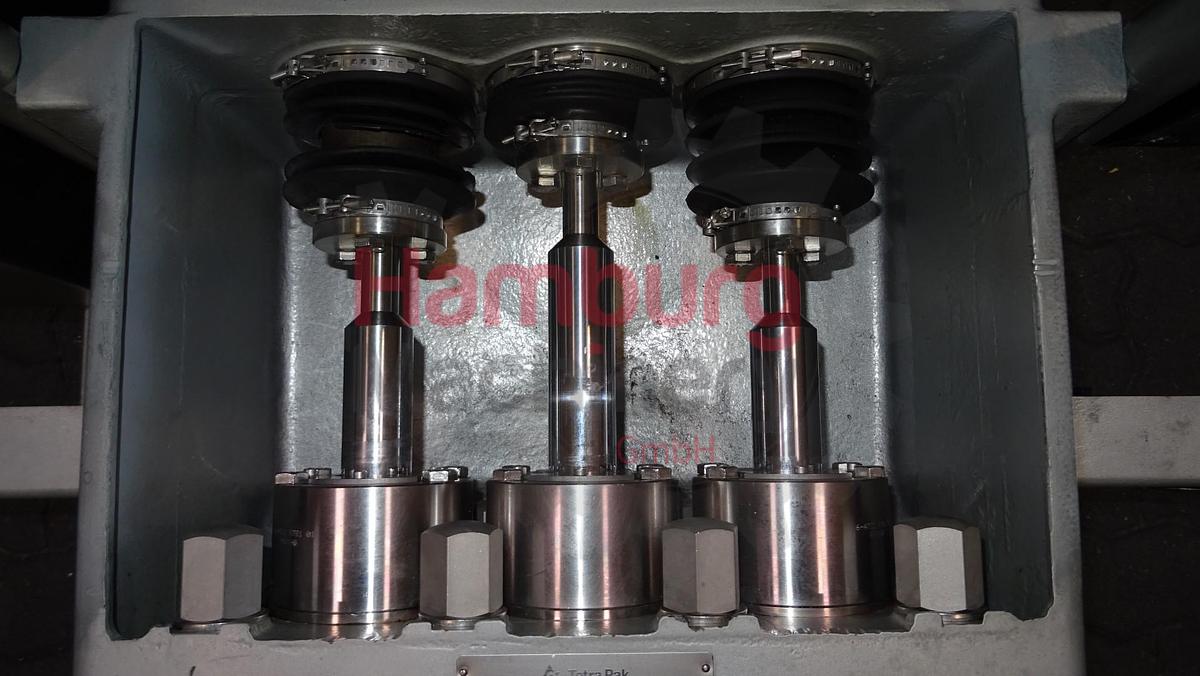

liquid food products., The machine is equipped with a 3-cylinder
homogenising block and a single-stage homogenisation system with
mushroom-type valves. The maximum design capacity is up to 6,500
litres per hour at a maximum pressure of 160 bar. With the currently
installed 30 kW motor, the machine is configured for a capacity of
approximately 4.000 litres per hour at an operating pressure of up to
200 bar with a piston diameter of 40 mm. The homogeniser is equipped
with hydraulically operated pressure-setting valves, mounted on the
side panel, allowing adjustment of the homogenisation pressure. A
pressure gauge is installed to monitor operating pressure and
pulsation dampers are ensure smooth product flow. The machine also
features an integrated oil pumping system and stainless steel
cladding. The inlet connections is 51 mm and the outlet connection is
38 mm. The machine is equipped with a stainless steel control panel
with main switch and motorgroup., A robust industrial homogeniser
suitable for dairy processing and other food production applications
requiring reliable high-pressure homogenisation., Type of Machine:
Homogeniser, Capacity: 4.000 liter per hour, Stages: 1 stage, Max.
Pressure: 200 bar, Valve cylinder: Mushroom valves, Piston diameter:
40 mm, Motor: 30 kW - 400 V - 57 Amp - 50 Hz - 985 rpm, Dimensions:
130 x 145 x 150 cm, Weight: 1.200 kg
Germania
wentorf bei hamburg
