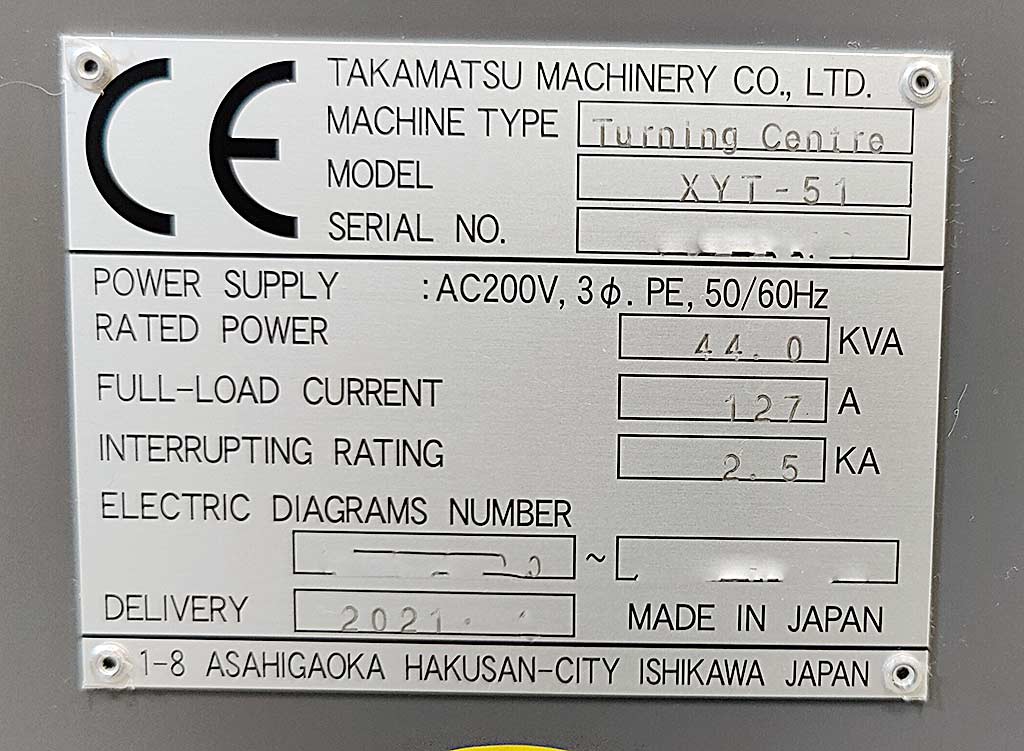

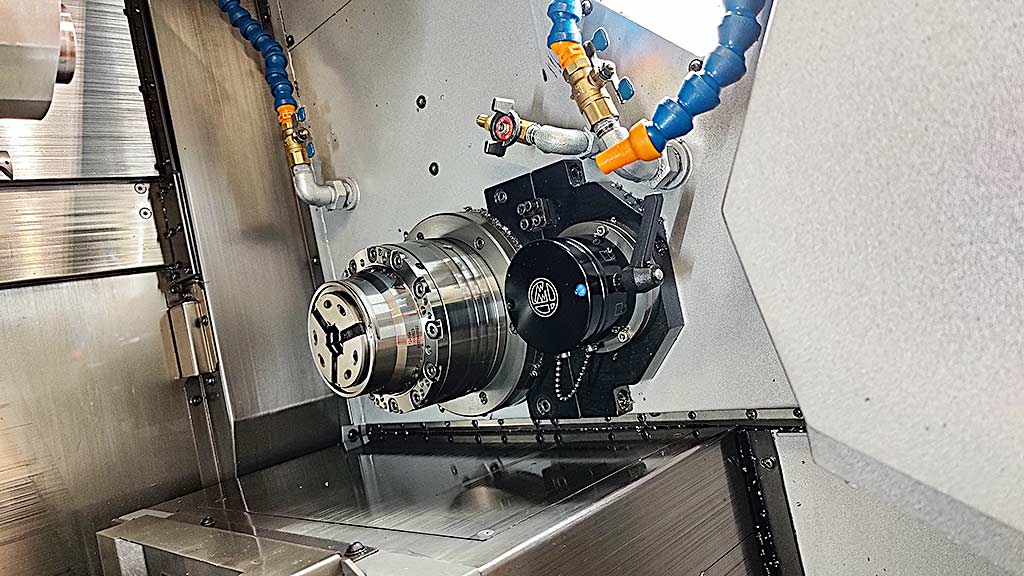

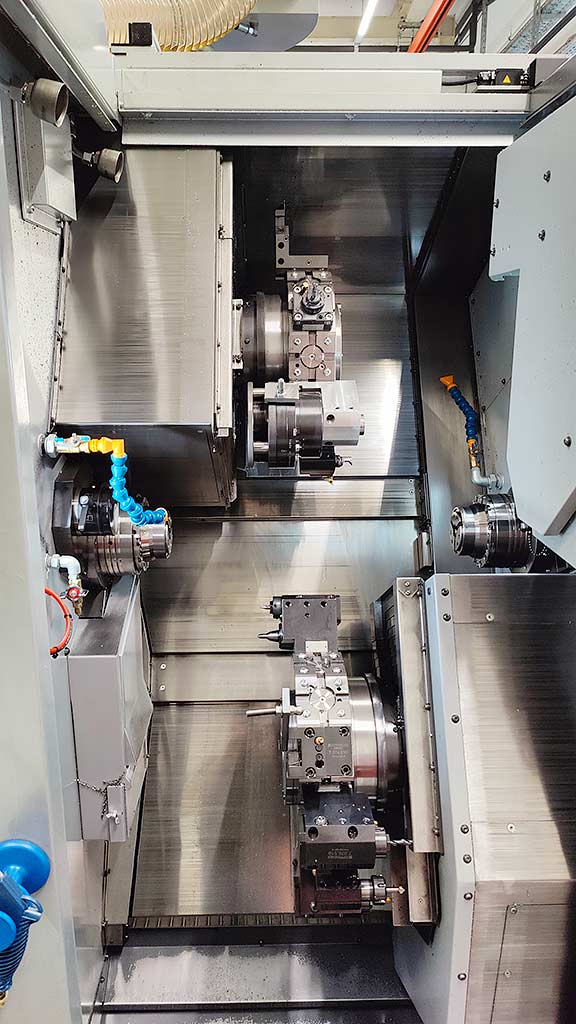

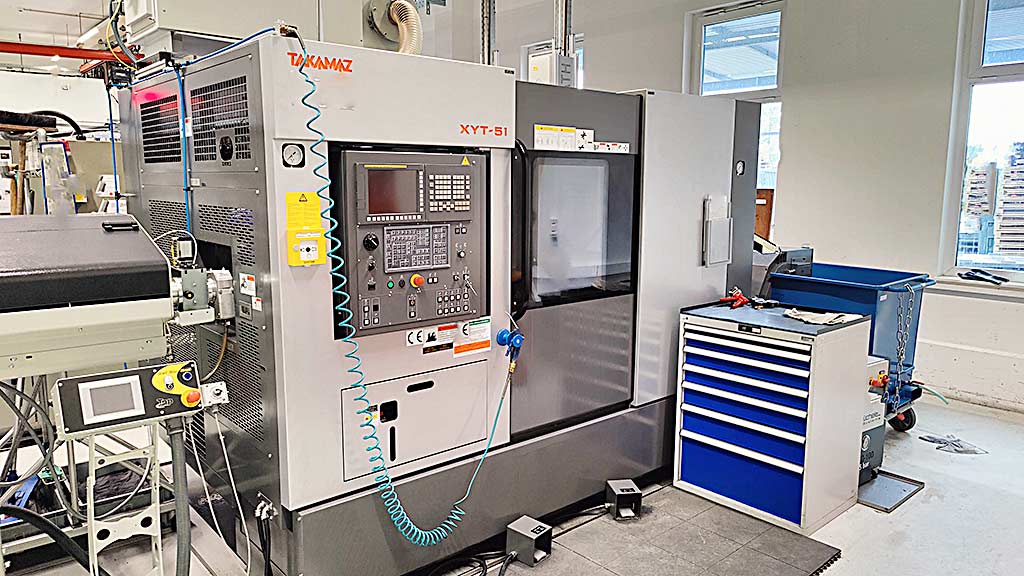

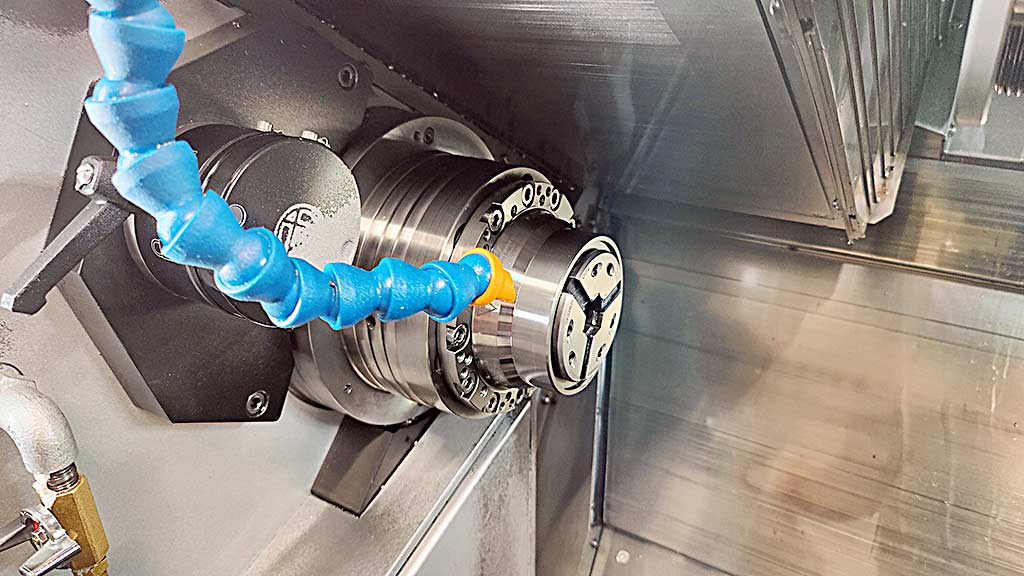

A Takamatsu CNC twin-spindle turning and milling center is available.
1) Turning diameter: 190mm, turning length: 150mm, max. one-sided
machining length: 440mm, max. bar diameter main spindle/counter
spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2:
100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm,
tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2:
500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions
X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control:

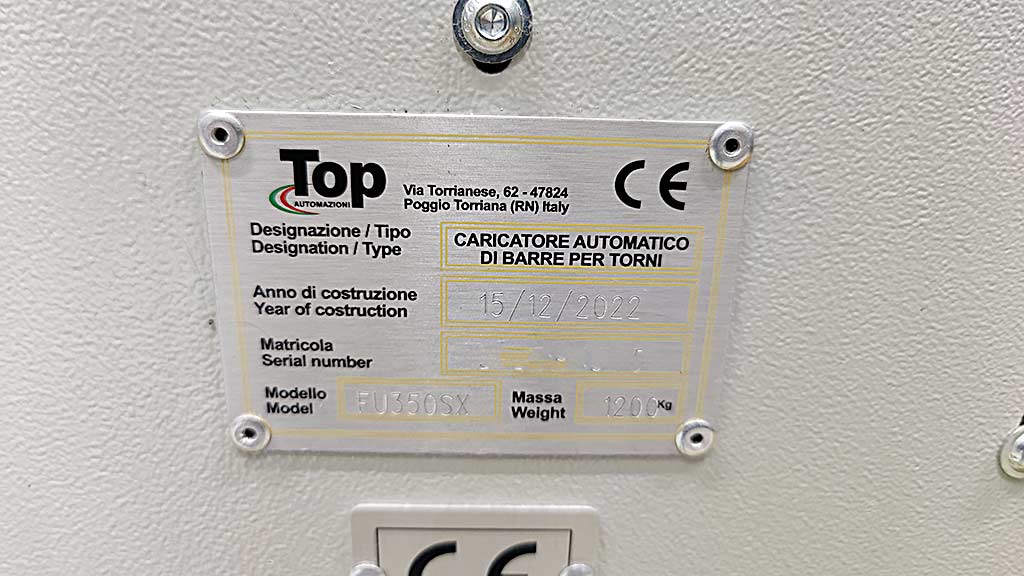

Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity:
52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed
rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z:

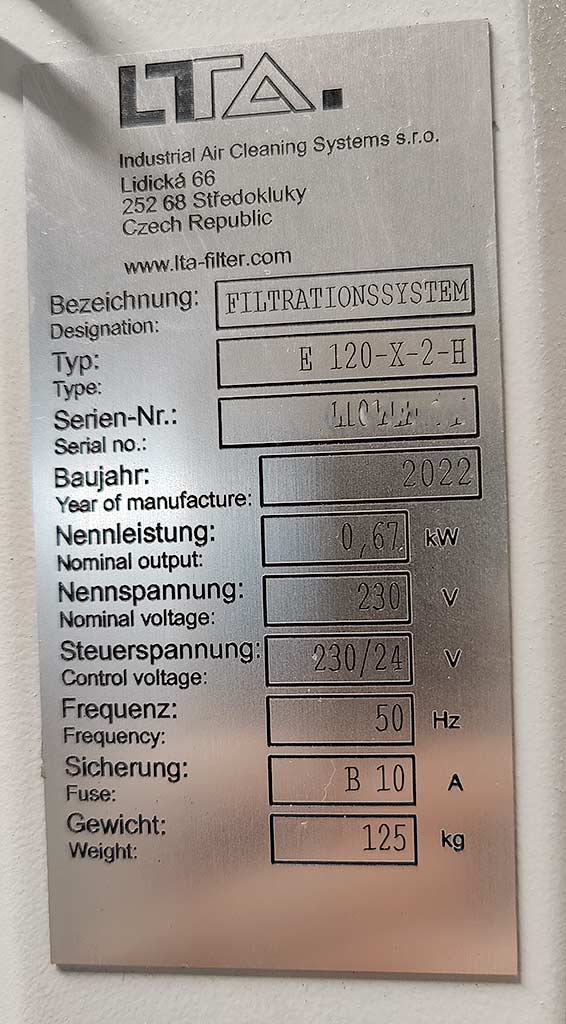

approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E
120-X-2-H filtration system, year of manufacture: 2022, filter stages:
2, extraction capacity: 1200m³/h, blower capacity: 2400m³/h,
differential pressure: 840Pa, max. separation efficiency: 99.8%,
machine dimensions X/Y/Z: approx. 1150mm/620mm/650mm, weight: approx.
125kg. Documentation available. An on-site inspection is possible.
