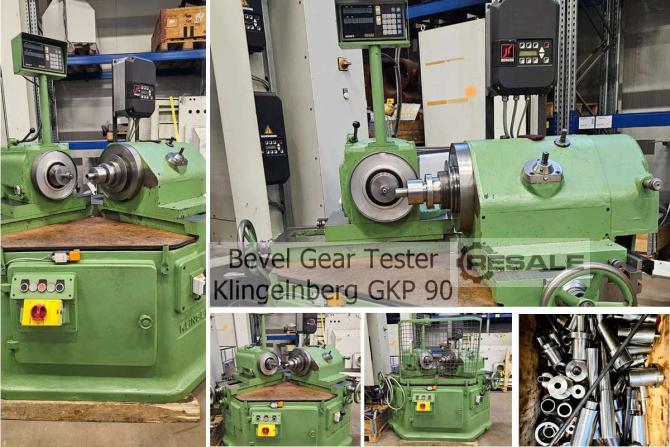

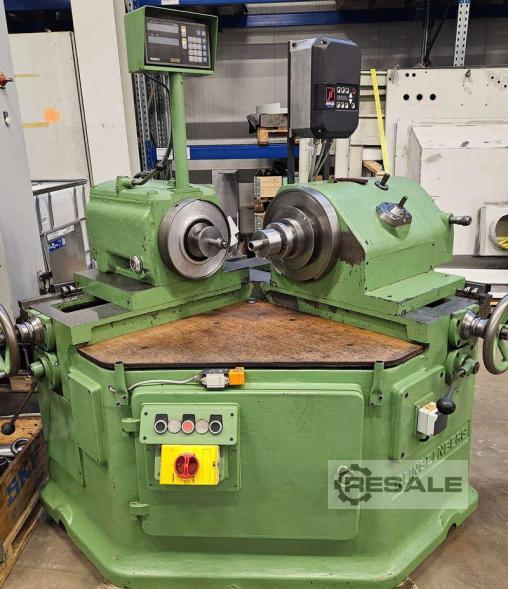

The Klingelnberg GKP 90 bevel gear testing machine was designed as a
universal machine and is used by manufacturers of gears and
transmission technologies, for the process of noise and contact
pattern tests on bevel gears and hypoid gears.
Technical data
Diameter: 540 (400) mm
Hypoid: ±50 mm mm
Pinion spindle Dm: 90 mm mm
Dimensions: 1,800 x 1,800 x 1,600 m
Machine weight: approx. 2,800 kg
Information and data are non-binding, subject to prior sale
Special features:
The machine is intended for noise and contact pattern tests on bevel
and hypoid gears of all gears. By simulating operating conditions,
applying different speeds and changing the load states for drive and
H6356982 outlet, the optimal installation distance for standstill can
be determined.
Digital actual value display for 2 axes
Stepless speed adjustment via frequency converter

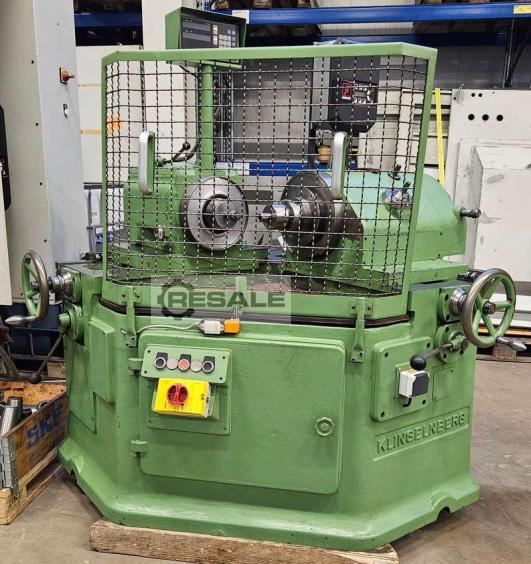

Electrically fused and acceptable protective grille
Accessories - large number of workpiece holders
Condition: very good
Germania
