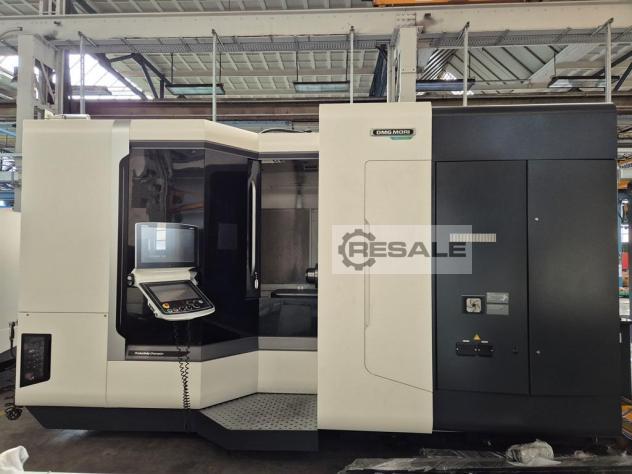

Used machine DMGMORI NHX6300
Machine type: CNC machining center horizontal
Model No.: NHX6300
Manufacturer: DMGMORI
Control: CELOS MAPPS
Year of Make: 2021
Location: Germany
#001396
TECHNICAL DATA:
Travels:
X-axis: [mm] 1050
Y-axis: [mm] 900
Z-axis: [mm] 1030
B-axis 0.001°
Rapid traverse: (X/Y/Z) [m/min.] 60
Speed range: [1/min.] 12,000
Drive power: [kW] 55/30
Tool holder: HSK100
Tool Changer Tool Positions: 120

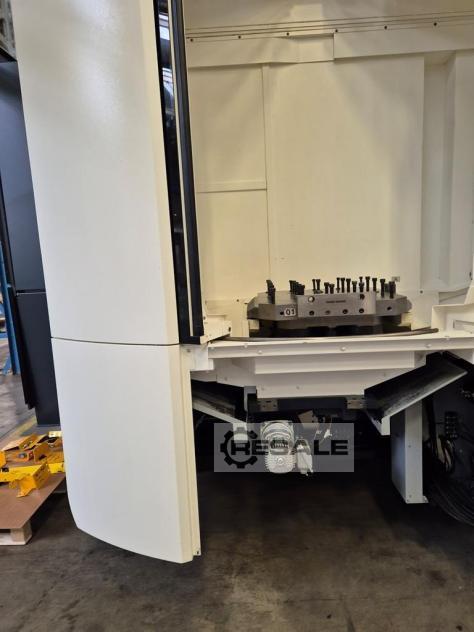

Pallet system
Number of pallets: 2
Pallet size: [mm] 630 x 630
Machine weight: [kg] 18,700
Facilities
Control F31iB with CELOS spindle cone HSK-A100 preparation for coolant
system

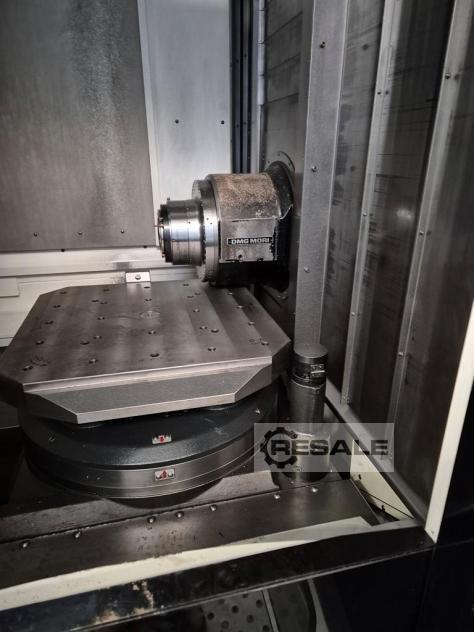

by the spindle rotary table with full-fledged 4th axis 120-fold tool
magazine (HSK-A100)-
Coolant Washer Nozzles for Mist Separator INTERLIT TMF300/980 Setup
Station Connection
Compact filter system 70 bar-INTERLIT coolant cooler 15 kW in-machine
measuring system (spindle)
optical signal (table), tactile sensor (Magnascale) (length and
diameter)-4-color
Signal Light (Red, Yellow, Green, Blue)-Automatic Door-10 External
M-Codes Tapping,
Synchronous Islands, Open Pocket Cycles High Speed Cycles 3
DKcoordinate Conversion
Tilted Work Plane 3D Tool Compensation Tool IC Command
(MAPPS software only) (Balluff) with MCC-TMS I/F
This offer is subject to change and non-binding. Changes, errors and
prior sale expressly reserved.
