Used machine

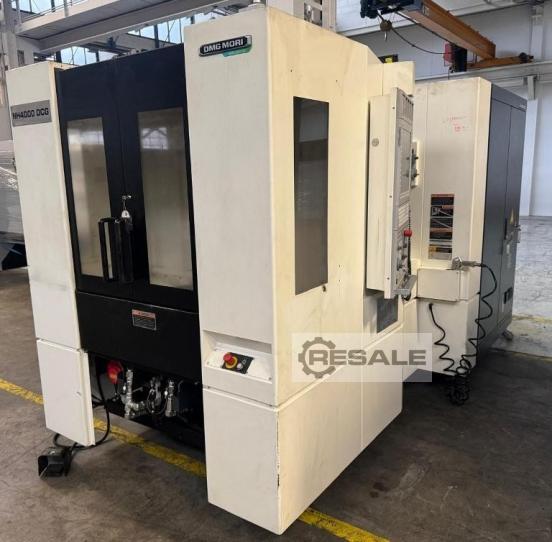

CNC machining center horizontal
Manufacturer:DMGMORI
Type:NH4000DCG
Year of construction:2021

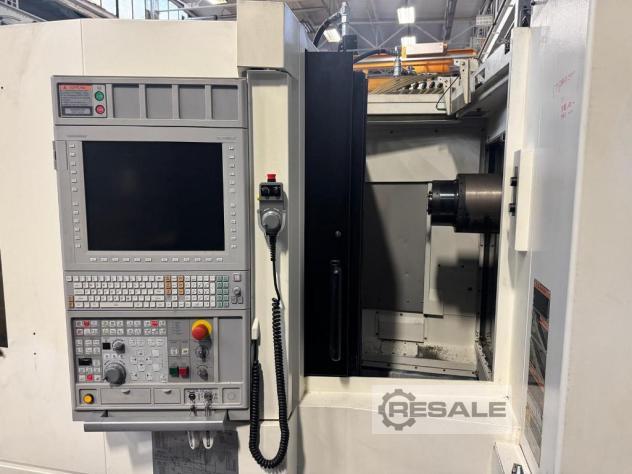

Control Type:FANUC F31iB
Origin: Japan
Location:Germany
Delivery Time
Technical data
Traversing range
X-axis approx. 560mm
Y-axis approx. 560mm
Z-axis approx. 630mm
Table 360° 1°
Workpiece diameter approx. 630mm
Workpiece weight max. approx. 400kg
Speed max. approx. 14,000 rpm
Spindle motor approx. 18.5/11KW
Number of tool positions approx. 40
Rapid traverse approx. 50m/min
Mounting Taper BT40
Compressed air bar,L/min approx. 5, 300 bar,L/min
Power consumption approx. 34kVA
Footprint L x W x H approx. 2,360×3,914x2,711m
Machine weight approx. 9,600 kg
Automatic Rotary APC Tool Holder: BT40-Max. Spindle speed 14,000
min-1,-18.5/11
kW (10min/100% ED)-Number of Tools: 40 (Chain Type)-Table Indexing 1°
Scraper Belt Conveyor
with drum filter preparation for lateral coolant supply through the
spindle.
Coolant System 15 Bar Coolant Gun for Operator Side Renishaw Probe
(Tactile) for
Tool Spindle Machine Measuring System (Table)-Manual Portable
Handwheel
Coordinate System Rotation
This offer is subject to change and non-binding. Changes, errors and
prior sale expressly reserved.
