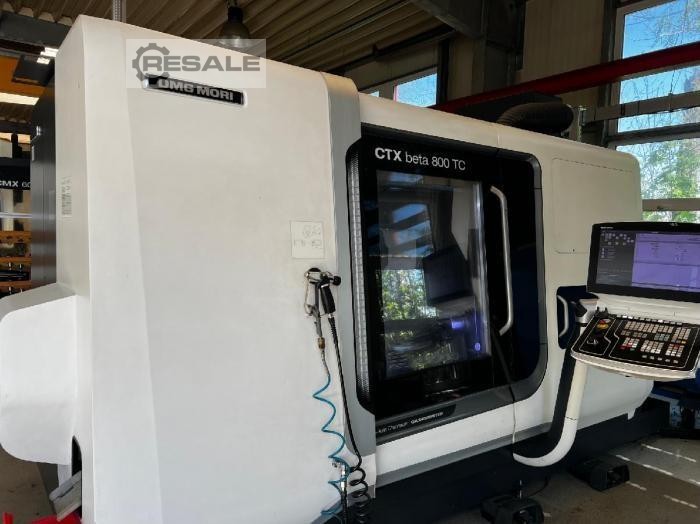

Torni CNC DMG MORI CTX Beta 800 TC

The machine is in good technical condition, after prior agreement it is possible to test it. with the Siemens Shopturn system, including the feeder, the machine is fully equipped. BASIC PARAMETERS Working space max. turning Ø: ≈ 410–500 mm max. length: 800 mm distance between spindles: approx. 1020 mm swing diameter above the bed: ~700 mm realistic: ideal for shafts, flanges, bodies up to ~800 mm Travels (axes) X: ~480 mm Y: 100 mm Z: ~800–845 mm B axis: 110 (5-axis machining) C axis: 360 (indexing + interpolation) this makes it a full-fledged turn-mill (not a classic lathe) Spindles main spindle speed: ~5000 rpm power: ~25–34 kW passage: approx. 76–87 mm counter spindle speed: ~6000 rpm milling spindle (main difference compared to a classic lathe) speed: up to 12,000 – 20,000 rpm power: ~19–22 kW taper: HSK-A63 or Capto C6 allows: milling drilling tapping 5-axis simultaneous operations Tool system magazine: 24 – 48 tools live tools: yes (fully integrated) Control system Siemens 840D sl + CELOS (most common) Weight and dimensions weight: ~10,000 kg dimensions: approx. 6.5 × 2.7 × 2.0 m
seller offer No. resale 32293
