CHARMILLES FI 440 CC wire EDM was manufactured in 2007 in Switzerland
by Charmilles Technologies SA. The offered machine is an excellent
choice for the production of precision dies, cutting dies and punches.
It enables the efficient machining of workpieces made from even the
hardest materials by means of electrical discharge machining. During
machining, material is removed through controlled electrical
discharges occurring between the wire and the workpiece submerged in a
dielectric. This results in a high-quality surface finish without the
need for additional finishing operations, such as polishing.
The CHARMILLES FI 440 CC performs machining with a 5-axis cutting
head. All axes of the machine are equipped with measuring systems in
the form of linear scales and an anti-collision system. This solution
guarantees the highest positioning accuracy and safe operation, even

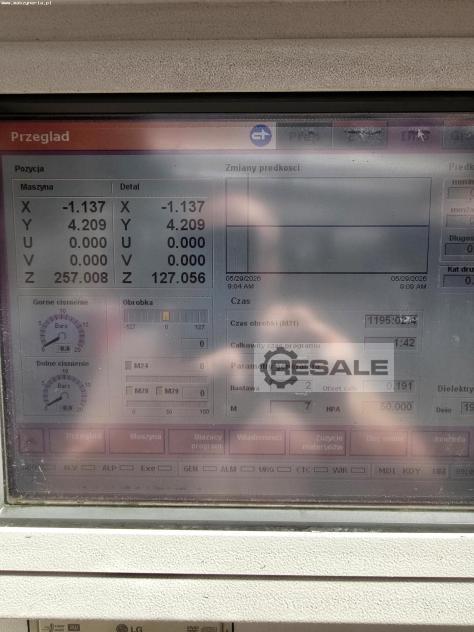

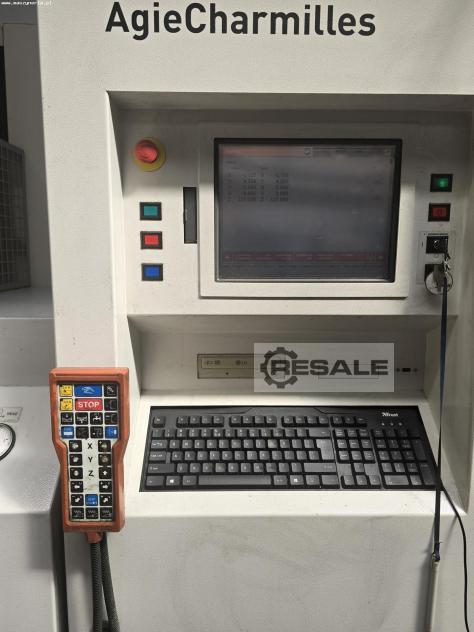

at high movement dynamics. The process parameters are programmed in an
intuitive CNC control system offering access to a wide range of
advanced functions. All this is complemented by a rigid design that
maintains high stability during intensive use. The CHARMILLES FI 440
CC wire EDM weighs 2850 kg.
Technical specifications of the CHARMILLES FI 440 CC wire EDM
General specifications
- number of axes: 5 (X,Y,Z,U,V)
- feed in the X/Y/Z axis: 550/350/400 mm
- feed in the U/V axis: 550/350 mm
- axis feed rate: 0-900 mm/min
- cutting angle: 30°/400 mm
- maximum workpiece dimensions (L x W x H): 2600 x 2810 x 2080 mm
- maximum workpiece weight: 1500 kg
- maximum wire diameter: 0,25 mm
- maximum wire spool weight: 8 kg
- wire feed rate: 0,5-15 m/min
- wire pulling force: 0,3-2,5 daN
- air pressure: 6-7 bar
- minimum air flow rate: 150 l/min
- ambient temperature: 15-30°C
- installed power: 12 kVA
- power supply: 3x 400 V; 50/60 Hz
- weight of the AGIE CHARMILLES FI 440CC machine: 2850 kg
Dielectric tank
- dielectric: deionised water
- capacity: 1200 l
- maximum dielectric level: 435 mm
- dielectric level adjustment: automatic
- dielectric cooling system
- weight of empty tank: 400 kg
Equipment of the FI 400CC wire EDM
- CNC controller
- axis movement measurement system in the form of linear scales with a
resolution of 0,5 μm
- anti-collision system in all axes
- flushing system with 4 programmable pressure levels (2,4,8,13
bar)
- filtration system with 4 filter cartridges
(The technical parameters given may differ slightly from reality. A
verification with the actual capabilities of the offered machine is
required.)
