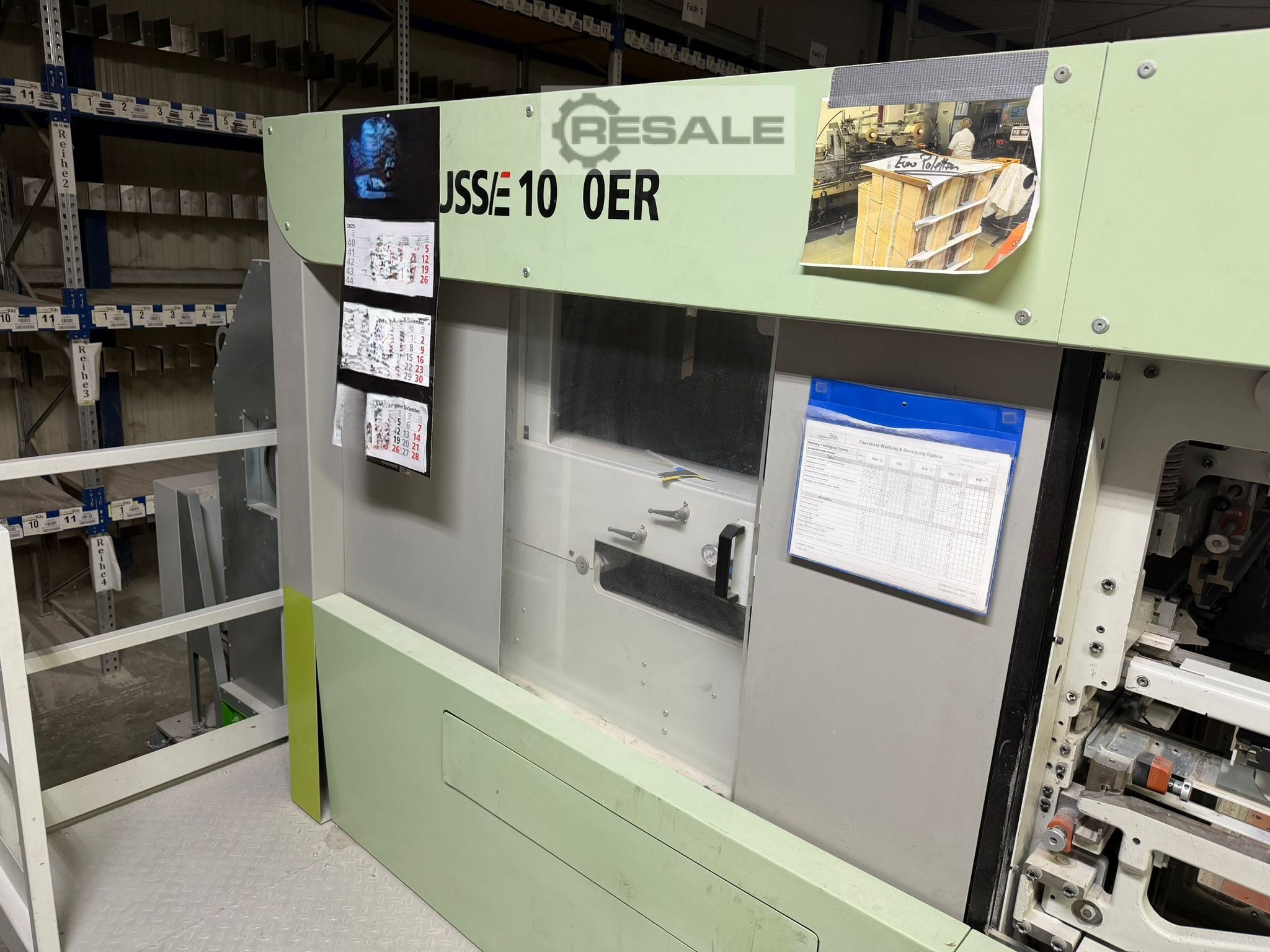

Fully Automatic High-Performance Die Cutting Machine With Integrated
Stripping And Blank Separation, Designed For Industrial Folding Carton
And Packaging Production. The Machine Features A Non-Stop Feeder And
Delivery System For Continuous Operation And Maximum Productivity,
Max. Sheet Size: 1060 × 750 Mm, Min. Sheet Size: 400 × 350 Mm, Paper
From 90 G/M², Carton Up To 2000 G/M², Corrugated Board Up To 4 Mm,
Max. Die Cutting Pressure: 260 Tons, Mechanical Speed: Up To 6,500
Sheets/Hour (Designed For Up To 8,000 Sheets/Hour), Quick Lock Die
Frame, Quick Lock Stripping And Separation System, Ultrasonic Double

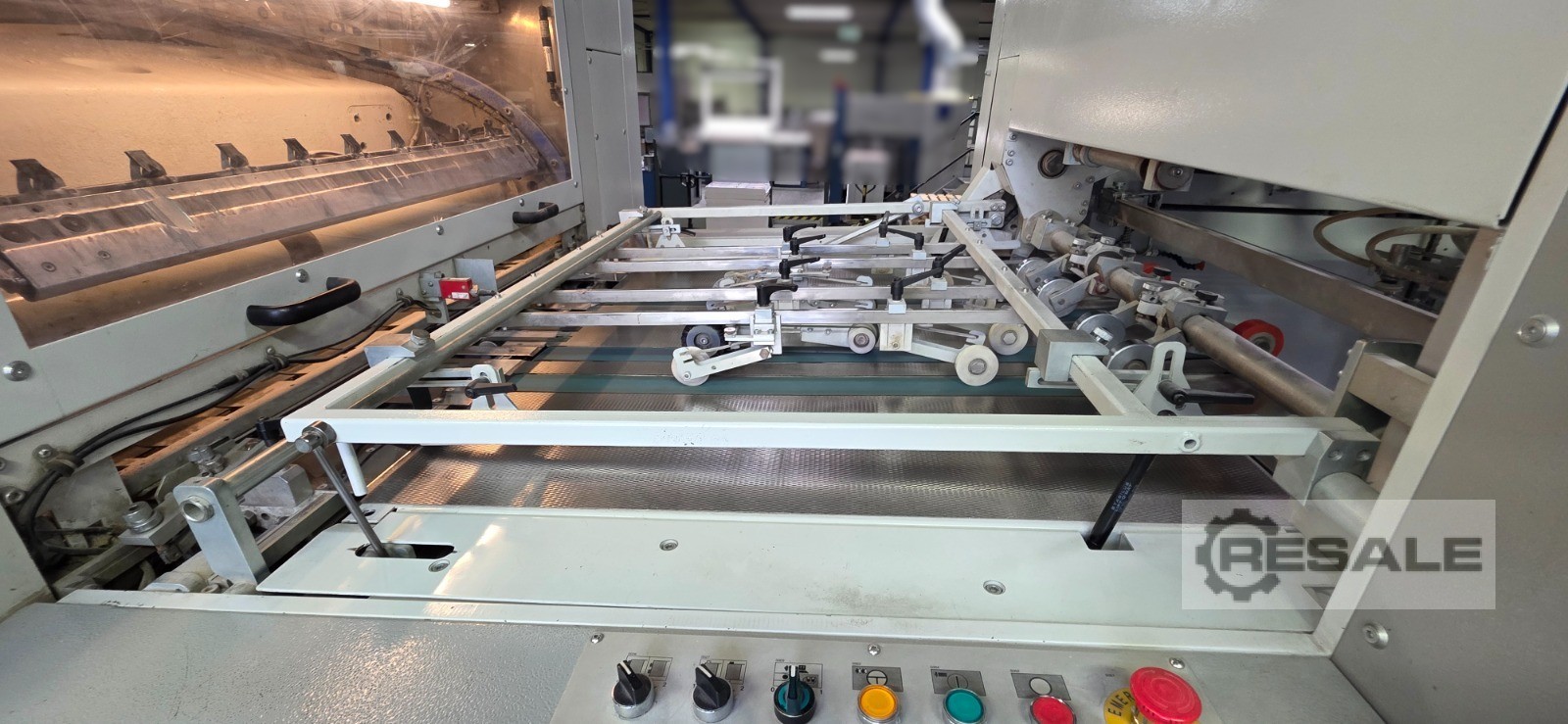

Sheet Detection, Anti-Static System, Precision Gripper Transport
System, Pneumatic Die Locking, Motorized Pressure Adjustment,
Heavy-Duty Drive System, High-Precision Registration Control, Complete
Tooling Included, Quick Change Frames, Automatic Waste Removal,

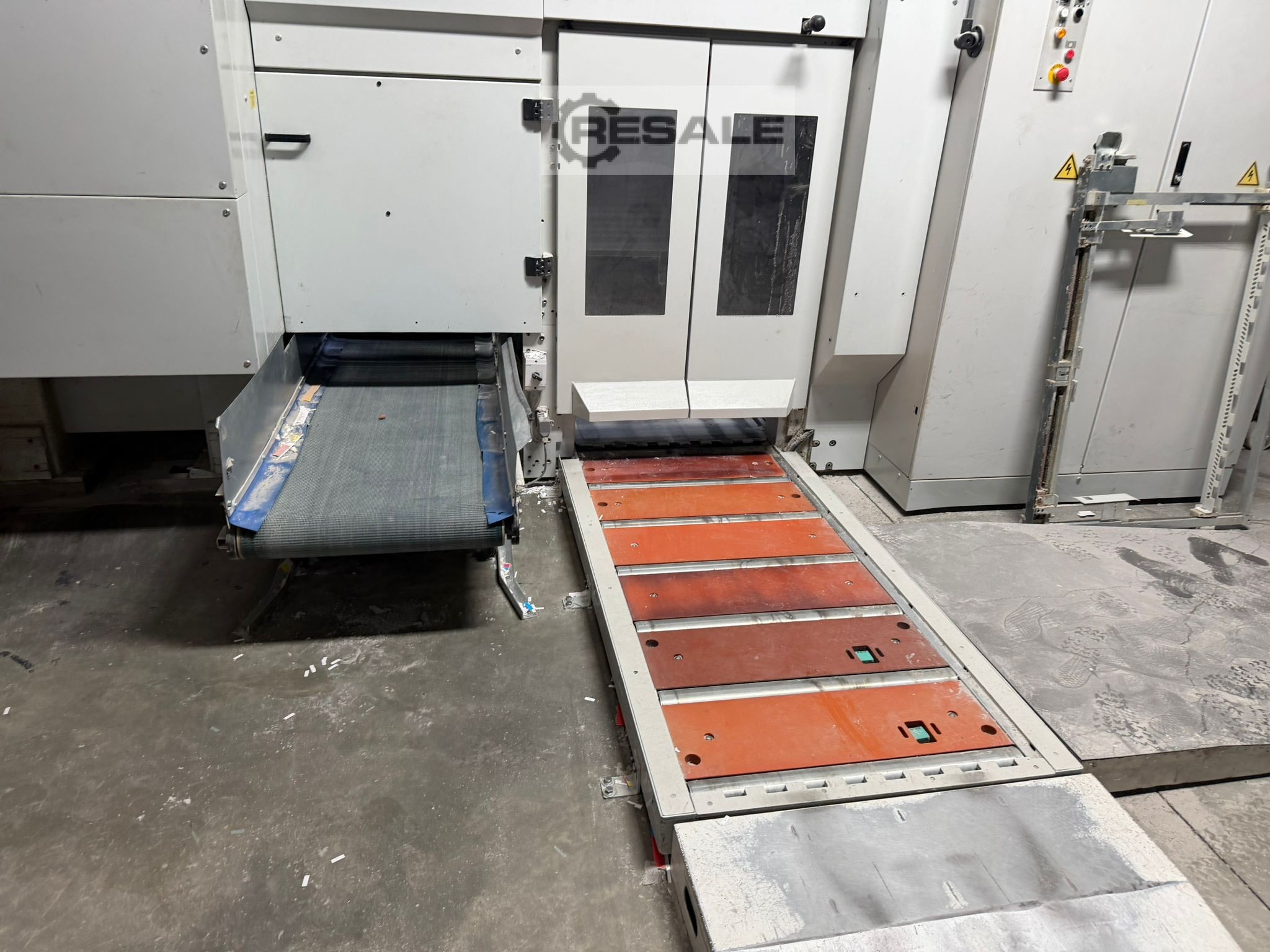

Non-Stop Delivery With Automatic Pallet Changer, Mitsubishi Plc

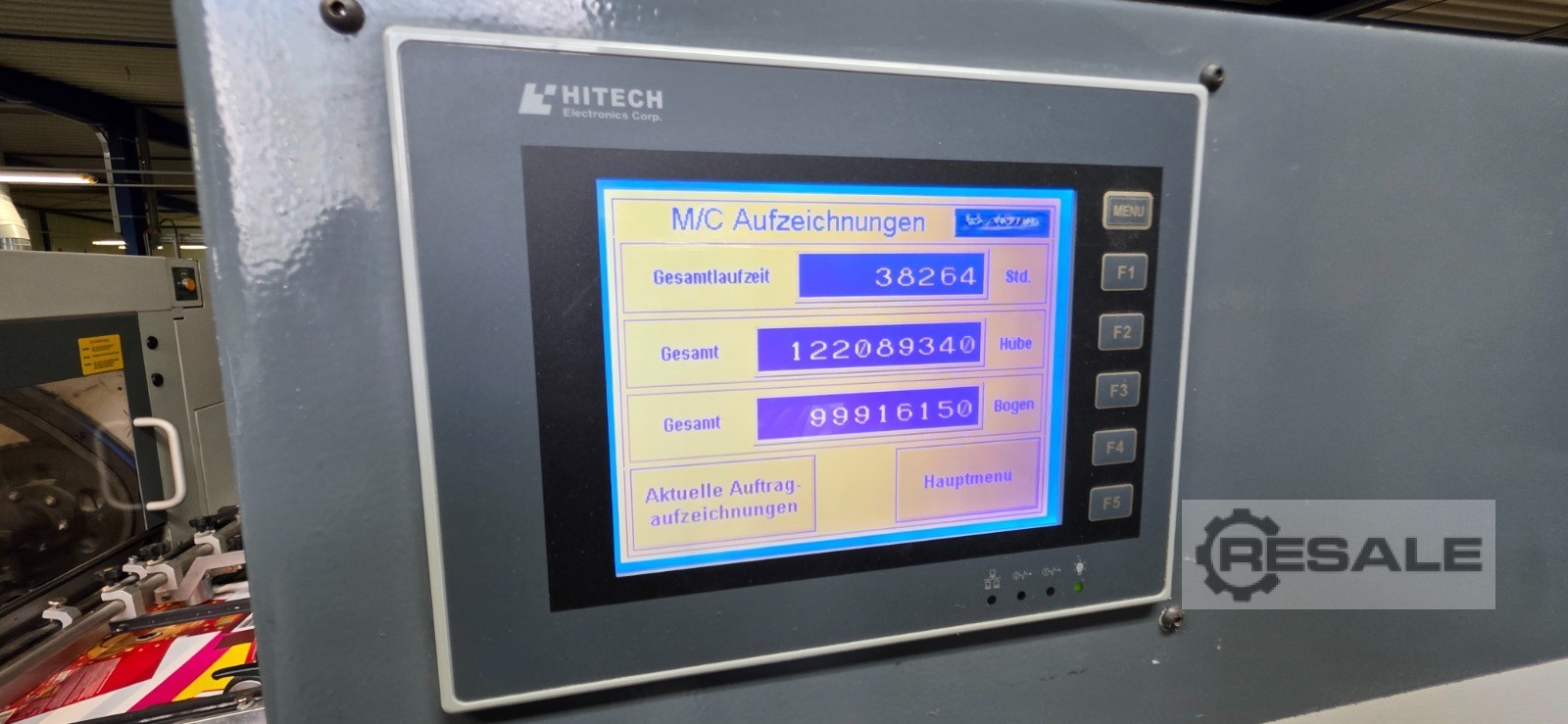

Control With Omron And Siemens Components, Touchscreen Hmi Control
Panel, Full Ce Safety Certification, Power Supply: 400 V / 50 Hz,
Total Power: 26 Kw, Air Requirement: 6 Bar / 600 L/Min, Dimensions:
Approx. 9425 × 4530 × 2640 mm, Net Weight: Approx. 22,000 kg
Germania
21465 Wentorf Bei Hamburg
