faceplate diameter: 5000 mm
swing diameter: 8000 mm
turning
height: 4000 mm
ram head dimension: 360 x 360 mm
faceplate
turning speed range: 0,6 - 60 U/min
workpiece weight: 160
t
main drive motor: 2x 70 kW
control: FANUC
total power
requirement: - kW
weight of the machine ca.: 85 t
dimensions
of the machine ca.: -- m
The machine will be overhauled and
modernised (upon order) and fitted with:
- Fanuc CNC control
system (latest model)
- New electrical system
- New hydraulic
components: pumps, lubrication systems, hoses, valves, etc.
- All
assemblies and sub-assemblies will be cleaned, inspected and replaced
where necessary.
- 2 rams supports on the
crossbeam

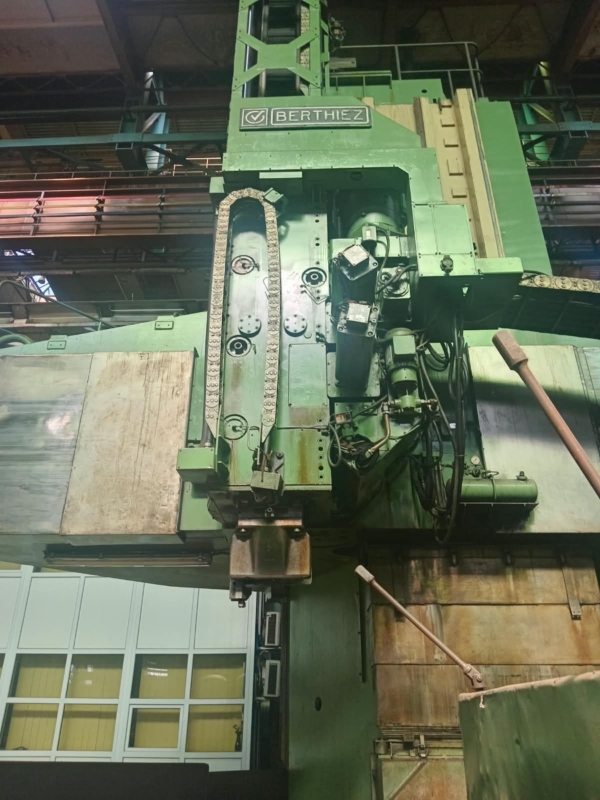

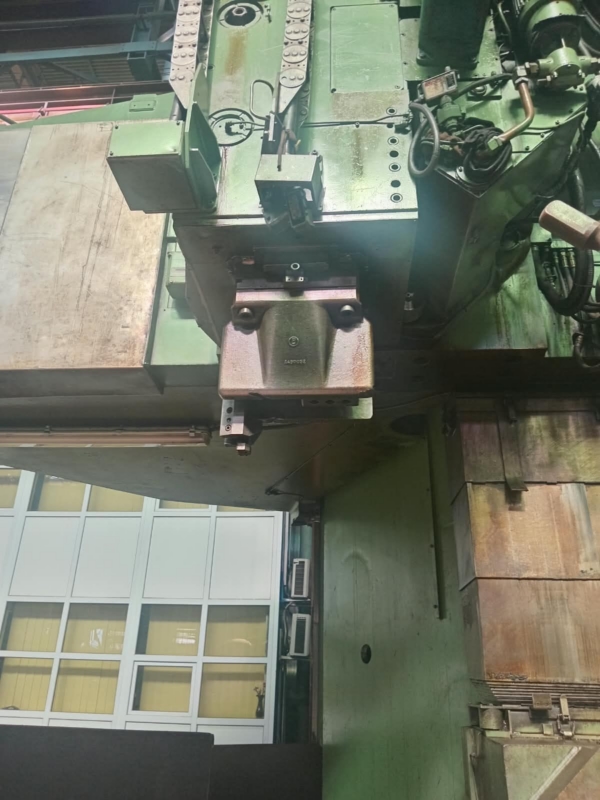

CROSS-RAIL TOOL HEAD (ARM TOOL CARRIAGE)
- Axial ram
travel (Ram stroke) — 2500 mm
- Horizontal carriage travel —
3400 mm
- Swivel angle / Tiltability — 15 - 45°
-
Cross-rail travel (Arm travel) — 3600 mm
- Saddle travel —
6500 mm
SIDE TOOL HEAD
- Axial ram travel — 1600
mm
- Vertical carriage travel — 3450 mm
Slow rotation
speed:
- Milling: 0.01 to 0.50 rpm
- For positioning: 0.001 to
0.50 rpm
